Description
Condition
Payment Types Accepted
Superb Limited Use Item, in SLC Utah Whse & ready for Demo & immediate Sell

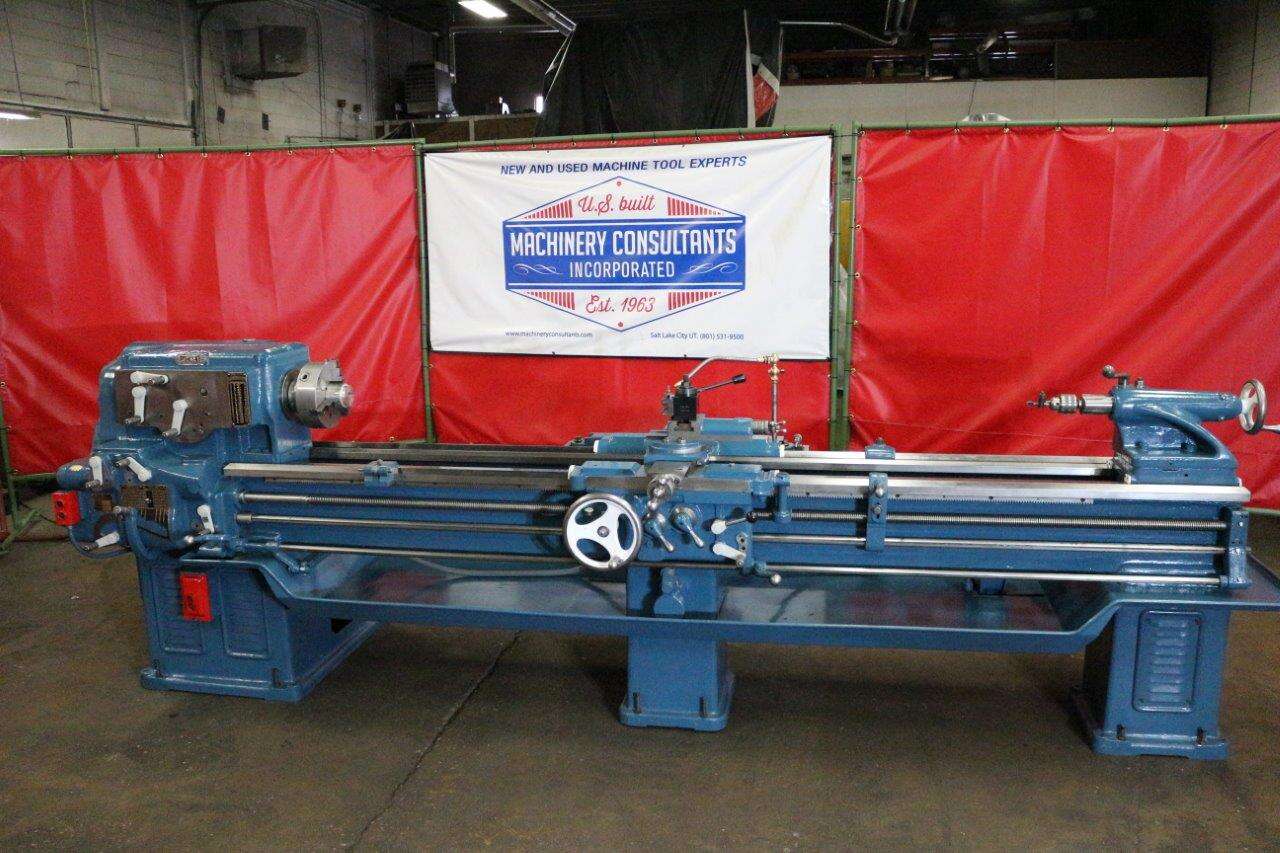

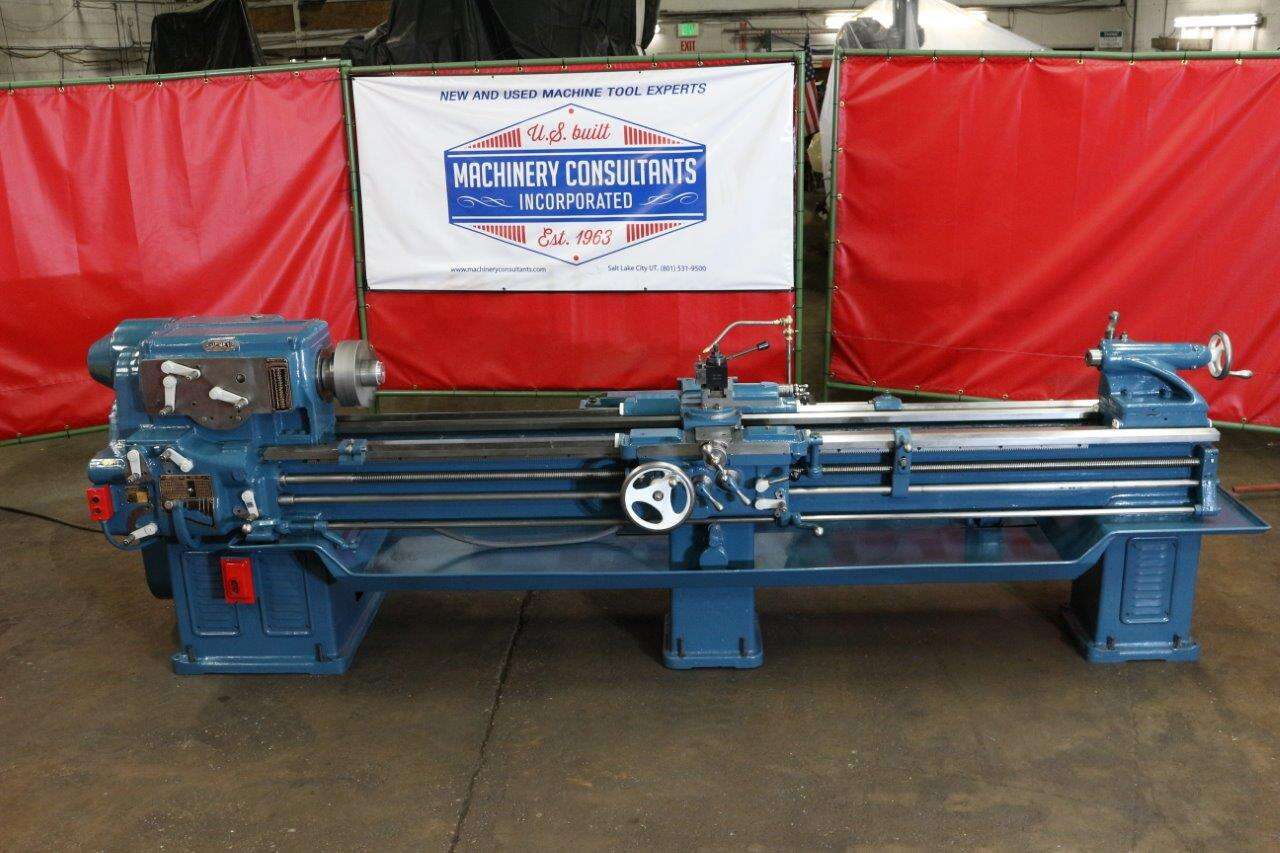

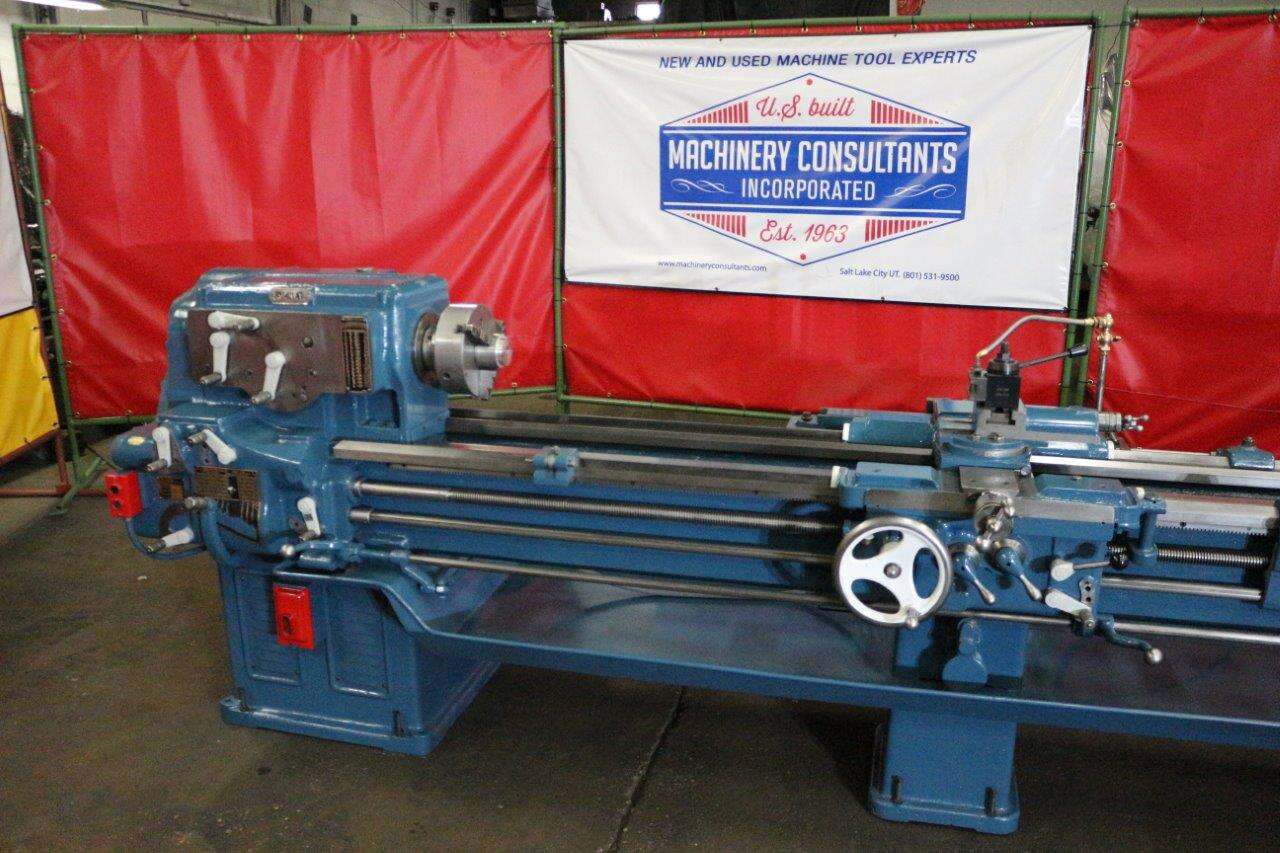

The Sidney Toolroom Lathe, 18” X 102”, super nice Lathe, Sidney lathe USA 18” x 102” S/N 8565 in Pristine Superb Condition & Runs very well, A Mint USA Built machine / tooling items available
Limited Use Tool Room Lathe, Lathe package with items, Asking Price: $ 9950.00
Overall under $10 K / Super clean machine, Low RPM, top speeds at 550 ish RPM This video shows it running under power,
General specifications are approximate, subject to verification.
Swing over bed 18”
Swing over cross slide 11 ½”
Max distance b/t centers 102”
Spindle nose Sidney threaded Nose Taper (possible DIN Type)
Spindle bore 1 5/8”
Spindle speeds (16) 14 TO 560 RPM
Tailstock taper #4 Morse Taper
Threads: Inch 2 ½ to 92 TPI
Carriage & cross slide Feed Range (16) .0035 to .172 IRP / IPM
Main motor 5 or 7.5 HP / 220/440 Volts* its at 440 Volts presently
Approx. dimensions 9 feet long 4’ W x 58” Height
Approx. weight 5,000# LBS
Inventory MCI Stock 2023 670
Complete With
- Herringbone style gear design for high accuracy & rugged design
· HARD, SHINY BED WAYS IN VERY LIMTED USE, SUPER CLEAN
· 10” 3 Jaw chuck, OEM Sidney supplied, 9-S-36 European stamp on face
· TAPER ATTACHMENT & BED CLAMP
· TOOLPOST PKG, CXA SIZE, Quick change & a few Holders
· COOLANT PUMP, BAMBA TPE W/HOSE
· MICROMETER BED STOP
· CHIP PAN is BUILT IN TYPE UNDER FRAME DESIGN
· KEYED DRILL CHUCK FOR TAILSTOCK
· THREAD CHASING DIAL Yes
Condition: VERY GOOD, & LIMITED USE Lathe, Pristine Superb Condition
Sidney is a really well built Machine, Super nice-Quality-tool room lathe,
recently pulled from long term storage, came to us & it runs very well
Investment FOB Our Warehouse $ 9950.00
MACHINERY CONSULTANTS INC BILL WILSON JR.
TECHNICAL SALES MGR. 1390 W. 200 S. Salt Lake City UT 84104 Ph: 801-531-9500
