RATTMMOTOR CNC Spindle Motor Water Cooled 2.2KW 220V Spindle Motor ER20 Collet
12 Days
121
10
$100.00
Description
Condition
Payment Types Accepted

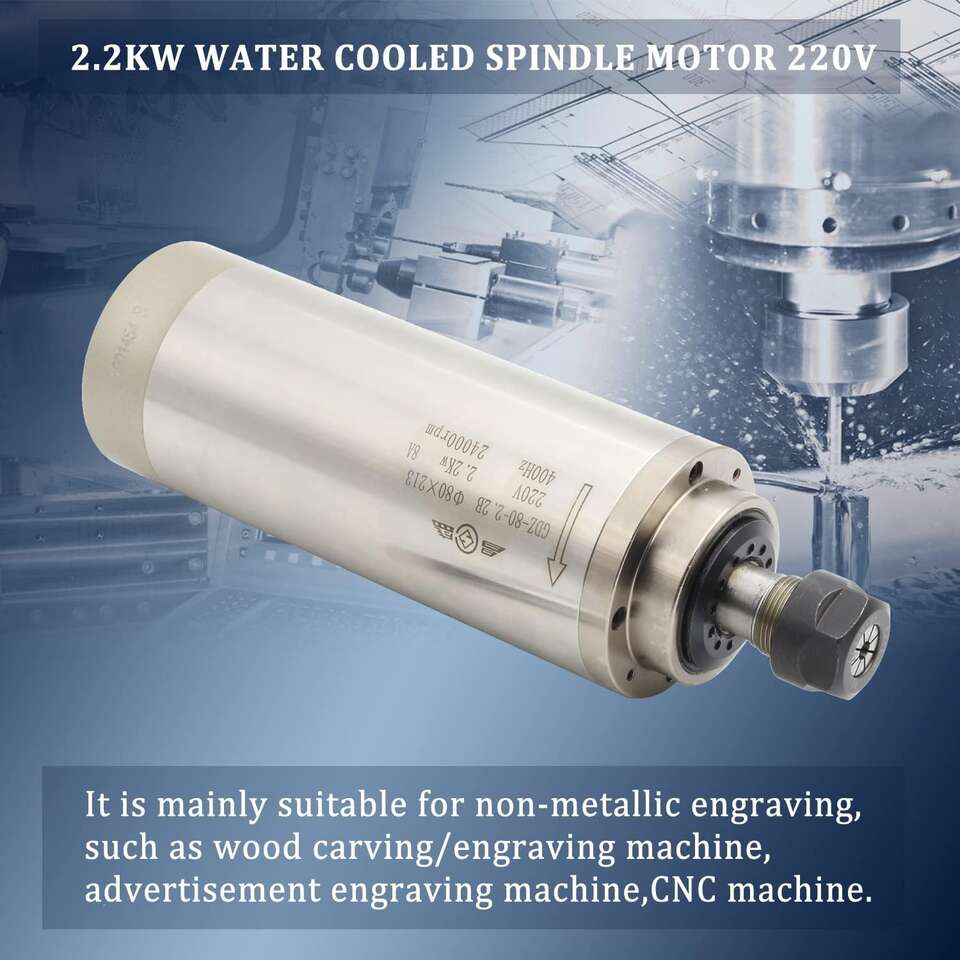

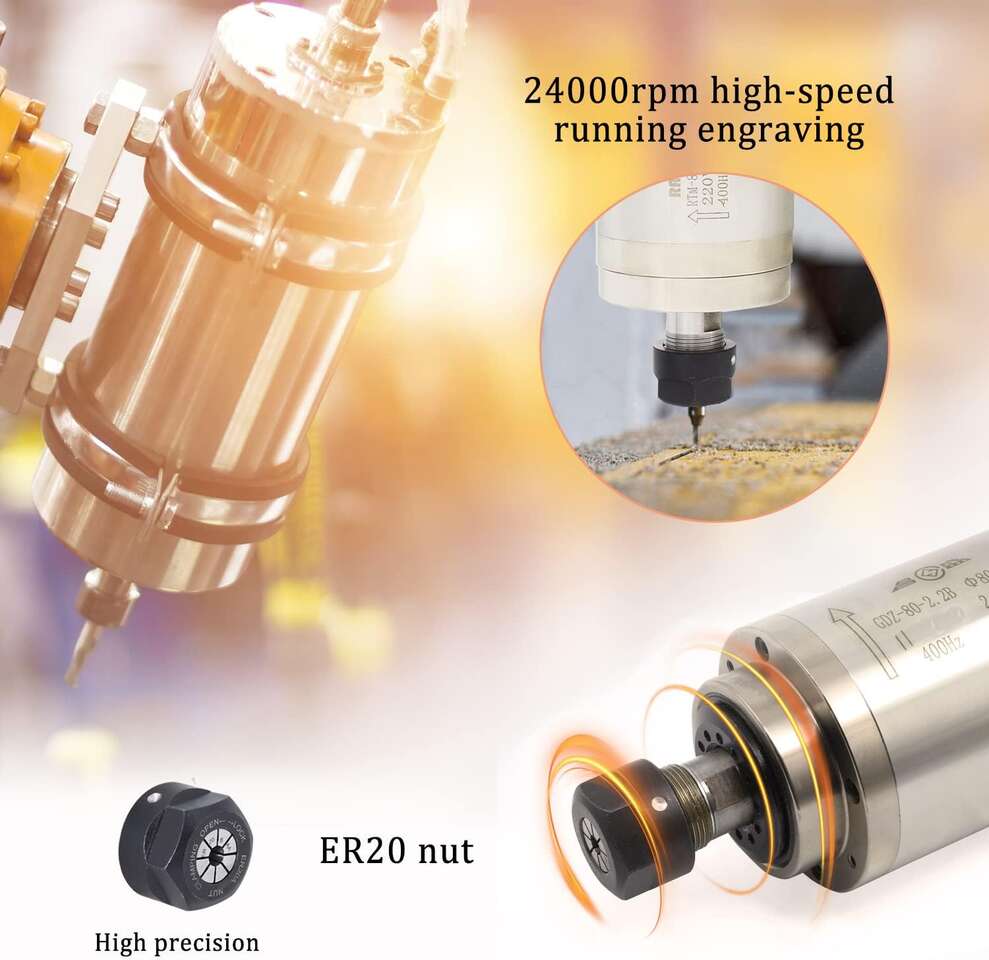

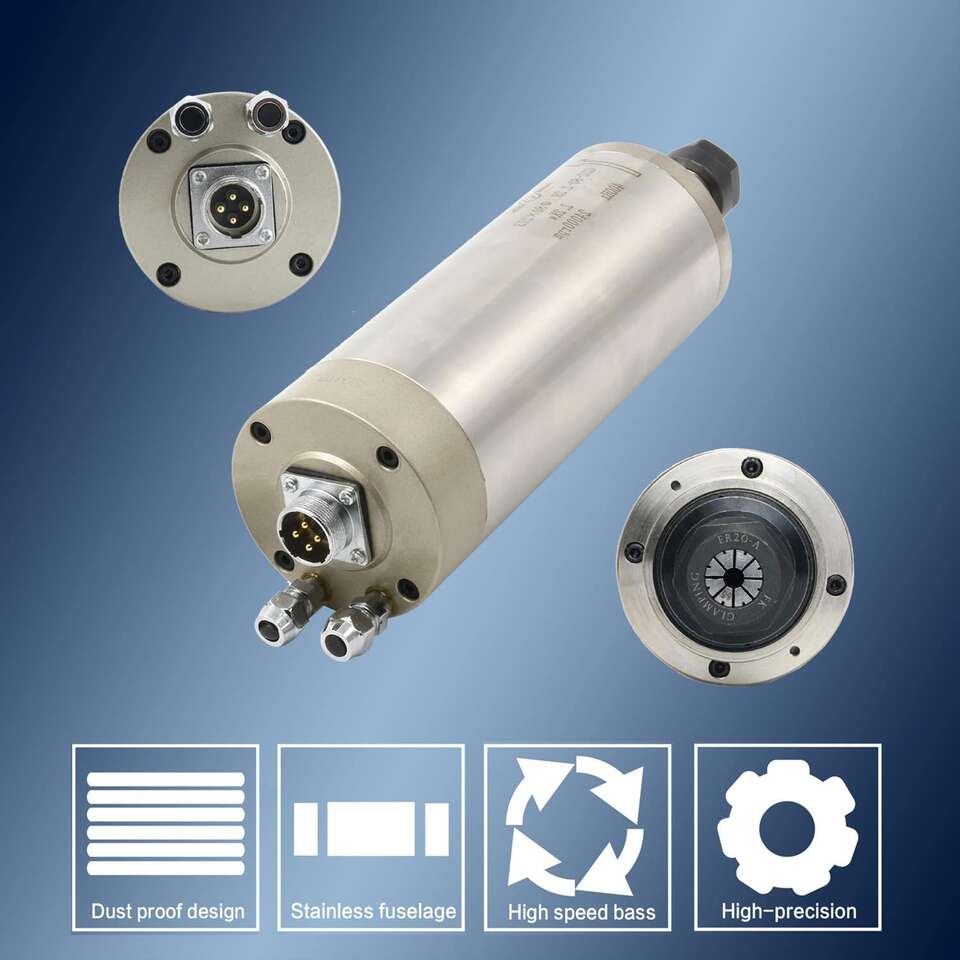

VenmoNew. Open box. Retail: $178 Selling: $100 Cash or Venmo Pick up in West Haven How to Connect The Spindle MotorThe spindle motor's aviation plug marked with number 1, 2, 3, 4. Number 1, 2, 3 port are connected with inverter's port U, V, W respectively. Number 4 is the ground wire, no wiring is required. Simple IntroductionThis is a 220V-2.2KW water-cooled 8A Φ 80x213mm spindle motor come with a ER20 nut and collet. Frequency is 400HZ, 0.003--0.005 accuracy and runout off is less than 0.01mm. It is mainly suitable for non-metallic engraving,such as wood carving/engraving machine, advertisement engraving machine,CNC machine. Speed of The Spindle Motor0-24000RPM. Because it is a high-speed spindle motor, the spindle speed must not be lower than 9000 rpm during the use of the spindle. It should be noted that the spindle only can rotate clockwise but not counterclockwise. ISO9001 quality certifications which means this item is the top quality item. In extremely high speed working environment, ordinary bearing can not ensure this high rotate speed for using for long time.
