Antique Vintage Grantline Model 503 AM Broadcast Receiver in Working Condition

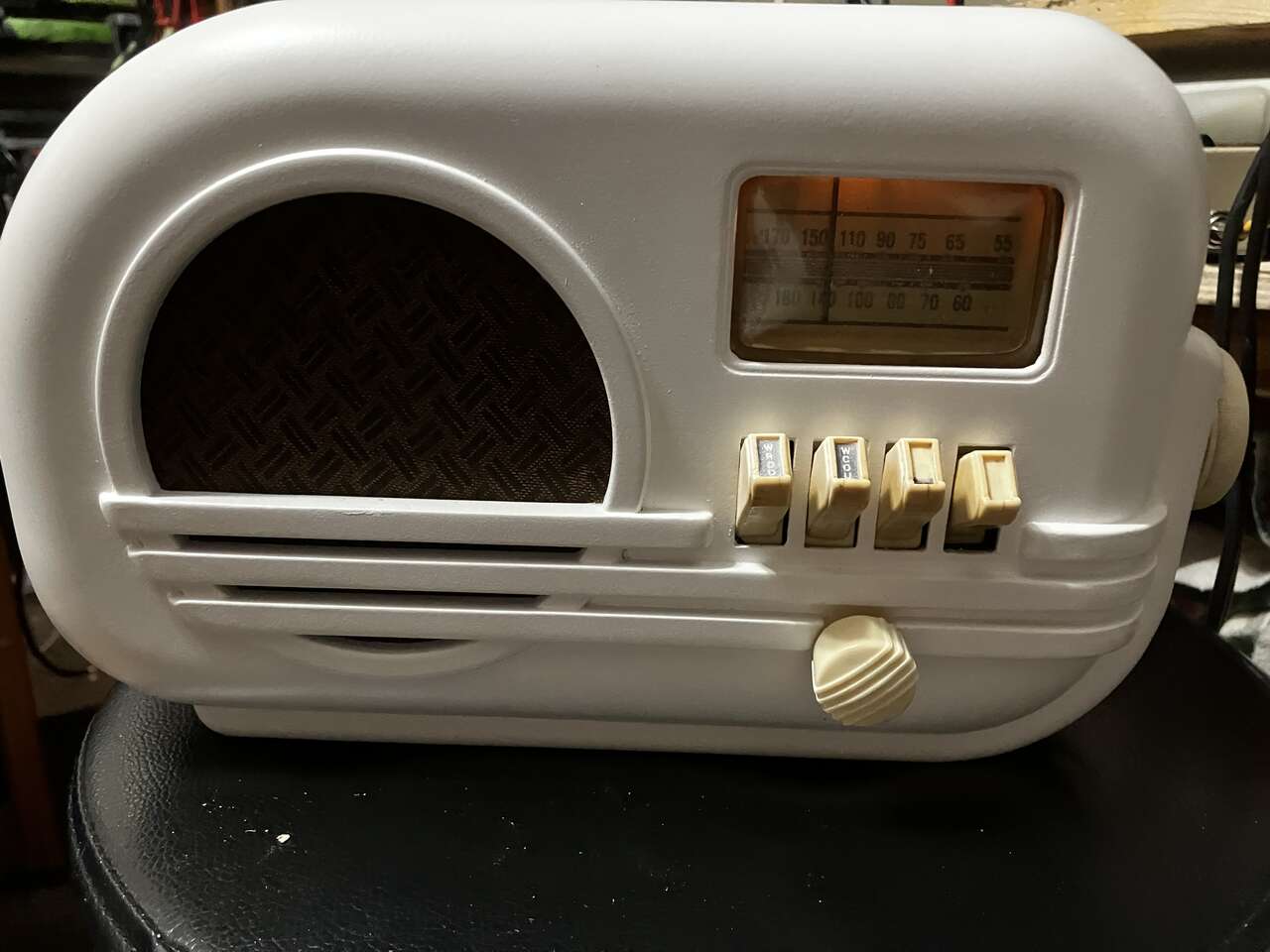

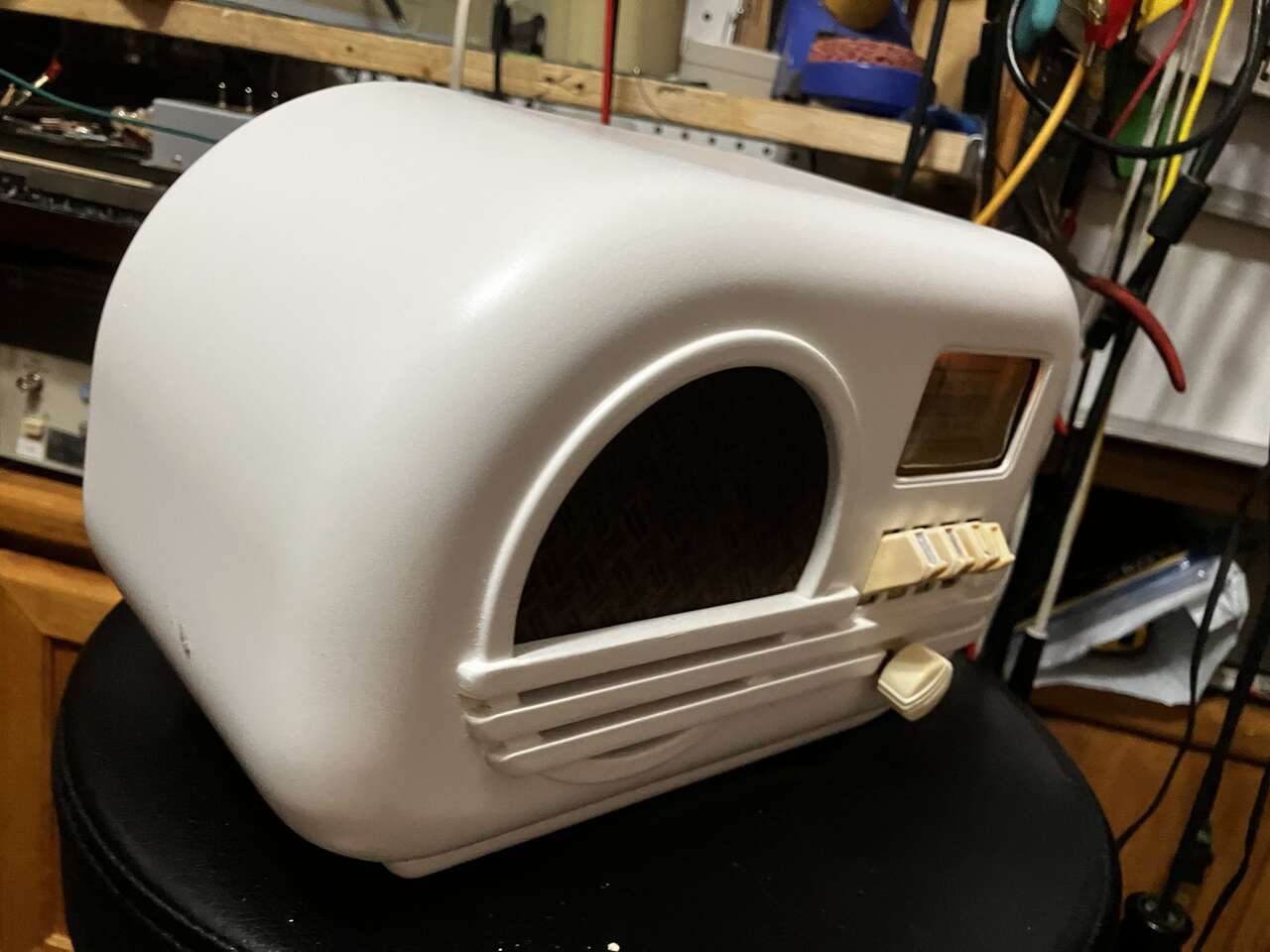

This is a neat looking radio with a cool art deco style.

See photo as they are part of description

Working great (EXCEPT ONE OF THE PUSH BUTTONS MISSING SPRING)

But still looking great .

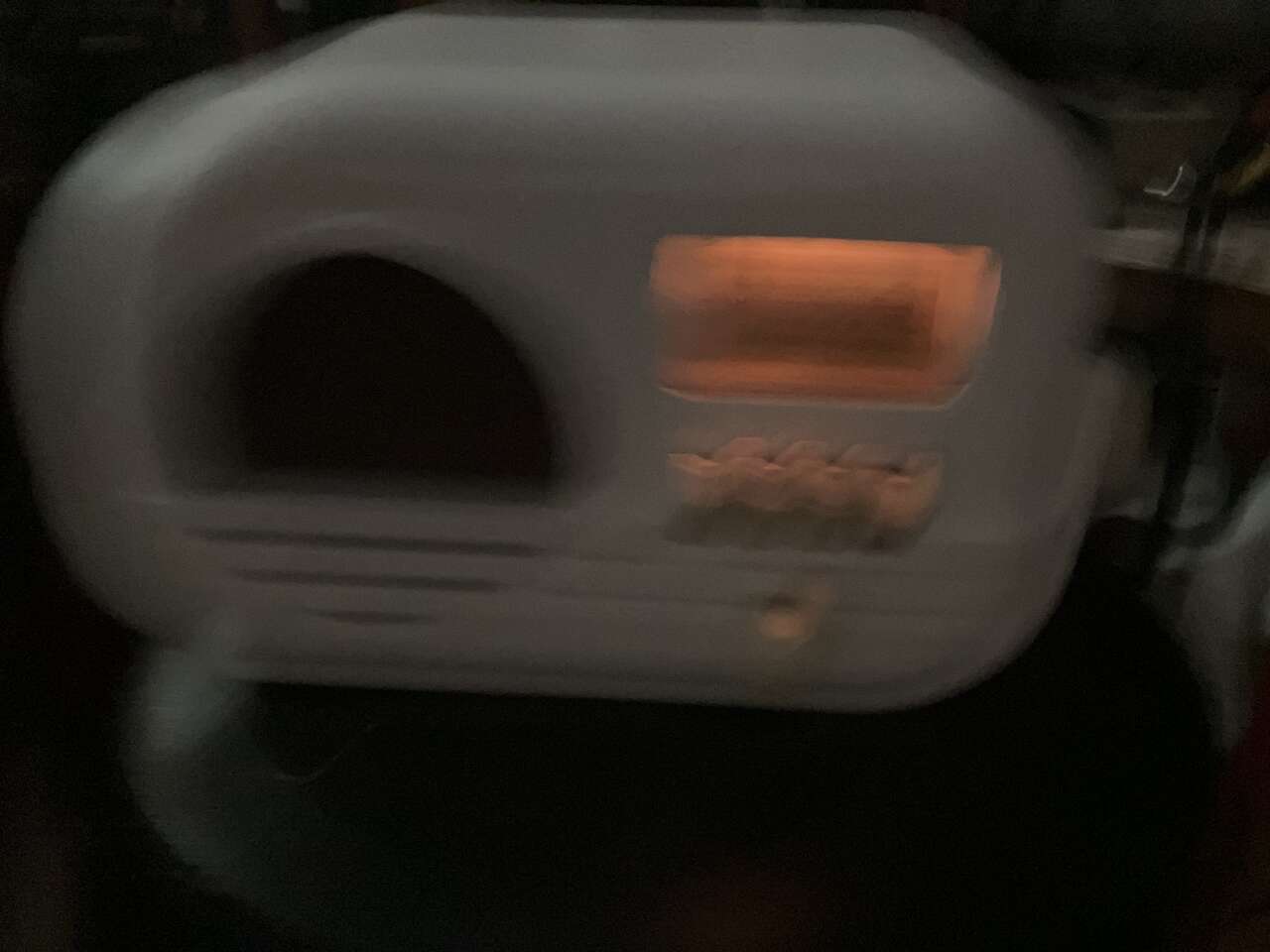

I can send you a video of it in action

Price 149 (nonworking) to 299$ on Ebay plus shipping $45-50

PLEASE NO BUTTON PUSHERS ASKING IF AVL IF IT IS LISTED IT IS AVL. !!!!

Technical Specifications

• Number of Tubes
• 5
• Valves / Tubes
• 12SA7 12SK7 12SQ7 50L6GT 35Z5GT
• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
• Tuned circuits
• 6 AM circuit(s)
• Wave bands
• Broadcast only (MW).
• Power type and voltage
• AC/DC-set / 105 - 125 Volt
• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
• Power out
• 0.8 W (unknown quality)
• Material
• Plastics (no bakelite or catalin)
• from Radiomuseum.org
• Model: 503 Series A - Grant Company, W.T. Grantline;
• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14
• External source of data
• Ernst Erb
• Circuit diagram reference
• Rider's Perpetual, Volume 16 = ca. 1948 and before
