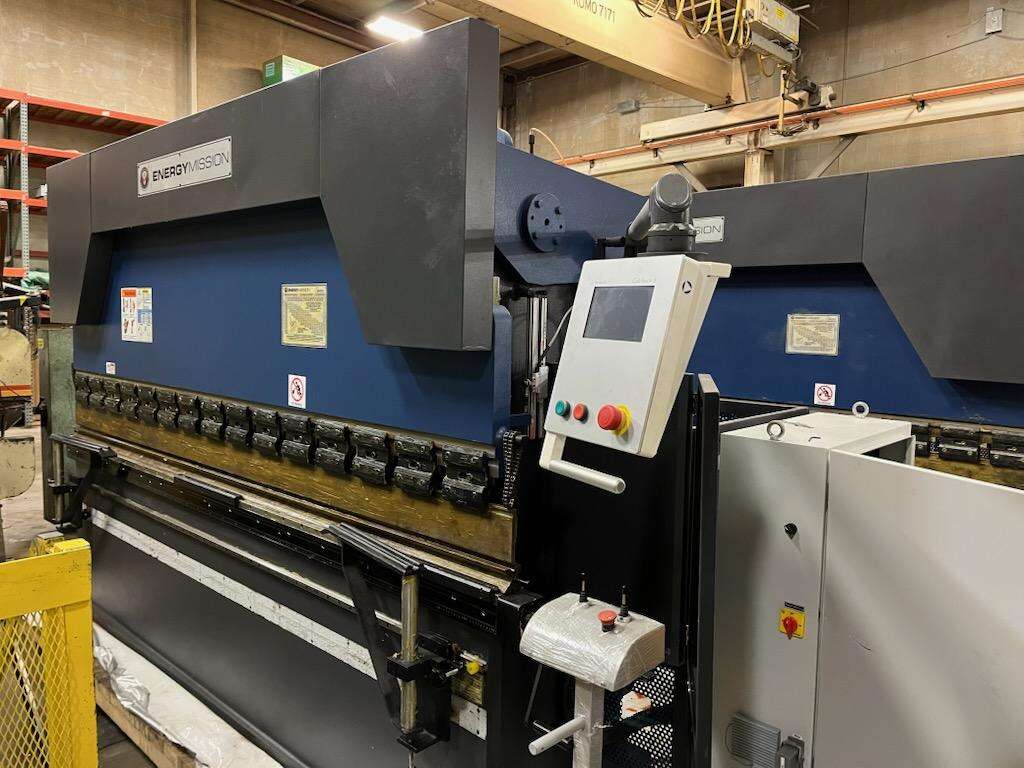

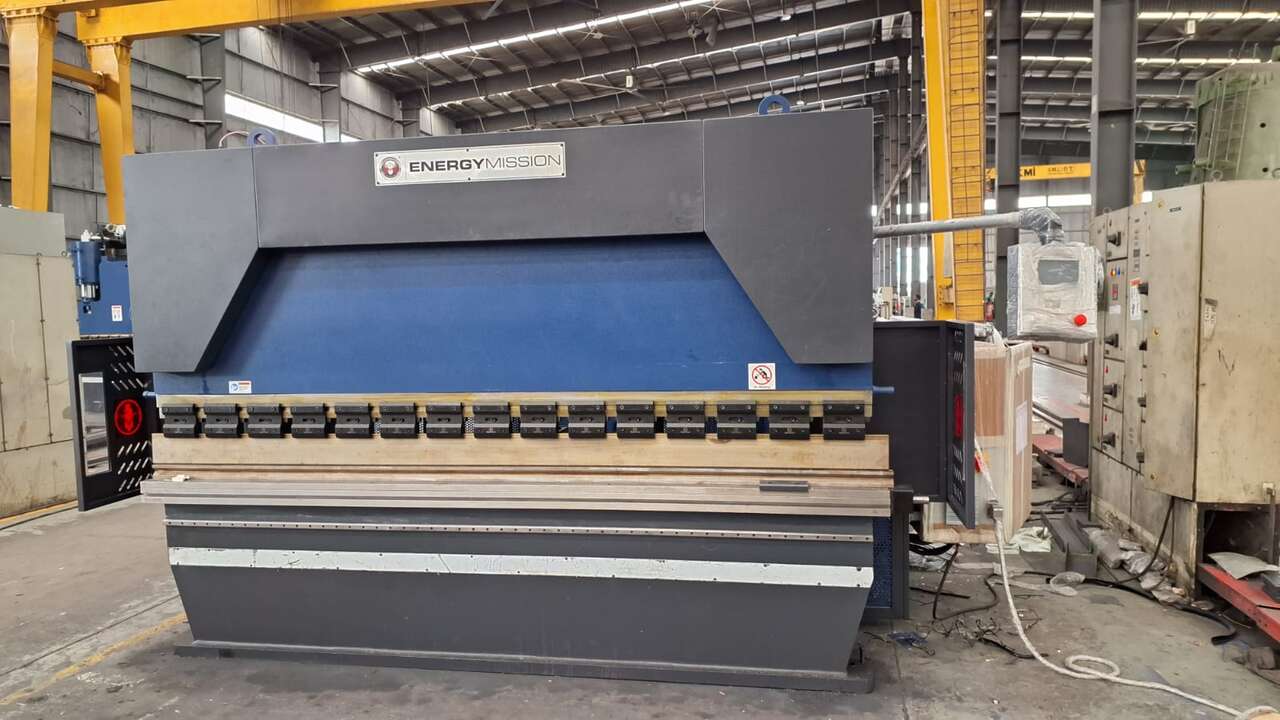

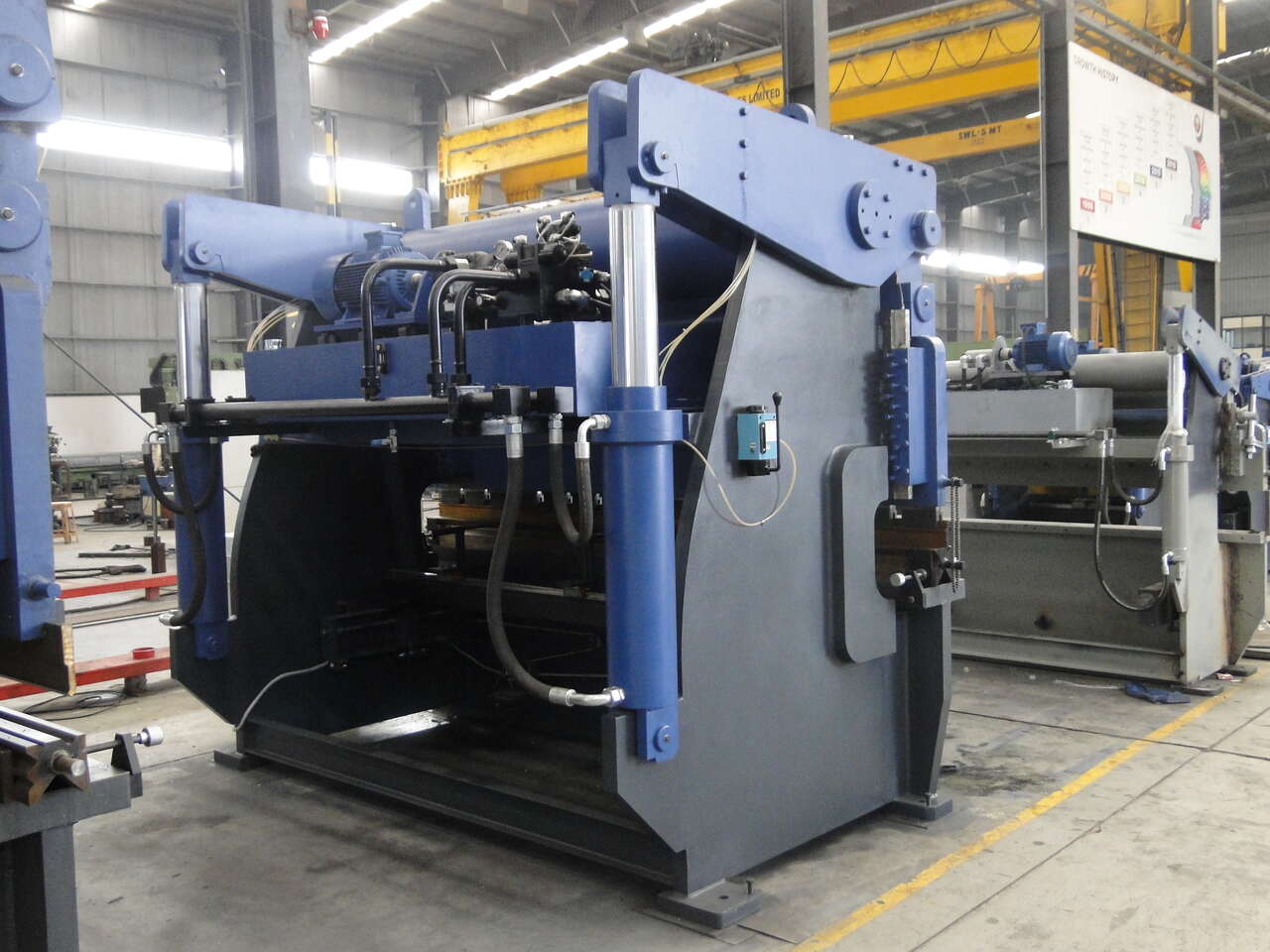

Energy Mission CNC PBR 1030 10'x110Ton CNC Press Brake
5 Days
122
5
$65,000.00
Description
Condition
Payment Types Accepted
Venmo
PayPalBud’s MT (A Division of Bud’s Equipment Sales) | BudsMT.com | 385-271-6718 | Sales@BudsEquipment.com
SPECIFICATIONS
Bending Tons
110
Bending Capacity (Mild Steel)
10’
Table Size
7” x 10’
Clear Pass.
100”
Ram Strokes

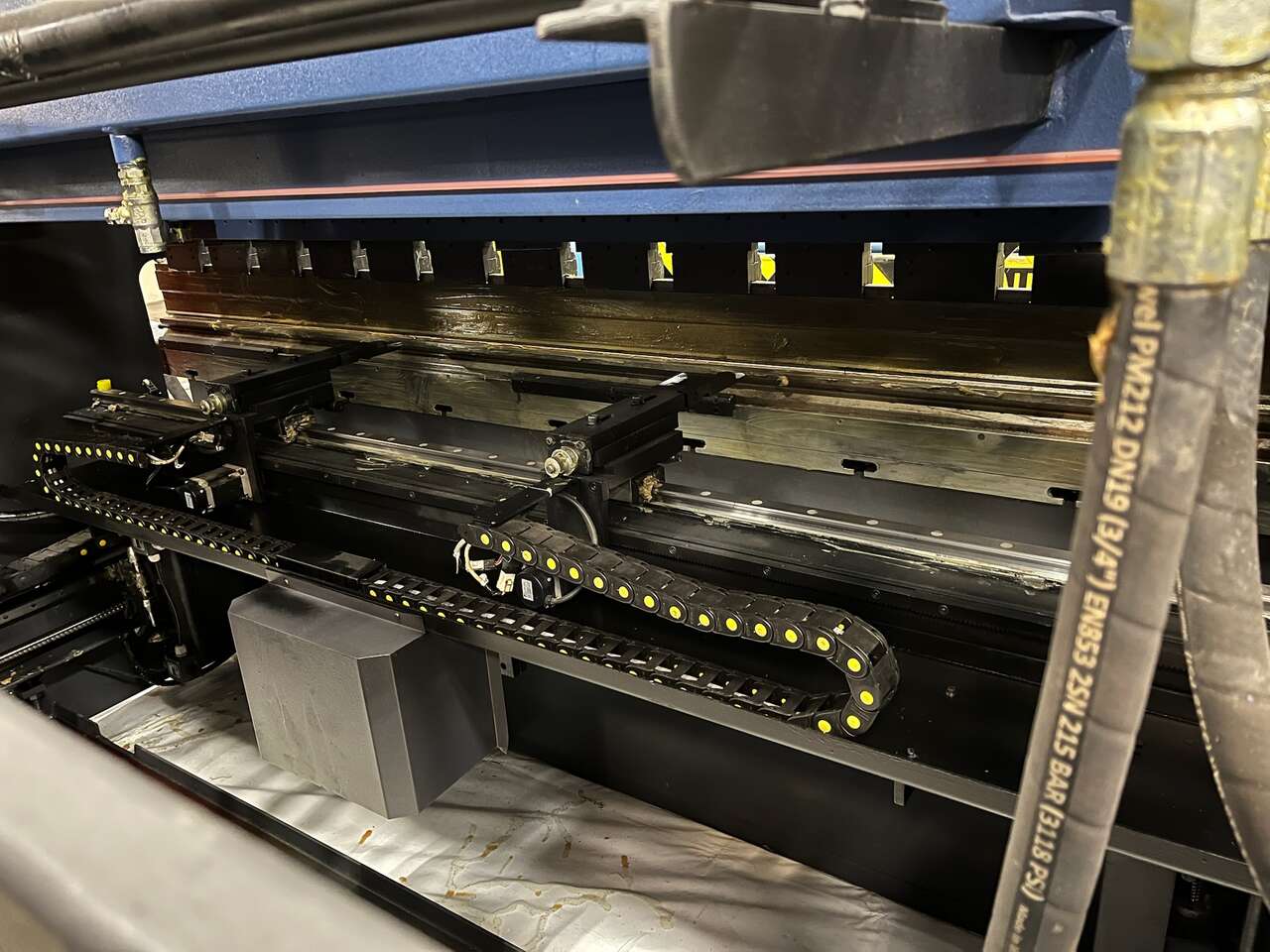

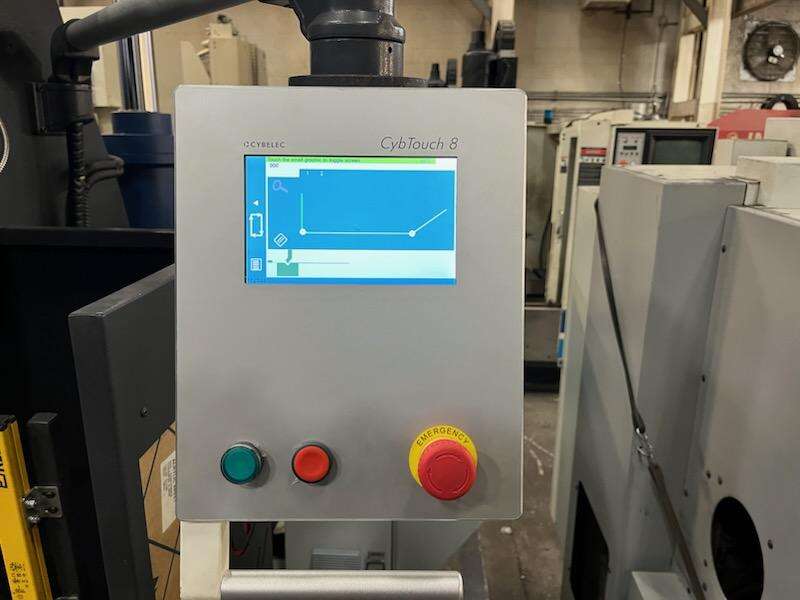

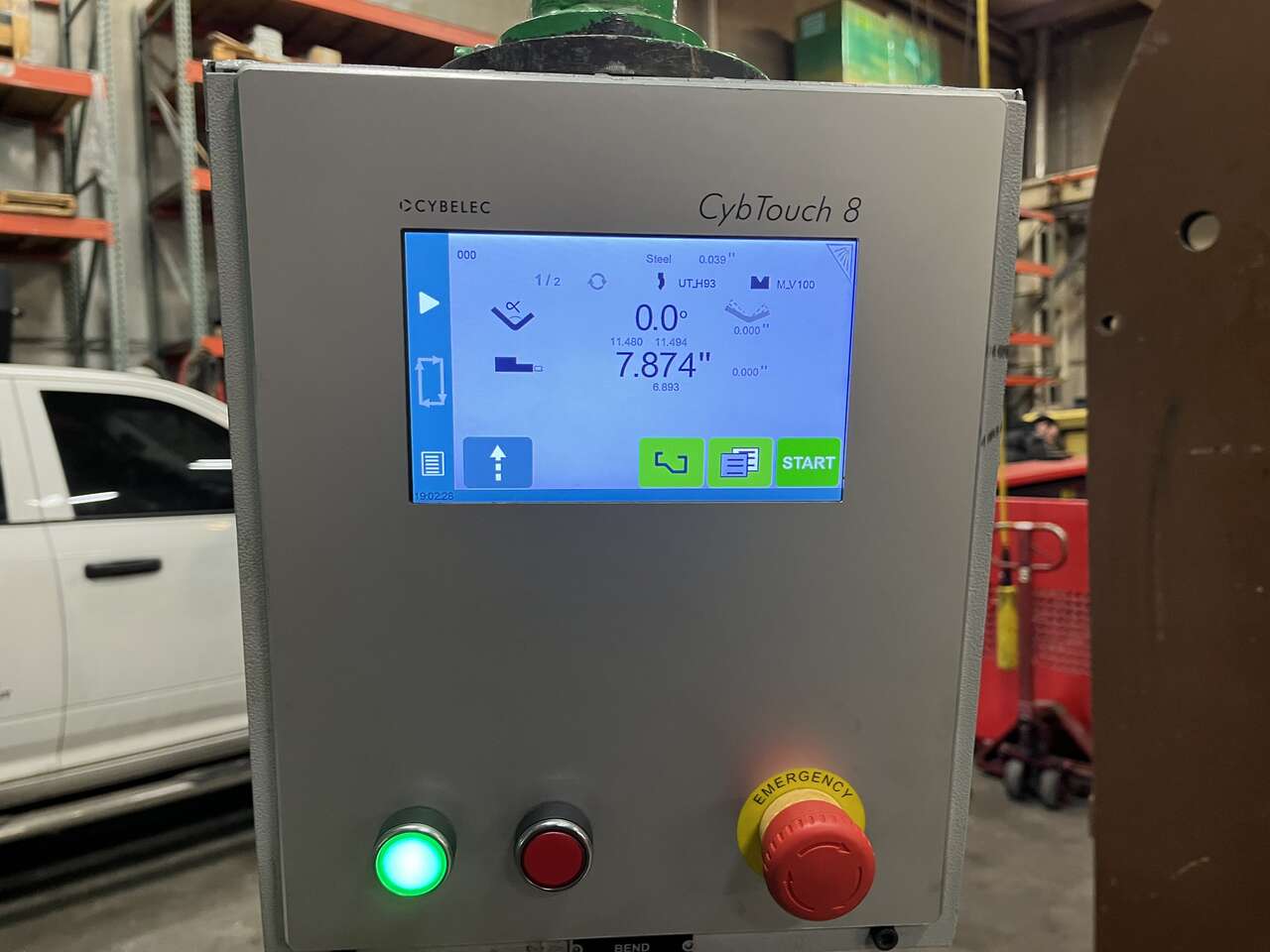

6” Open Height 13” Closed Height 7” Throat Depth 8” Approach Speed 1.1”/sec Pressing Speed .15”/sec Return Speed 1.2”/sec Motor 10HP Weight 12,500 LBS Dimensions 127”x61”x90” Y and X,R axis controlled thru CNC controller Standard Cybtouch 8PS controller Standard 7” color graphic CRT Touch screen 640 x 480 pixels with LED backlight control Standard Automatic calculation of the bend depth, back gauge position, angle correction and bend allowance Standard 50 punch/50 dies memory Standard 200 x 24 Sequence bend memory program Standard Part counter with auto stop Standard AC servo drives for X,R-axis control Standard X,R CNC back gauge assy. Included ball screw & LM guides & timer belt Standard 5-micron guided press brake scale for Y-axis position Standard Pair of lifting links Standard Centralized lubrication system with hand pump Standard Pair of sheet supports Standard Manual Crowning Standard
