G.V.W.R. 15,000 lb.

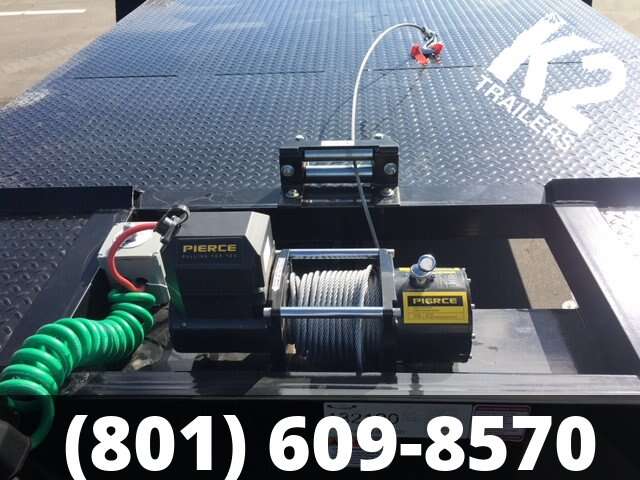

6,000 lb Winch

Deck Length 22 ft. + 24 in. toeplates (with hydraulic damper cylinder)

Deck Height 25"

Electrical Sealed modular wiring harness with LED lights

Frame 6 in. channel, and 6 in. x 2 in. heavy wall tubing

Deck Width 82 in. Between fenders

Dovetail 24 in. toeplates

Tongue 6 in. channel

Tires 235/80 R16 LRE (3,520 lb.)

Floors Full diamond plate with 3 in. channel crossmembers 16 in. on center

Coupler HD cast adjustable ball coupler or pintle ring

Safety Chains Heavy duty safety chains

Tie Downs Stake pockets and Rubrail

Fenders Heavy duty diamond plate fenders

Brakes Both braking axles

Wheels Silver or white mod (Based on stock)

Jack 12,000 lb. Drop foot jack

Axles 2-7,000 lb. e-z lube axles

Suspension Slipper springs

Toolbox Chain box with lockable lid standard

Finish Primed, 2 coats of automotive grade enamel

One Year warranty

15K 7x22' K2 Trailers Car Hauler

website: www.k2-trailers.com  Visit us on Facebook www.facebook.com/k2trailers/  We carry Teton, Snake River, Diamond C, Big Tex, Walton, PJ Trailers and mini excavators/skid steers.

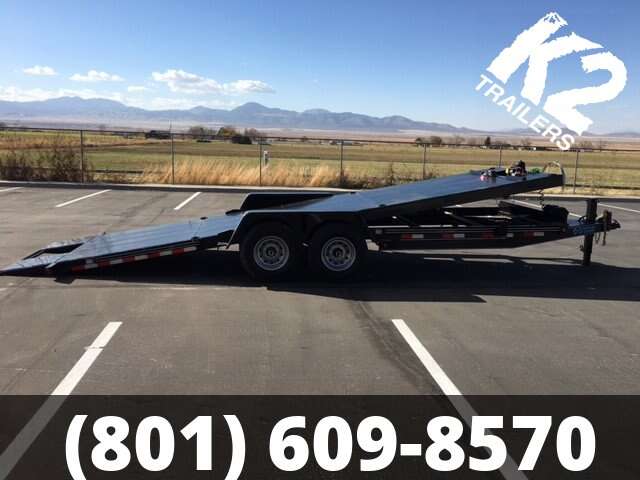

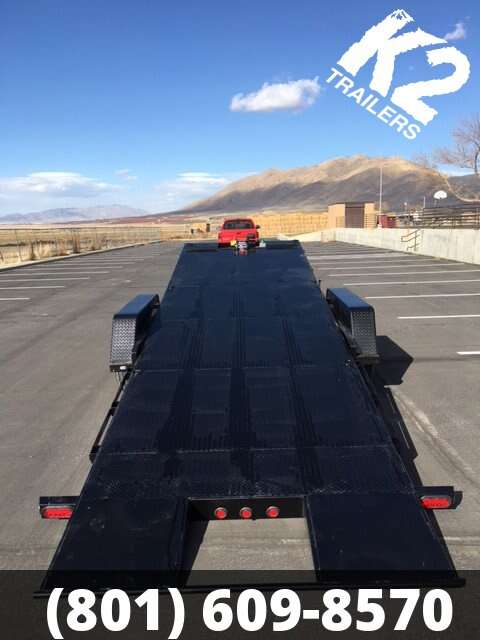

Our 15,000 GVWR Diamond floor tilt car trailers are manufactured with a 6 channel frame and tongue, and 6x2 heavy wall tubing on the full length tilting bed, with 3 channel cross members on 16 centers. The entire bed tilts for loading and is built with all tubing steel perimeter frame construction. 24 toe plates and the gradual loading angle, made possible by a total bed length (including toe plates) of 24, make it possible to load vehicles or equipment with low clearance that will not load on standard ramp and dovetail trailers. A hydraulic damper cushions the lowering of the bed during loading. There is a convenient one-handle latch system to secure the bed in the towing position once loading is complete. This diamond floor tilting bed car trailer also includes a 12k drop foot jack, diamond plate fenders, four-wheel brakes, radial tires, stake pockets with rub rail, and a sealed modular wiring harness with lifetime LED lights. G.V.W.R.: 15,000 lb.
