Weight: 64 lbs Dimensions: (Height x Width x Depth) 68.5" x 14" x 23" Opened 42.5" x 14" x 23" Closed Coverage:

• area: approximately 150' x 150'
• crowd size: approximately 2500 Bigfoot speakers include line array components:

Five 8” neodymium woofers One neodymium compression Technical Specifications Rated Power Output: 300 watts Max SPL @ Rated Power: 130 dB @ 1 meter Frequency Response: 100 Hz ~ 15 kHz ± 3dB AC Power Reqs: 100~240 VAC, 50/60 Hz, 3.5A Charger/Power Inlet: PC-2 Battery Three 12V Lithium Iron Phosphate (LiFePo4) rechargeable batteries, 7.5 Ah each Full recharge: ~ 5 hours AnchorLink Wireless Frequency: 1920~1930 MHz USA/CAN 1880~1900 MHz Europe AnchorLink Wireless Range: 300’+ line of sight AnchorAir Frequency Range: 902~928 MHz USA/CAN 606~614MHz Europe AnchorAir Wireless Range: 300’+ line of sight Microphone Inputs:

• Lo-Z, balanced, XLR & 1/4”
• 34 V DC condenser mic (phantom) power
• Hi-Z (10 kΩ), unbalanced, 1/4” phone Line Inputs:
• One unbalanced 1/4”
• One 3.5 mm stereo Line Output (post fader): Isolated, 600Ω One 1/4” phone Speaker Out: 4-pole Neutrik Speakon® jack

Three built-in rechargeable lithium-ion batteries (7+ hours of playtime)

Class 1 Bluetooth with 150' range so you can stream audio right to your speaker

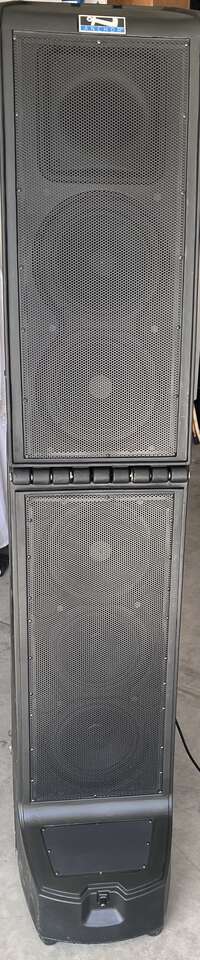

Line array components that include five 8” neodymium woofers, and one neodymium compression driver

Two balanced 1/4" XLR combo inputs for wired microphones, one 1/4" unbalanced Line In for mixers and instruments, one 1/4" Line Out for connecting companion speakers

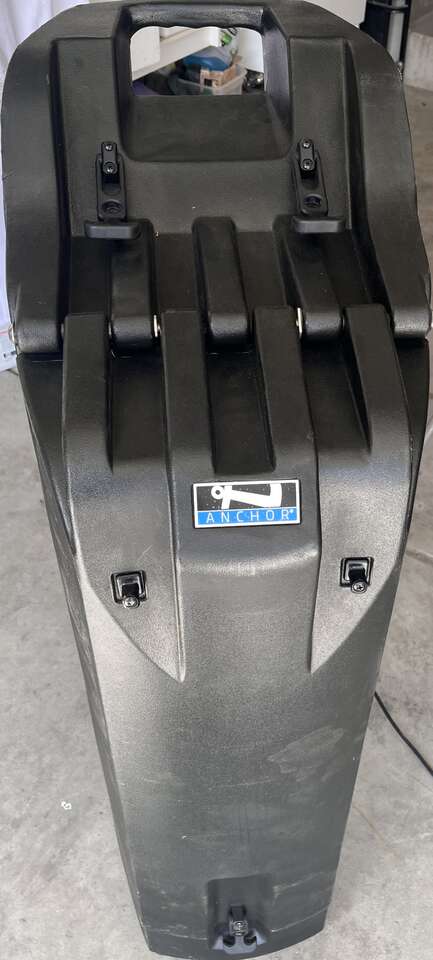

Folding design that's easy to set up with just one person

Rugged, weatherproof case designed to keep your electronics safe when you play or transport your speaker

Heavy-duty wheels designed to go everywhere
