"More Trailer For Your Money"

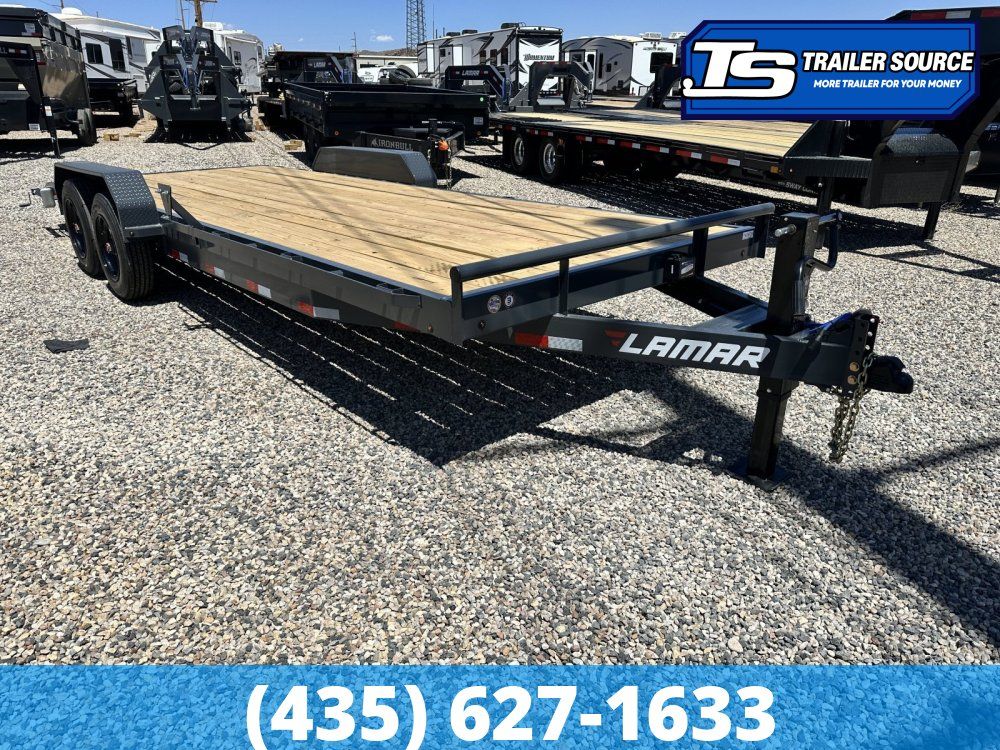

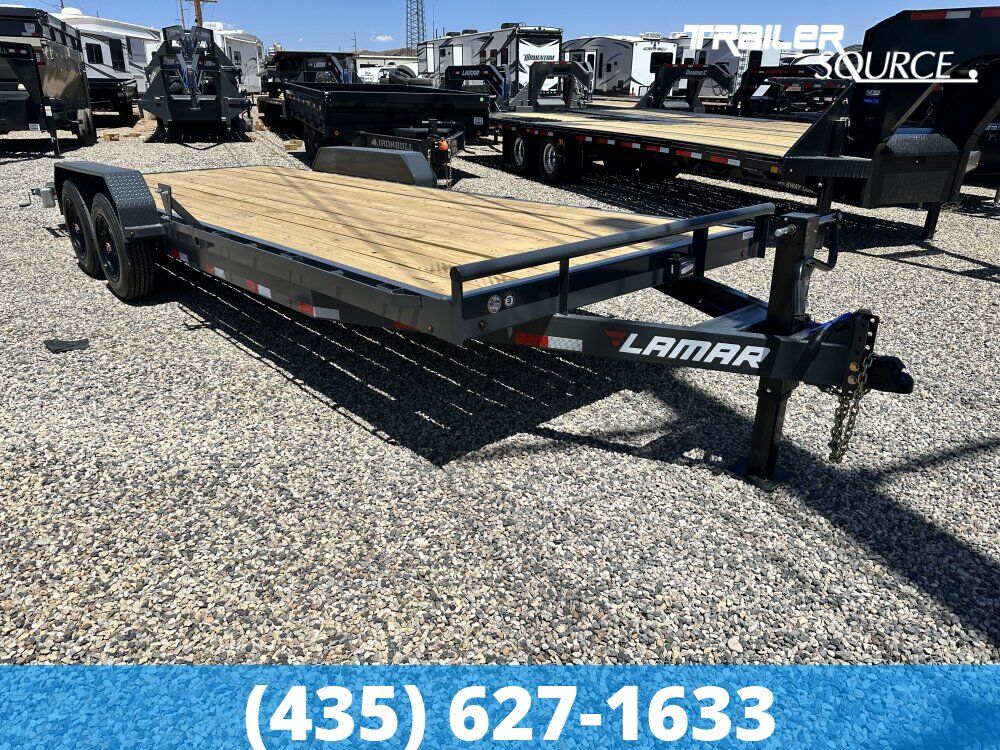

7 x 22 Lamar H6 16K Equipment Trailer – Ready To Work!

The Lamar H6 (Heavy Duty Equipment Hauler) is the bread and butter of the Lamar equipment lineup. It is designed to be a "do-it-all" trailer for contractors and farmers, specifically built to handle the concentrated weight of skid steers, mini-excavators, and tractors.

KEY STANDARD FEATURES

6" Channel Frame & Wrap Tongue

The H6 is built with a 6" structural channel frame and a full 6" wrap tongue.

• The Benefit: Wrapping the tongue all the way back to the axles provides a massive boost in structural integrity. This prevents the frame from twisting or flexing when you are hauling top-heavy machinery or navigating uneven job sites.

Dual 7,000 lb Dexter EZ-Lube Axles (14K GVWR)

Standard on the H6 are two 7,000 lb Dexter axles, giving it a 14,000 lb GVWR.

• The Benefit: This provides a payload capacity of approximately 10,800 to 11,200 lbs depending on the length. The EZ-Lube system allows you to grease your bearings with a simple grease gun without having to disassemble the hubs.

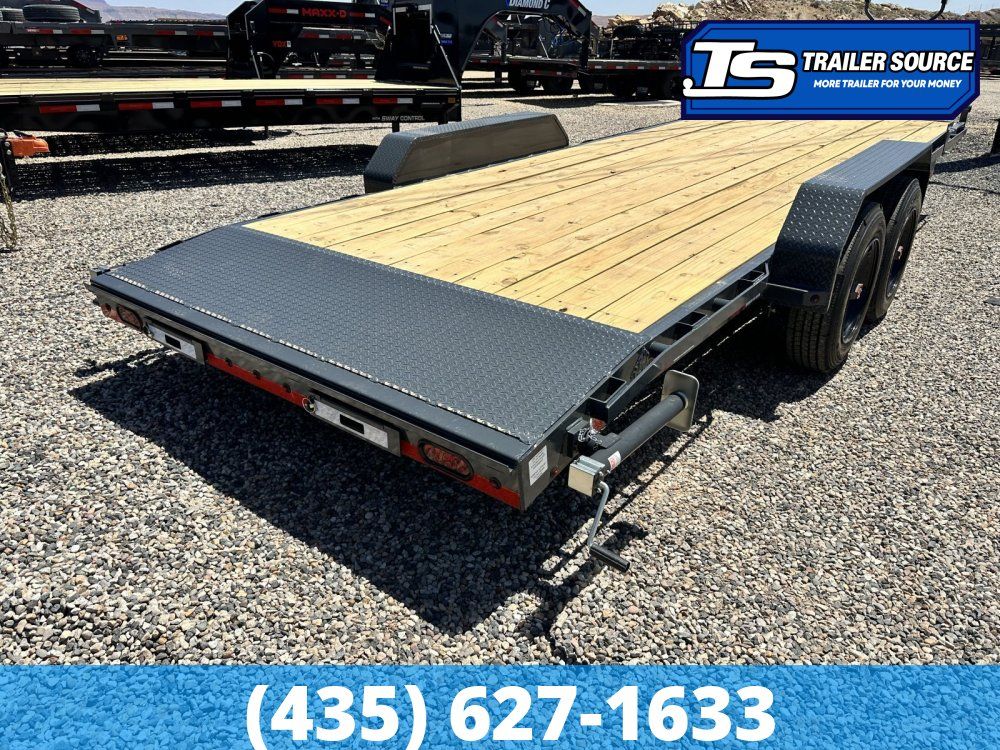

2' Steel Diamond Plate Dovetail

To make loading safer and easier, the H6 comes standard with a 2' Steel Dovetail.

• The Benefit: This transition at the rear of the trailer lowers the loading angle. It is particularly helpful for equipment with low ground clearance or when loading in wet conditions where traction is a concern.

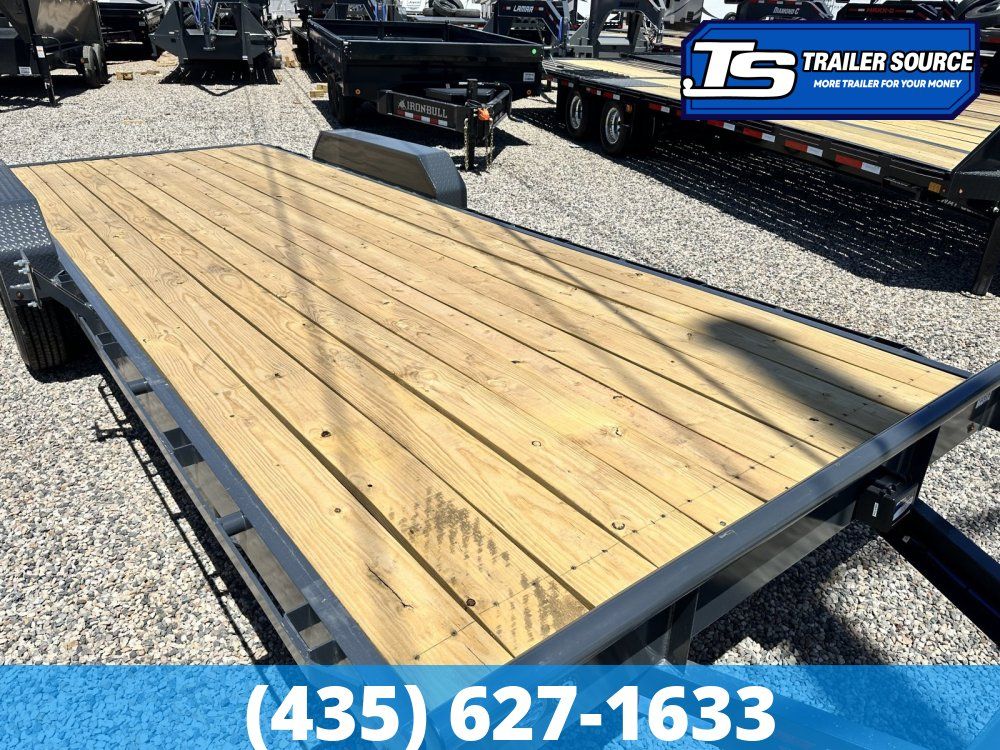

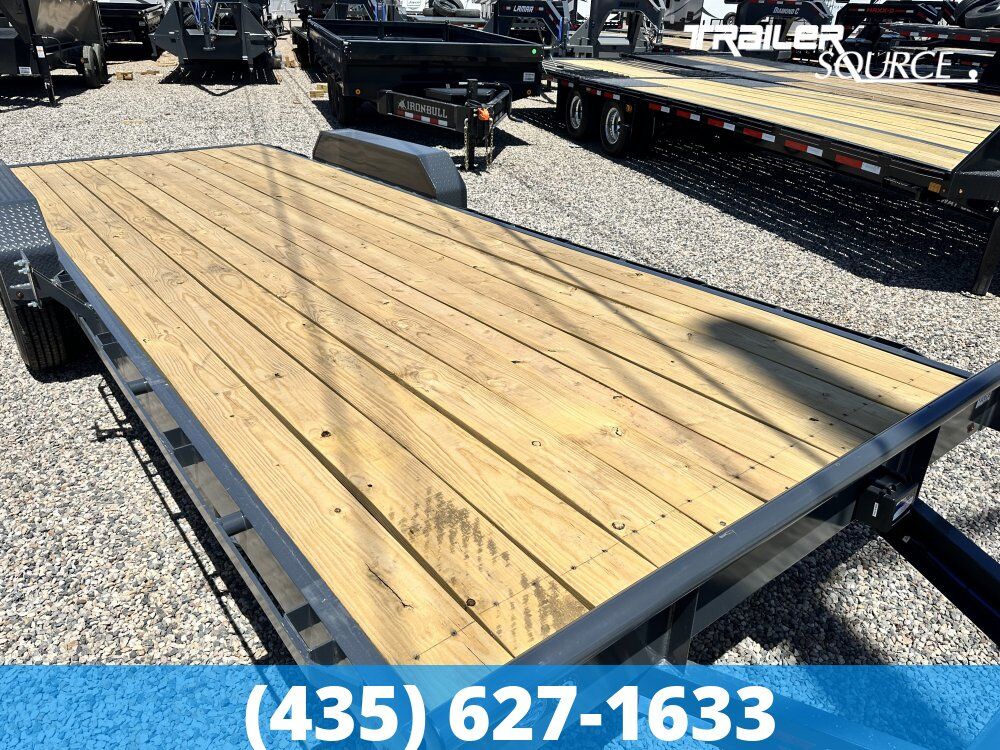

16" Center-to-Center Crossmembers

The H6 features 3" channel crossmembers spaced on 16-inch centers.

• The Benefit: Many utility trailers use 24" spacing, but the 16" centers on the H6 ensure the floor doesn't "washboard" or sag under the heavy point-load of a skid steer's tires or tracks.

2-5/16" 21K Demco Adjustable Cast Coupler

Lamar utilizes the heavy-duty 21,000 lb Demco Adjustable Coupler as a standard.

• The Benefit: While the trailer is rated for 14K, the 21K cast coupler offers a significant safety margin. Because it is adjustable, you can easily move the hitch height up or down to ensure your trailer pulls level regardless of what truck is hooked to it.

Removable Diamond Plate Fenders

Standard are Removable 9"x72" Diamond Plate Fenders.

The Benefit: If you are loading a wider piece of equipment or need to service the tires, the fenders can be unbolted and removed easily. This also makes it much easier to replace a fender if it gets dinged on a job site without needing to weld on a new one.

PERFECT FOR The Lamar H6 14K is the "Everyday Contractor" trailer. It is perfectly suited for skid steer operators, small excavation crews, and farmers who need a trailer that is tough enough for daily abuse but remains easy to tow with a standard 3/4-ton or 1-ton pickup.

Why Choose the Lamar H6?

• The Warranty: Lamar provides a 3-Year Structural Warranty and a 1-Year Component Warranty. They stand behind their builds, and the use of name-brand parts (like Dexter axles) means you can get parts and service at almost any trailer shop in the country.
• -65°F Arctic Wiring Harness: Every H6 is equipped with a cold-weather wiring harness. It stays flexible in extreme cold, preventing the wires from cracking or shorting out—a common headache for operators in northern climates.
• Sandblasted Powder Coat: Before the "Lamar Gray" powder coat is applied, the entire trailer is 100% sandblasted. This removes all mill scale and surface oils, ensuring the best possible bond and preventing premature rust and paint peeling.
