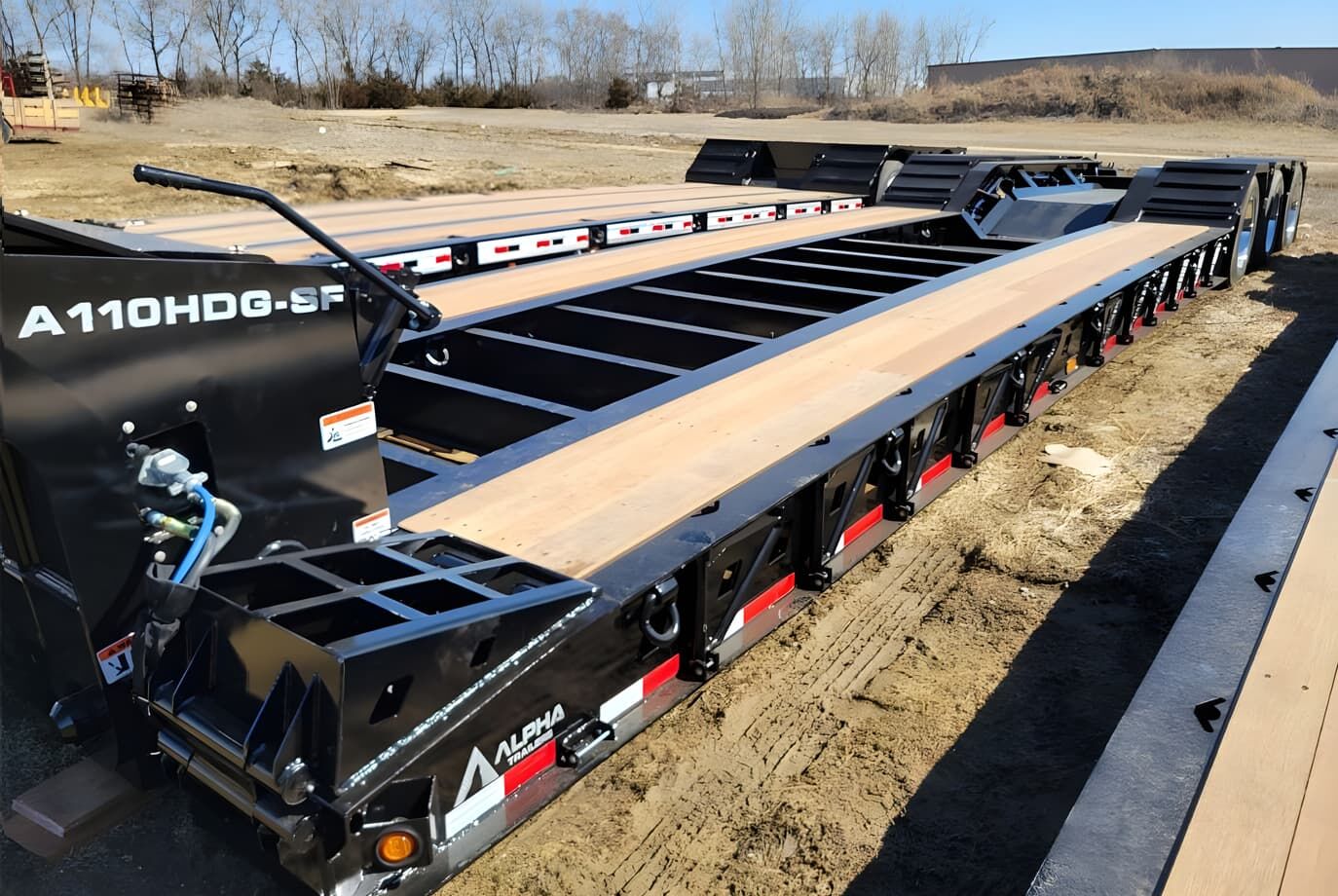

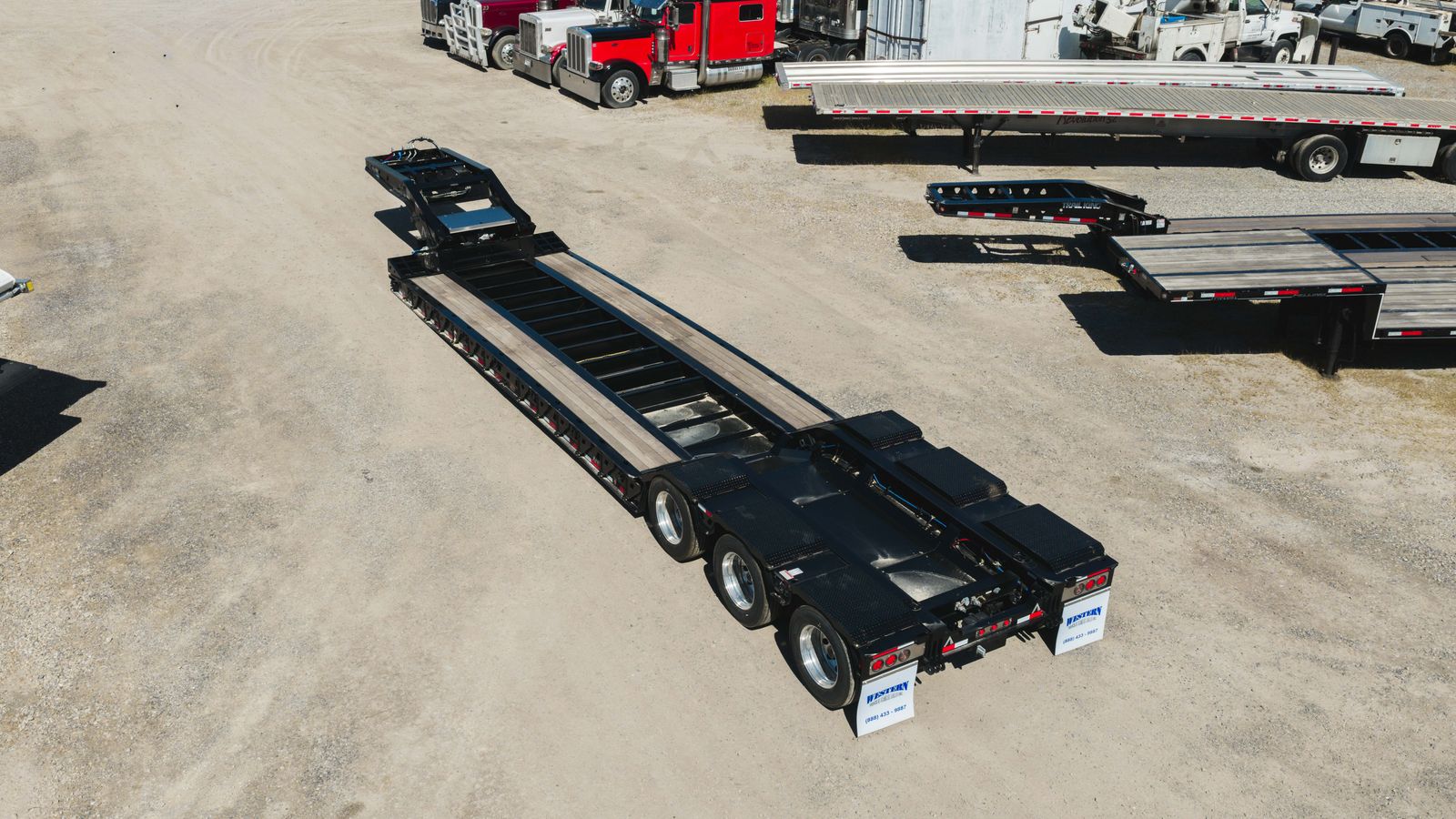

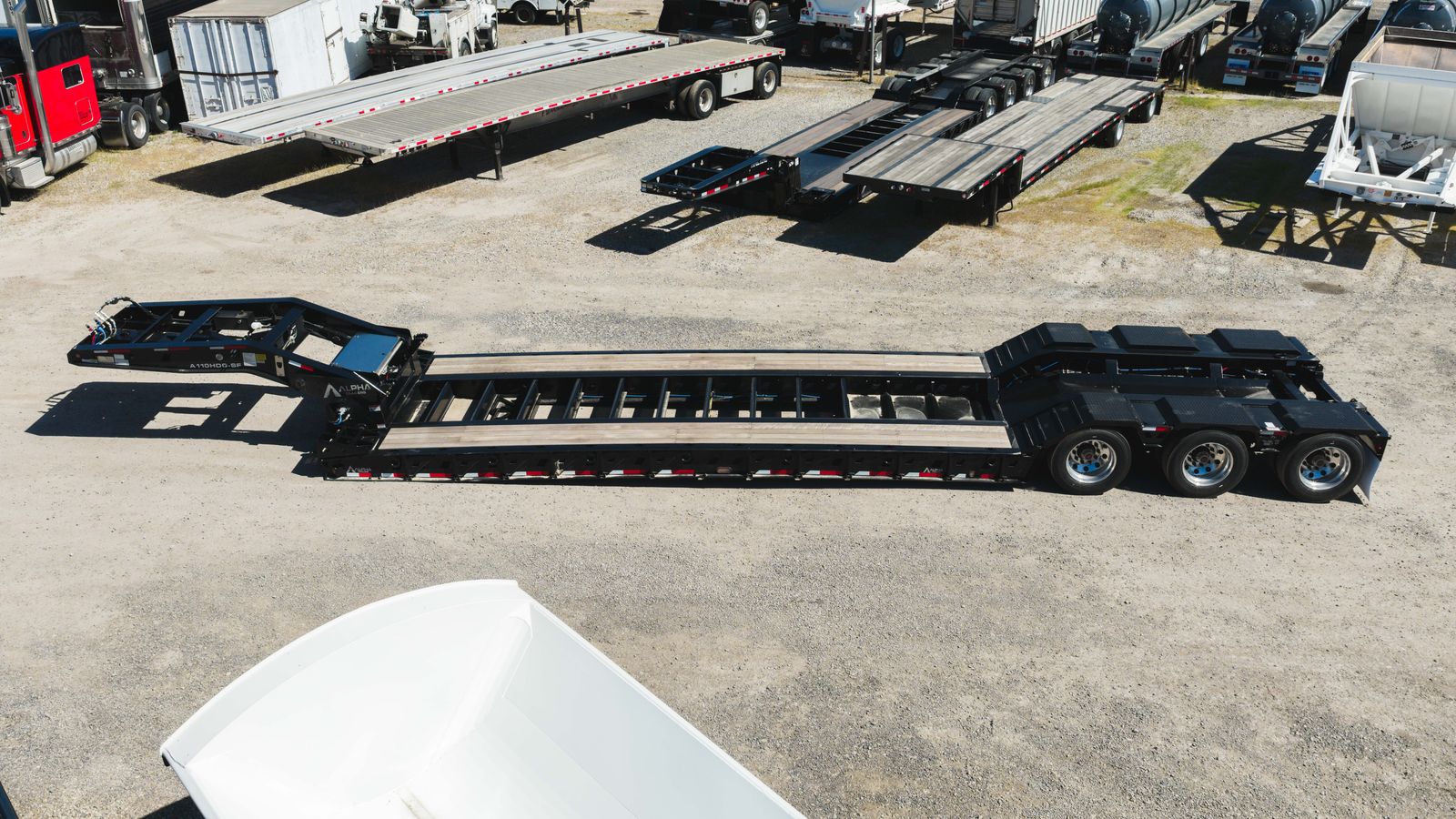

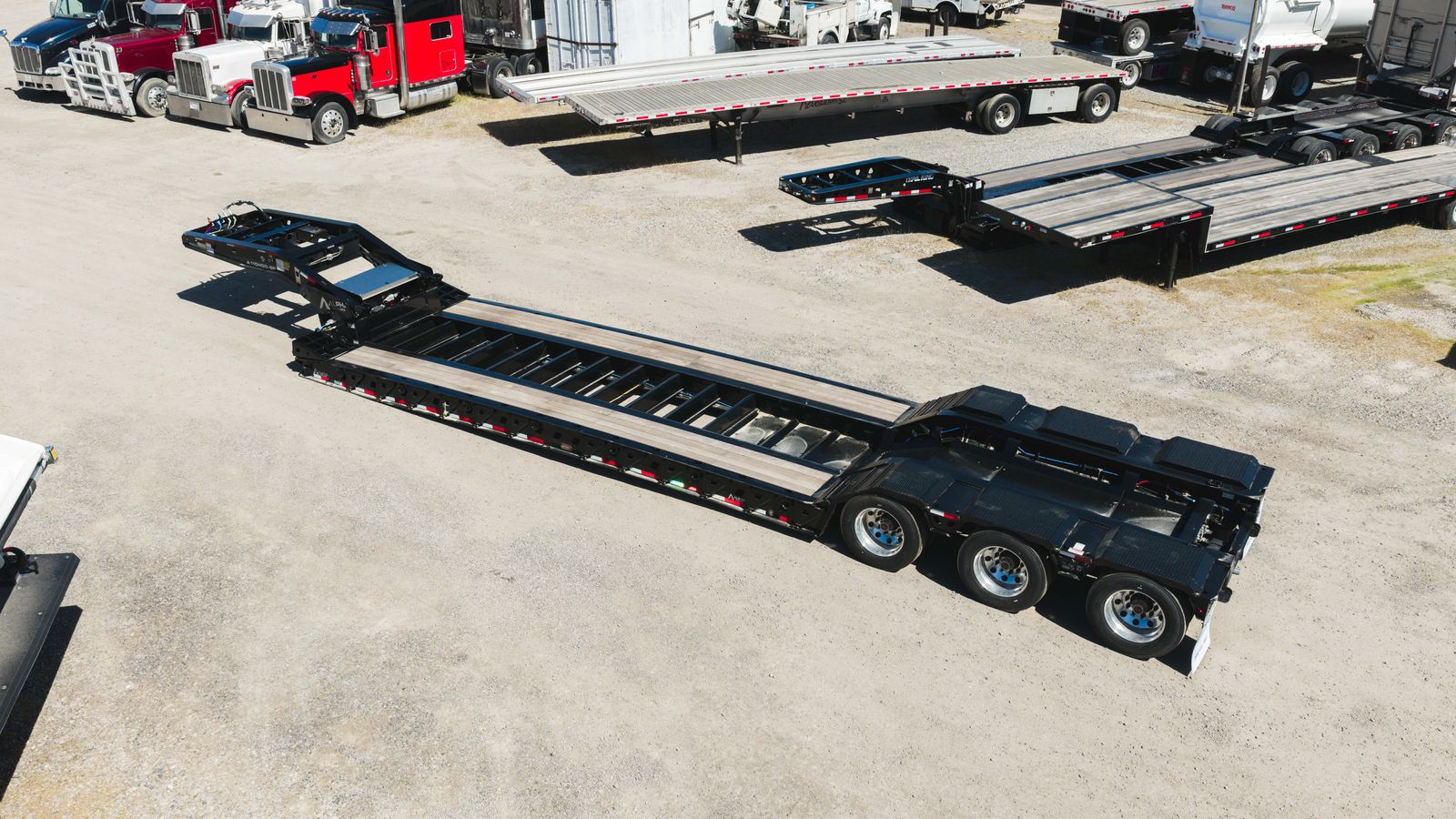

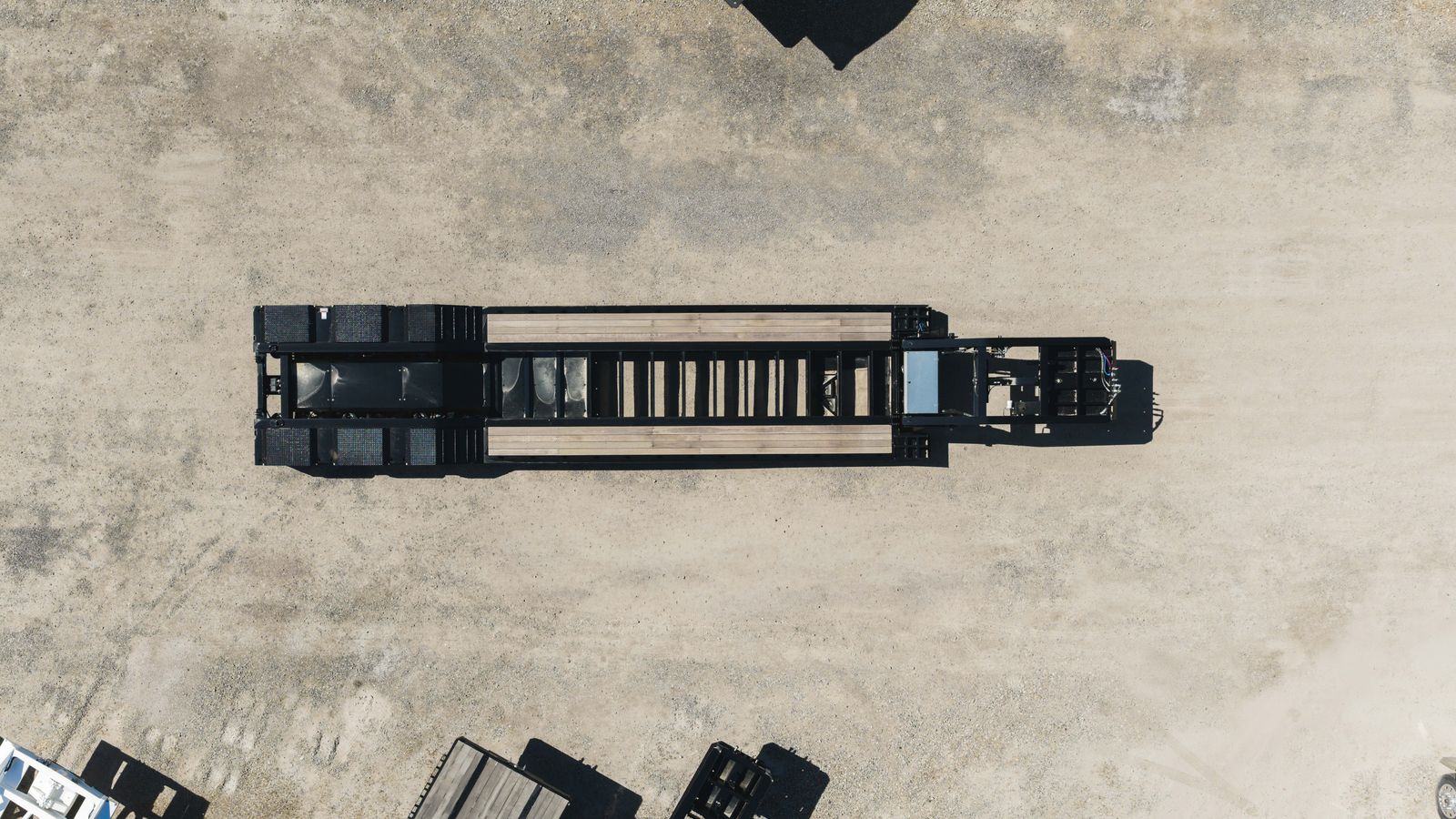

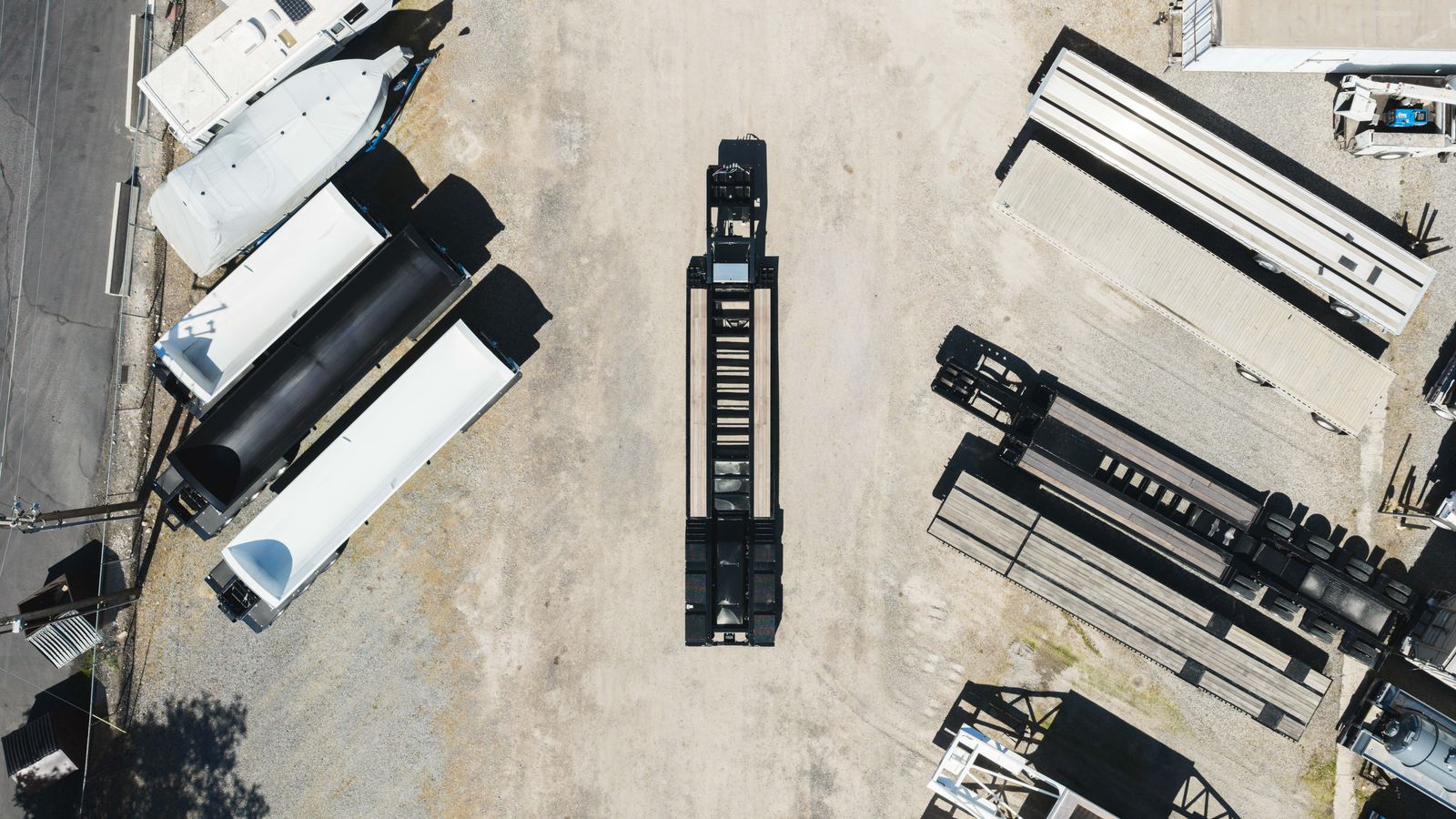

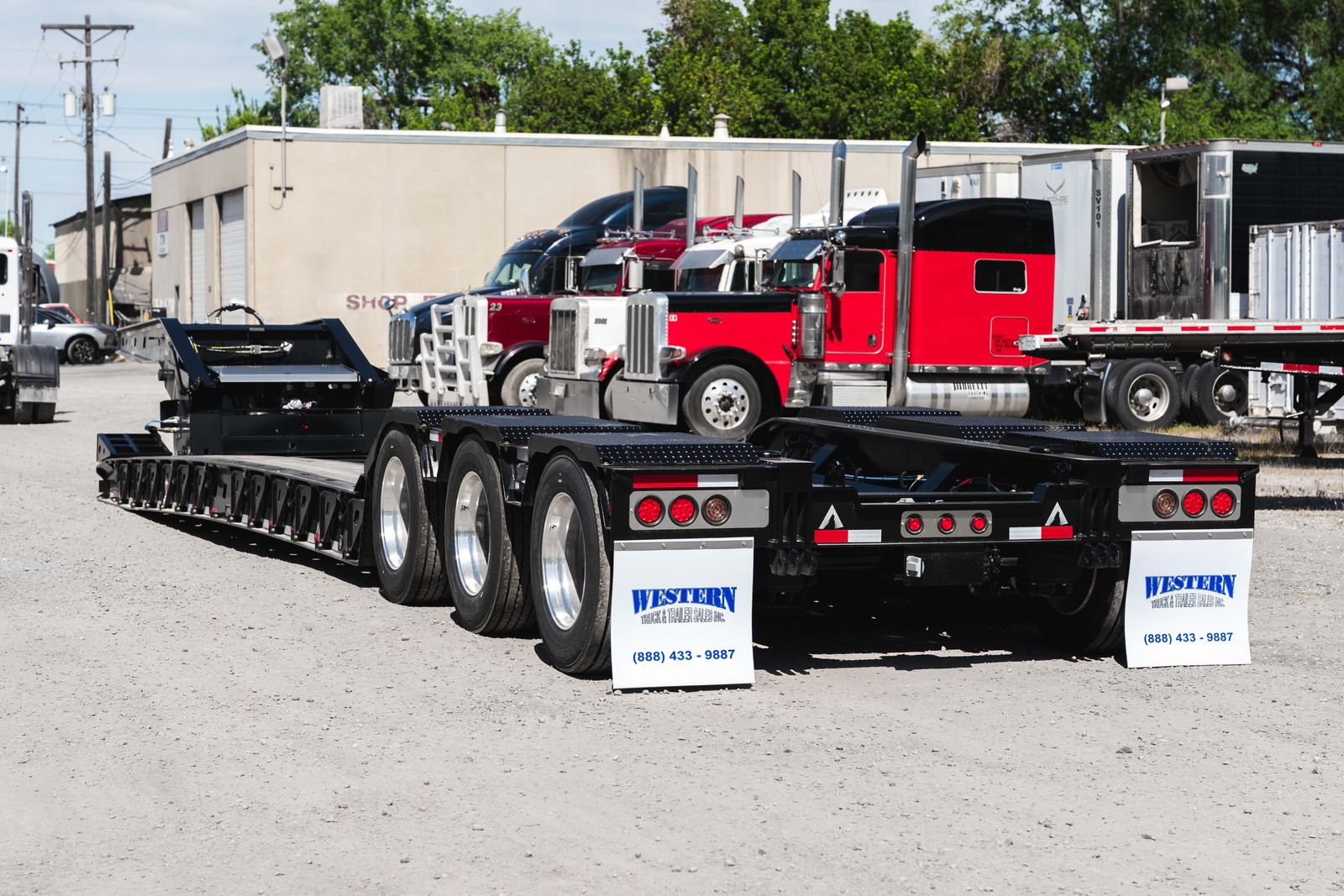

ALPHA HD 110HDG-SF 10' Wide

The ALPHA HD 110HDG-SF is a high-performance hydraulic detachable gooseneck (HDG) trailer designed for heavy-duty hauling. With a 110,000 lb capacity and a 10-foot-wide frame, this trailer is built for efficiency, durability, and maximum load distribution.

General Specifications - Capacity: 110,000 lbs

• Concentrated Load: 110,000 lbs in 12'
• Overall Length: 53'
• Overall Width: 10'

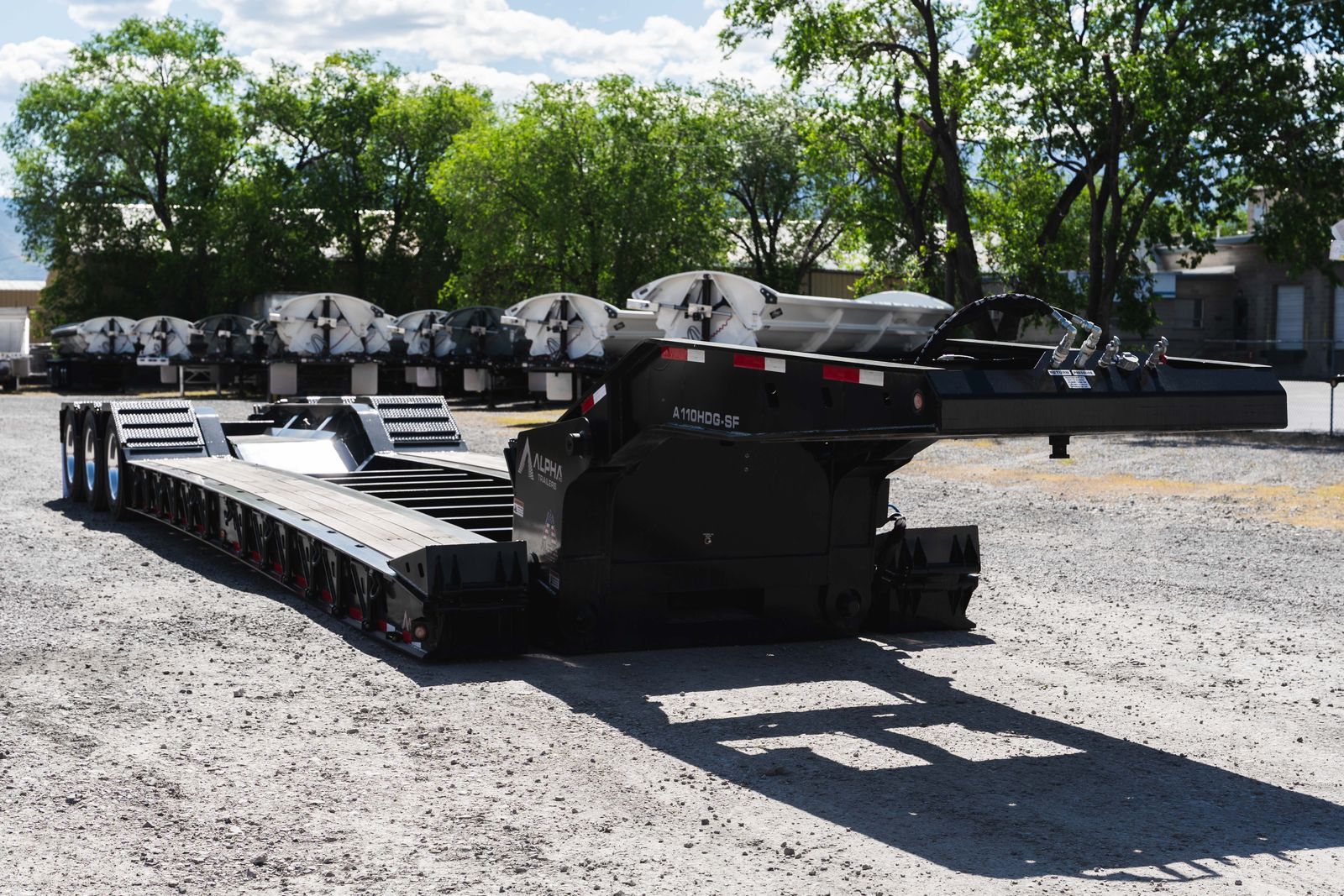

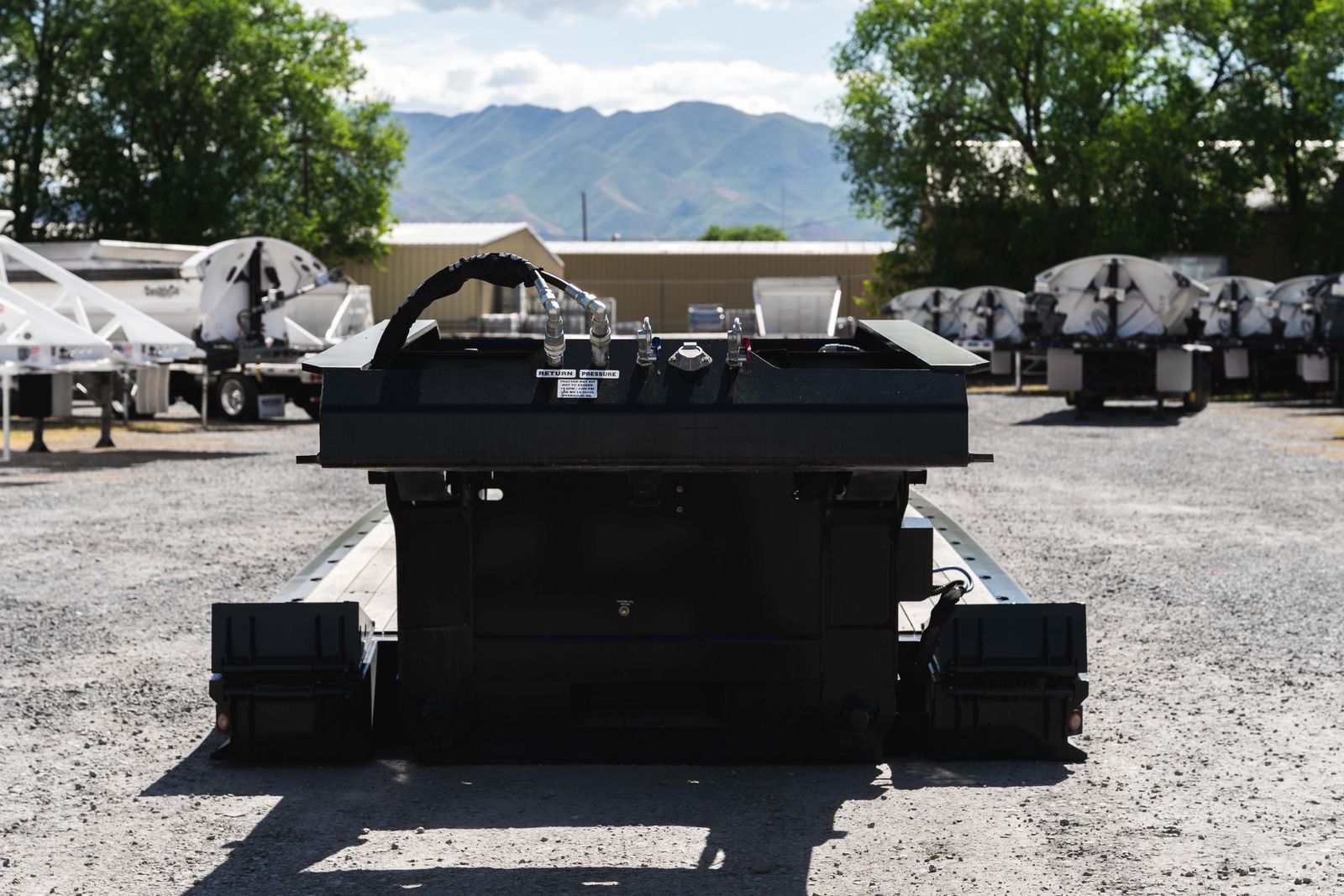

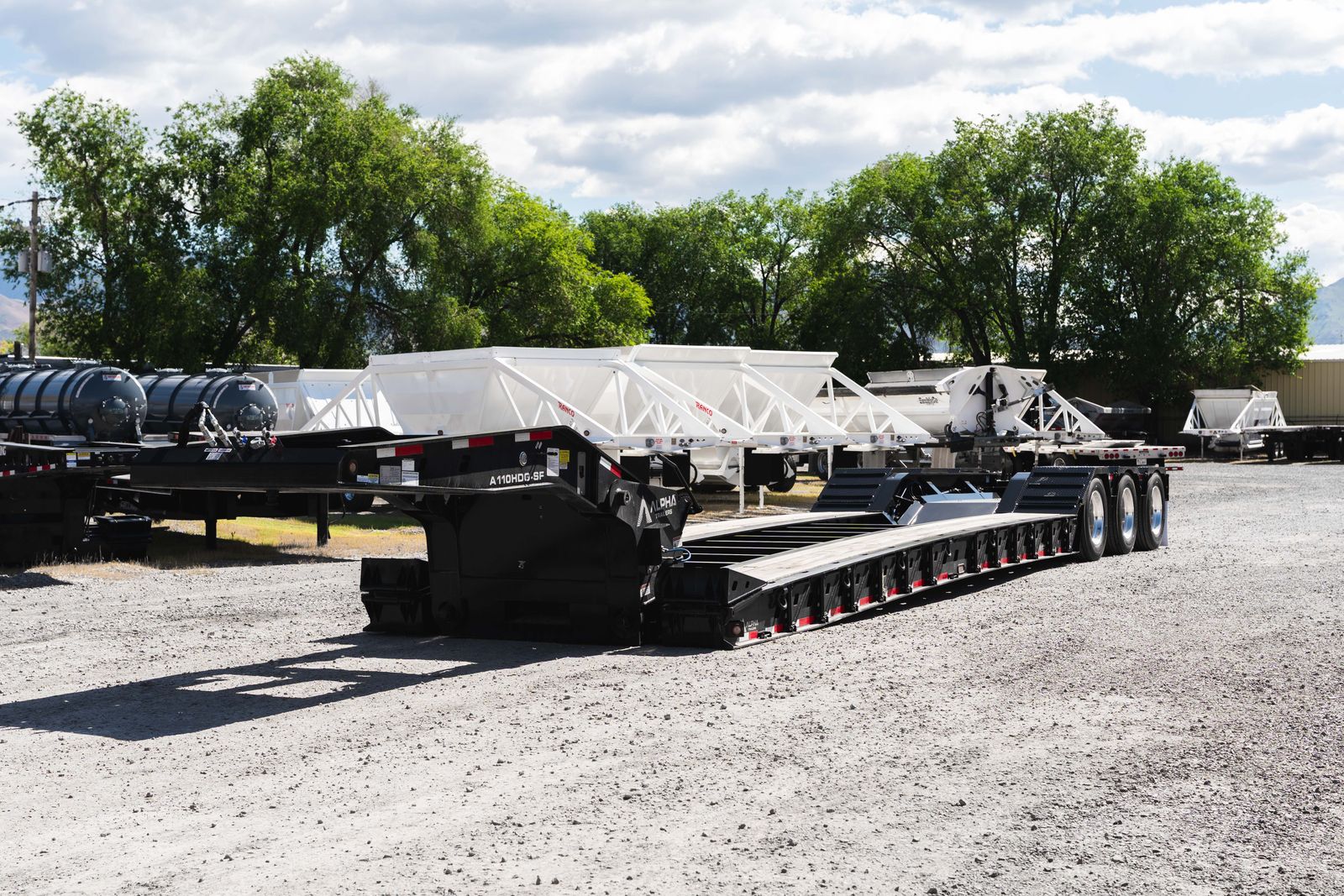

Gooseneck - Type: 12' 11" Hydraulic Detachable

• 5th Wheel Height: 51"
• King Pin: 15" & 41"
• Swing Clearance: 110" & 84"
• Ride Height Positions: 5

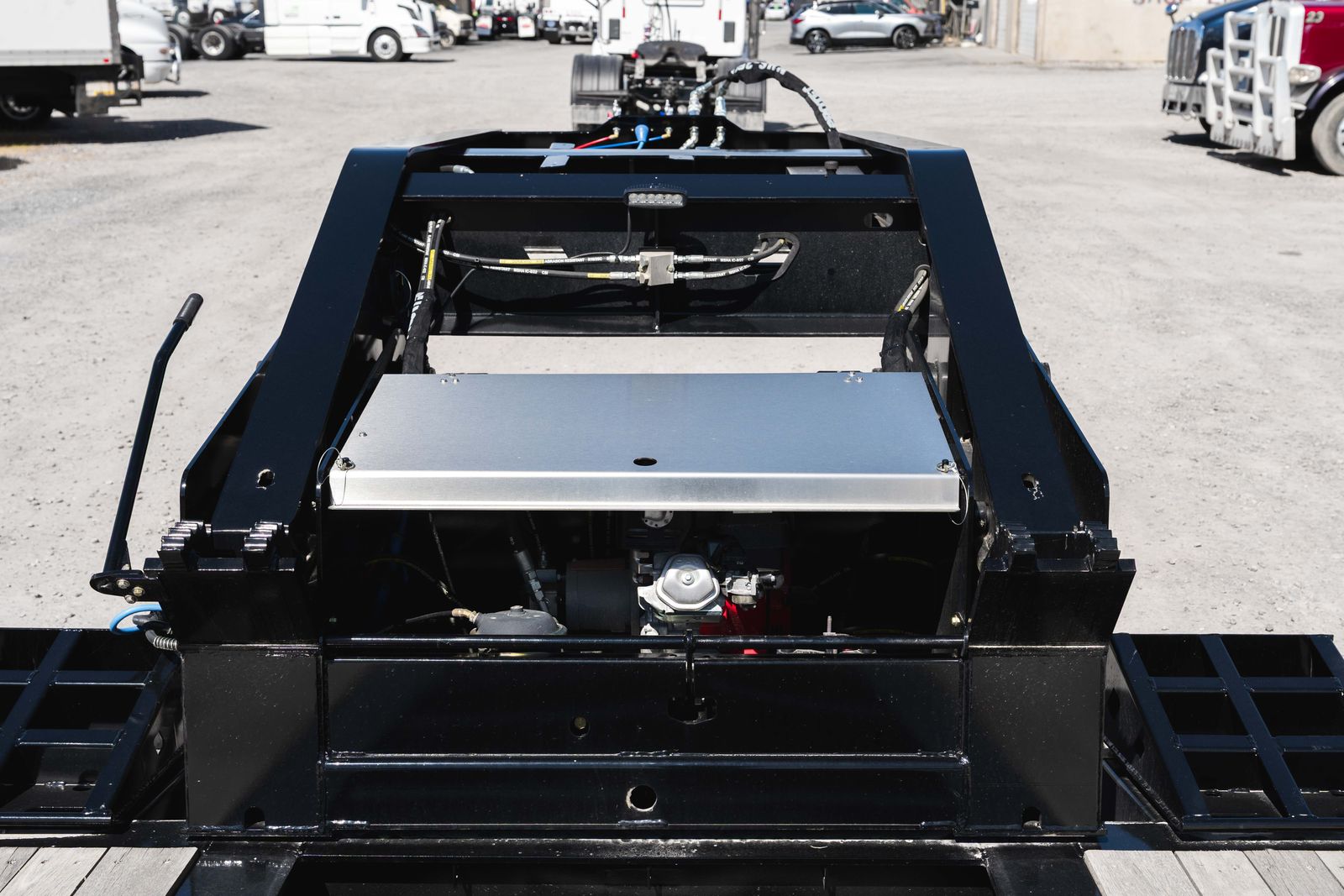

• Hydraulics: Runs by Wet Kit
• Lock Pin: Air Operated

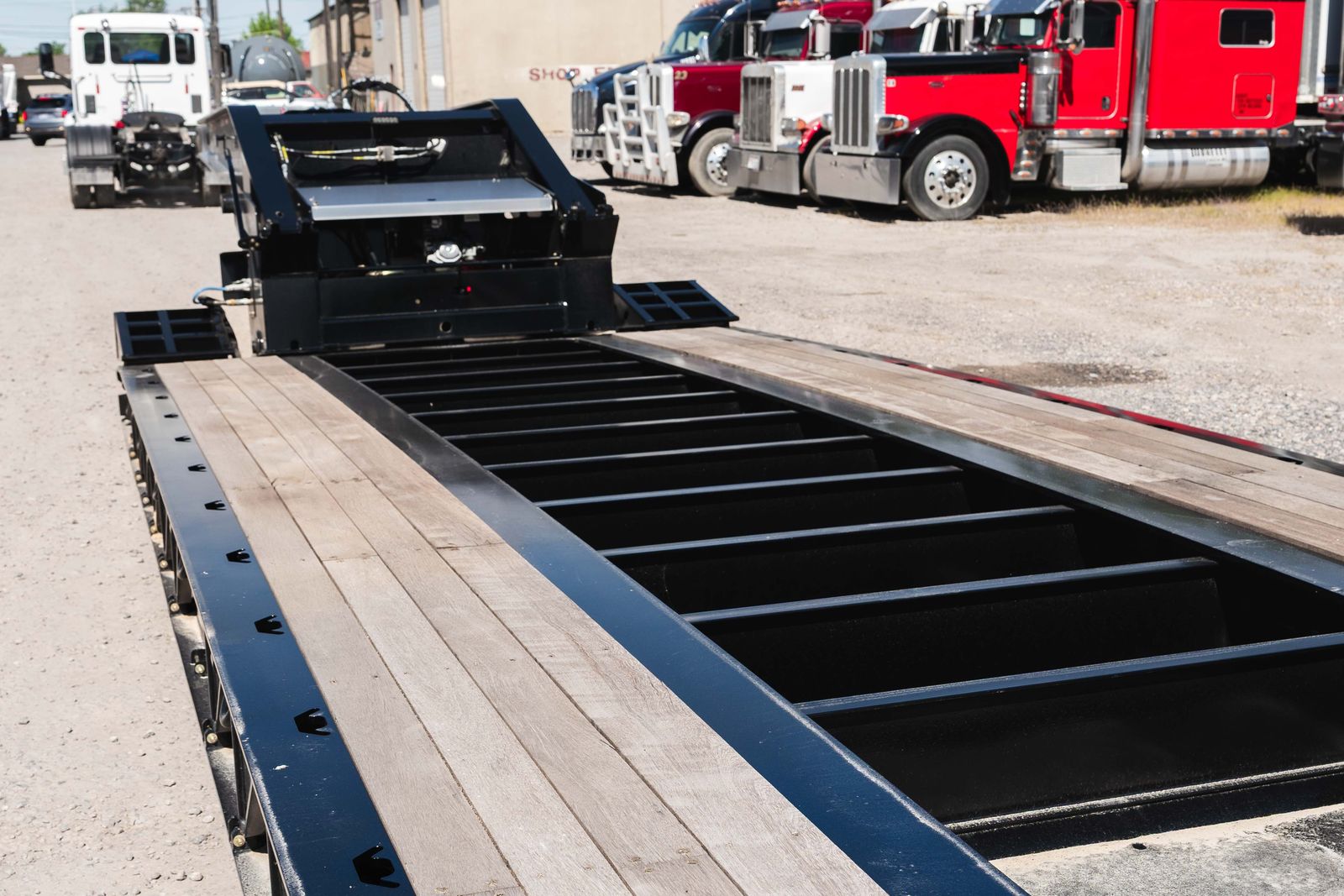

Main Deck - Deck Length: 26'

• Fabricated I-Beams: 16"
• Loaded Deck Height: 22"
• Ground Clearance: 6"
• Cross Member Spacing: 12" (10" & 4")
• Outriggers: HD Swing Out
• Removable Outriggers: 2 Sets of HD Flat Back
• Chain Drops: Every 24"
• D-Rings: 7 Bent D-Rings Per Side
• Tool Box: 5' at Front with 2 Bent D-Rings
• Bucket Well: 6' at Rear with 2 Pairs of Bent D-Rings
• Top Flange Reinforcement: Yes
• Load Ramps: Front Flip Load Ramps
• Decking: 1 3/4" Apitong

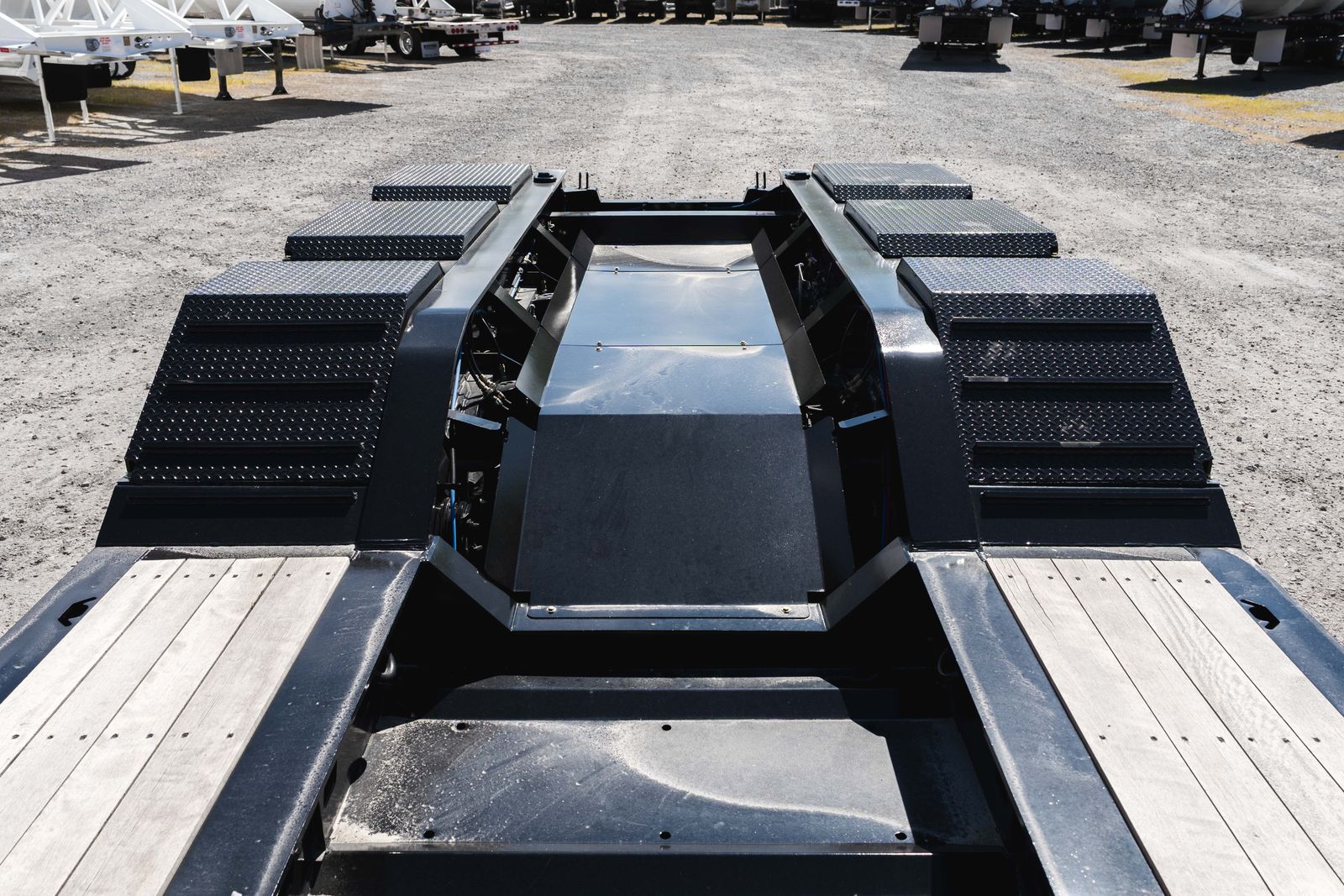

Sub Frame - Length: 14' 1"

• Loaded Deck Height: 39"
• Rear Transition: 32°

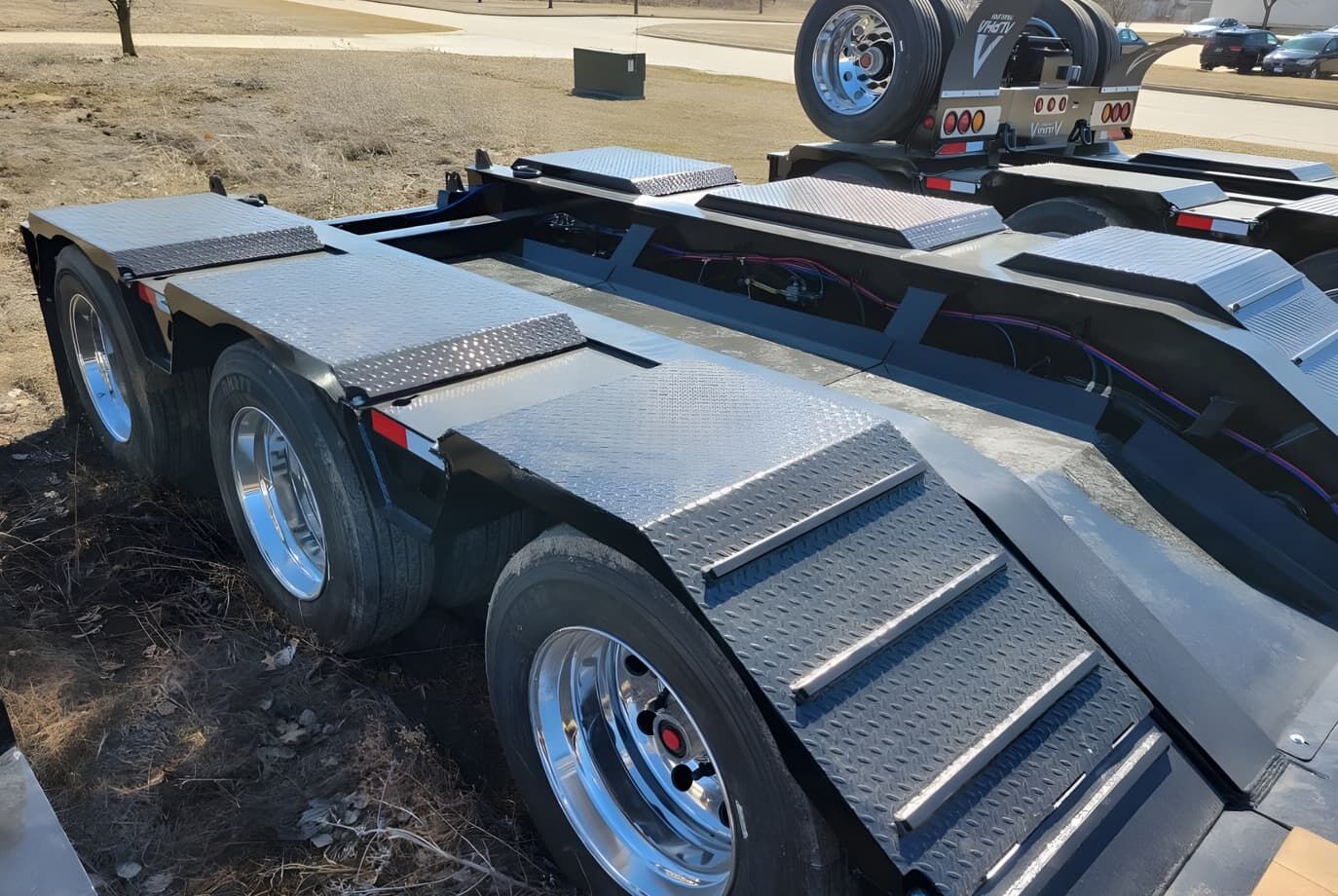

• Wheels: Open Wheels with Bolsters
• Chain Slots: In Each Bolster
• D-Rings: 2 Flat at Rear
• Flag Holders: Yes
• Stake Pockets: 1 Pair in Tail Channel
• Frame Reinforcement: For Single Axle Stinger

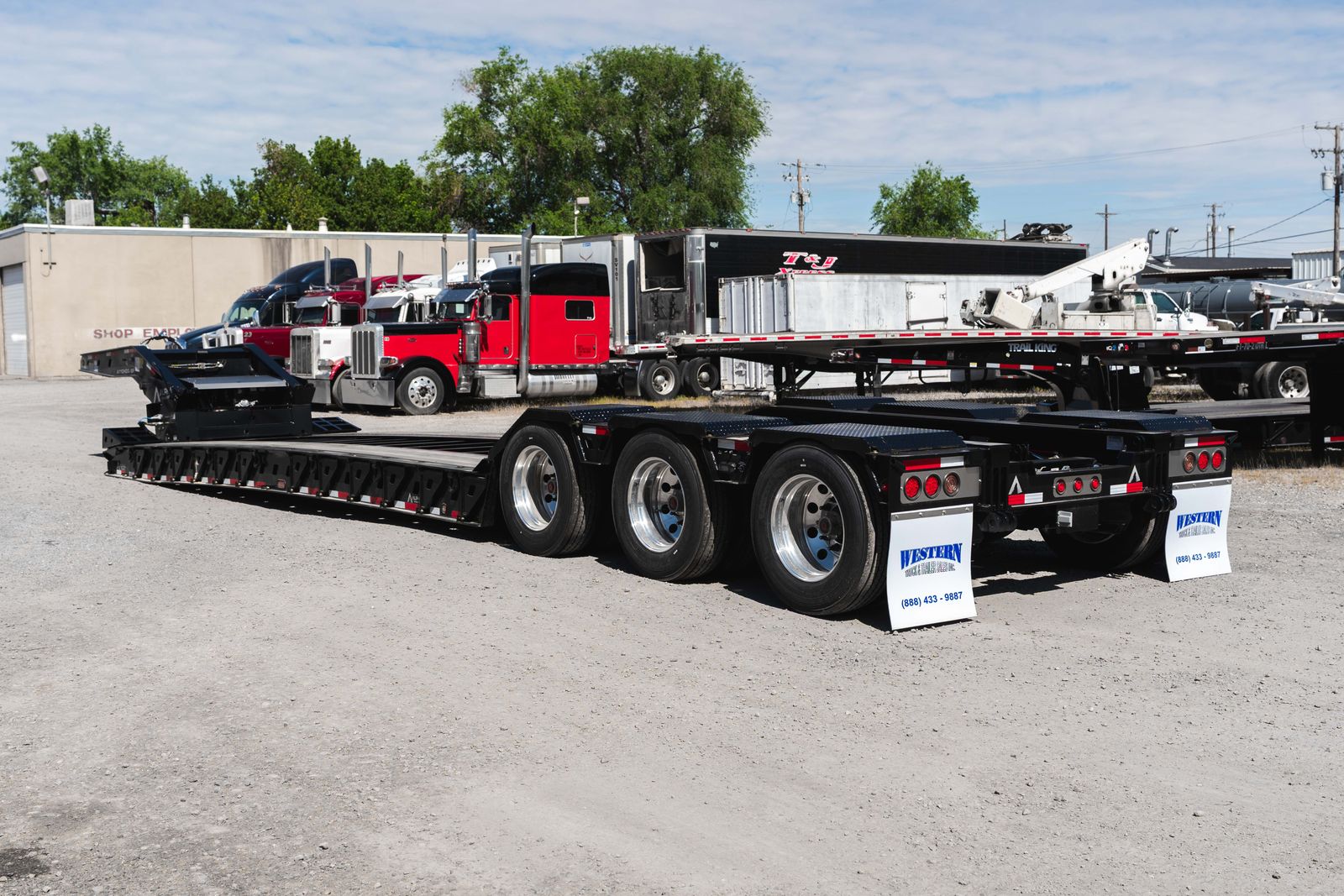

Axles & Suspension - Axles: 3 x 25,000 lbs

• Axle Spacing: 54 1/2"
• Suspension: Ridewell
• Brakes: 16 1/2" x 7" Drum
• Spring Brakes: On Two Axles
• Ride Height Control: Manual
• Raise & Lower Valve: Yes
• Lift Axle: Air Lift on 3rd Axle
• Tires: 255/70R22.5

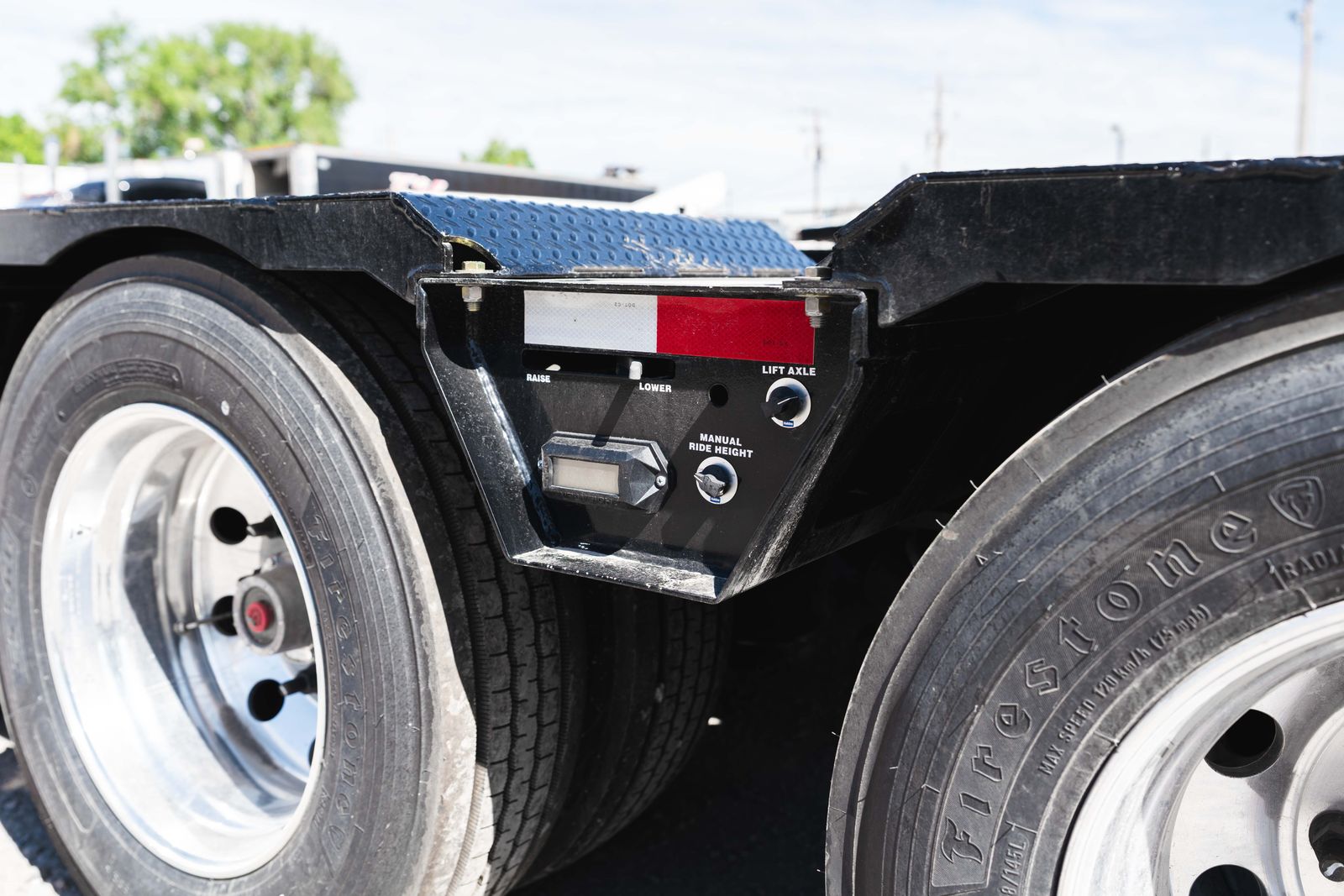

• Suspension Controls: Located in Bolster

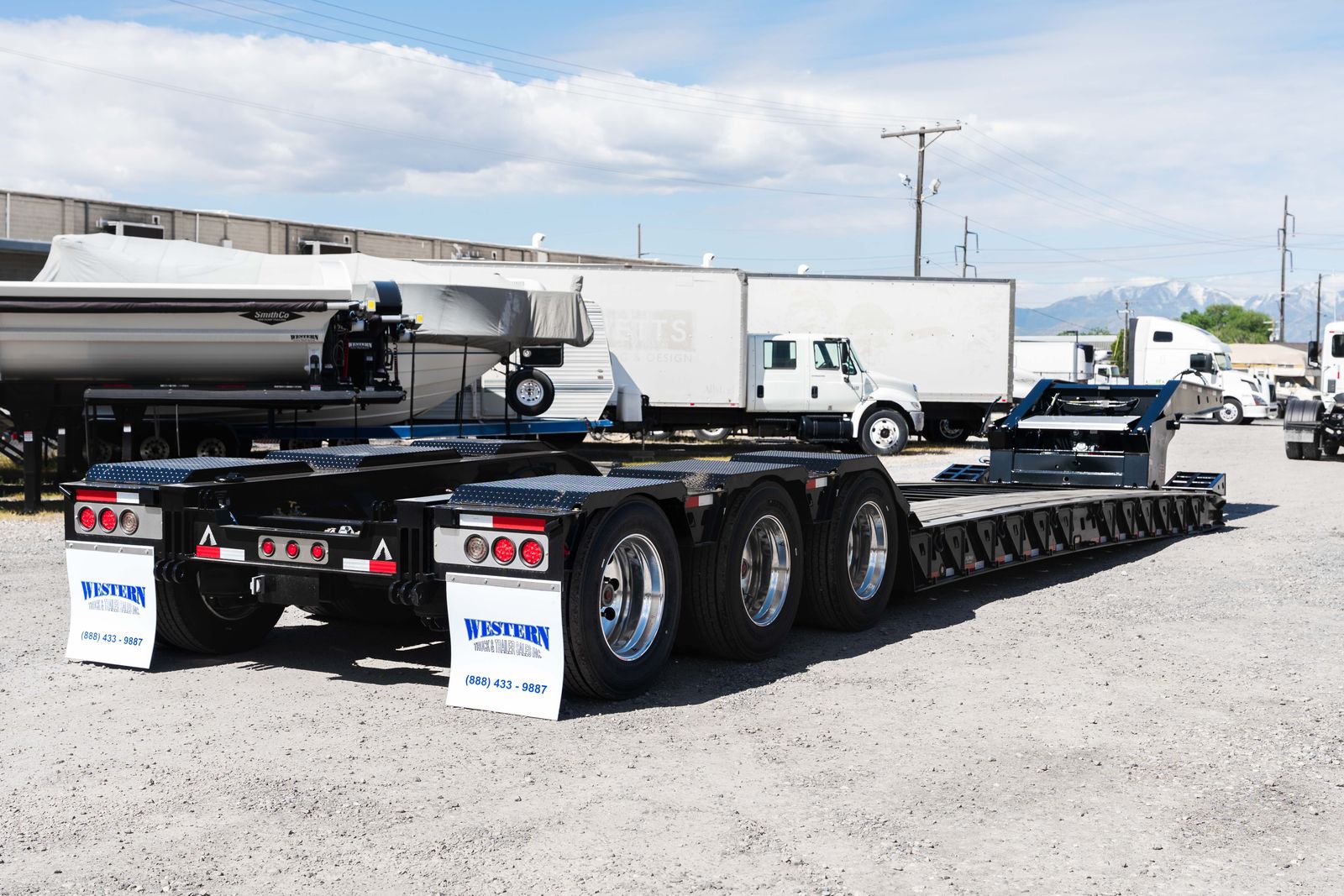

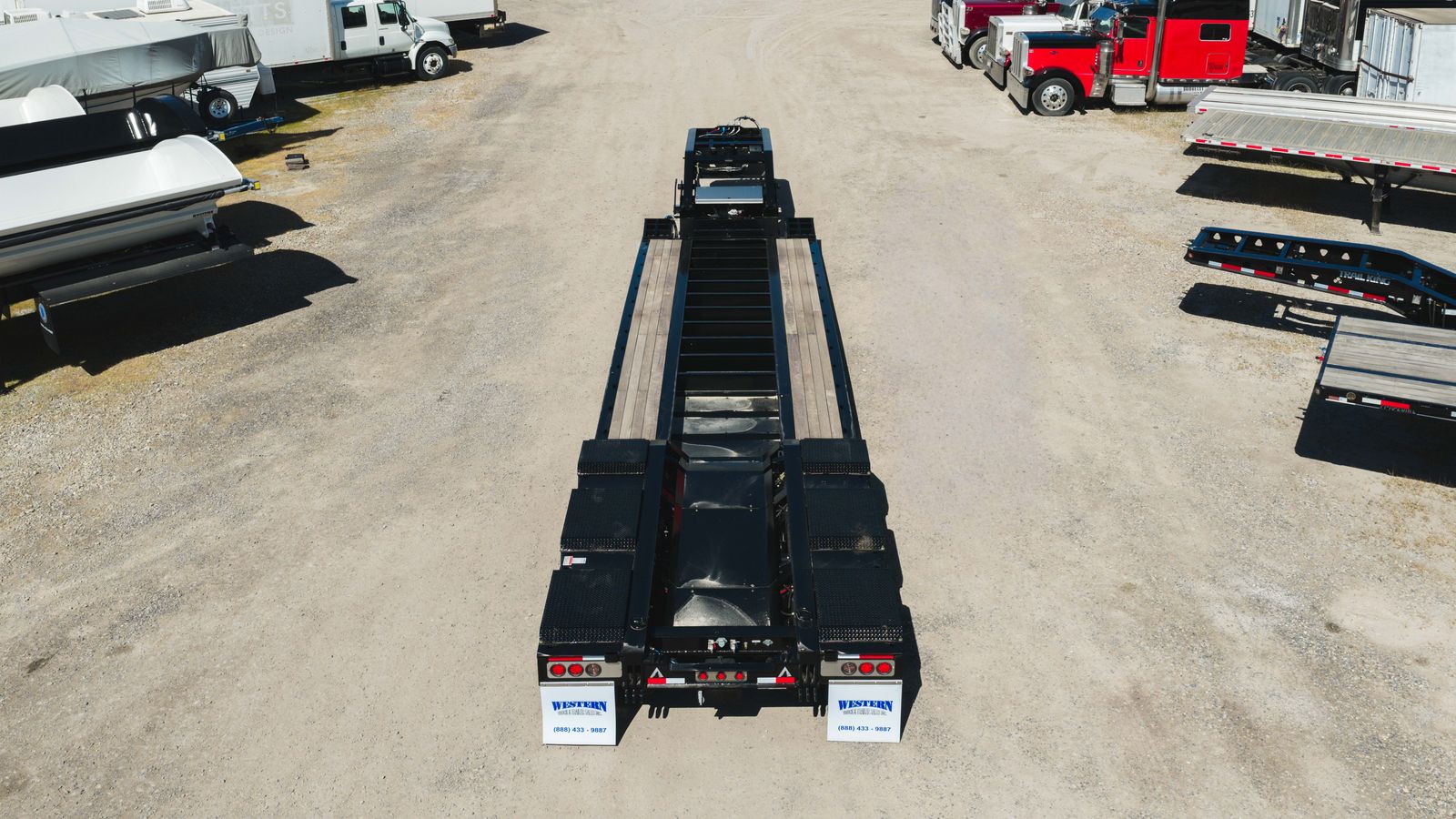

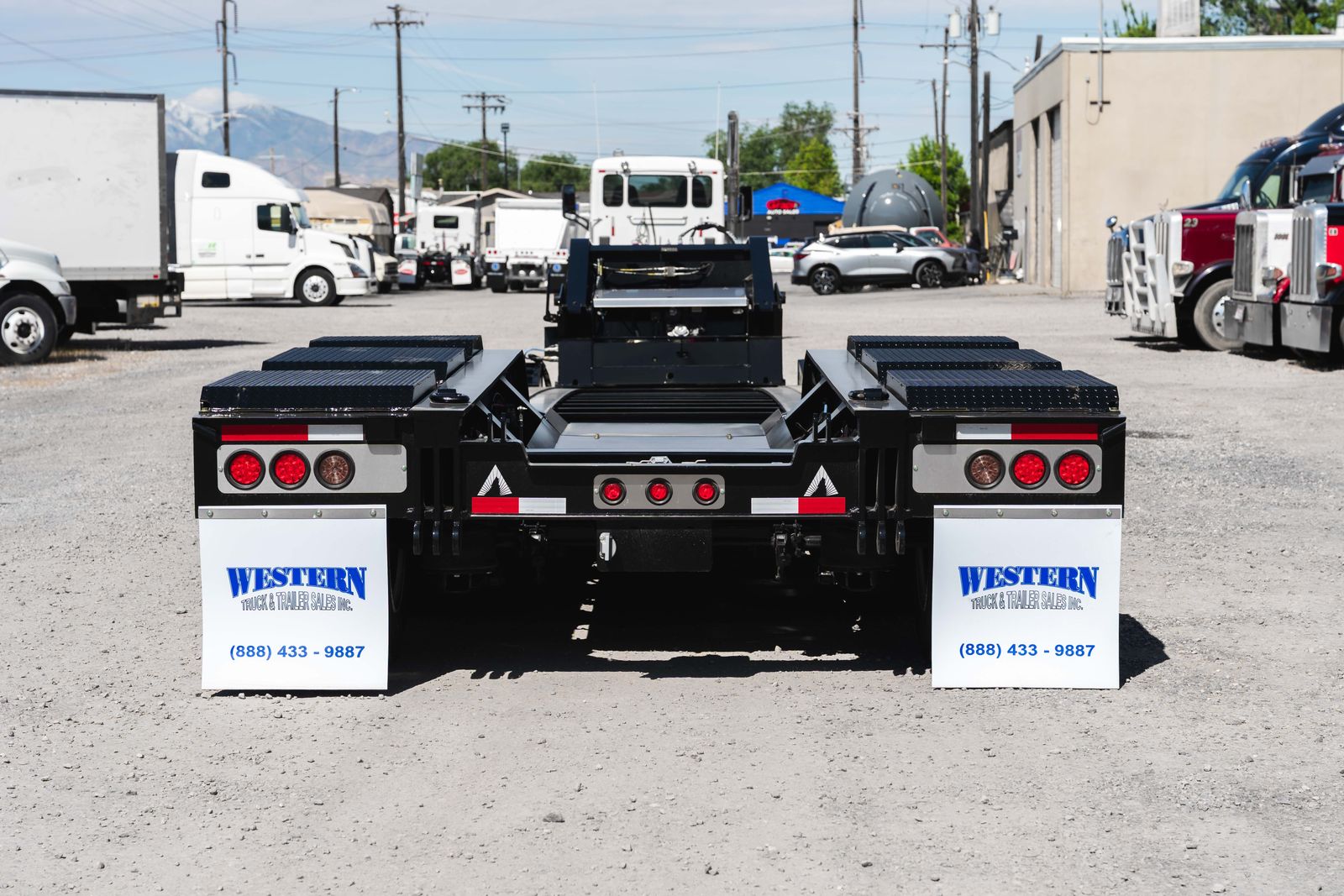

Lighting & Electrical - Tail Lights: 2 Packages with Stainless Steel Covers

• Side Markers: 2 Pairs
• Mid-Turn Lights: 1 Pair on Deck
• Wiring Harness: Grote Ultra Blue-Seal

Why Choose the ALPHA HD 110HDG-SF? Designed for efficiency and heavy-duty performance, the ALPHA HD 110HDG-SF offers a powerful combination of a reinforced frame, hydraulic detachable gooseneck, and advanced suspension. Built for professionals, this trailer ensures safe and reliable transport for oversized loads.
