330W AION – All Black (BOB) PERC 60Cell Mono Black Frame on Black Solar Panel
13 Days
341
7
$90.00
Description
Condition
Payment Types Accepted
PayPal

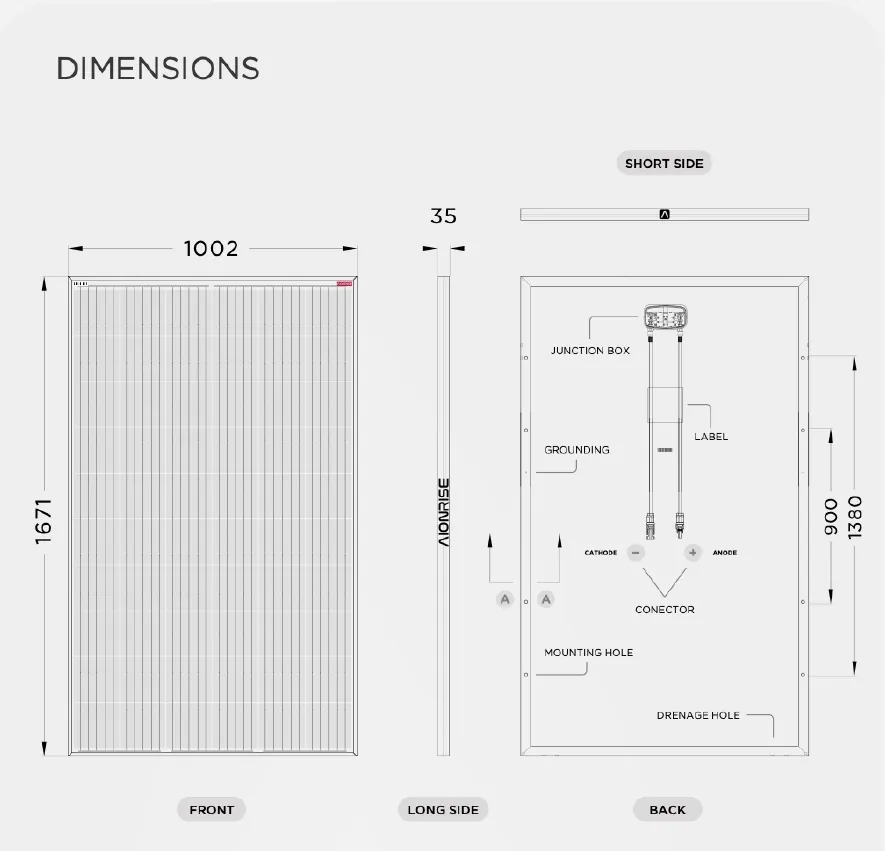

Zellepickup only in Sanpete County (Mt pleasant) UNBELIEVABLE PRICE!! GRAB THEM AT A FRACTION OF RETAIL!! Product CharacteristicsModel No. AION60G1-330 WarrantyPower Warranty 25 Years of 84.8% Output PowerElectrical Data at STCMaximum Power (Pmax) 330 Wp Voltage at Maximum Power (Vmpp) 33.81 V Current at Maximum Power (Impp) 9.76 A Open Circuit Voltage (Voc) 41.31 V Short Circuit Current (Isc) 10.37 A Panel Efficiency 19.9 % Power Tolerance (Positive) 1.5 % Standard Test Conditions (STC): air mass AM 1.5, irradiance 1000W/m2, cell temperature 25°C Electrical Data at NOCTTemperature45±2 °C Nominal Operating Cell Temperature (NOCT): 800W/m2, AM 1.5, windspeed 1m/s, ambient temperature 20°C Thermal RatingsOperating Temperature Range-40~85 °C Temperature Coefficient of Pmax-0.36 %/°C Temperature Coefficient of Voc-0.29 %/°C Temperature Coefficient of Isc0.048 %/°C Maximum Ratings Maximum System Voltage1500 V Series Fuse Rating20 A Material DataPanel Dimension (H/W/D)1671x1002x35 mm Weight18.3 kg Cell TypePERCCell Size158.75×158.75 mm Cell Number60Glass TypeAnti-reflection Coating Glass Thickness3.2 mm Junction Box Diodes3 Junction Box Protection ClassIP 67 Connector TypeMC4 Cable Crossection4 mm2 Cable Length1000 mm
