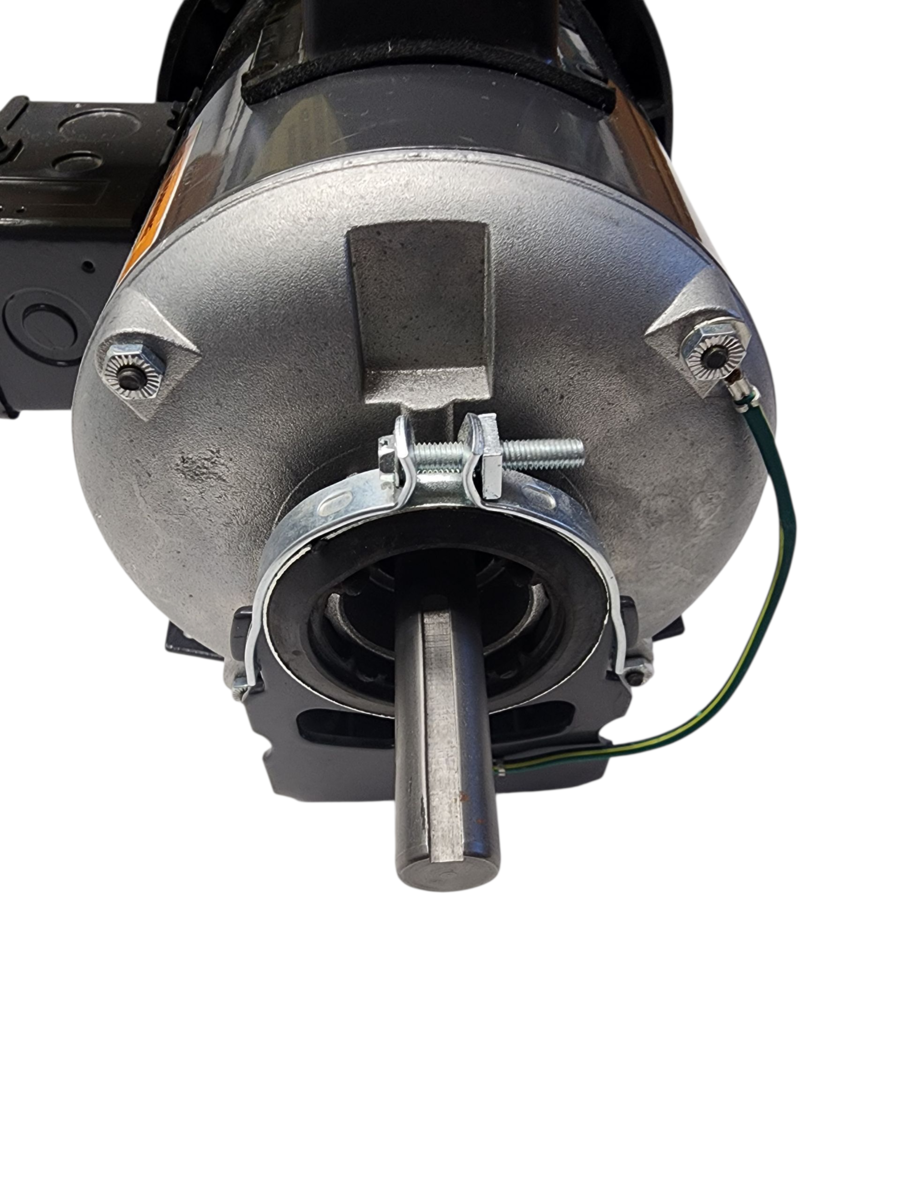

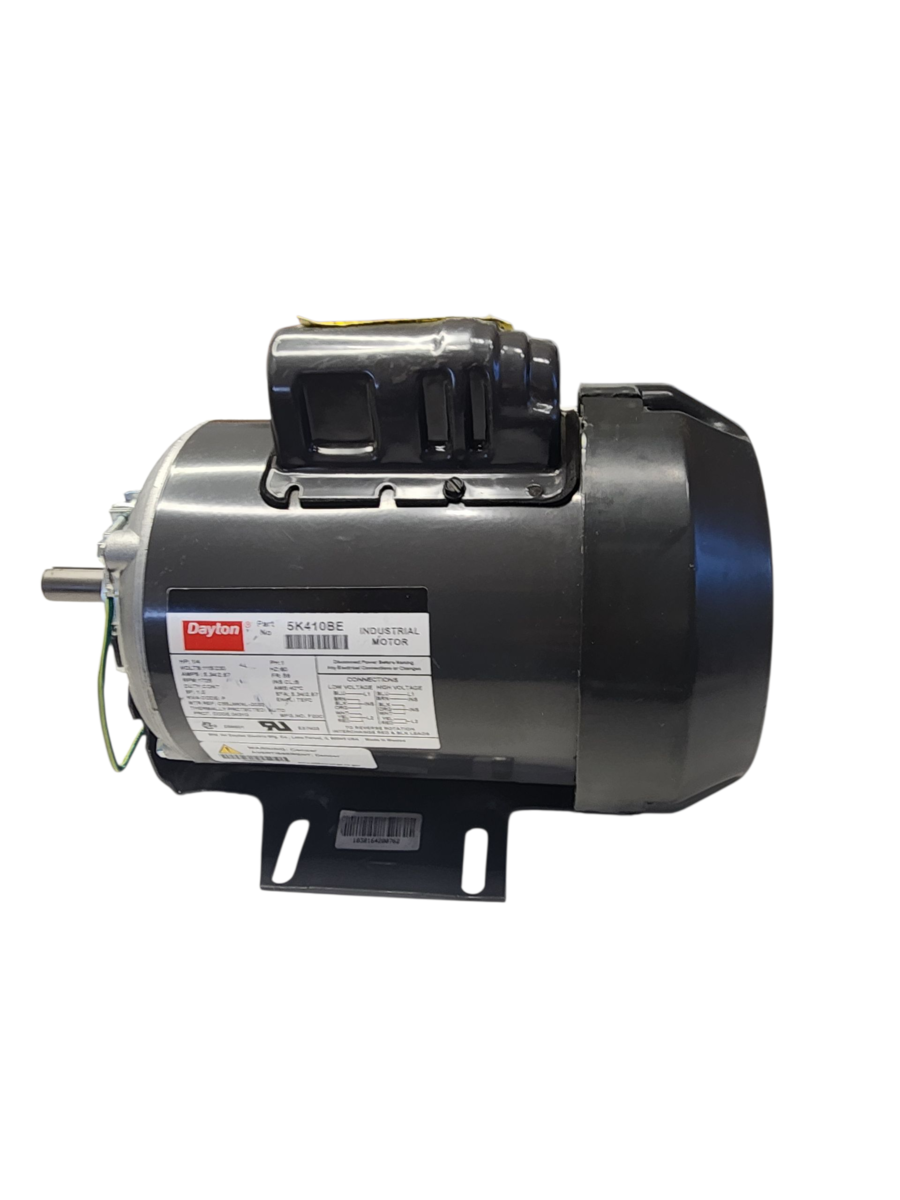

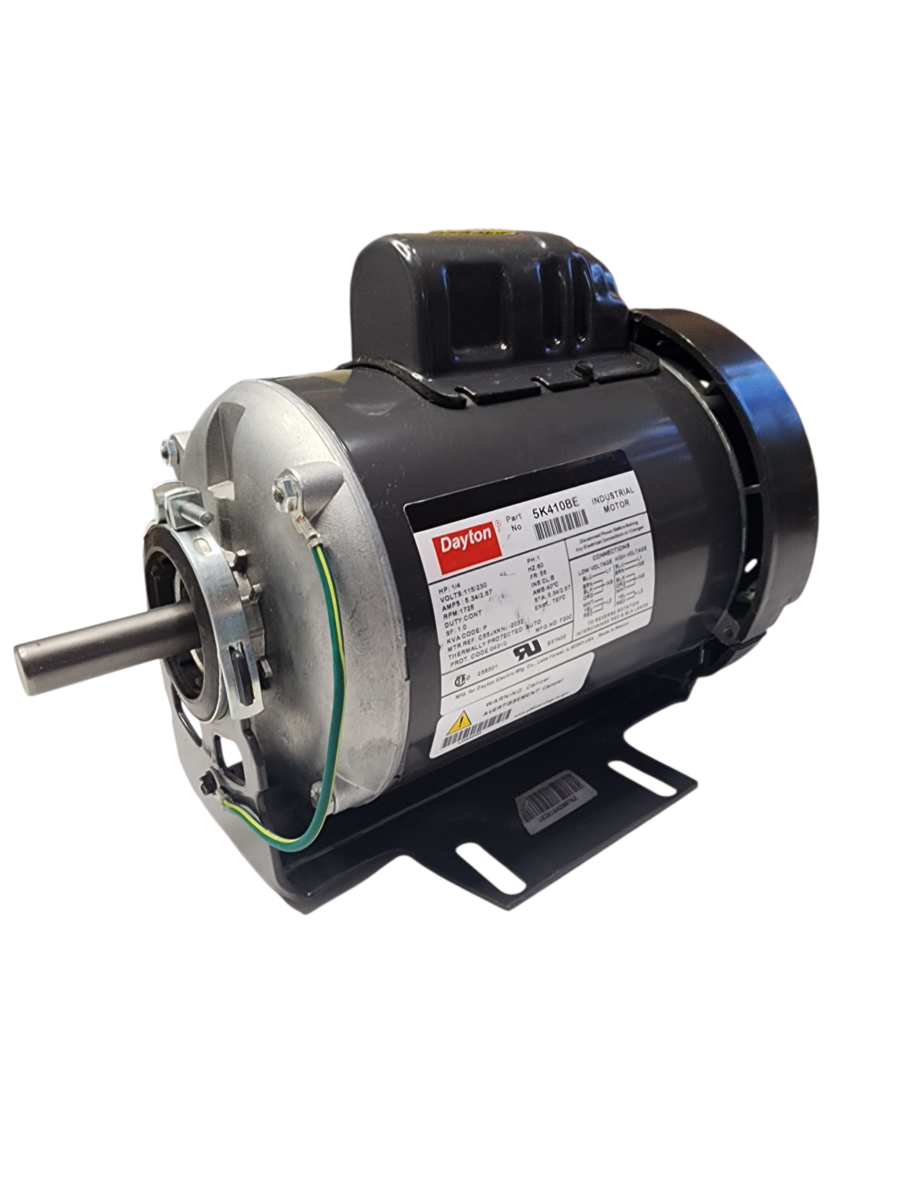

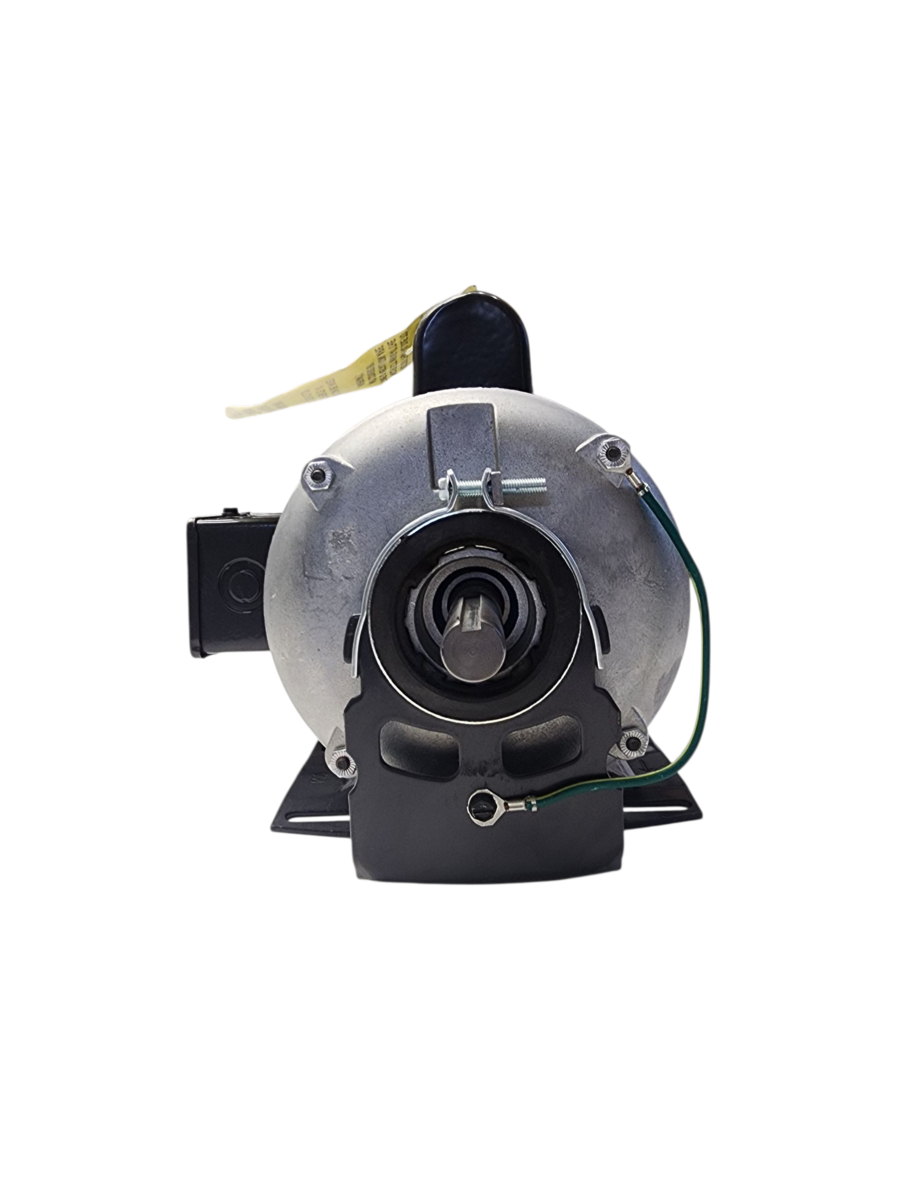

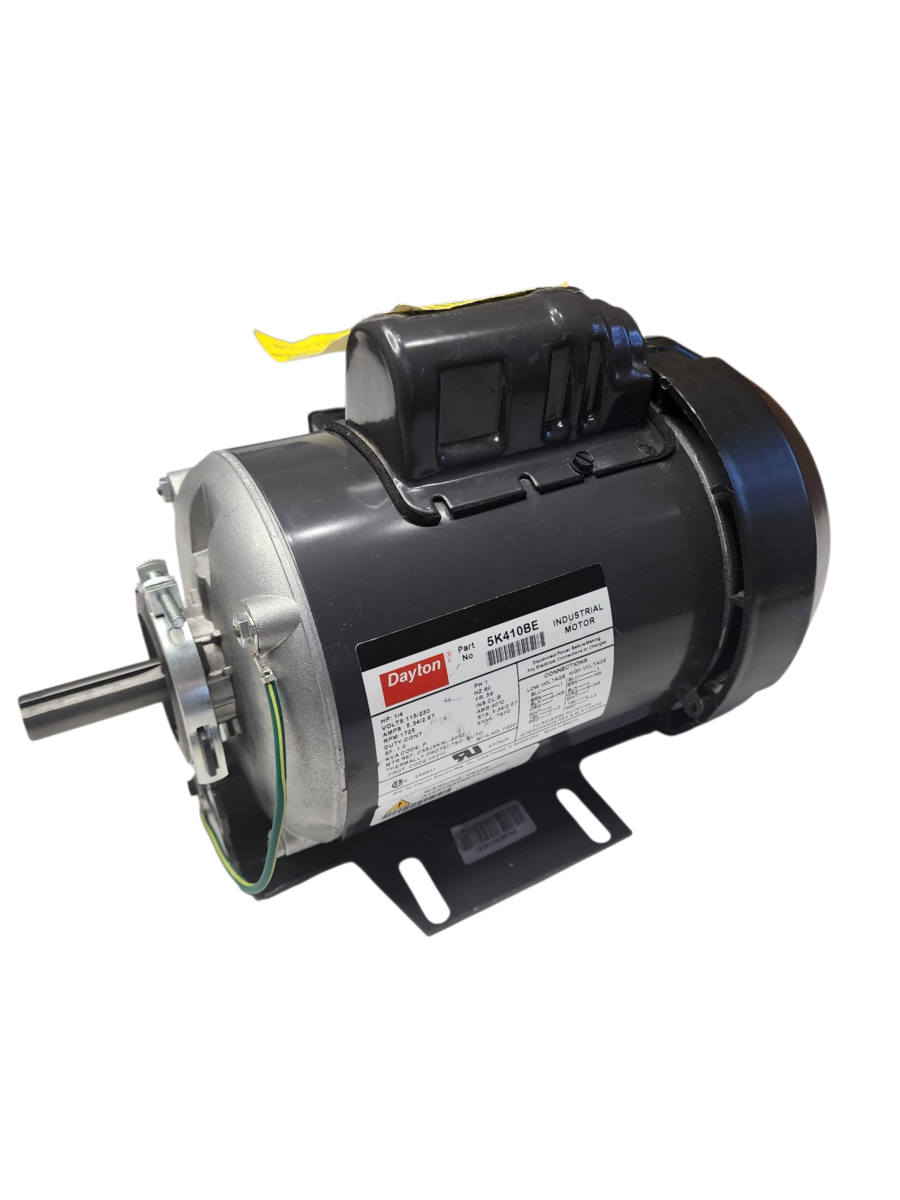

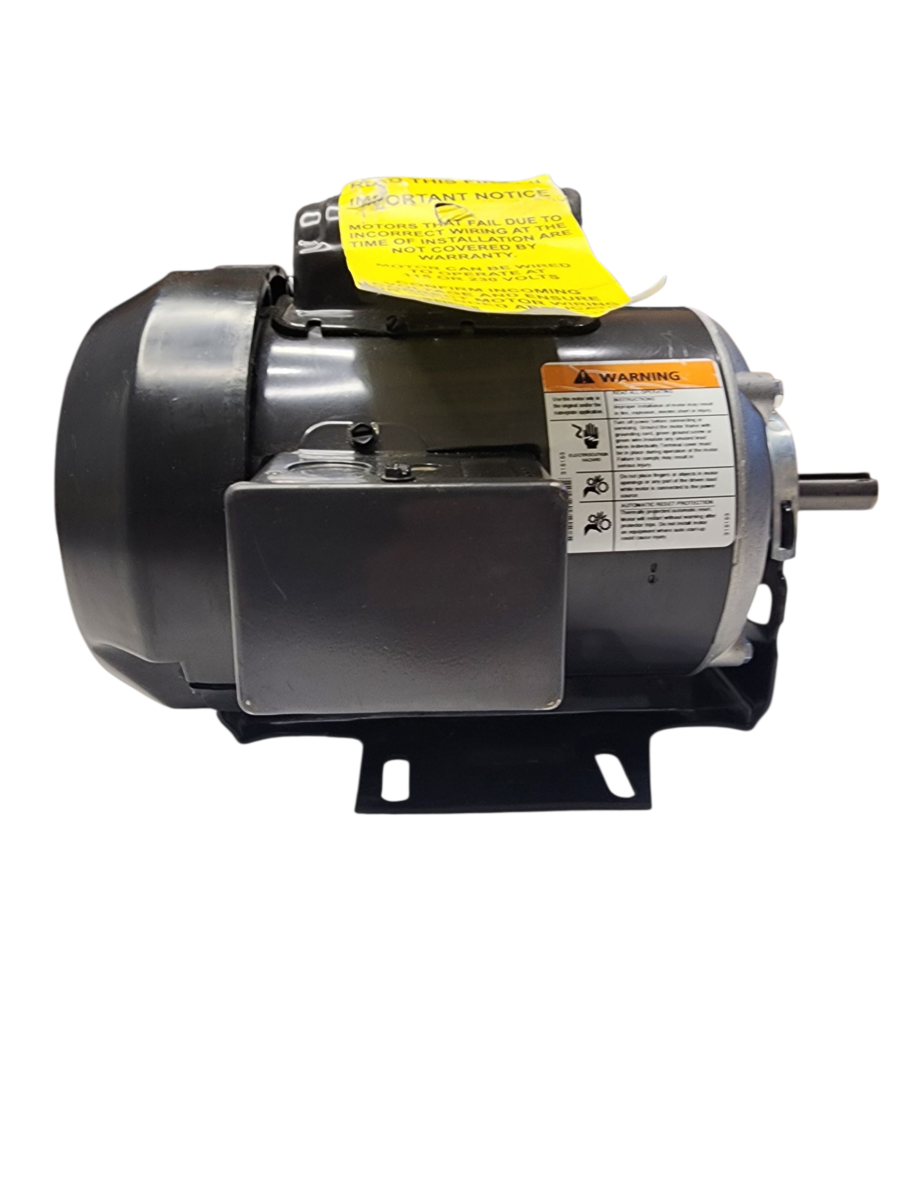

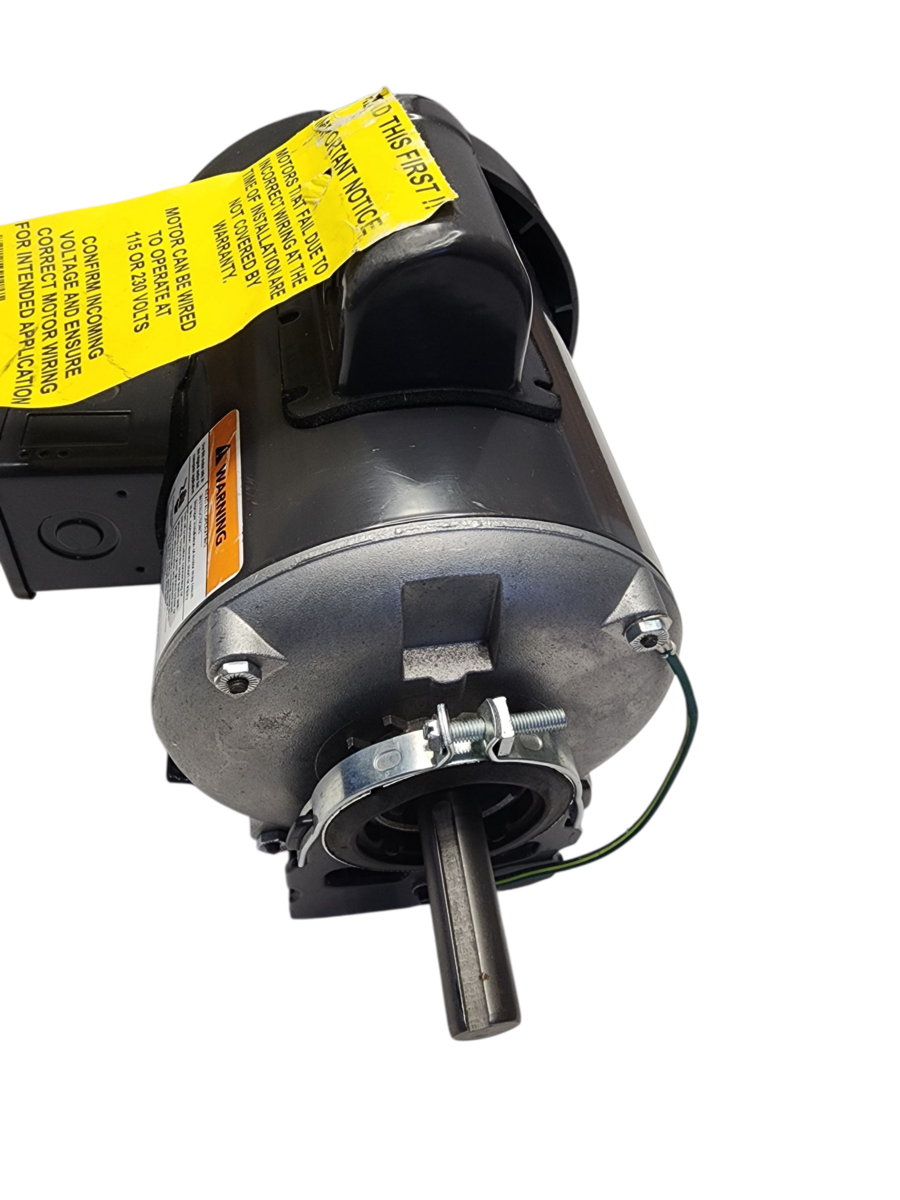

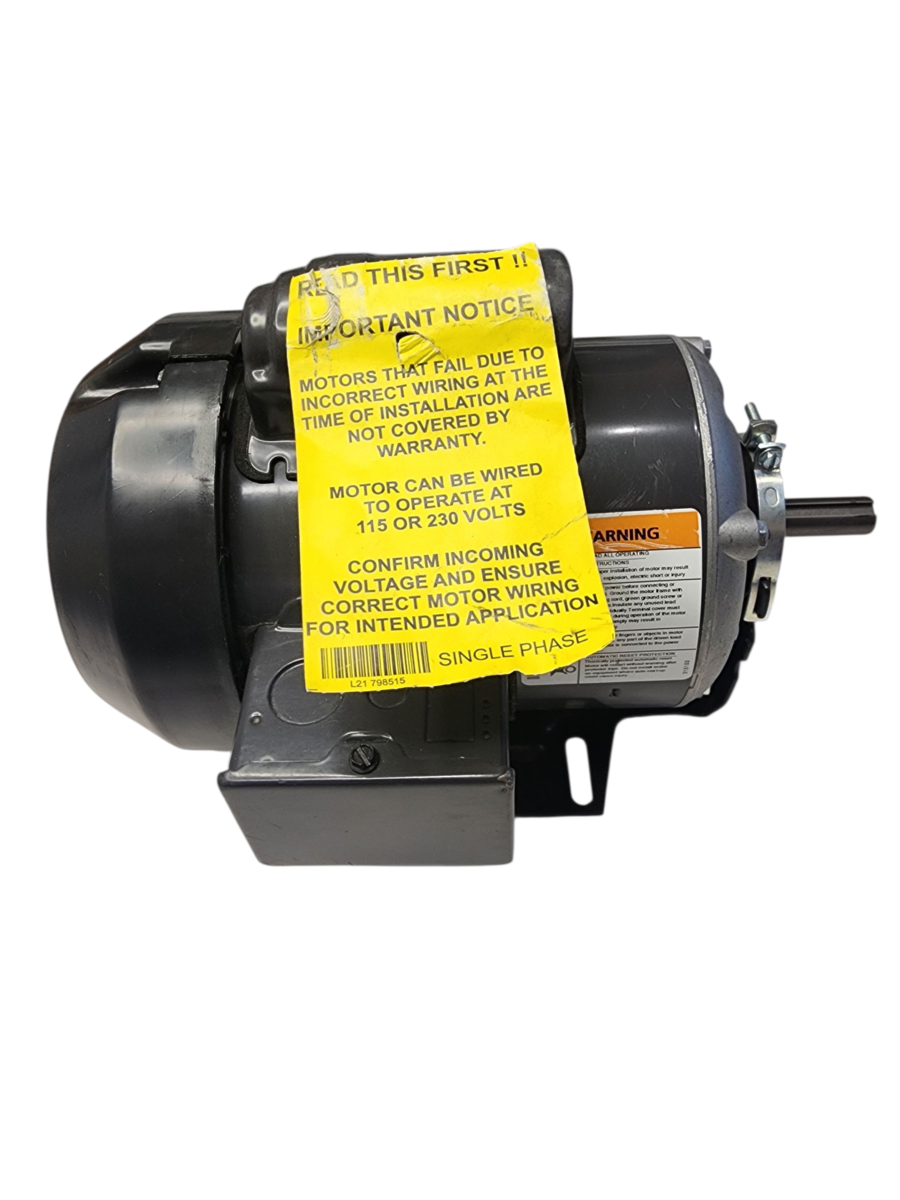

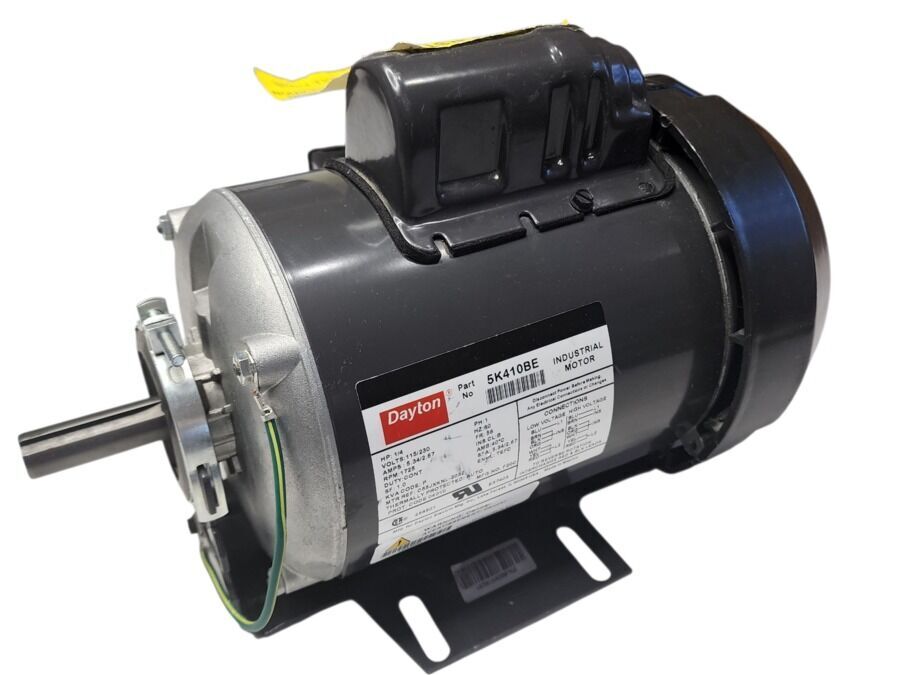

DAYTON, General Purpose Motor

Manufacturer Part Number: 5K410BE

Phase: Single

Horsepower @ 60 Hz1/4 hp

Nameplate Voltage @ 60 Hz115/230V AC

Nameplate RPM @ 60 Hz1,725 RPM

Nameplate Service Factor @ 60 Hz1

Full Load Amps @ 60 Hz5.3/2.7 A

Frame Size: 56 Frequency: 60 Hz Insulation Class: B

Output Shaft (Dia x L): 5/8 in x 1-7/8 in Shaft Diameter: 5/8 in Shaft Length: 1-7/8 in

Motor Design: Capacitor-Start Mounting Type: Cradle Base Motor Enclosure Type: Totally Enclosed Fan Cooled Motor Shaft Rotation: CW/CCW Motor Thermal Protection: Auto

Nominal Efficiency: 54.3 % Number of Speeds: 1 Ambient Temperature - Maximum; 40 °C

Product Type: General Purpose Motor Application: General Purpose Bearing Type: Ball Duty Cycle: Continuous Frame Material: Steel

Length Less Shaft: 9-5/8 in Overall Length: 11-1/2 in Shaft Design: Keyed

Standards: CSA (156060); UL (E37403)

UNSPSC: 26101602

This motor is new, unused (few scatches) missing the original box and manual.

Asking $180
