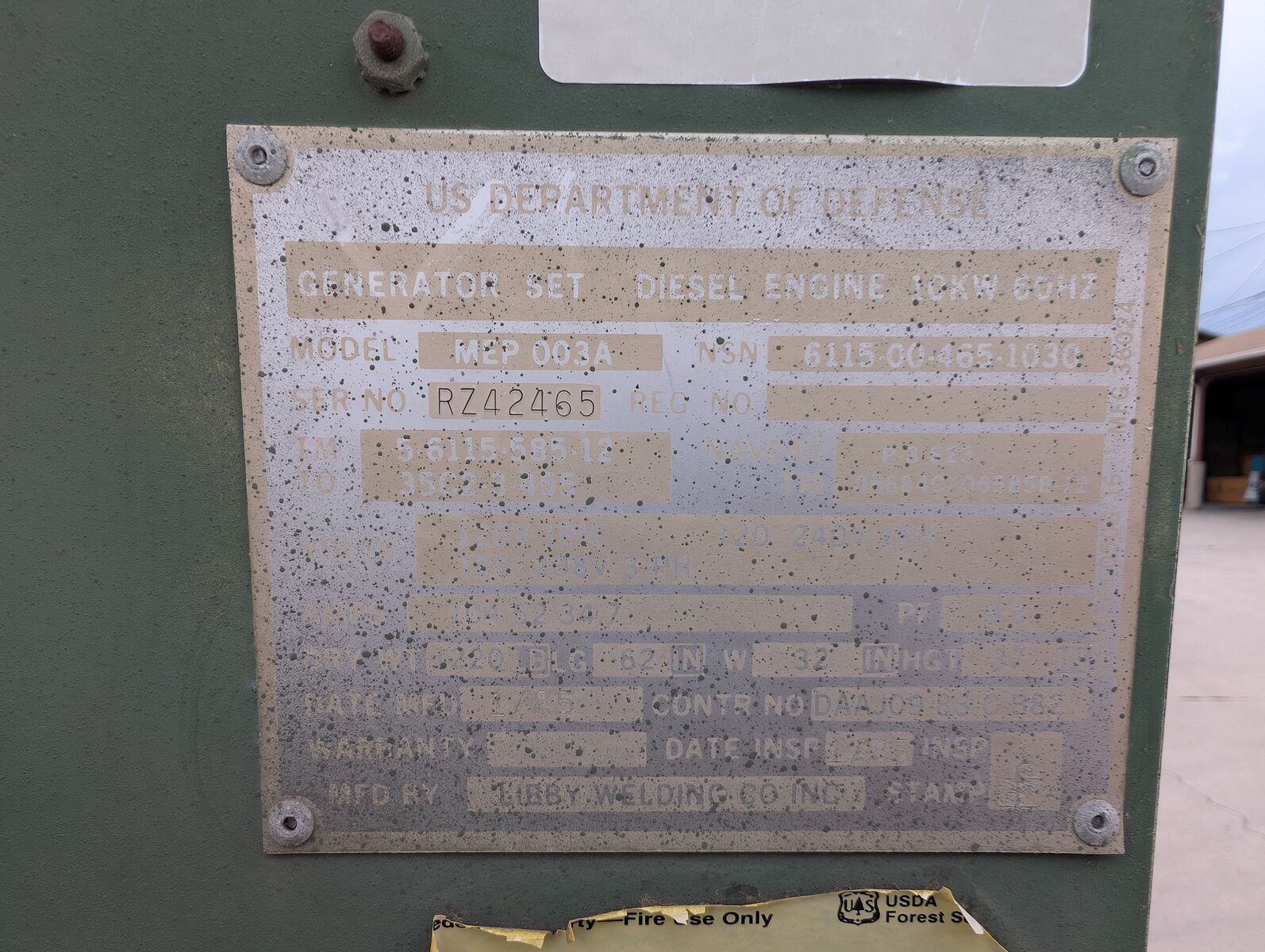

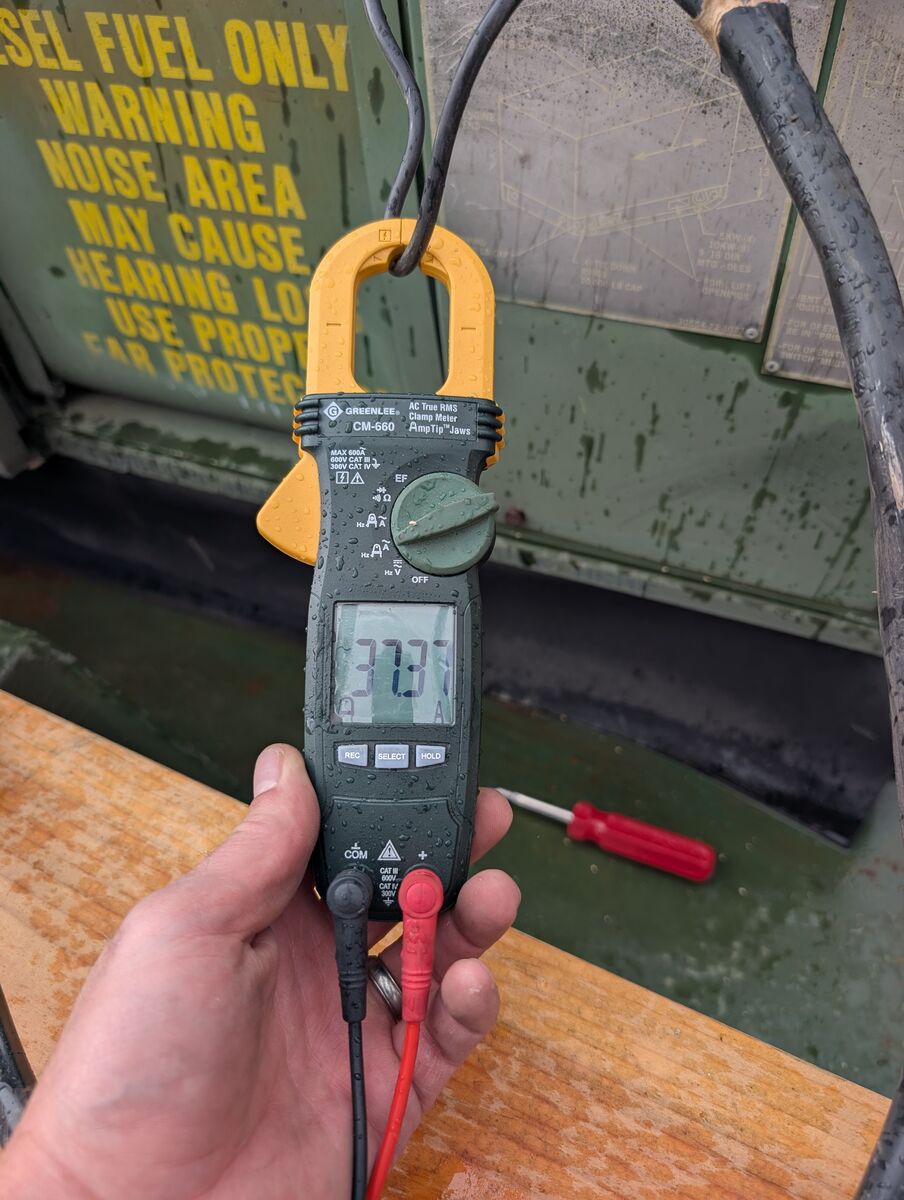

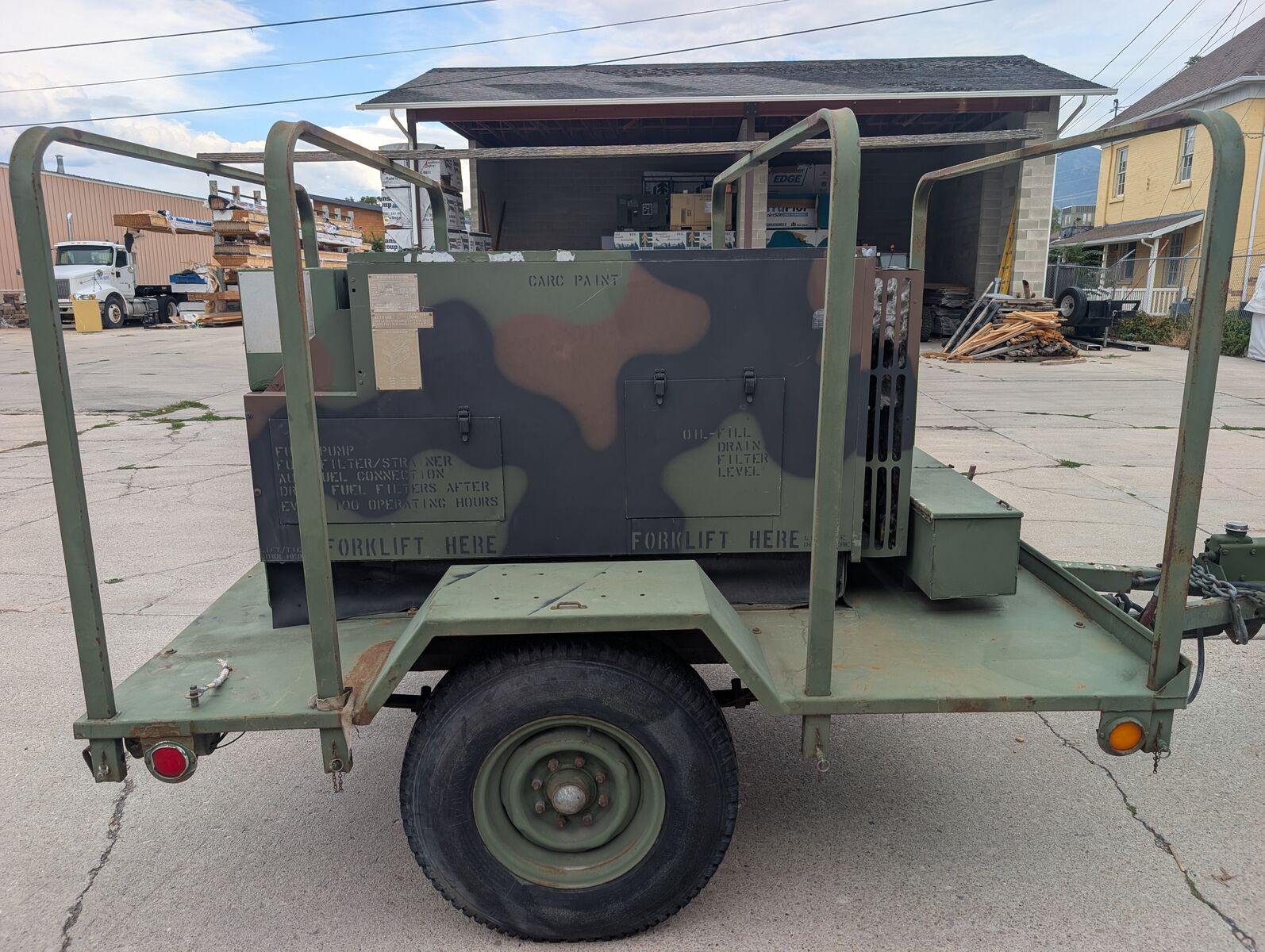

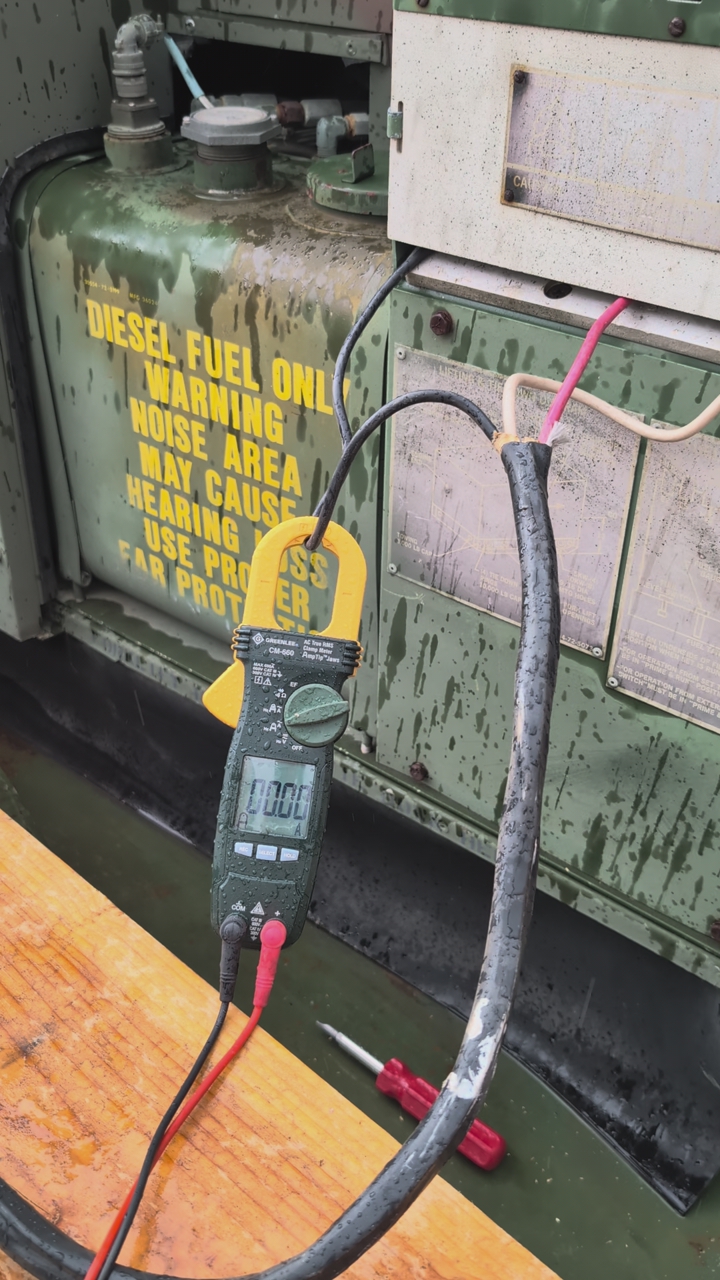

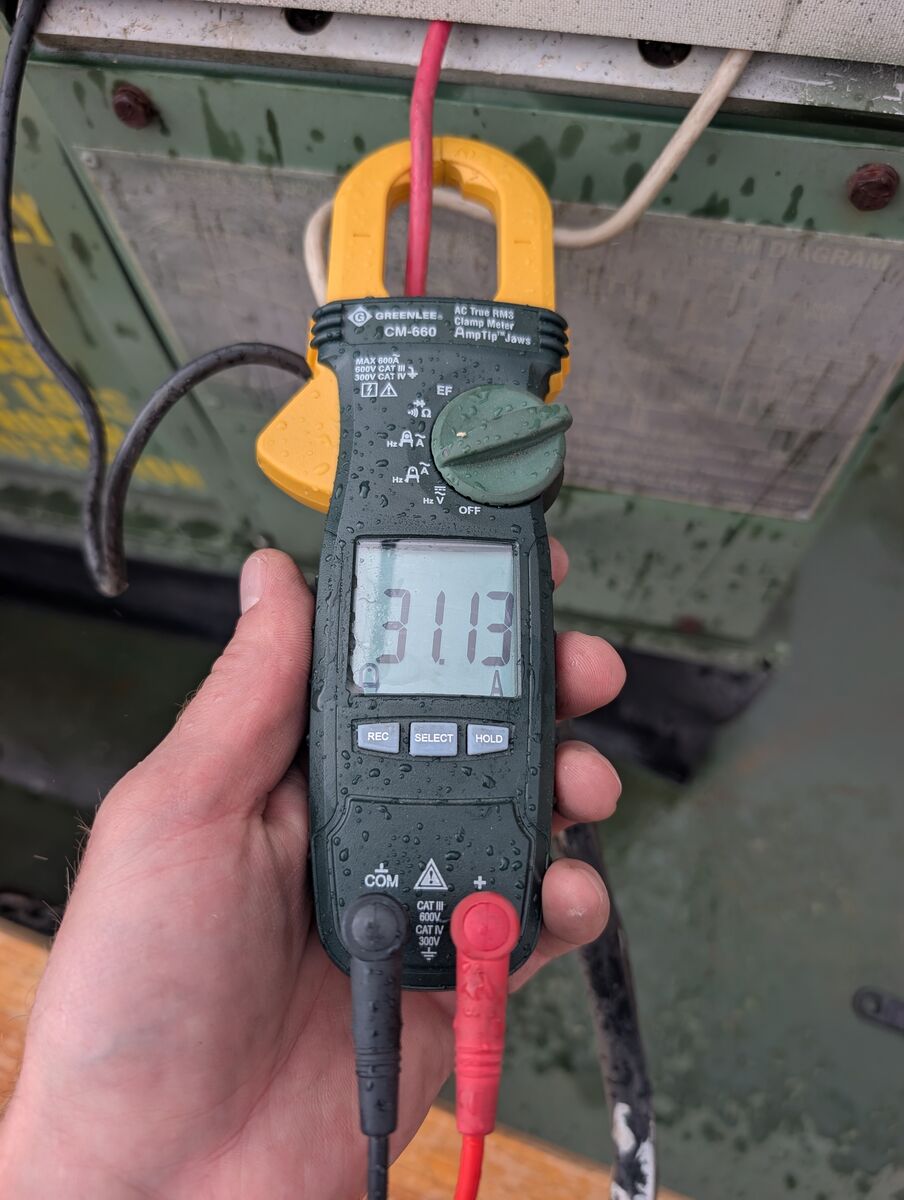

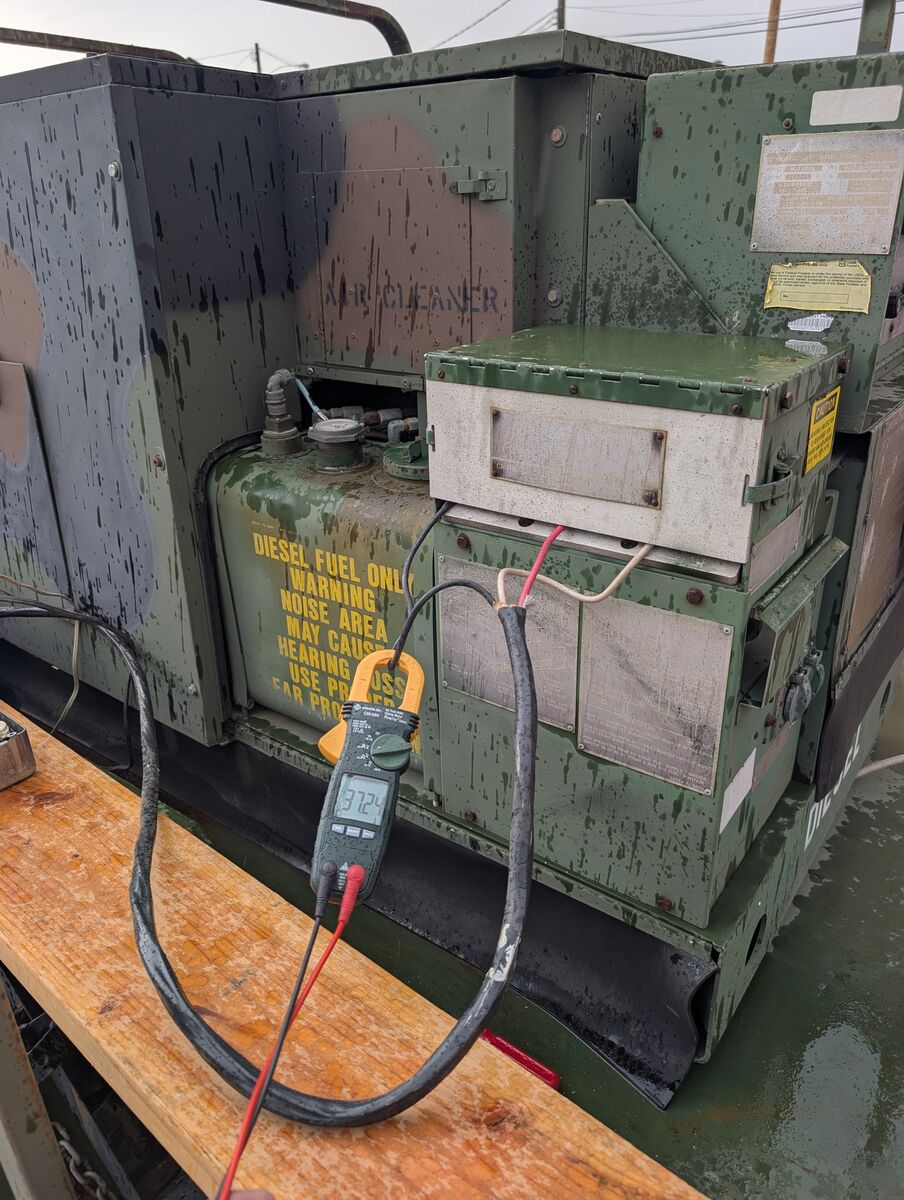

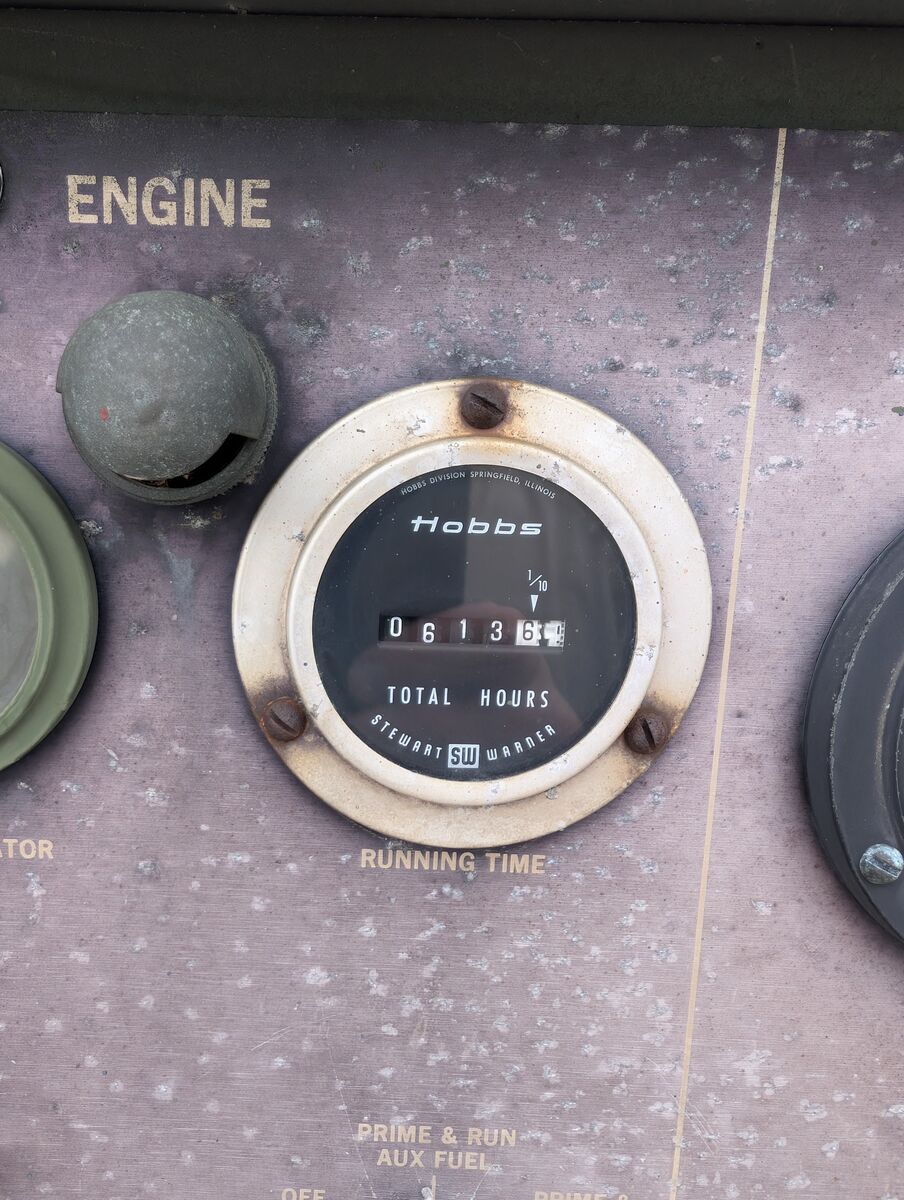

MEP003A 10k+ Watt Single Phase and Three Phase Diesel Generator mounted on M116a2 Trailer. These things are built for the US military for any and all weather conditions. They are extremely reliable and built to work. They are 100% duty cycle and can run at full load all day every day until service is required. Servicing is super easy with convenient drain valves and hoses and drip guards. The M116a2 trailer makes this generator extremely portable. These are capable of running comfortably 12,500 watts which for many of us is an entire house without shedding loads to compensate. These currently sale for $5100 online without the trailer and the ASK (Acoustic Suppression Kit). This Generator has been load tested and easily pulled around 80amps without hesitation. It currently has low low low hours of 613. These are made to last 15,000 to 50,000 hours with proper maintenance. Check out my other listings for other military trailers and generators. Thanks for looking.

• **Continuous Power Rating: **10 Kilowatt (kW), 60hz at 80% power factor below 5,000 feet above sea level. (The US Military underrates their units by at least 25%.)
• **Current Type: **Alternating Current (AC)
• Amp Output: 83.2 amps (assumes 120 volt output and 10,000 watt rating. The US Military underrates their units by at least 25%. If you assume 12,500 watts and 120 volt output, you arrive at 104 amps.

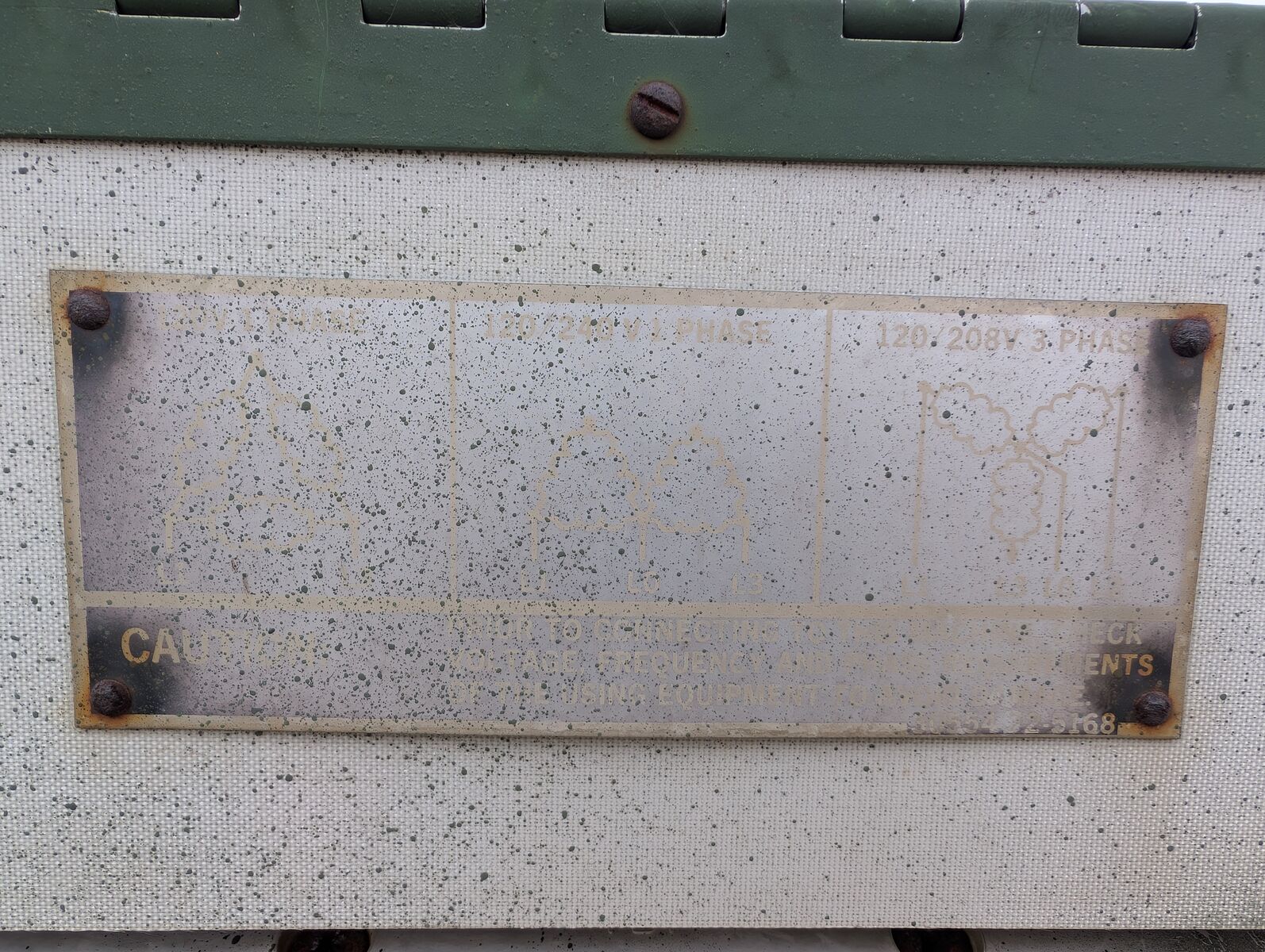

• **Voltage: **120V (single phase, 2 wire), 120/240V (single phase, 3 wire), 120/208V (3-phase, 4 wire)
• **Phases: **Single AND Three on-the-fly
• **Fuel Type: **Diesel (Bio-diesel retrofits are possible assuming 1) the bio-diesel is preheated properly and 2) the bio-diesel is of high quality and purity)
• **# of Cylinders: **4
• **RPM: **1,800 (Note that most consumer units run hot and fast at 3,600 RPMs are not capable of continuous use.)
• **Engine Manufacturer: **Onan (now Cummins Onan – a world leader in diesel engine technology)
• **Engine Type: **Four Cycle
• **Displacement: ** 140 cubic inches (2294 cc.)
• Compression Ratio: 19:1
• **Horsepower: **17.8 @ 1800 RPM (0-5000 ft above sea level)
• **Governor: **Internal flyball; external adjustment
• Cooling Method: Air-Cooled (i.e. not liquid-cooled; no water pump, radiator or coolant needed which radically reduces maintenance costs)
• **Excitor Type: **Self-Excited
• **Body Material: **Steel
• **Radio Interference Suppression: **Included/Yes (just in case!)
• **Fuel Filters: **Tank fuel strainer for large particulates; followed by in-line strainer; followed by dual in-line redundant fuel filters (easily replaced with Napa parts)
• **Fuel Pumps: **Three redundant electric fuel pumps (one is for auxiliary fuel source such as a 55 gallon drum); one master mechanical injector pump.
• **Air Filter: **Large and easily replaceable air filter with cold-weather intake diverter. You can switch from normal air filtration to the cold-weather setting that will suck air in over the exhaust manifold to pre-heat the air. This is an excellent cold weather feature.
• **Cold Weather Kit: **Includes: air intake pre-heat, glow plugs, 24 volt cold weather starting system. You will not find more durable cold-weather features in any unit on the market.
• **Fuel Tank Capacity: **12.5 gallons
• Lubricating Oil Capacity (Less Filter): 3 quarts, 4 quarts if filter is changed (2.8 liters, 3.7 liters if filter is changed)
• Ventilation requirements (Total): 1350 CFM at 1800 RPM
• Batteries: Batteries (two) are NOT included

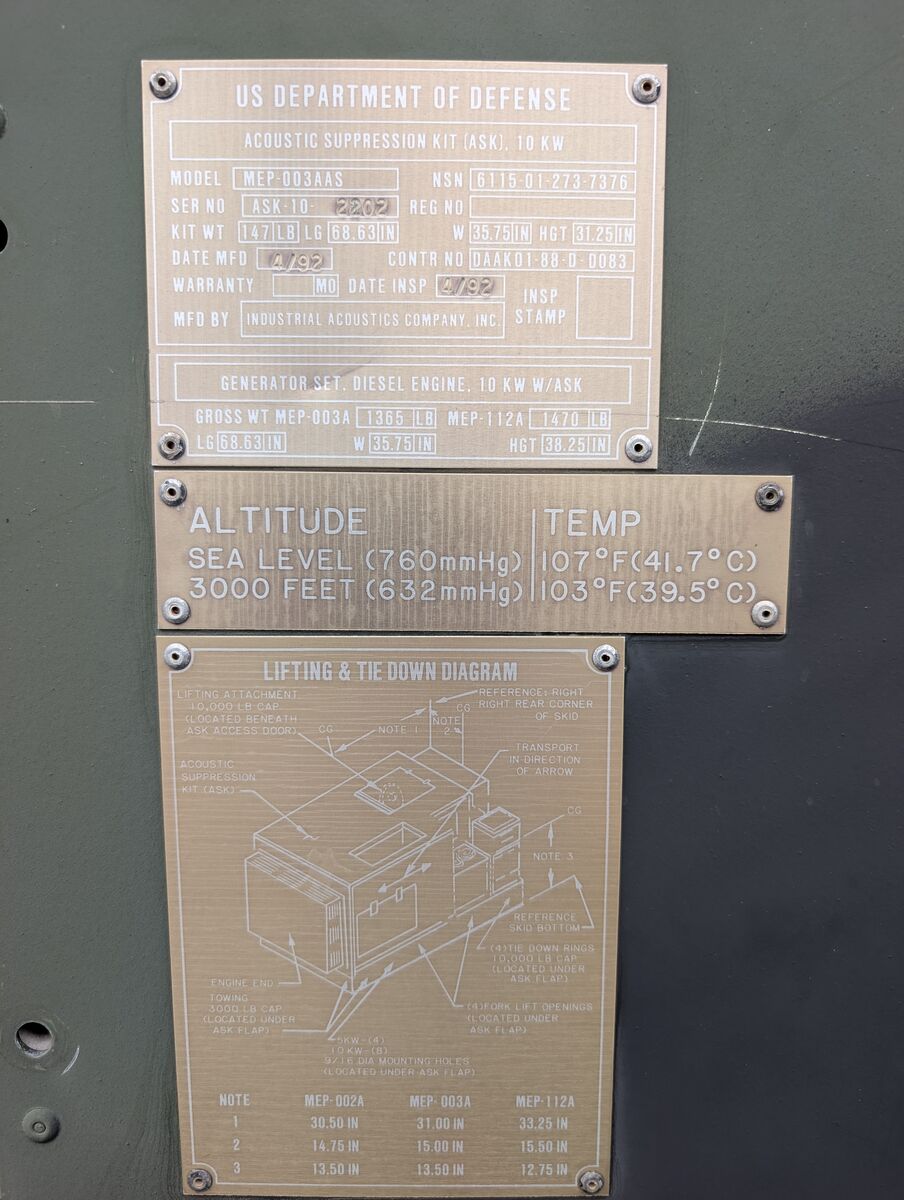

• MEP003A Dimensions (With ASK Installed):
• overall length 69 in. (175.5 cm.)
• overall width 36 in. (91.3 cm)
• overall height 39 in. (99 cm.)
• net weight empty 1365 lbs. (619.4 kg.)
• net weight filled 1505 lbs. (683.9 kg.)
