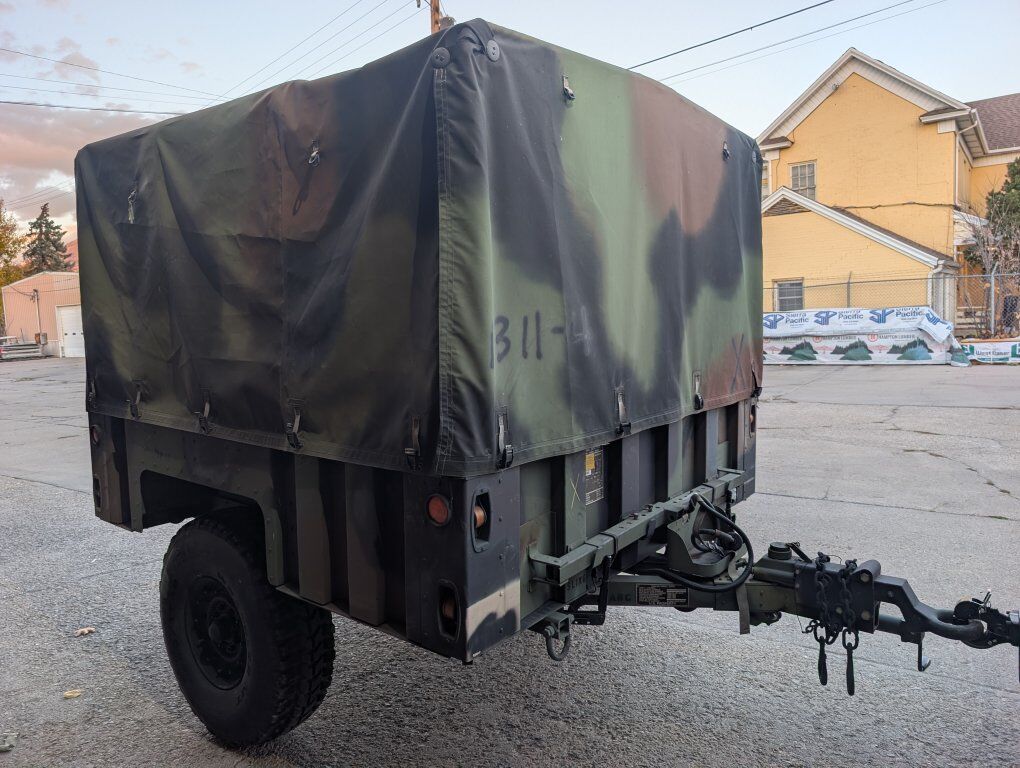

1997 M1101 Cargo Trailer like new not a scratch in the bed. Great base for an overland build, aluminium body, massive ground clearance, 37x12.50 tires, parking brakes, independent suspension, building in stabilizer jacks. Here are a few general specs.

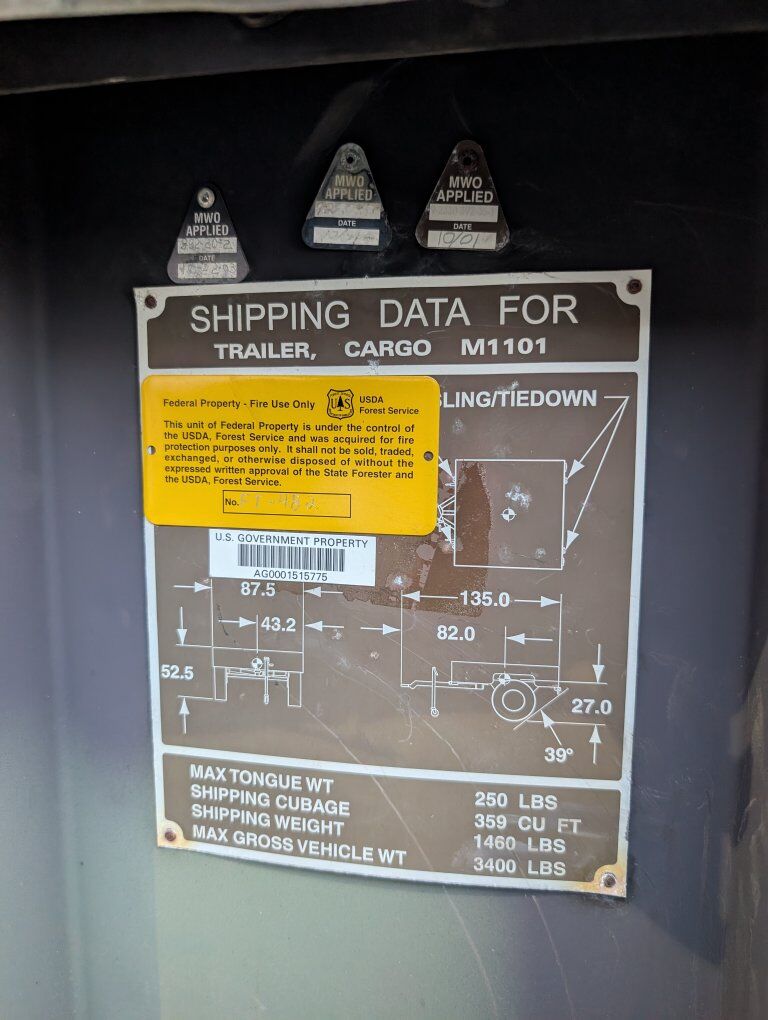

The M1101 trailer is a 3/4-ton military cargo trailer with a curb weight of 1,460 lbs and a payload capacity of 2,740 lbs. Key specifications include a maximum gross vehicle weight of 4,200 lbs, overall dimensions of 132 inches long by 85.6 inches wide by 52.5 inches high, and an independent trailing arm suspension compatible with HMMWV (Humvee) vehicles. It features aircraft-grade aluminum and chromoly steel construction, 37-inch tires, and hydraulic surge brakes. General specifications

• Curb Weight: 1,460 lbs • Payload Capacity: 2,740 lbs • Maximum Gross Vehicle Weight: 4,200 lbs • Construction: Unitized body with aircraft-grade aluminum and chromoly steel

Dimensions

• Overall Length: 132 inches • Overall Width: 85.6 inches • Overall Height: 52.5 inches (99.5 inches with soft top kit) • Deck Height: 34.5 inches • Ground Clearance (loaded): 16 inches

Suspension and chassis

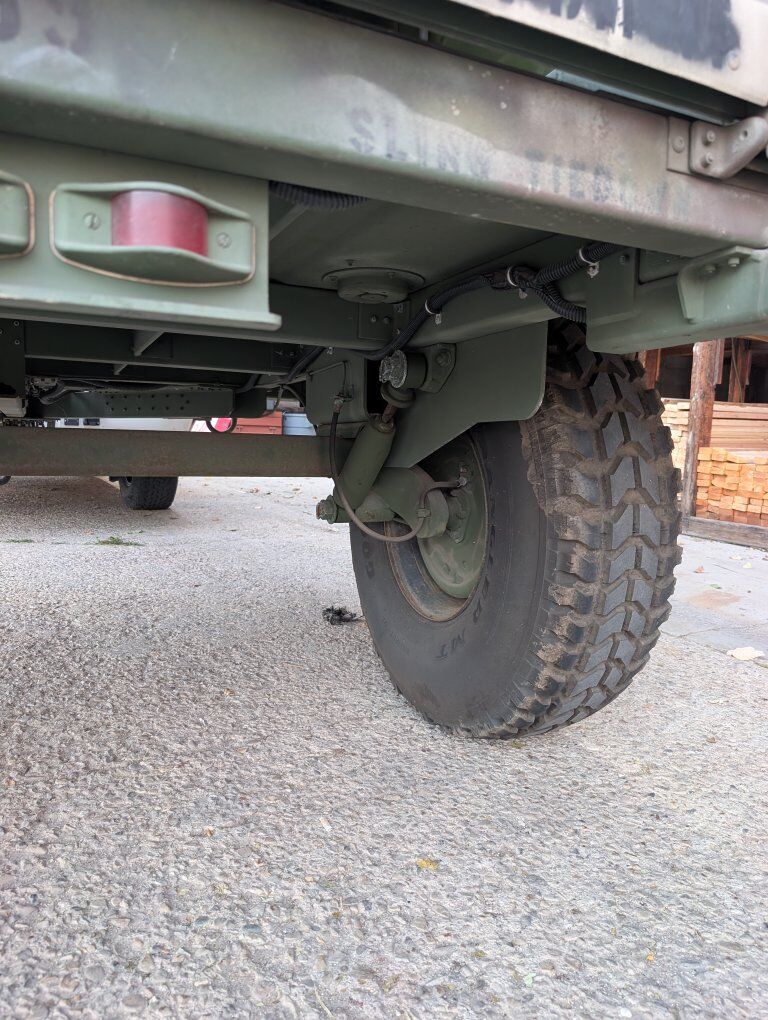

• Suspension: Independent, progressive rate trailing arm • Tires: 37x12.50R16.5 Goodyear Wrangler M/T with 30-mile runflat inserts • Wheels: 16.5 x 8.25, HMMWV compatible

Braking and electrical

• Brakes: 12-inch x 2-inch hydraulic surge brakes with breakaway actuation and mechanical parking brakes • Electrical System: 24 Volt DC sealed lighting system with blackout convoy lights and a 12-pin connector

Performance

• Maximum Speed (primary roads): 55 mph (88 kph) • Fording Capability: 60 inches (152 cm)
