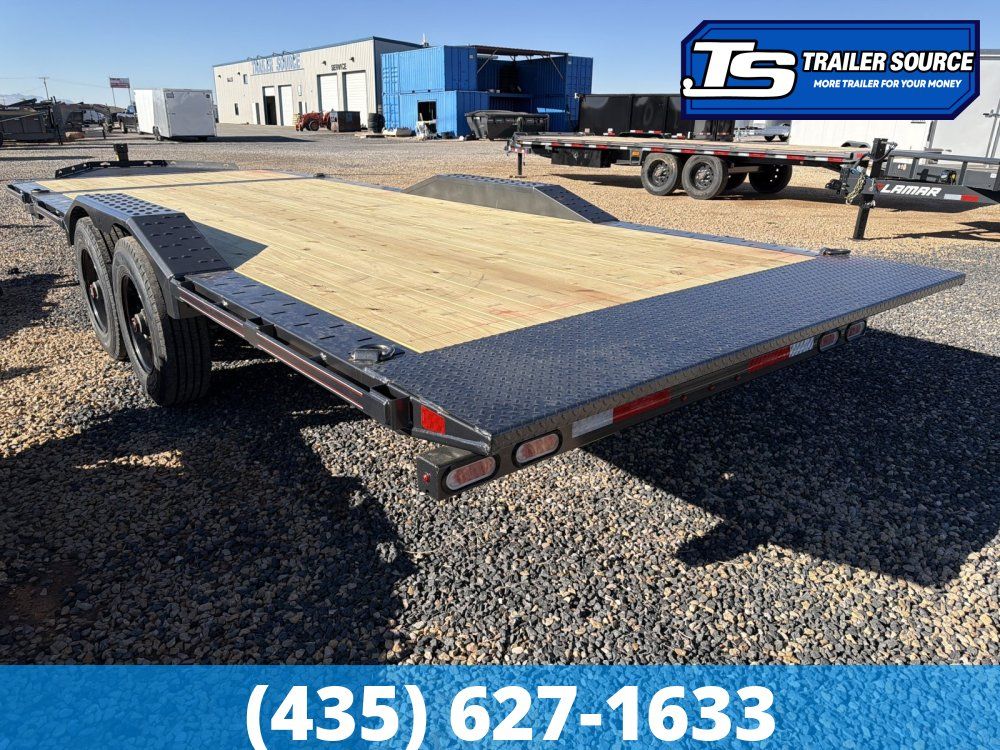

8.5 x 22 Diamond C HXD 210 23K Tilt Trailer – Ready To Work!

The Diamond C HXD 210 is the absolute heavyweight of the bumper-pull tilt world. It takes the extra-wide 102" deck of the HXD series and marries it to the massive 23,000 lb GVWR capacity.

KEY STANDARD FEATURES **Dual 10,000 lb Oil-Bath Torsion Axles (23K GVWR)**The "210" package for 2026 standardized dual 10K Torsion axles. This is a massive jump in durability. Torsion suspension provides a smoother independent ride for your equipment, and the oil-bath hubs allow you to check your lubrication levels at a glance through the clear caps, eliminating the guesswork of traditional grease hubs.

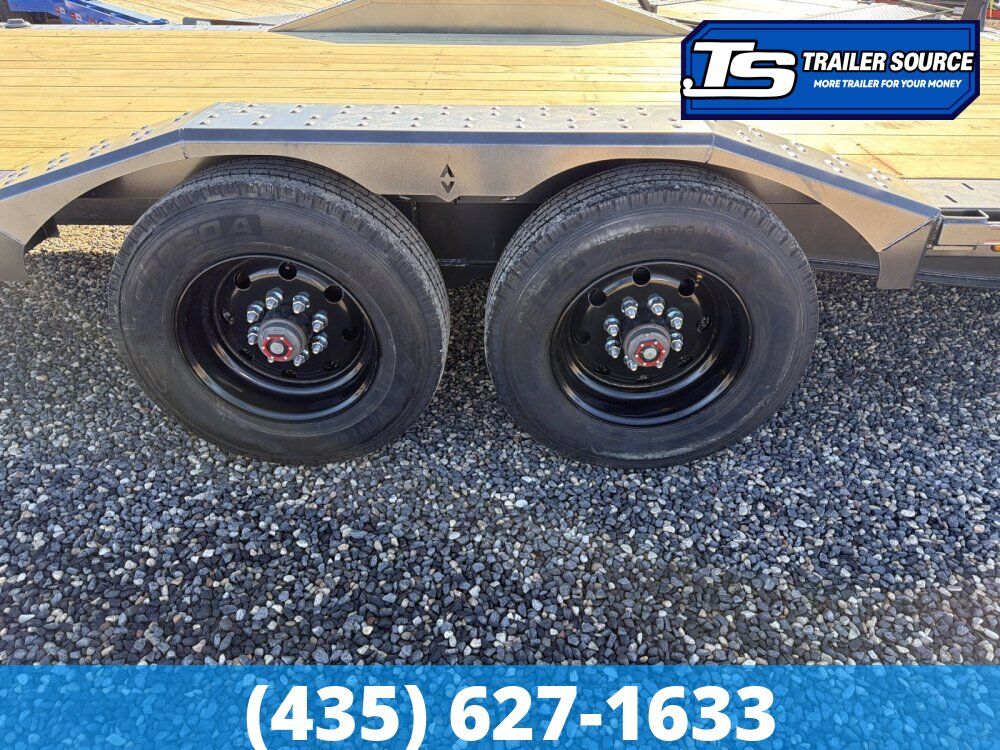

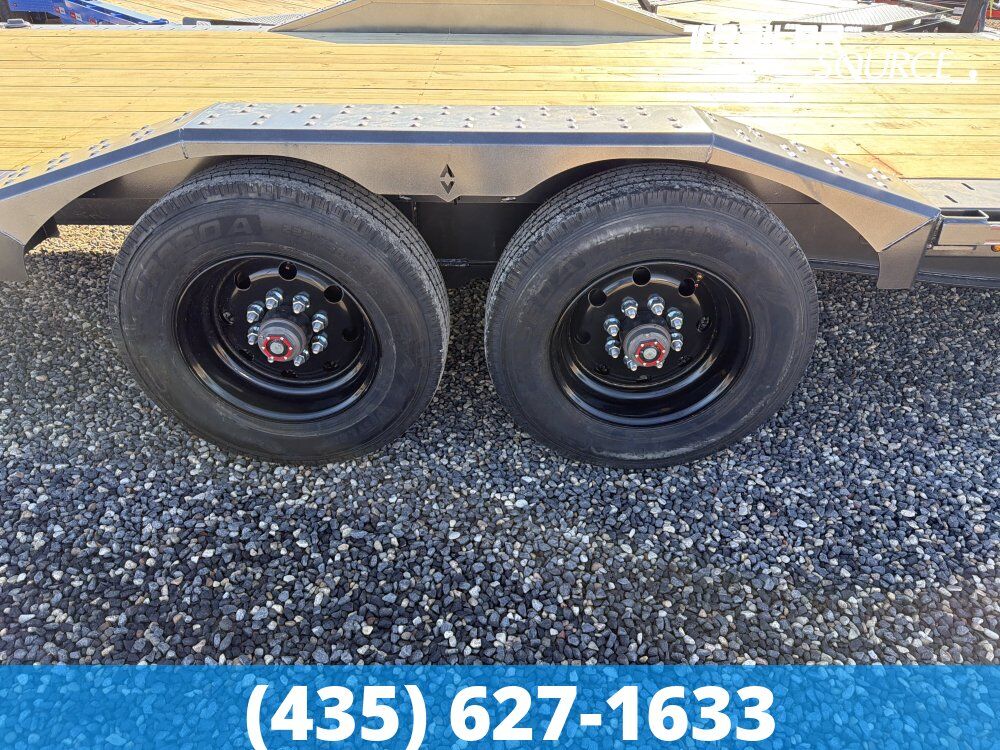

ST235/75R17.5 18-Ply "Super Single" RadialsTo support a 23,000 lb rating on just four tires, Diamond C equips the HXD 210 with commercial-grade 18-ply radials. These are significantly more robust than the 10-ply or 14-ply tires found on lighter trailers, offering the highest level of heat dissipation and puncture resistance for heavy-duty commercial hauling.

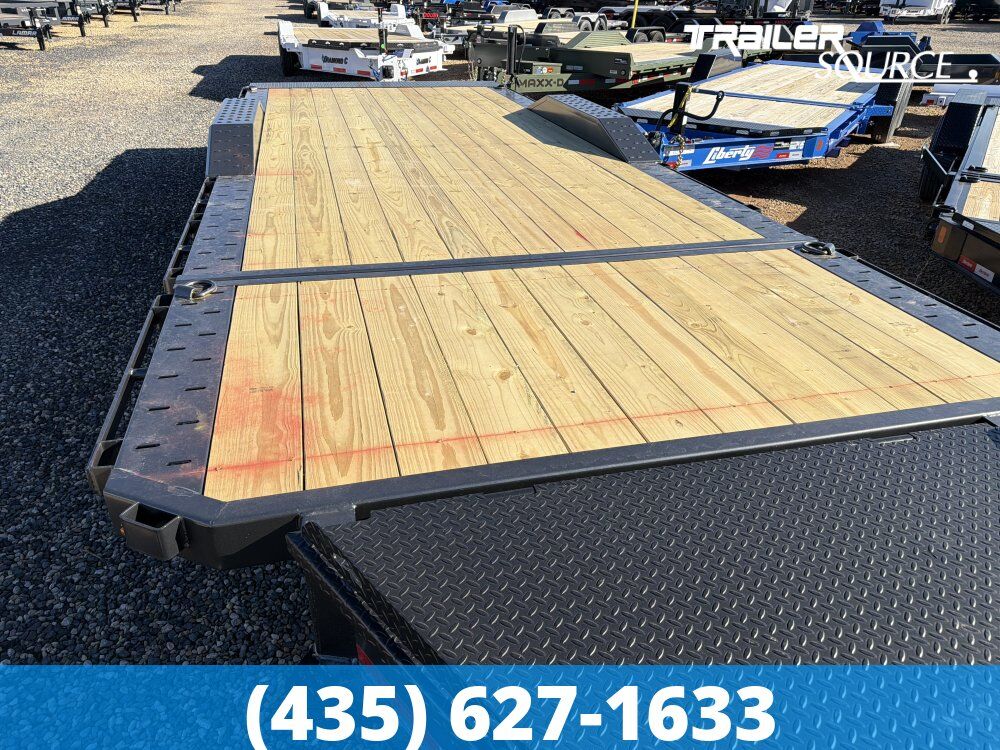

102" Max-Width with 10-Gauge Drive-Over FendersThe deck extends to the full legal width of 102 inches. Because the tires are under the deck, Diamond C includes 10-gauge heavy-duty drive-over fenders with internal structural supports. These fenders are engineered to handle the weight of your machine driving directly over them, finished with a non-slip diamond plate for safety.

**Pro Tilt Upgrade Capability (Gravity + Power)**While the base HXD 210 uses a Hydraulic Dampening Cylinder (gravity tilt), the 2026 model is designed for the Pro Tilt upgrade. This allows you to switch between gravity tilt and electric/hydraulic power tilt at the push of a button—perfect for loading unbalanced loads that won't "tip" the bed on their own.

6' Stationary Front DeckStandard for 2026 on the HXD 210 is a 6-foot stationary deck in front of the 18-foot tilt section (24' total length). This stationary area is essential for hauling attachments, palletized materials, or fuel tanks that you don't want moving during the tilt cycle.

**15,000 lb Simol 2-Speed Jack (or 20K Hydraulic)**To manage the heavy tongue weight of a 23K trailer, Diamond C utilizes a Simol 15K 2-speed jack. Many dealer-stock units for 2026 are also arriving with the upgraded 20,000 lb Hydraulic Jack, which lets you uncouple a fully loaded trailer with a wireless remote or a switch, saving your back from manual cranking.

Engineered Beam 2.0 FrameThe HXD 210 is built on the Engineered Beam chassis. By using high-strength Grade 80 steel that is laser-cut and tapered, Diamond C creates a frame that is stronger where it needs to be and lighter where it doesn't. This lowers the center of gravity and the empty weight, giving you more actual payload capacity than a traditional I-beam trailer.

The Diamond C Advantage: Why choose the HXD 210?- THE WARRANTY 2.0: You get the 6-Year Structural Warranty and the 2-Year Comprehensive (Bumper-to-Bumper) protection. For a trailer in this weight class (23K GVWR), having a manufacturer cover your axles, hydraulics, and electronics for two full years is a massive financial safety net.

• 12" On-Center Crossmembers: Because heavy machinery creates high "point-loads," the HXD 210 uses 3" I-beam crossmembers on 12-inch centers (often part of the Pacesetter spec). This prevents the floor from "washboarding" or sagging under the weight of steel tracks.
• DM Difference Maker Coating: The 6-step powder coat process with Zinc-Rich Primer ensures that even after years of hauling mud and construction debris, your trailer won't have the "bleeding rust" issues seen on competitors like PJ or Big Tex.
