14009097010 BorgWarner S480 (80/88 SX-E) Turbocharger Supercore
3 Days
18
0
$1,799.00
Description
Condition
Payment Types Accepted
Venmo
PayPalProduct Description****14009097010 BorgWarner S480 (80/88 SX-E) Turbocharger Supercore
Rated for up to 1350 HP
The BorgWarner AirWerks® S480 SX-E (80/88) is a powerhouse designed for serious performance applications. Built on the proven S400 frame, this turbo delivers extreme airflow and efficiency for both diesel and gasoline high-performance builds.

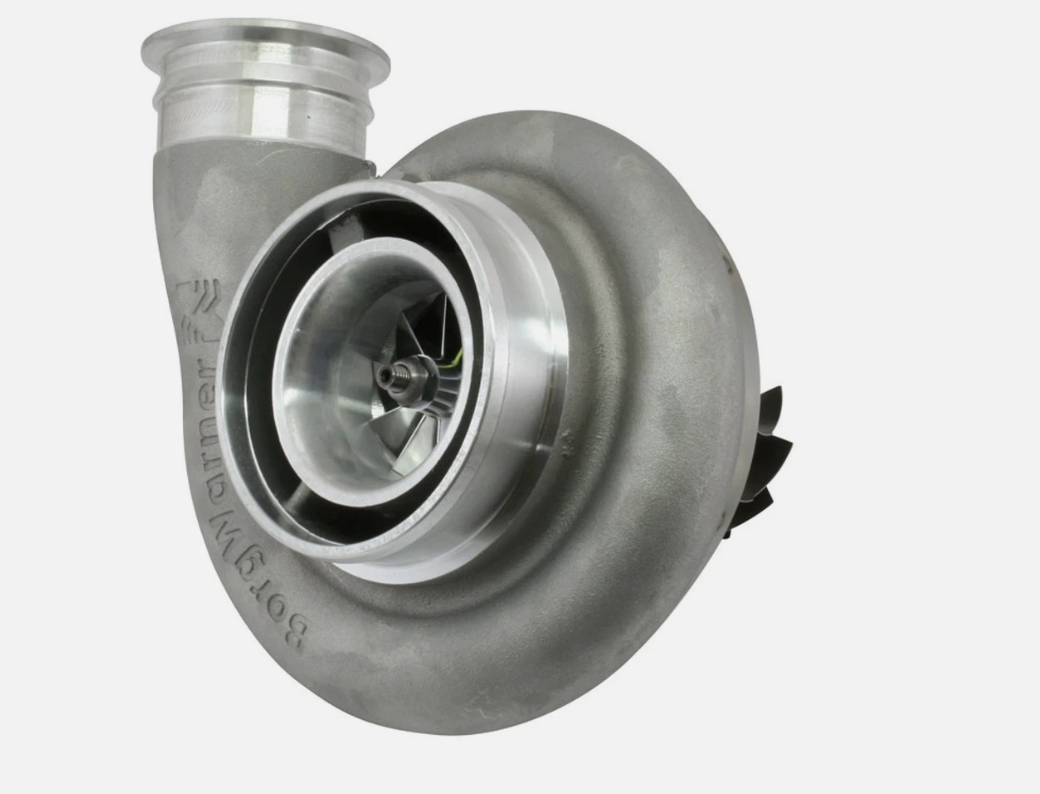

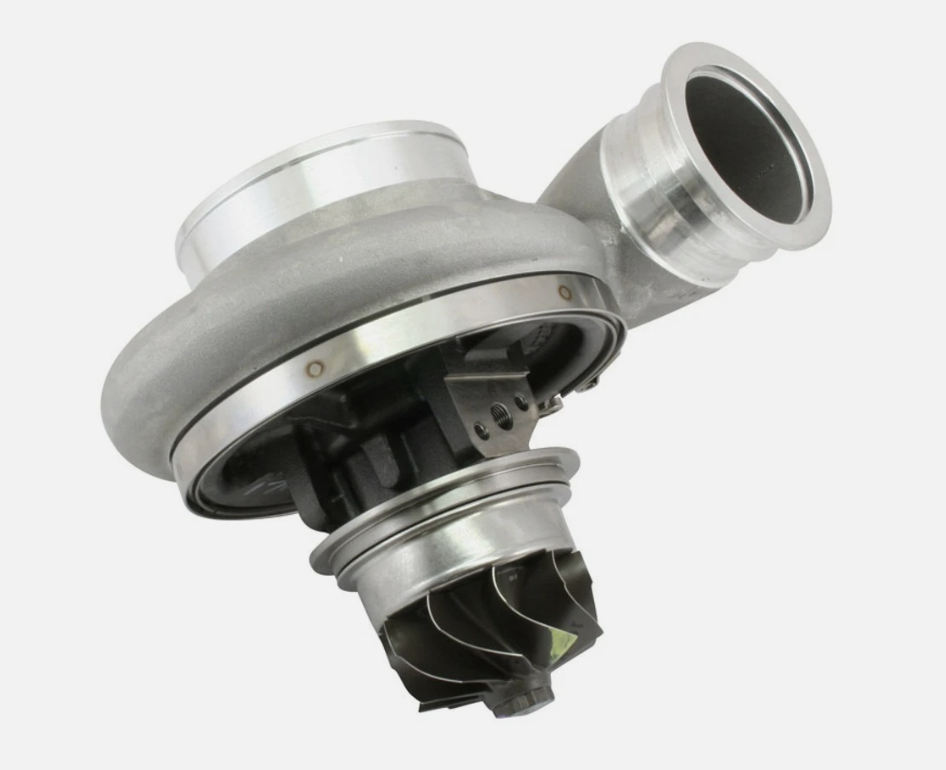

This model is offered as a supercore assembly—meaning it includes the compressor and center section but excludes the turbine housing, allowing you to select the exact housing configuration that best suits your setup.
Key Features of the S400SX-E Supercore360° thrust bearing for superior load capacity and reliability Forged milled (billet) compressor wheel with Extended Tip Technology for maximum airflow and efficiency Optimized compressor aerodynamics for improved performance across the entire boost range Fully compatible with existing S400 turbine housings, making upgrades and configuration changes easy Models featuring a V-Band compressor cover also include:
Integrated speed sensor port for optional shaft speed monitoring Versatile outlet options for flexible installation Compressor Specifications Inlet: 5"
Outlet: 4.21" OD flat V-Band discharge
Compressor Housing: Ported shroud with map width enhancement
Compressor Wheel: 80.0 mm inducer / 110 mm exducer Forged Milled Wheel (FMW) – billet aluminum construction
Turbine SpecificationsTurbine Wheel: 96 mm inducer / 88 mm exducer Available Turbine Housings: T6 Divided: 1.15, 1.32, 1.45, and 1.58 A/R with 5" V-Band outlet (5.75" OD tapered flange) P/Ns: 14961019007, 171698, 14961016101, 14961016100 TiAl V-Band Inlet/Outlet: 3.81" OD inlet / 4.50" OD outlet in 1.17, 1.31, and 1.45 A/R Cast V-Band Inlet/Outlet: 3.81" OD inlet / 4.62" OD outlet in 1.32 A/R
OverviewWith a flow capacity exceeding 1350 horsepower, the BorgWarner S480 SX-E represents the next generation of the legendary S400 series. The SX-E update introduces advanced aerodynamics, stronger internals, and improved compressor efficiency—delivering quicker spool, better response, and greater durability for high-boost applications.
Ideal for drag racing, diesel pulling, and high-performance street builds, the S480 SX-E combines BorgWarner’s unmatched engineering with flexible configuration options to meet the demands of any serious power project.
Payment: Cash (Preferred), PayPal, Venmo
Location: Pick up near the west of Hill Air Force Base
Custom SKU: BOR-14009097010
