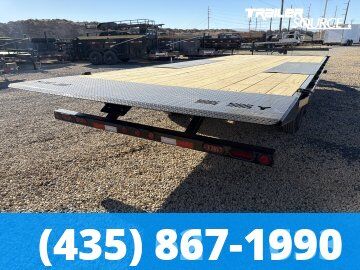

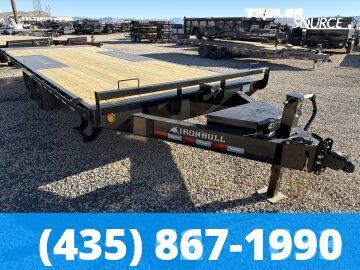

"More Trailer For Your Money" 8.5 x 22 Iron Bull TDP 14K Tilt Trailer – Ready To Work!

The Iron Bull TDP is a heavy-duty power hydraulic deckover tilt trailer designed for operators who need a wide, flat loading surface and the mechanical muscle to tilt the entire deck. Unlike low-profile trailers with fenders, the TDP features a deck that sits above the wheels (102" wide), making it the ultimate solution for hauling wide-track machinery, pallets, or side-loading materials with a forklift. CORE FEATURES OF THE IRON BULL TDP 8" I-Beam Frame & Tongue The primary chassis is constructed from high-tensile 8" I-beam steel. The Benefit: By using I-beam construction for both the frame and the tongue, the TDP provides superior longitudinal strength compared to channel-frame trailers. This design prevents the trailer from "flexing" or bowing when carrying heavy concentrated loads like excavators or tractors, ensuring a stable and true tow. Dual 3" x 16" Hydraulic Cylinders The tilting mechanism is powered by a twin-cylinder hydraulic system. The Benefit: Most tilt trailers use a single center-mounted cylinder; the Iron Bull TDP utilizes a dual-cylinder setup to provide balanced lifting force across the entire 102" width. This eliminates deck twisting during operation and provides the high-leverage power needed to tilt the deck even when loaded with heavy equipment. 102" Wide Work Deck with Rub Rail & Stake Pockets The deck extends to the full legal width of 102 inches, sitting completely above the tires. The Benefit: This "deckover" design provides a completely flat loading surface with no fenders to interfere with wide loads. The integrated rub rail and stake pockets offer nearly infinite tie-down points, while the 102" width allows you to side-load standard pallets with a forklift with ease. Knife Edge Tail & 14-Degree Load Angle The rear of the deck is finished with a tapered steel "knife edge" that meets the ground flush. The Benefit: This eliminates the need for ramps and provides a smooth transition from the ground to the deck. The 14-degree angle is shallow enough to allow low-clearance machinery—like scissor lifts or pavers—to drive onto the trailer without "bottoming out" or losing traction. Dual 7,000 lb Dexter Nev-R-Adjust Axles Standard equipment includes two 7k Dexter axles with self-adjusting electric brakes. The Benefit: This configuration provides a 14,000 lb GVWR, offering a massive payload capacity for professional hauling. The Nev-R-Adjust brakes automatically maintain the correct clearance between the shoe and the drum, ensuring you always have maximum stopping power without manual maintenance. Sherwin-Williams Powdura Powder Coat & Primer Every TDP undergoes a rigorous shot-blast and acid-wash prep before receiving a premium powder-coat finish. The Benefit: This is an automotive-grade finish designed to withstand the rigors of the construction site. The multi-stage process provides superior protection against rock chips, road salt, and chemical corrosion, ensuring the trailer maintains its professional appearance and resale value. Interstate Deep Cycle Battery & 5-Amp Charger The hydraulic system is powered by a high-output Interstate battery housed in a lockable pump box. The Benefit: You have reliable, standalone power to operate the tilt deck without being tethered to the truck's electrical system. The integrated charger allows you to plug the trailer into a standard 110V outlet to keep the battery topped off during downtime or between jobs. THE POWER OF THE PIVOT WHY THE IRON BULL TDP IS THE ULTIMATE UPGRADE Stop fighting with heavy ramps and narrow decks. The Iron Bull TDP combines deckover versatility with the effortless power of a twin-cylinder hydraulic tilt system. THE STRENGTH: 8" I-Beam Foundation Built for the big loads. Our 8" I-beam frame is the gold standard for durability, providing a rigid platform that won't bow or twist under the weight of your heaviest machinery. THE SPEED: Twin-Cylinder Power Tilt Load in seconds. With the push of a button, the dual hydraulic cylinders tilt the massive 102" wide deck, allowing you to drive right on and off without ever touching a ramp. THE CAPACITY: 102" Wide-Load Ready Maximize your utility. The deckover design gives you the freedom to haul anything from wide-track excavators to side-loaded pallets, making this the most versatile trailer in your fleet. THE FINISH: Sherwin-Williams Protection A finish that lasts. Our premium powder coat ensures your Iron Bull looks as good on day 1,000 as it did on day one, standing up to the toughest environments in the industry. IDEAL USERS FOR THIS TRAILER The Iron Bull TDP is the premier choice for excavation contractors, paving crews, and equipment rental yards who need to move wide or low-clearance machinery. It is perfect for those who prioritize fast cycle times and deck
