"More Trailer For Your Money"

7 x 14 Diamond C LPT-GN 207 15.5K Dump Trailer – Ready To Work!

18 Ply Tire Upgrade, Board Brackets, Long Arm Tarp

The Diamond C LPT-GN 207 is the gooseneck version of the industry-leading low-profile telescopic dump. By shifting the weight to the truck's rear axle, you gain superior stability, a tighter turning radius, and a much smoother towing experience compared to a bumper pull.

CORE FEATURES OF THE LPT-GN 207

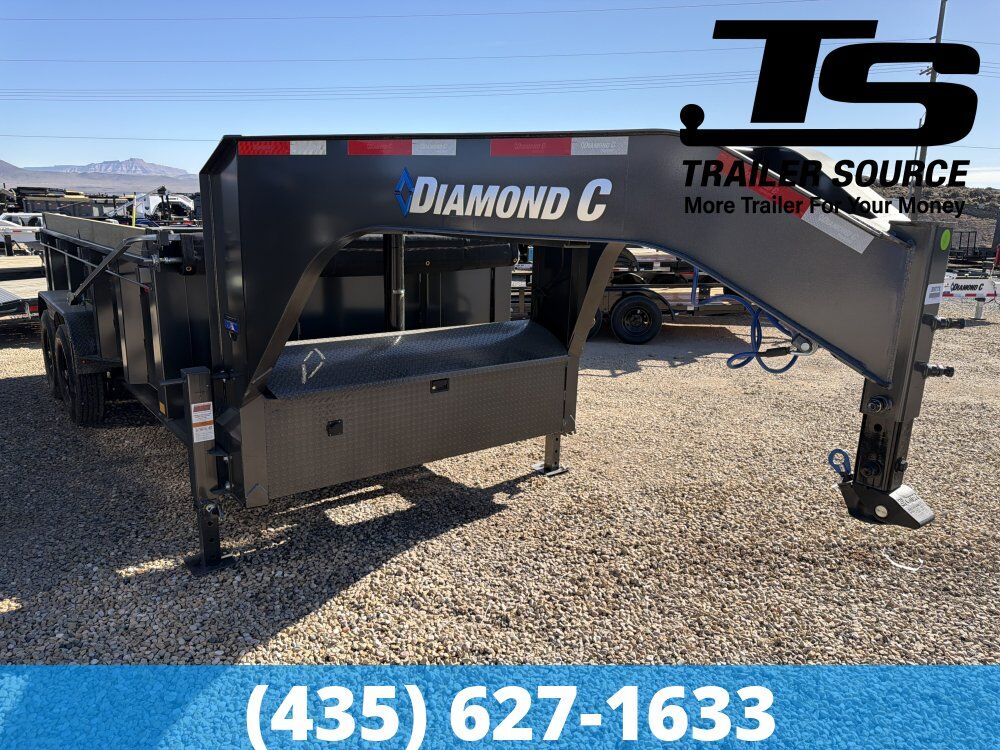

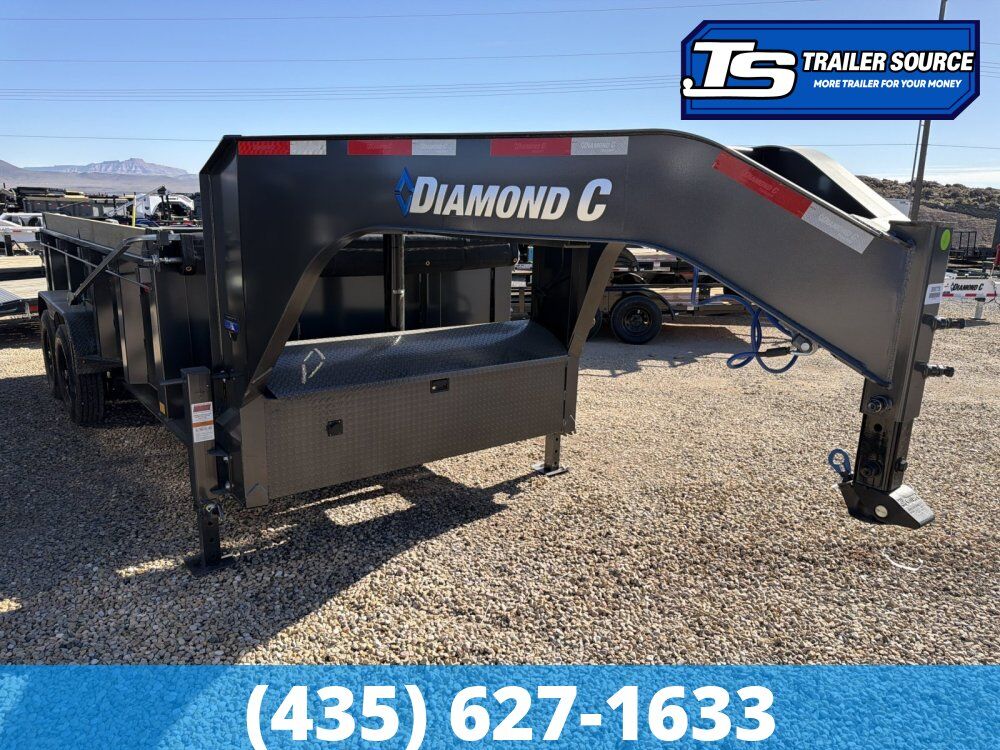

12" Curved Engineered Gooseneck The standout feature is the patented one-piece curved neck. Most goosenecks are made from straight I-beams welded at 90-degree angles.

• The Benefit: Welds at sharp corners are stress points where frames typically crack. The curved design distributes force evenly through the steel, making it significantly stronger while actually weighing less than a traditional neck.

3-Stage Front-Mount Telescopic Cylinder Unlike a scissor lift that pushes from the center of the bed, the LPT-GN features a heavy-duty telescopic hoist at the front.

• The Benefit: This provides the most dumping leverage available. It handles uneven or "sticky" loads (like wet dirt or clay) much better than a scissor lift and reaches a full 45-degree dump angle with less strain on the hydraulic pump.

8" x 15 lb I-Beam Main Frame The chassis is built on a massive 8" I-beam, engineered to handle the constant torque of heavy-duty dumping.

• The Benefit: This provides a rigid foundation that won't flex or bow under a max 14,900 lb load. It also keeps the "Low Profile" design intact, keeping the center of gravity low for better highway handling.

Dual 12,000 lb Drop-Leg Jacks The standard unit features two side-crank 12k jacks rather than a single jack found on smaller trailers.

• The Benefit: With 24,000 lbs of total static support, the trailer is incredibly stable when unhooked. The drop-leg design allows you to quickly adjust the height without endless cranking.

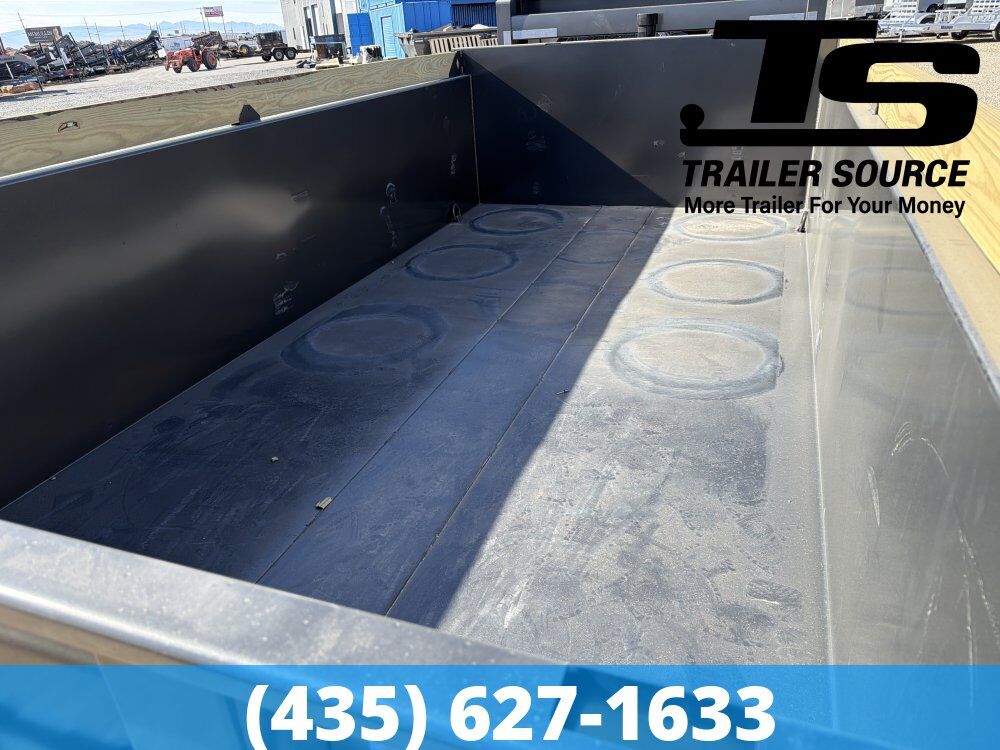

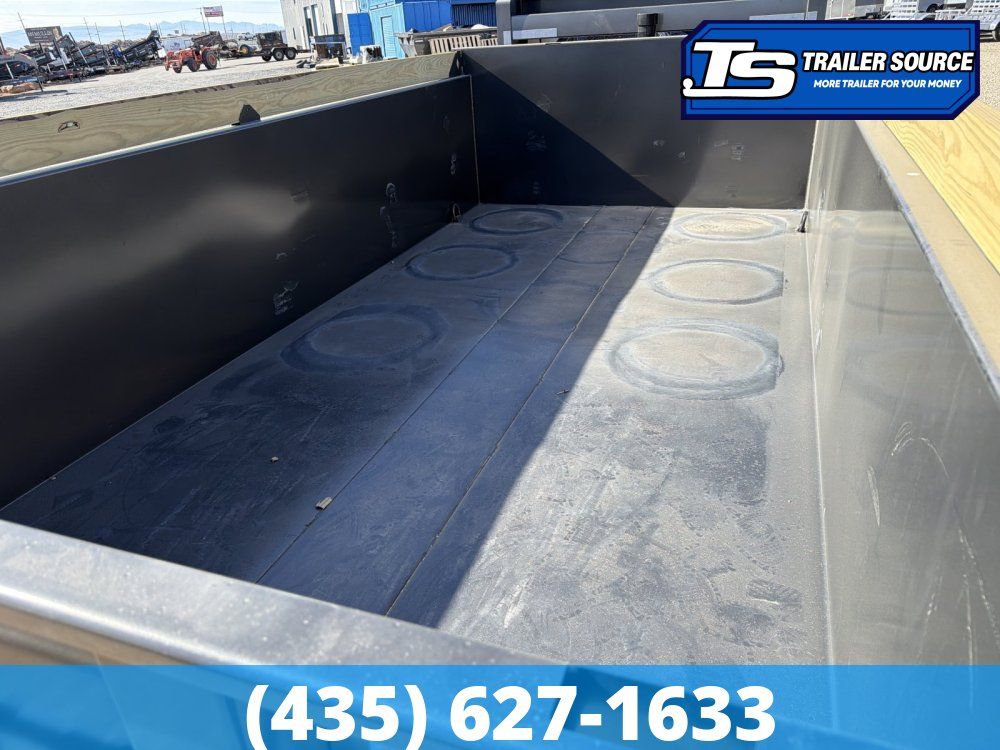

10-Gauge Integral Body (Integral Floor & Sides) The floor and 24" sides are formed from 10-gauge steel with a "central seam overlap" design.

• The Benefit: By forming the sides and floor together, Diamond C eliminates the 90-degree corner weld where rust usually starts. It creates a smooth, rounded transition that helps material slide out cleaner.

Full-Width Diamond Plate Neck Box The space between the gooseneck uprights is utilized for a massive, lockable storage chest.

• The Benefit: This is significantly larger than any bumper-pull toolbox. It is deep enough to store a spare tire, chains, binders, and tools, keeping your truck bed empty and your gear secure.

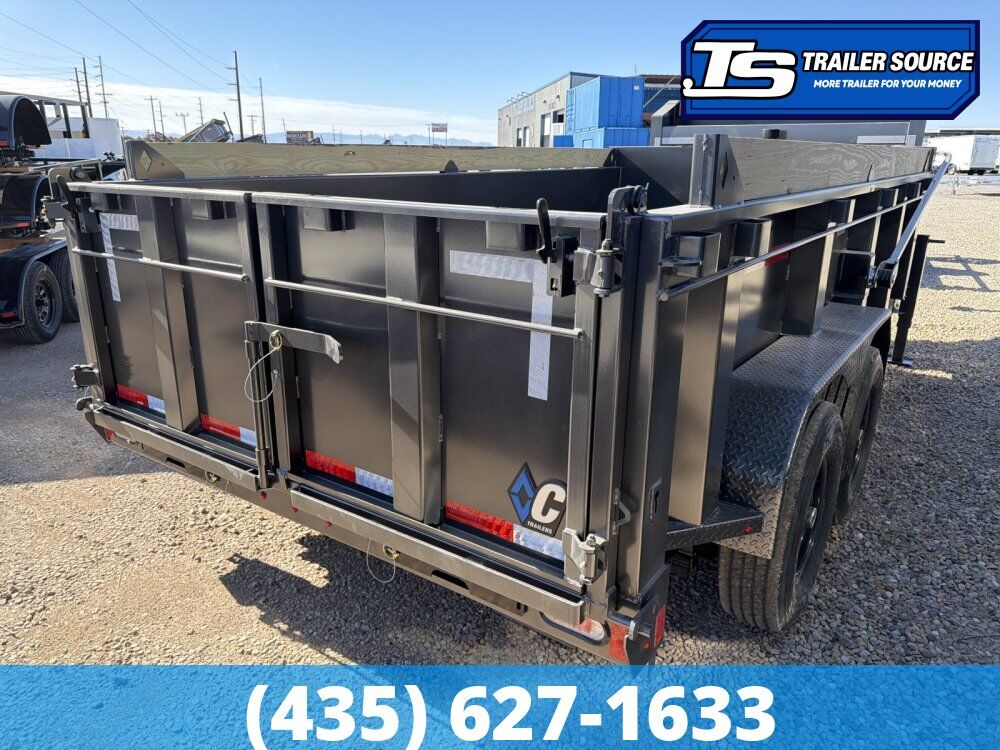

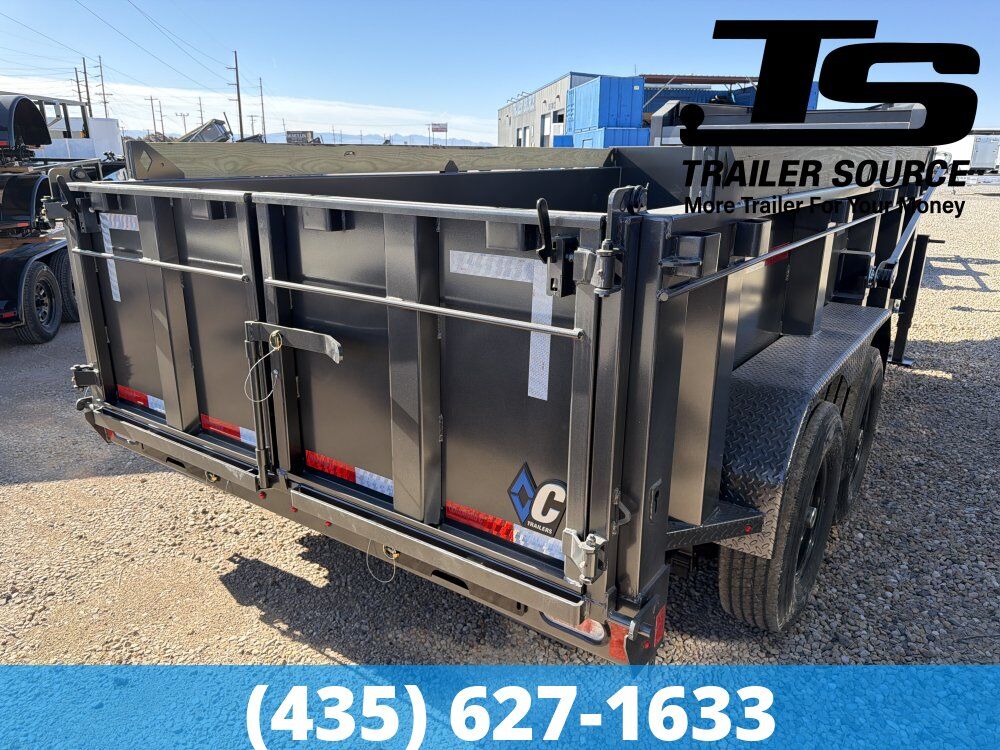

3-Way Dump Gate & 78" Slide-In Ramps The trailer comes standard with a "Spreader/Barn/Truck" gate and heavy-duty 3" I-beam ramps.

• The Benefit: You can spread gravel like a dump truck or swing the doors wide for debris. The included ramps allow the LPT-GN to double as an equipment hauler for skid steers and mini-excavators up to 7,300 lbs.

THE PROFESSIONAL'S GOOSENECK

WHY THE DIAMOND C LPT-GN 207 IS THE ULTIMATE DUMP TOOL

Most dumps are built to a price point. The LPT-GN 207 is built to a standard. If your work takes you on the highway and into the dirt, this is the frame you want behind your truck.

THE NECK: Patented 12" Curved Engineering

• We eliminated the stress points that cause other goosenecks to fail. Our one-piece curved neck is stronger, lighter, and more durable, providing a "forever frame" for your business.

THE HOIST: Front-Mount Telescopic Power

• Don't let your hoist be the weak link. Our 3-stage telescopic cylinder pushes from the front of the bed for maximum leverage, making short work of the heaviest, stickiest loads.

THE VERSATILITY: More Than Just a Dump

• With the standard 3-way gate and 78" slide-in ramps, you aren't just buying a dump trailer—you're buying an equipment hauler. Load your skid steer, haul it to the site, and use the same trailer to haul the debris away.

THE STORAGE: Massive Integrated Neck Box

• Use the space you already have. Our full-width diamond plate neck box gives you massive, lockable storage for all your job site essentials, keeping them safe and out of the rain.
