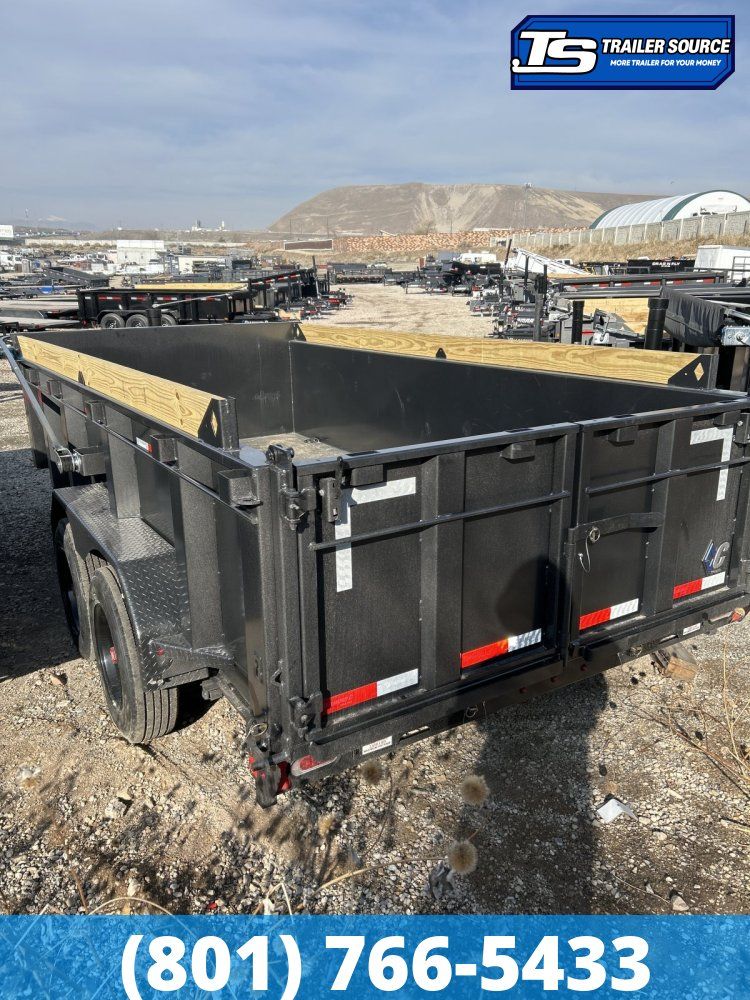

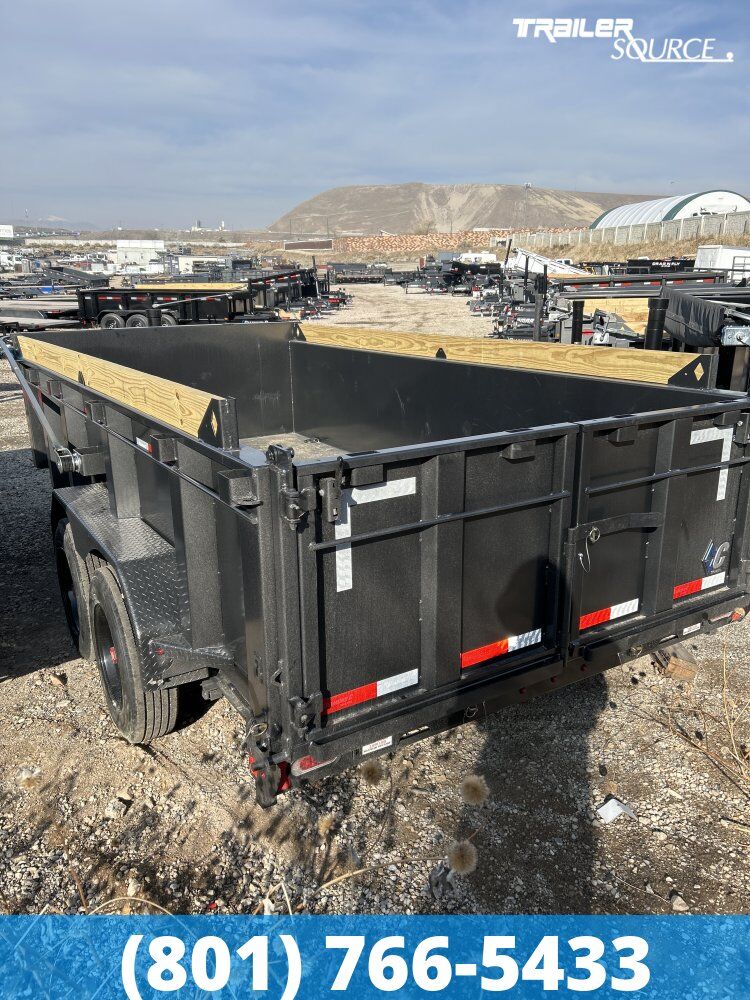

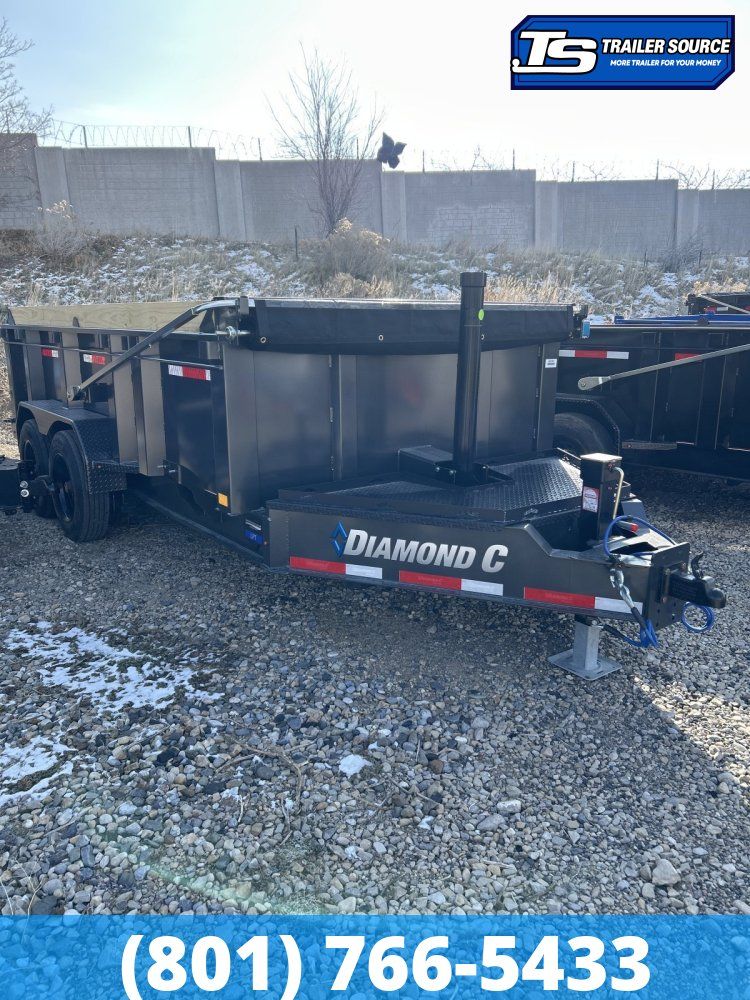

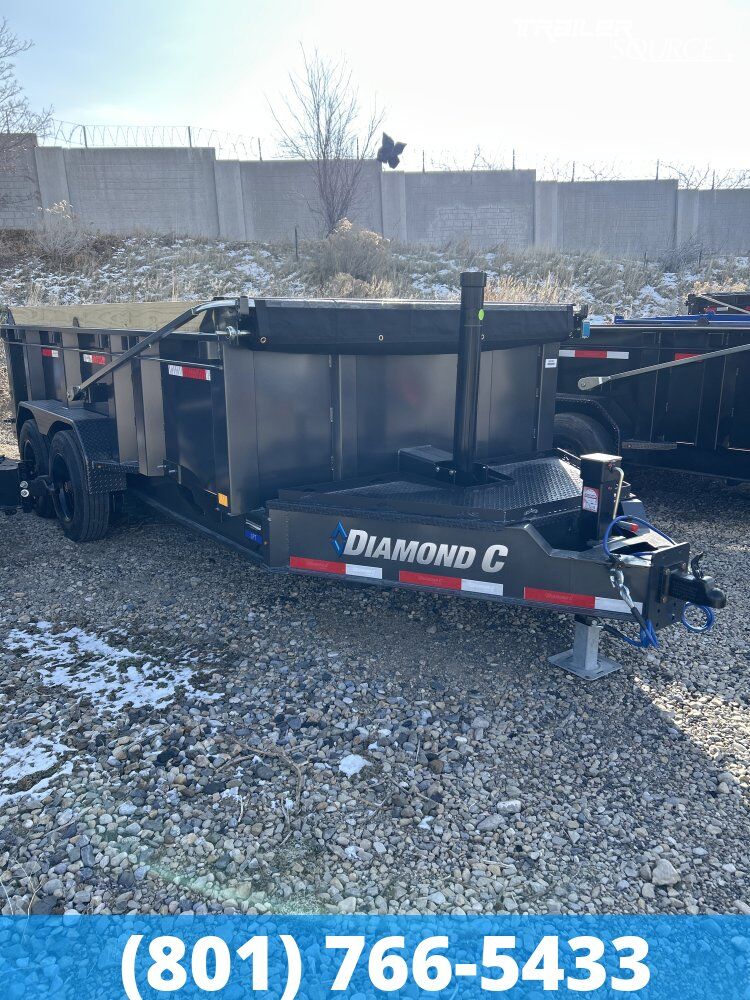

"More Trailer For Your Money" 7 x 14 Diamond C LPT 208 18K Dump Trailer – Ready To Work! 18 Ply Tire Upgrade, Board Brackets, Long Arm Tarp

The Diamond C LPT 208 (Low Profile Telescopic) is the heavy-duty "commercial king" of the dump trailer world. While the standard LPT 207 handles 14,000 lbs, the 208 package upgrades the trailer to an 18,000 lb GVWR, making it the primary choice for heavy-duty demolition, rock hauling, and transporting large equipment.

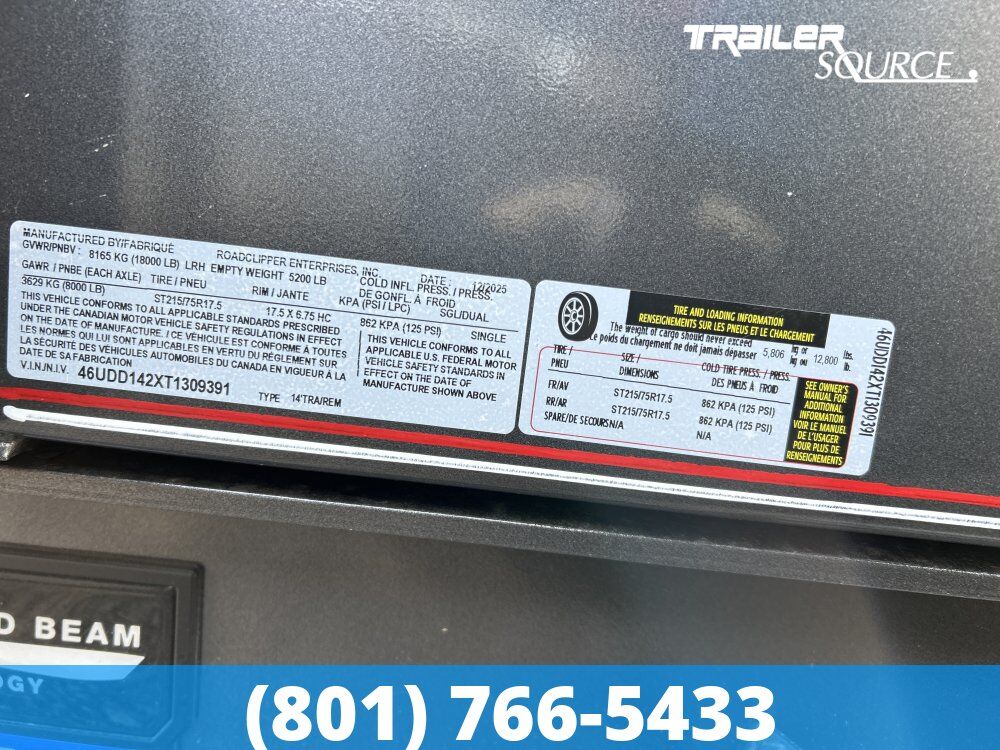

KEY STANDARD FEATURES 18,000 lb GVWR (Massive Payload Upgrade) This is the primary reason to buy the LPT208. While the standard LPT207 tops out at 15,500 lbs, the LPT208 upgrades you to an 18,000 lb Gross Vehicle Weight Rating. The Benefit: You gain approximately 2,500 lbs of extra legal payload. Real World Use: This allows you to legally haul heavier mid-size excavators (like a 6-ton machine) or larger loads of concrete that would put a standard trailer overweight. 8,000 lb Oil Bath Axles To support the extra weight, this model swaps standard grease axles for Commercial Duty 8k Oil Bath Axles. The Benefit: Oil bath hubs (similar to semi-trucks) provide continuous lubrication to the bearings and run cooler than grease. They feature clear caps, allowing you to visually check oil levels and purity without jacking up the trailer or pulling a cap. "Super Single" Tire Package (17.5" Wheels) You cannot put 18,000 lbs on standard 16-inch trailer tires. The LPT208 comes standard with 215/75R17.5 tires (18 Ply). The Benefit: These are solid-steel, commercial-grade tires designed for extreme loads and puncture resistance on construction sites. They are significantly thicker and tougher than standard trailer rubber. 21,000 lb Demco EZ-Latch Coupler A standard 14k coupler is legally insufficient for this trailer. The LPT208 is equipped with an upgraded 21k Adjustable Demco EZ-Latch Coupler. The Benefit: Extreme safety rating with the convenience of the "Drop-and-Go" auto-latch system. It ensures your connection point is stronger than the fully loaded trailer. Engineered Beam Frame (Optimized for 18k) Diamond C’s patented Engineered I-Beam frame is critical on this model. The Benefit: A standard steel channel frame strong enough to hold 18k lbs would be incredibly heavy, eating up your payload. The Engineered Beam is taller and lighter, maximizing the amount of weight you can put in the trailer rather than on the trailer hitch. 3-Stage Telescopic Cylinder (Front Mount) Lifting 12,000+ lbs of payload requires different physics than lifting lighter loads. The Benefit: The telescopic hoist pushes from the very front of the dump body, providing maximum leverage. This is essential for the LPT208 because a scissor hoist (which pushes from the center) would struggle or fail under the density of an 18,000 lb GVWR load. \

PERFECT FOR Hauling "Mid-Size" Excavators (The 6-Ton Class) This is the #1 reason to buy the LPT208. The Problem: A standard 14k dump trailer can only legally haul about 9,500 lbs. A 6-ton mini-excavator (like a Kubota KX057 or Cat 306) weighs around 12,000–13,000 lbs. The Work: Transporting these heavier machines to residential backyards for pool digs or foundation work. Why LPT208: It gives you the legal payload capacity (~12,500+ lbs) to haul these machines without needing a CDL truck or a massive dually trailer. High-Density Concrete & Masonry Supply The Work: Delivering pallets of retaining wall block, pavers, or natural stone. Why LPT208: A pallet of pavers weighs ~3,000 lbs. Standard 14k Trailer: Can take 3 pallets legally. LPT208: Can take 4 to 5 pallets legally. The Win: You save an entire trip back to the supply yard. Tight-Access Commercial Demolition The Work: Removing concrete driveways, swimming pools, or foundations in crowded subdivisions. Why LPT208: You need to haul heavy broken concrete (which is incredibly dense), but a wide "Dual Tandem" trailer is too wide to navigate narrow streets or park in a single-car driveway. The LPT208 handles the weight of a dually but keeps the slim footprint of a single-wheel trailer. Heavy Scrap Metal Hauling The Work: Collecting steel beams, old appliances, and car parts. Why LPT208: Scrap metal is jagged and heavy. The 17.5" 16-Ply Tires (standard on the LPT208) are much more puncture-resistant than standard trailer tires, and the extra payload allows for maximum profitability at the scale. Large Scale Roofing (Commercial) The Work: Stripping roofs on apartment complexes or commercial buildings. Why LPT208: Roofing shingles are dense. If you are doing a large job, you want to fill the trailer to the brim. The LPT208 allows you to utilize the full volume of the box with board extensions without exceeding the axle ratings. Oil Field & Industrial Service The Work: Hotshotting heavy valves,
