"More Trailer For Your Money" 7 x 16 Diamond C LPT 207 15.5K Dump Trailer – Ready To Work! 14 Ply Tires, Board Brackets, Long Arm Tarp

The Diamond C LPT 207 (Low Profile Telescopic) is Diamond C’s flagship commercial dump trailer. The LPT is a "buy once, cry once" heavy-duty tool designed for contractors who move rip-rap, demolition debris, and heavy equipment daily.

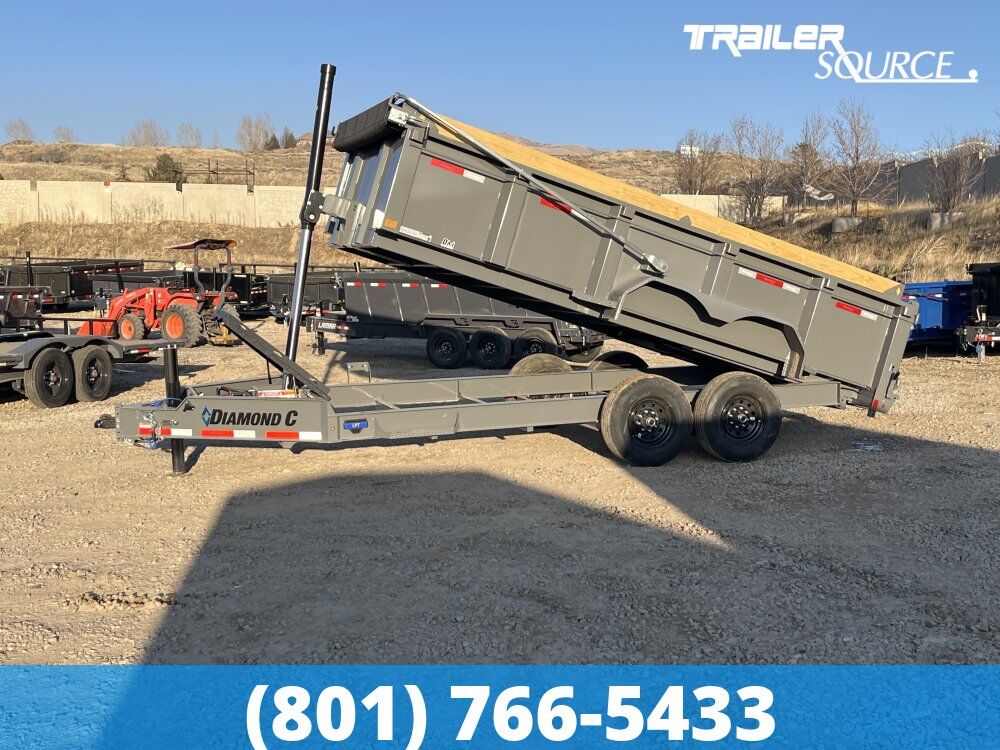

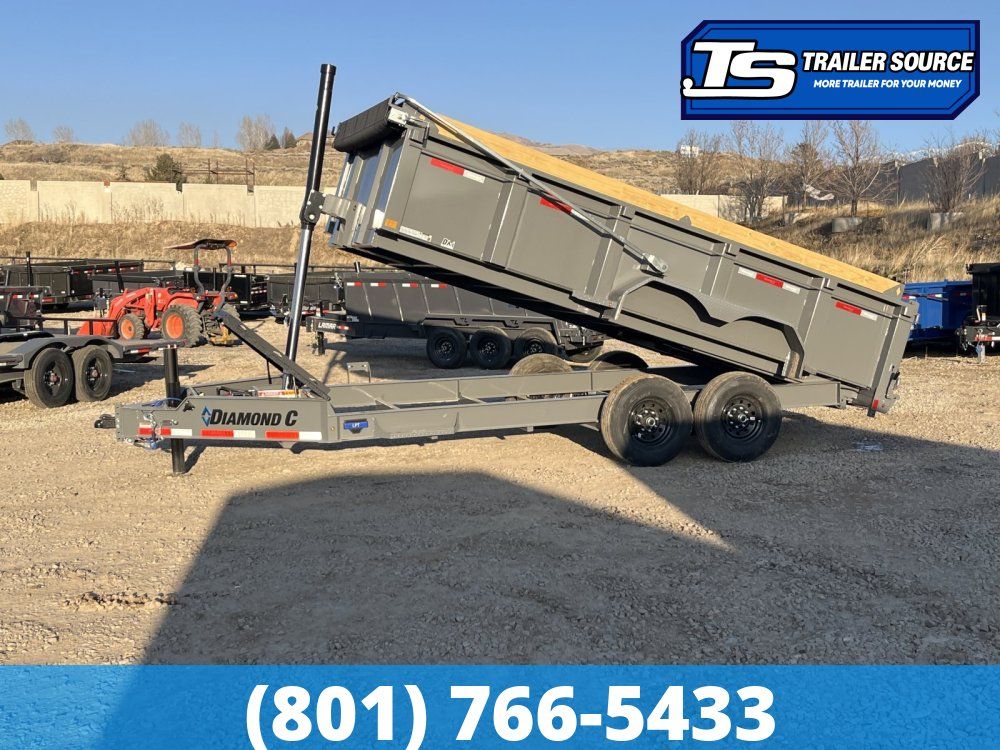

KEY STANDARD FEATURES Engineered Beam Technology (Frame) Unlike traditional dump trailers that use standard C-channel frames, the LPT207 features a patented Engineered I-Beam frame. This proprietary design allows Diamond C to curve the beam to optimize strength where it is needed most while reducing dead weight. This results in a trailer that is lighter but significantly stronger than industry standards, offering a better payload capacity. 3-Stage Telescopic Cylinder The "T" in LPT stands for Telescopic. This model uses a 3-stage telescopic hydraulic cylinder mounted at the very front of the dump body. This geometry provides maximum leverage for lifting heavy loads (like gravel, dirt, or concrete) compared to scissor-hoist designs. It pushes from the front rather than the center, reducing stress on the main frame during the initial lift. Extremely Low Profile Design Diamond C pioneered the low-profile dump trailer. By nesting the dump body inside the frame rather than stacking it on top, the LPT207 achieves a lower deck height. This makes: -Loading equipment (like skid steers or mini-excavators) much easier and safer due to the shallower ramp angle. -Hand-loading material over the sides less strenuous. Demco EZ-Latch Coupler Standard on the 2026 models, this coupler features a drop-and-go latching mechanism. You do not need to manually pull a latch or pin to secure it; the coupler automatically latches when lowered onto the ball. It is adjustable, heavy-duty (rated for 21,000 lbs), and significantly simplifies the hitching process. HD V-Tongue Box with Storage The front tool box is integrated into the tongue in a V-shape, offering more than just battery protection. It houses the hydraulic pump and battery but is designed with extra space for chains, straps, and tools. The lid is constructed from heavy-duty steel (often diamond plate) to withstand abuse, and many 2026 configurations include a solar pulse charger here to keep the battery topped off. Robust Body Construction The standard LPT207 comes with a heavy duty steel floor and sides as a single integral piece (no seam between floor and wall), which increases durability and prevents rust points. Long Arm Tarp System While some competitors treat tarps as an afterthought, the LPT207 typically comes with a Long Arm Easy Roll Tarp System. The "arms" are spring-loaded and pivot to cover the load completely without you having to climb onto the trailer. It tucks away neatly when not in use, protecting the tarp fabric from getting snagged by loaders. PERFECT FOR The LPT 207 is the ultimate Contractor's Multi-Tool. It is perfect for someone who needs to haul a 5-ton mini-excavator to the job site in the morning and then spend the rest of the day hauling gravel, mulch, or demolition debris.

Why Choose the LPT 207 over the competition? Frame Tech: Engineered Beam vs. "Off-the-Shelf" I-Beam The Competitor: Most dump trailers use standard mild steel C-Channel or simple I-Beams purchased from a steel yard. They are heavy, rigid, and prone to twisting under uneven loads. The LPT207 Advantage: Diamond C cuts and welds their own Engineered I-Beam. It is arched (cambered) like a semi-trailer flatbed. The Win: It is lighter than a standard frame but significantly stronger. Lighter Trailer = Higher Legal Payload. This directly puts money back in the pocket of hotshot haulers. The Hoist: Telescopic vs. Scissor The Competitor: Most 14k dump trailers use a Scissor Hoist mechanism under the bed. Scissor hoists are weakest at the very beginning of the lift—exactly when your load is heaviest. The LPT207 Advantage: The 3-Stage Telescopic Cylinder pushes from the very front of the bed. The Win: Physics. Pushing from the front gives the trailer maximum leverage to lift "dead loads" (like wet concrete or settled clay) that would stall a scissor-lift trailer. Deck Height: The "Low Profile" Difference The Competitor: Many dump trailers sit high off the ground because the dump body is stacked on top of the frame. This creates a steep, dangerous ramp angle for loading equipment. The LPT207 Advantage: The dump body is nested inside the frame. The Win: A drastically lower center of gravity and a shallower loading angle. If you load skid steers or excavators in the rain/mud, this feature alone prevents the machine from sliding off the ramps. Durability: One-Piece Body vs. Seamed Floors The Competitor: To save money, many brands weld a floor sheet to separate
