XC Mountain Bike built for speed!

Frame Material Details

HMX full carbon frame, IMP (Integrated Molding Process) Technology; carbon SMC Link; molded chainstay protection

Rear Travel 100mm

Rear Shock

RockShox NUDE RL3, 3-mode adjust via Scott TwinLoc TSP (Lockout, Traction Control, Descend), rebound adjust, trunnion mount, 165mm x 40mm

Fork

RockShox SID Select+ RL3, Charger damper, 3-mode adjust via Scott TwinLoc TSP (Lockout, Traction Control, Descend), rebound adjust, 44mm offset

Fork Travel 110mm

Head Tube Diameter

Tapered, 1.125" top, 1.5" bottom

Headset

Syncros Pro Drop-in

Handlebar

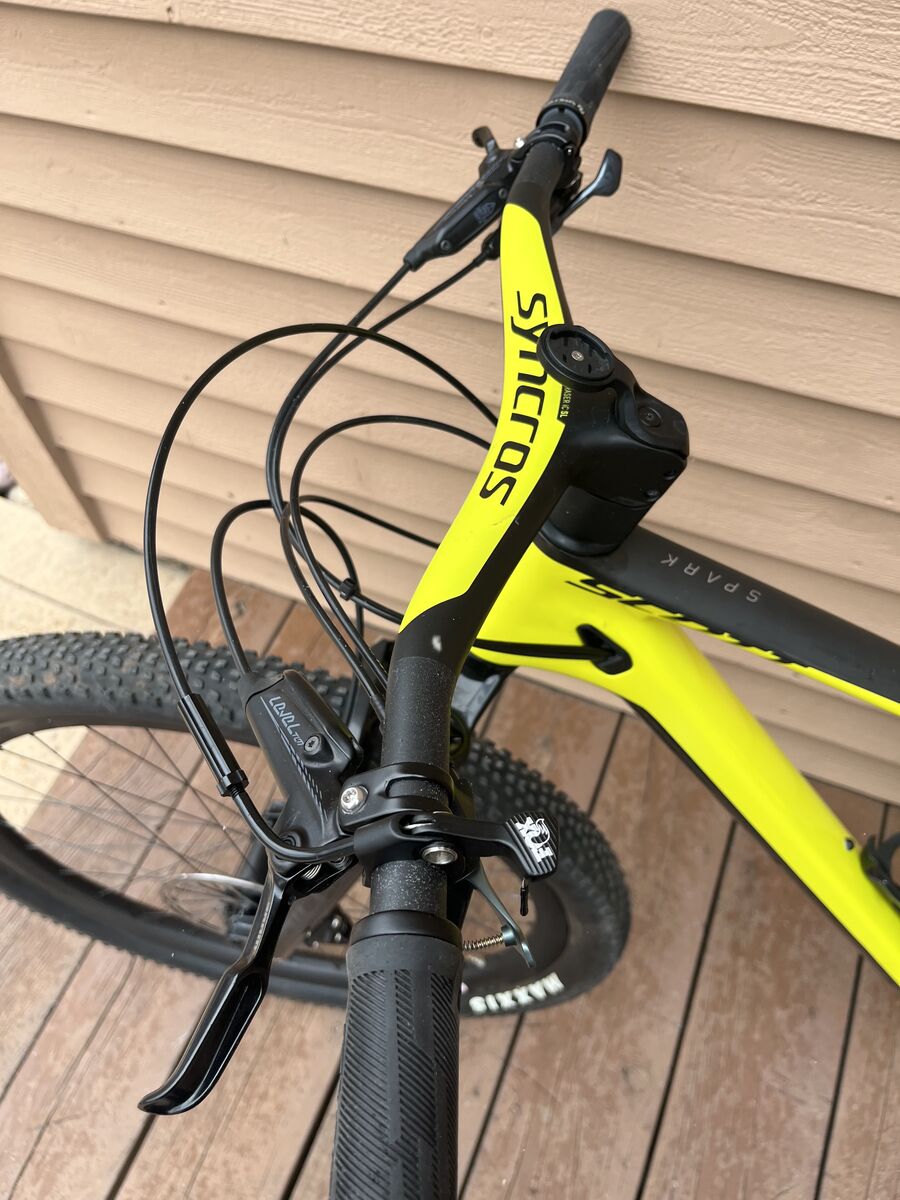

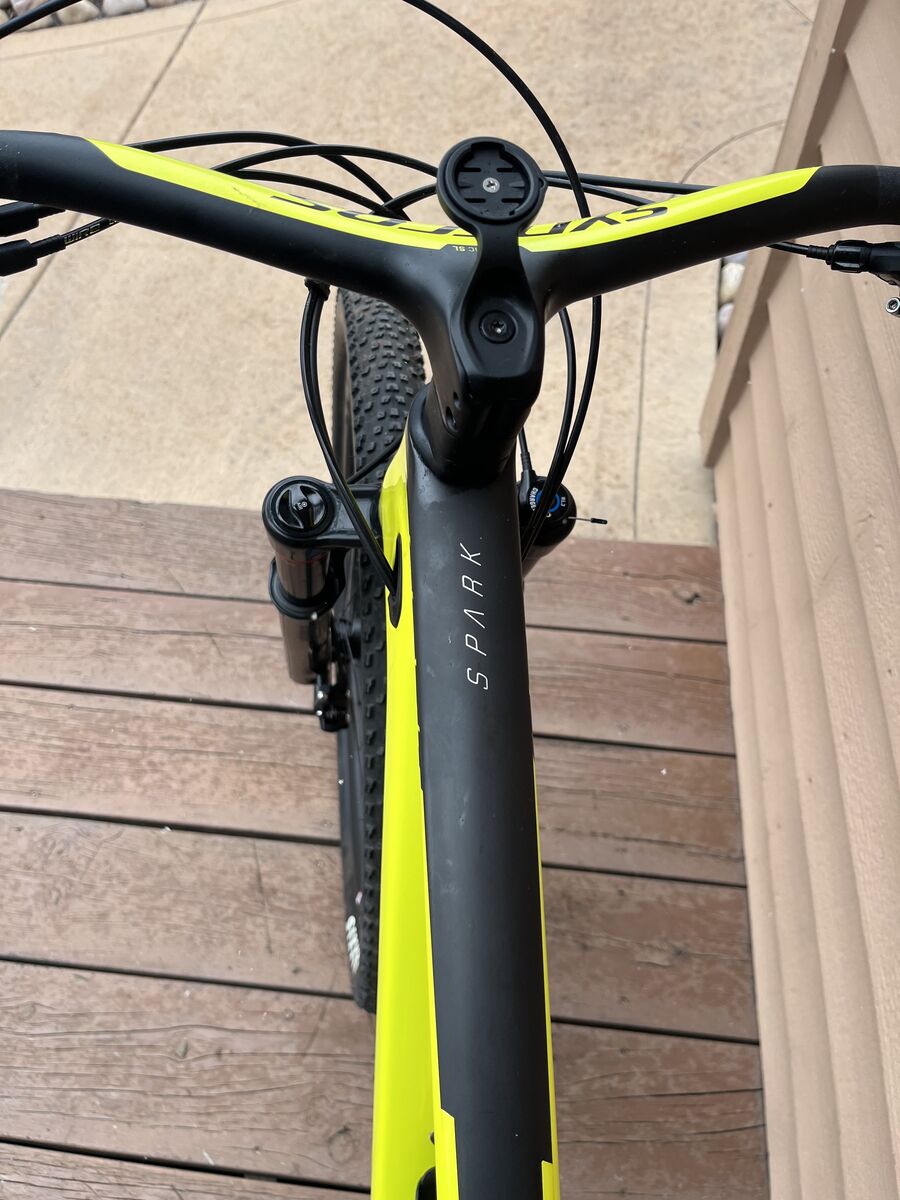

Syncros Fraser iC SL Carbon integrated bar/stem, 9° sweep, 740mm width

Stem

Syncros Fraser iC SL Carbon integrated bar/stem Virtual length: 60mm (SM), 70mm (MD), 80mm (LG), 90mm (XL)

Grips

Syncros Pro, lock-on

Brakes

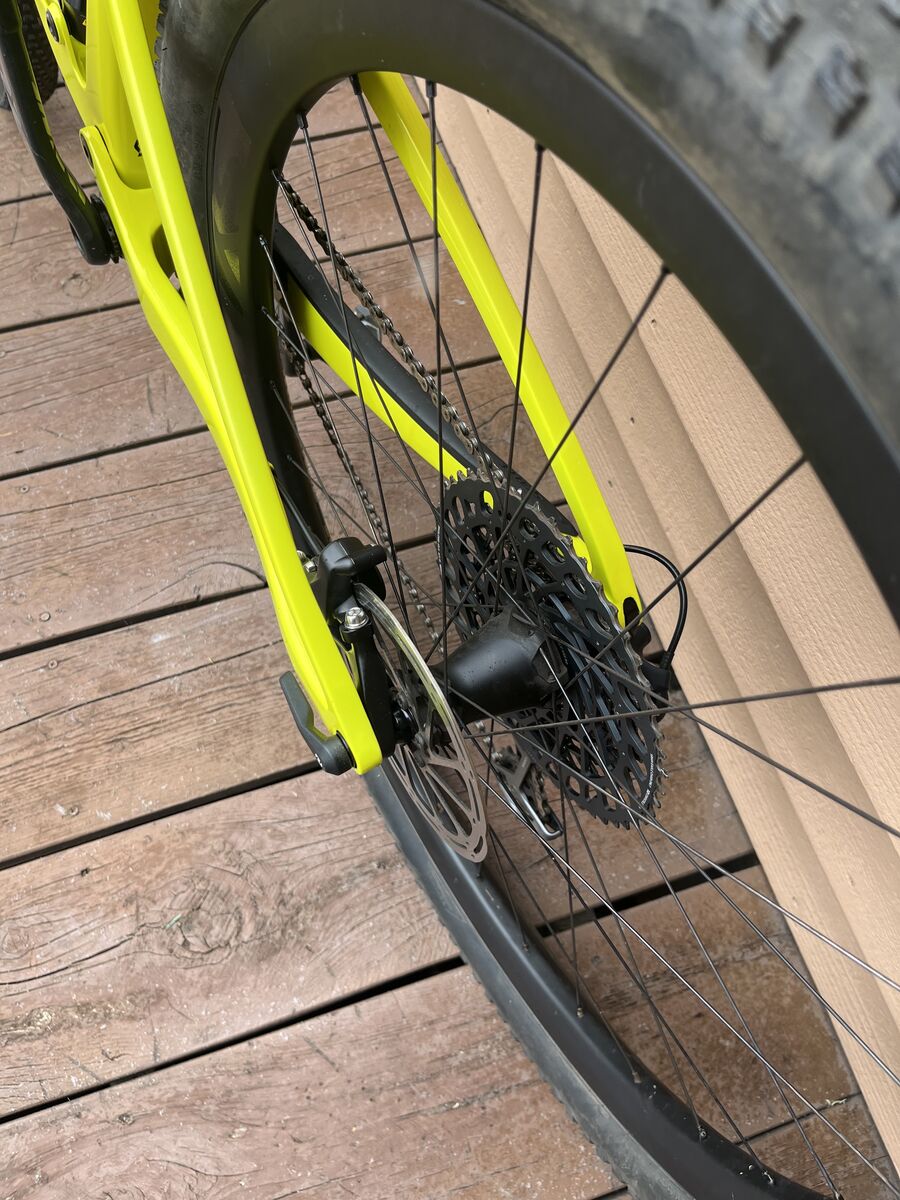

SRAM Level TLM, 2-piston, SRAM CenterLine 6-bolt rotors (180mm front, 160mm rear)

Brake Levers

SRAM Level TLM

Drivetrain

1x

Shifters

SRAM X01 Eagle, 12-speed, Trigger

Front Derailleur

None

Rear Derailleur

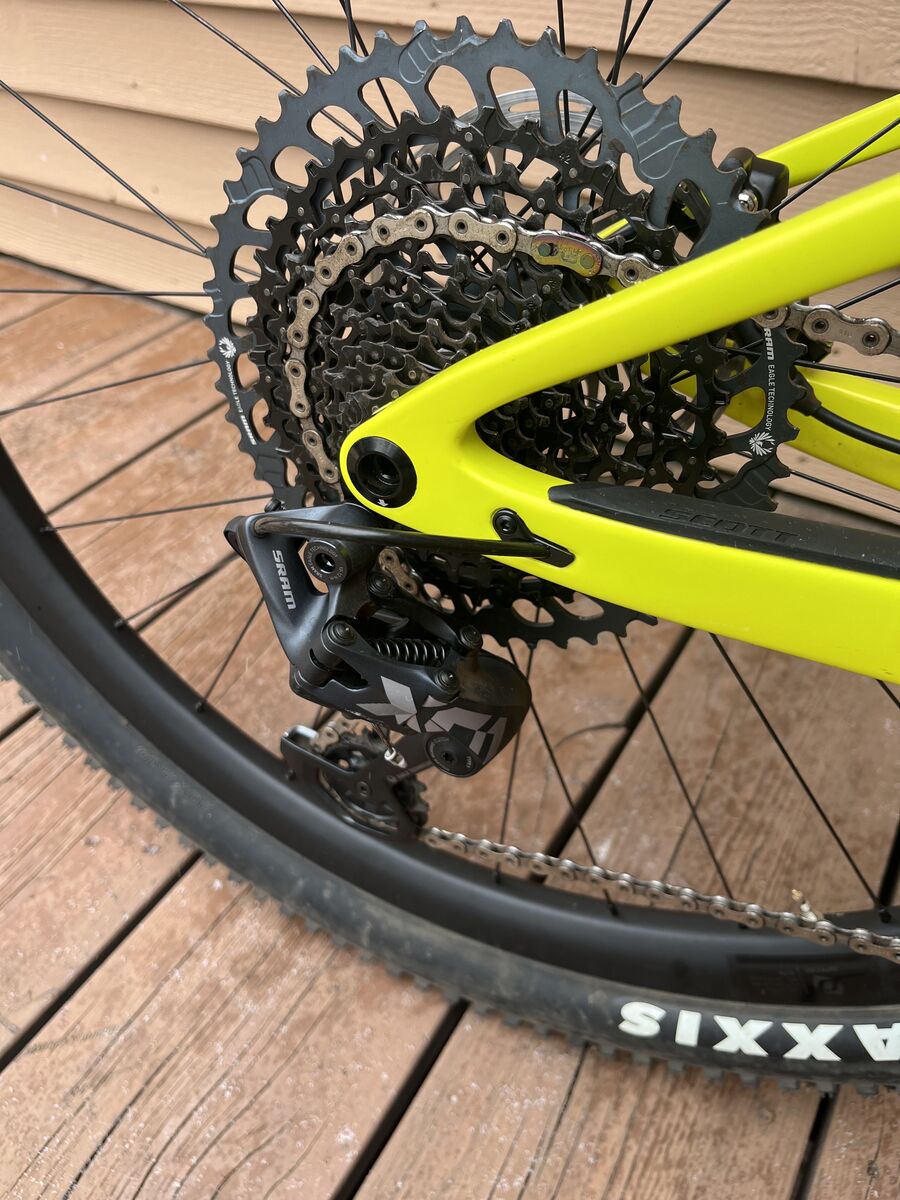

SRAM X01 Eagle, 12-speed

Chainguide

Scott upper keeper

Cranks

SRAM X01 Eagle Carbon DUB

Chainrings

SRAM X01 Eagle, 32 tooth

Bottom Bracket

SRAM DUB, 92mm PressFit

Chain

SRAM X01 Eagle, 12-speed

Cassette

SRAM GX Eagle XG-1275, 12-speed, 10-52 tooth

Rims

Syncros Silverton 1.0 Carbon wheelset, 26mm width, 28 hole, tubeless ready

Hubs

Syncros Silverton 1.0 wheelset, 28 hole, 6-bolt rotor mounts, 110x15mm Boost front, 148x12mm Boost rear with XD driver

Spokes

Syncros Silverton 1.0 wheelset

Tires

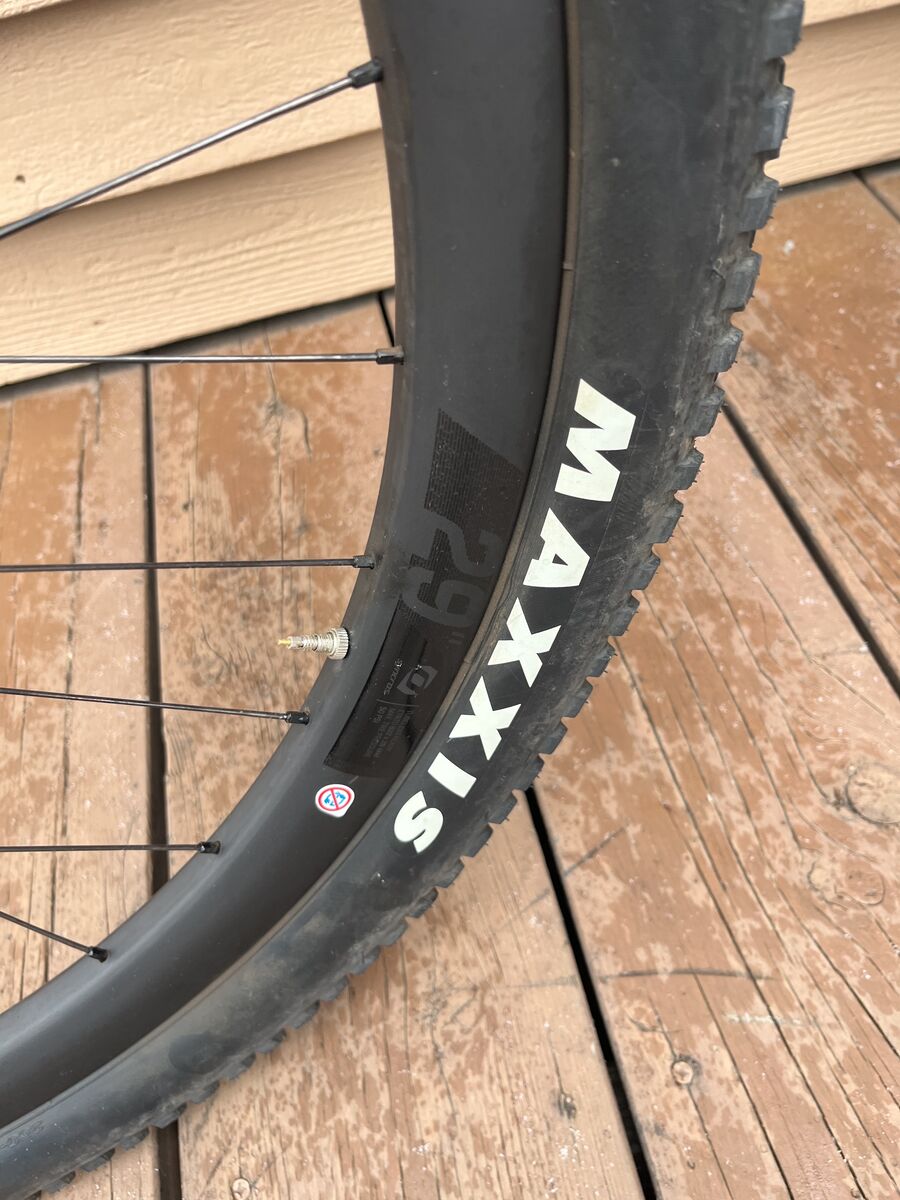

Maxxis Rekon Race, EXO, TR, 120 TPI, Kevlar bead, 29" x 2.35"

Saddle

Syncros Belcarra Regular 1.5, carbon rails

Seatpost

Recent Upgrade to a One Up Dropper

Rear Dropout / Hub Dimensions

148x12mm Boost
