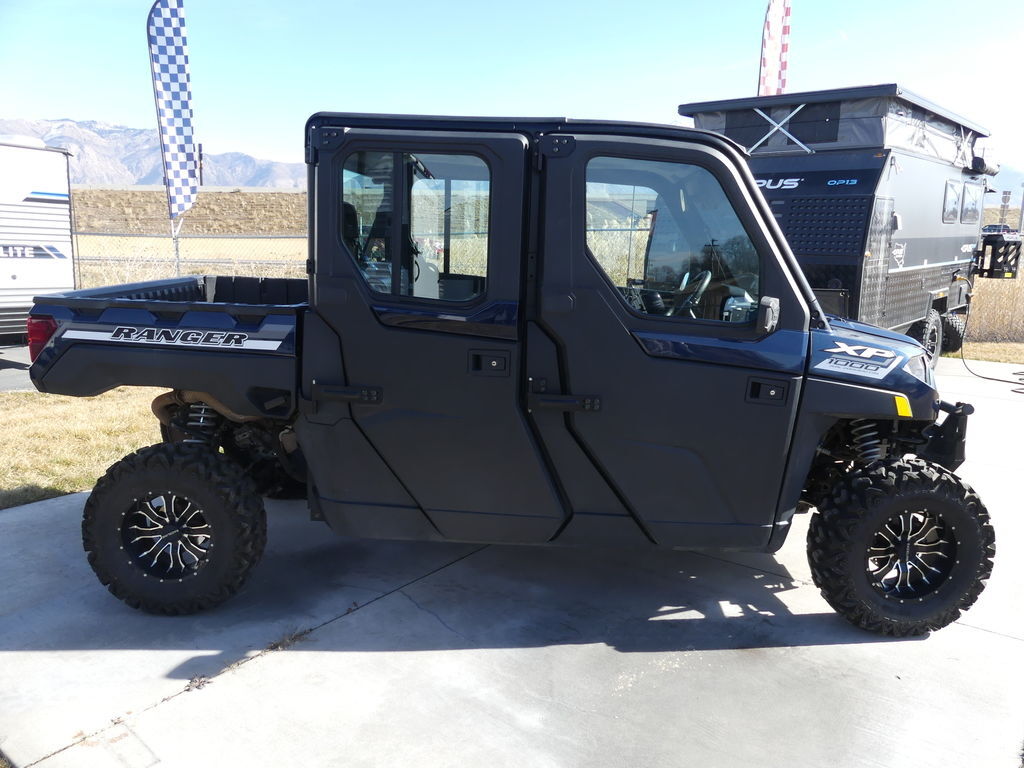

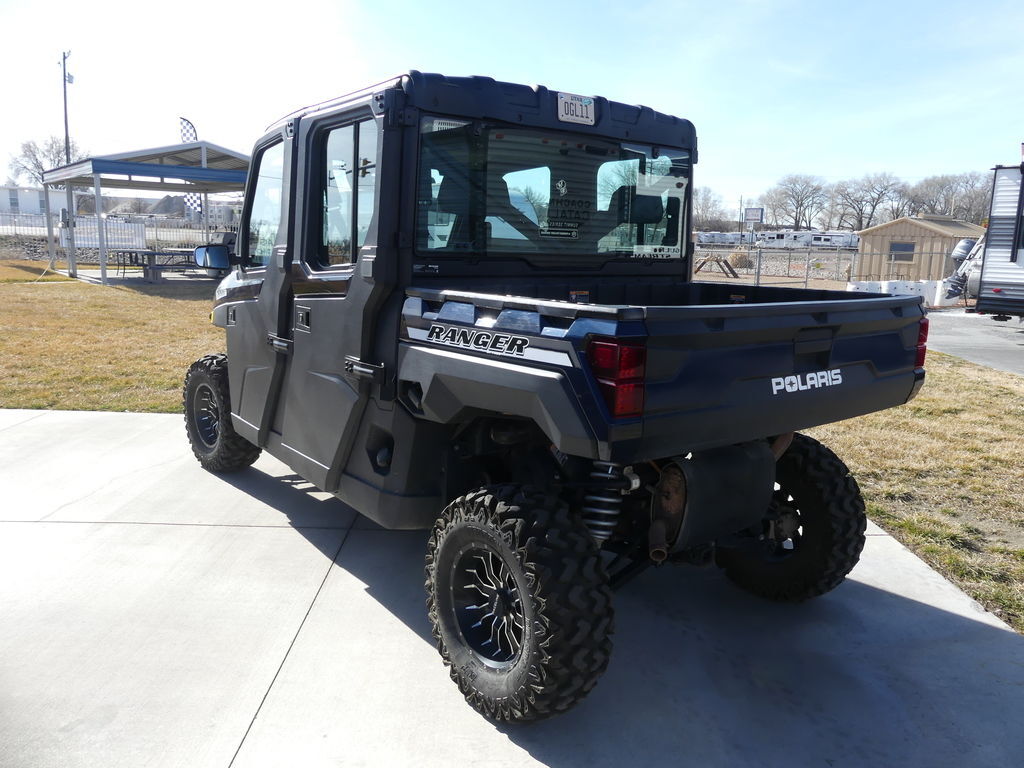

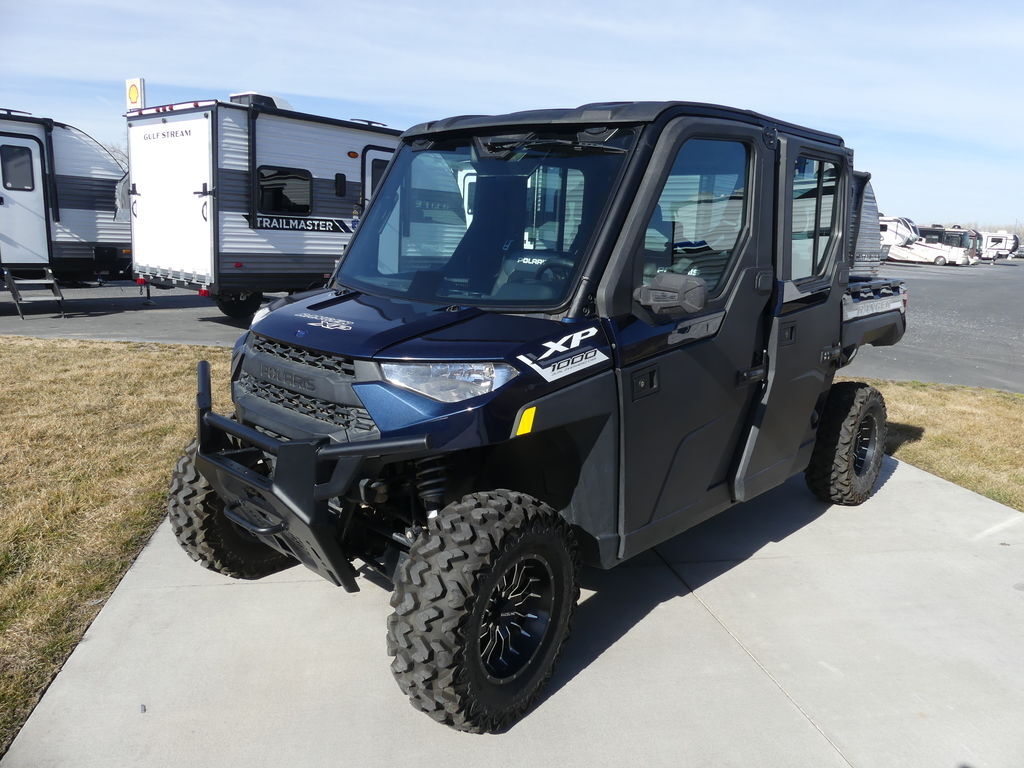

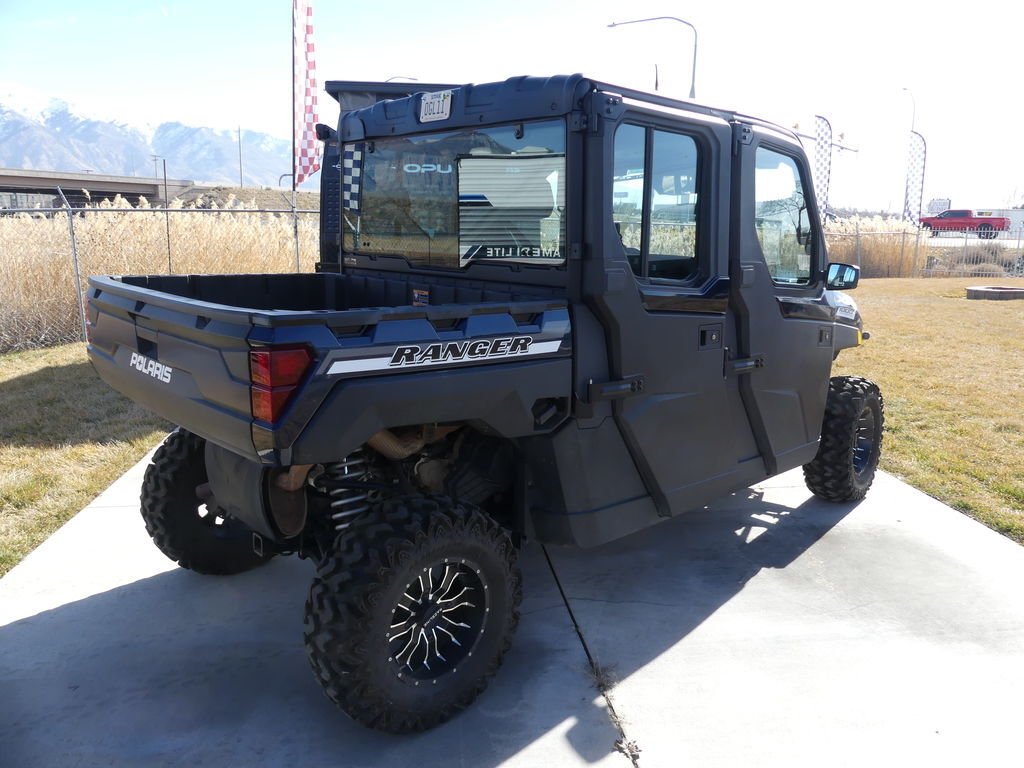

2020 Polaris Ranger Crew Cab

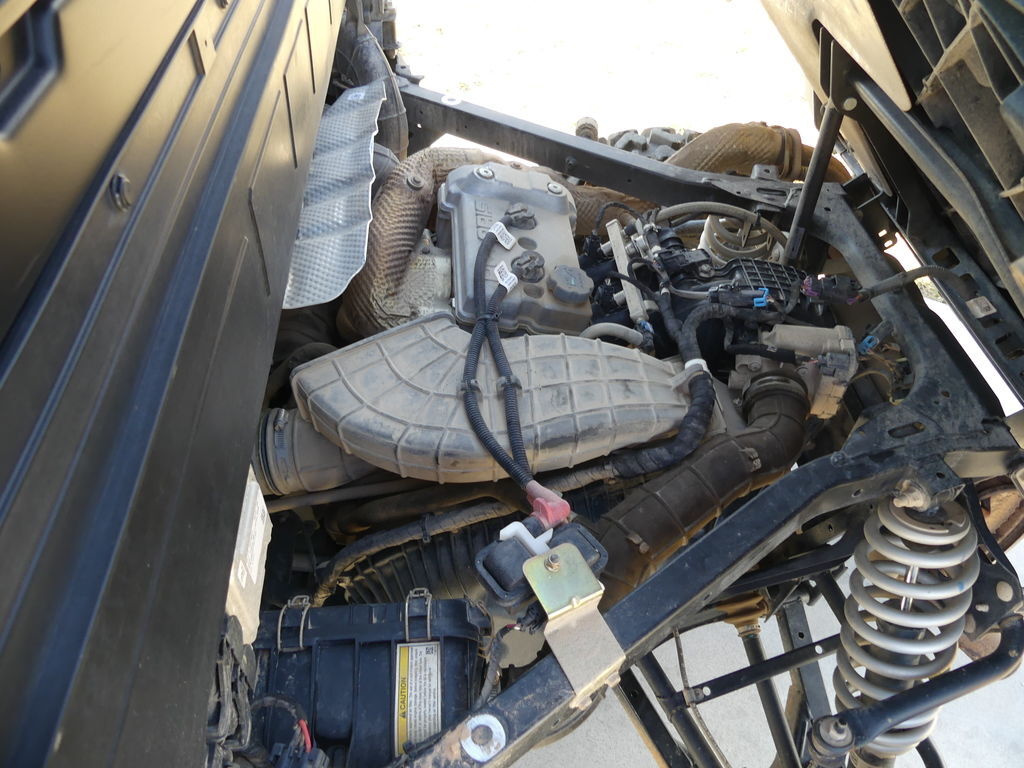

Engine:

Engine model ProStar™

Engine configuration Longitudinal Twin

How many cylinders 2

Types of power cycles Four-stroke

Brake horsepower/kW 61 / 45.5

Torque (Ft Lbs/Nm) 55 / 74.6

Type of cooling system Liquid

Valves 4

Valves Per Cylinder 2

Valve types and configurations Single Overhead Camshaft

Bore (millimeters/inches) 93 / 3.66

Stroke (millimeters/inches) 73.6 / 2.89

Engine displacement (cubic centimeters/cubic inches) 999 / 60.9

Compression Ratio 10.8:1

Starter Type Electric

Fuel Regular

Type of Fuel Gas

Turbocharger –

Supercharger –

Injector +

Carb –

Number Of Carburetors 0

Carburetor system Fuel Injected

Transmission:

Transmission Type CVT

Overdrive –

Primary drive front Shaft

Primary Drive (Engine / Transmission) Belt

Reverse +

Transmission Brand Polaris Variable Transmission (PVT)

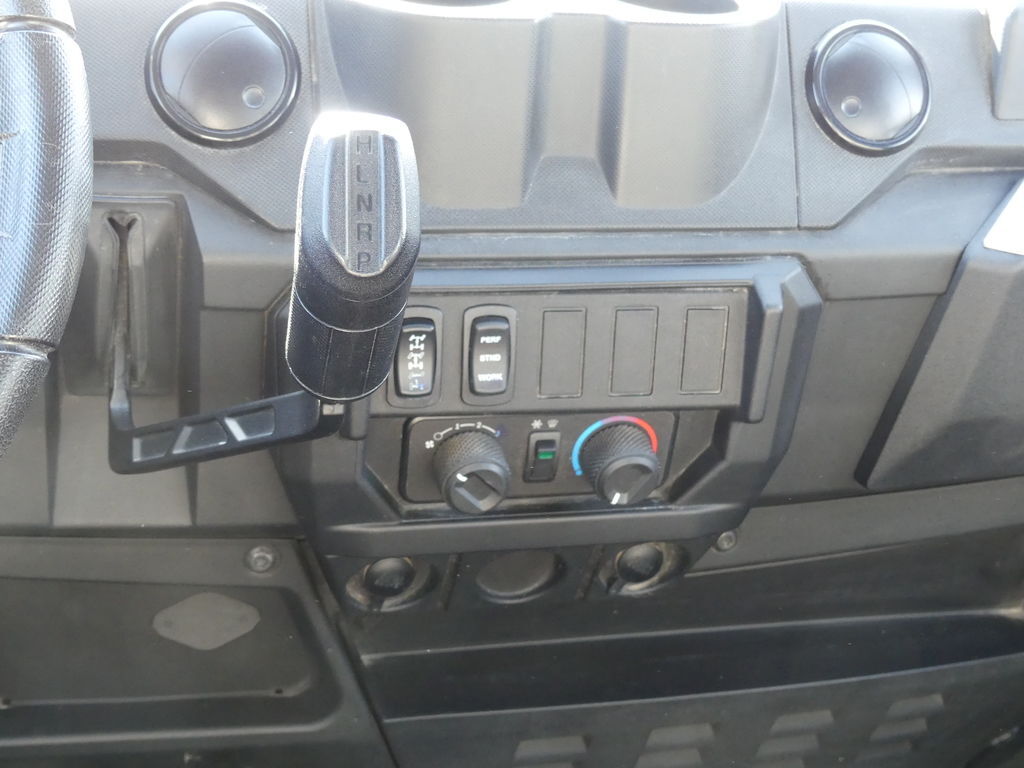

High low range selector +

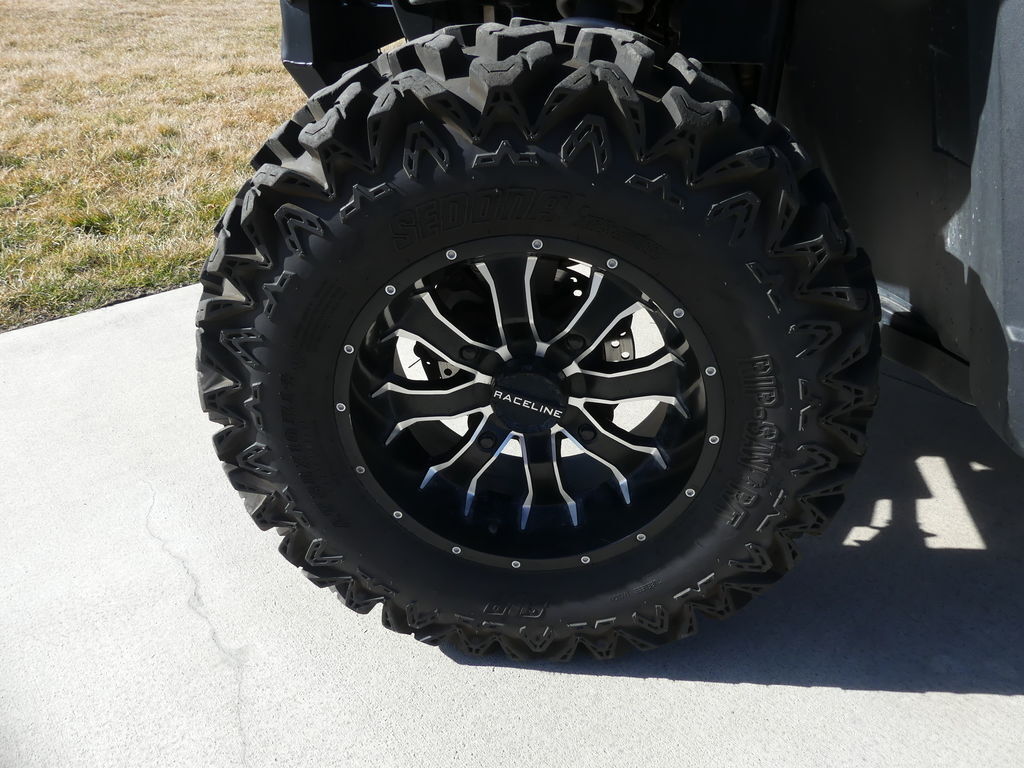

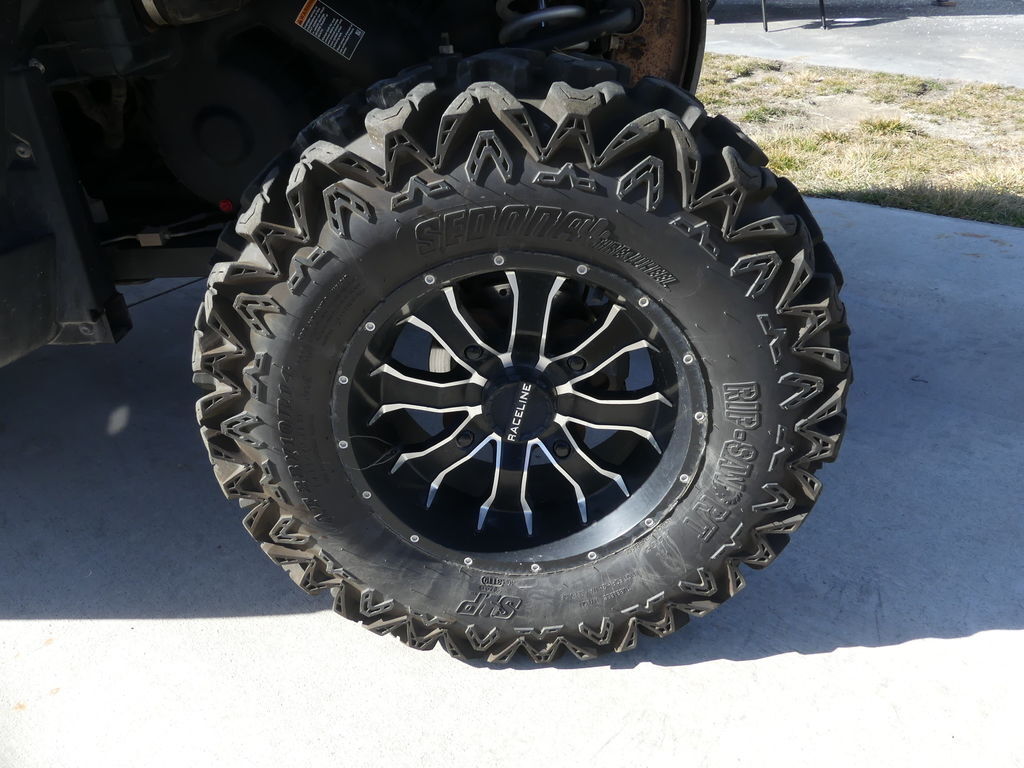

Wheels & Tires: Front (F), Rear (R):

Rims material Steel

F Tire Diameter 25

R Tire Diameter 25

Tire Brand Carlisle

F Tire Width 10

F Wheel Diameter 12

R Tire Width 11

R Wheel Diameter 12

F Tire Brand Carlisle: 25 x 10-12

R Tire Brand Carlisle: 25 x 11-12

Brakes:

Front Hydraulic Disc Brake

Rear Hydraulic Disc Brake

Suspension: Front (F), Rear (R):

ATV F suspension system Double A-Arm

F Travel (millimeters/inches) 10 / 254

Front Adjustable Fork Pre-Load +

F Stabilizer Bar –

ATV R suspension system Independent Double A-Arm

R Travel (inches/millimeters) 10 / 254

Rear Adjustable Shock / Spring Pre-Load –

ATV R shock absorbers 2

Rear Suspension Material Steel

Steering:

Steering system Manual

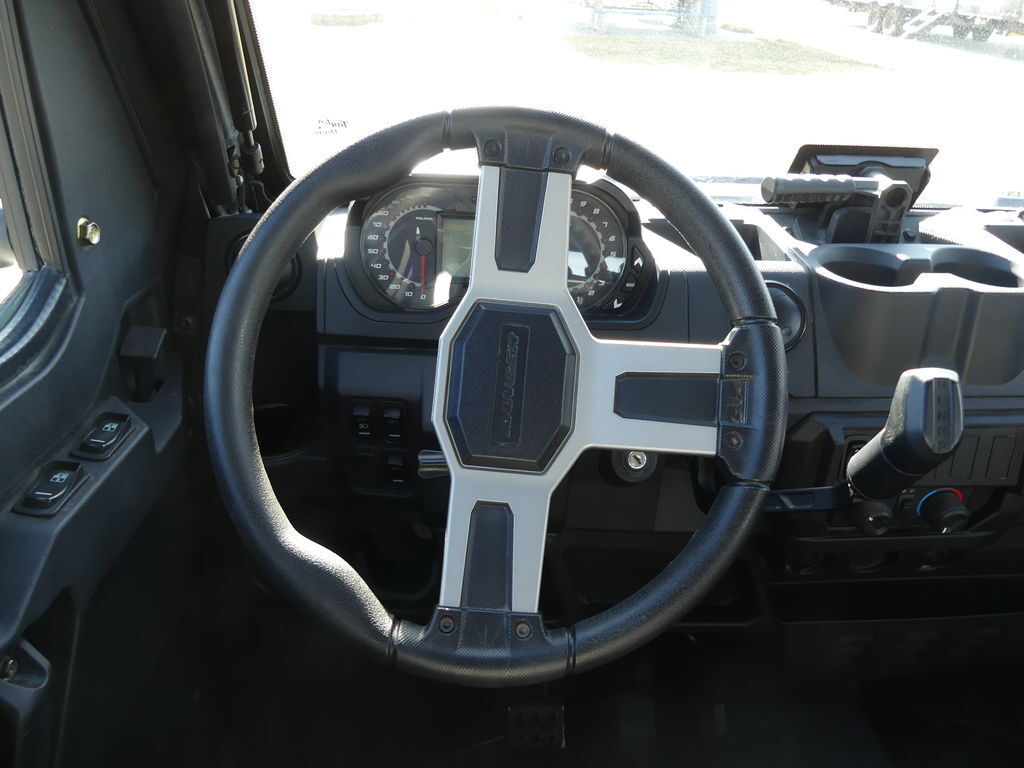

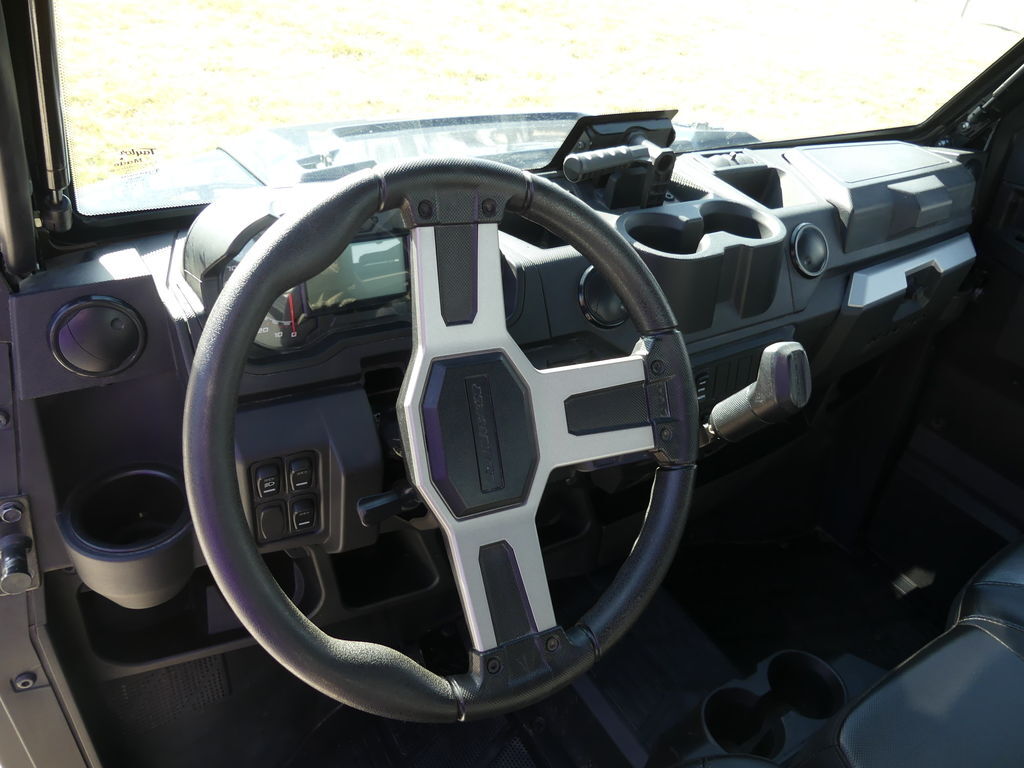

Steering controller Steering Wheel

Technical Specifications:

Overall length (foot) 10

Overall width (inches/millimeters) 62.5 / 1580

Overall heigth (inches/millimeters) 76 / 1930

Wheelbase (in/mm) 113 / 2870

Ground Clearance (in/mm) 12 / 305

Length (foot/foot) 10

Length (foot/inches) 0

ATV dry weight (pounds/kilograms) 1626 / 738

Payload Capacity (lbs/kgs) 1750 / 793.8

Towing Capacity (lbs/kgs) 2500 / 1133.9

Fuel tank capacity (gallons/liters) 11.35 / 43

Engine Displacement to Weight (cc) 0.61
