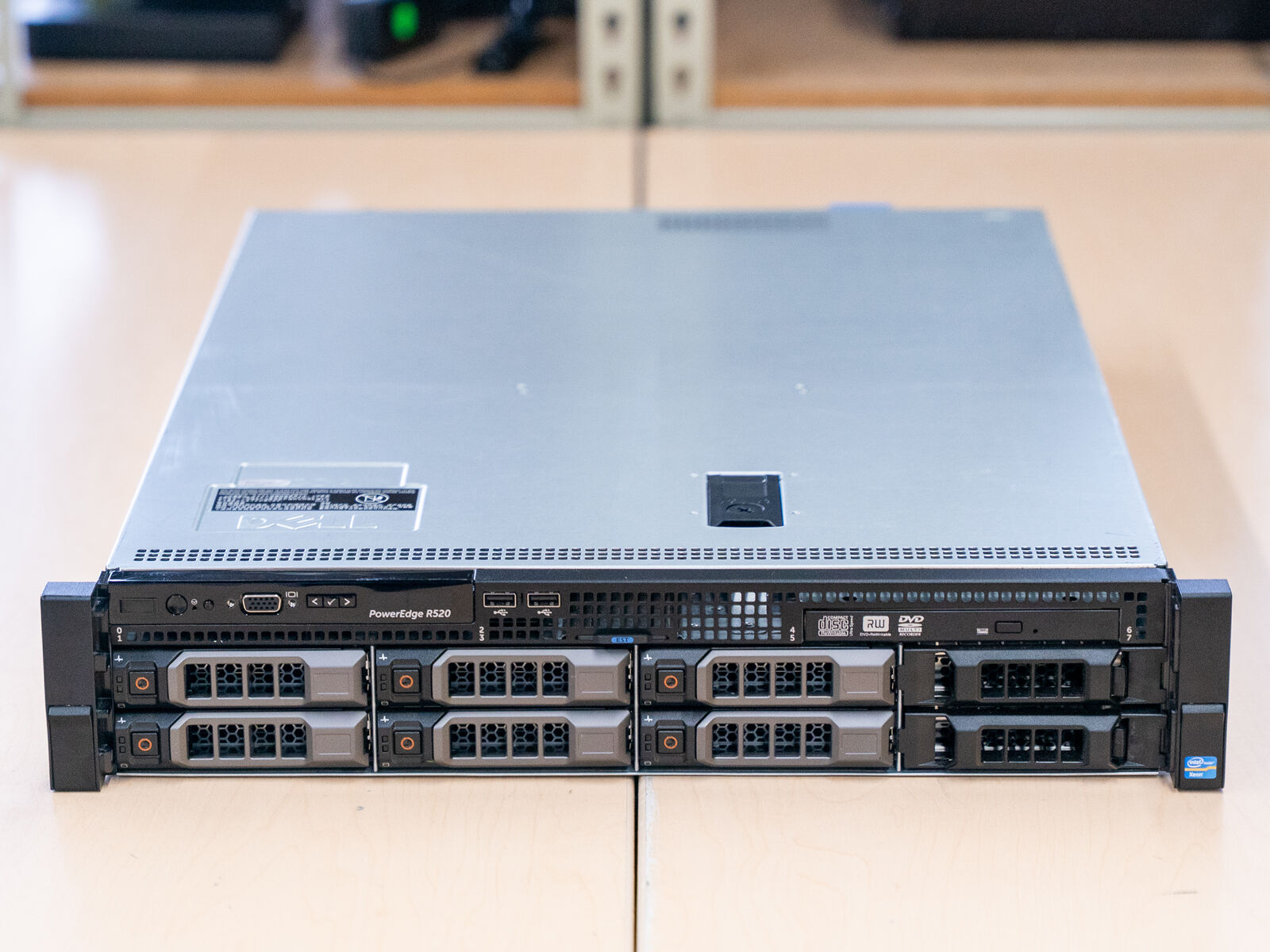

Model: Dell Poweredge R520 - 2U Rackmount Server

CPU: 1x Intel Xeon E5-2440 - 6 Cores/12 Threads running between 2.4GHz-2.9GHz | Second CPU Socket unoccupied

RAM: 64GB ECC DDR3 (Registered ECC DIMMs)

Storage Drives: None, various SSDs/HDDs available for purchase in-store

Storage System: 8x Front 3.5" Hot-Swap SAS/SATA Bays (6x Trays Incl.)

Storage Controller: Dell PERC H710 running IT Mode Firmware | HBA for Software RAID, such as ZFS and UnRAID

Remote Management: iDRAC 7 Express

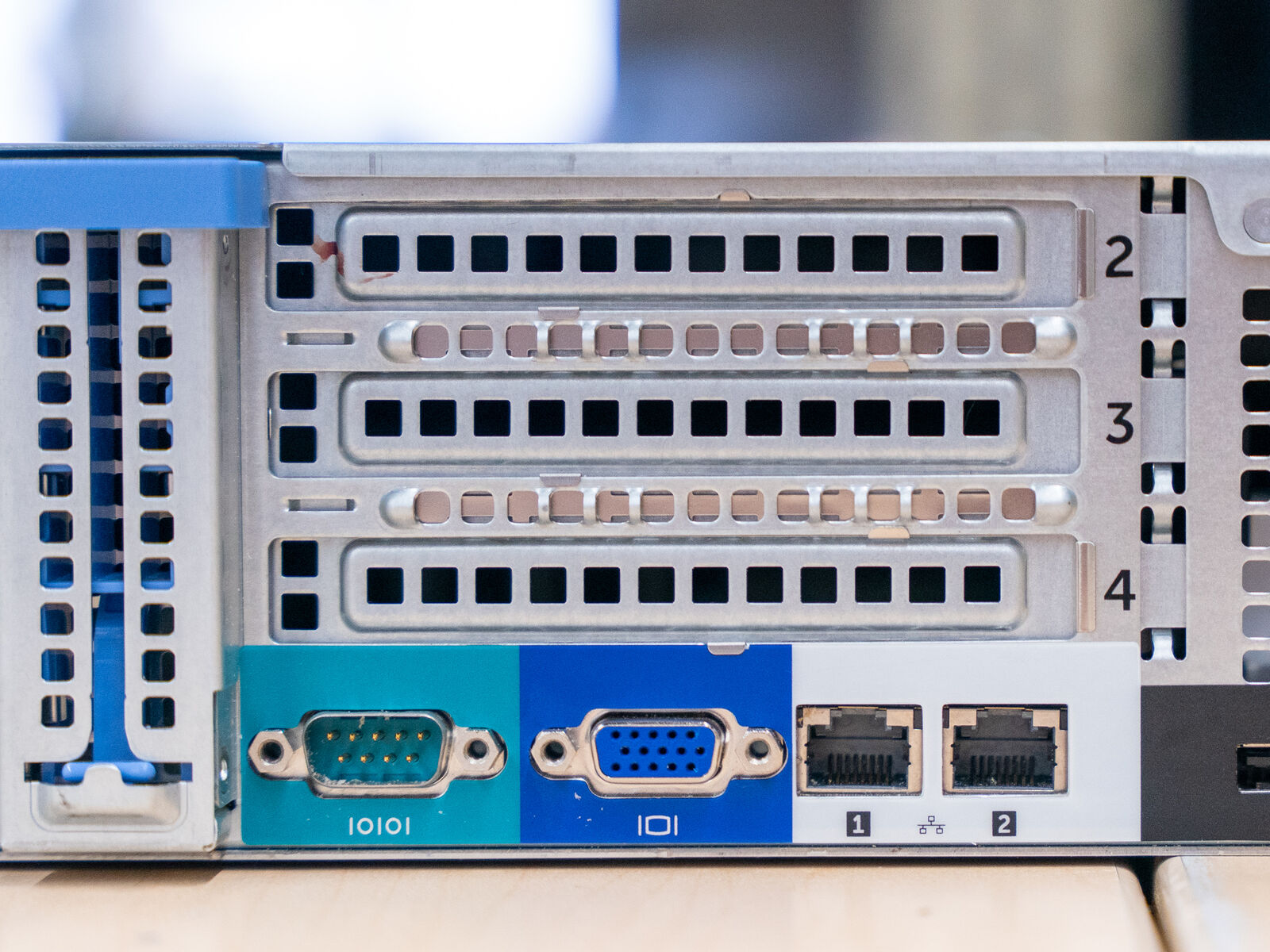

Networking: 2x 1GbE RJ-45 Ethernet Ports

‎

Rails: None

Bezel: None

Power: Dual Hot-Swap 495W Redundant PSUs

PCI-E Cards: None

Available Upgrades: Storage, Networking, PSUs

Additional Notes: This server has two CPU Sockets, however only 1 is currently occupied

Work Done:

• BIOS, iDRAC, LC, and RAID have all been reset and cleared
• All available firmware updates have been applied
• The PERC H710 has been flashed with IT Mode firmware to convert it from a Hardware RAID Controller to an HBA
• The RAM has been replaced with tested modules from our inventory
• The CPU has been replaced with a higher performance model (E5-2407 -> E5-2440)
• The replacement CPU and Heatsink have been thoroughly cleaned, and new Arctic thermal paste has been applied

‎

Additional information is available upon request
