Model: Dell Poweredge R540 - 2U Rackmount Server

CPU: 2x Intel Xeon Gold 6138's - Each one has 20 Cores/40 Threads running between 2.0GHz-3.27GHz | 40 Cores/80 Threads Total

RAM: 256GB ECC DDR4 (4x64GB DIMMs)

Storage Drives: None, various SSDs/HDDs available for purchase in-store

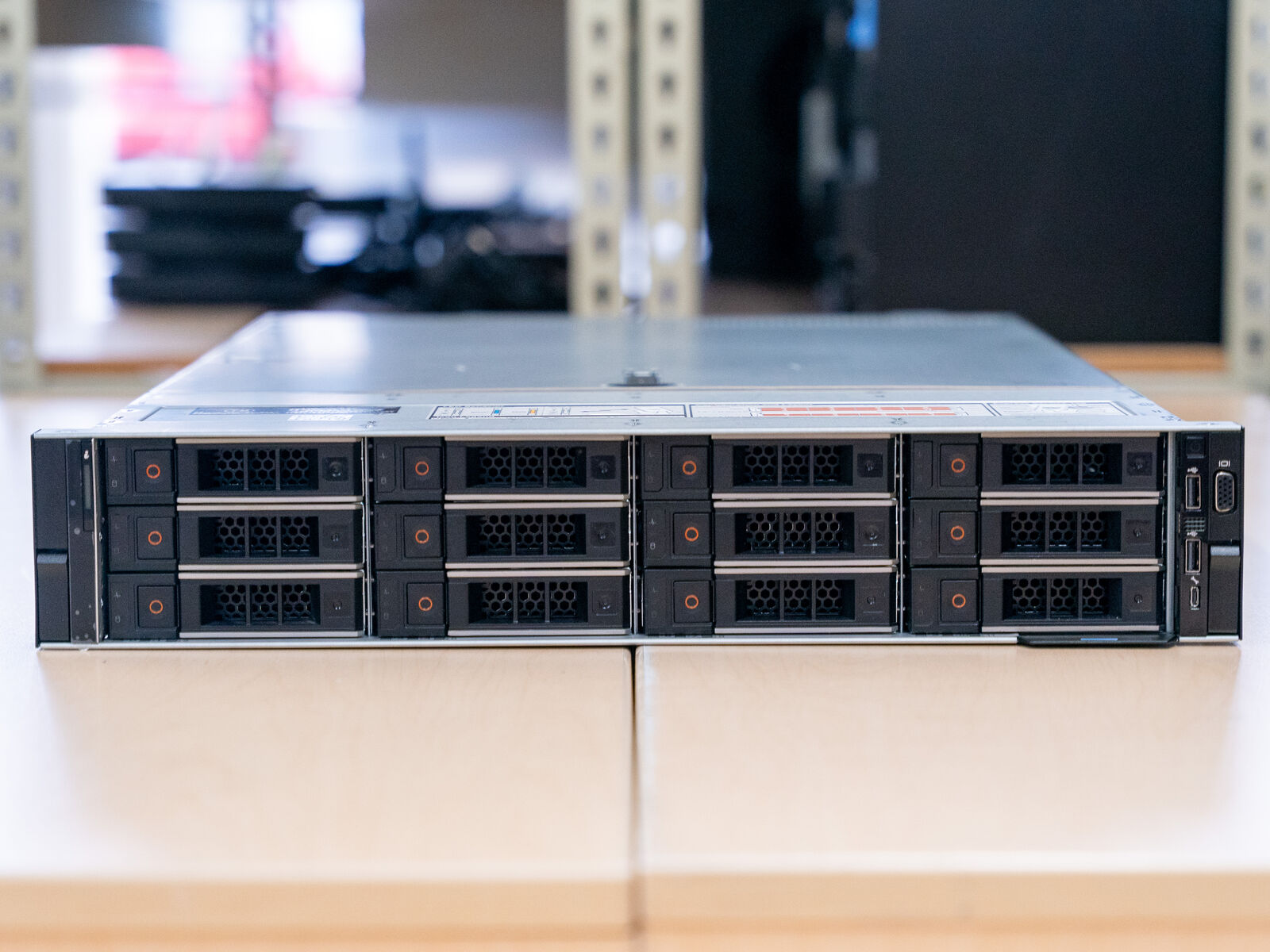

Storage System: 12x Front and 2x Rear 3.5" Hot-Swap SAS/SATA Bays (14x Trays Incl.)

Storage Controller: Dell PERC HBA330 - True IT Mode Controller

Remote Management: iDRAC 9 Enterprise

Networking: 4x RJ-45 Ethernet Ports [2x10G|2x1G]

‎

Rails: None, available for $70 with purchase of this server

Bezel: None

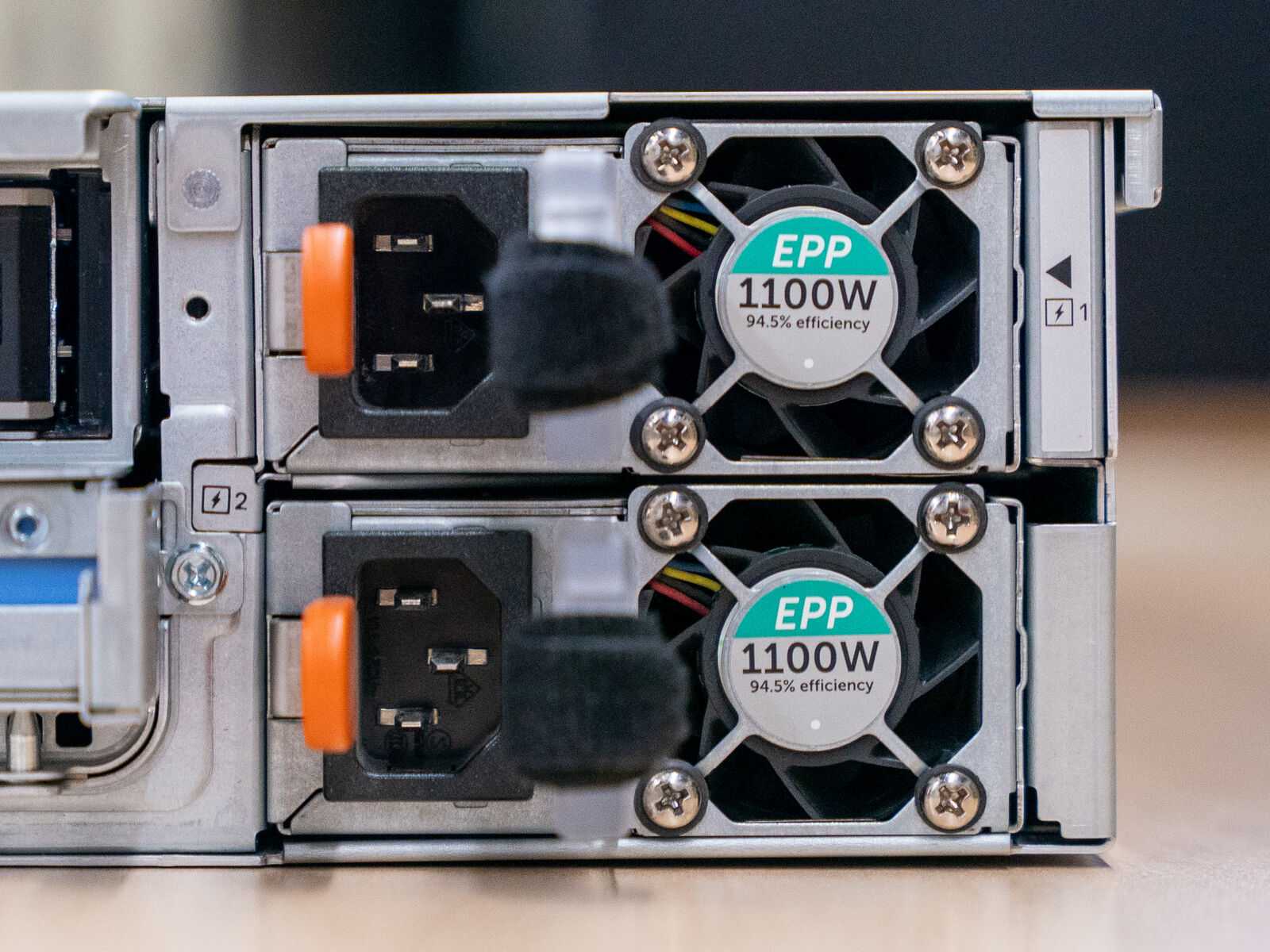

Power: Dual Hot-Swap 1100W Redundant PSUs

PCI-E Cards: None

Available Upgrades: Storage, Networking, Rails, PERC Controller

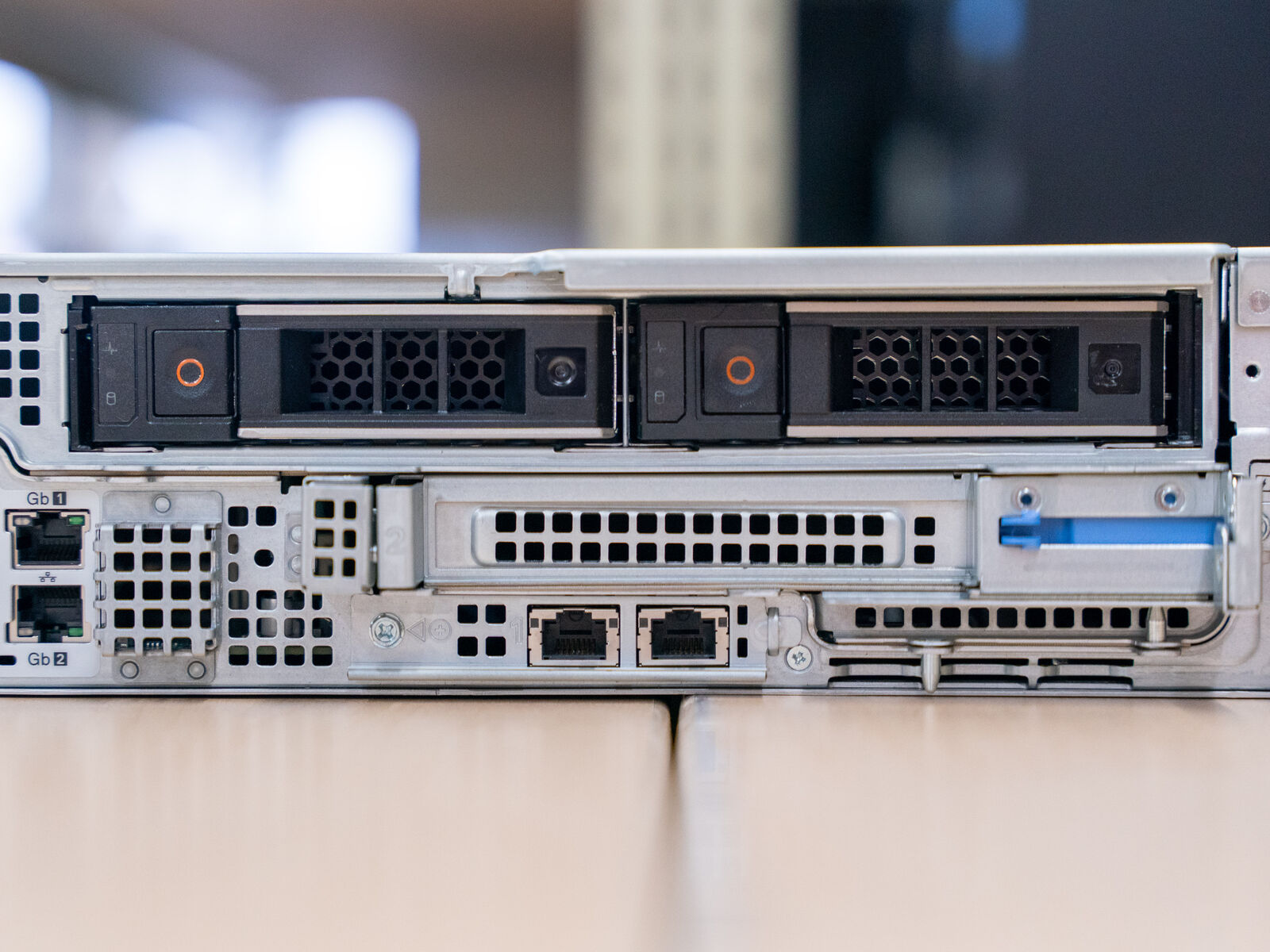

Additional Notes: This server has two additional 3.5" bays in back

Work Done:

• BIOS, iDRAC, and LC have all been reset and cleared
• All available firmware updates have been applied
• The RAM was tested with MemTest86 Pro prior to installation
• The CPUs were replaced higher performance models
• The PERC HBA330 was tested prior to installation
• The 2x 10G RJ-45 ports were pulled from a working unit, and installed into this one

‎

Additional information is available upon request

This listing is by GCB Servers, we have a large variety of server/enterprise grade equipment available, such as: Servers, switches, firewalls, routers, and more.

If you need a specific piece of equipment that you don't see listed, please contact us using the listed contact information.

Unit is available at 'GCB Computers', address is 1155 N Main Street, Suite #4 in Layton. Hours are Tuesday-Saturday 10am-6pm.
