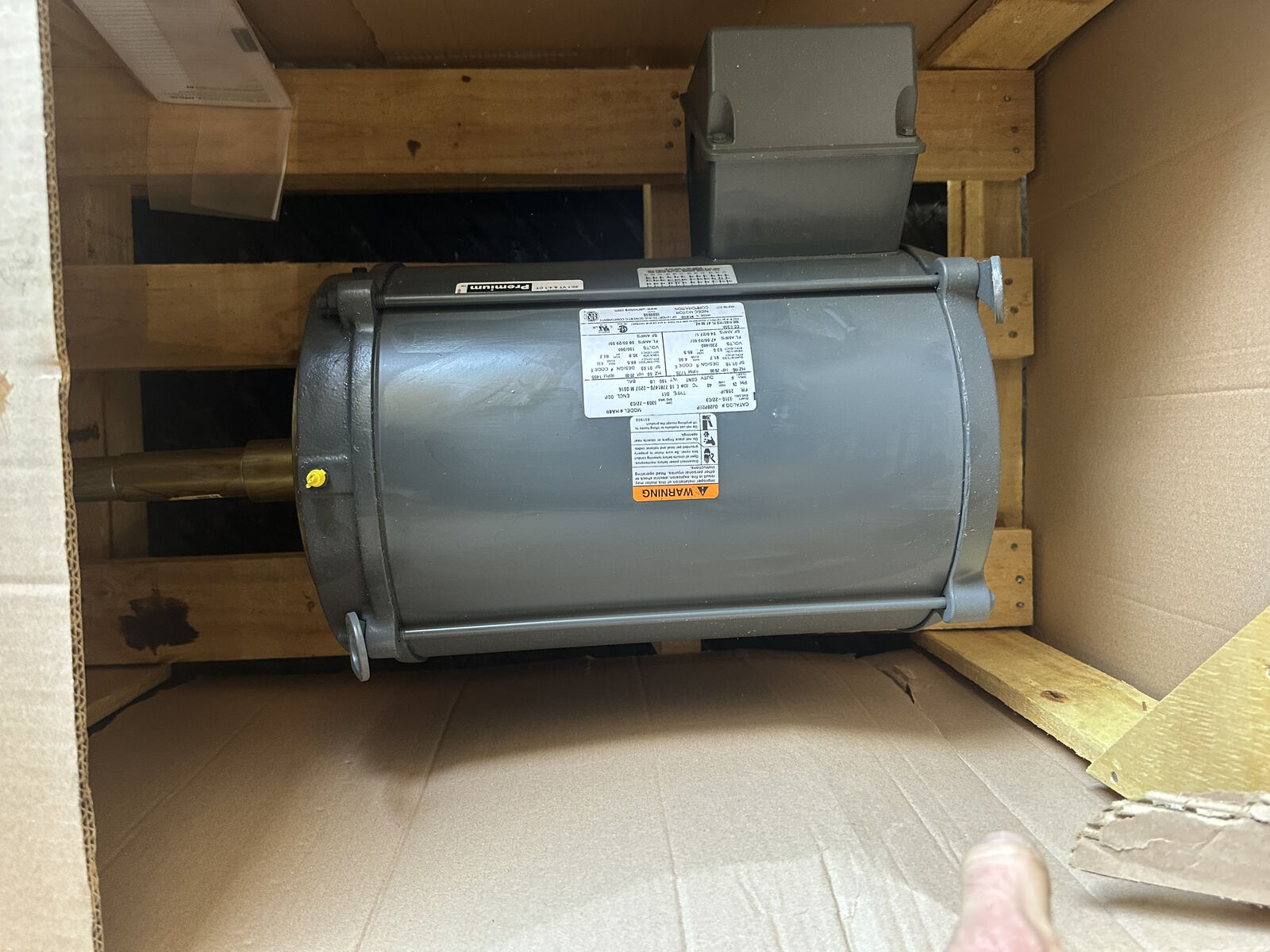

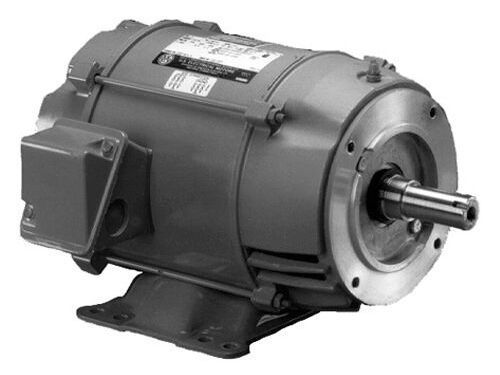

DJ20P2EP - 20 HP - ODP - 1775 RPM

**Catalog #:**DJ20P2EP

**Model #:**HA69

Details Catalog Page (PDF)

Special Application Close Coupled Pump

Three Phase

Open Dripproof (ODP)

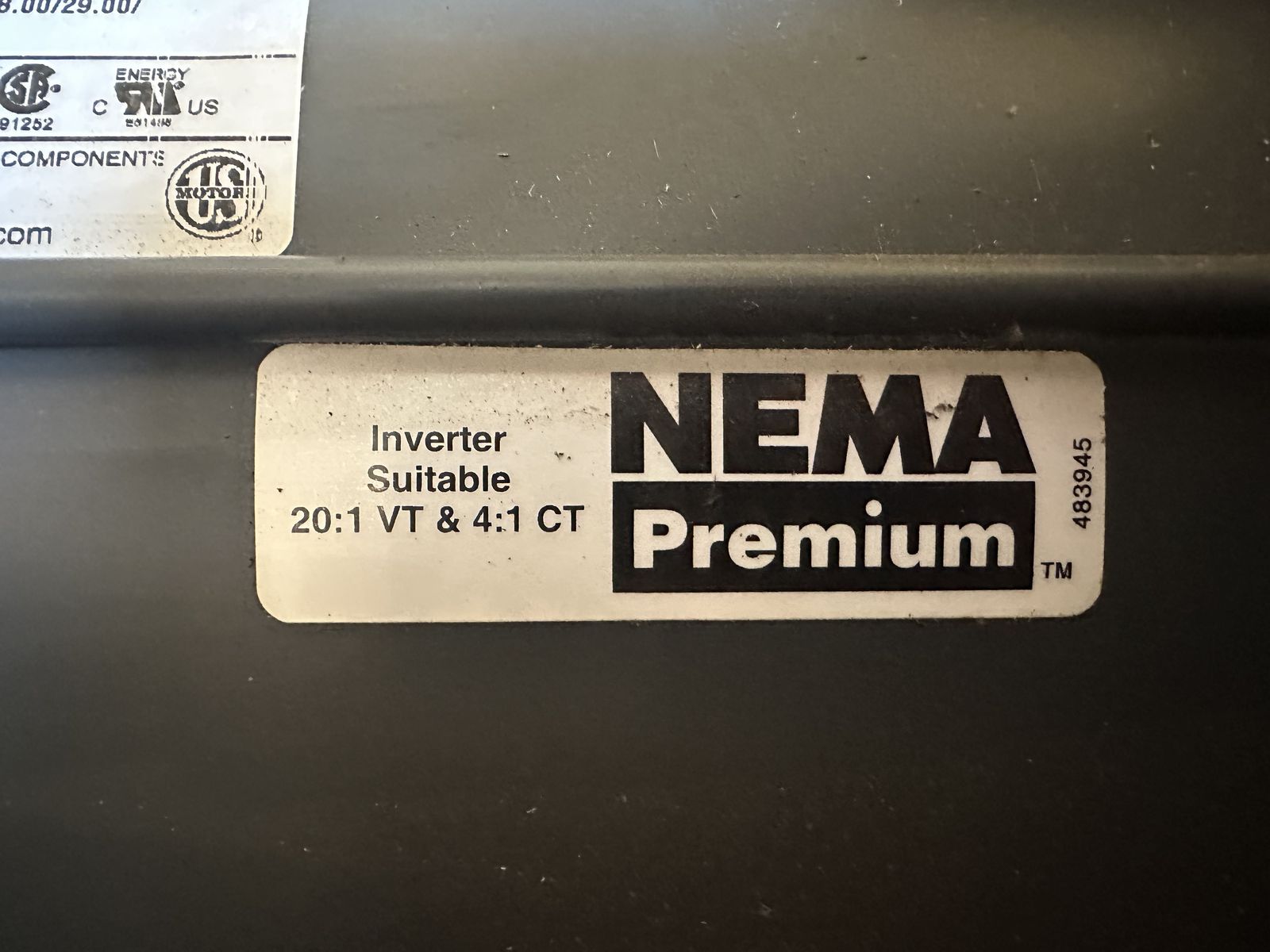

Premium Efficient

JP Shaft - Footed

Discount Symbol:

DS-3POP

Unit Weight:

160.0

lbs

List Price Per Unit:

$2,012.00

• Specifications
• Technical Data

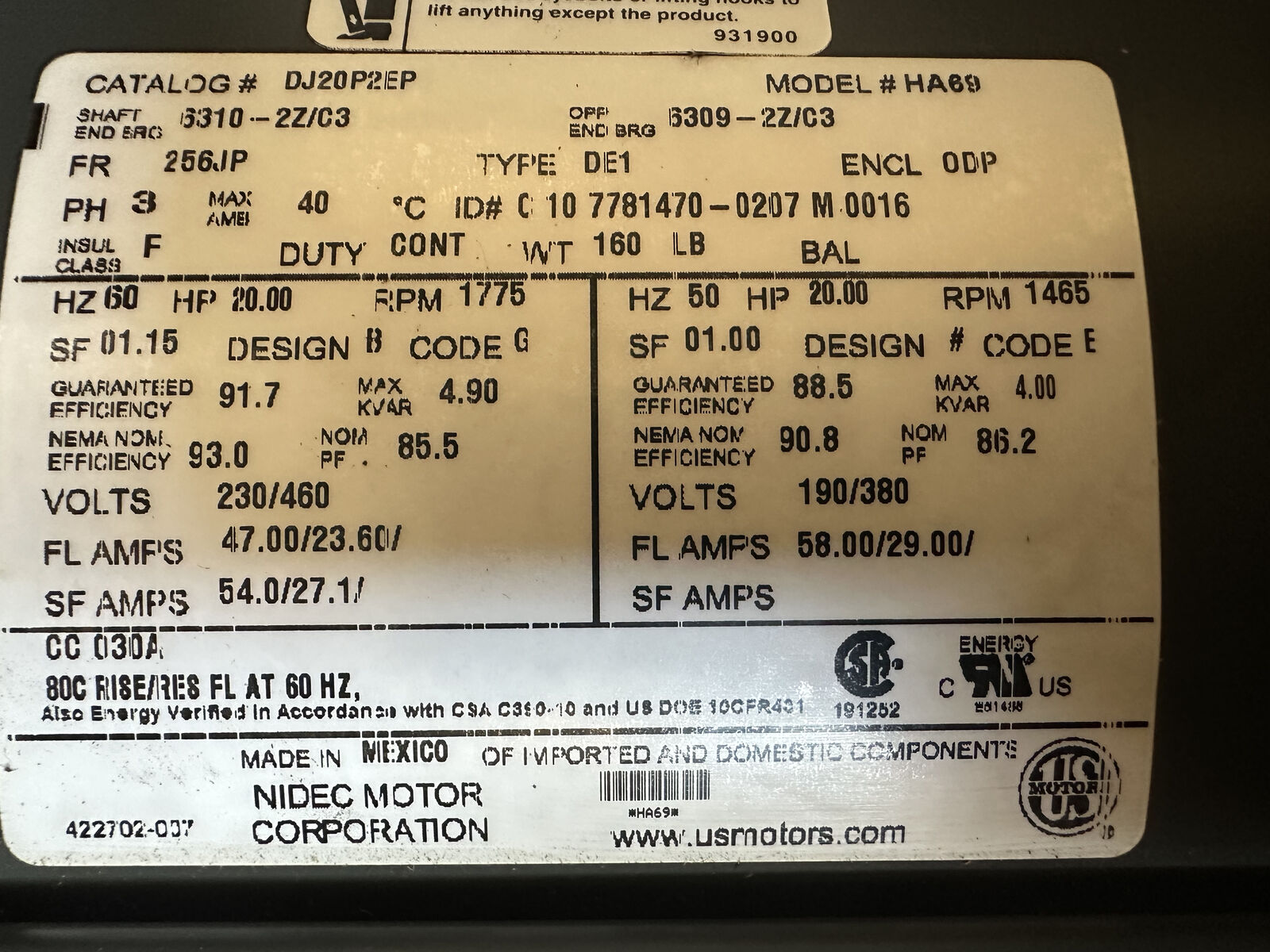

Model_Number

HA69

PRODUCT NAME

20 HP - ODP - 1775

PHASETYPE

3_PHASE

MOTOR ENCLOSURE

ODP

HORSEPOWER

20

KILOWATTS

14.9

POLES

4

NUMBER SPEEDS

1

RPM

1775

RPM 2

1775

RPM 4

1465

RPM 5

1465

HERTZ

60

HERTZ 2

50

VOLTS PRIMARY

230/460

VOLTS

460

VOLTS 2

230

VOLTS 4

380

VOLTS 5

190

FRME

256

SHAFT CODE

JP

MOUNTING

HORZ-FOOTED

ASSEMBLY POSITION

F1

MOTOR TYPE

DE1

OPPOSITE END BEARING

6309-2Z-J/C3

SHAFT END BEARING

6310-2Z-J/C3

AMBIENT

40

SERVICE FACTOR

1.15

STARTCAPMFD

N\A

SHIPPING WEIGHT

160

BREAKDOWN TORQUE

248

BREAKDOWN TORQUE UOM

PERCENT OF FLT

LOCKED ROTOR TORQUE

245

LOCKED ROTOR TORQUE UOM

PERCENT OF FLT

INSULATION CLASS

F

KVA CODE LETTER

G

LOCKED ROTOR AMPS

149

NEMA NOMINAL EFFICIENCY

93

FULL LOAD AMPS PRIMARY

47/23.6

SERVICE FACTOR AMPS PRIMARY

54/27.1
