1 Day
154
6
$1,100.00

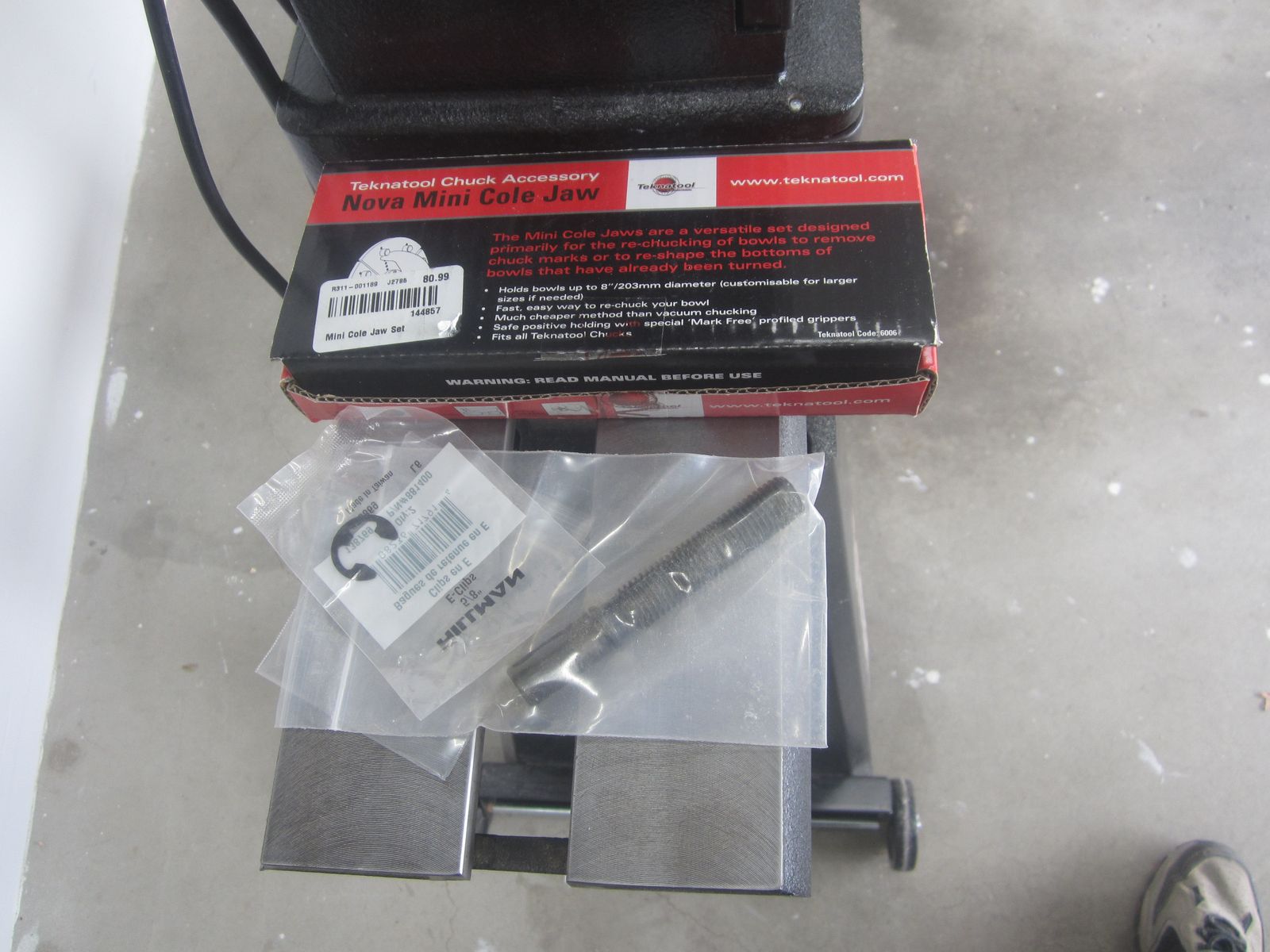

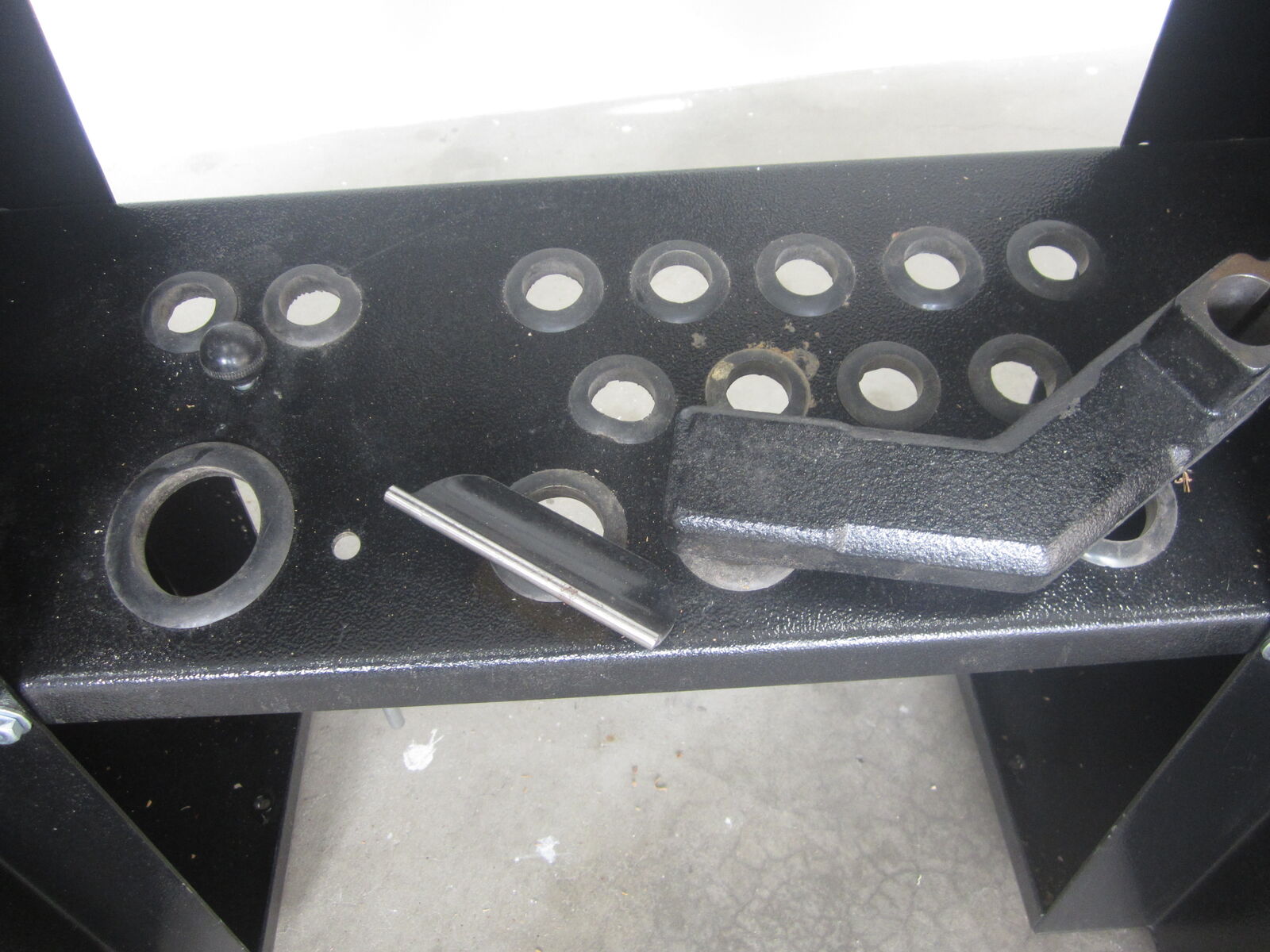

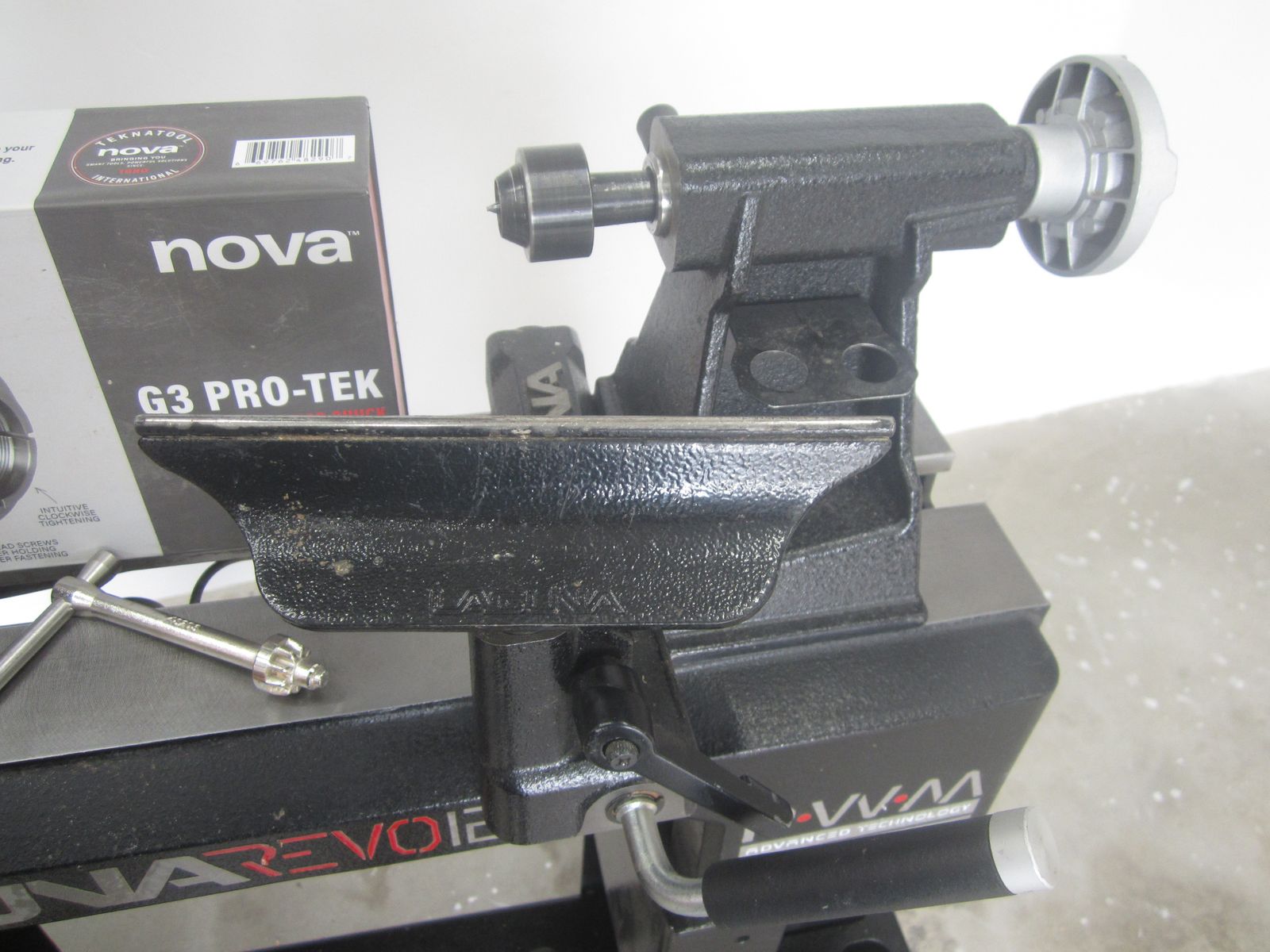

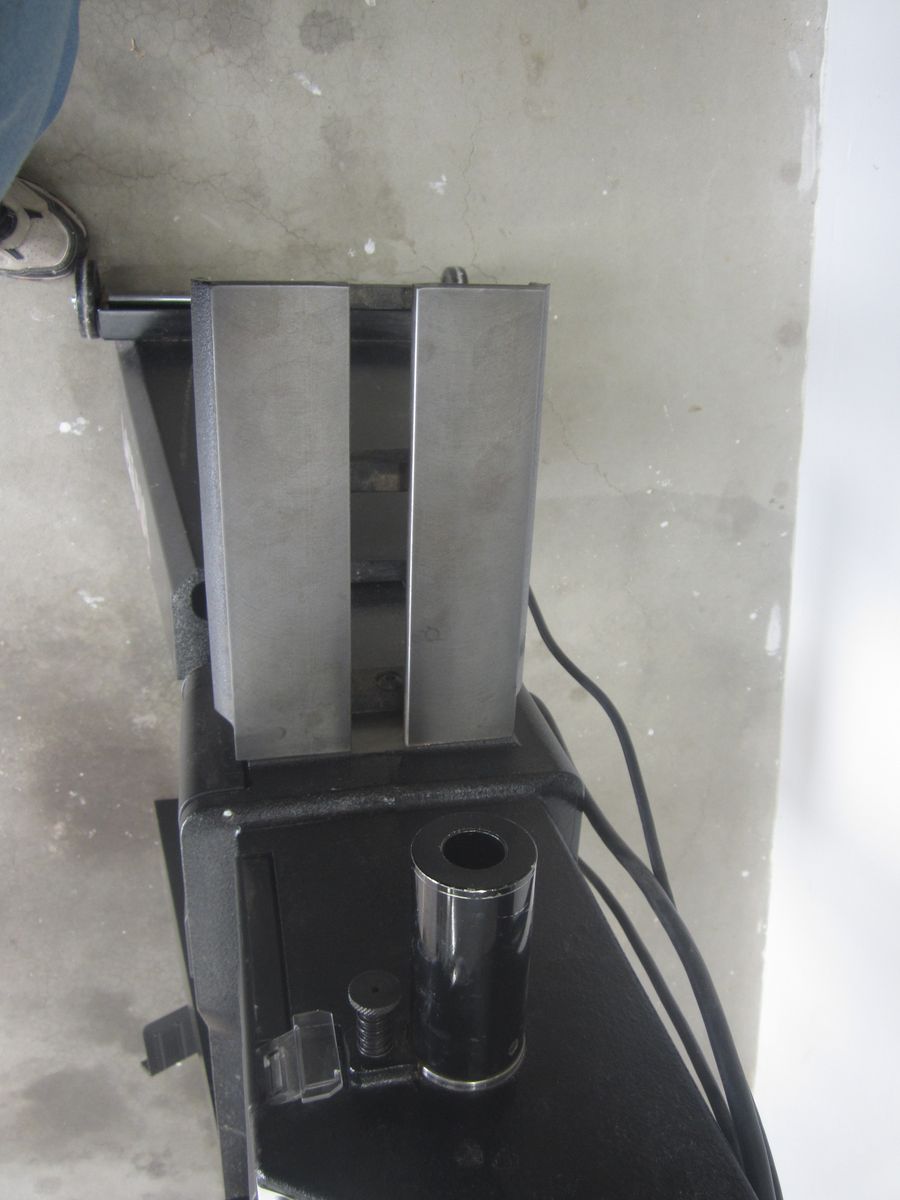

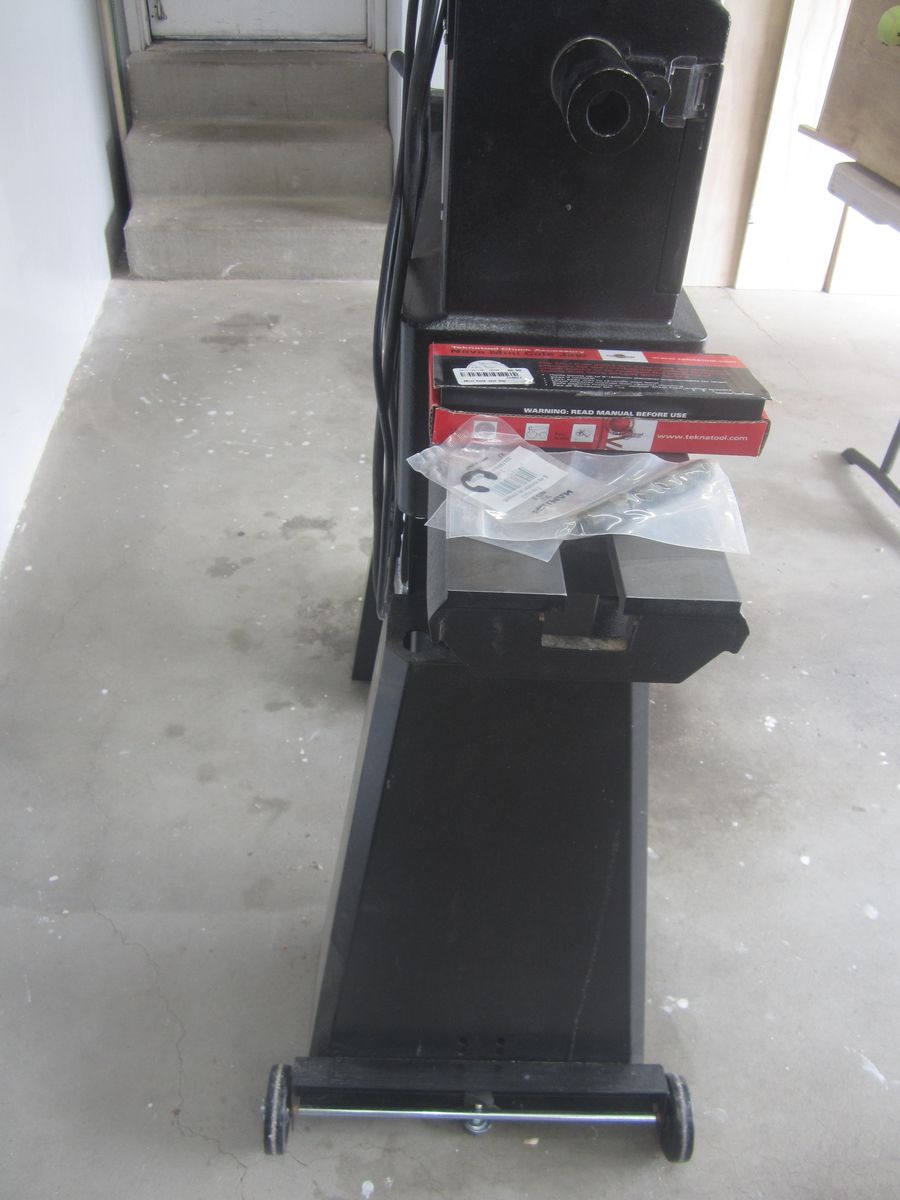

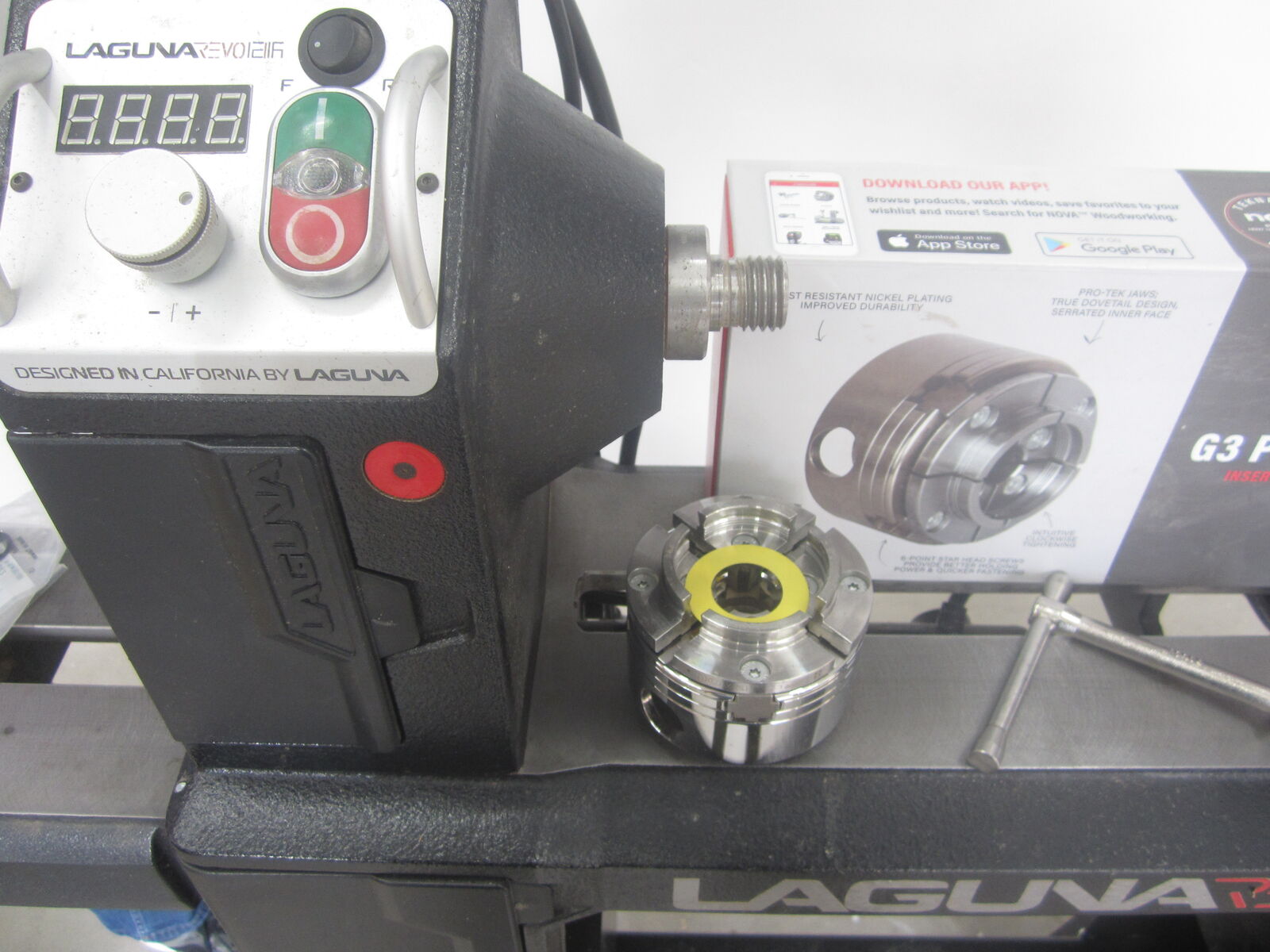

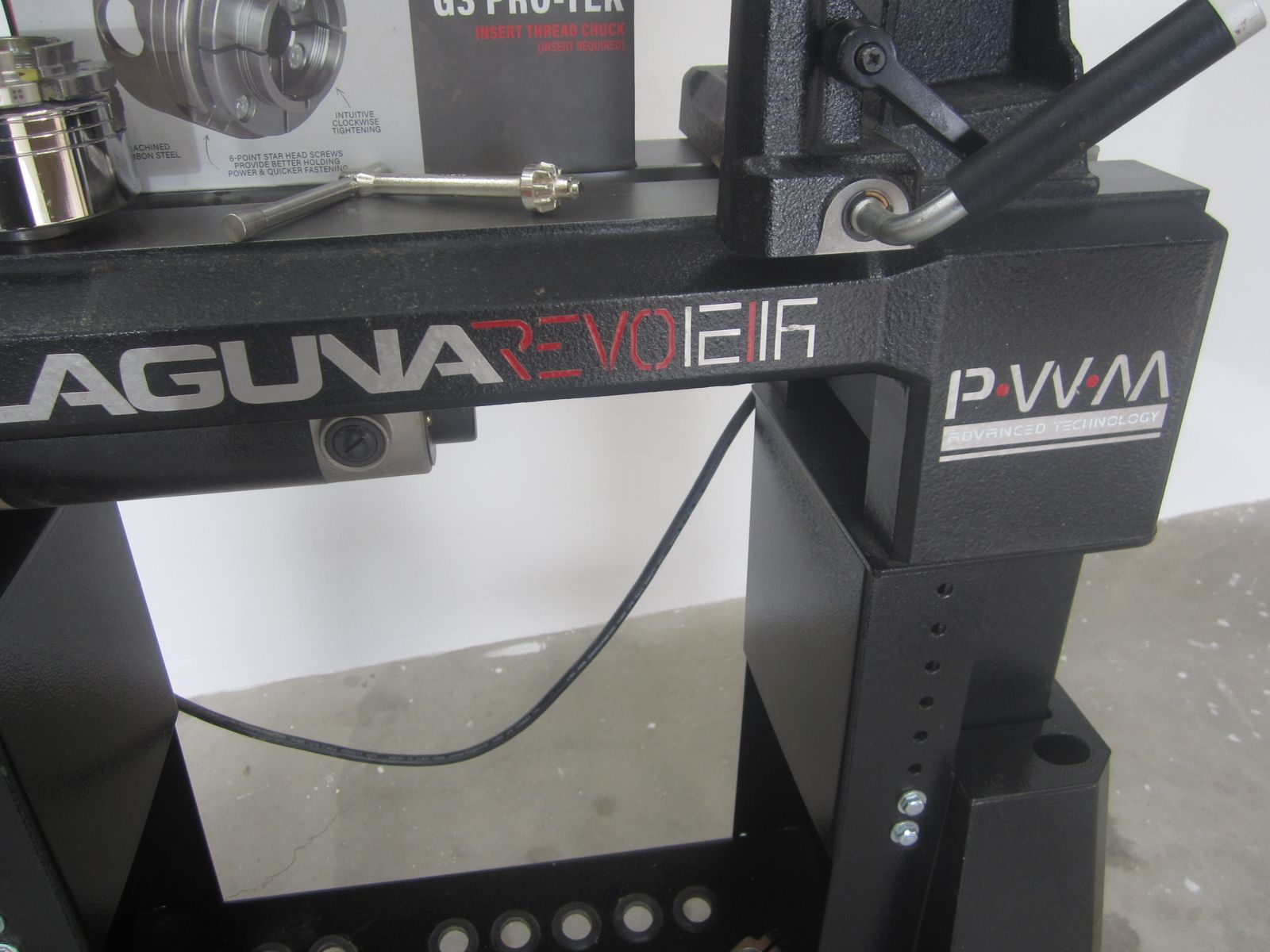

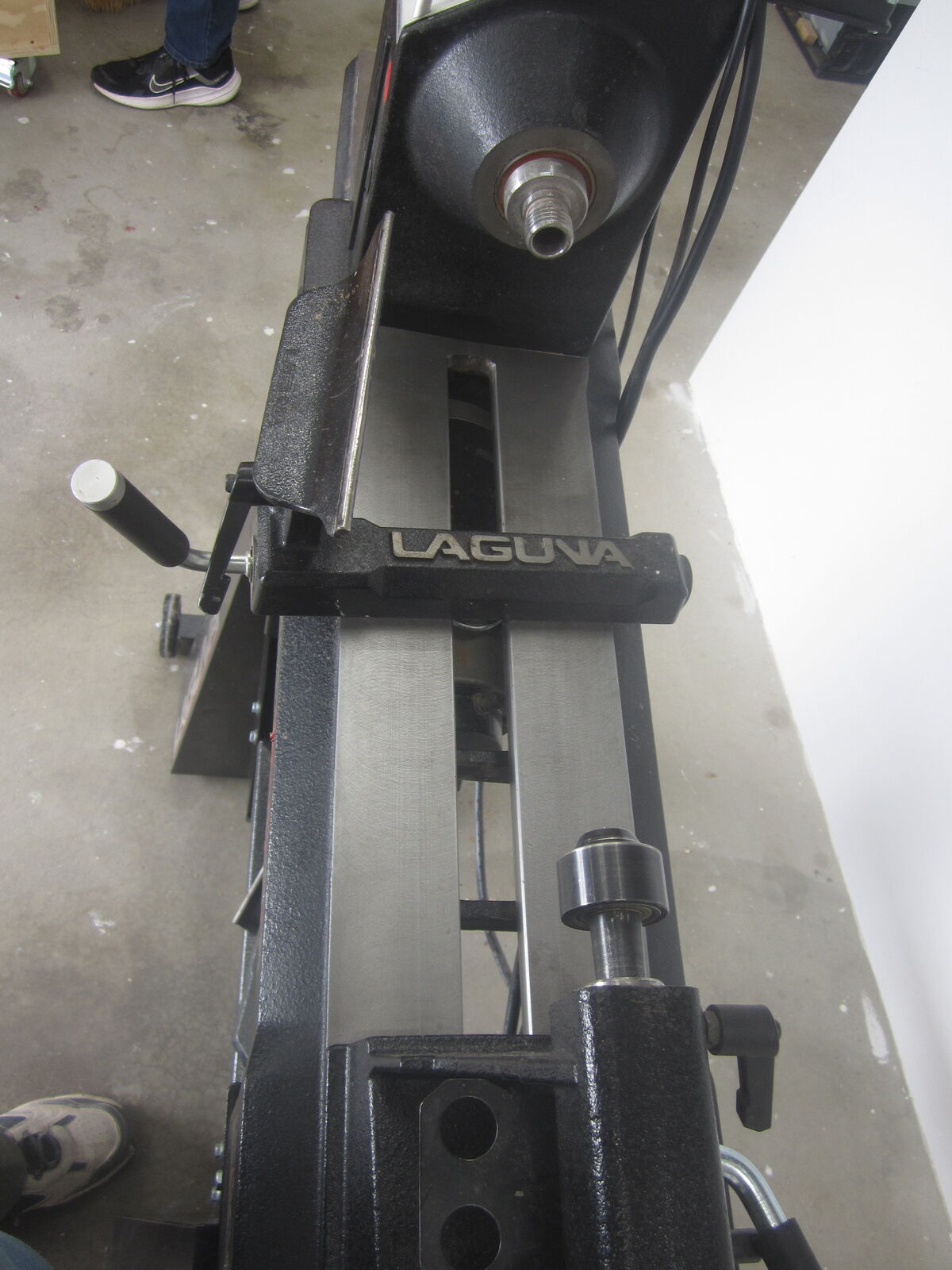

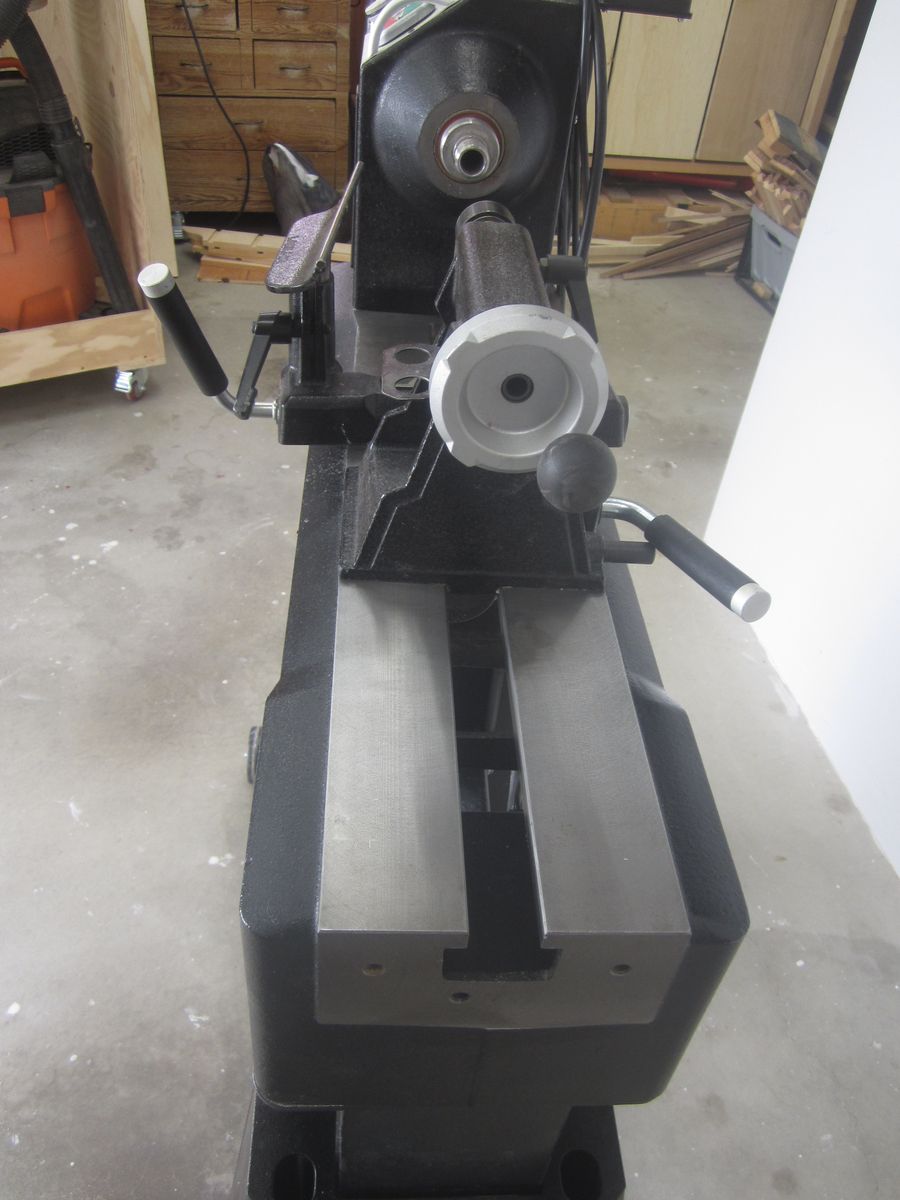

VenmoUp for sale is a Laguna Revo 12/16 Wood Turning Lathe. This comes with the Laguna Revo 12/16 Adjustable stand, a Nova G3 Pro-Tek chuck, with the standard jaws and a new (never used) Nova Mini Cole Jaw set, two tool rests (8" and 4"), the knock-out rod, and a light on an articulating arm. It also comes equipped with the Laguna Revo 12/16 Wheel System and a 10" Expansion Set.
This is a great little lathe That I am selling with several hundred dollars worth of extras.
For all this I am asking $1100.00, OBO.
This is from Laguna's website:
Electrical Requirements: 110V-1PH-60Hz
Recommended Breaker Size: 110V – 15 Amp
Speed Range High: 650 – 3500 RPM
Speed Range Mid: 325 – 1750 RPM
Speed Range Low: 50 – 525 RPM
Distance Between Centers: 15-½″
Swing Over Bed: 12-½″
Swing Over Banjo: 9-½″
Max Outboard Swing: 16″
Spindle Bore: ⅜″
Spindle Thread: 1″ x 8 TPI (Both Ends)
Front Bearing: 6006LLU
Rear Bearing: 6005LLU
Indexing: 24 Positions With Lock
Accepts Vacuum Chuck: No
Drive Belt: Poly-V Belt 6 Grooves
Tailstock Quill: MT #2
Tail Stock Quill Travel: 2-½″
Bed Length: 29.4″
Bed Gap: 1-1/4″
Tool Rest Length: 8″
Tool Rest Post Diameter: 1″
Faceplate Diameter: 3″
Certification: CSA C/US 256540
Floor To Bed Height: 6-3/4″ No Pads
Floor To Spindle Center: 13″ No Pads
Overall Size (L x W X H): 35.8″ x 14.6″ x 20.5″
Net Weight: 118 lbs
Shipping Weight: 125 lbs
Shipping Dimensions: 37″ x 15″ x 21″
**NEMA Plug: ** 5-15P
**Cord: **6ft
