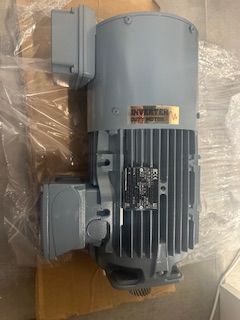

Nord SK 100AP/4 TF F SIMILAR TO SN 100640151600 - MOTOR

ONLY

Paid over $2000 for this new

MOTOR UPDATED TO CURRENT PREMIUM EFFICIENT MOTOR

Product Name Motor

Motor series Asynchronmotor PREM AL (B)

Motor Type 3-Ph AC Motor AxAB

Motor Speed 1,450 rpm

Motor Power (HP) 4.000

Voltage (V) 230/400

Frequency (Hz) 50

Efficiency Class IE3

Duty Cycle S1

Insulation Class F

Rated Current Low Volt (A) 10.90

Rated Current High Volt (A) 6.26

Power Factor 1 0.80

Motor Position Mot Pos 018 / FL 160S

Gearbox Input Flange Size 160S

Gearbox Mounting Position M1

Motor Temperature Protection PTC resistor, 3x155°C

Fan Type Auxiliary Fan

Auxiliary Fan Voltage 1-PH, 220V-277V

Auxiliary Fan Terminal Box Pos 3/III

Motor Connection Star; High Voltage

Motor Enclosure Type IP55

Terminal Box Position 3/III

CE Logo Yes

CCC Logo No

Mexico Certification NOM No

UL No

CSA No

DoE CC No

CSA ev No

Alto Rendimento No

Korea Energy Label No

Color RAL 7031 Blue grey

Paint Type Standard Paint

Paint Option Basic

onduit Hole Connection 18524320 M32x1.5/1" NPT

Weight approx. 66 LB /PC
