Description

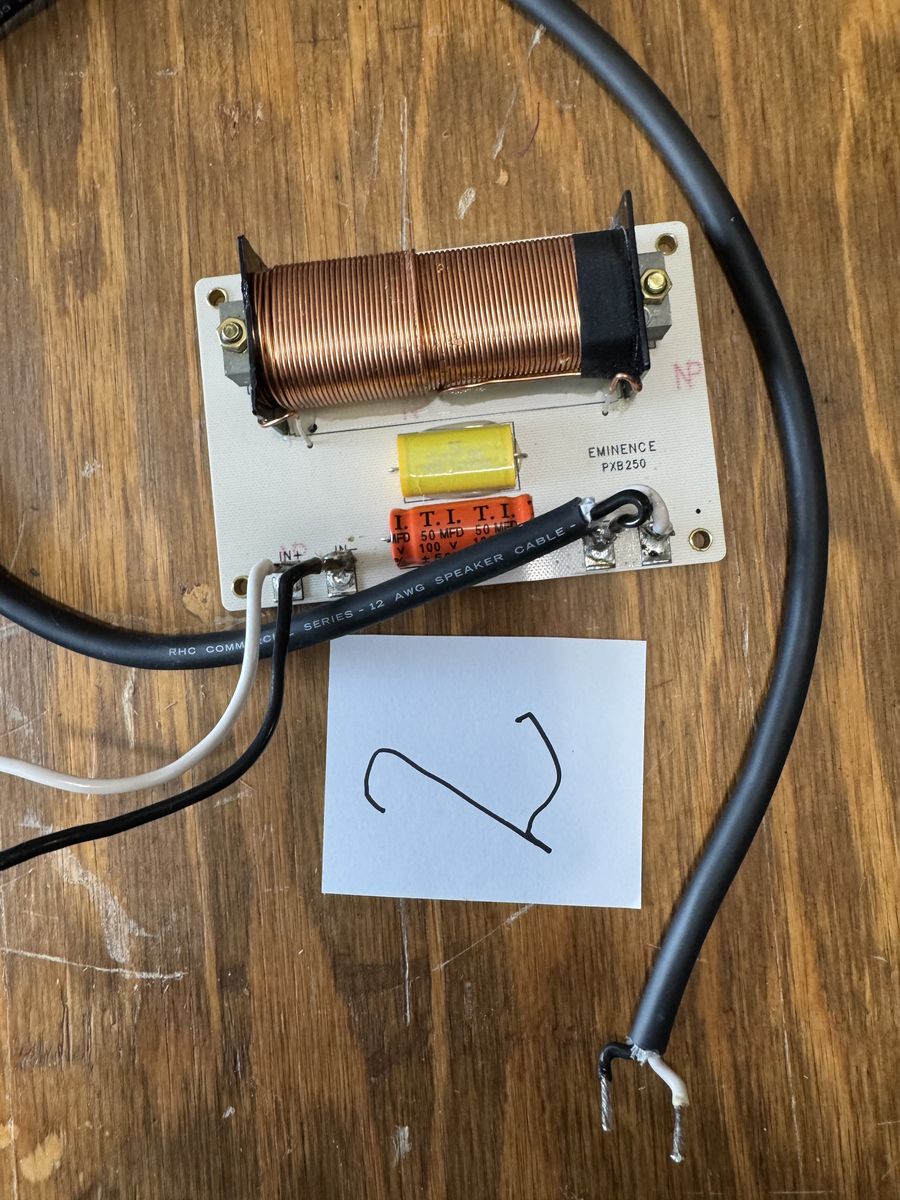

Low Pass Speaker Crossover Board, 250 Hz, 8 Ohm, 600 Watt

Eminence pxb board-only crossovers are a lower cost alternative to the "cabinet ready" models and are targeted specifically for custom cabinet projects as they do not include the terminal cup, input connectors or L-pad found on the "cabinet ready" models. They feature advanced circuit design to both preserve the crossover and your drivers. In every way, Eminence pxb crossovers are a technically superior product. The 250 Hz low pass frequency is based on an 8 ohm driver. With a 4 ohm driver, the crossover frequency will be approximately 125 Hz. Dimensions: 5-1/2" L x 3-3/4" W x 1-1/2" H.

Features: - Crossover type: Low pass, board only

• Low pass frequency: 250 Hz, 12 dB/octave
• Power handling: 600 watts RMS
• Made in the U.S.A.

Specifications: - Type: Low-Pass

• Cabinet Ready?*: No
• Crossover Frequency: 250Hz
• Slope: 12dB/octave
• Impendance: 8 ohms
• Power Handling: 600W
• HF Level: ~
• Mounting cut-out: ~
