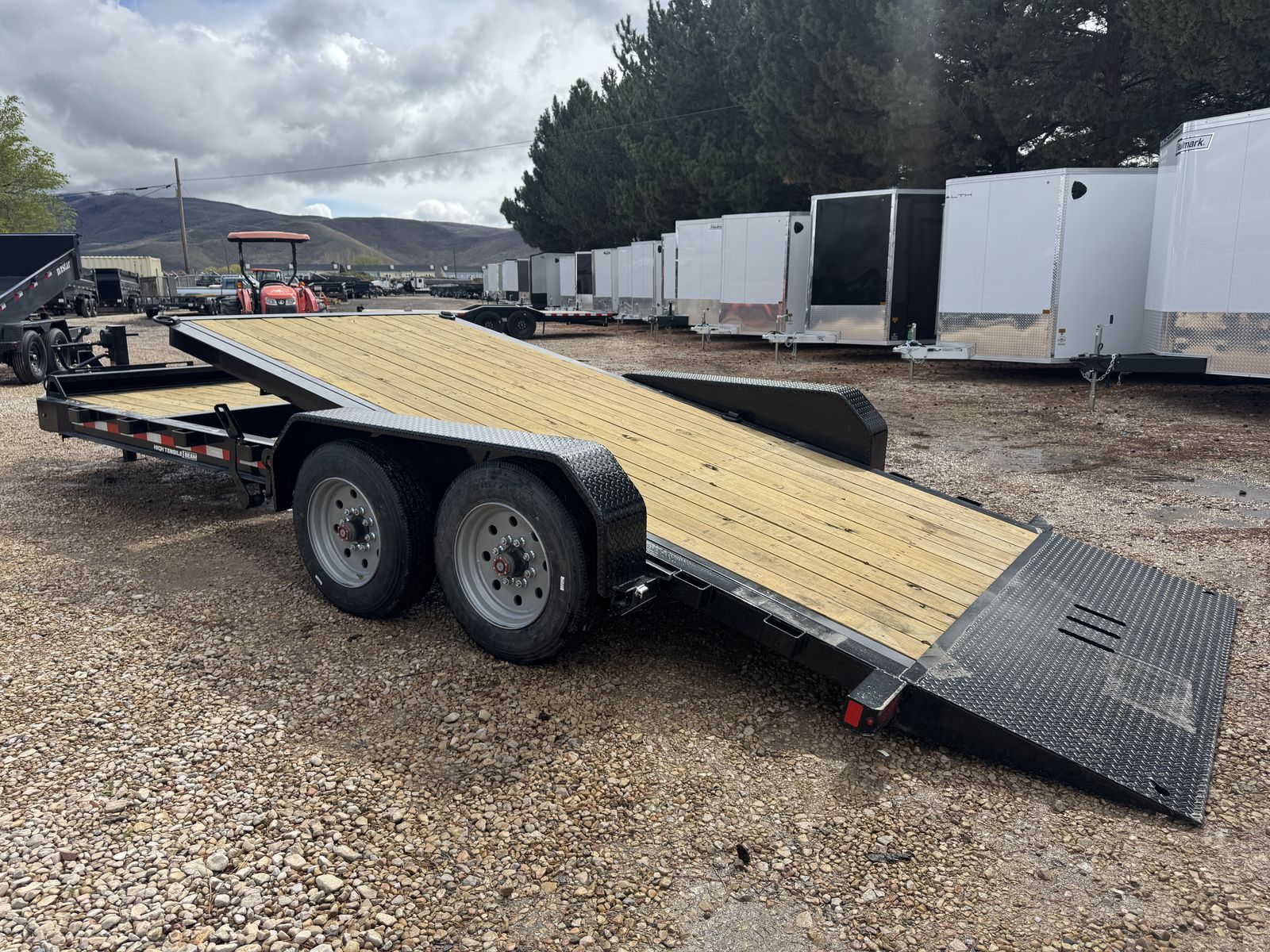

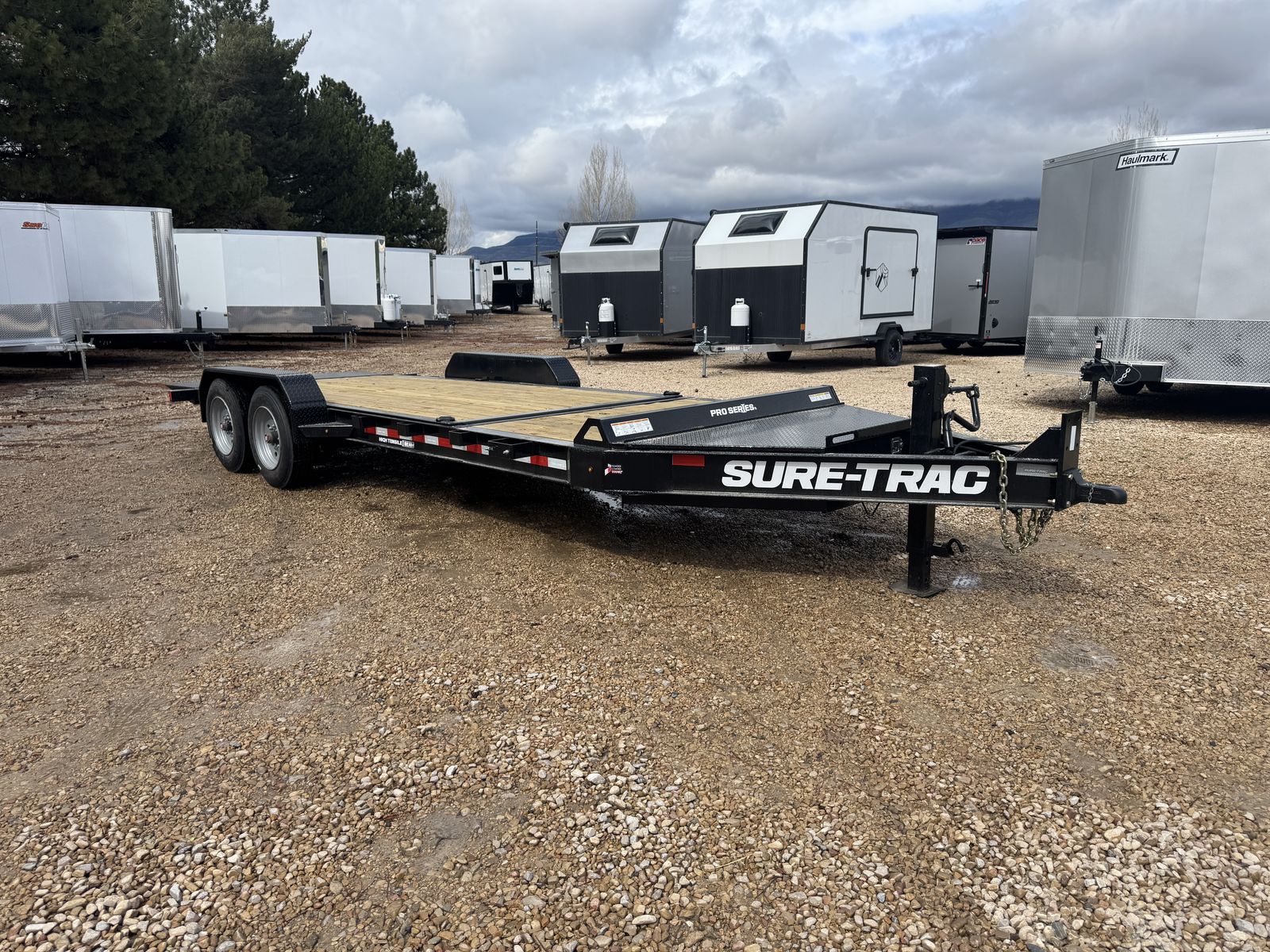

2025 Sure-Trac PRO SERIES 7X20-17.6K Tilt Trailer

STBTE82164-BP-176 S3452682

--

The Pro Series® Tilt Bed Equipment Trailer is the ultimate choice for professionals seeking a durable, high-capacity trailer for their hauling needs. Designed with heavy-duty I-Beam construction, this trailer ensures exceptional strength and stability, making it ideal for transporting heavy equipment and materials. Available in both straight tilt and stationary deck configurations, it offers versatility to accommodate various storage requirements.

With Gross Vehicle Weight Ratings (GVWR) of 15.4K, 17.6K, and 22K, the Pro Series Tilt Bed Equipment Trailer can handle payloads of nearly 18,000 lbs, providing ample capacity for even the most demanding jobs. The balanced gravity tilt feature allows for smooth loading and unloading, while a built-in stop valve ensures safety during operation. The easy, hands-free locking latch secures the bed, giving you peace of mind while on the move.

--

STANDARD FEATURES

GVWR (lbs) 17600#

GAWR (lbs/axle) 8000#

Curb Weight 4220#

Payload 13380#

Width 7'

Length 20'

Tilt Body Length 16'

Straight Deck 4'

Overall Length 314"

Deck Height 22"

Coupler Height 17-26"

Length Deck 247"

Height Deck 22"

Width Between Fender 82"

Width Tilting Deck 82"

Load Angle 14.5"

Type OPEN

Axle (2) 10000 lb. Torsion Brake, (2) 8000 lb. Slipper Spring Brake

Breakaway Battery, Switch, and Lanyard

Bulkhead HD Bulkhead with Integrated Tie-Down Points

Connector Plug Round 7-pin Blade

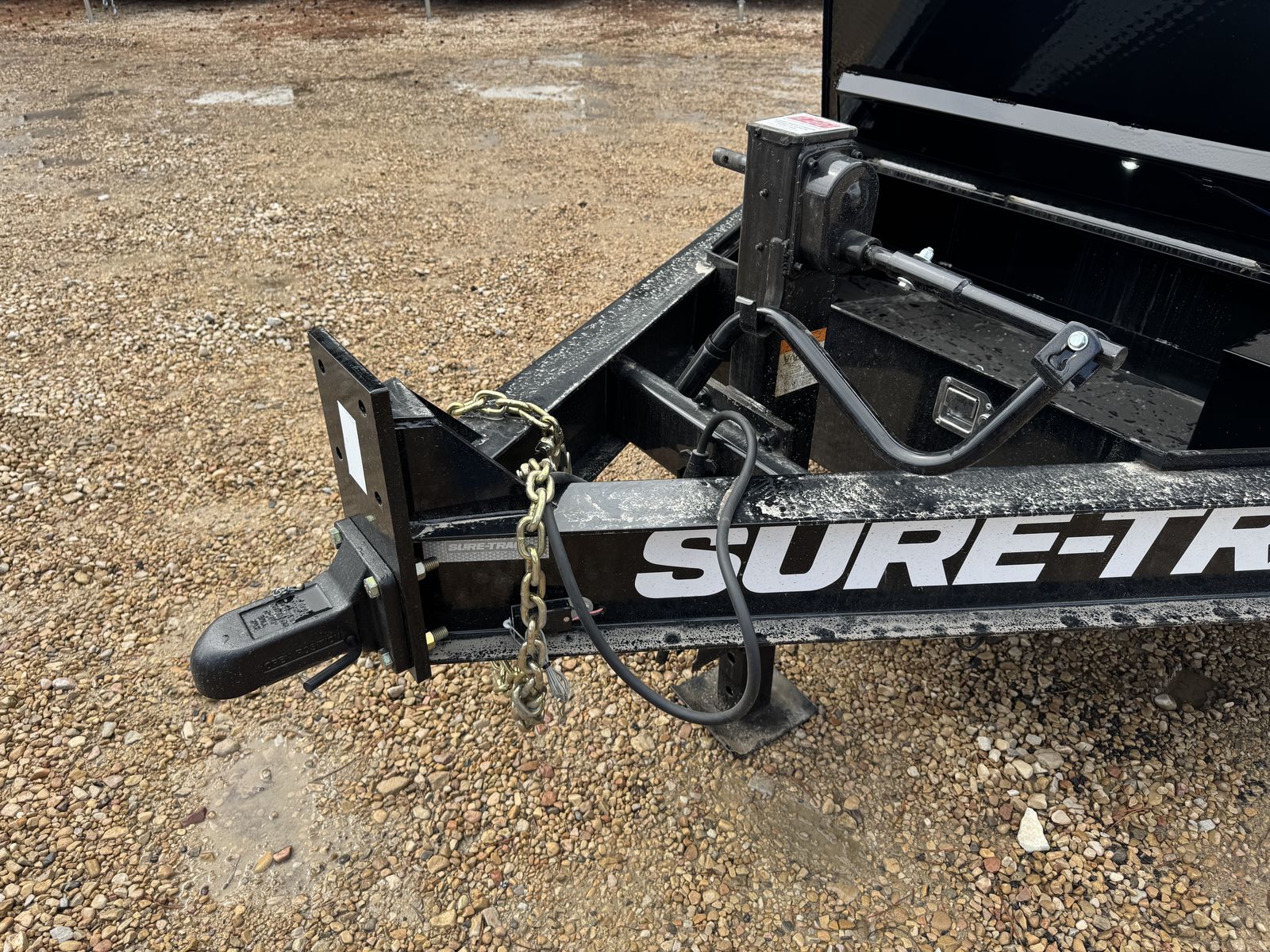

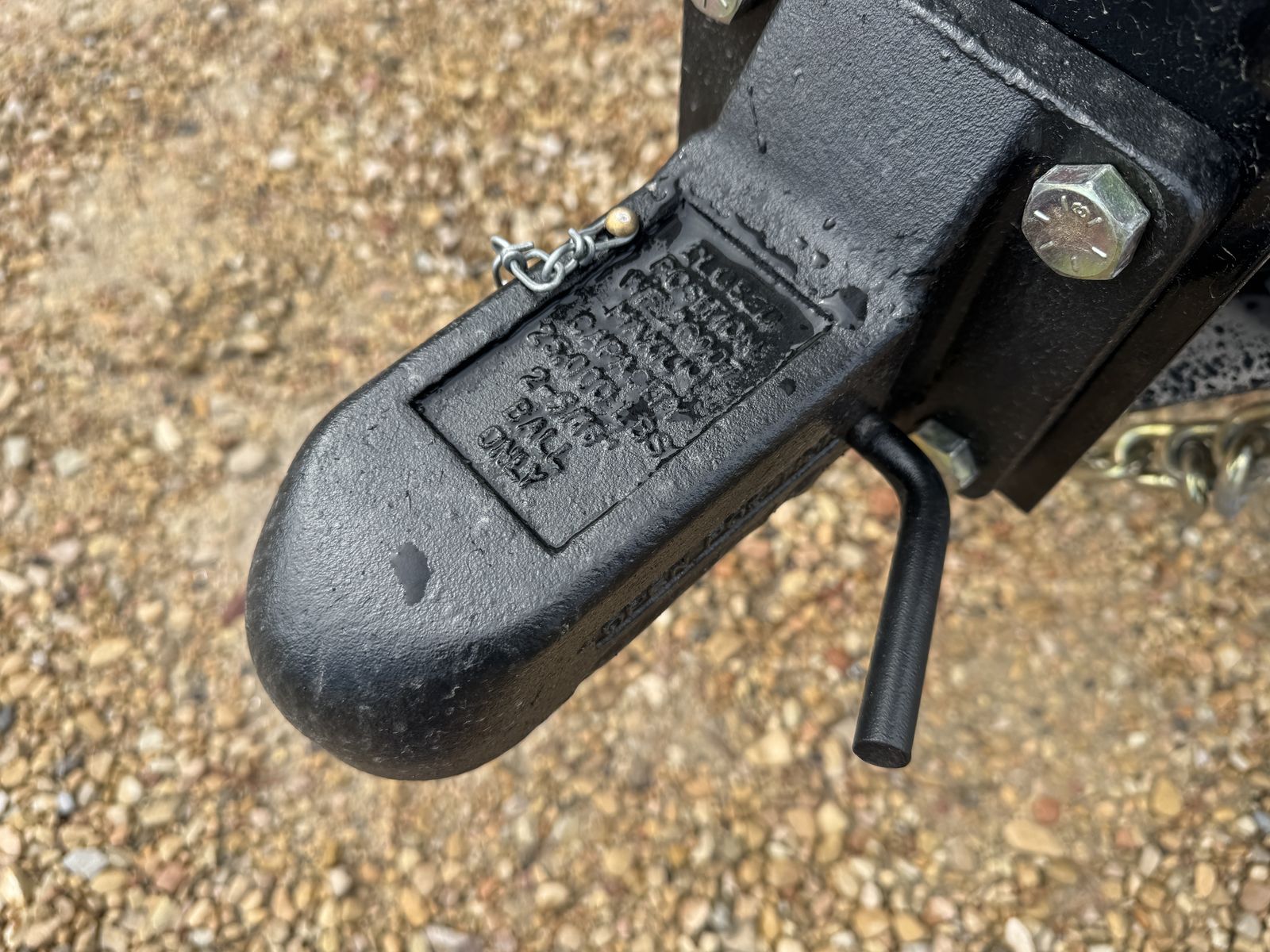

Coupler Adjustable 4-Bolt Pintle Ring

Crossmembers 3" x 2" Tube, 16" On-Center

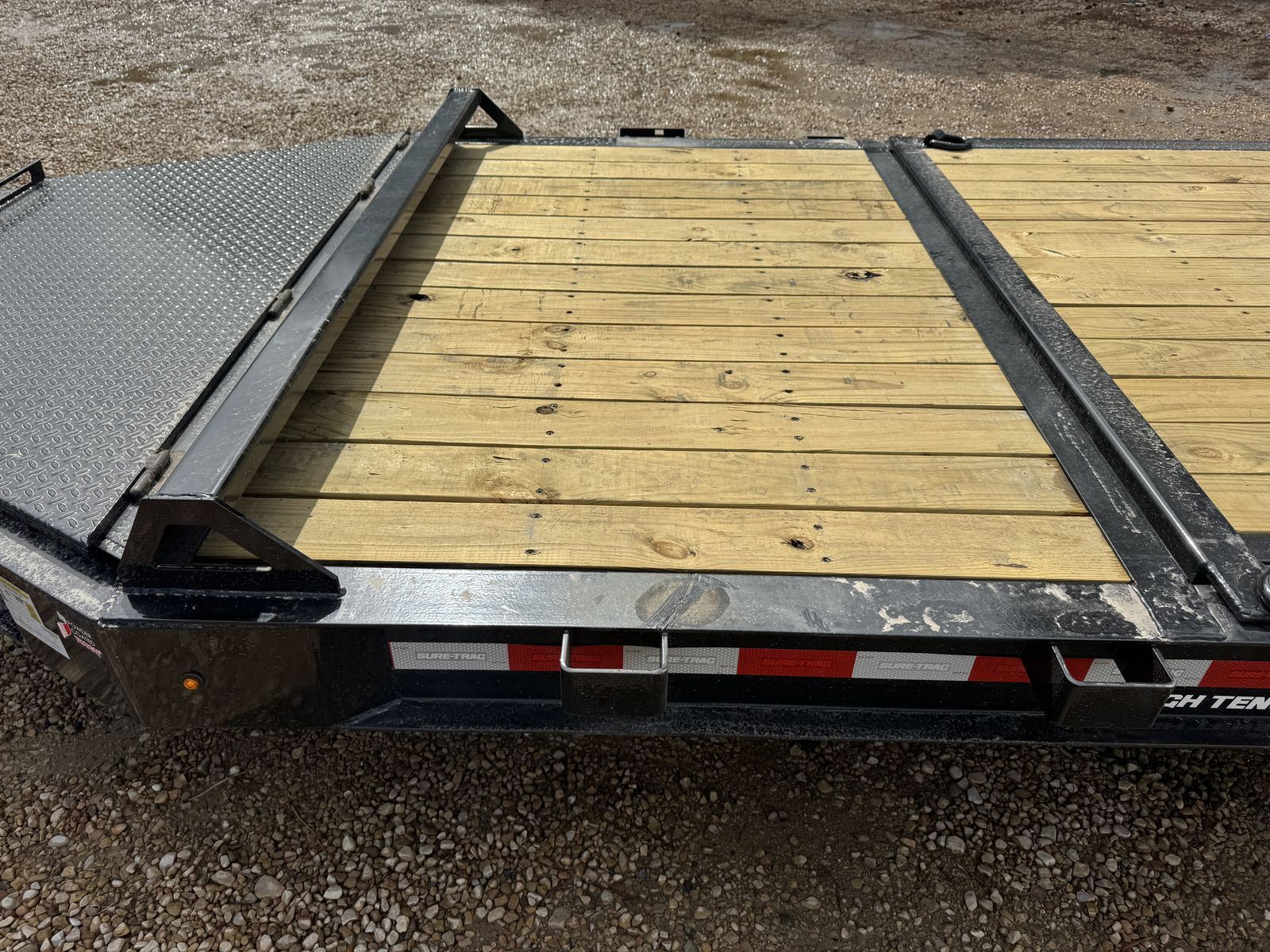

Decking 2" Pressure Treated Pine

Exterior Finish Industrial Grade Polymer Finish

Exterior Lights Full LED, DOT Compliant

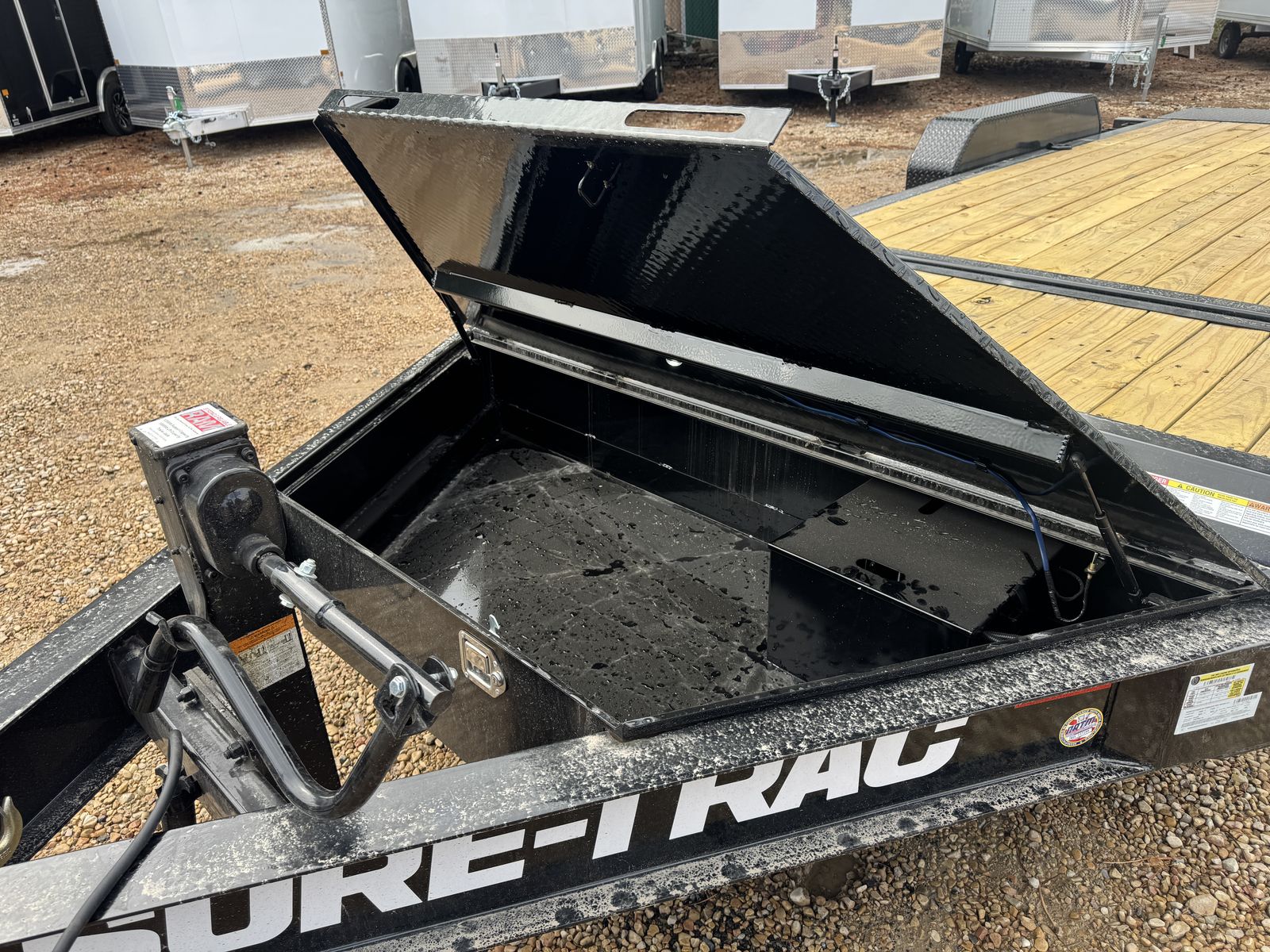

Exterior Storage Large Toolbox with Interior Light and Gas Spring, Spare Tire Carrier

Fenders Double Break Tread Plate

Frame 8", 13 lb/ft I-Beam, Tilting Deck - 6" x 4" x 5/16" Reinforced Angle

Hubs Oil Bath

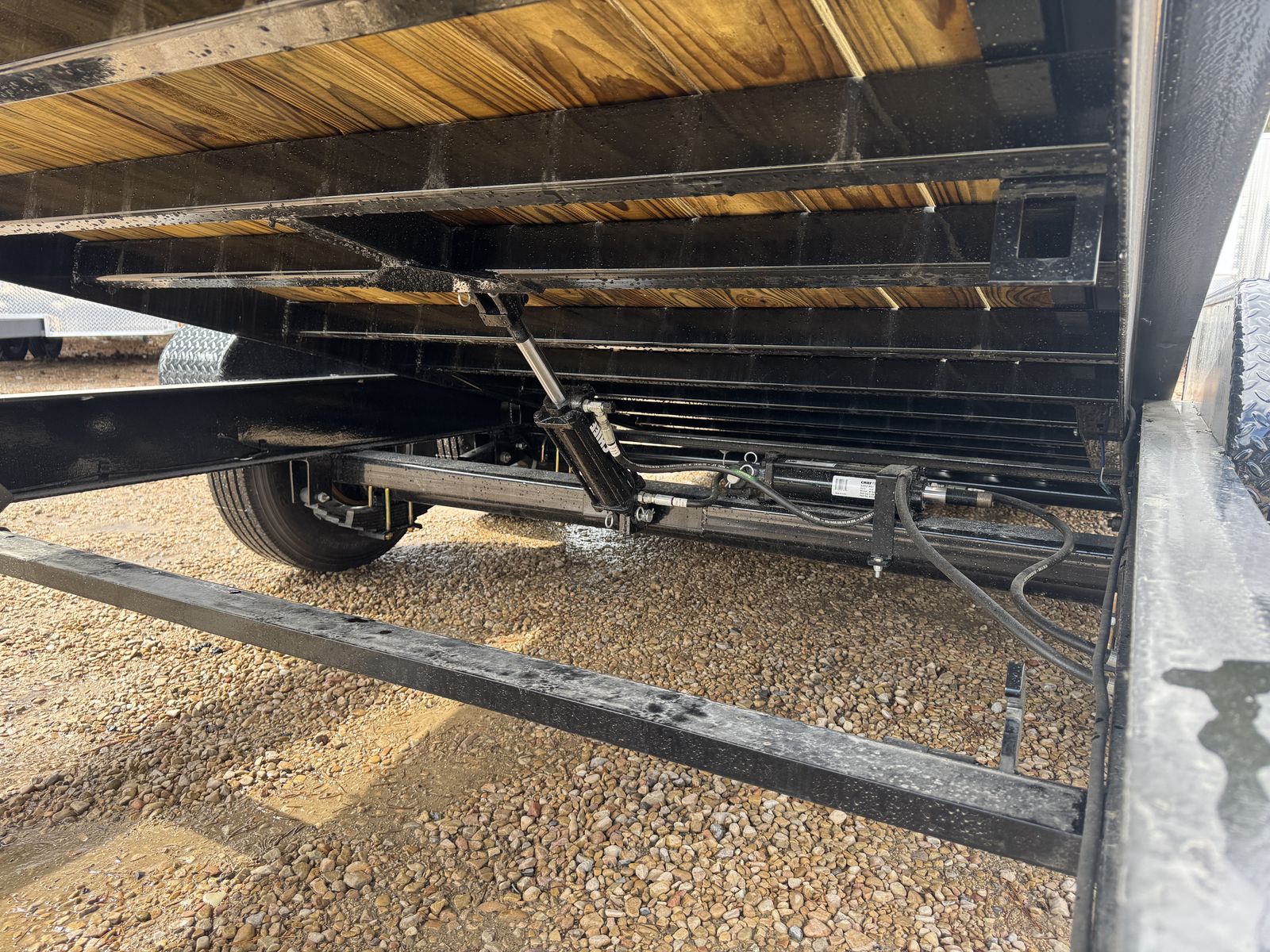

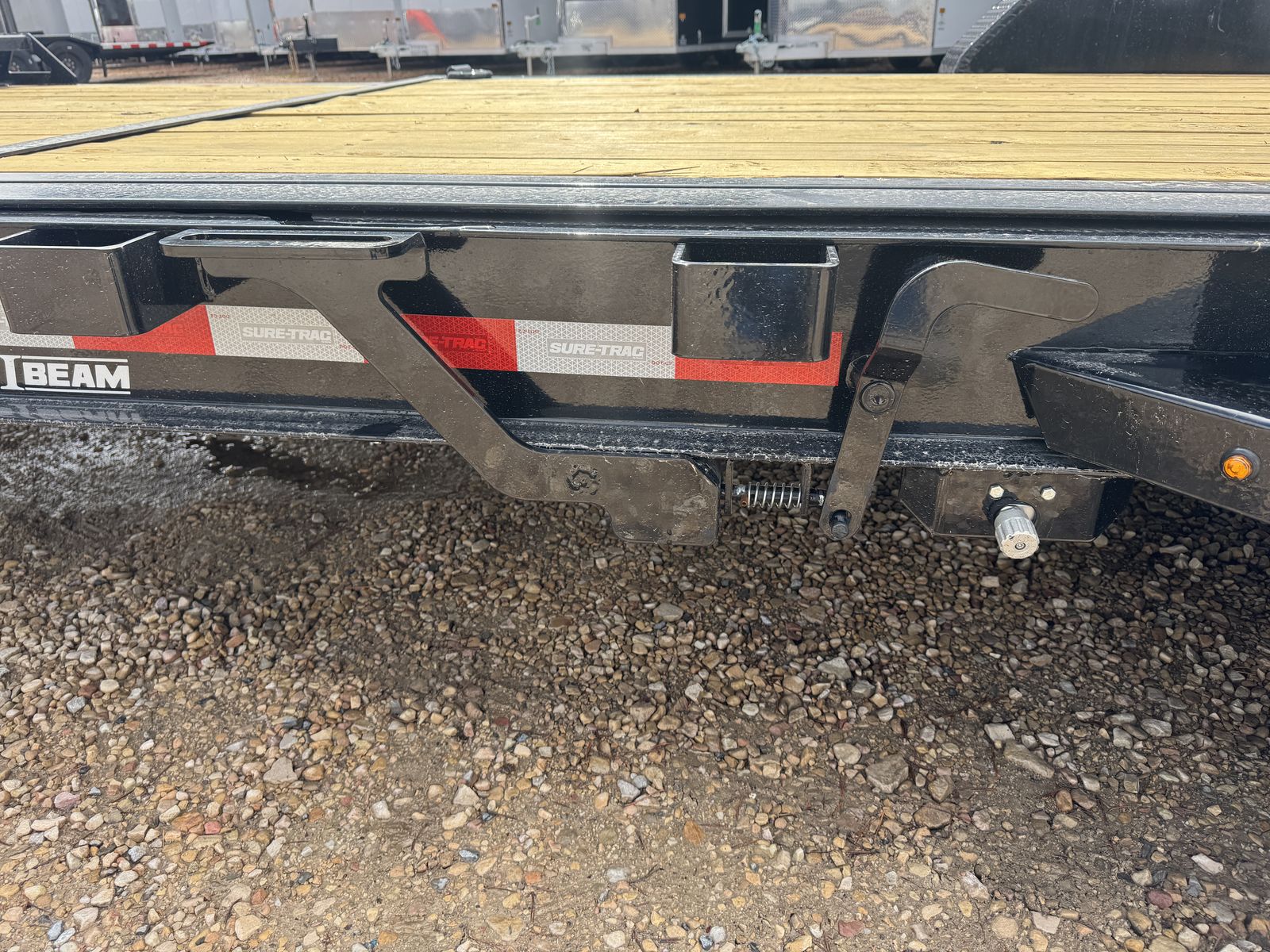

Hydraulic Components Easy Locking Tilt Bed Latch, Hydraulic Cushion Load Cylinder with Stop Valve

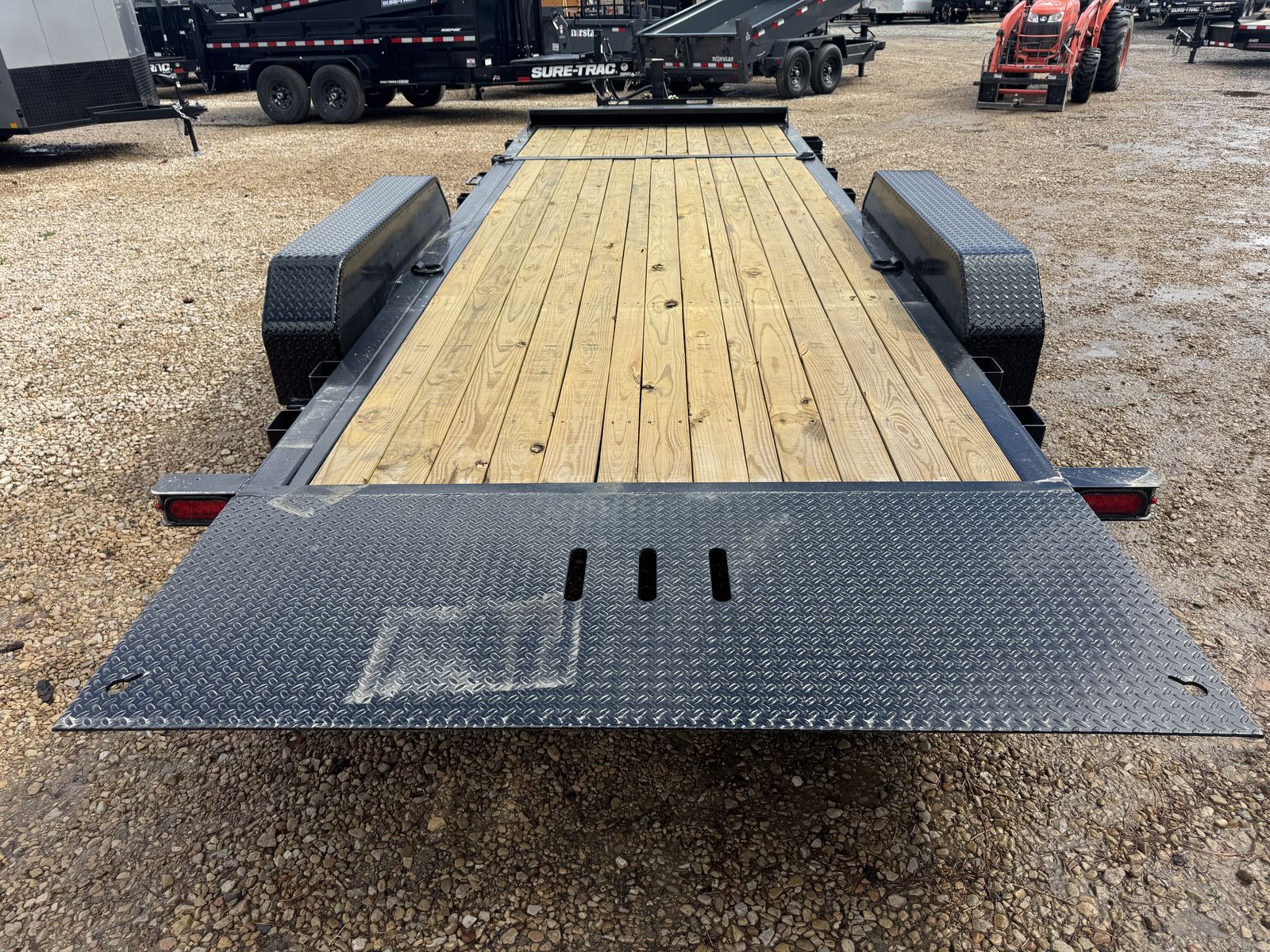

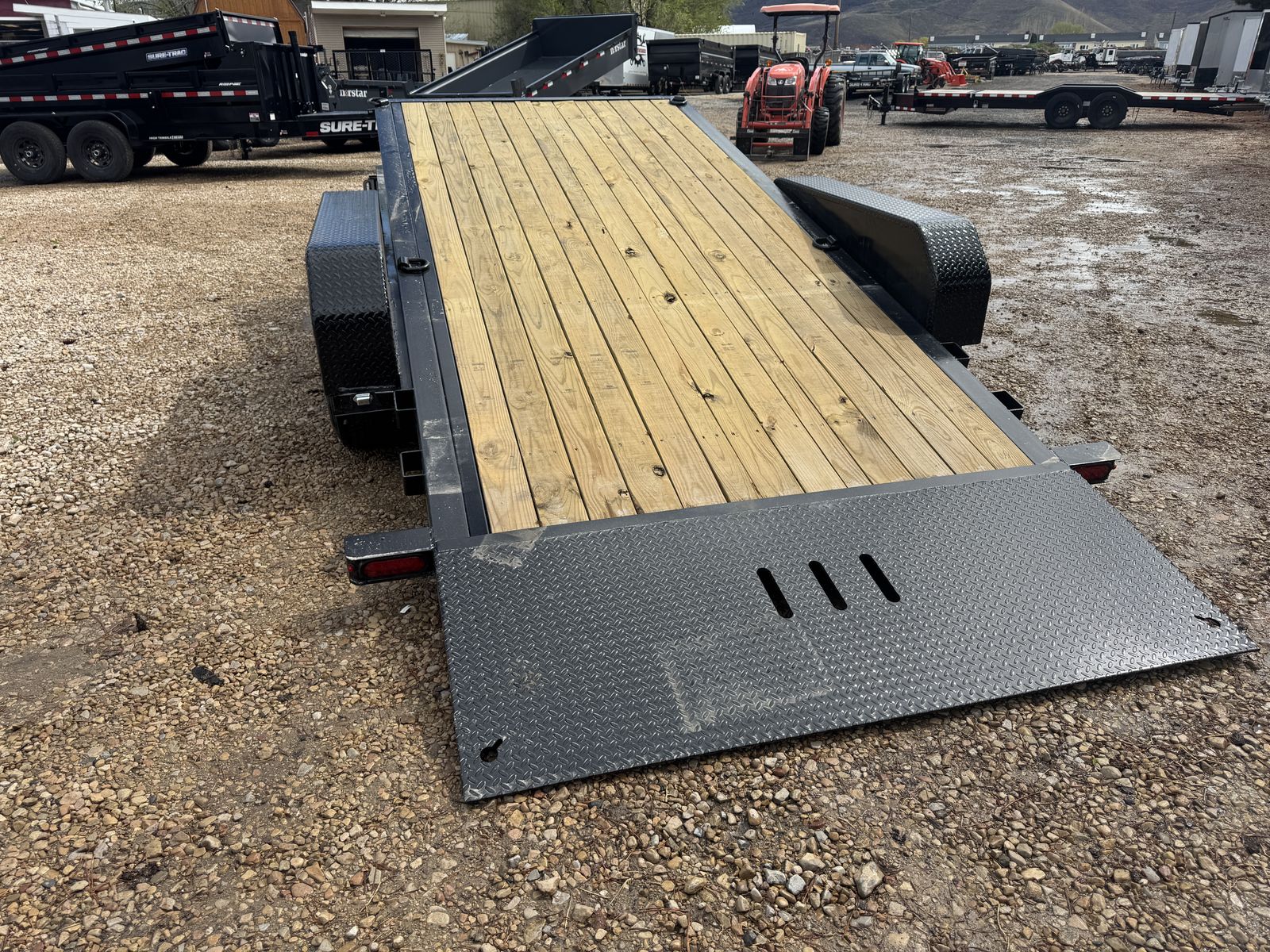

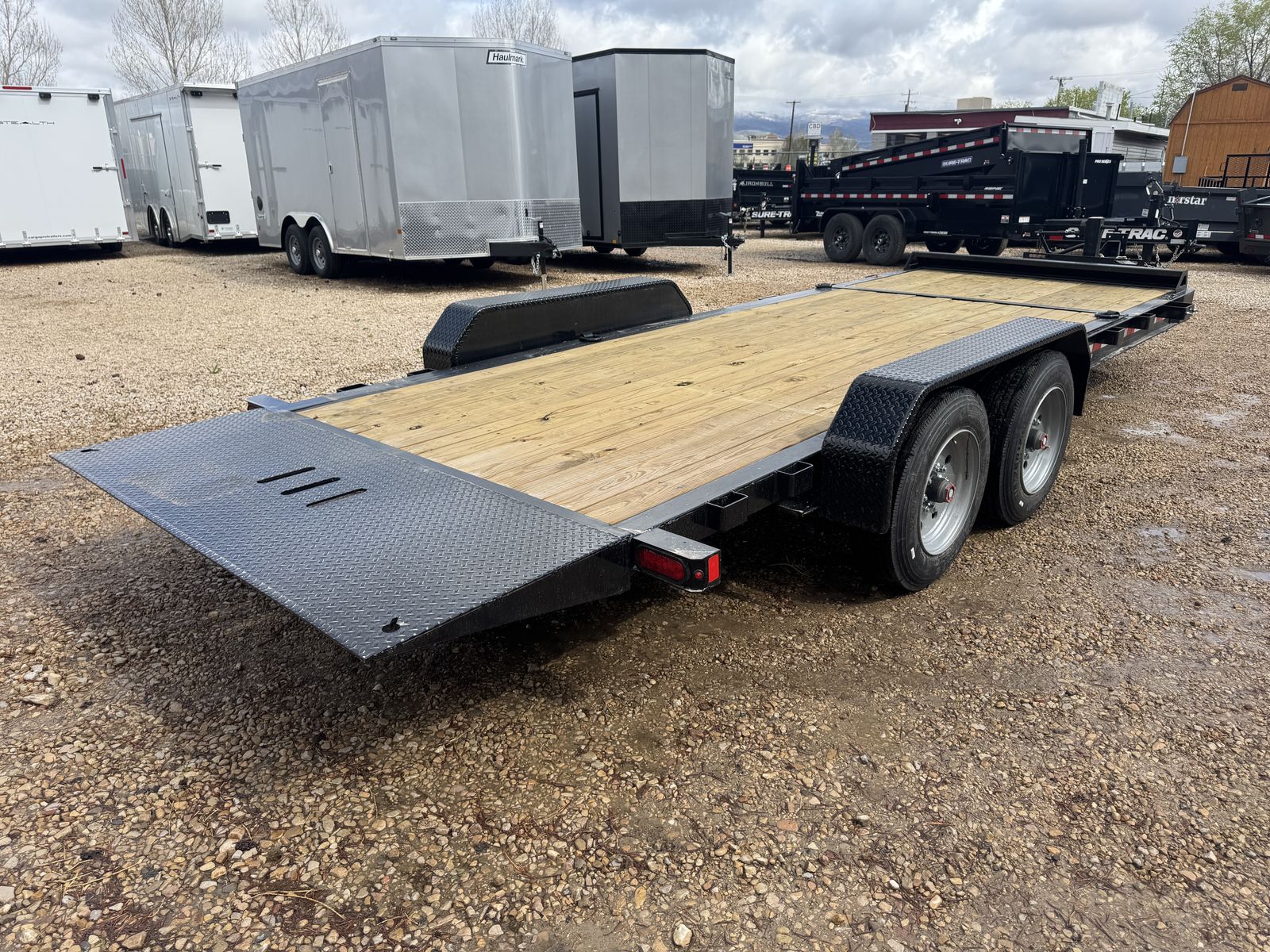

Ramp(s) HD Diamond Plate Knife Edge Tail

Safety Chains DOT Compliant

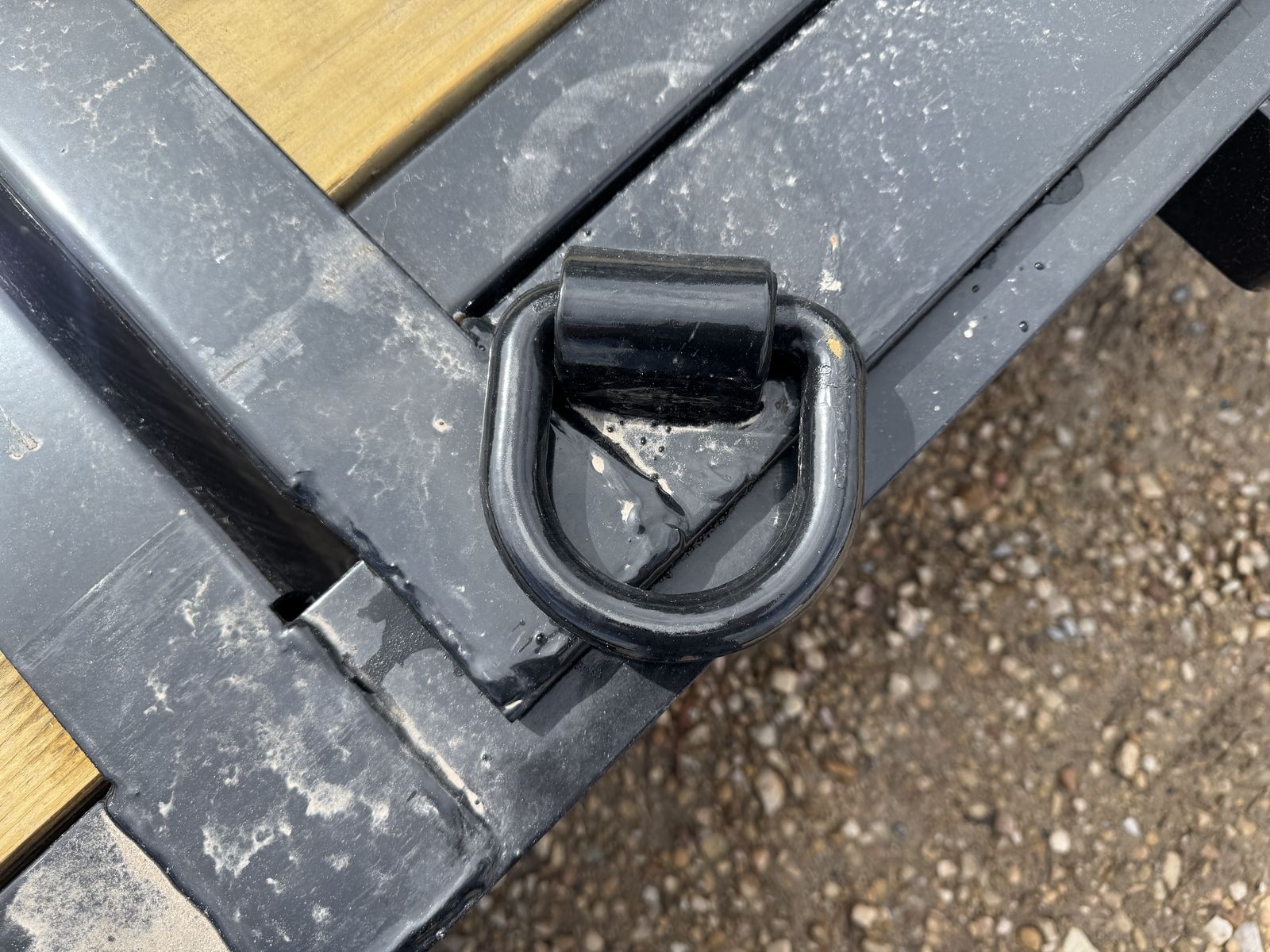

Tie Downs (4) 3/4" D-Rings, Oversize 5" x 1/4" Thick Stake Pockets

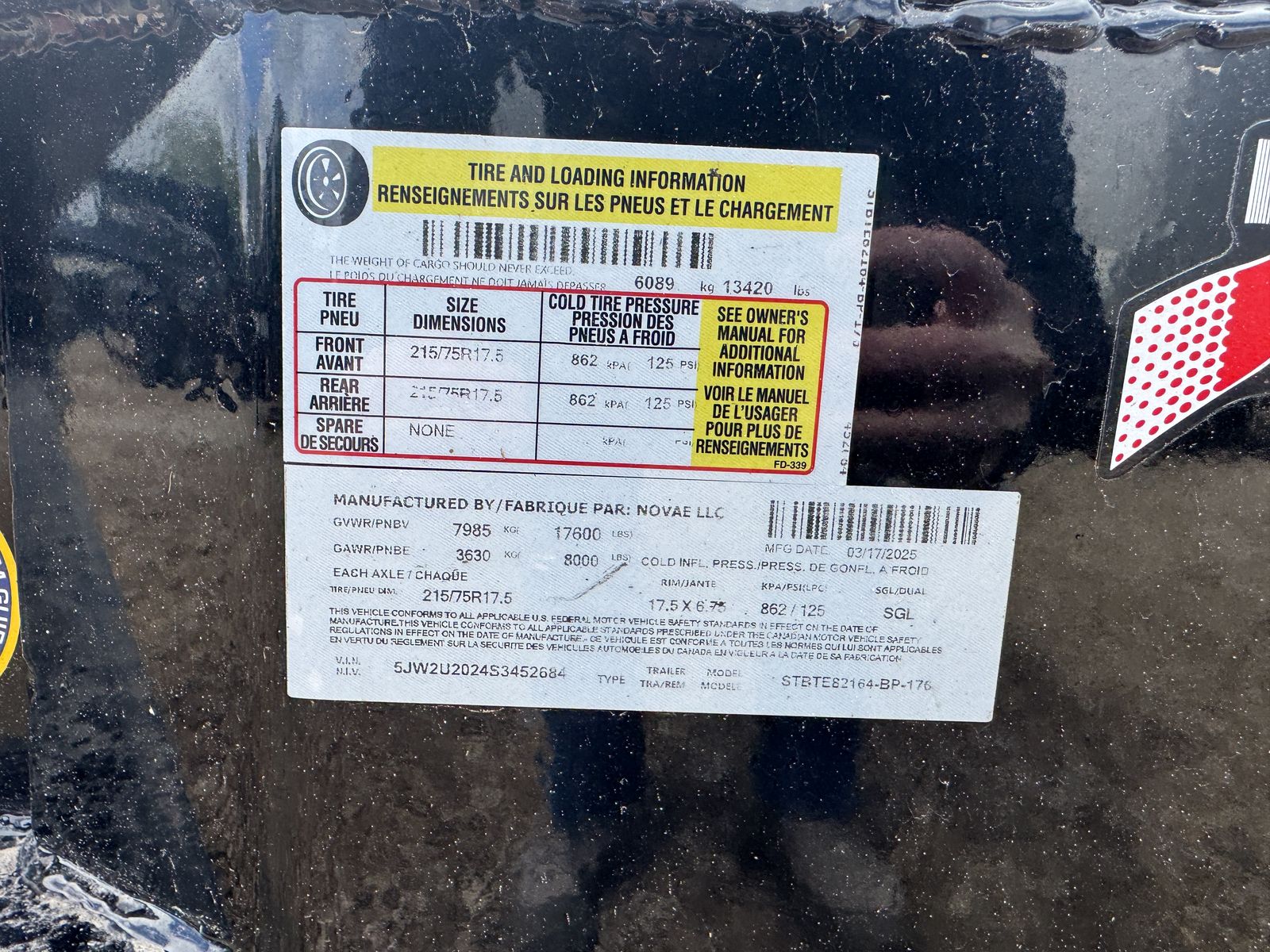

Tires 215/75R17.5J 18-PLY

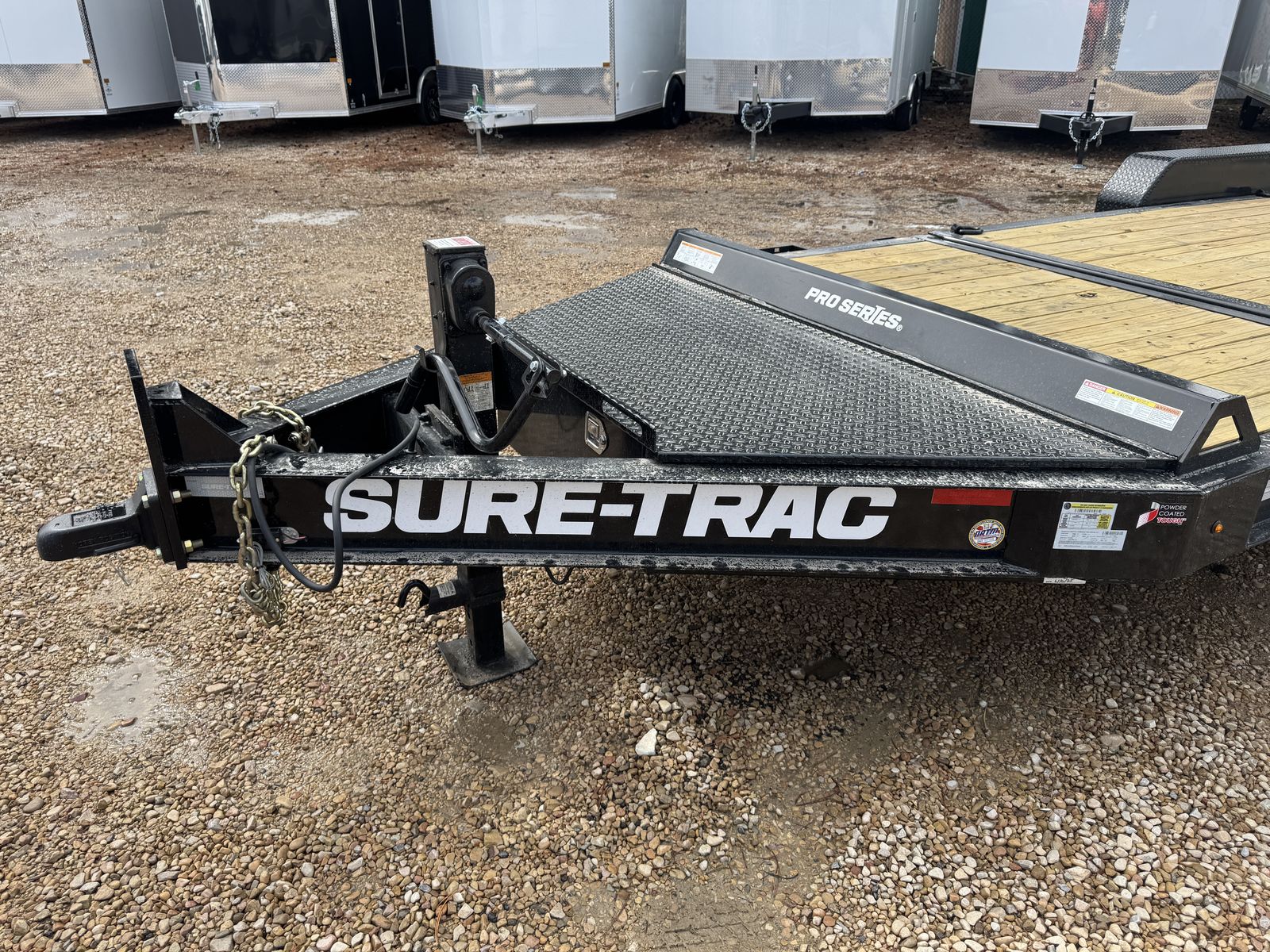

Tongue 8" Flange, 13 lb/ft I-Beam

Tongue Jack 12K, 2-Speed Drop Leg

Wheels 17.5", 8-Lug Steel

--

Prices do not include: sales tax, property tax, license or dealer documentation fee.

If you have any questions, please give us a call or stop by. We have other sizes and models in-stock.
