"More Trailer For Your Money"

7 x 14 Maxx-D ROX 18K Roll Off Trailer Trailer – Ready To Work!

Electric Tarp, Hydraulic Jack(s)

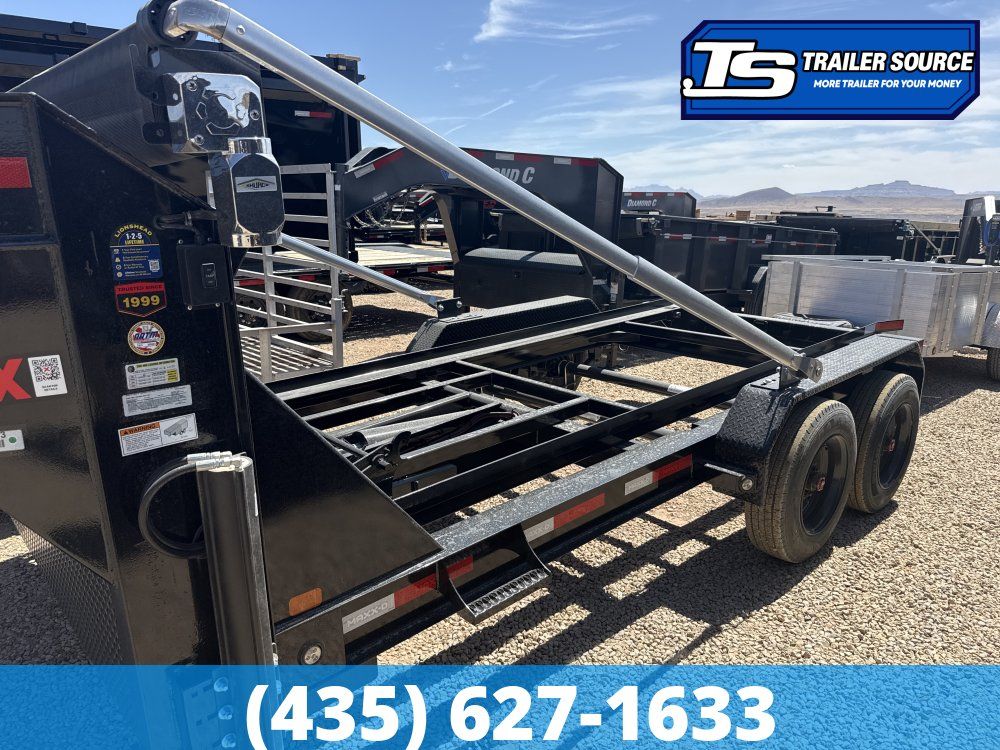

The MAXX-D ROX is the versatile "Swiss Army Knife" of the disposal and contracting world. It is a roll-off hoist system designed to service an unlimited number of interchangeable bins and flatbeds with a single power unit.

While a standard dump trailer is "married" to its box, the ROX allows you to drop a bin at a job site for a week, then use the trailer to deliver a second bin elsewhere or haul a skid steer on a roll-off flatbed.

CORE FEATURES OF THE 2026 ROX22K Warrior Power Winch System

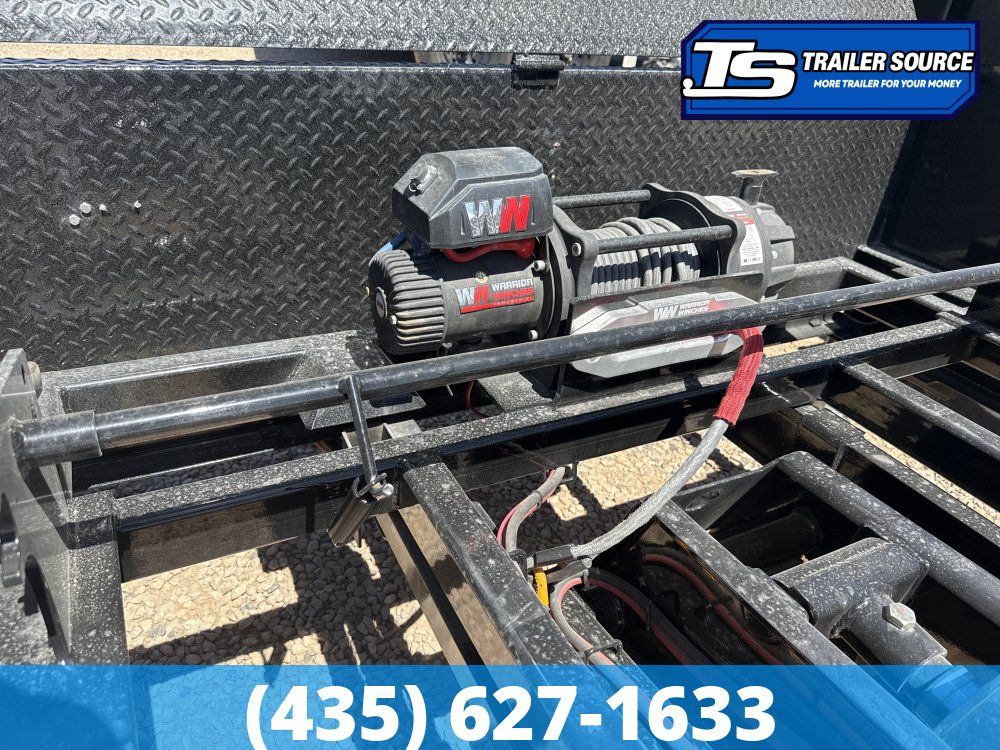

The ROX is equipped with a specially chosen 22,000 lb. heavy-duty electric winch.

• The Benefit: This winch is the "muscles" of the operation. It is over-specced to ensure that even a heavily loaded, sunken-in bin can be pulled onto the trailer without overheating the motor or snapping a cable. The 2026 model features a dedicated winch plate reinforced into the 8" I-beam neck/tongue.

8" x 10lb I-Beam Main Frame

The chassis is constructed from structural I-beam, providing a rigid spine for the roll-off rollers.

• The Benefit: Roll-off trailers endure unique "point-loading" stresses as the bin's weight transitions from the ground to the trailer rails. The I-beam construction prevents the frame from bowing or twisting during the loading process, ensuring a smooth, consistent pull every time.

Heavy-Duty 6" x 20" Scissor Hoist

The ROX uses a massive hydraulic scissor lift for dumping.

• The Benefit: Boasting a steep 45-degree dumping angle, this hoist ensures that even the stickiest debris (like wet shingles or clay) slides out completely. The scissor design provides a more stable base than single-post rams, which is critical when dumping high-volume 18-yard bins.

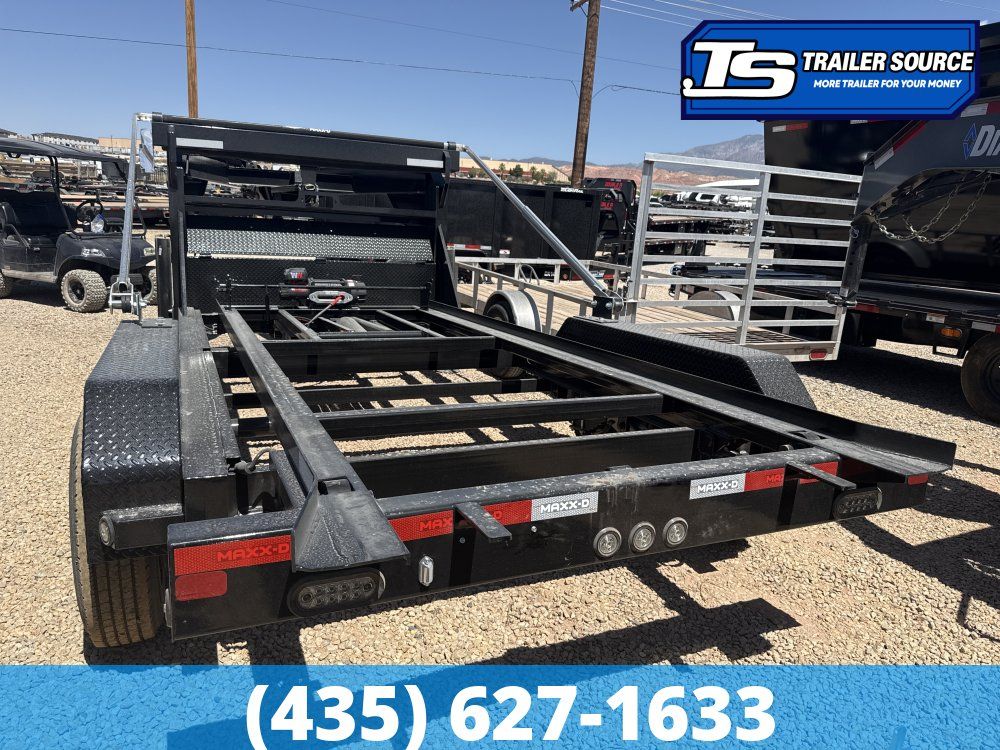

62" Rail Width & Precision Rollers

The trailer features heavy-duty greasable rollers set at a 62" outside-to-outside width.

• The Benefit: This is the industry standard for "medium-duty" roll-offs. It ensures compatibility with all MAXX-D ROX bins and many third-party containers. The greasable rollers reduce friction during the winch-on process, extending the life of your winch cable and the bin's rails.

8-Function Wireless Remote Control

The ROX units come standard with a comprehensive wireless remote.

• The Benefit: You can control the winch, the hoist, the hydraulic jacks, and even the electric tarp from a single handheld unit. This allows you to stand in a safe "spotter" position while loading or unloading bins, significantly improving safety and efficiency on busy job sites.

On-Board Charging & Solar Maintenance

The ROX includes a NOCO 5-amp AC charger and often a 7-watt solar panel.

• The Benefit: Roll-offs are battery-intensive because of the winch. The dual-charging system ensures your AGM Group 31 battery stays topped off while driving (via the truck) or while parked (via solar/plug), preventing the "dead battery" downtime that kills a workday.

THE ROX QUICK SPECS- GVWR: 14,000 lbs (Standard) up to 17,500 lbs.

• Axles: Dual 7K or 8K Dexter® Electric Brake Axles.
• Bin Compatibility: 13-cubic yard (4' sides) and 18-cubic yard (6' sides) bins.
• Tarp System: Standard Pull-Back Tarp or optional Electric Flip-Over Tarp.
• Jacks: Single 10K Drop-Leg (Bumper Pull) or Dual Hydraulic Jacks (Gooseneck).
• Finish: MAXX-D 6-Step Powder Coat with Zinc-Rich Primer.

WHY CHOOSE THE ROX SYSTEM?- Scalability: You can grow your business by buying $5,000 bins instead of $15,000 trailers.

• No "Wait Time": Drop the bin and leave. You don't have to pay a driver to sit while a crew fills a dump trailer.
• Low Loading Height: When the bin is on the ground, the loading height is only a few inches, making it easy to hand-load heavy debris or drive small equipment inside.

IDEAL USERS FOR THIS TRAILERThe MAXX-D ROX is the premier choice for Dumpster Rental Startups, Roofing Contractors, and Large-Scale Property Managers. It is designed for those who need to service multiple locations with a single truck and driver.
