"More Trailer For Your Money"

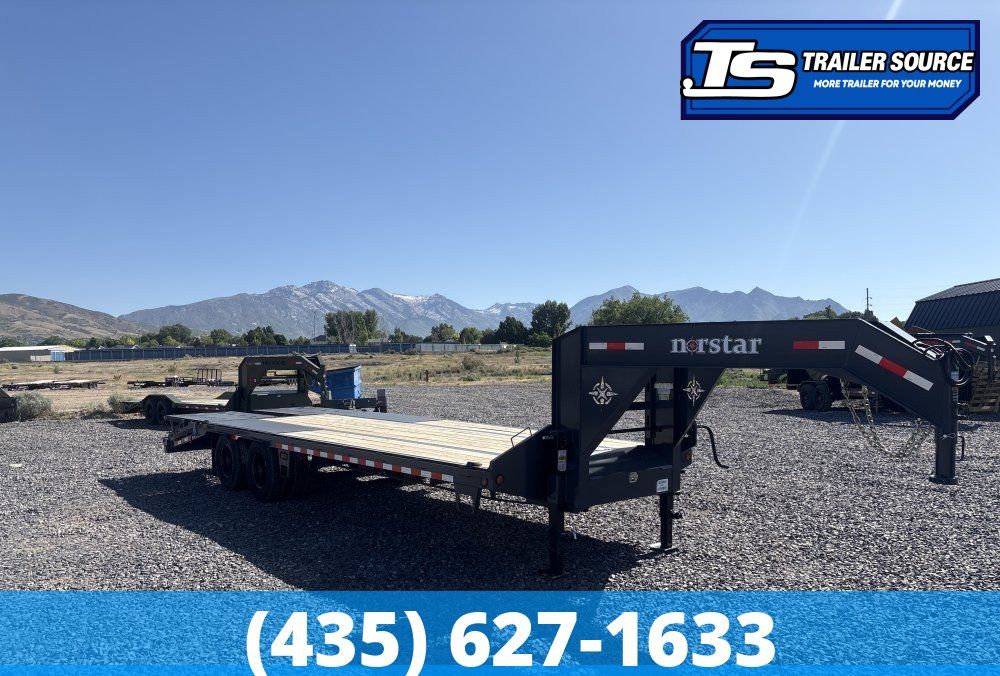

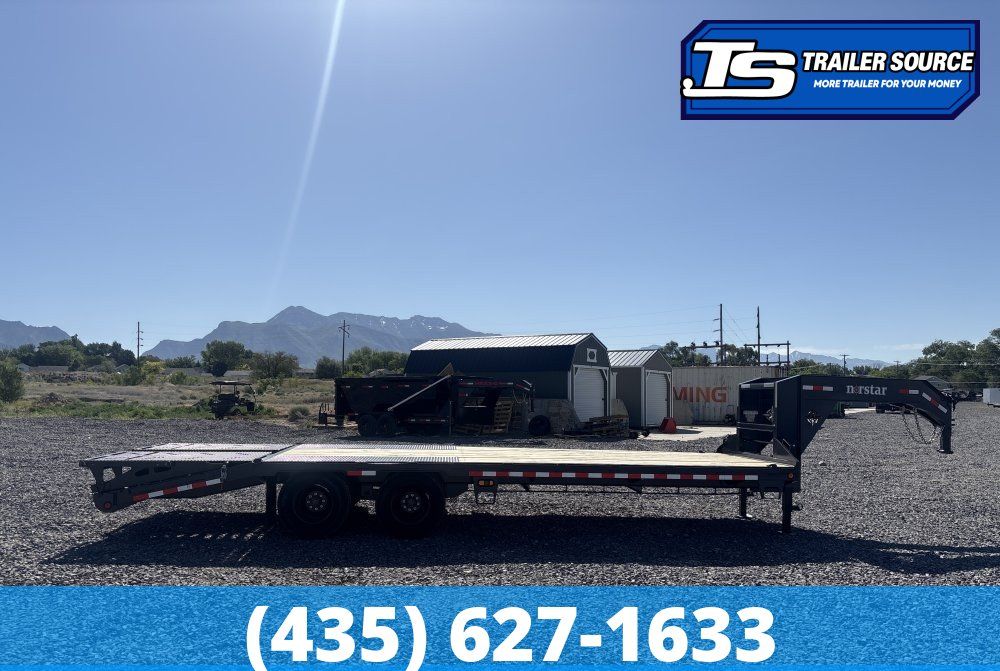

8.5 x 25 Norstar Iron Bull FXG 22K Equipment Trailer – Ready To Work!

The Norstar FXG (branded under the Iron Bull umbrella) is the "High-Value Heavyweight" of the gooseneck deckover world. Released as a specialized addition to their lineup, the FXG is designed to offer the structural "meat" of a commercial-grade trailer while cutting out the expensive, non-essential fluff.

It is a low-profile, tandem-dual workhorse that focuses on a rigid engineered frame and high-traction loading systems.

CORE FEATURES OF THE NORSTAR FXG12" @ 19lb I-Beam Frame & Engineered Neck

The FXG is built on a massive 12" structural I-beam foundation.

• The Benefit: Norstar uses a "Structurally Engineered Neck" that is laser-cut and gusseted at high-stress points. This design mimics the heavy-duty I-beams found on semi-trailers, ensuring the frame doesn't "bow" when you're hauling 15,000+ lbs of equipment or dense materials like hay or steel.

Low-Profile "Lo-Pro" 32" Deck Height

The FXG keeps the center of gravity low.

• The Benefit: By integrating the 3" channel crossmembers through the I-beam rather than on top of it, the deck sits at roughly 32" off the ground. This makes the trailer significantly more stable during emergency maneuvers and provides a much shallower loading angle for equipment.

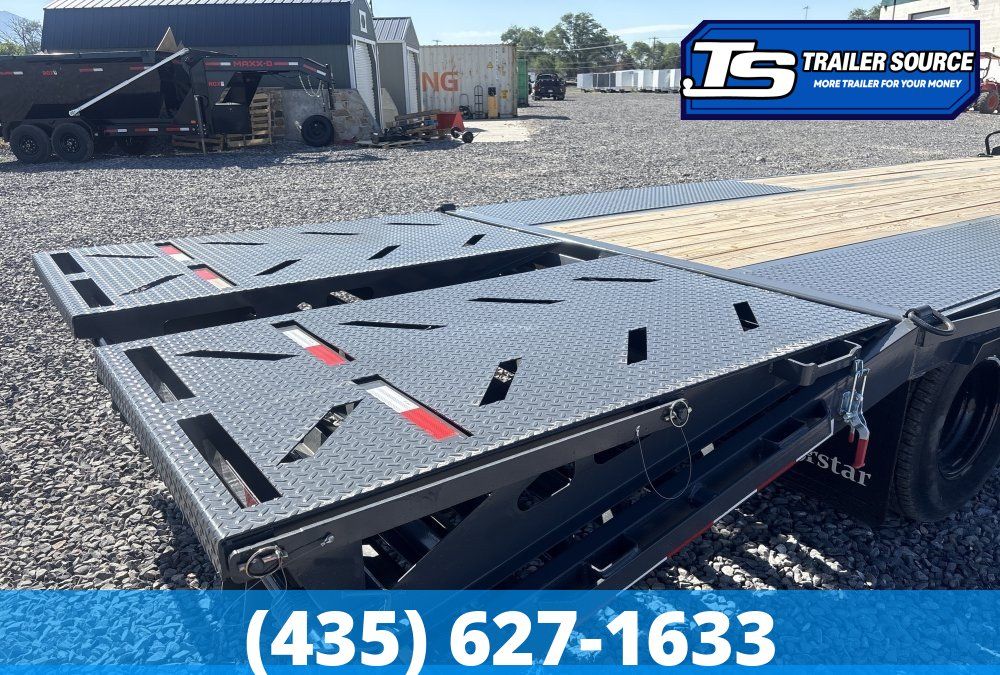

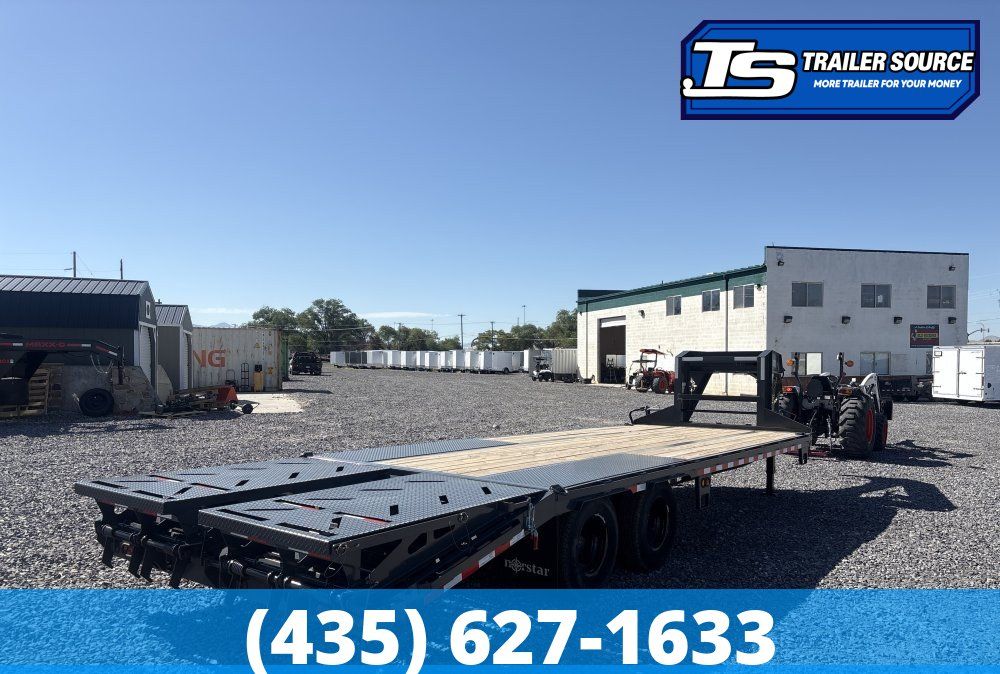

5' Self-Cleaning Dovetail with "Rampage" Ramps

The FXG comes standard with a 5-foot dovetail and the signature Rampage ramp system.

• The Benefit: Rampage ramps are spring-assisted, full-width flip-over ramps. When folded flat, they extend your usable deck space for hauling long materials. The "self-cleaning" dovetail features open-cleat steel angle iron, allowing mud and snow to fall through while providing maximum traction for tracks and tires.

5.5" Structural Torque Tube (Standard)

Every FXG over a certain length includes a heavy-duty torque tube running the center of the frame.

• The Benefit: This is a thick-wall pipe welded between the main beams. It prevents the trailer from "wagging" or oscillating on the highway, which is a common issue with long deckovers. It ensures that when you hit a bump, the trailer settles instantly rather than bouncing.

Dual 10,000 lb. Lippert™ Electric Brake Axles

The FXG features tandem dual 10K axles, giving it a standard 22,000 lb. GVWR.

• The Benefit: These are oil-bath axles designed for long-distance commercial use. Paired with ST235/80 R16 10-ply tires in a dual configuration (8 tires total), you get massive weight distribution and the peace of mind that a single flat won't leave you stranded on the side of the road.

Powdura™ 2-Part Powder Coat with Primer

Norstar uses a premium 2-step powder coating process that includes a zinc-rich primer base.

• The Benefit: This is specifically designed for the grit of a job site. The primer creates a chemical bond that prevents rust from creeping under the paint if the trailer gets scratched, keeping the trailer looking newer for years longer than a single-stage paint job.

THE FXG SPEC LIST - GVWR: 22,000 lbs (Standard).

• Payload: Approximately 14,500 – 15,500 lbs (depending on length).
• Crossmembers: 3" Channel on 16" Centers.
• Jacks: Dual 10,000 lb. Drop-Leg Jacks (Spring-Loaded).
• Storage: Large integrated front toolbox in the gooseneck neck.
• Tie-Downs: Standard Rub Rail with Stake Pockets and Pipe Spools.
• Warranty: 3-Year Structural / 2-Year Component / 2-Year Roadside Assistance.

IDEAL USERS FOR THIS TRAILERThe Norstar FXG is the premier choice for Commercial General Contractors, Agricultural Haulers, and Heavy Equipment Owners. It is designed for those who need a no-nonsense, low-profile gooseneck that can handle 10 tons of payload without breaking the bank.
