"More Trailer For Your Money"

8.5 x 24 Double A Pro Series HBT 15.4K Tilt Trailer – Ready To Work!

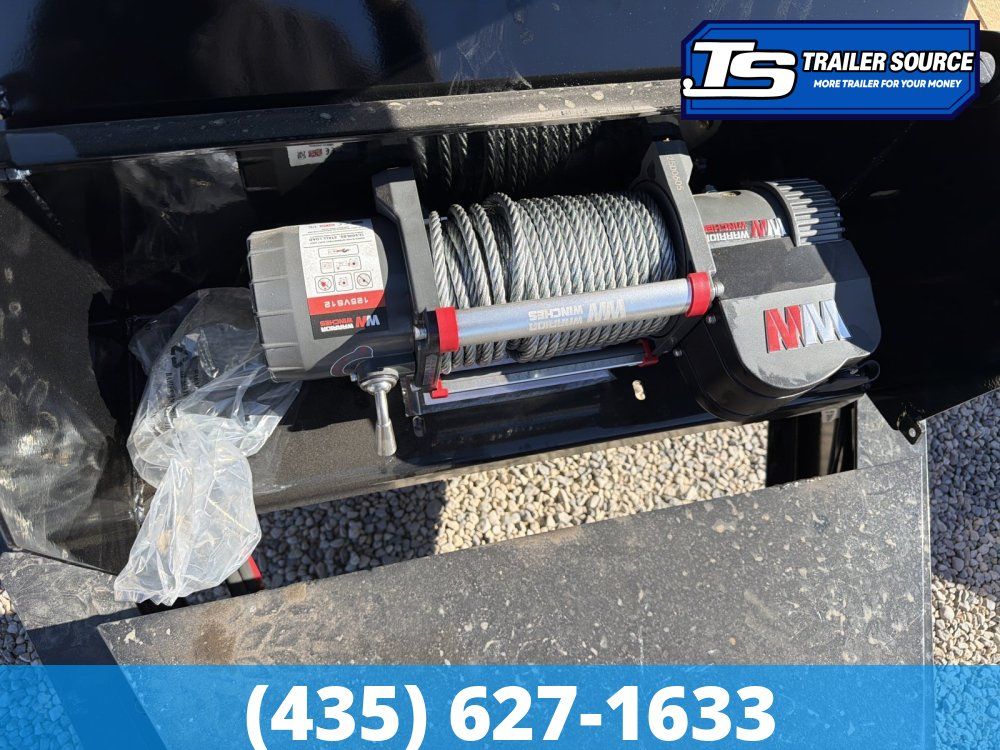

14 Ply Tires, Winch Package

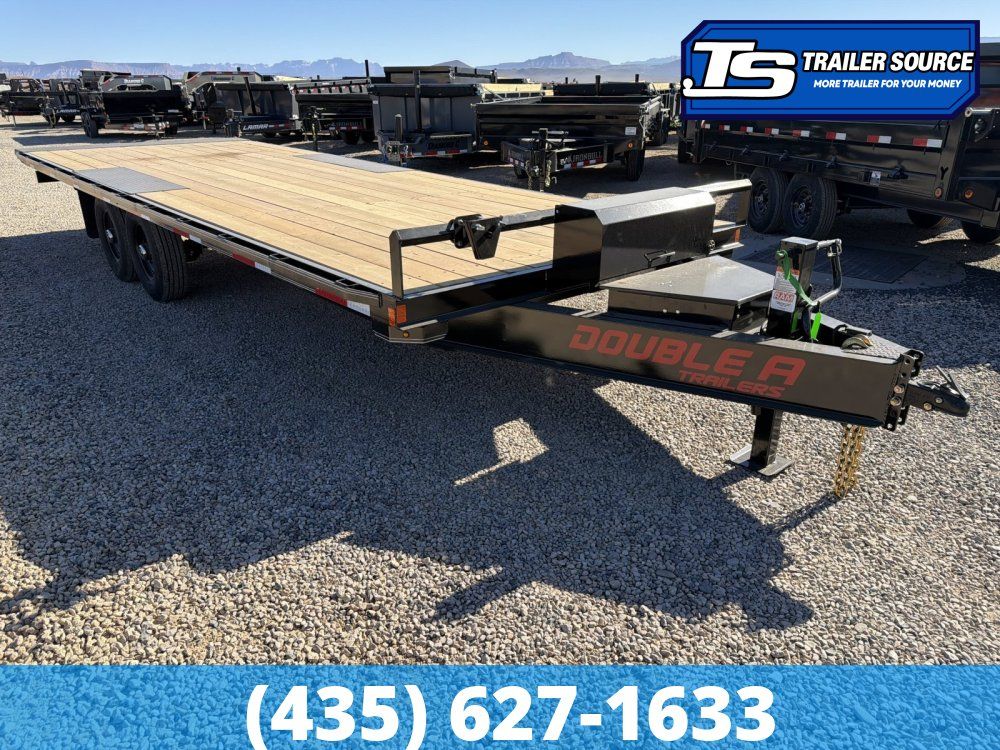

The Double A Pro Series HBT (High-Boy Tilt) is the heavy-duty, deckover version of the cushion tilt system. The HBT utilizes a full-width tilting deck. It is specifically engineered for operators who need the massive 102" wide surface of a deckover but want the 30-second loading speed of a tilt trailer.

KEY STANDARD FEATURES

Massive 10" I-Beam Main Frame The HBT is built on a powerhouse 10" x 15lb I-beam frame.

The Benefit: A deckover tilt puts extreme stress on the pivot point. The 10" I-beam provides the rigid structural "backbone" necessary to ensure the frame never bows or twists when a 12,000 lb machine is balanced on the tail during loading.

Dual Cylinder Hydraulic Power Tilt Standard on the HBT is a dual-cylinder hydraulic system powered by an onboard KTI power pack.

The Benefit: Unlike gravity tilts that rely on weight distribution, the HBT is "Power Up / Power Down." This gives you total control of the deck at the push of a button (or wireless remote), allowing you to stop the deck at any angle for safe loading of multiple smaller items.

-65°C Arctic Rated Wiring Harness As an Alberta-built trailer, the HBT comes standard with Double A’s legendary cold-weather harness.

The Benefit: While competitors' wires become brittle and snap in the cold, this harness remains flexible in extreme sub-zero temperatures. It ensures your hydraulic pump, electric brakes, and LED lights never fail during a Canadian winter.

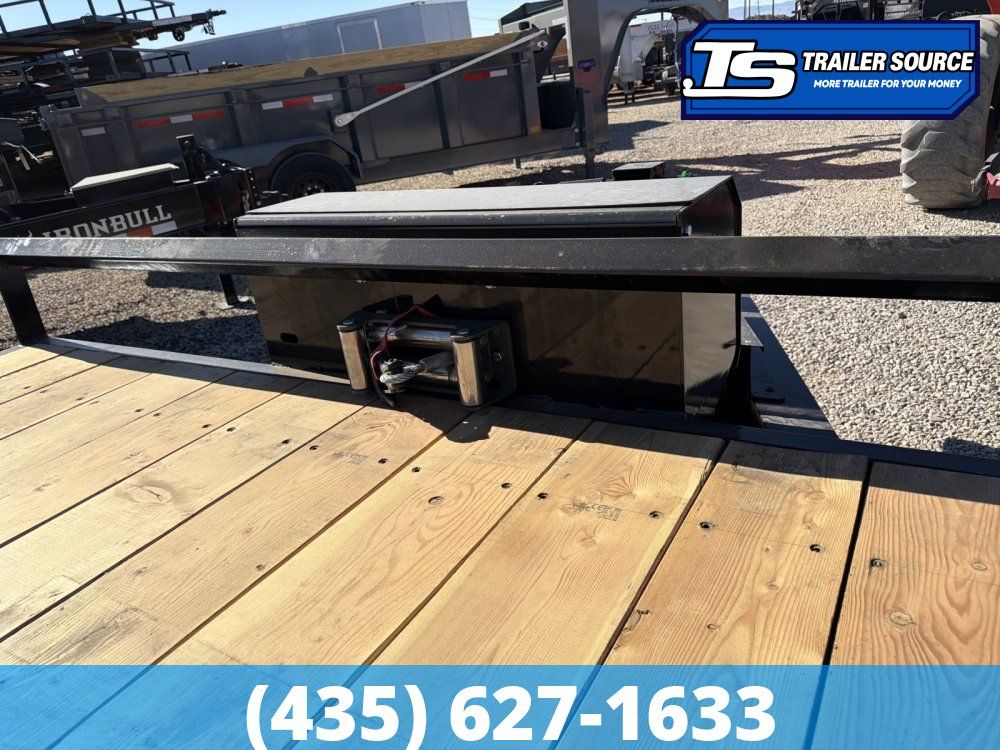

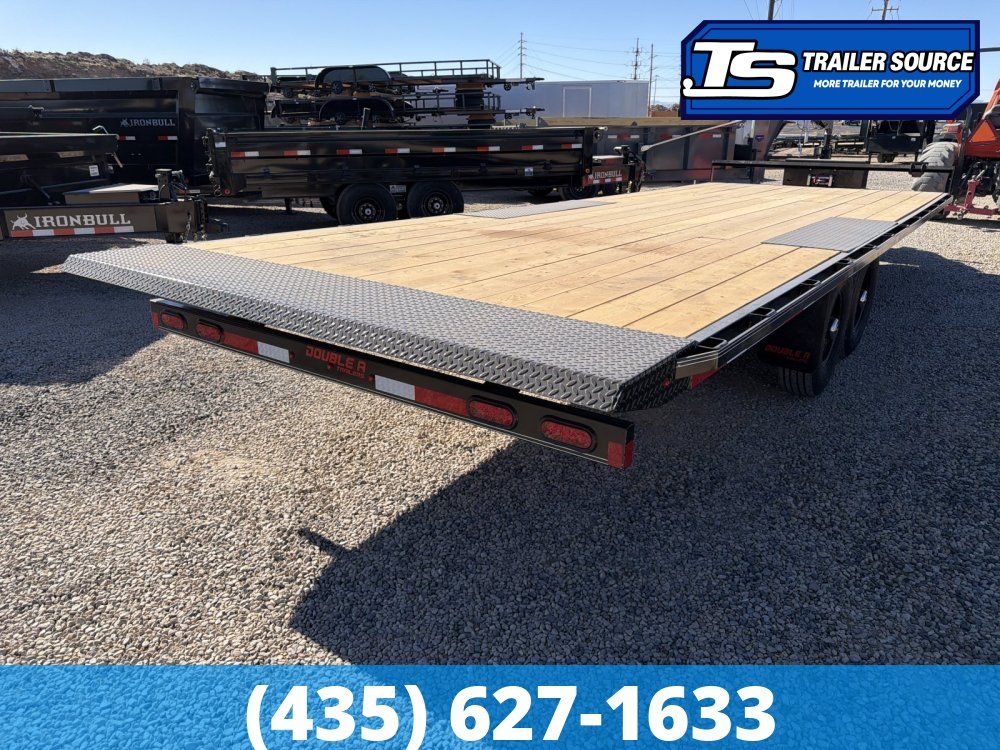

Heat-Treated Douglas Fir Decking The 102" wide deck is floored with premium Douglas Fir, which is significantly stronger and more rot-resistant than standard spruce or pine.

The Benefit: It stands up to the aggressive "grinding" of steel-tracked excavators and doesn't "mushroom" or splinter under heavy point-loads, extending the life of your deck by years.

110V Integrated Inverter Charger The lockable pump box includes a built-in 110V trickle charger.

The Benefit: Since the tilt is battery-powered, keeping a charge is critical. You can simply plug the trailer into a standard wall outlet overnight to ensure your battery is at 100% for a full day of loading and unloading.

3/16" Preformed Stake Pockets with Pipe Spools The HBT features heavy-duty stake pockets with "Pipe Spools" located between them.

The Benefit: The pipe spools provide a rounded, smooth surface for your straps or chains, preventing "edge cut" and giving you even more secure tie-down options across the full 8.5-foot width of the deck.

PERFECT FOR

The Double A Pro Series HBT is the ultimate tool for paving contractors, specialized machinery movers, and oilfield service companies. It is designed for those hauling wide-load equipment—like asphalt rollers, wide-track skid steers, or scissor lifts—where traditional ramps are either too heavy to lift or too narrow for the machine.

WHY THE HBT DECKOVER TILT IS THE ELITE CHOICE

ZERO-RAMP LOADING: No more lifting 80 lb steel ramps. The HBT turns a two-person loading job into a one-person, 30-second operation, significantly reducing the risk of workplace back injuries.

THE FINISH: 6-Step Powder Coat Double A uses an intensive sandblast and primer process before the final powder coat. This creates an industrial-grade barrier against the road salt and chemical de-icers used on northern highways.

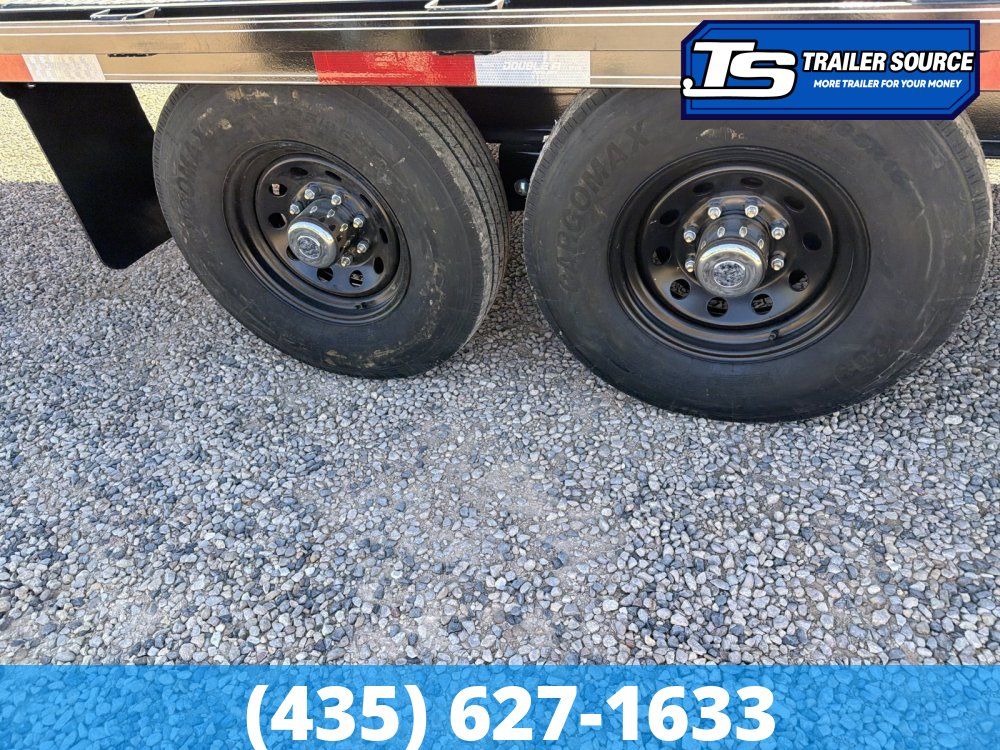

STABILITY: Tandem 7k or 8k Axles The HBT is typically outfitted with dual 7,000 lb or 8,000 lb axles, providing a GVWR up to 17,600 lbs. With 14-ply or 16-ply tire options, it is built to handle the heaviest legal bumper-pull loads.

CONTROL: Wireless Remote Standard The 2026 HBT comes with a wireless remote for the hydraulic system, allowing the operator to stand at a safe distance or even stay in the cab of the machine while tilting the deck.
