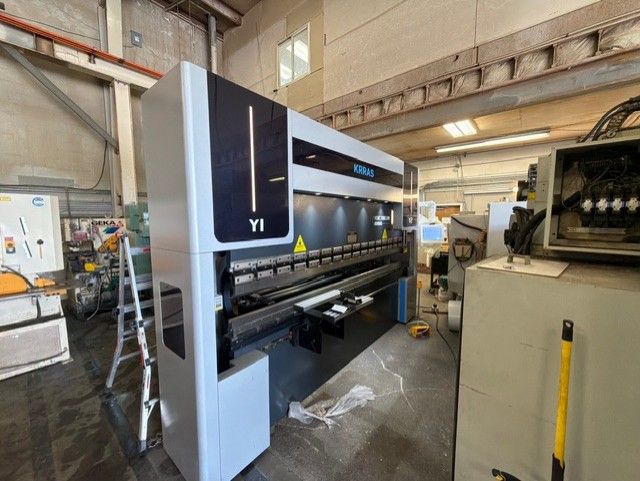

MACHINE DIMENSIONS

Tons US 143

Overall Bending Length (A) Ft/Inch 10.5

Distance Between Sideframes (B) Ft/Inch 9.5

Stroke (C) Inch 7.87

Daylight (D) Inch 17.12

Throat Depth (E) Inch 15.74”

Table Height (F) Inch 40.9

Table Width (G) Inch 12

Overall Height (H) Ft/Inch 8.7’

Overall Length (L) Ft/Inch 12’

Overall Width (W) Ft/Inch 5.5’

Approximate Weight LBS 20,000.00

Oil Capacity Gallons 105

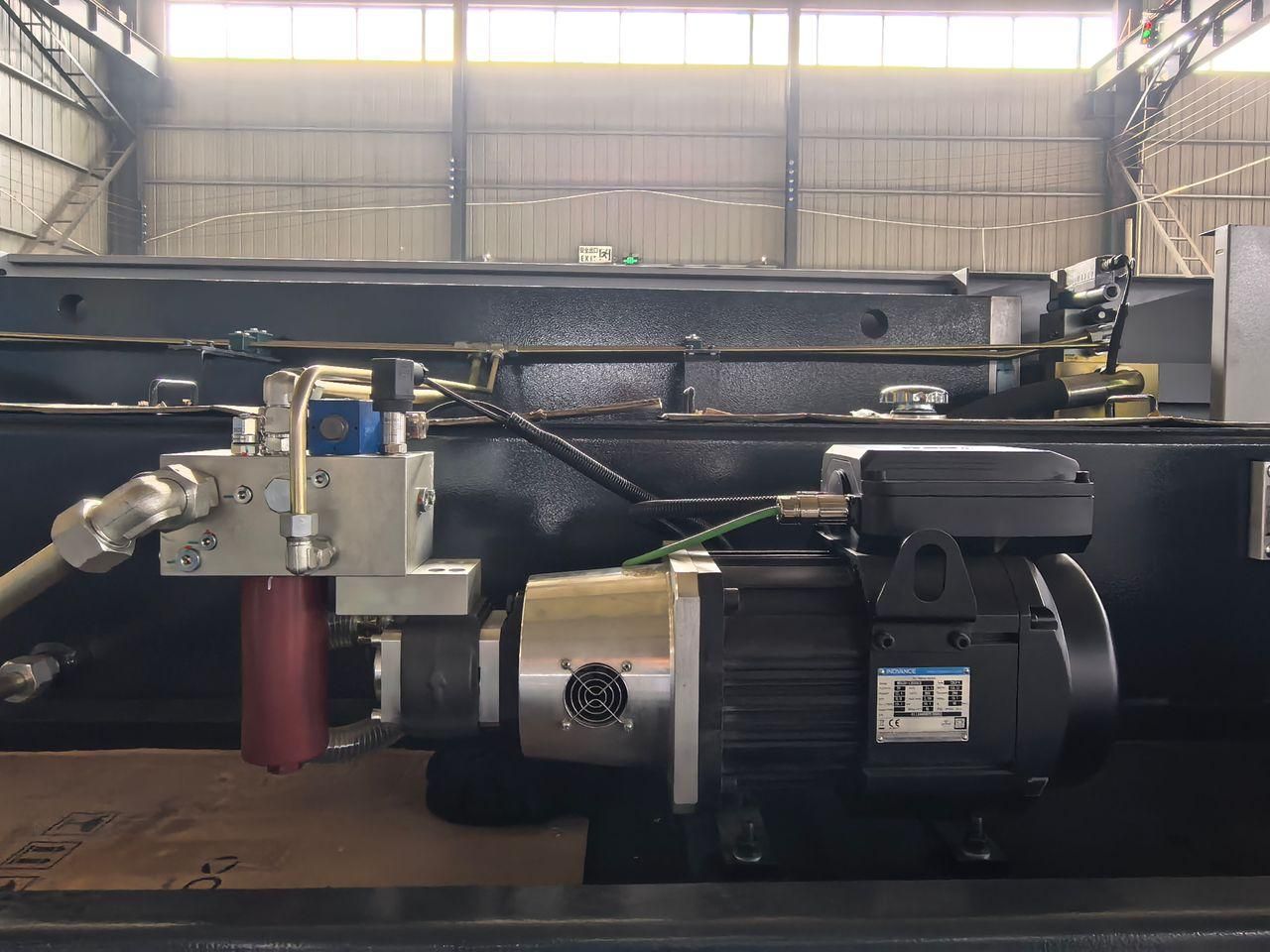

Maın Motor HP 15

Full Load Amps (3 phase) 460 V 40 A

SPECIFICATIONS

Capacity Length x Tons 10.5’ x 143 ton

Ram Repeatability Inch ± 0.0004

Programmable Ram Tilt Yes

Programmable Ram Approach Speed (maximum) IPM 236

Programmable Ram Working Speed (maximum) IPM 19

Programmable Ram Returm Speed (maximum) IPM 189

Box Forming Universal Wedge Clamp Height Inch 5.9

X Axis Back Gauge Speed IPM 827

X Axis Back Gauge Travel (Front to Back) Inch 29.5

R Axis Back Gauge Speed IPM 709

R Axis Back Gauge Travel (Height) Inch 9.8

Z Axis Back Gauge Speed ( 4/6 Axis) IPM 2124 / 1181

Standard Configuration (Y1, Y2/X/R/Motorized Crowning)

Y1,Y2 Closed Loop Ram Positioning Included

CybTouch 15 PS Included

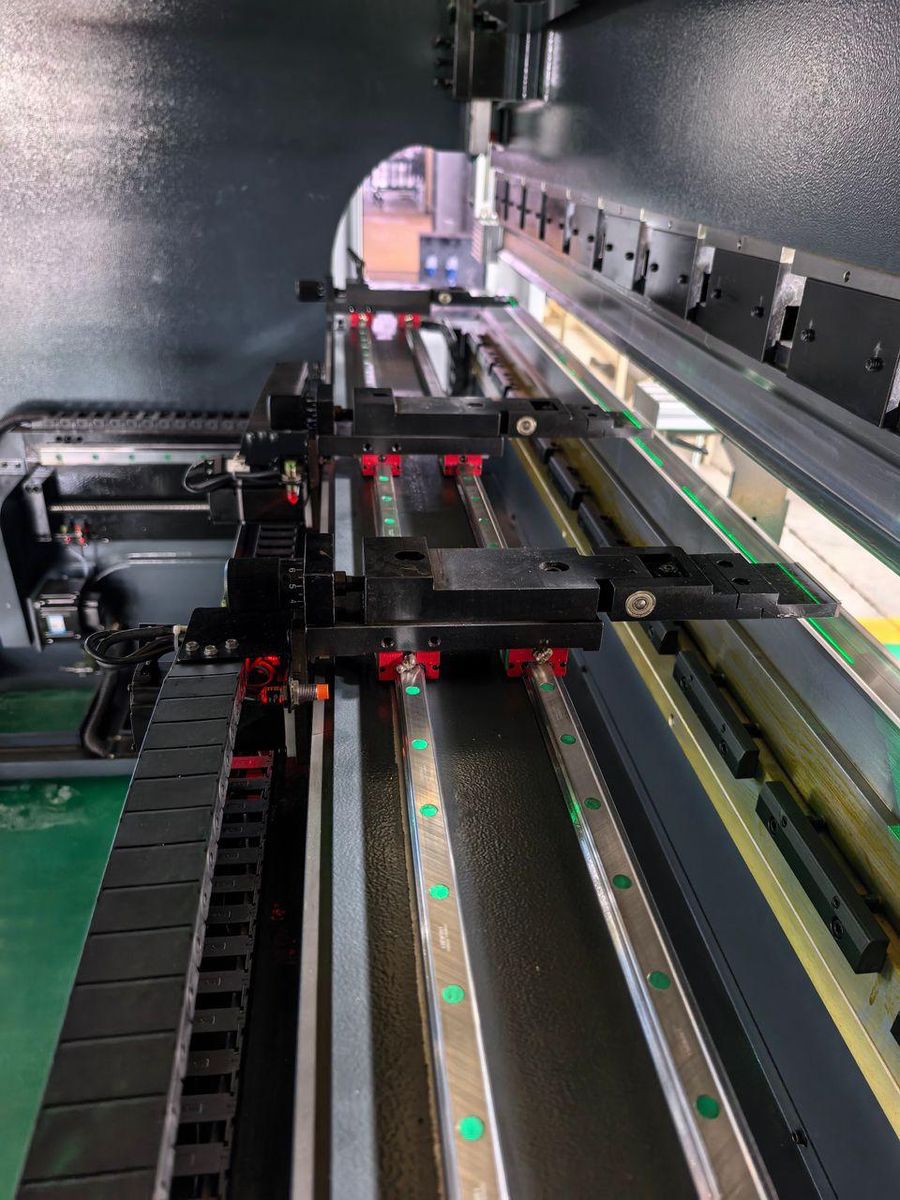

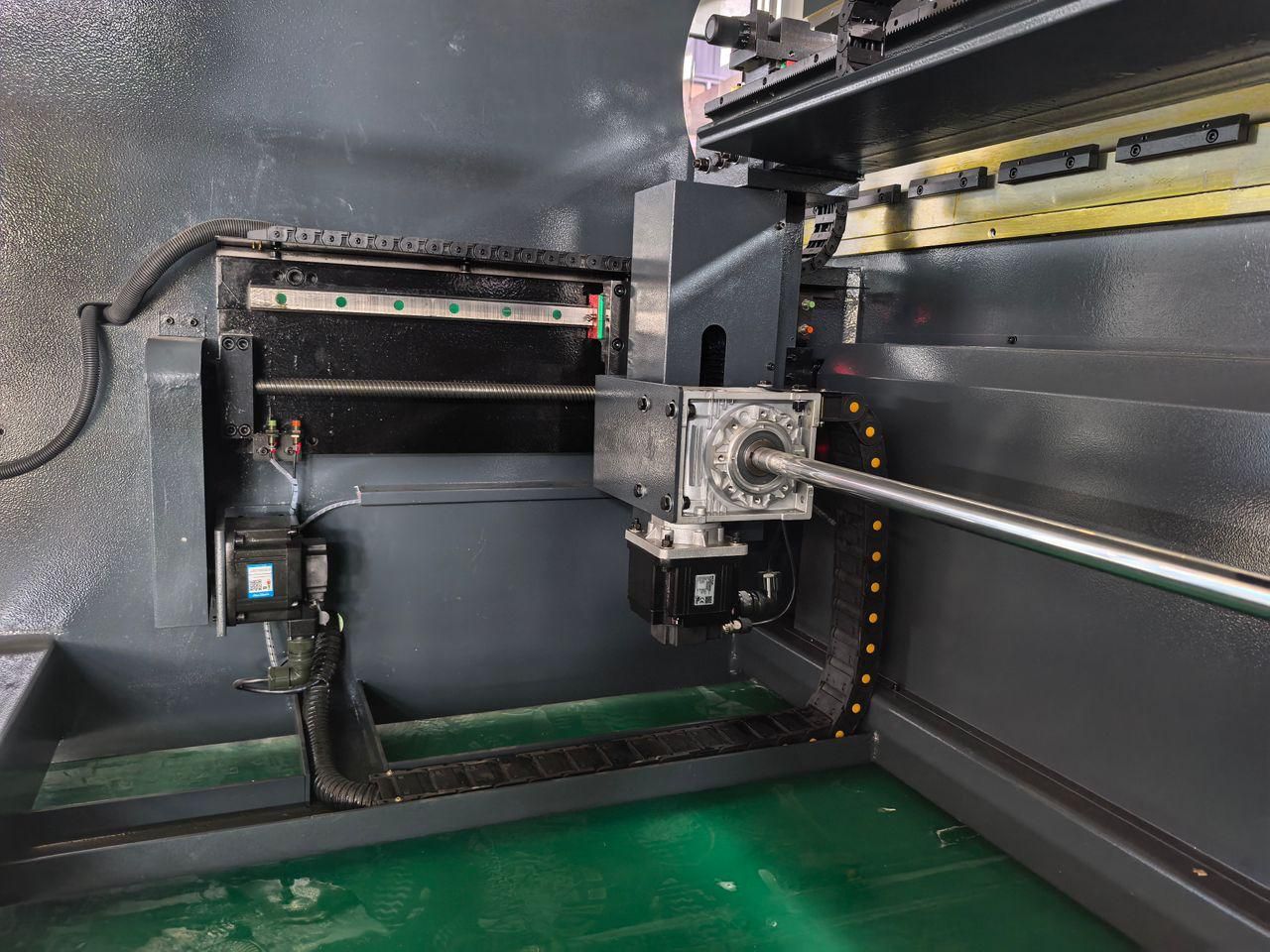

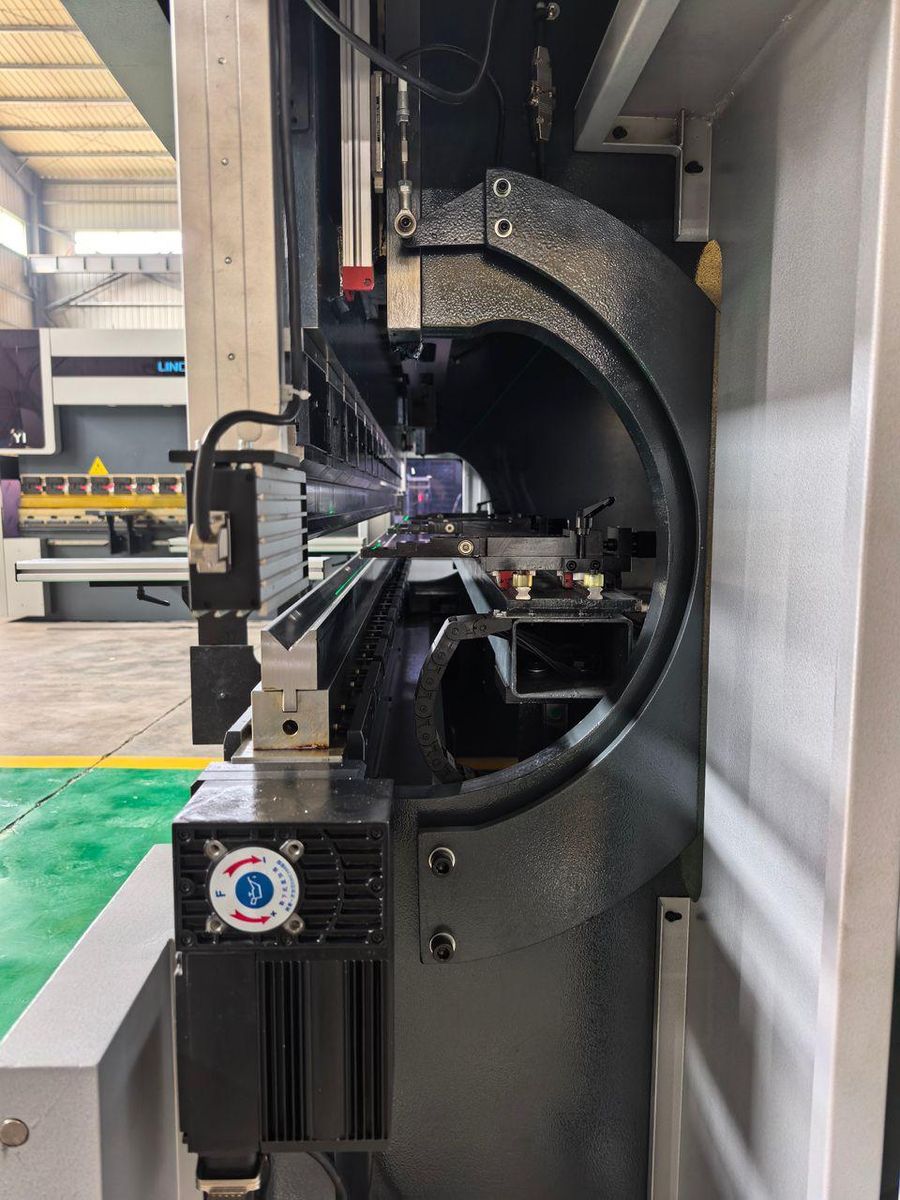

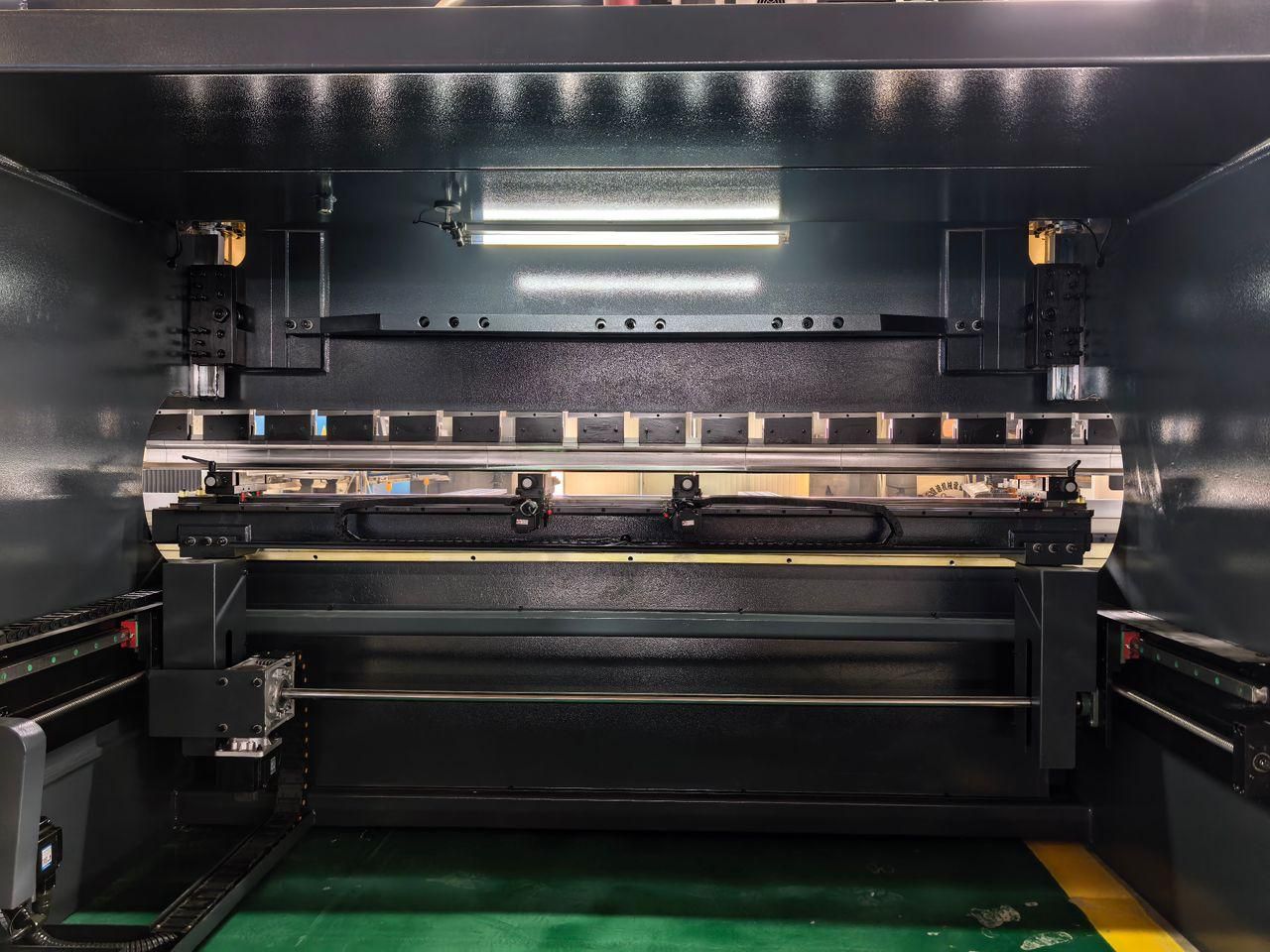

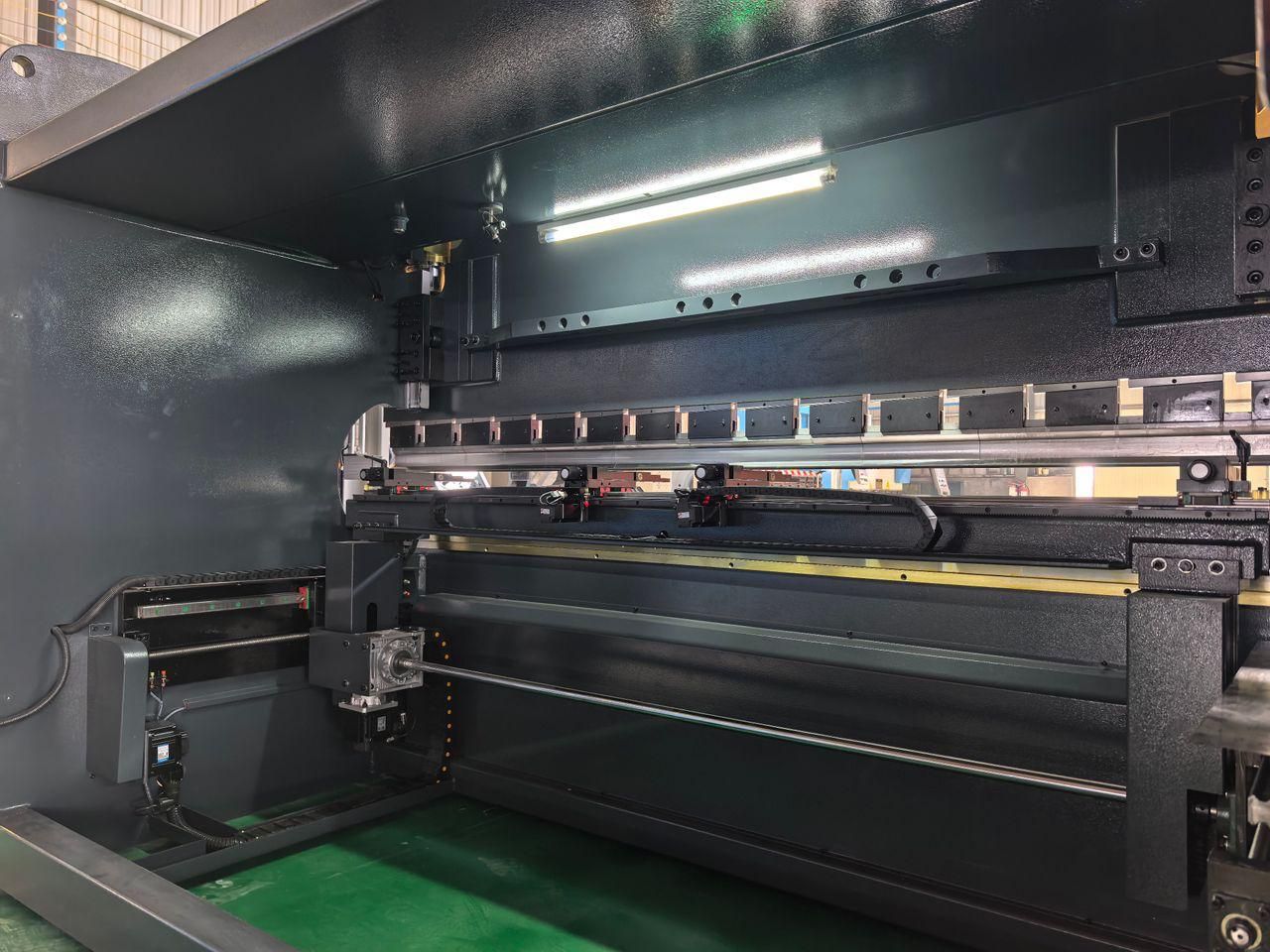

Servo CNC Controlled X/R Axis Back Gauge Included

Universal Box Forming Punch Clamp Included

CNC Controlled Crowning Table Included

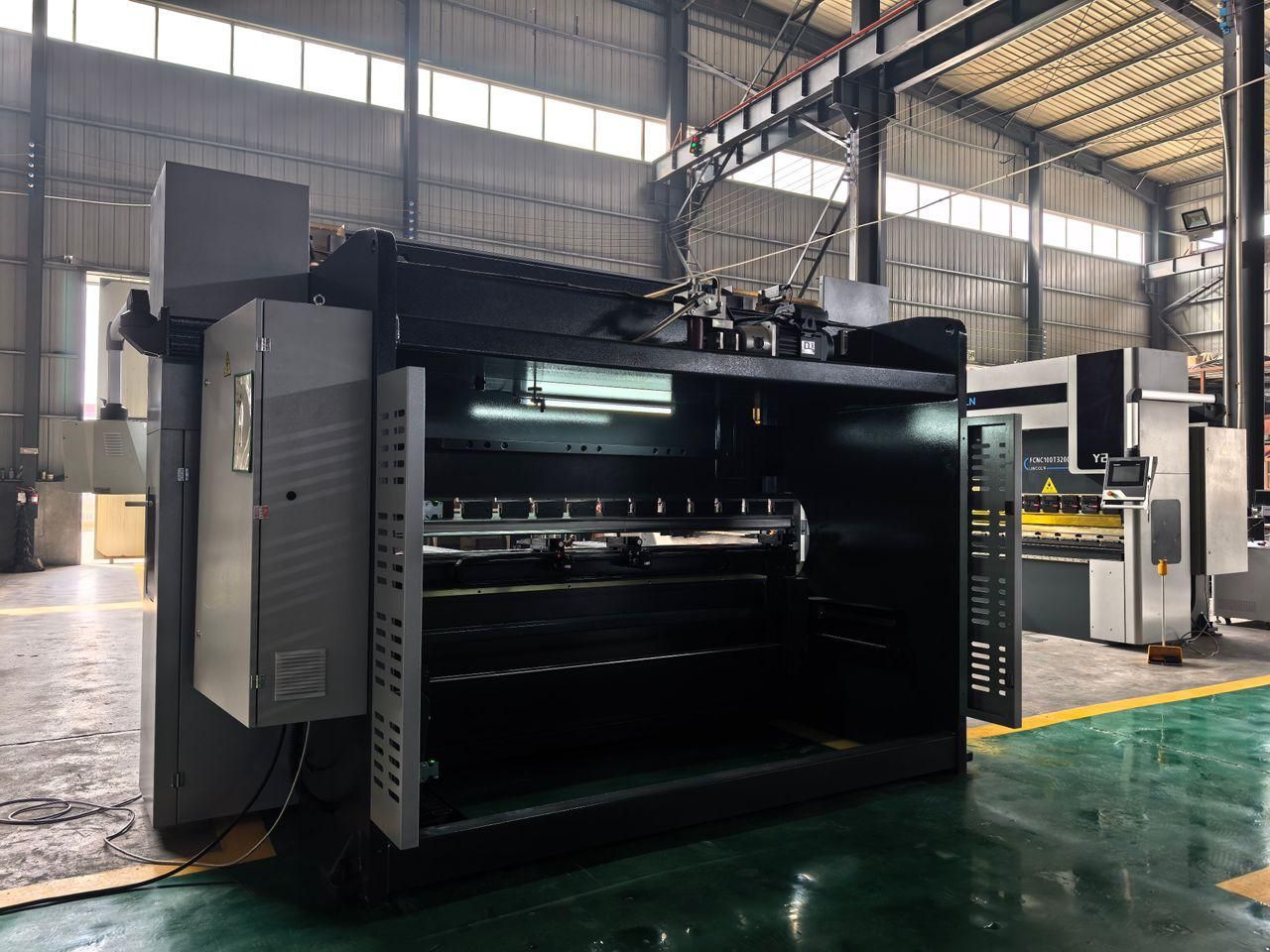

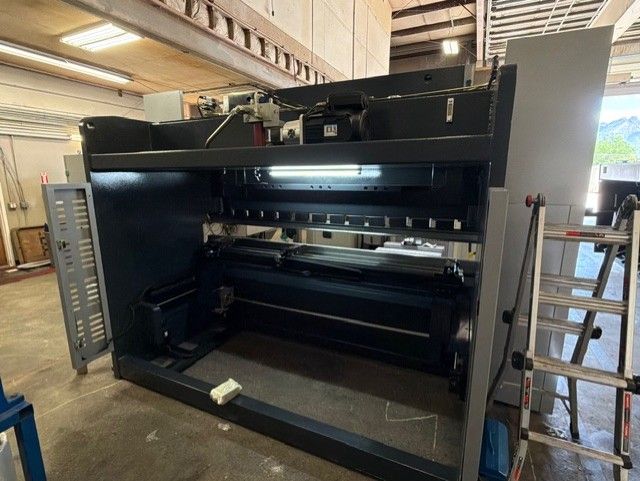

Front covers and rear guarding Included

Sliding Front Sheet Supports with Linear Rail Included

Dual Palm/Foot Station w/Selector Switch Included

Options

X=650mm X,R,Z1,Z2 (AL)*** Servo Back Gauge (+ 2 Extra Manual Z-finders) Included

Krras Goosneck Top tool Included

Krras With Die Holder and Bottom Tool Included

Fiessler Laser Safety Included
