20 Ton Shop Press with SWAG Finger Brake Air/Hydraulic bottle jack $900 OBO
2 Hours
24
1
$900.00
Description
Condition
Payment Types Accepted
VenmoDESCRIPTION

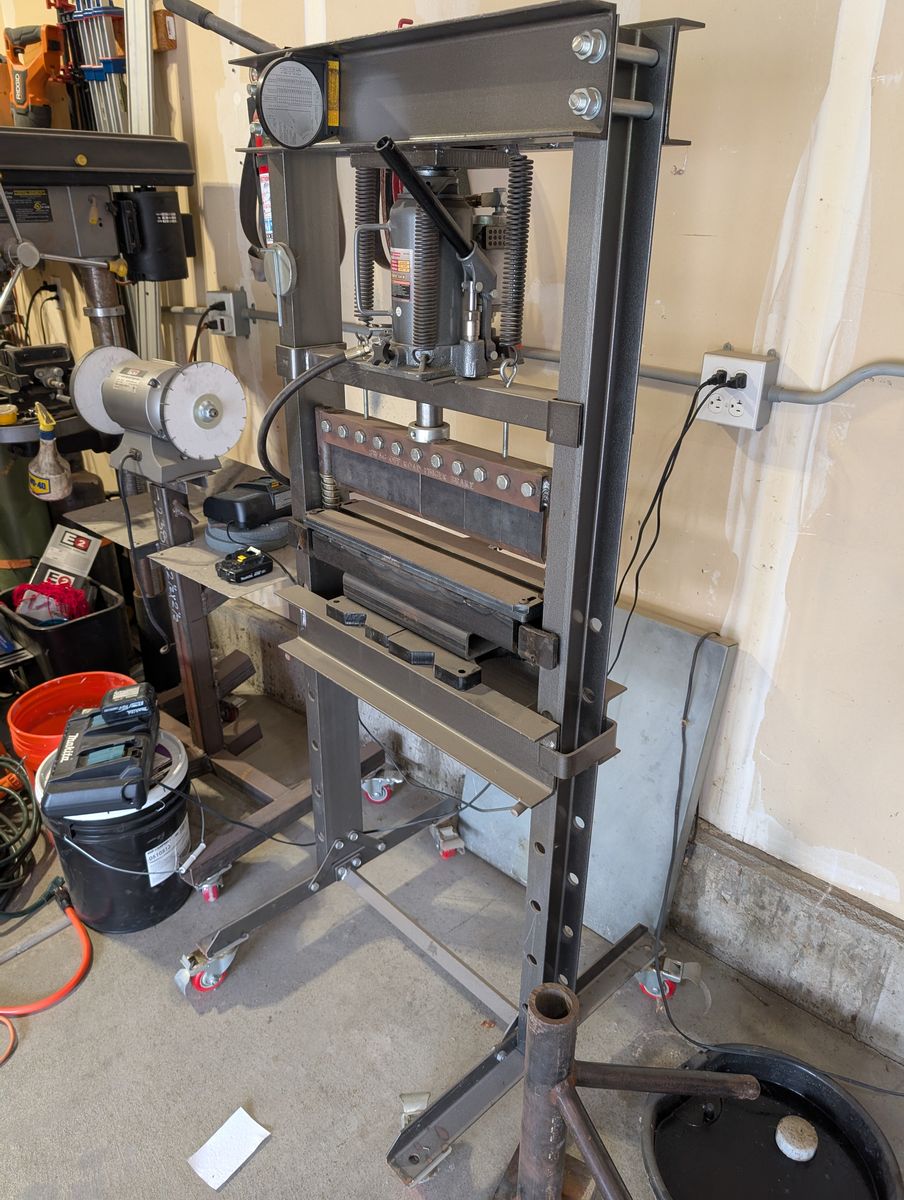

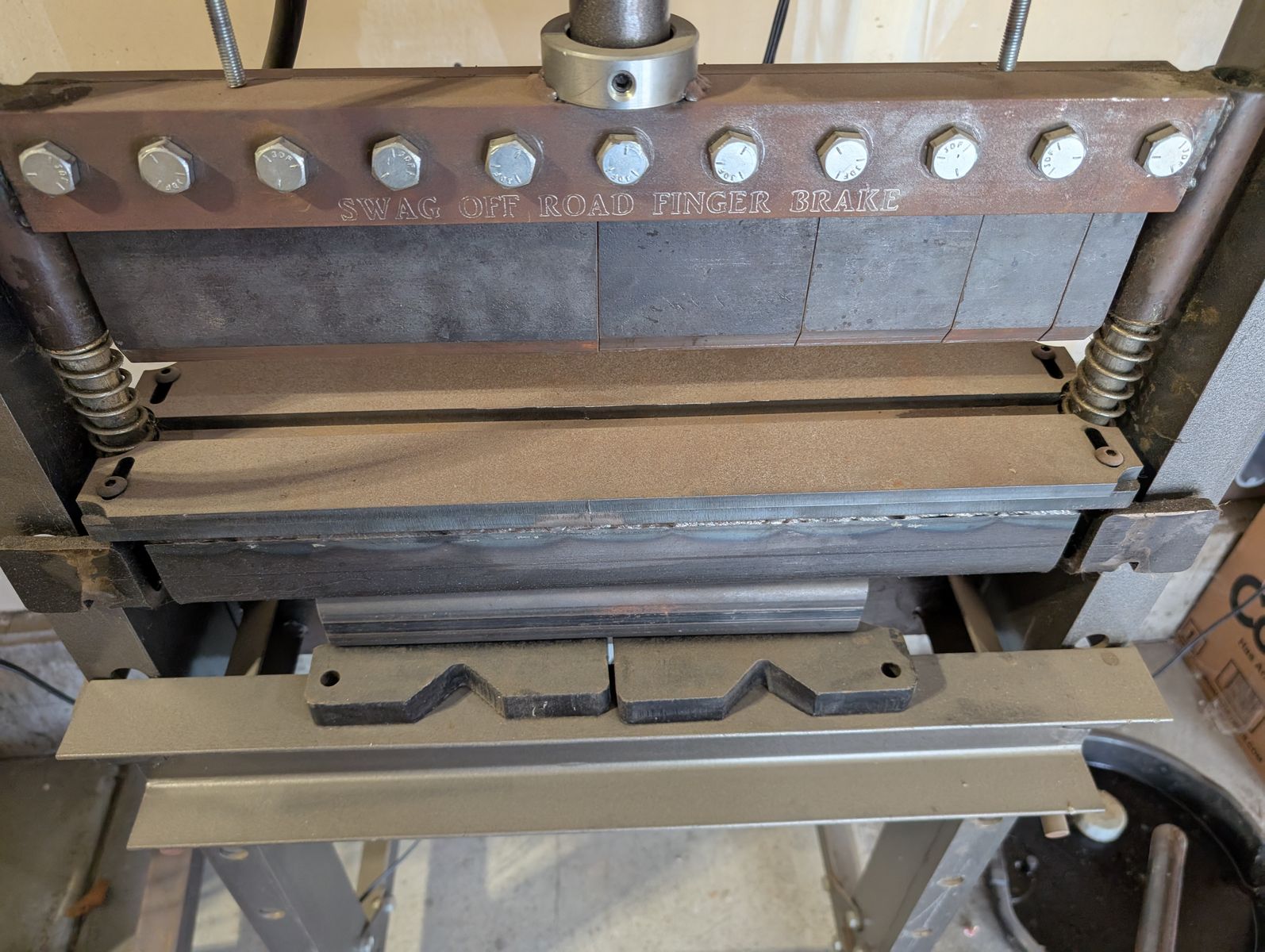

20 ton shop press fully built with SWAG Offroad heavy duty finger brake kit, flat top adjustable bottom V die, and air over hydraulic bottle jack. This is a complete fabrication setup capable of bending both thick plate and thin sheet metal with precision.
Includes adjustable back stop for accurate and repeatable bends.
SPECS
20 ton capacity press

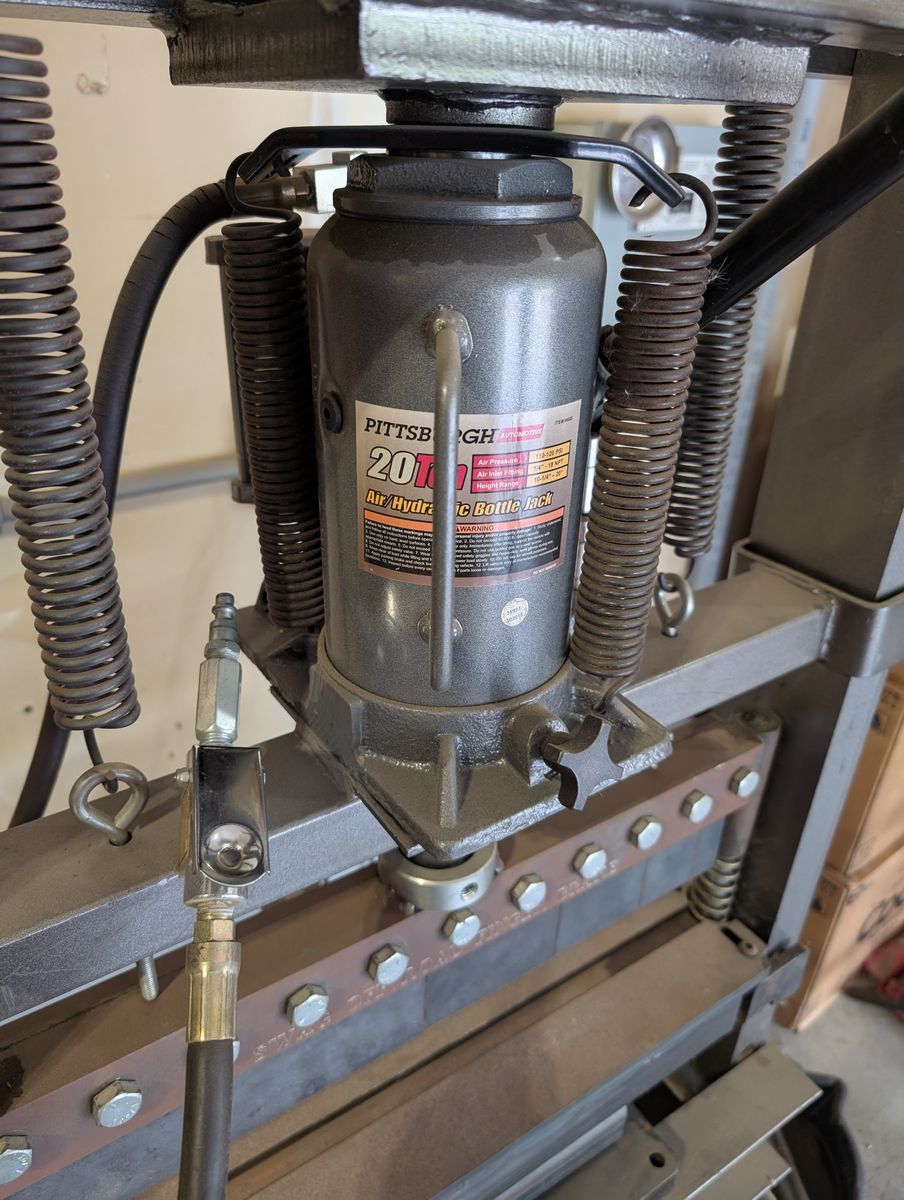

Air over hydraulic bottle jack
Max bending width 19.25 inches
Total brake width 22.125 inches
Max bending radius 110 degrees
Max bending capacity up to 5/8 inch plate
BENDING CAPACITY (MILD STEEL)
19 inch width up to 3/16 inch
15 inch width at 1/4 inch
13 inch width at 5/16 inch
11 inch width at 3/8 inch
6 inch width at 1/2 inch
3 inch width at 5/8 inch
FEATURES

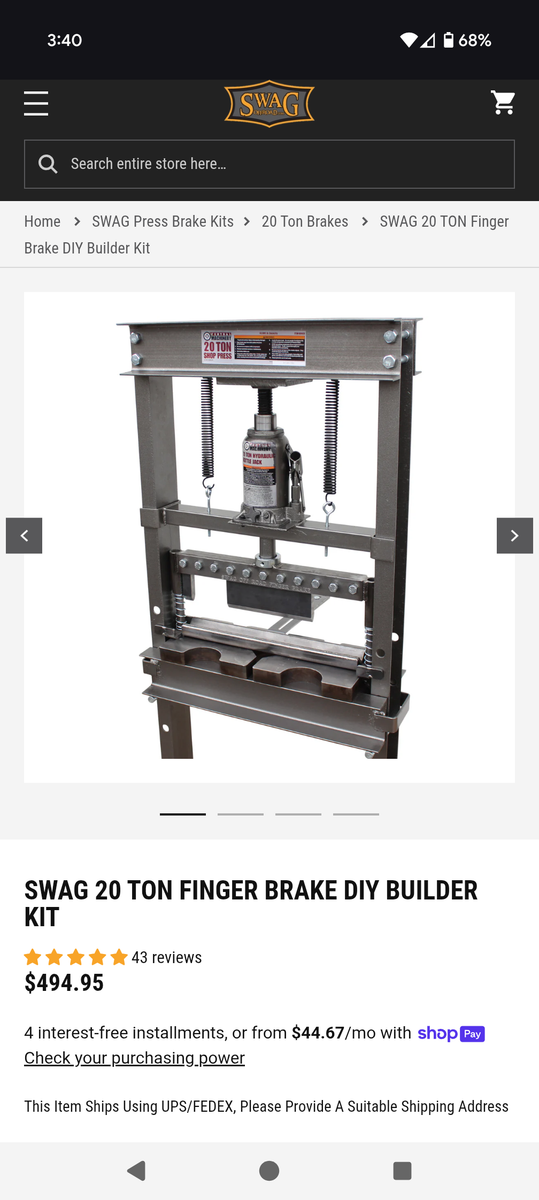

SWAG Offroad heavy duty finger brake kit
Top clamping bar machined from 4140 steel
Includes 5 removable finger sections (1", 2", 3", 4", 9.5")
Adjustable modular fingers for complex bends and formed parts
Heavy duty 3/8 inch steel bottom channel
Wide V-die design for thicker material
Air over hydraulic system eliminates manual pumping
Fully assembled and ready to use
FLAT TOP ADJUSTABLE V DIE (ADDED UPGRADE)
Adjustable bottom V die system for fine tuning bend gap
Allows tighter bends on thinner material
Works well for short pieces not possible with standard dies
Laser cut 3/8 inch adjustable plates
1/2 inch thick steel base plate
19.25 inch usable bending width
Quick adjust design using two bolts
Designed primarily for thinner material (16 gauge and thinner)
Can be shimmed to increase travel for tighter bends
INCLUDED
Press frame
SWAG finger brake system
Flat top adjustable V die
Air over hydraulic jack
Press plates and accessories shown
CONDITION
Works as it should
Good overall condition
Normal wear from use
Well maintained and ready to go
SEARCH KEYWORDS
shop press 20 ton press swag finger brake flat top die metal brake hydraulic press air over hydraulic press metal bending press fabrication tools sheet metal brake press brake metal forming tools
