"More Trailer For Your Money"

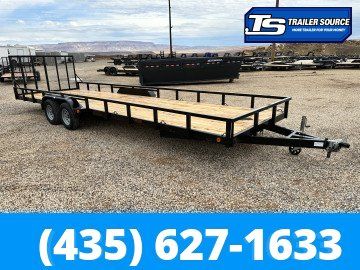

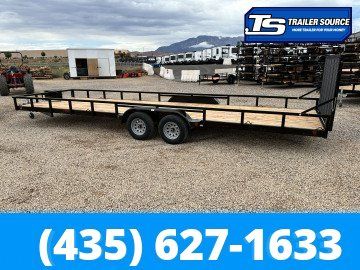

7 x 26 Echo EA-26-15T 7K Utility Trailer – Ready To Work!

The Echo EA-26-15T Tandem Axle Utility Trailer is a specialized, heavy-duty utility rig built specifically to handle the demands of the powersports, landscape, and outdoor recreation industries. While standard utility trailers are often built thin and generic, the Echo Advantage series transforms this platform into Echo's largest dedicated off-road vehicle transport setup. It is optimized for hauling multiple massive off-road vehicles—such as carrying up to two of the largest 4-seat side-by-sides (UTVs) available—without requiring a heavy 5-ton construction trailer.

The "T" designation indicates a dual-axle configuration, while the EA-26-15T denotes an incredible, maximum-length 26-foot deck. It combines Echo’s signature box steel construction with versatile loading configurations to maximize trailering efficiency.

CORE FEATURES OF THE EA-26-15T UTILITY SPEC Premium Wood Decking (Steel Floor Upgrade Available)

The trailer comes standard with a high-grade 26-foot wood plank deck, though it can be optionally upgraded to a solid metal diamond plate deck.

• The Benefit: The standard wood floor provides excellent natural traction for rubber tires and dampens vibrations during transit, while keeping the trailer's base weight low. Stepping up to the optional steel floor gives users a puncture-resistant surface that won't rot, warp, or stain from vehicle fluids and can be power-washed clean in seconds.

Box Steel Frame Construction

Unlike light-duty utility units built with cheap angle iron or channel, this trailer utilizes a fully structural box steel frame.

• The Benefit: Built with heavy-duty $2text{"} times 5text{"} times .188text{ ga.}$ steel tubing, it provides superior torsional rigidity. This prevents the trailer from "flexing" or twisting when navigating uneven, rugged terrain on the way to a trailhead, keeping your tracking true and reducing weld fatigue over its lifespan.

Lift-Out Front Side Ramps

The trailer side-railing system is engineered with integrated, multi-functional components.

• The Benefit: The front side rails lift out of the guardrail system and instantly become loading ramps. This allows you to drive ATVs straight onto the front of the deck sideways, completely eliminating the struggle of lifting, turning, or sliding machines around to maximize your 26 feet of space.

Tandem Axles with Electric Brakes

This model utilizes a dual-axle configuration featuring tandem 3,500 lb. axles.

• The Benefit: Providing a robust 6,000 lb. to 7,000 lb. GVWR, the dual-axle setup offers superior highway stability, distributes load weight evenly, and includes standard integrated electric brakes to deliver massive stopping power when hauling heavier multi-passenger side-by-sides.

Greasable Spindles & Recessed Waterproof Lights

The running gear and electrical systems are purpose-built for harsh environmental exposure.

• The Benefit: Greasable spindles make routine bearing maintenance incredibly simple without requiring full hub disassembly. Meanwhile, tucking the D.O.T. approved waterproof lights into recessed steel pockets safeguards the electrical housing from accidental impacts during loading and prevents water damage.

Powder Coated Finish

Every unit undergoes a rigorous finishing process culminating in a high-gloss, resilient powder coat.

• The Benefit: Powder coating creates a dense, baked-on skin that is highly resistant to gravel chips, trail brush scratches, and road debris. This ensures excellent protection against corrosion, maintaining a professional look for years to come.

THE EA-26-15T QUICK SPECS - GVWR: 6,000 lbs to 7,000 lbs.

• Curb Weight: ~2,400 lbs (Empty Weight).
• Deck Dimensions: 7 FT (84") Wide inside space x 26' Long.
• Running Gear: Tandem 3,500 lb. Axles with Multi-Leaf Spring Suspension.
• Brakes: Electric Braking system standard.
• Tires: 14" or 15" Radial Tires.
• Floor Type: Premium Wood Deck (Standard) / Solid Metal Deck (Optional Upgrade).
• Tongue Setup: Fixed tongue featuring a 1,200 lb. heavy-duty swivel jack.

WHY THE EA-26-15T OVER A STANDARD UTILITY TRAILER? - Powersports Optimization: A standard utility trailer forces you to load everything from the rear. The Echo 26-15T allows you to mix and match sideways-loaded ATVs via the side ramps alongside rear-loaded side-by-sides.

• Commercial Frame Strength: Moving up to Echo's fully boxed steel frame ensures the trailer handles the concentrated point-loads of modern, heavy utility UTVs without the rail sagging.
• The Extra Length: The expanded 26-foot length gives you maximum versatility. It easily accommodates massive layouts—such as carrying up to two full-sized 4-seat UTVs simultaneously, or hauling a 4-seat side-by-side alongside three standard ATVs.

IDEAL USERS FOR THIS TRAILER The Voyager/Echo EA-26-15T Utility Trailer is the premier choice for UTV/ATV Multi-Machine Owners, Outfit
