"More Trailer For Your Money"

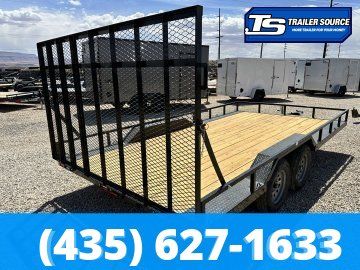

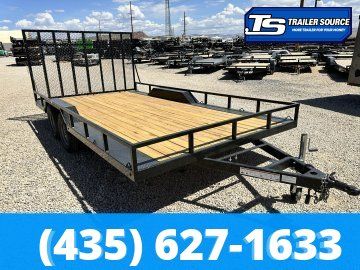

8.5 x 16 Echo Apex 16-15T 7K Utility Trailer – Ready To Work!

The Echo Apex 16-15T Tandem Axle Utility Trailer is a premium, heavy-duty wide-deck utility trailer designed specifically for the powersports, landscaping, and light commercial hauling industries. While standard utility trailers feature narrow decks constrained by interior wheel wells, the Apex series expands your footprint to a full, unobstructed width above the tires to optimize loading efficiency.

The "T" designation indicates a dual-axle configuration, while the 16-15 denotes a stretched 16-foot deck. By pairing Echo’s signature overbuilt wide-deck chassis with tandem 3,500 lb. axles, this model allows you to easily transport larger four-seat side-by-sides (UTVs) plus multiple ATVs, large commercial zero-turn mowers, or heavy palletized materials with maximum highway stability.

CORE FEATURES OF THE APEX 16-15T TANDEM AXLE SPECExtra-Wide 102" Deck Configuration The defining characteristic of the Apex is its massive 102-inch total deck width built cleanly above the tires.

• The Benefit: It provides significantly more usable floor space than standard-width utility trailers. This expanded clearance allows for the effortless loading and perfect positioning of wide-track side-by-sides (UTVs), large commercial mowers, or two-abreast material pallets without scraping against narrow side rails.

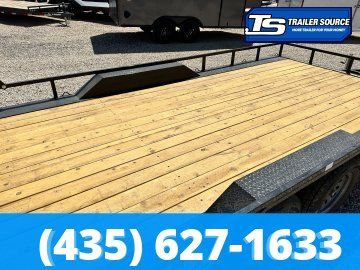

Premium Treated Wood Decking (Steel Floor Upgrade Available) The trailer comes standard with a high-grade 16-foot treated wood plank floor, engineered to maintain structural integrity under harsh exposure.

• The Benefit: The heavy-duty wood floor offers exceptional natural tire traction and helps dampen vibrations during transit. For extreme commercial operations or users loading heavy tracked machinery, a full-steel diamond plate floor remains available as an elite factory upgrade.

Heavy-Duty Box Steel Frame & Reinforced Crossmembers The structural foundation is engineered with fully boxed steel tubing rather than flimsy angle iron.

• The Benefit: This architecture delivers immense torsional rigidity and shields internal wiring from road debris. Reinforced structural crossmembers are tightly spaced beneath the expanded 16-foot deck to prevent the floor from bowing or sagging under the concentrated point-loads of heavy commercial equipment.

Tandem 3,500 lb. Axles with Electric Brakes This model utilizes a dual-axle configuration utilizing two heavy-duty 3,500 lb. axles.

• The Benefit: This configuration provides a robust 7,000 lb. GVWR. The dual-axle setup offers superior highway stability, distributes load weight evenly, and includes integrated electric brakes to deliver massive stopping power when hauling heavier multi-passenger side-by-sides.

Greasable Spindles & Recessed Waterproof Lights Every unit is outfitted with commercial-grade running gear and shielded electrical systems.

• The Benefit: Greasable spindles make routine wheel bearing maintenance fast and simple without requiring full hub teardowns. The D.O.T. approved waterproof lights are completely recessed into steel pockets, safeguarding the electrical system from impact damage during tight loading maneuvers.

Tuff Coat Powder Coated Finish The entire trailer undergoes a multi-stage blast prep before receiving an environmentally friendly, high-gloss powder coat.

• The Benefit: This creates an incredibly hard, baked-on shield that is significantly tougher than standard liquid paint. It fiercely resists gravel chips, road de-icers, and trail-brush scratches, effectively neutralizing rust and corrosion.

THE APEX 16-15T TANDEM AXLE QUICK SPECS- GVWR: 7,000 lbs (7K).

• Deck Dimensions: Full 102" Wide Deck x 16' Long.
• Running Gear: Tandem 3,500 lb. Axles with Leaf Spring Suspension.
• Brakes: Electric Braking system standard.
• Fenders: Heavy-Duty Drive-Over Fenders.
• Floor Type: 16' Treated Wood Deck (Standard) / Full Steel Diamond Plate (Optional Upgrade).
• Lighting: Recessed D.O.T. Sealed Waterproof LED Lights.

WHY THE TANDEM-AXLE APEX 16-15T OVER A STANDARD TRAILER?- The Width Advantage: Standard trailers max out around 76" to 82" between the fenders. The Apex's 102" deck width removes all spatial limitations for modern, over-sized side-by-sides and broad commercial cargo.

• The Extra Length: Moving up from a 14' to a 16' deck gives you the crucial workspace needed to cleanly load a full-sized 4-seat UTV and an additional ATV, or multiple pieces of commercial landscape gear without running out of room.
• Superior Towing Stability: The tandem-axle configuration acts as a natural stabilizer on the highway. It reduces trailer sway, handles high-speed crosswinds much better than a single-axle setup, and ensures a smoother ride for your expensive cargo.

IDEAL USERS FOR THIS TRAILERThe Echo Apex 16-15T Tandem Axle is the premier choice for Commercial Landscape Crews, Large Property Managers, and Serious
