"More Trailer For Your Money"

7 x 16 Diamond C LPT 210 Pacesetter Pkg 23K Dump Trailer – Ready To Work!

The 2026 Diamond C LPT 210 Pacesetter Edition is the absolute pinnacle of the LPT dump series. While the 208 is a heavy-duty machine, the 210 package is a "super-duty" build designed for extreme commercial use, featuring a massive 23,000 lb GVWR.

This trailer is built for the user who needs to haul full-size excavators or extreme payloads of debris that would stall or overload a standard 14k or 18k dump.

KEY FEATURES OF THE LPT 210 PACESETTERDual 10,000 lb Torsion Axles (23K GVWR) The "210" designation identifies the jump to dual 10k axles.

• The Benefit: This provides a jaw-dropping 16,000+ lb payload capacity. By using Torsion suspension, each wheel handles road shock independently, protecting the frame and your tow vehicle from the "bounce" associated with hauling max-capacity loads.

17.5" Super Single 18-Ply Tires To support the 23k rating, the 210 rolls on commercial-grade 17.5" 18-ply radial tires.

• The Benefit: These are significantly tougher than standard 16" tires. They are designed for high-stress, high-heat environments and offer much better resistance to the curb-scrubbing and job site debris that typically causes flats on lighter trailers.

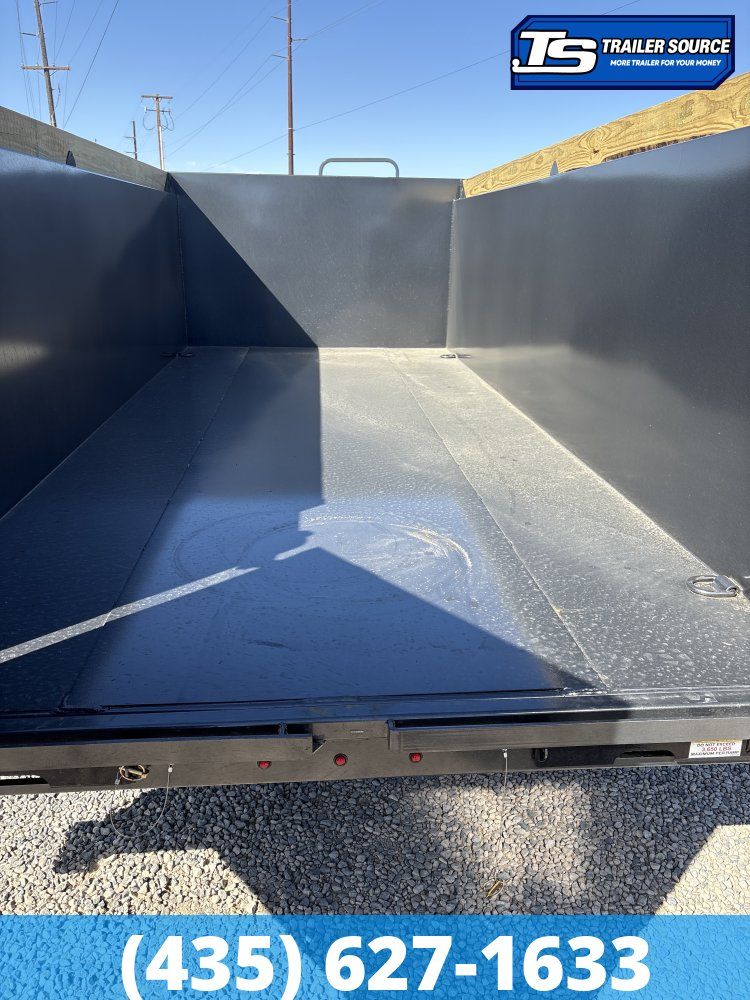

7-Gauge "Super Duty" Floor & 32" Sides The Pacesetter 210 comes standard with a 7-gauge (3/16") one-piece steel floor and 32" tall sides.

• The Benefit: Most dump trailers have 10-gauge or 12-gauge floors that "waffle" or dent when heavy concrete or boulders are dropped in. The 7-gauge steel is roughly 25% thicker, ensuring the bed stays flat and functional even after years of loading rip-rap or scrap metal.

3-Stage Front-Mount Telescopic Cylinder Standard on all LPT models, but critical for the 210’s capacity.

• The Benefit: By pushing from the front of the bed rather than the middle (like a scissor lift), the telescopic hoist has the maximum possible mechanical advantage. It can dump a full 10-ton load at a 45-degree angle without the frame-stress common in mid-lift designs.

Dual 20,000 lb Hydraulic Jacks (Pacesetter Upgrade) While smaller dumps use a single jack, the 210 Pacesetter features dual 20k hydraulic jacks.

• The Benefit: You can unhook a fully loaded 23,000 lb trailer with the push of a button. The dual-jack setup provides a much wider, more stable footprint, preventing the trailer from leaning or sinking when uncoupled on soft job site soil.

Bluetooth Wireless & SolarPulse® Charging The Pacesetter package includes a Shurco Wireless Bluetooth Remote and a 7-Watt SolarPulse charging system.

• The Benefit: You can operate the dump bed and the hydraulic jacks from your phone while standing 30 feet away for safety. The solar panel ensures the battery stays topped off, solving the most common failure point in hydraulic trailers: a dead battery on the job site.

Engineered I-Beam Frame with 12" OC Crossmembers The 210 uses an even beefier version of Diamond C's Engineered I-Beam, with crossmembers tightened to 12" on-center.

• The Benefit: The 12" spacing is nearly twice as dense as the industry standard. It creates a "tank-like" sub-structure that won't sag or bow under the weight of heavy machinery like a large skid steer or mini-excavator.

THE 23K TITAN****WHY THE 2026 LPT 210 PACESETTER IS THE ULTIMATE DUMP TRAILER

When a 14,000 lb trailer just isn't enough, you move up to the LPT 210. It is engineered to bridge the gap between a standard dump and a semi-dump.

THE CAPACITY: 23,000 lb GVWR

• Carry over 16,000 lbs of payload legally. With 10k torsion axles and 18-ply tires, this trailer is built for the heaviest debris and the biggest machines in your fleet.

THE HOIST: Front-Mount Telescopic Power

• Don't let your trailer struggle. Our 3-stage telescopic cylinder provides incredible lifting leverage, dumping max loads at a steep 45-degree angle every single time.

THE DURABILITY: 7-Gauge Armor

• Our 3/16" thick steel floor and 32" sides are built for "rip-rap" and demolition. This is a "generational" trailer designed to take the abuse that would destroy a standard dump.

THE TECH: Pacesetter Edition Standard

• From the dual 20k hydraulic jacks and SolarPulse charging to the wireless Bluetooth remote, the 210 Pacesetter is the smartest, most efficient dump trailer on the market.

IDEAL USERS FOR THIS TRAILERThe LPT 210 is the "Professional’s Choice" for heavy excavation companies, commercial demolition crews, and municipal utility departments. It is perfect for those who are hauling full-sized 10,000 lb+ machinery to the job site and then using the same trailer to haul 10 tons of rock or debris away.
