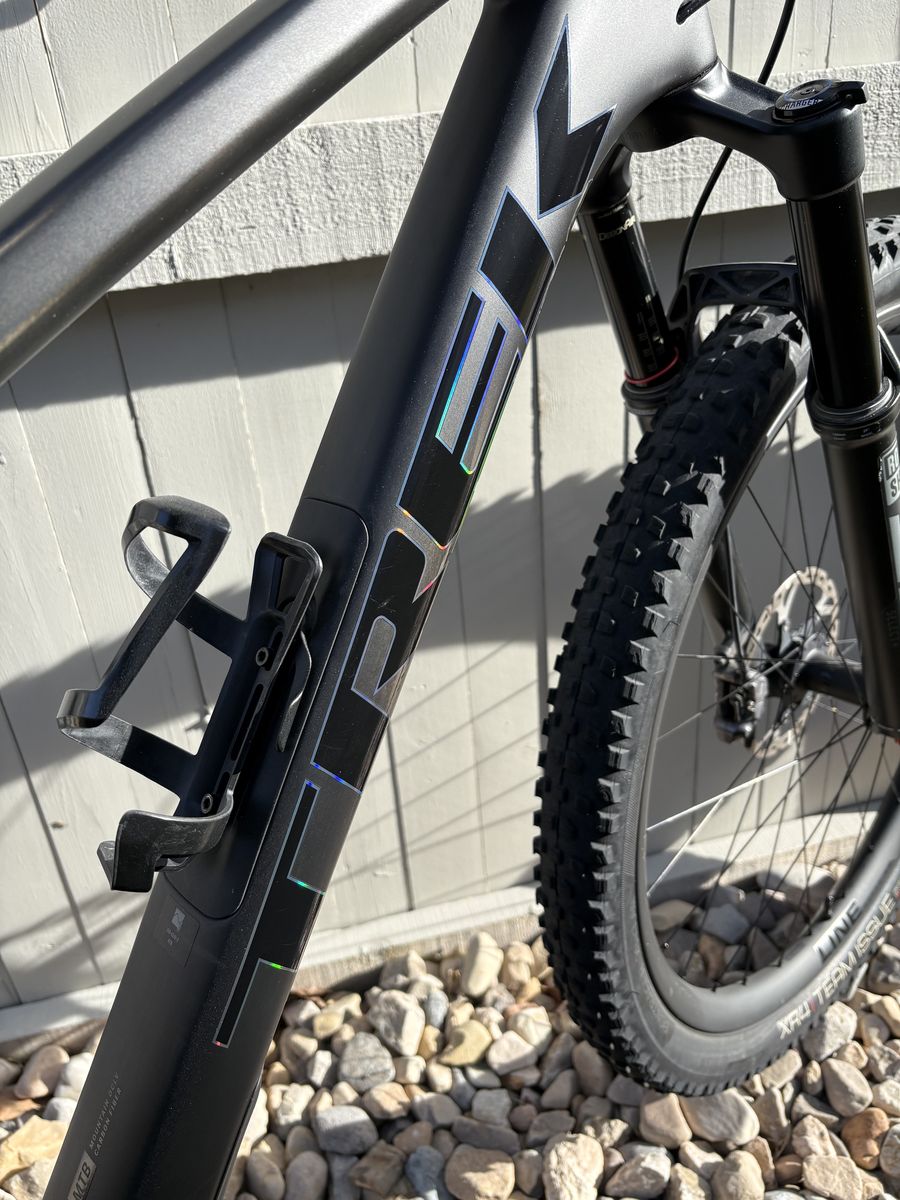

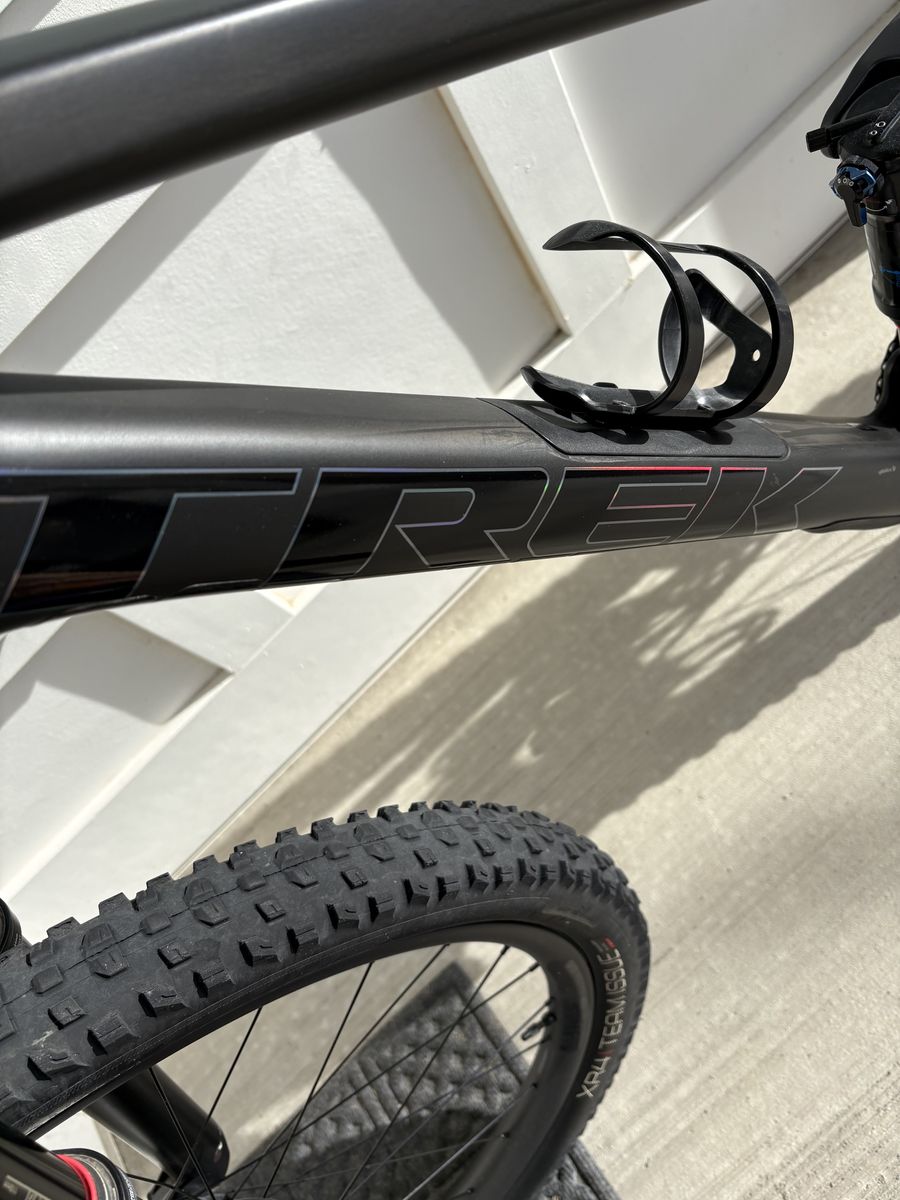

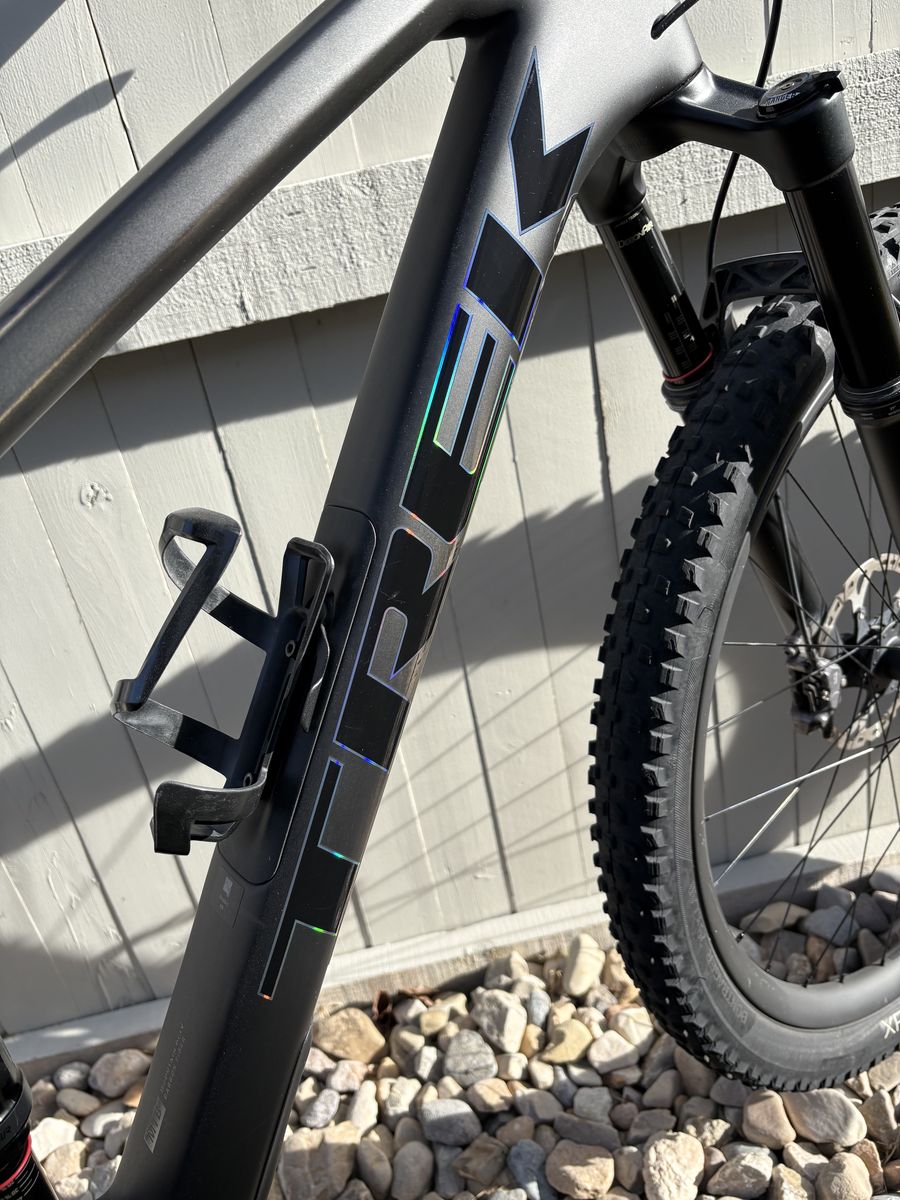

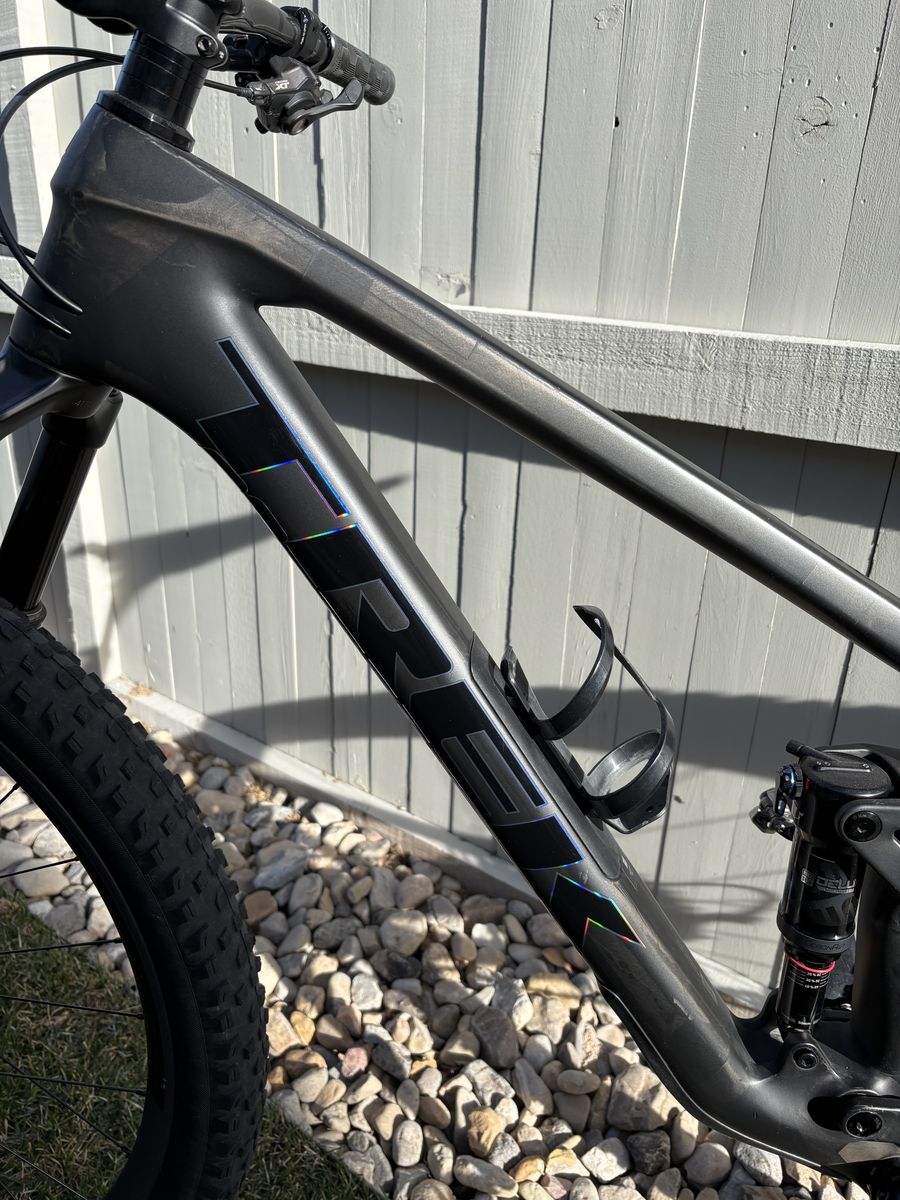

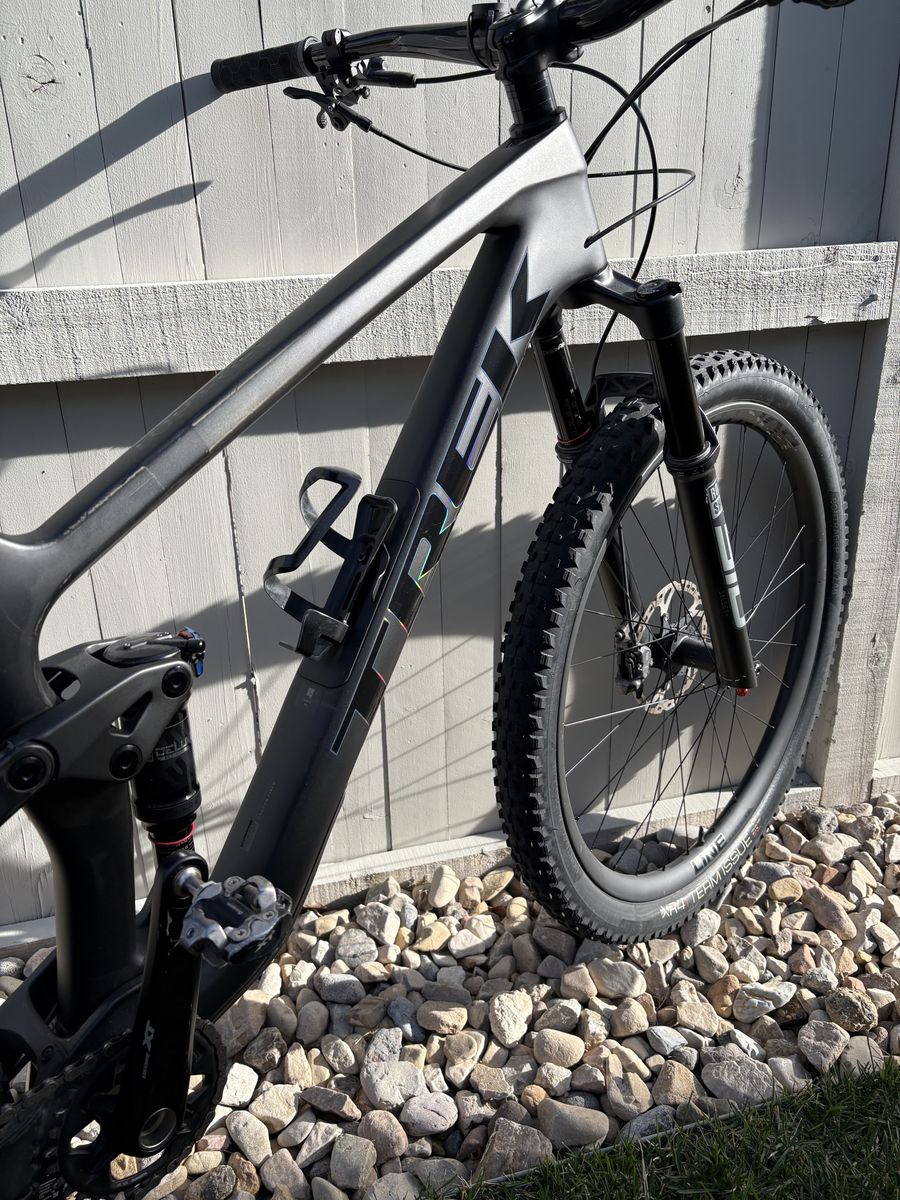

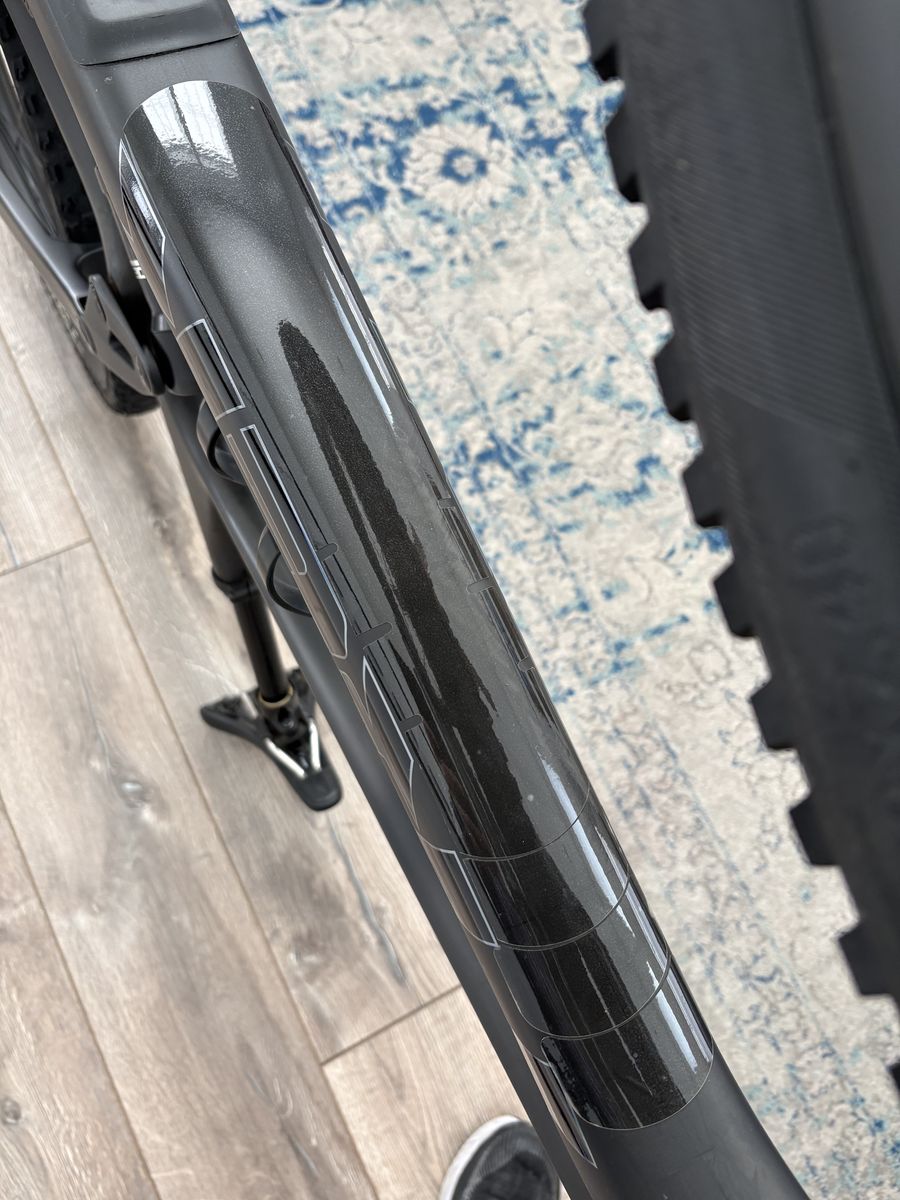

Excellent condition. Size X-large

Full carbon. Full suspension. Great bike for all conditions.

Product

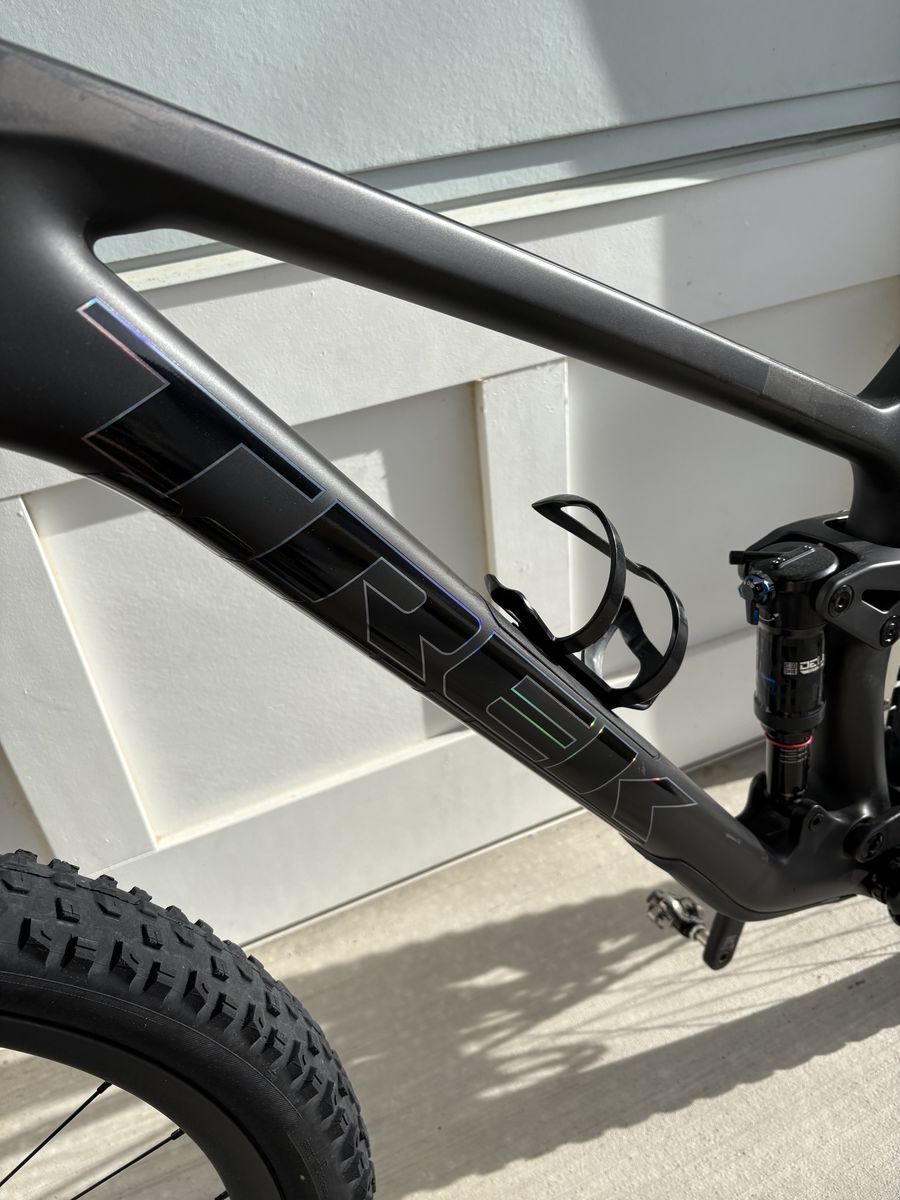

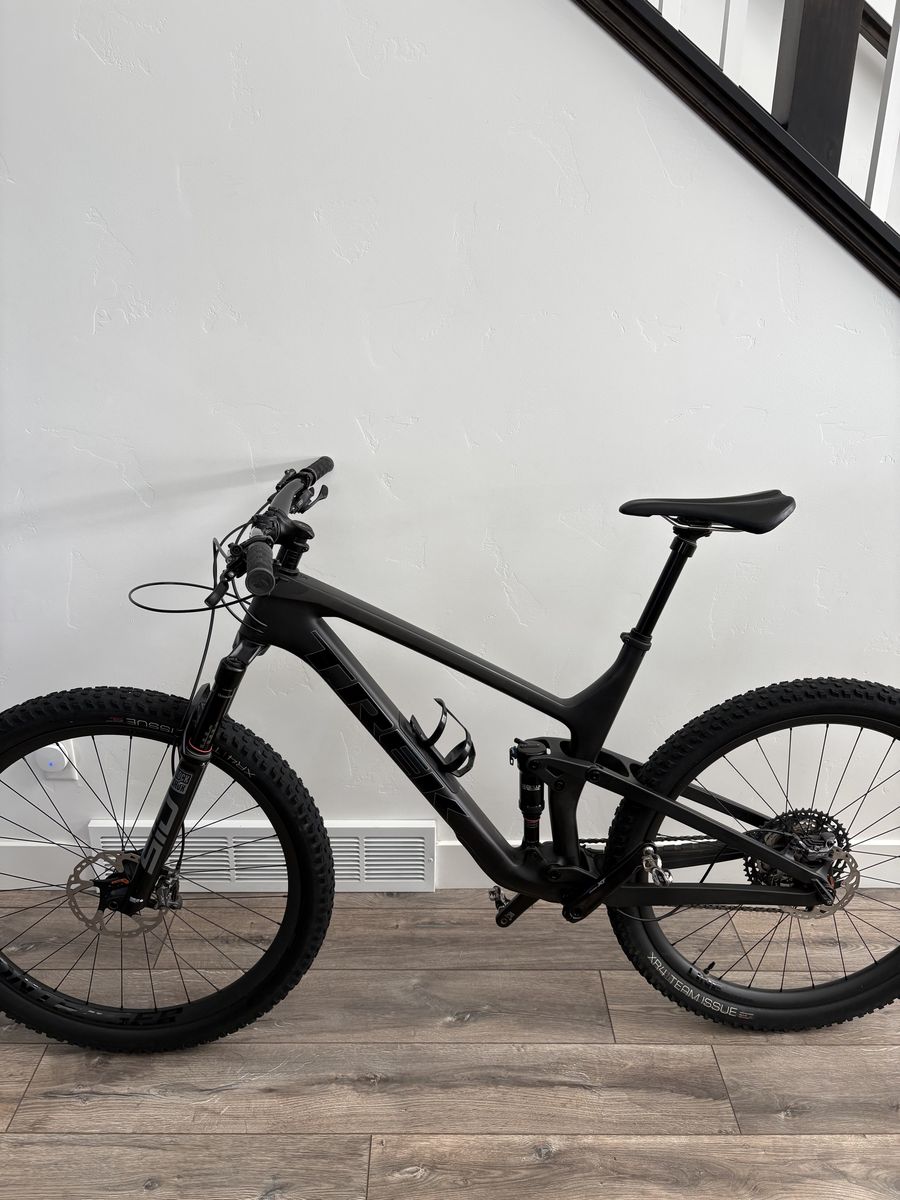

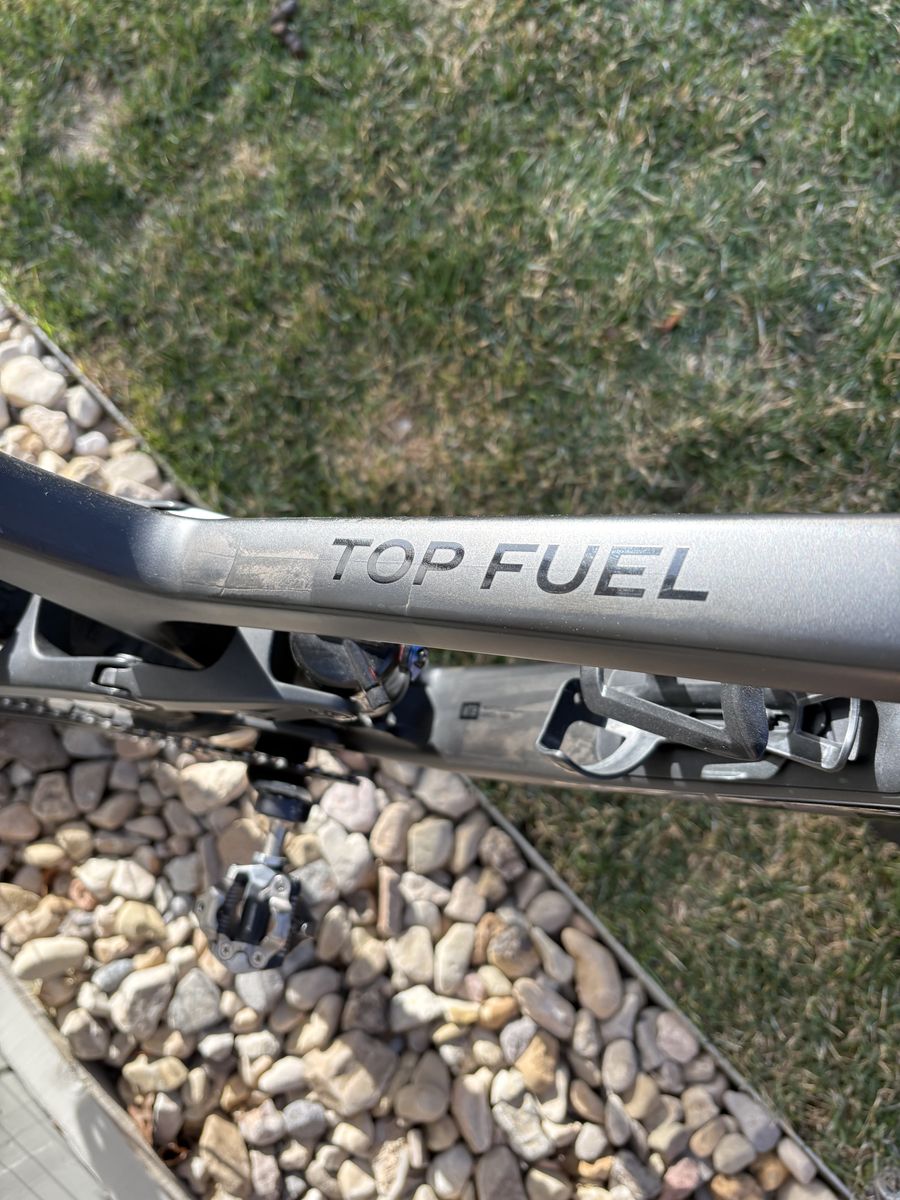

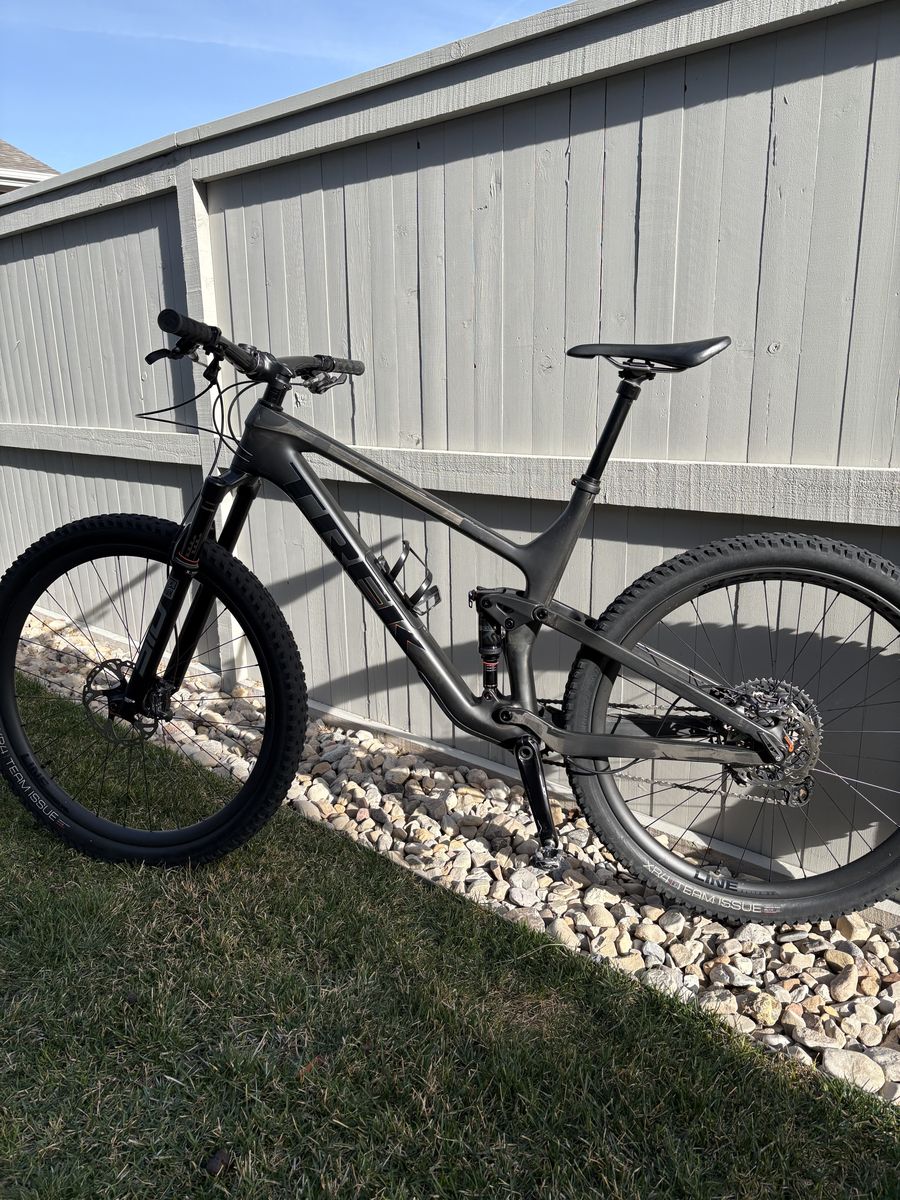

Trek Top Fuel 9.8 XT Bike

Model Year

2023

Intended Use

Trail

Rider

Unisex

Sizes and Geometry

SM (High, Low)

MD (High, Low)

ML (High, Low)

LG (High, Low)

XL (High, Low)

View Full Geometry

Wheel Size

29"

Frame Material

Carbon Fiber

Frame Material Details

OCLV Mountain Carbon front and rear triangles, magnesium rocker link, molded chainstay and lower down tube protection

Rear Travel

120mm

Rear Shock

RockShox Deluxe Ultimate RCT, 185mm x 50mm

Fork

RockShox Pike Select+, DebonAir spring, Charger 3 RC2 damper, 44mm offset, Maxle Stealth thru-axle

Fork Travel

130mm

Head Tube Diameter

Tapered, 1.125" top, 1.5" bottom

Headset

Trek Knock Block 2.0 Integrated, 72° radius rotation limiter (includes infinite radius chip), sealed cartridge bearings

Handlebar

Bontrager Line Pro, OCLV Carbon, 35mm clamp diameter Width: 750mm (SM), 780mm (MD-XL) Rise: 15mm (SM), 27.5mm (MD-XL)

Stem

Bontrager Line Pro, 45mm length, 0° rise, 35mm bar clamp, Knock Block and Blendr compatible

Grips

Bontrager XR Trail Elite, nylon lock-on

Brakes

Shimano Deore XT M8120, 4-piston, Shimano RT76 6-bolt rotors (180mm front, 160mm rear)

Brake Levers

Shimano Deore XT M8120

Drivetrain

1x

Shifters

Shimano Deore XT M8100, 12-speed

Front Derailleur

None

Rear Derailleur

Shimano Deore XT M8100, 12-speed, long cage

ISCG Tabs

ISCG05

Chainguide

None

Cranks

Shimano Deore XT M8120 Length: 170mm (SM-LG), 175mm (XL)

Chainrings

Shimano Deore XT M8120, 30 tooth

Bottom Bracket

Shimano MT501, 73mm English/BSA threaded

Pedals

None

Chain

Shimano Deore XT M8100, 12-speed

Cassette

Shimano Deore XT M8100, 12-speed, 10-51 tooth

Rims

Bontrager Line Elite 30, OCLV Mountain Carbon, tubeless ready

Hubs

Bontrager Line Elite wheelset, 110x15mm Boost front, 148x12mm Boost rear with Rapid Drive 108 freehub and MICRO SPLINE driver

Spokes

Bontrager Line Elite wheelset

Tires

Bontrager XR4 Team Issue, Inner Strength sidewalls, aramid bead, 120 TPI, tubeless ready, 29" x 2.4"

Saddle

Bontrager Arvada, austenite rails, 138mm width

Seatpost

Bontrager Line Elite dropper, MaxFlow Drop: 100mm (SM), 150mm (MD-ML), 170mm (LG), 200mm (XL)

Seatpost Diameter

34.9mm

Seatpost Clamp

Single bolt

Rear Dropout / Hub Dimensions

148x12mm Boost

Max. Tire Size

29" x 2.5"

Bottle Cage Mounts

One inside front triangle

Colors

Satin Baja Yellow

Warranty

Lifetime frame and wheels; 2 years Trek/Bontrager parts, suspension linkage components, and paint/decals

Weight

28 lb 7.0 oz (12,900 g)

Miscellaneous

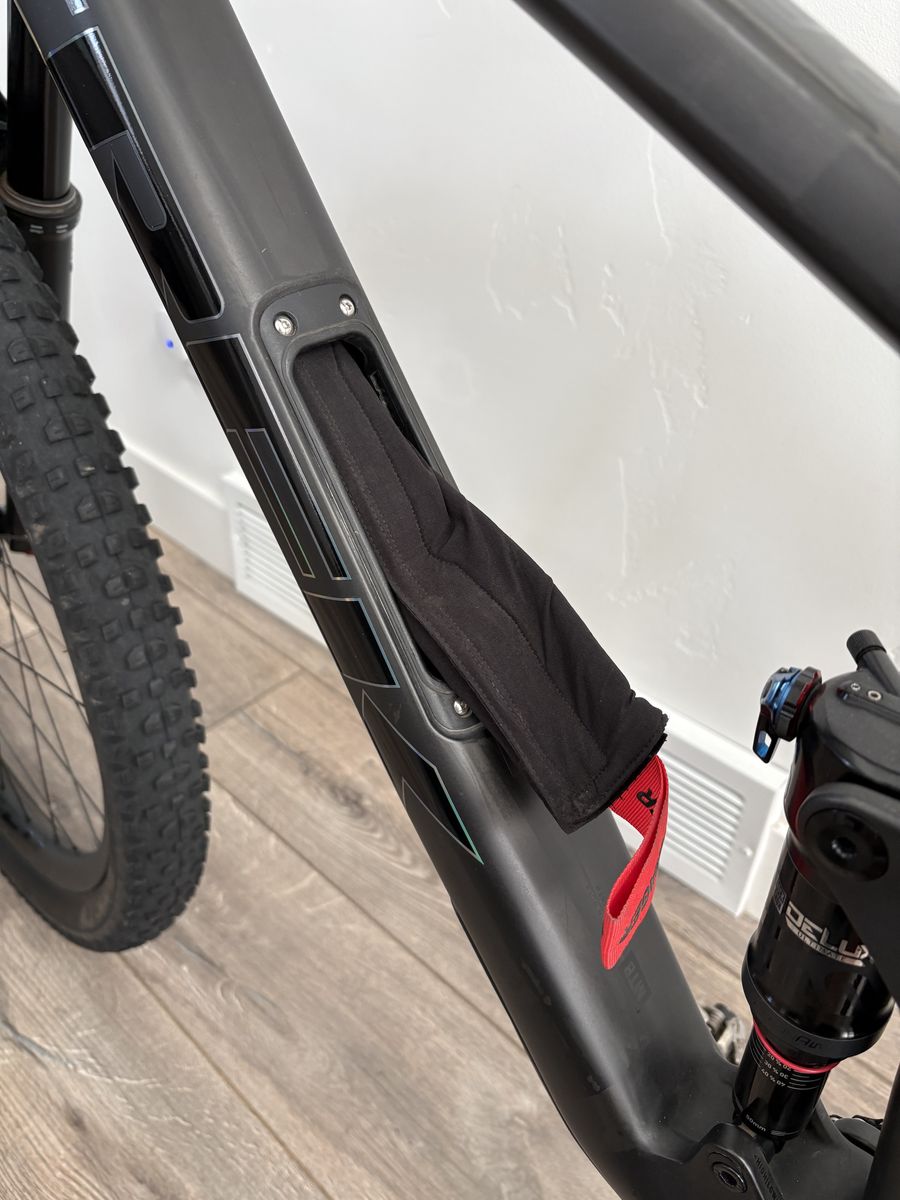

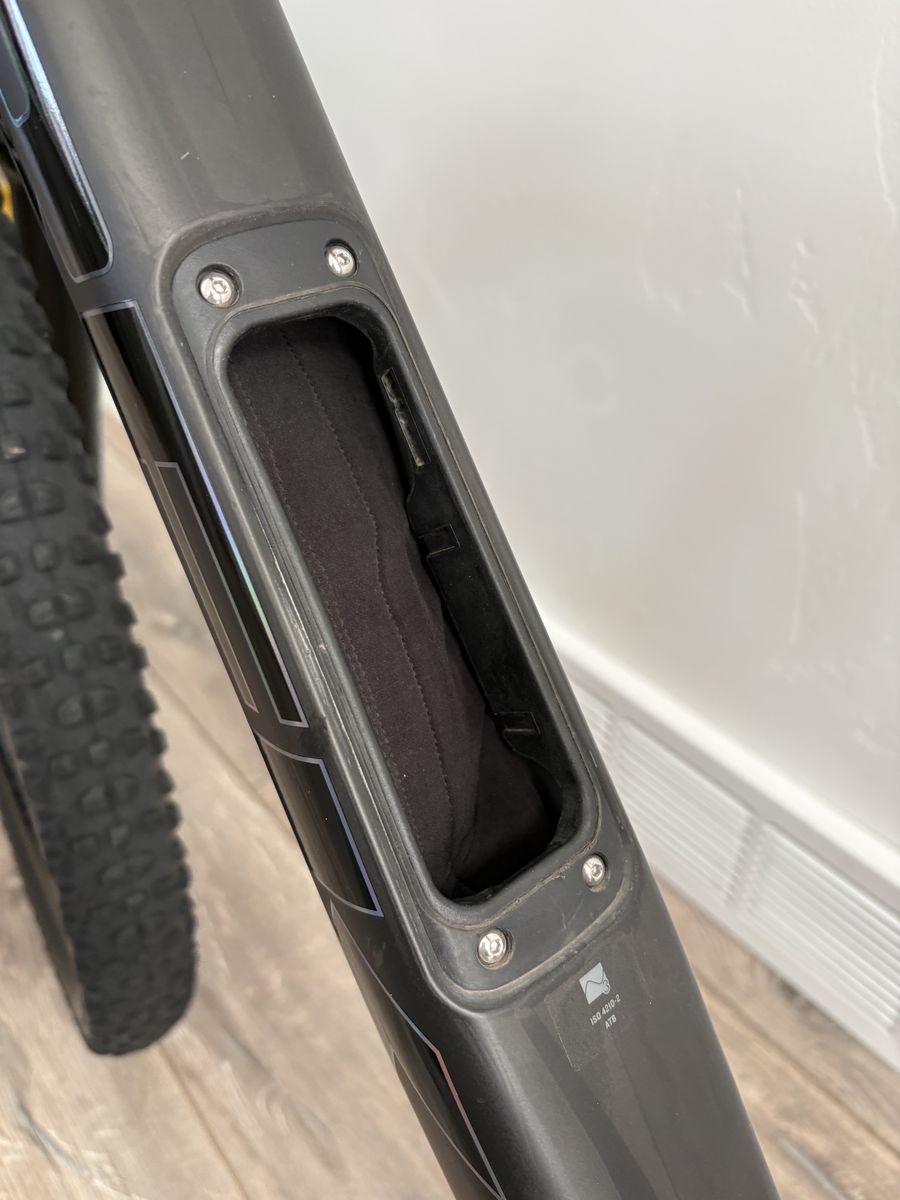

• ABP (Active Braking Pivot) rear suspension design • Geometry adjustable via Mino Link flip chip in lower shock mount • Control Freak internal cable routing • Internal frame storage via down tube opening • Includes Bontrager BITS Internal Frame Storage Bag • Knock Block 2.0 headset limits rotation of handlebars in event of crash • Includes Bontrager TLR tubeless rim strips, valve stems, and sealant • Weight given for size MD set up tubeless
