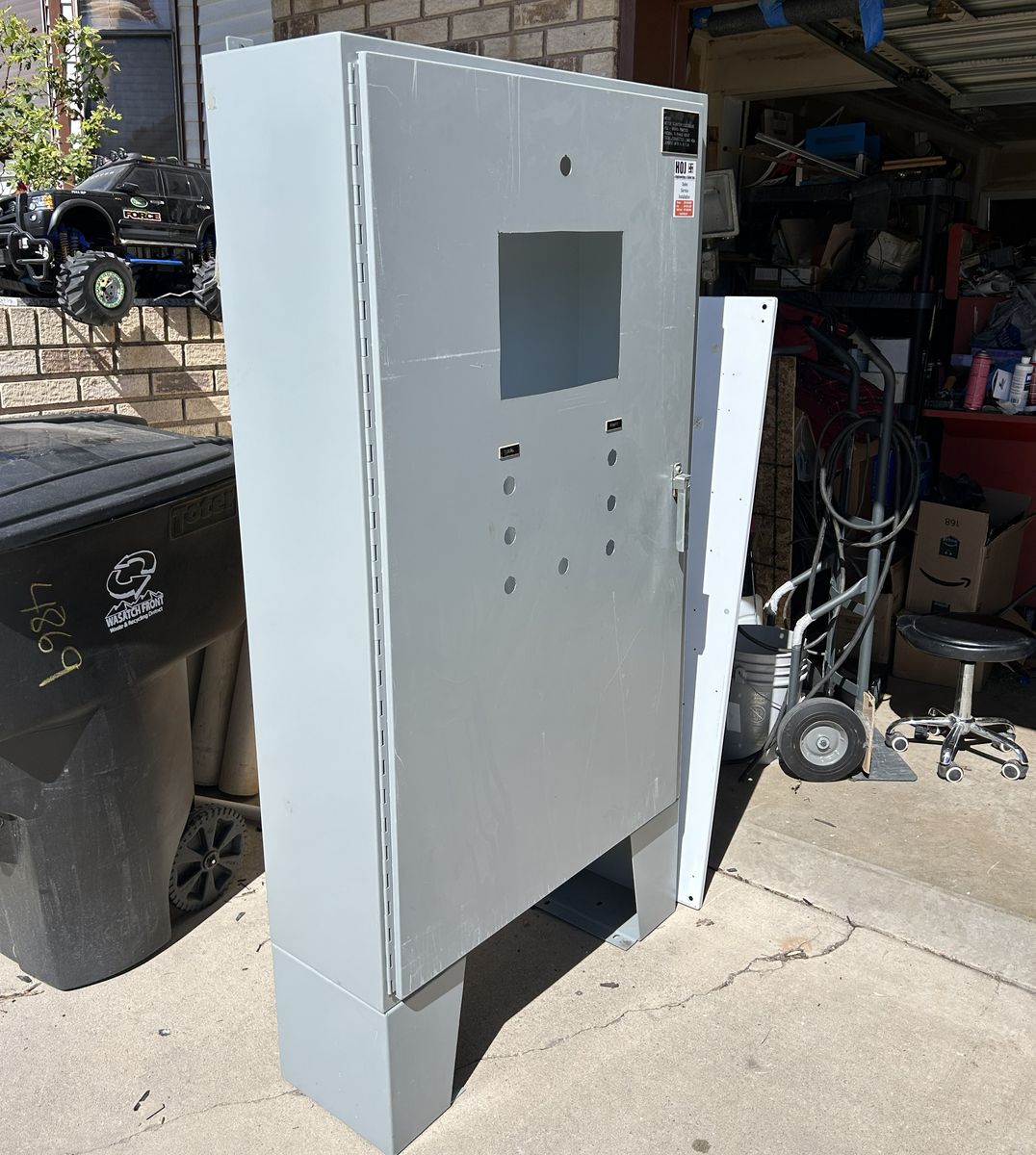

HOFFMAN Large Electrical Enclosure

Height 60 inches.

Width 36 inches.

Depth 12 inches.

Closure method handle, with 3-Point Latch

Wall mount electrical enclosure, with Floor Mounts Stands

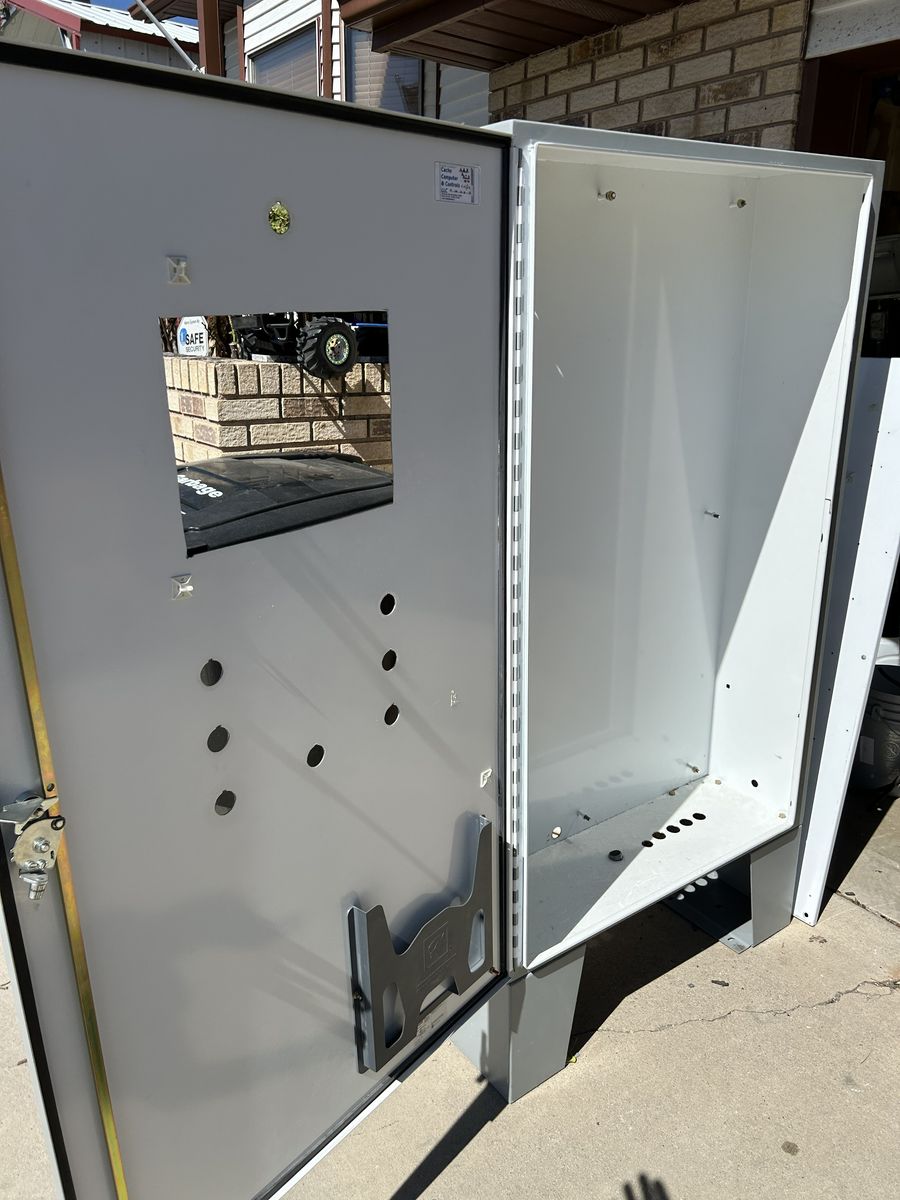

This enclosure was used to mount, And monitor. Plastic injection molding equipment. It has holes for. Switches. And a large hole was for a PLC Control Panel. The existing holes can be easily Covered over.

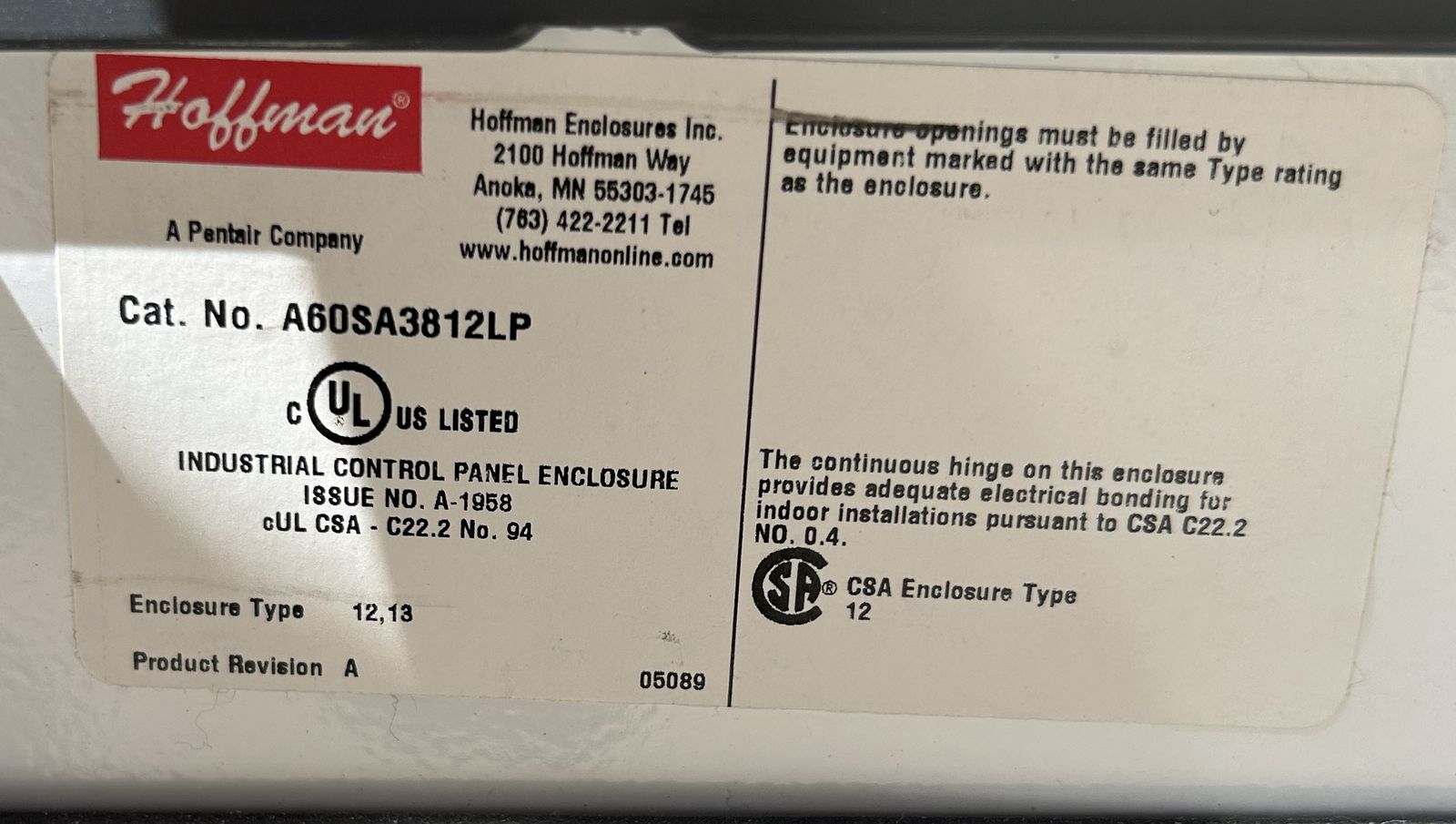

CAT. NO. A60SA3812LP

ENCLOSURE TYPE 12, 13

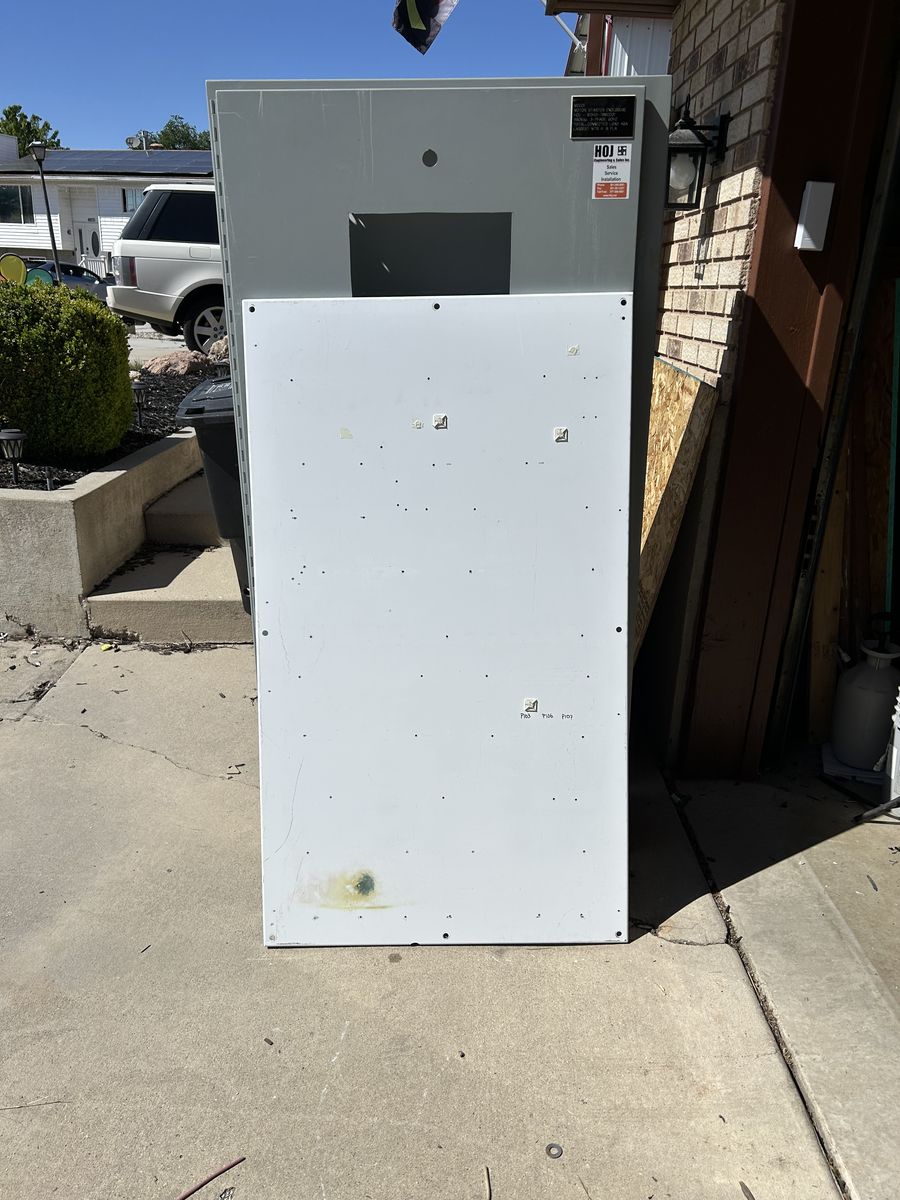

Interior mounting panel. Included. Interior Panel: Concept Panel, 58.2 in Overall Ht, 34.2 in

The HOFFMAN A60SA3812LP is a Type 12 wall-mount disconnect enclosure designed to house major brand disconnect switches and circuit breakers,

Key Specifications & Features

• Dimensions: (60.00 \times 37.38 \times 12.00) inches ((1524 \times 950 \times 305) mm).
• Rating: NEMA/EEMAC Type 12 and 13; IP65.
• Material: 14-gauge steel with continuously welded and ground smooth seams.
• Finish: Gray polyester powder paint inside and out.
• Cutout: Features the "Preferred Cutout" on the flange door, which accepts major brand operating handles.
• Door: Removable door with a continuous hinge.
• Mounting: External mounting brackets.
• Handle: This specific model (A60SA3812LP) generally does not include the defeater door handle, whereas the "A60SA3812LPPL" version does

Designed to house systems incorporating large components or complex mounting configurations. Three-point latching and sealing provide industry-leading protection from dust, dirt, oil and water. These enclosures are used in machine tool applications for housing motor starters, drives, contactors and PLCs, as well as a wide variety of other electrical and electronic equipment. These enclosures ideal for providing rugged protection for sensitive rack-mounted components in harsh industrial environments. These enclosures are used extensively in automotive, pulp and paper, wood products, textile and similar industries
