BIG Storage Shelter 80'x40'x20' With 2 End Doors(BRAND NEW) Dome
2 Days
181
3
$7,200.00
Description
Condition
Payment Types Accepted
Venmo
ZelleIF YOU CAN SEE THIS, IT IS AVAILABLE

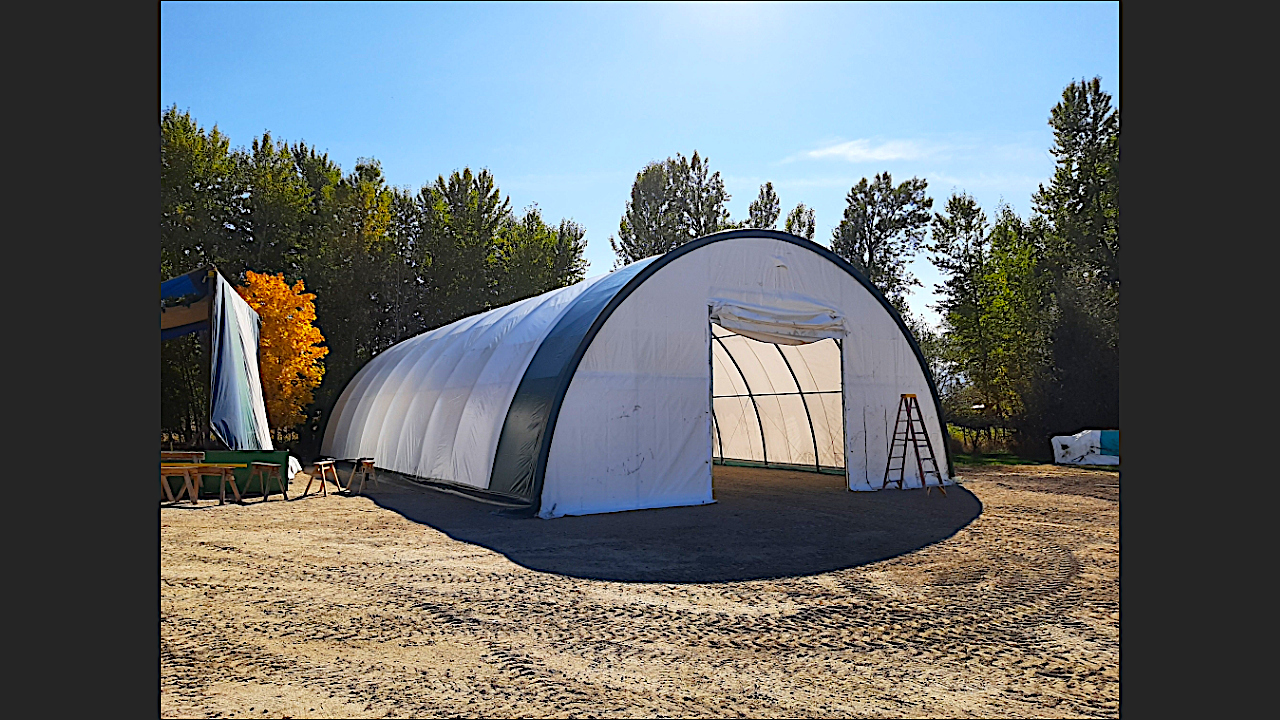

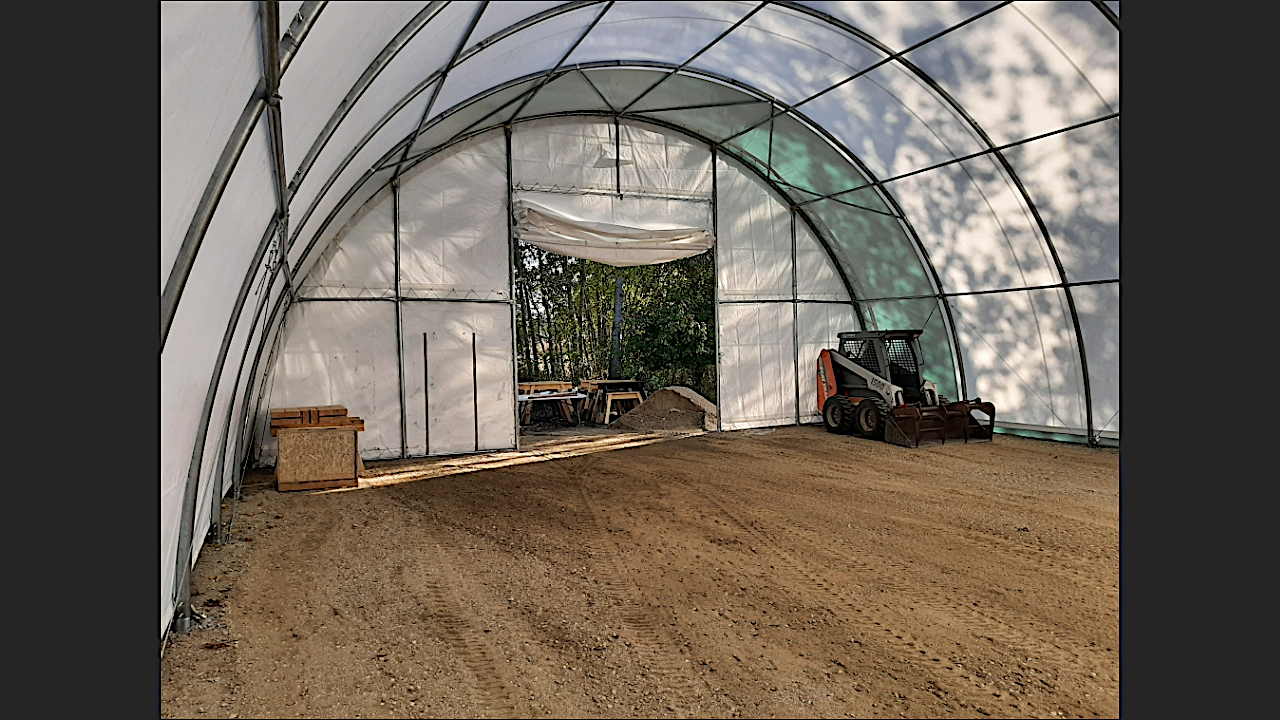

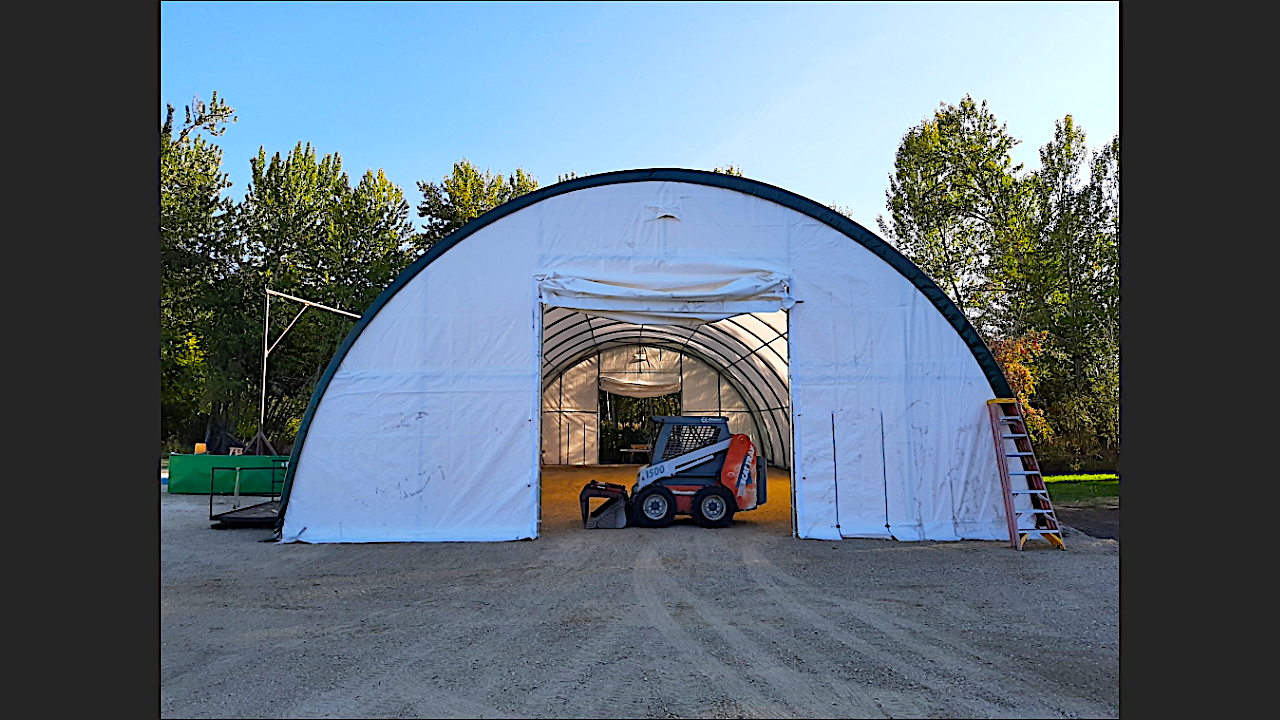

BRAND NEW,(still original packaging),Storage Shelter, Single Truss, 11oz PE Cover, 13' W x 14.8' H Wide Open Garage Door on Two End Walls. With a 6.3' man door on each end as well.
This Shelter is great for a work station or storing equipment inside.. Keeping things out of the weather is a great investment. We have 2 of them, and don't need them.
Asking $7,200
Ask about FREE delivery.
call or text 646-seven three eight 1140
Specification:
Model - S408020R
Dimensions- 40ft x 80ft x 20ft
Door dimension- W13.1 ft x H14.8 ft，side door: 2.7ft x 6.3ft
Arch Interval- 6.6 ft (2m)
Truss Tubes (mm)- Ø86x56x 2.0
Purlin Tubes (mm)- Ø48*1.5
Snow Rating- 1.77 kpa / 37 pounds per sq. foot
Max. Wind Speed- 90 miles per hour
Frame- Galvanized steel tubes
Fabric cover- White color and green edges
Snow Rate Test Result:
408020R
Test Load
Deflection
Lb
Kpa
Point A (inch)
Point B (inch)
Point C (inch)
Step 1
0
0
0
0
0
Step 2
1005
1.52
1.4
1.6
1.2
Step 3
1507
2.28
2.2
2.3
1.6
Step 4
Keep the test load until 30 minutes
Step 5
Remove the test load
0.6
1.1
1.2
Step 6
The test sample can withstand the applied test load without damage.
Feature
Resistant toward water, UV and fading
There is an average of 7-10 years of cover lifespan, depending on the environmental and weather conditions.
Style: Freestanding
Mechanical doors at two ends
Huge capacity for trucks, automobiles, and more bulk storage
Protect belongings from wind, snow and rain
CSA/TUV Snow Rating Test Report
SGS fabric Certificate
Type: Prefabricated Building
Certificate: SGS
Condition: New

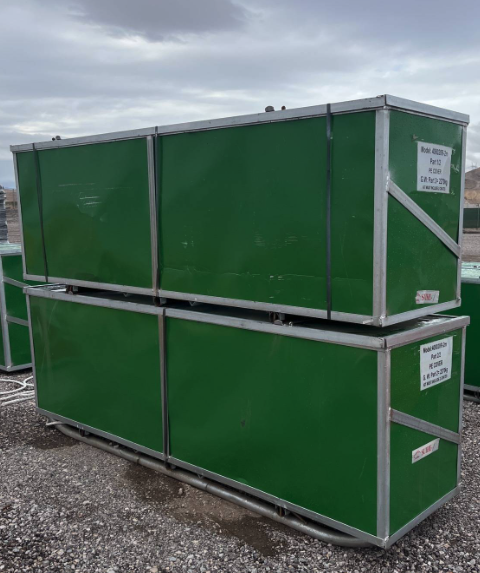

Package Size
LWH (inch): Box A: 1163039; Box B: 1163044
Weight (lb):4895
Please have a forklift or equivalent ready for unloading
