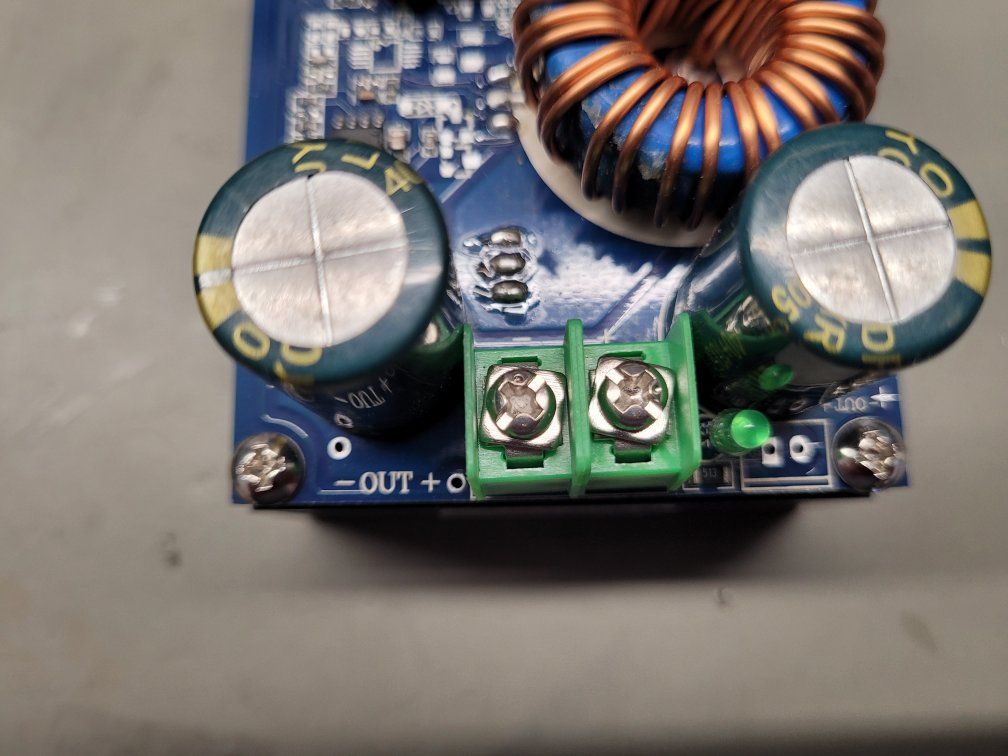

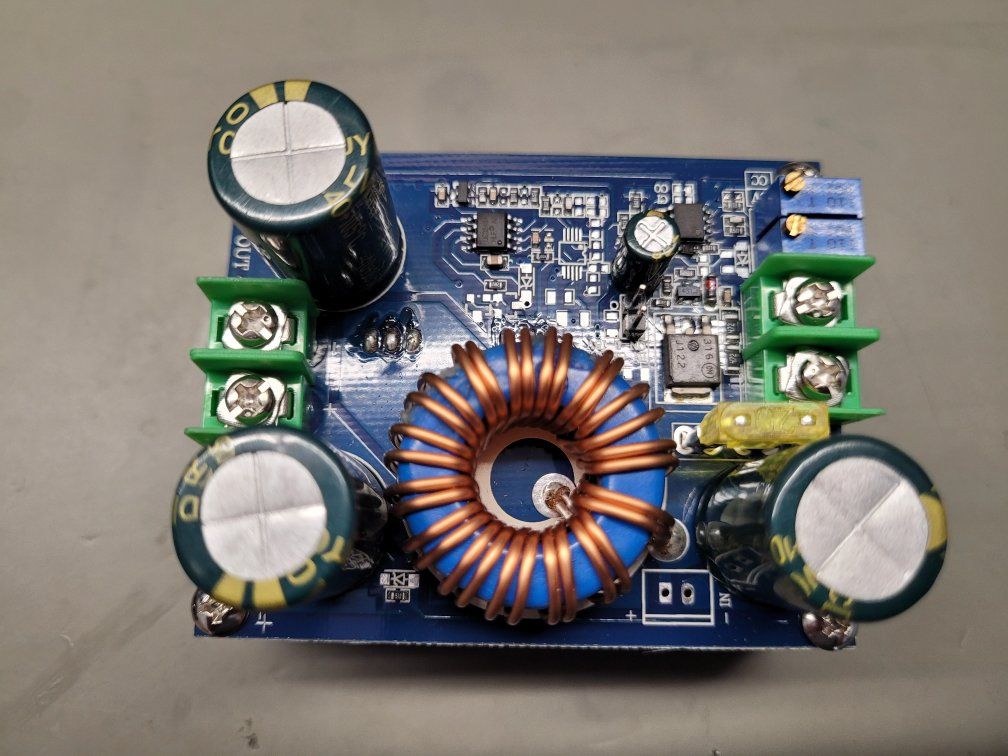

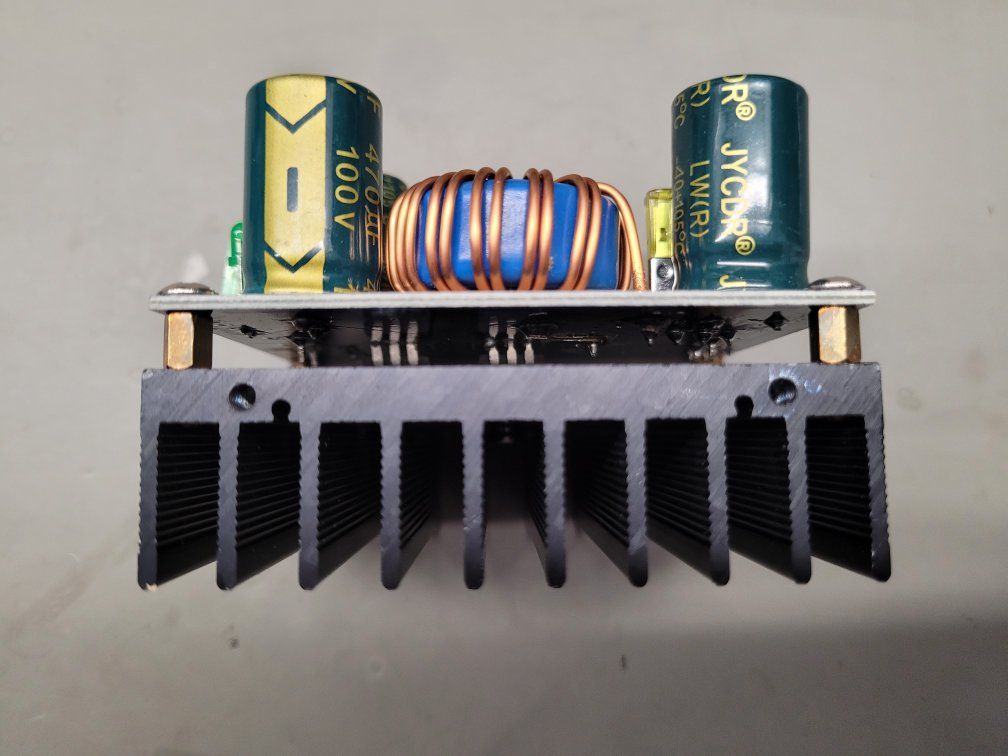

600W DC-DC Step Up Boost Buck Voltage Converter Power Supply 16A 12-80v

Bought for a project I never finished. This is brand new, never used.

1: 600W high power boost constant current 2: Overcurrent protection: Yes (input exceeds 17A, automatically reduces output voltage with a range of errors.) 3: Short-circuit protection: Yes (input 20A fuse) Double short-circuit protection, safer to use. 4: Output anti-reverse irrigation: Yes, for charging without adding anti-reverse diodes. 5: Easy to install and use 600W boost module, 12-60V wide input voltage, 12-80V adjustable wide output voltage, ultra-low input and output voltage difference. Module name: 600W step-up constant current module Module nature: Non-isolated step-up module (BOOST) Input voltage:Two input voltage ranges are available, (selectable via jumpers on the board) 1, 8-16V input (for three series of lithium and 12V battery applications) in this input state, please do not over-voltage input Otherwise the module will be burnt out!!! 212-60V input factory default range (for wide input voltage range applications) Input current: 16A (MAX) More than 10A please strengthen the heat dissipation Static working current: 15mA (12V to 20V, the higher the output voltage, the higher the static too current will increase) Output voltage: 12-80V continuously adjustable (default output 19V, if other voltages are required, please ask the shopkeeper for clarification) 12-80V fixed output (for bulk customers) Output current: 12A MAX More than 10A please strengthen the heat dissipation (related to the input and output pressure difference, the larger the pressure difference the smaller the output current) Constant current range: 0.1-12A Output power: = input voltage10A, e.g. input 12V10A=120W, input 24V10A=240W, input 36V10A=360W Input 36V10A=360W, Input 48V10A=480W, Input 60V*10A=600W For more power, two modules can be used in parallel, for example, if the output is 15A, two modules can be used in parallel. The current of each module can be adjusted to 8A. Operating temperature: -40~+85 degrees (please strengthen the heat dissipation when the ambient temperature is too high) Operating frequency: 150KHz Conversion efficiency: up to 95% (efficiency is related to input and output voltage, current and voltage difference) Overcurrent protection: Yes (input exceeds 17A, automatically reduces output voltage with a range of errors.) Short circuit protection: Yes (input 20A fuse) Double short circuit protection, safer to use Input reverse connection protection: yes, (if required please put diodes in series with the input) Output anti-reverse irrigation: Yes, for charging without additional anti-reverse diodes. Mounting: 2 x 3mm screws Wiring method: terminal block solder-free output Module size: length 76mm width 60mm height 56mm Module weight per unit: 210g Application range. 1DIY a regulated power supply, input 12V can be, output can be 12-80V adjustable. 2, for your electronic equipment power supply, you can set the output value according to your system voltage. 3As a car power supply, for your laptop, PDA or various digital products power supply. 4DIY a high power laptop mobile power supply: with a large capacity 12V lithium battery pack, so that your book can be bright wherever you go 5Solar panel voltage stabilisation. 6Charge batteries, lithium batteries, etc. 7Drive high power LED lights. $10 takes it located in Centerville
