"More Trailer For Your Money"

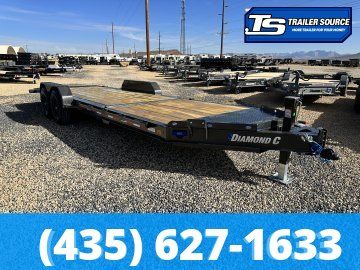

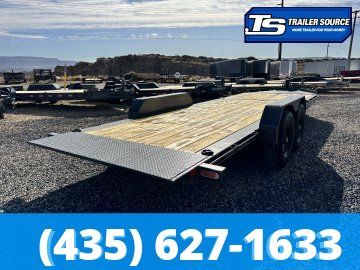

7 x 22 Diamond C HDT 207 15.5K Tilt Trailer – Ready To Work!

14 Ply Tires

The Diamond C HDT 207 is essentially the "gold standard" for owner-operators and contractors who need to move mid-sized machinery without the hassle of heavy manual ramps.

KEY STANDARD FEATURES Engineered Beam Technology

Unlike traditional cold-formed I-beams, Diamond C uses a custom-designed Engineered Beam. This allows the frame to be taller and stronger where the load is heaviest, yet lighter overall, maximizing your payload capacity without sacrificing structural integrity.

Hydraulic Dampening System

The trailer features a gravity tilt bed equipped with a Hydraulic Dampening Cylinder and valve control. This ensures a "silky smooth" transition when tilting the bed up or down, preventing the deck from crashing against the frame during loading and unloading.

DM Difference Maker Coating System Standard for 2026 is the DM Difference Maker powder coating process. This includes an intensive grit-blast preparation and an epoxy primer base, providing superior rust protection and a long-lasting, high-gloss finish that withstands professional use.

Demco EZ-Latch Coupler The HDT 207 comes standard with the 2-5/16" 21,000 lb Demco EZ-Latch adjustable coupler. This system automatically latches when dropped onto the ball, providing a secure, "hands-free" connection that is much safer and faster than traditional thumb-latches.

HD V-Tongue Storage Box

To maximize space, the trailer includes a heavy-duty V-tongue lid that serves as an integrated storage box. It is large enough to hold chains, binders, and tools, keeping them secure and out of the elements.

High-Capacity Radial Tires

The 207 package includes ST235/80R16 14-ply radial tires. These all-steel radials are significantly more durable than standard 10-ply tires, offering better heat dissipation and higher load ratings for heavy equipment transport.

All-LED Lighting & Sealed Wiring The trailer is equipped with all-LED lights—including clear lens side markers and recessed tail lights—connected via a fully sealed, cold-weather wiring harness. This reduces maintenance issues common with traditional bulb systems and exposed wiring.

PERFECT FOR Compact Construction Equipment

This is the primary design intent. It is the "perfect" trailer for:

• Skid Steers & Compact Track Loaders: The low approach angle (usually around 12°) makes it easy to drive tracks or tires up without the "bucking" or sliding you get on steep ramps.
• Mini Excavators: The heavy-duty 7,000 lb axles (14.9K GVWR) are ideally suited for 3-ton to 5-ton mini-diggers.

Low-Clearance Scissor Lifts

Because the entire bed tilts to the ground, there is no "lip" or "gap" for small, hard wheels to get stuck on. If you are a rental yard or a contractor moving electric scissor lifts, this trailer prevents the common "high-centering" issue found on ramp trailers.

"Hot Shot" Pallet Hauling

When configured with a stationary deck (e.g., 4' or 6' of flat space at the front), this trailer becomes a versatile tool for hot-shotting:

• You can load a piece of equipment on the tilt portion.
• Place pallets of sod, brick, or materials on the stationary front deck.

Compact Tractors & Implements

For hobby farmers or landscapers, it’s ideal for compact utility tractors with attachments (backhoes, mowers, or loaders). The hydraulic dampening ensures that if the tractor's weight shifts quickly while loading, the bed doesn't slam down and damage the tractor's 3-point hitch or the trailer's frame.

**WHY CHOOSE THE DIAMOND C HDT 207 OVER THE COMPETITION?

The "Engineered Beam" (Strength vs. Weight)** Most tilt trailers use standard, off-the-shelf I-beams. Diamond C uses a U.S. Patent-Protected Engineered Beam.

• The Difference: They laser-cut the steel to be taller and thicker in the middle (where the stress is highest) and tapered at the ends.
• The Result: You get a trailer that is significantly stronger but lighter than a traditional beam, giving you more payload capacity and better fuel efficiency.

2. Superior Finish (The DM Coating System) Paint failure is the #1 reason trailers lose value. Diamond C’s Difference Maker (DM) coating process is an industry outlier:

• The Process: It involves a 6-step process including a grit blast, an acid wash, and a zinc-rich primer before the powder coat.
• The Result: It resists the "spider-web" rust common on other trailers, maintaining its resale value for years longer than competitors.

3. Safety & Loading Dynamics The HDT is designed to eliminate "loading anxiety":

• Controlled Descent: The hydraulic dampening isn't just a cylinder; it’s a valve-controlled system that you can tune. You can set exactly how fast the bed drops.
• Low Profile: The HDT frame is designed to sit lower than many competitors, giving you a shallower load angle—essential for low-clearance machinery like scissor lifts.

4. The "Small Things" are Standard Other manufacturers often charge extra for the "pro" features that Diamond C includes by default:

• 14-Ply Tires: While others often ship with 10-ply radials, Diamond C provides all-steel 14-ply tires, which are much more resistant to blowouts under heavy equipment loads.
• HD V-Tongue Box: Most trailers have a small plastic or thin steel box. The HDT box is built into the frame with a 3/16" diamond plate lid that is strong enough to stand on.
• EZ-Latch Coupler: The Demco hitch is a massive quality-of-life upgrade—it "self-locks" when you lower it, so you never have to wonder if you pinned the latch correctly.

Resale Value Because of the Engineered Beam and the DM Paint, Diamond C trailers typically command a 15–20% higher resale price on the used market. It is often referred to as the "Cadillac" of tilt trailers by contractors, meaning it's an asset that holds its value.

Best in Industry Warranty 6-Year Structural Warranty

2-Year Comprehensive (Bumper-to-Bumper)

$500 Dealer Pre-Approval
