New EBY FB8X31SDPT-40L Trailer

Super Duty Flatbed Trailer - Tandem Axle - Pull-type

40,000 Ib.

40L GVW 25’ Bed Length, 6’ Beavertail 8'6” Width 0

1 Piece |-beam Construction

80 ksi web and T1 flanges (1) 22,500 Ib. axle w/ ABS Air Brakes

Spring Ride (1) 22,500 Ib. axle Non-ABS Air Brake

Spring Ride Hutch 9700 Spring (8) 235/75R-17.5 Load Range J Tire (18-ply) w/ Dual Wheel 6’ Self Cleaning Wood Beavertail

3" Adjustable Pintle Hitch (Rated at 66,000 Ibs.)

Oak Deck (Screwed down with heavy duty 5/16" screws)

Tongue Mount Toolbox (2)

Dual Speed Semi-Style Landing Gear Solid Front Rail

6" High 4" Jr. I-beam Crossmembers on 16" centers 8"x 11.5 Lb. Channel Side Rail 1/4" Steel Over the Wheels D-rings Every 4’ (see options page for stake pockets & rub rail) (2)

1/2" Grade 70 Transporter Safety Chains Deck

Height: Approximately 35" when unloaded and 33" when fully loaded

Rubber Mounted LED Lights Amber Center Turn Lights, 1 ea.

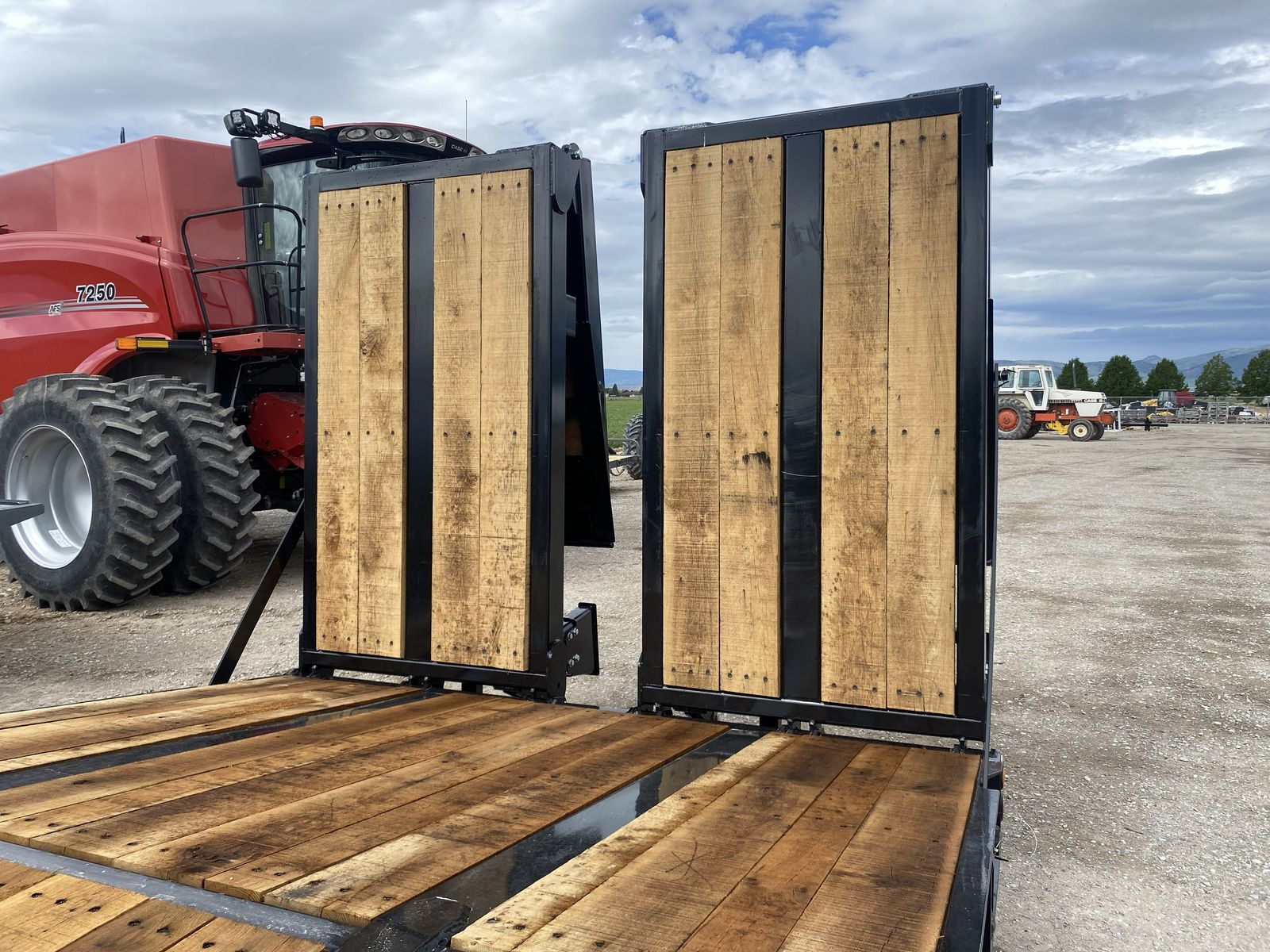

Side Step With Handle on Driver's Side Mud Flaps Reflector Tape Zinc Rich Primed and Powder Coated—Black Services Hydraulic bi-fold ramps Services Aluminum wheels, outside only
