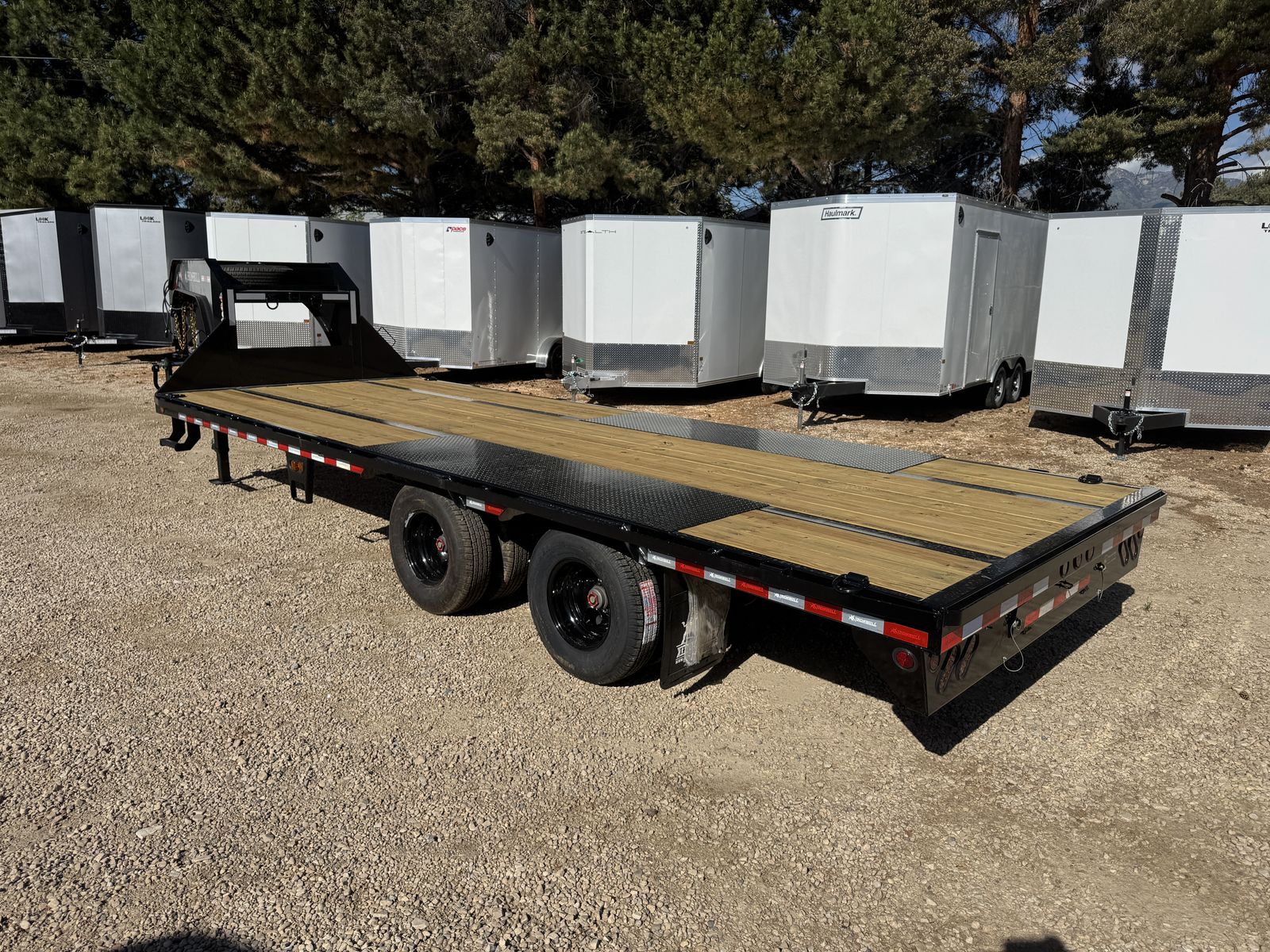

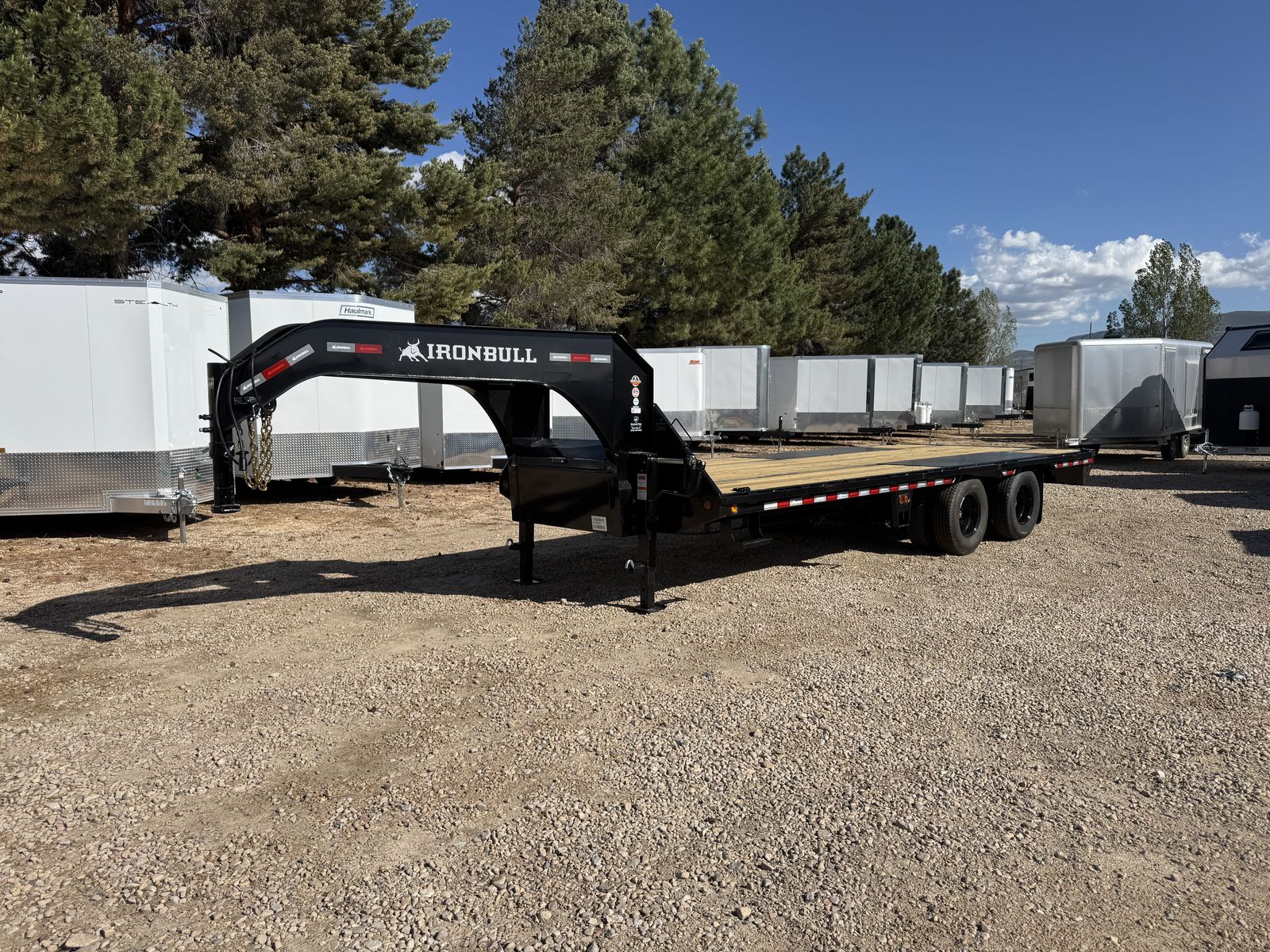

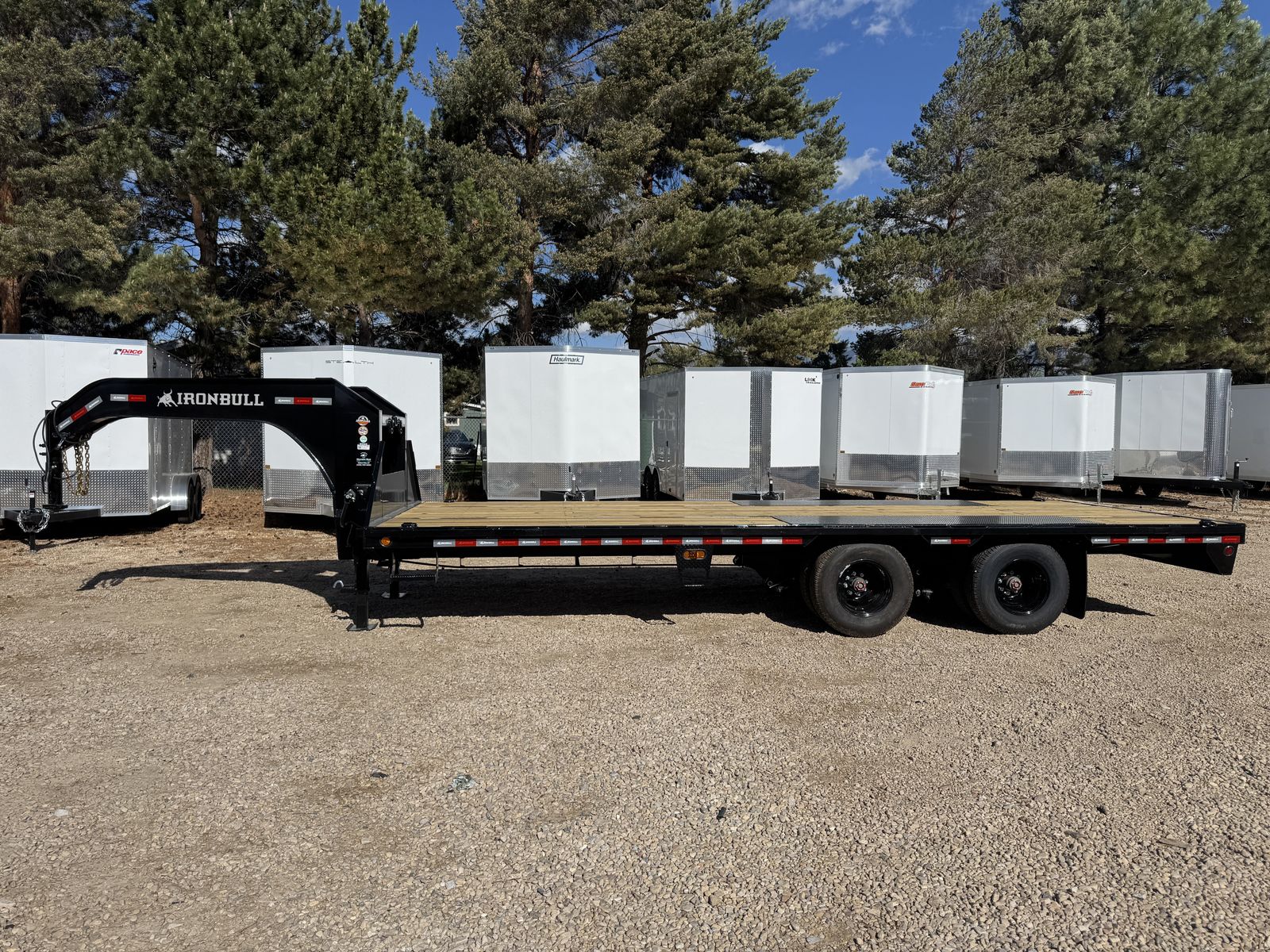

2027 Iron Bull 8.5X22-25.9K Gooseneck Flatbed Equipment Trailer

FLG0222122 SD

--

The FLG is equipped with a low-pro, pierced frame design that lowers the deck 3” providing a decreased center of gravity, more stable cornering and a lower loading angle for equipment. Ironbull Goosenecks have earned a reputation as some of the most rugged and longest-lasting units in service today. This isn't by chance; it's the result of meticulous engineering and a commitment to using high-quality materials and construction techniques. From heavy-duty steel to precision welding, every component is designed to withstand the most demanding work environments, ensuring your investment continues to perform reliably for years to come, minimizing downtime and maximizing your operational efficiency.

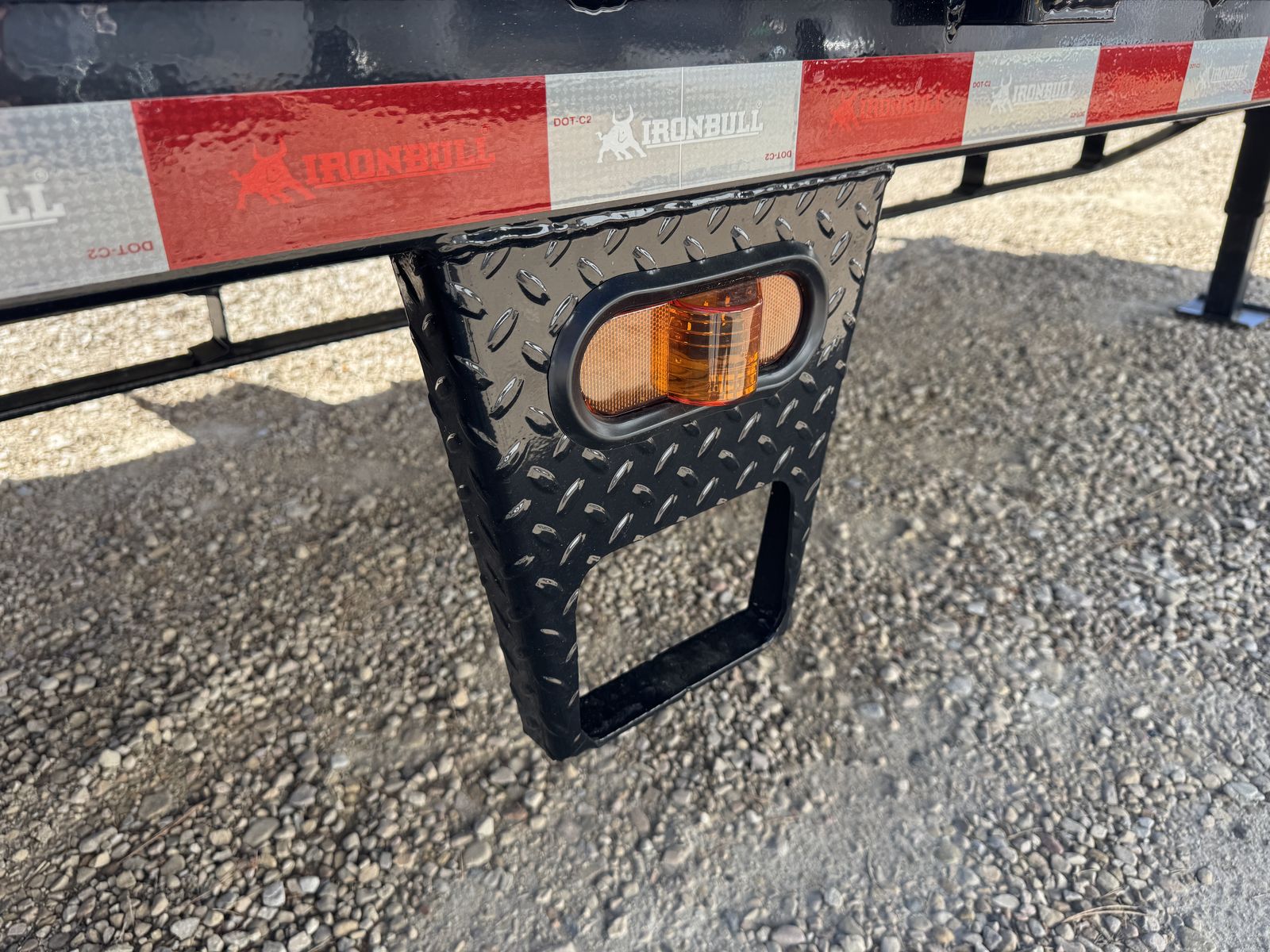

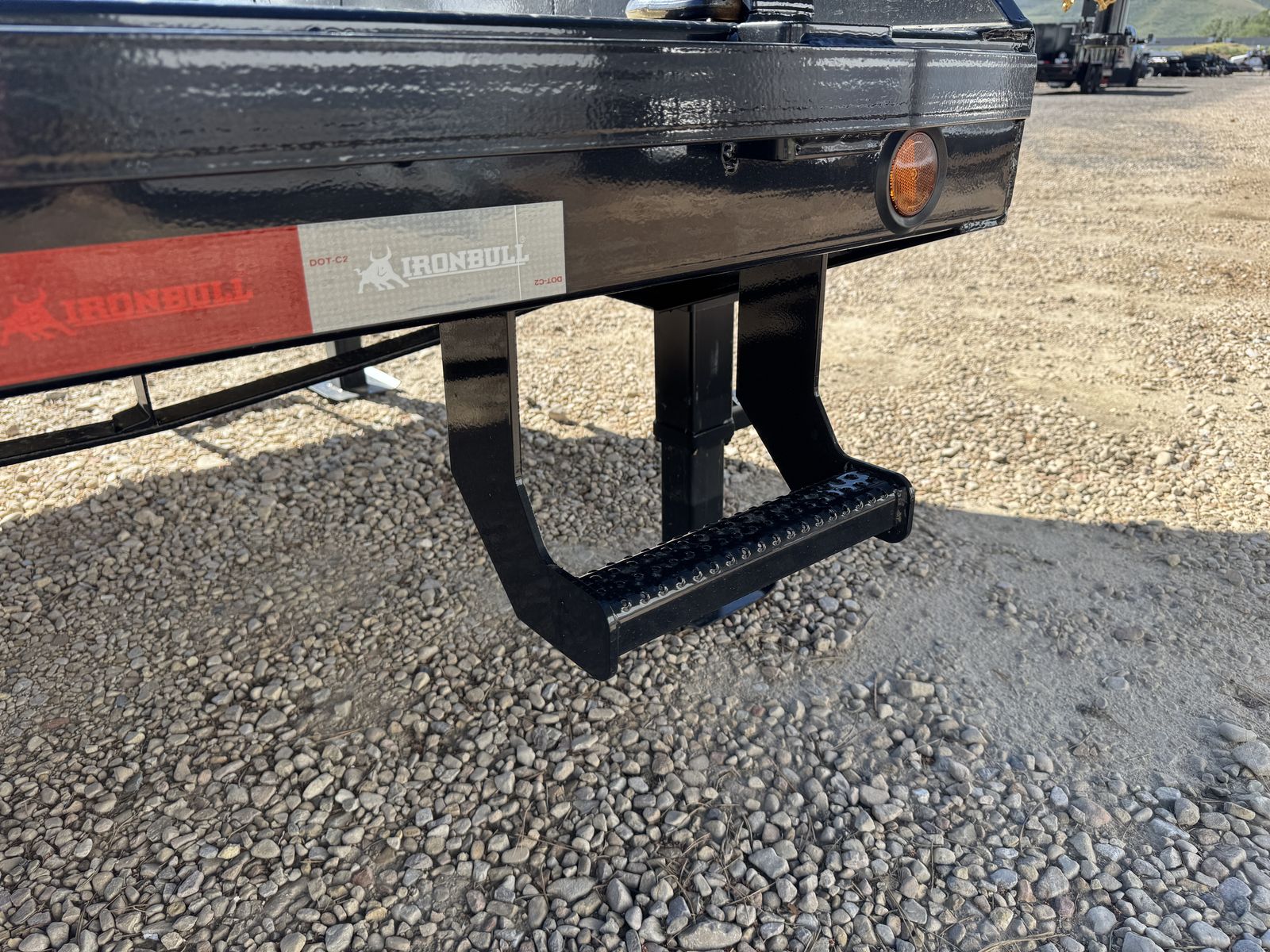

Our 102" wide 22k low-pro Gooseneck is by far our most popular model. Standard on all Ironbull FLG models comes our pipe bridge to reduce torque under heavy loads. Heavy SCH40 construction outclasses thin walled pipe as seen on some of the competition. Low-Pro, pierced frame design lowers the deck 3" providing a lower center of gravity, more stable cornering and a lower loading angle for equipment. 12" 19lb/ft I-Beam makes up the main frame of these monsters - compared to the 14lb found on the other guys. Heavy duty 10" I-beam crossmembers are located on the lower main frame to further support the pipe bridge. These important steel beams are omitted by some competitors. 3" Channel crossmembers located in the deck frame are on 16" centers and topped with 2" x 8" treated pine wood - and you will find a standard locking toolbox at the front of each gooseneck trailer. Two 16" side steps adorn the front of each deck.

All wiring is in a sealed harness and runs inside the 2" x 8" upper deck frame. Fresh powder coat gives each trailer a rugged finish with a showroom shine. USA made, lifetime recessed LEDs are provided by TecNiq lighting. Each Ironbull Trailer also comes equipped with stake pockets, pipe spools and rub rails as well as an adjustable coupler. All Ironbulls are sitting on electric brake axles and roll down the road on radial tires. Select from our multiple tail options including our rampage ramps or a hydraulic dove tail and corral your Ironbull today.

--

SPECS

102" Deck Width

22' Deck Length

34" Deck Height

(2) 12,000# Axles

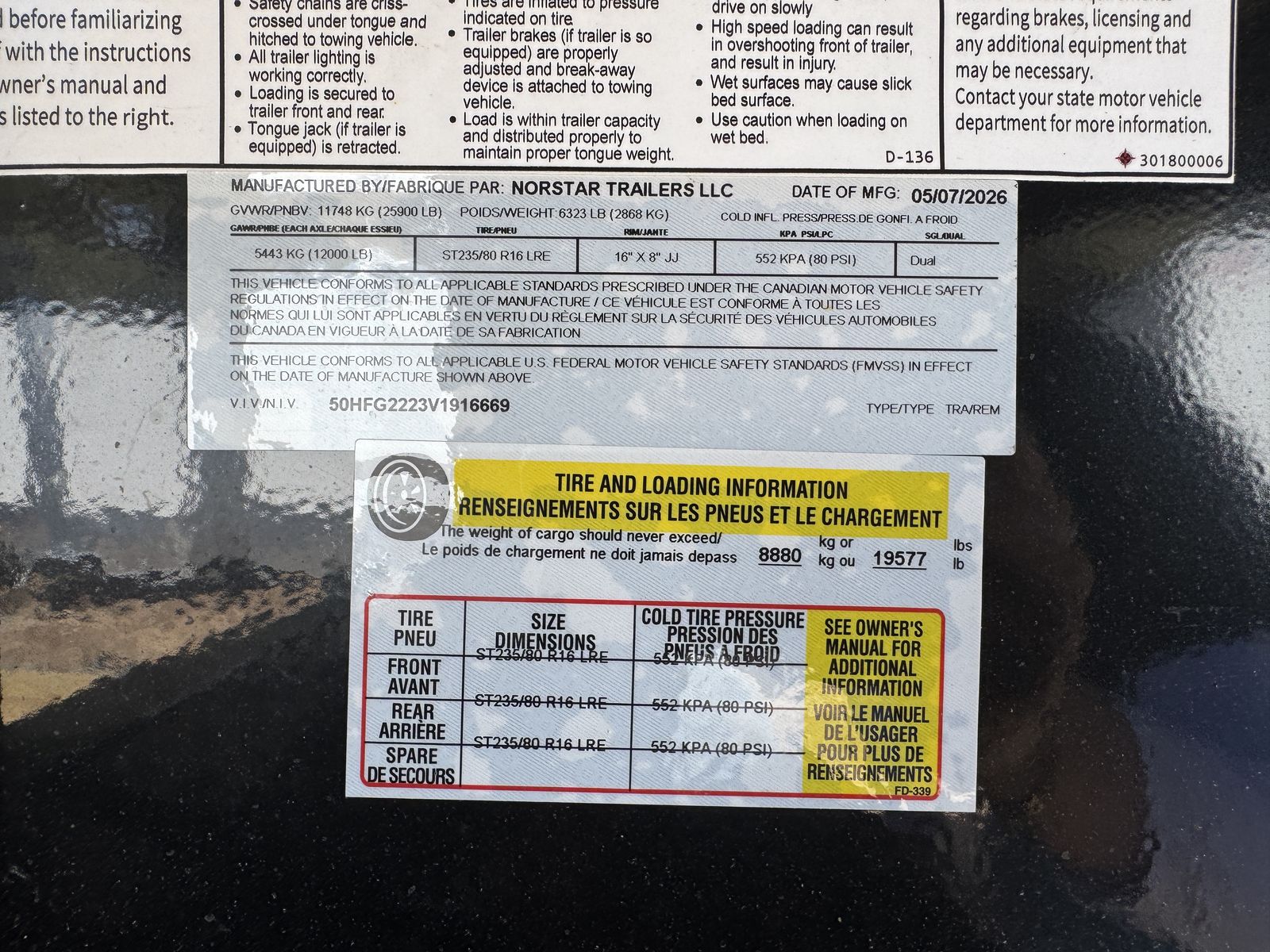

25,900# GVWR

6,323# Dry Weight

--

STANDARD FEATURES

12” I - Beam Frame and Neck (19 lbs/ft)

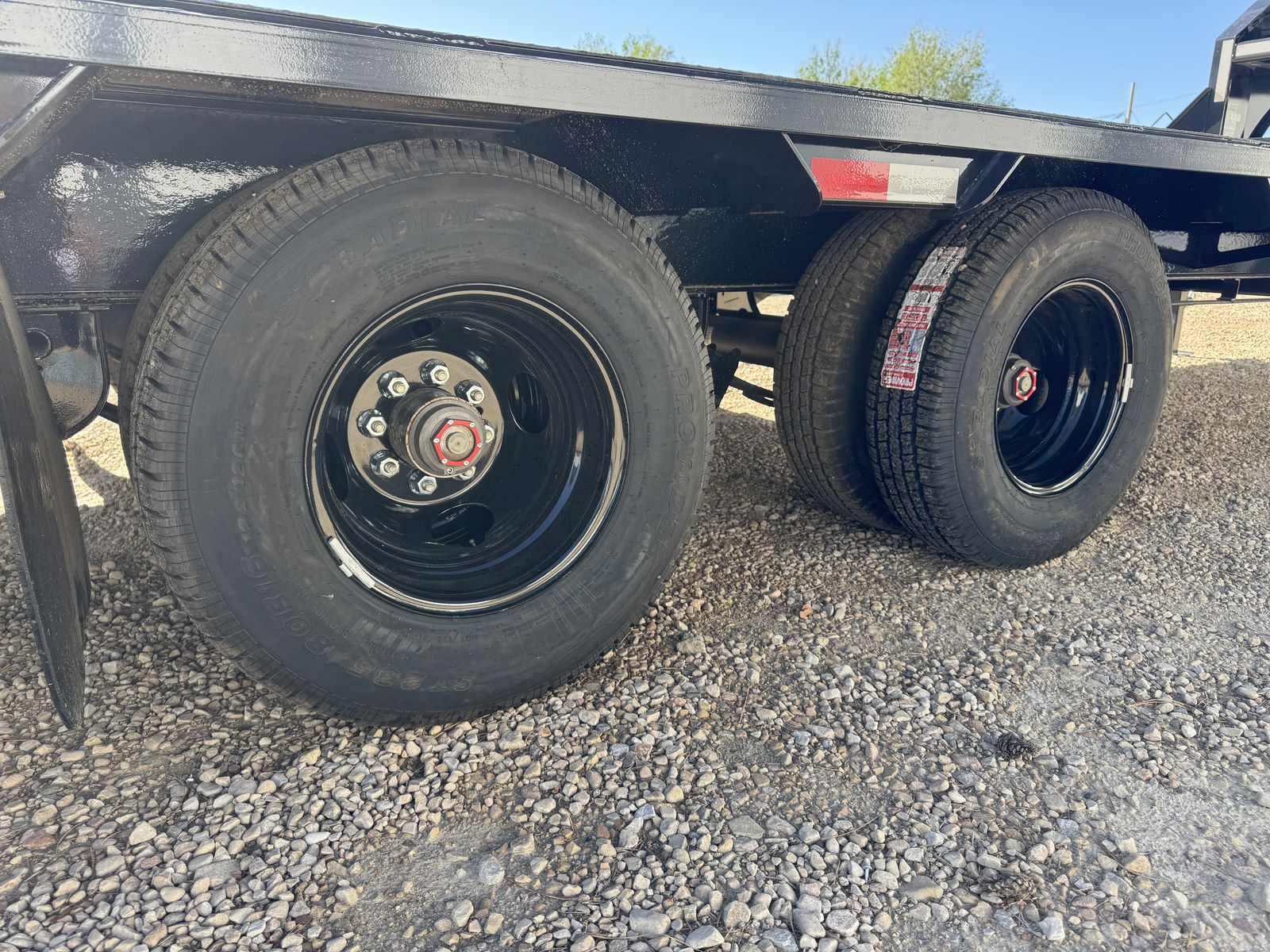

235/80R16 Radial Tires

Low Pro Deck

2 5/16” Adjustable Coupler

3” Structural Crossmembers

2.5 x 2.5 Front Bumper Rail

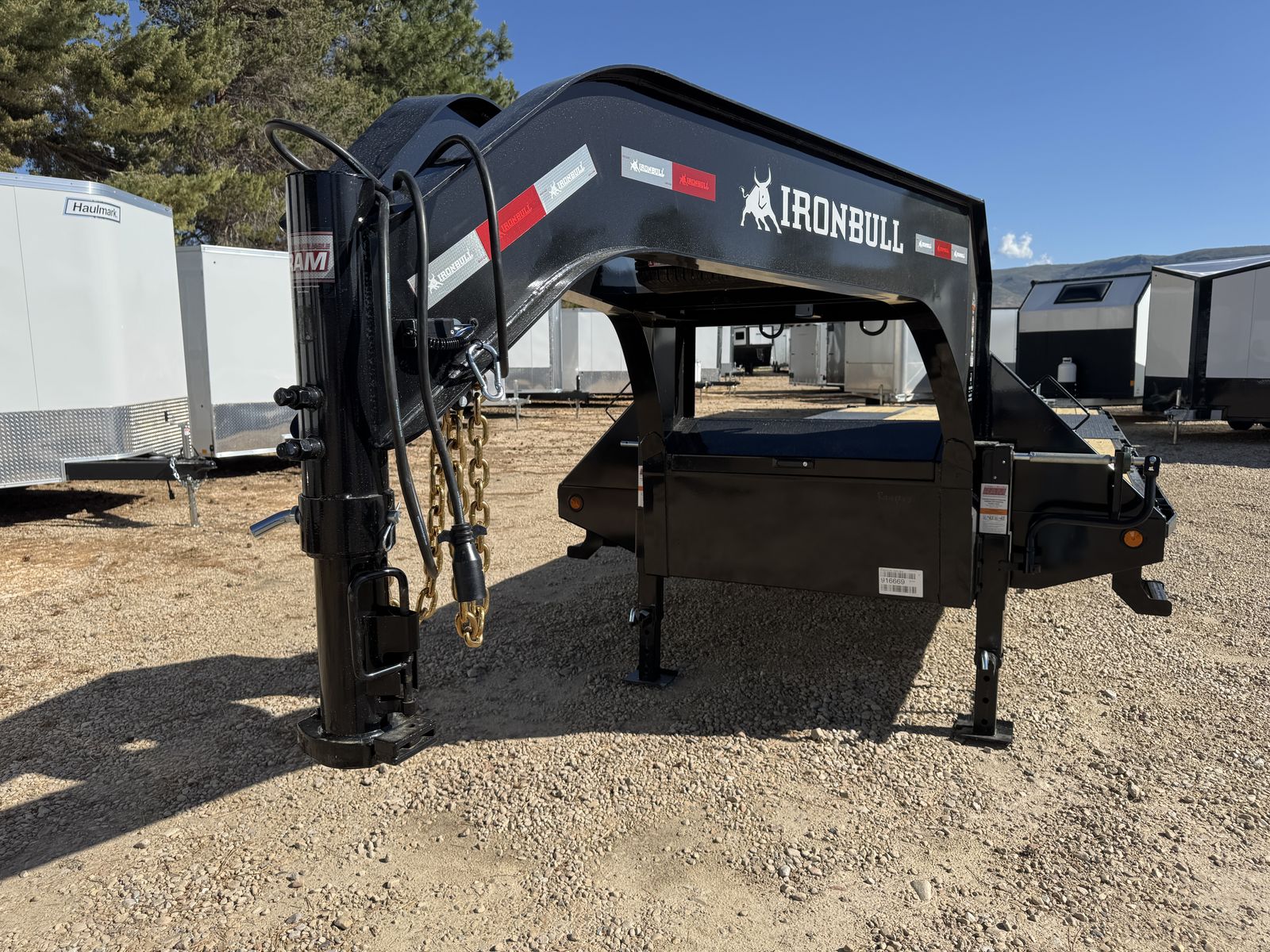

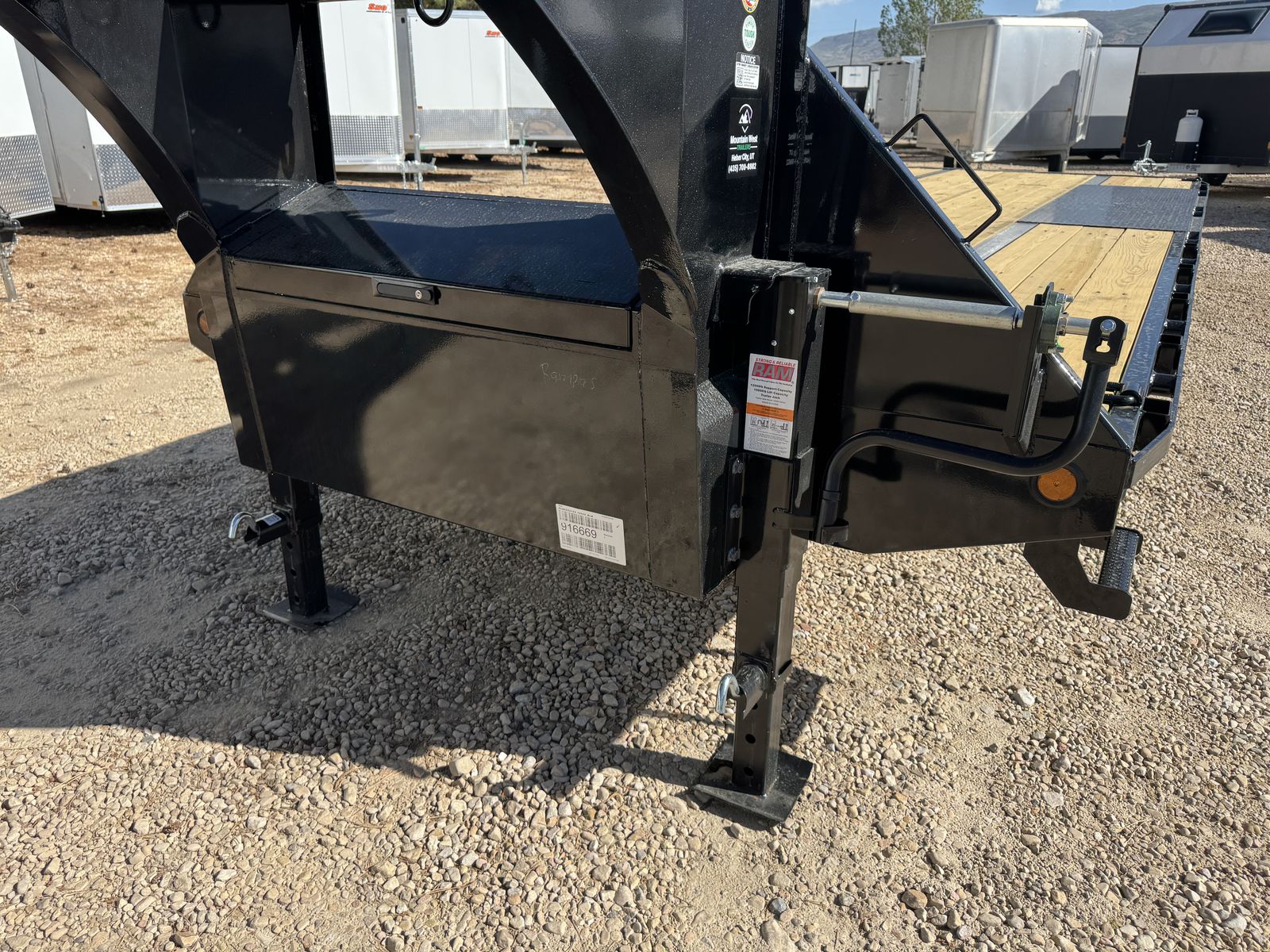

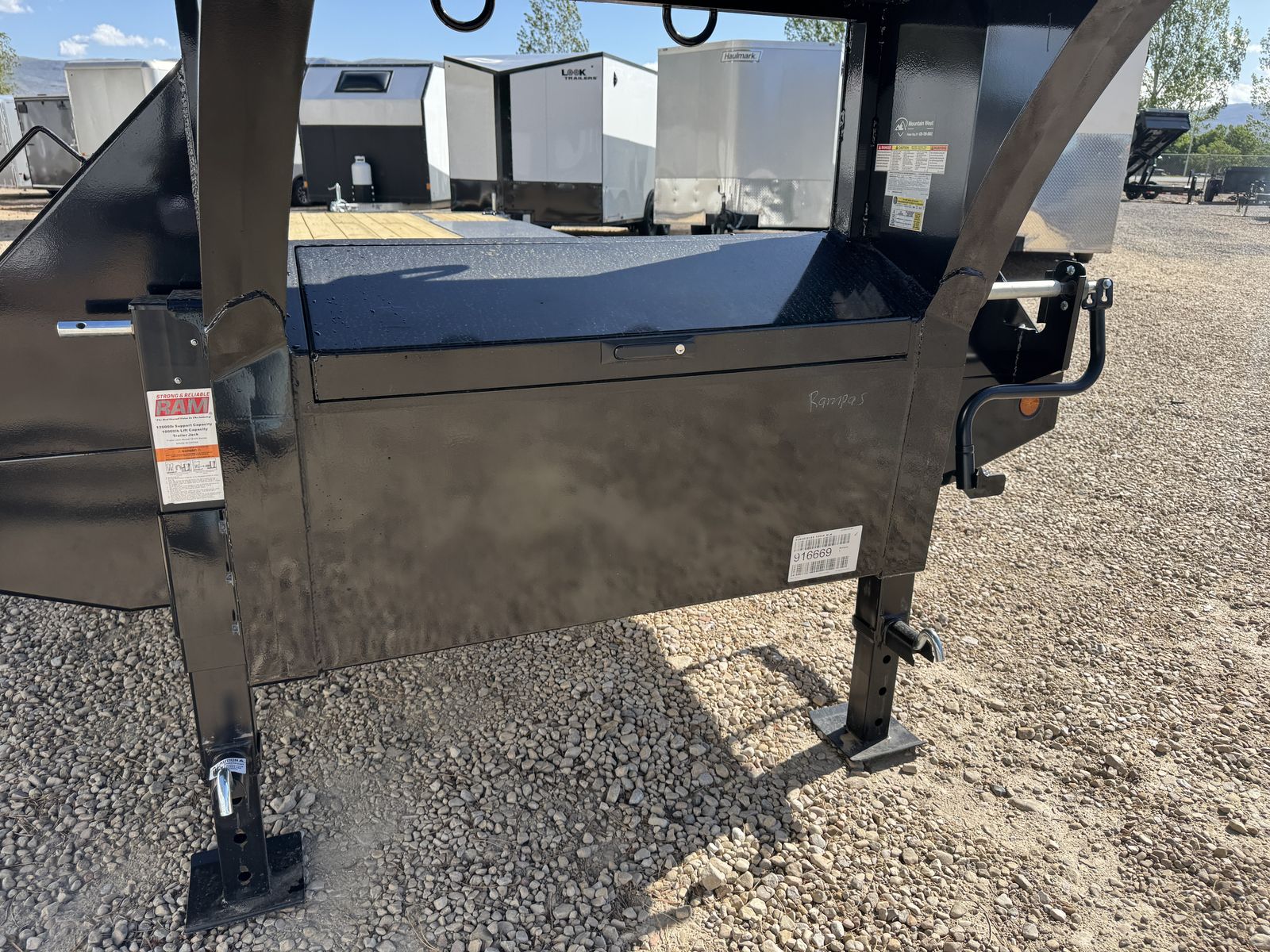

Lockable Full Neck Width Tool Box

Rub Rail, Stake Pockets & Pipe Spools

Standard Torque Tube & Underframe Bridge

Heavy Duty Suspension System Standard

2 - 10k Electric Brake Axles

Multi-leaf Slipper Spring Suspension

E-Z Lube Hubs

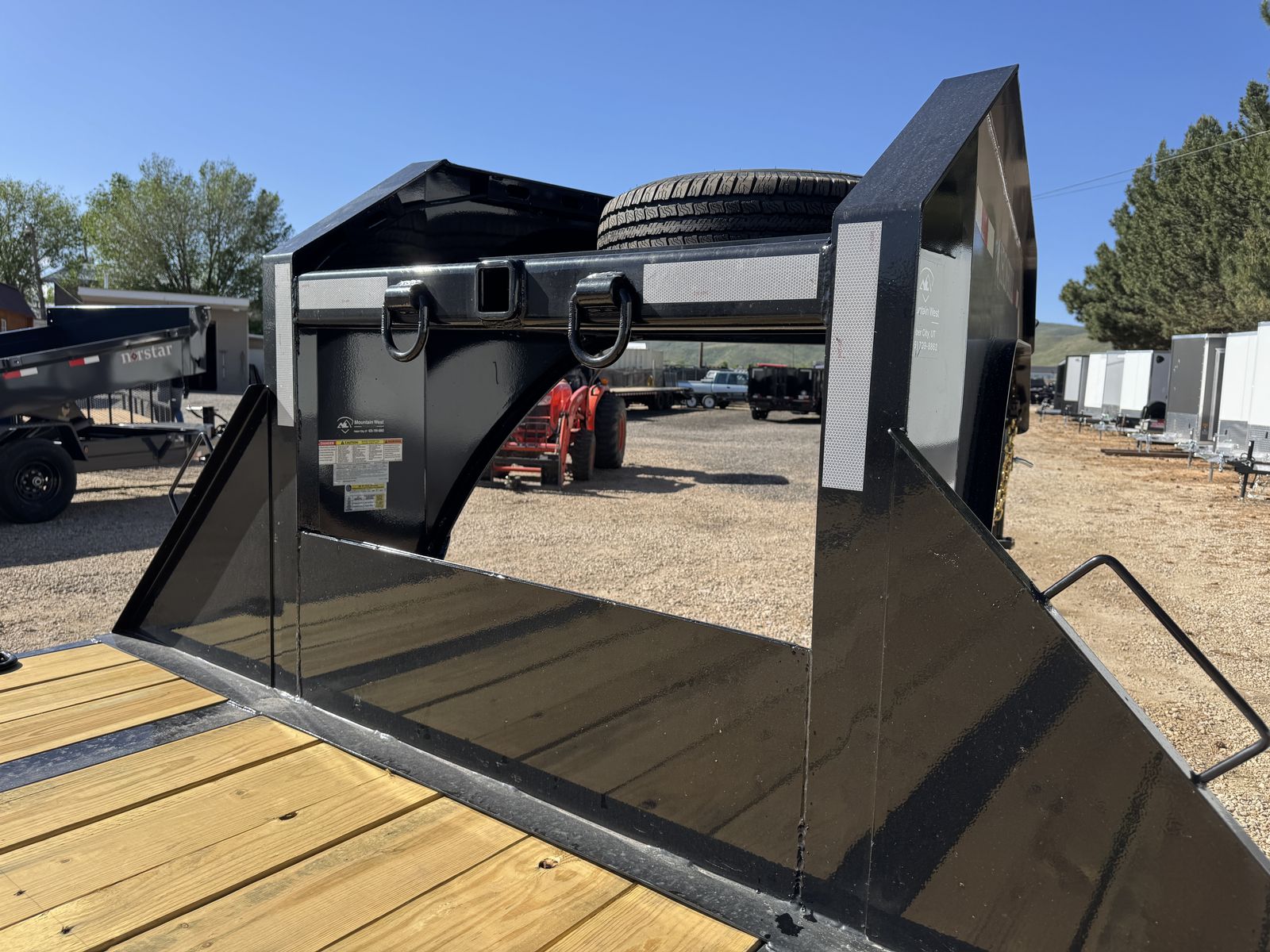

25” Gooseneck Box

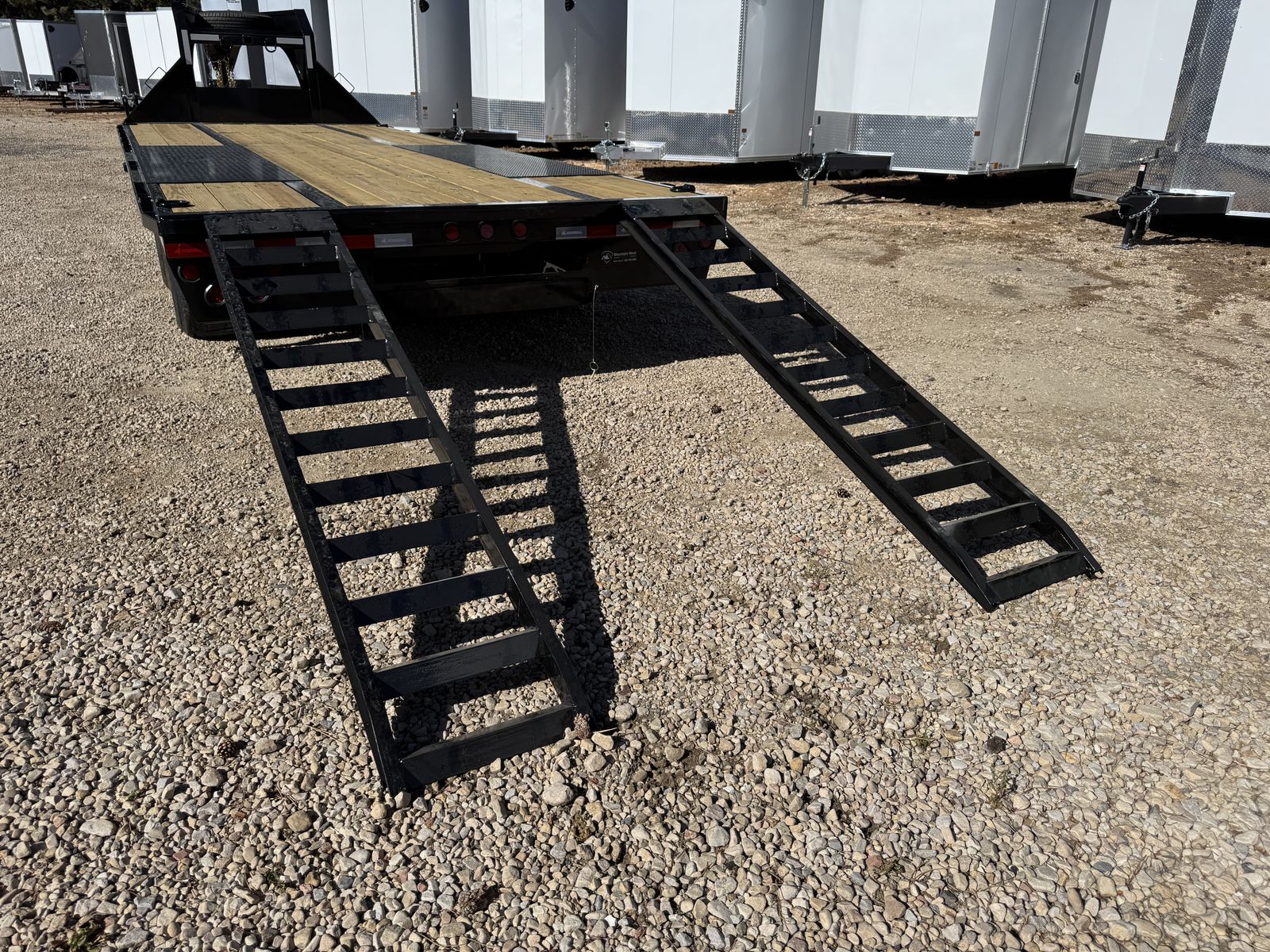

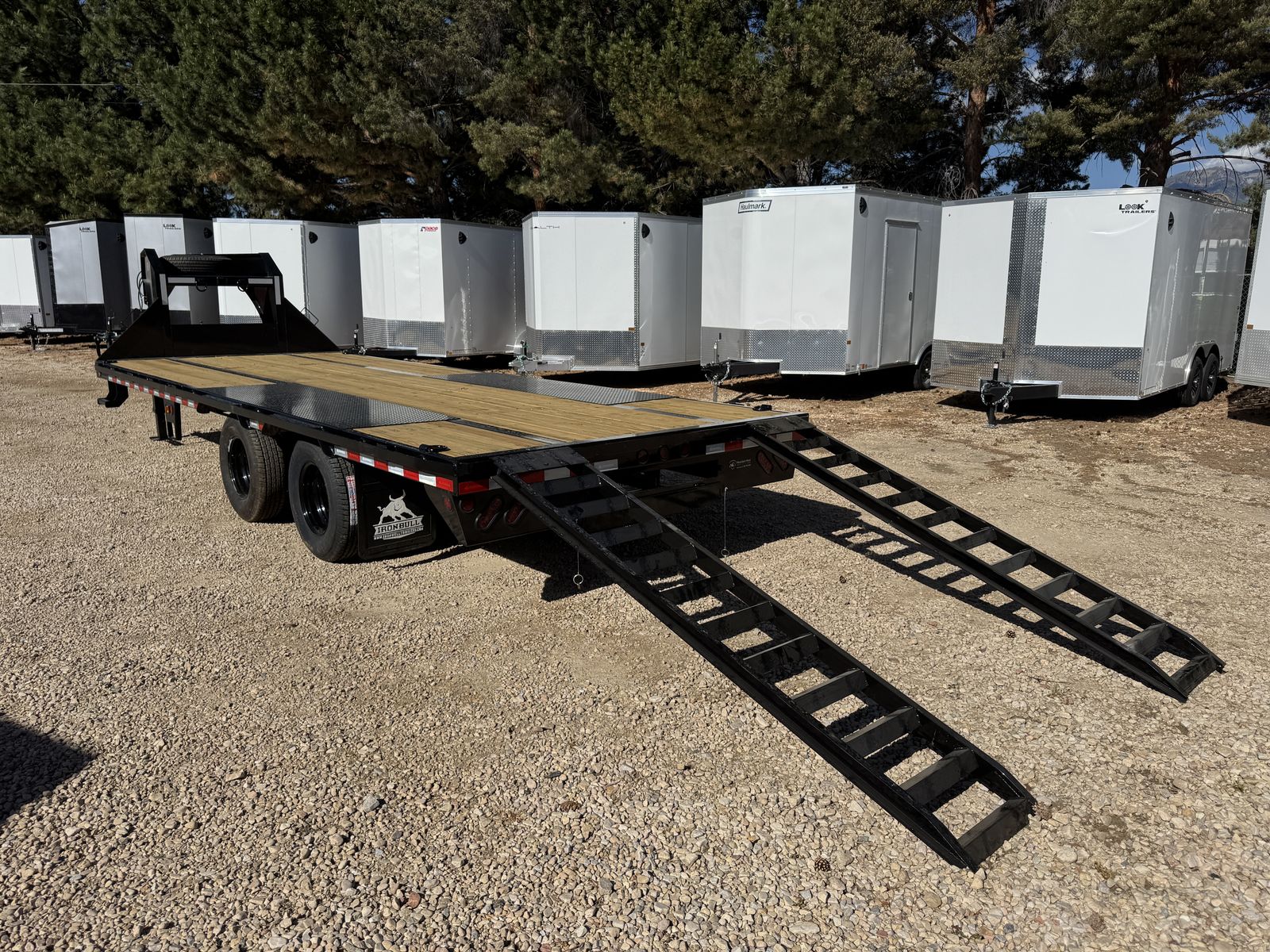

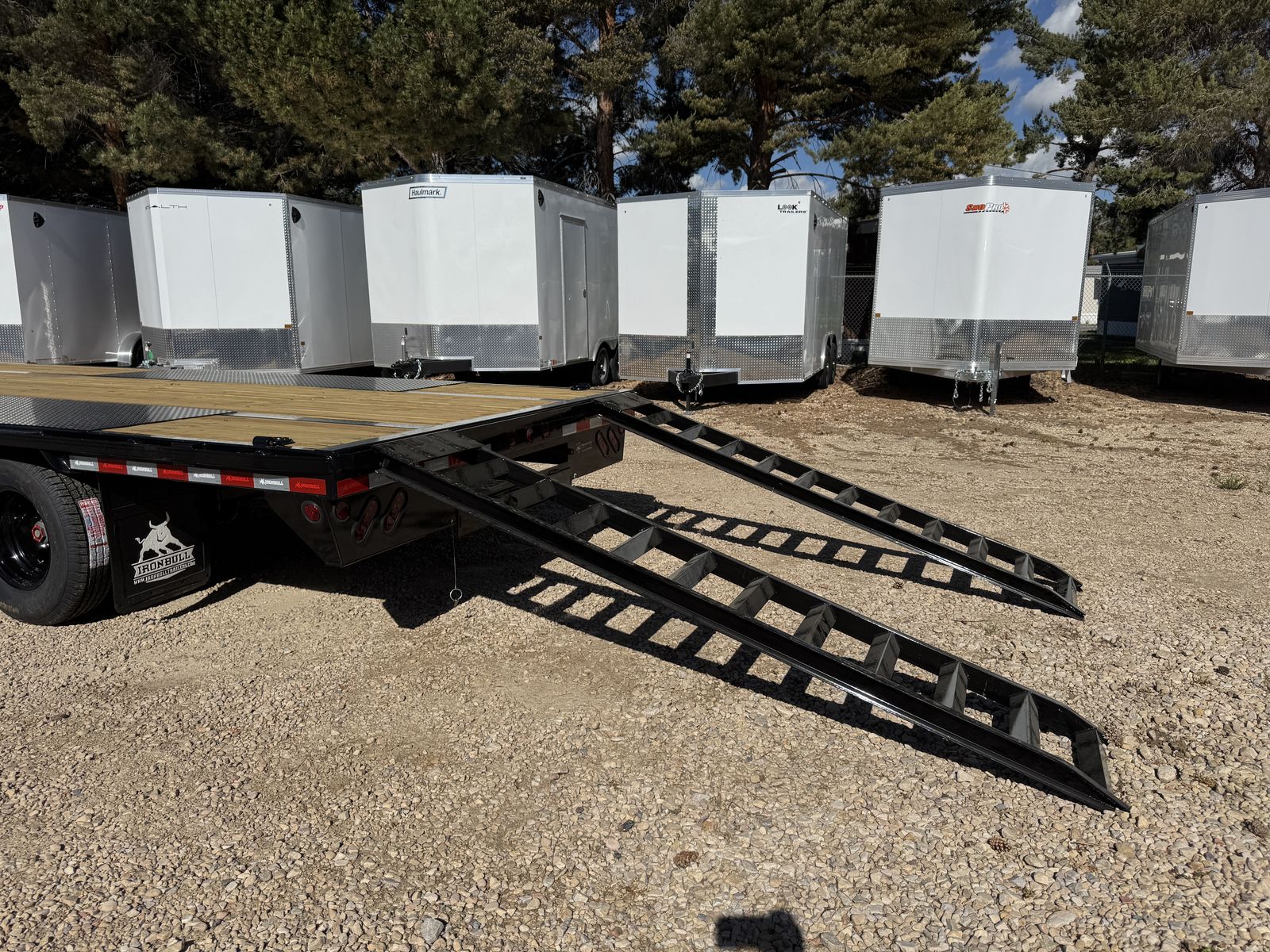

8’ Slide-in Ramps

2 - 10k Drop-Leg Jack

Treated Pine 2” x 8” Floor

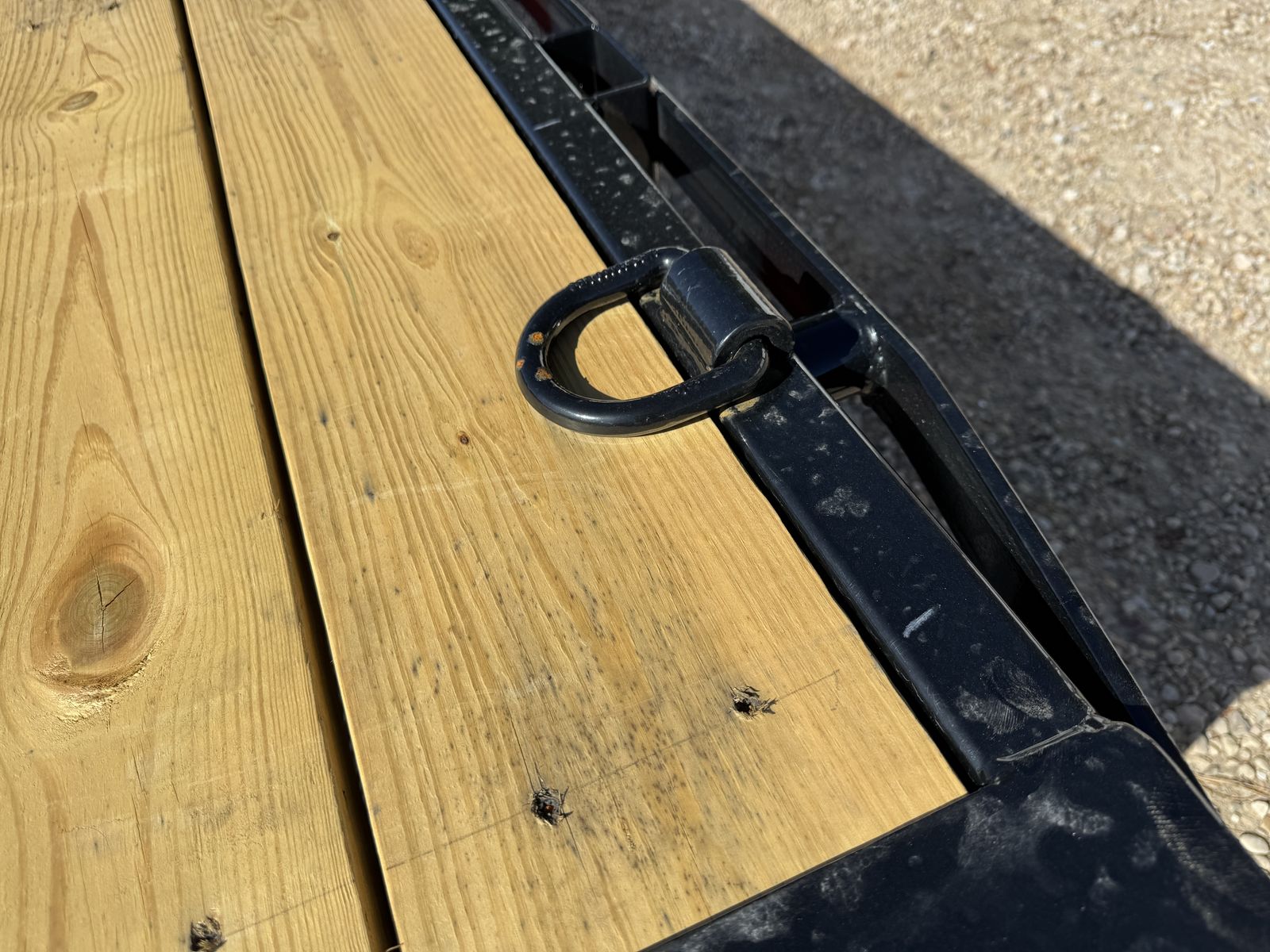

4 Standard 3” D-Rings

Black Mod Wheels*

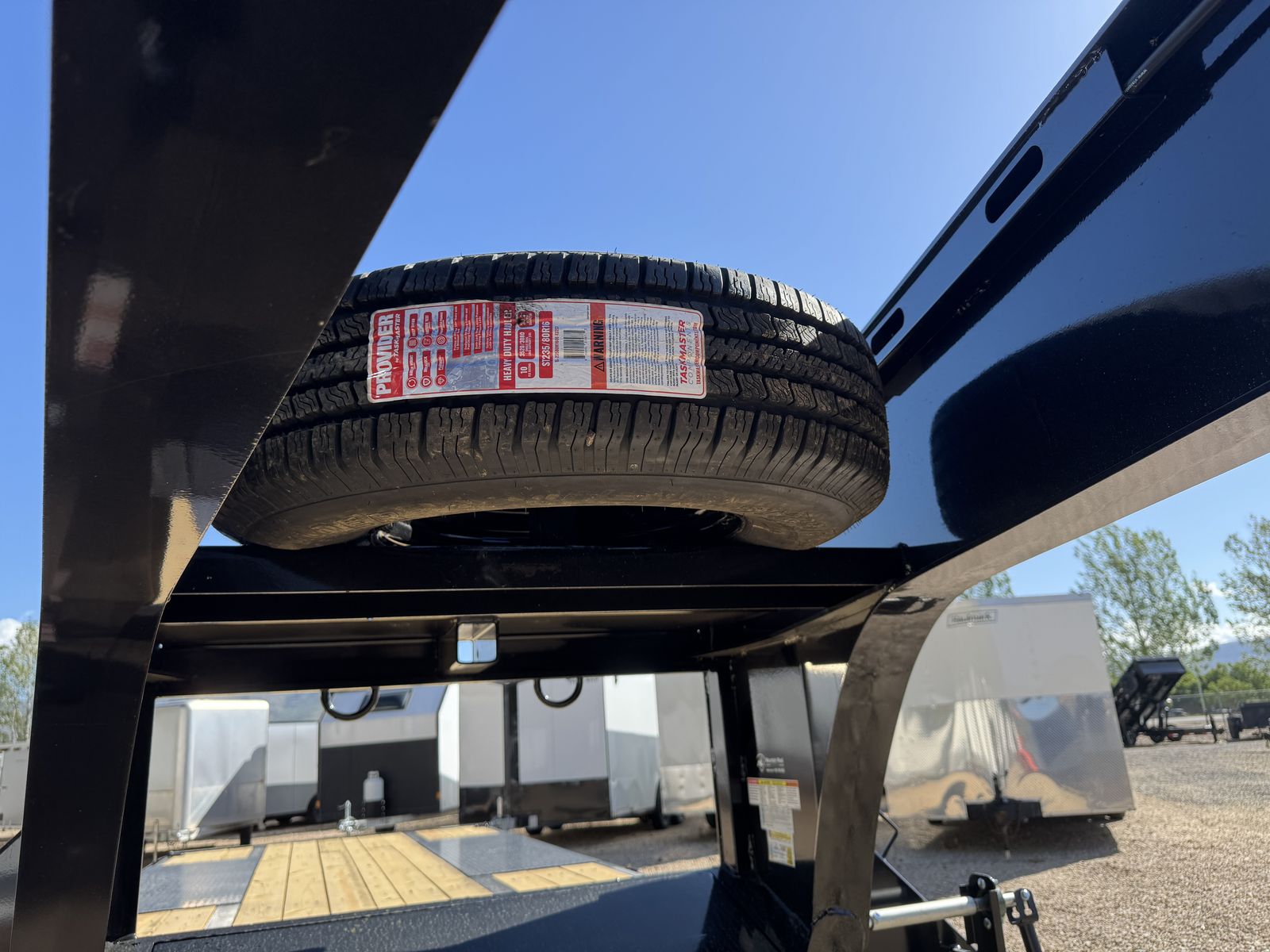

Spare Tire & Mount

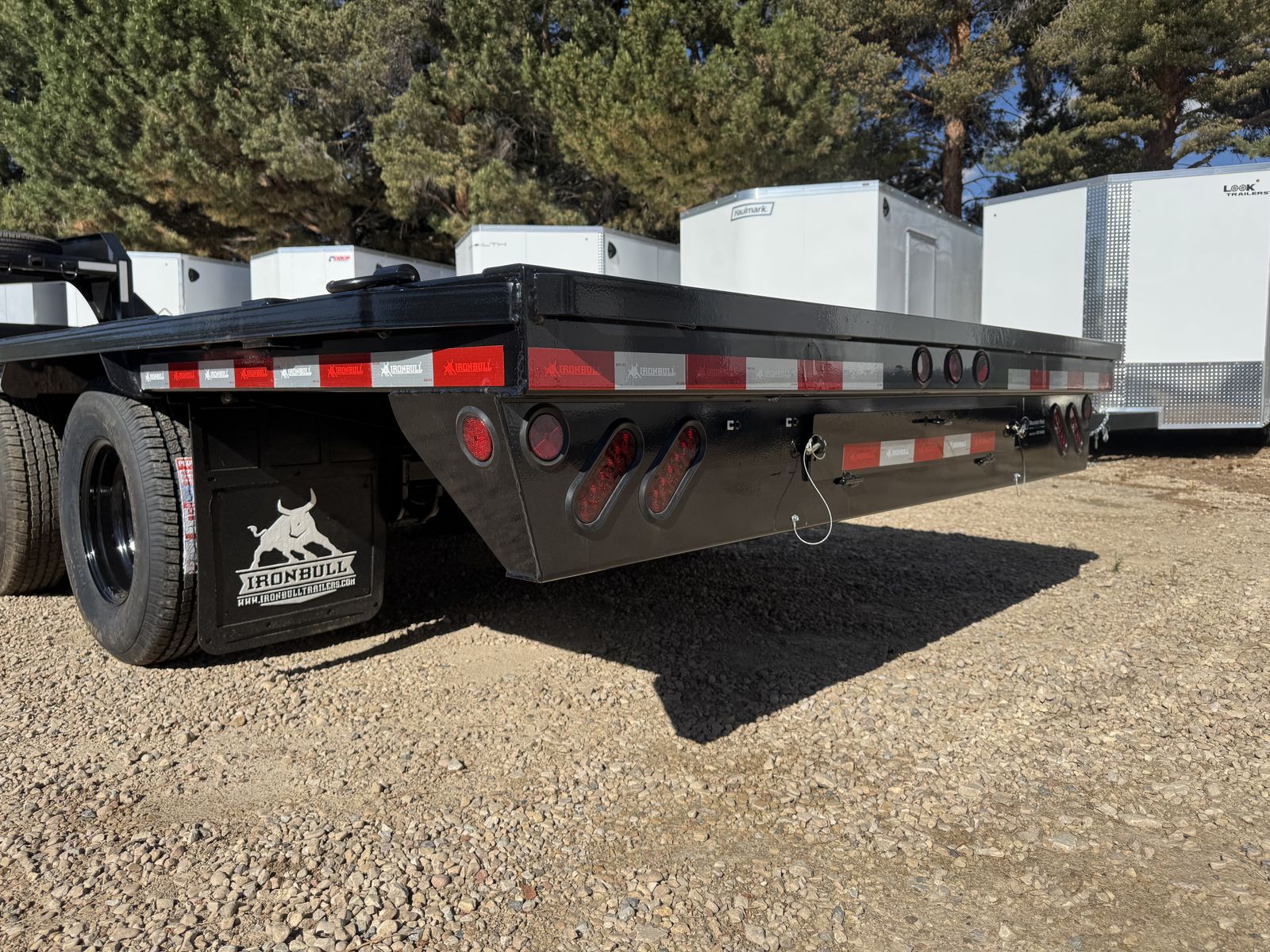

Lifetime LED Lighting

All Lighting DOT Approved

Molded Sealed Harness with Resistors

7-Way Receiver Female Plug with Adapter

Powder Coat & Primer

34” Deck Height

--

Prices do not include: sales tax, property tax, license or dealer documentation fee.

If you have any questions, please give us a call or stop by. We have other sizes and models in-stock.
