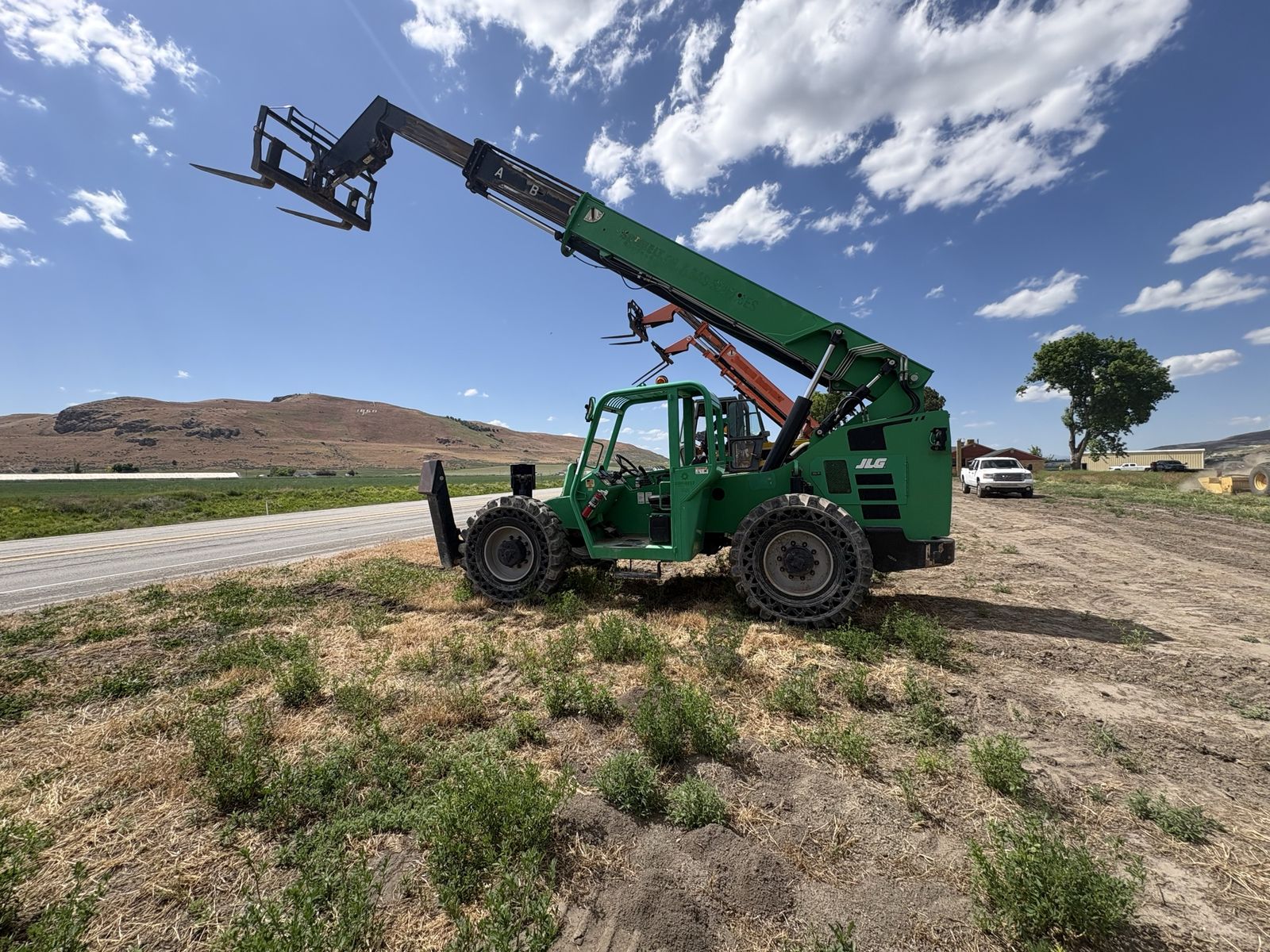

The JLG SkyTrak 8042 telehandler has an 8,000‑lb rated lift capacity, a maximum lift height of 42 ft 4 in, and a maximum forward reach of 29 ft 6 in, powered by a 74‑hp Deutz 2.9 L diesel engine.

Key Performance Specifications

• Rated Capacity: 8,000 lb
• Max Lift Height: 42 ft 4 in (12.9 m)
• Max Forward Reach: 29 ft 6 in (9.0 m)
• Load at Max Height: 6,000 lb
• Load at Max Reach: 1,600 lb
• Top Travel Speed: 15 mph (hydrostatic model)
• Operating Weight: 21,200 lb

Engine

• Make/Model: Deutz TCD 2.9 L4 diesel
• Power: 74 hp (55 kW) @ 2400 rpm
• Torque: 221 lb‑ft (300 Nm) @ 1600 rpm
• Fuel Capacity: 28 gal (106 L)
• DEF Required: No (Tier 4 Final without DEF)

Transmission & Drivetrain

• Transmission: Hydrostatic, 1‑speed forward/1‑speed reverse (new model)
• Drive: Full‑time 4‑wheel drive with oscillating rear axle and Stabil‑Trak system

Hydraulics

• Hydraulic System: Variable‑flow, load‑sensing piston pump
• Hydraulic Capacity: 45.5 gal (172 L)

Dimensions

• Turning Radius (outside): 12 ft 10 in (3.9 m)
• Frame Leveling: 10°

Boom Speeds

• Lift (up): ~15 sec
• Lower (down): ~12–13 sec
• Extend: ~14–16 sec
• Retract: ~12–14 sec

Tires

• Standard: 370/75‑28 pneumatic
• Optional: Foam‑filled, solid, turf, non‑marking, 15.5‑25 pneumatic/foam‑filled

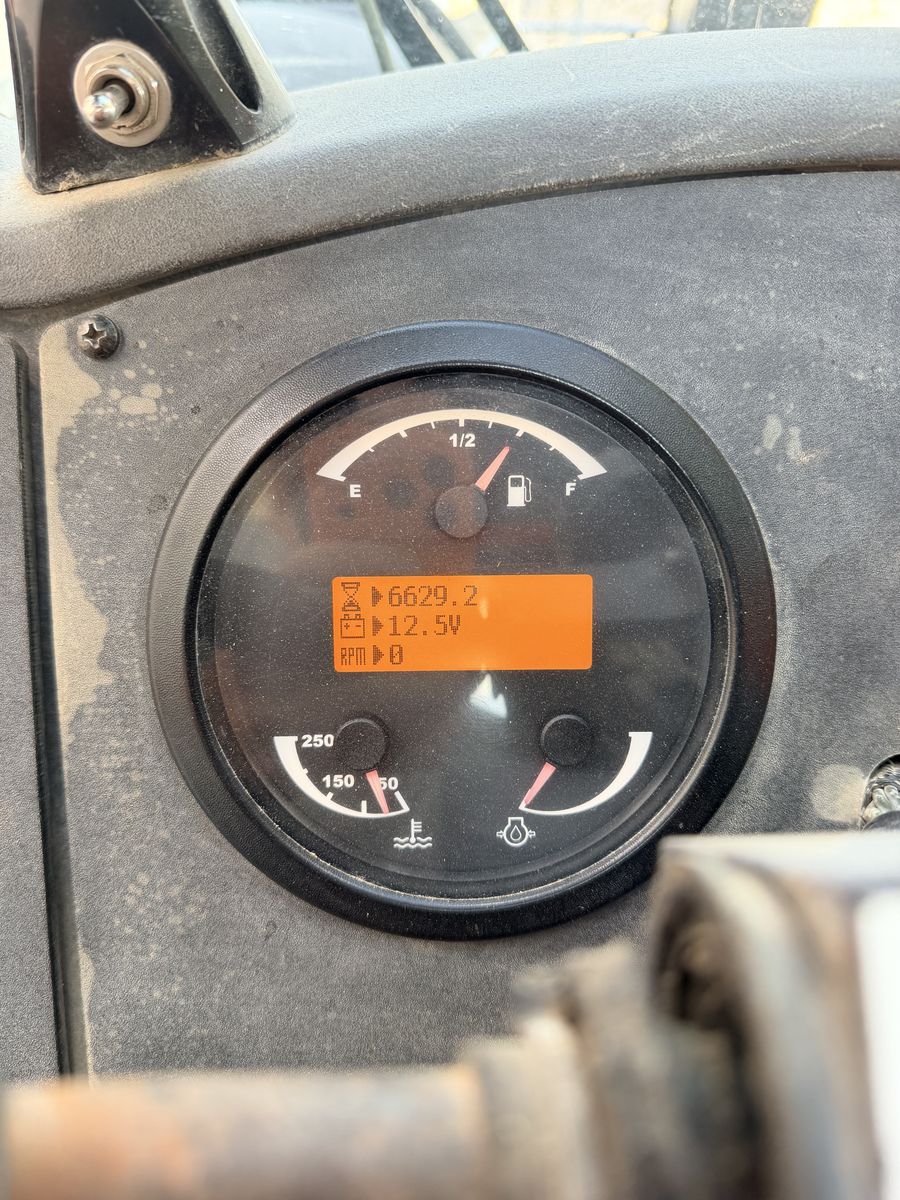

6600 hrs, Tires worn Contact: Justin 208-970-0609 located in Plain City, UT
