American Bass PH5100 MD + FR V2 Hybrid 5-Channel Car Amplifier 600W PH5100MDFRV2
12 Hours
8
0
$225.00
Description
Condition
Payment Types Accepted
Venmo
CashApp
PayPalThis is an American Bass PH-5100 MD + FR V2 (PH5100MDFRV2) Hybrid 5-Channel Car Amplifier from the Phantom Series. It features a hybrid Class D + Class AB design, delivering high power and high fidelity sound for your car audio system. The amplifier is rated at 600 watts total power plus 4 channels at 120 watts RMS each (2 ohm, 14.4V). It is stable for 2 ohm loads and incorporates micro technology power for enhanced performance.

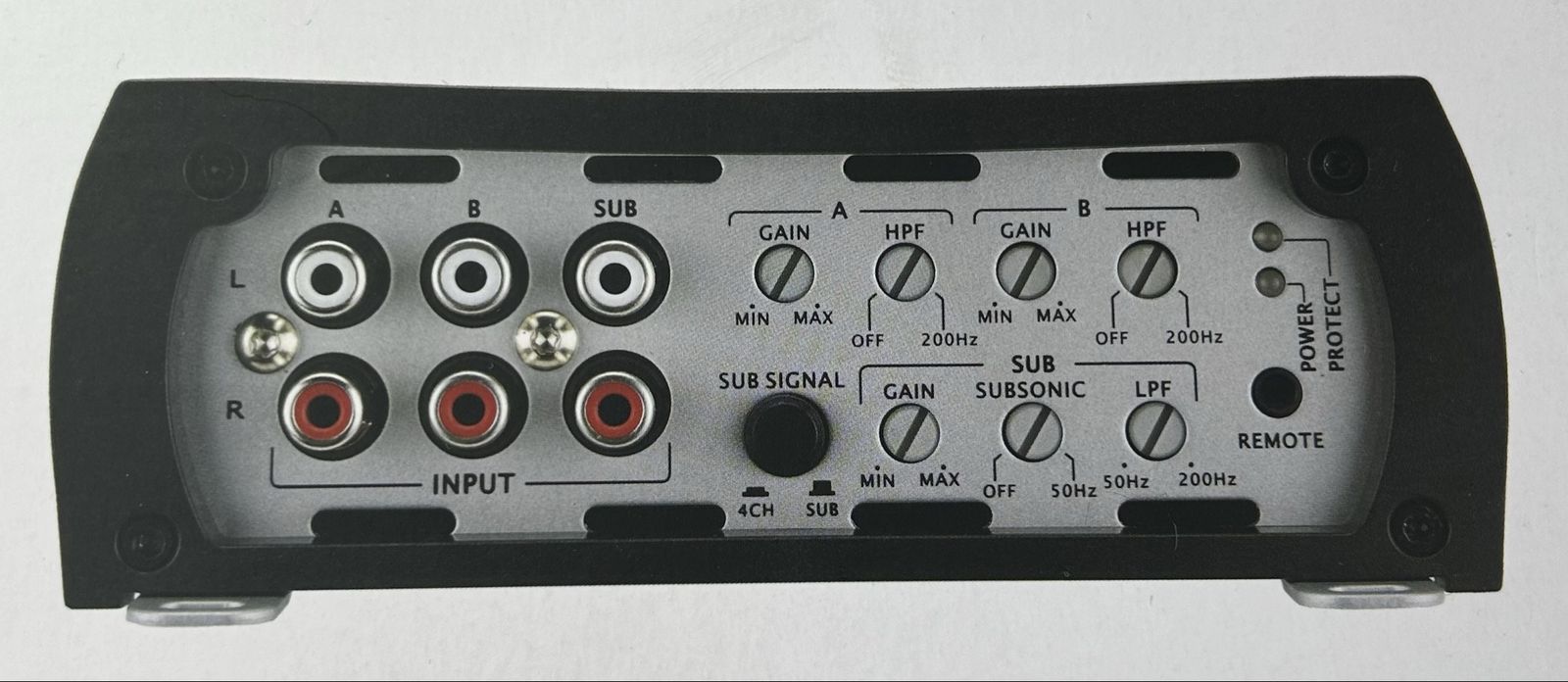

The amplifier includes adjustable level controls, high pass filter, low pass filter, and a subsonic filter for tailored audio tuning. Built with double-sided FR-4 printed circuit boards and SMD components, it offers reliable protection against overload, short circuits, thermal issues, and low voltage. An optional remote controller is available for added convenience.

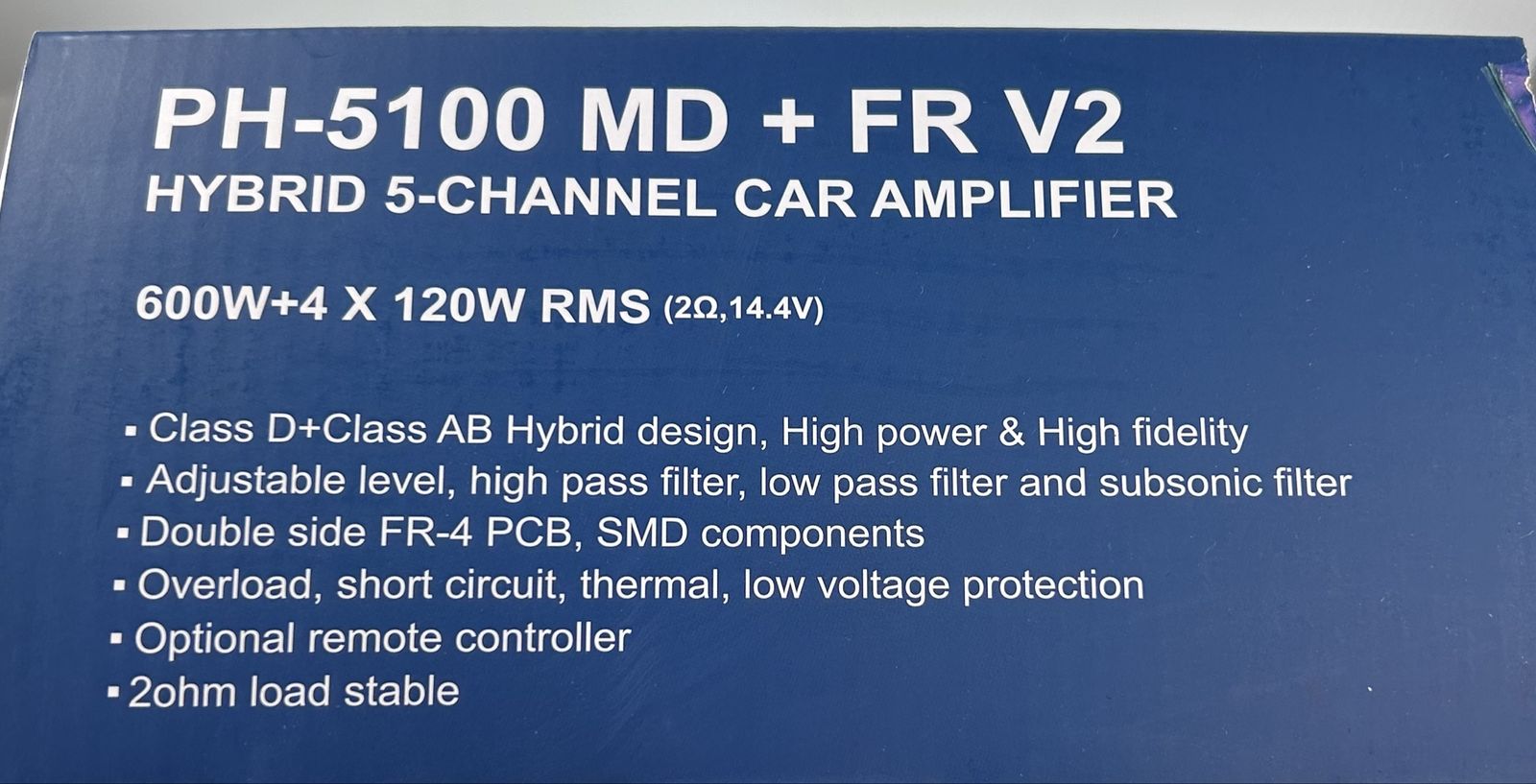

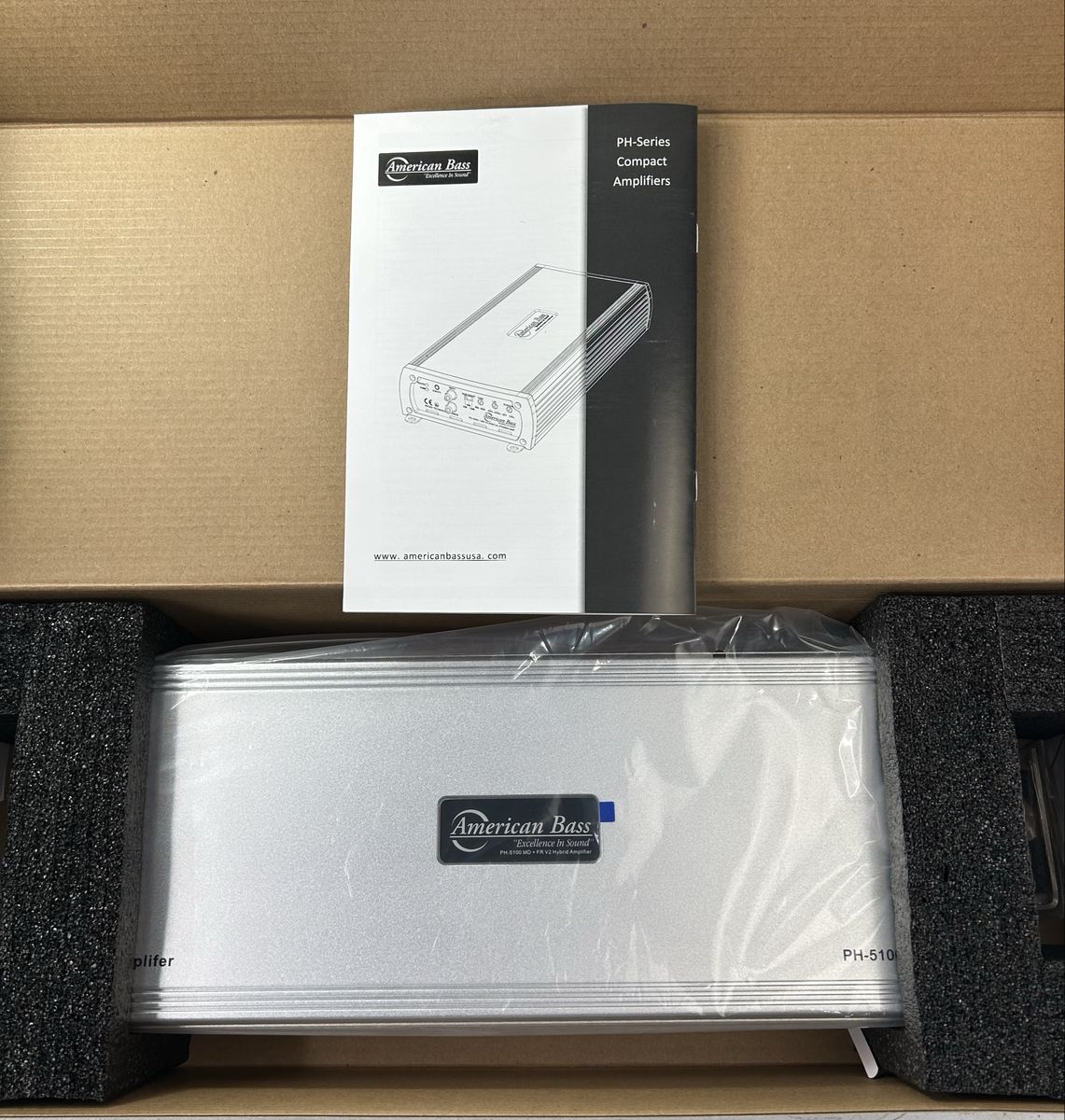

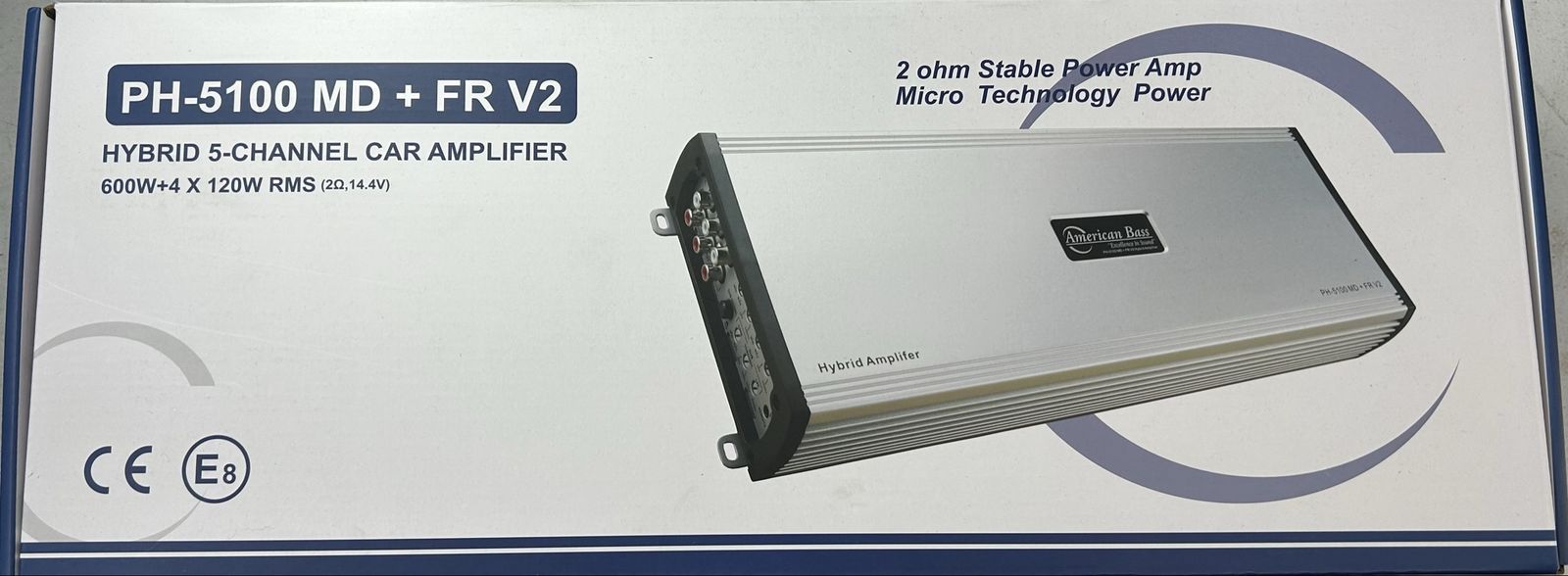

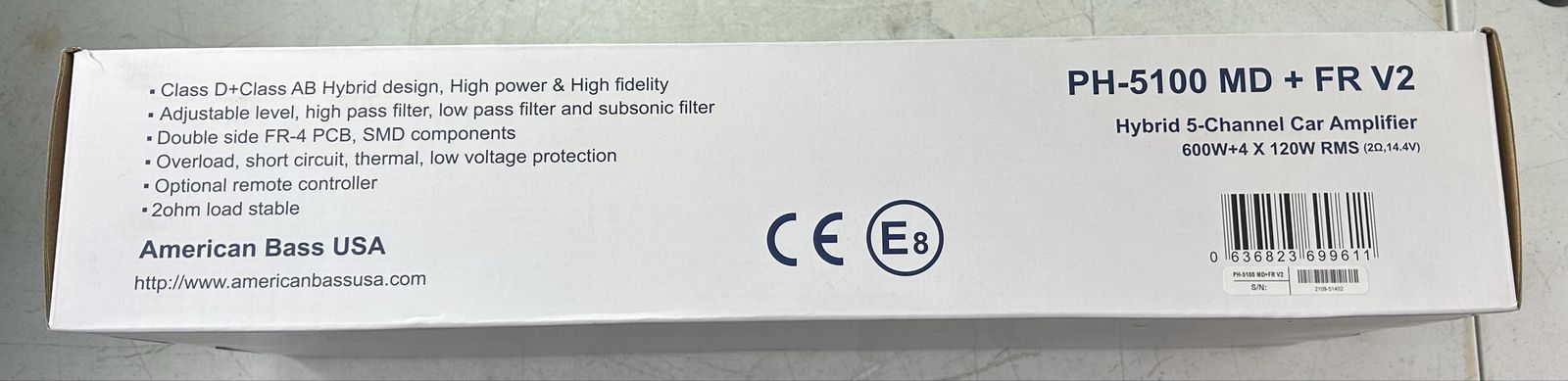

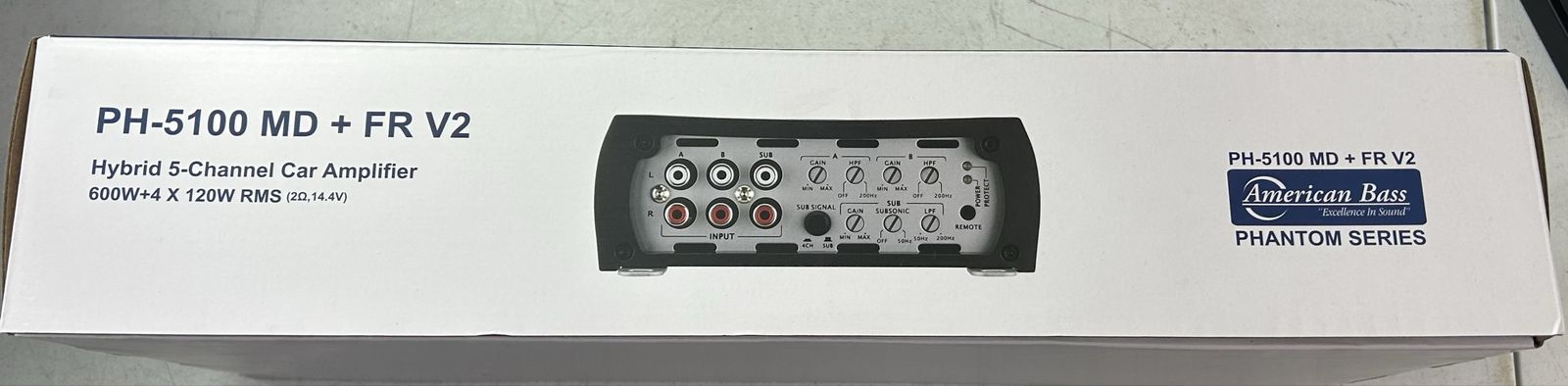

This listing includes the American Bass PH-5100 MD + FR V2 amplifier main unit, original packaging box, and the user manual as pictured. The amplifier is designed and branded by American Bass USA.
4 x 120 + 600 Watts RMS @ 2 Ohms (14.4V)
4 x 90 + 300 Watts RMS @ 4 Ohms (14.4V)
2 x 200 + 300 Watts RMS @ 4 Ohms Bridged (14.4V)
(W x H x L) 6″ x 2.2″ x 16″ – Compact Size with Tiny Footprint
Class D + Class A/B Hybrid Design
2 Ohm Stable
Full MOSFET design
Frequency Response: 20 Hz – 25 kHz (CH 1-4)
• High Pass Crossover: 20 Hz – 200 Hz (CH 1-4)
Frequency Response: 8 Hz – 200 Hz (CH 5)
• Low Pass Crossover: 40 Hz – 200 Hz (CH 5)
• Subsonic Filter: 8 Hz – 50 Hz (CH 5)
Overload, Short, Low Voltage & Thermal Protection
Optional Remote Gain Control
Suggested Wiring Kit Size: 0 AWG
