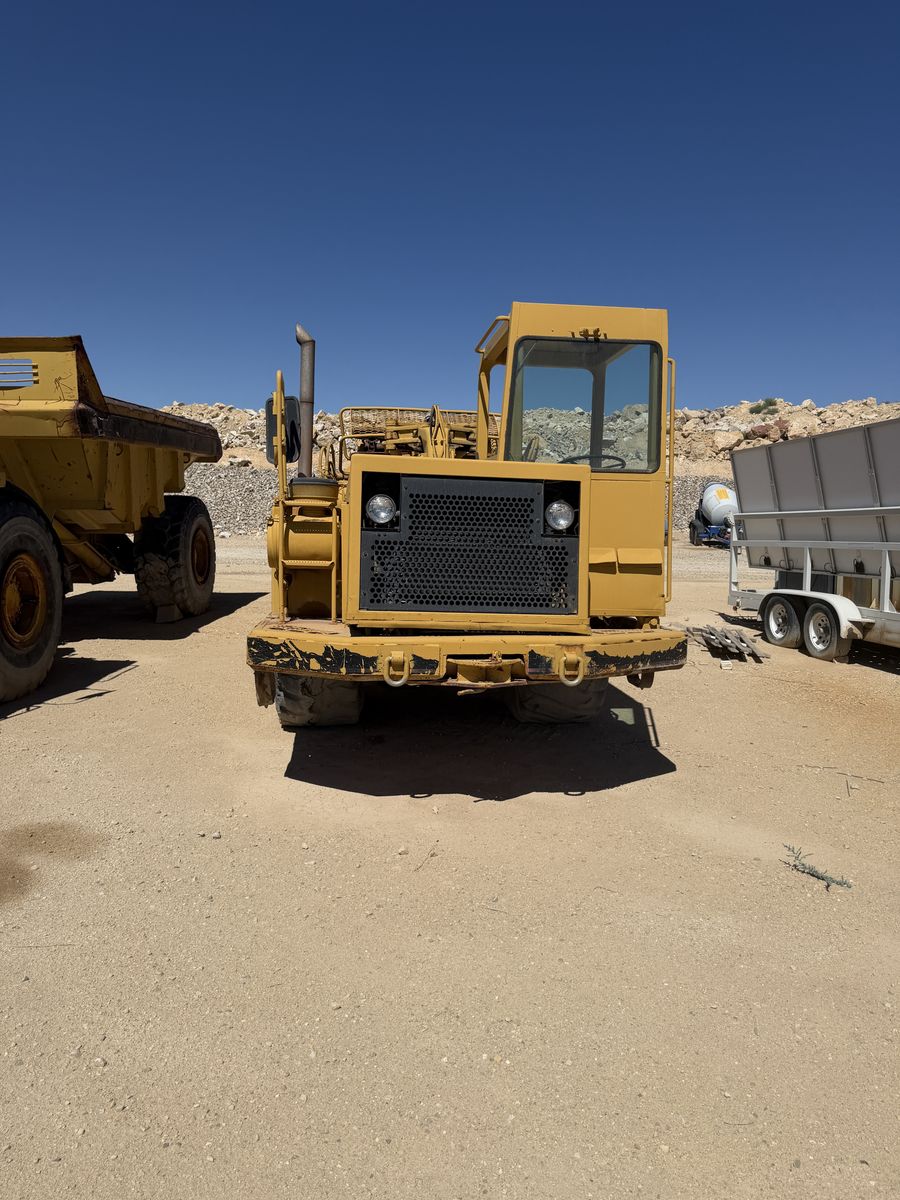

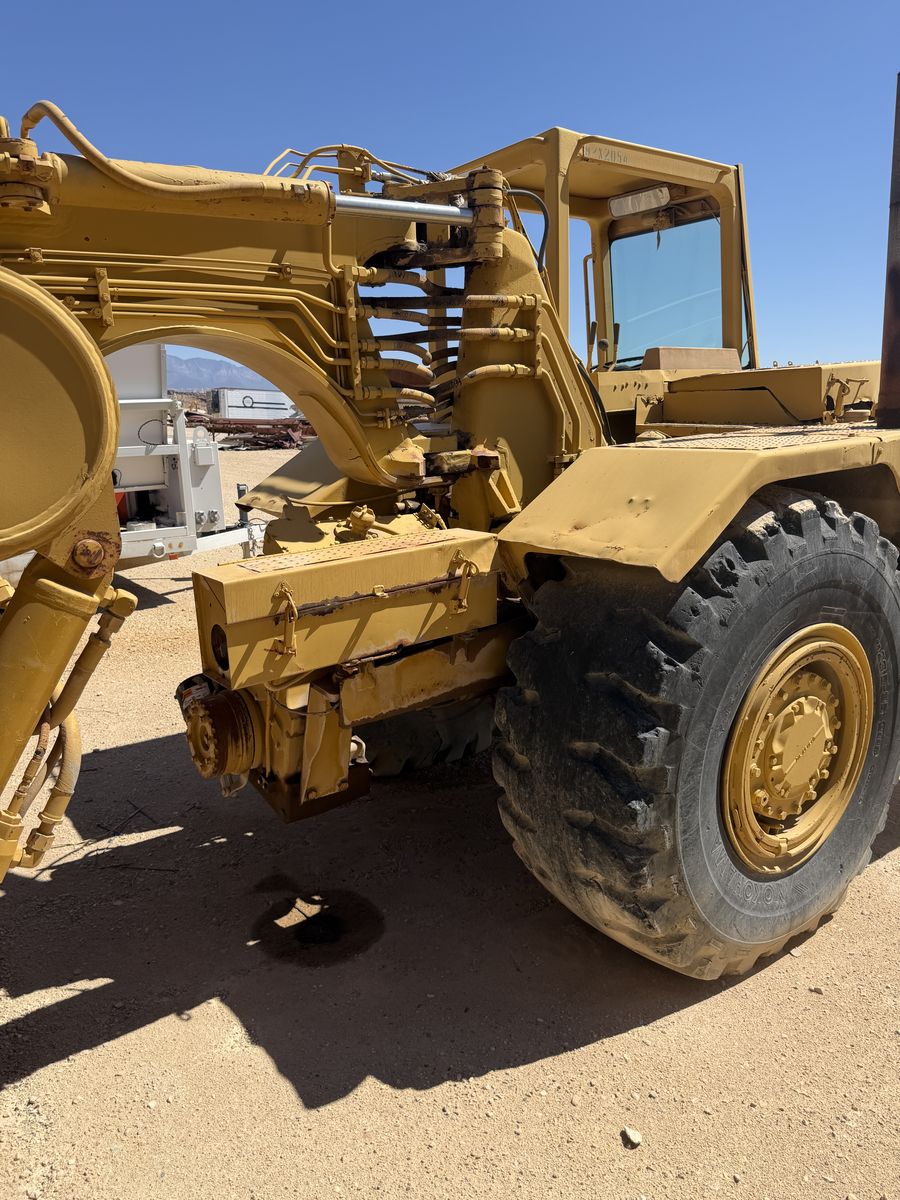

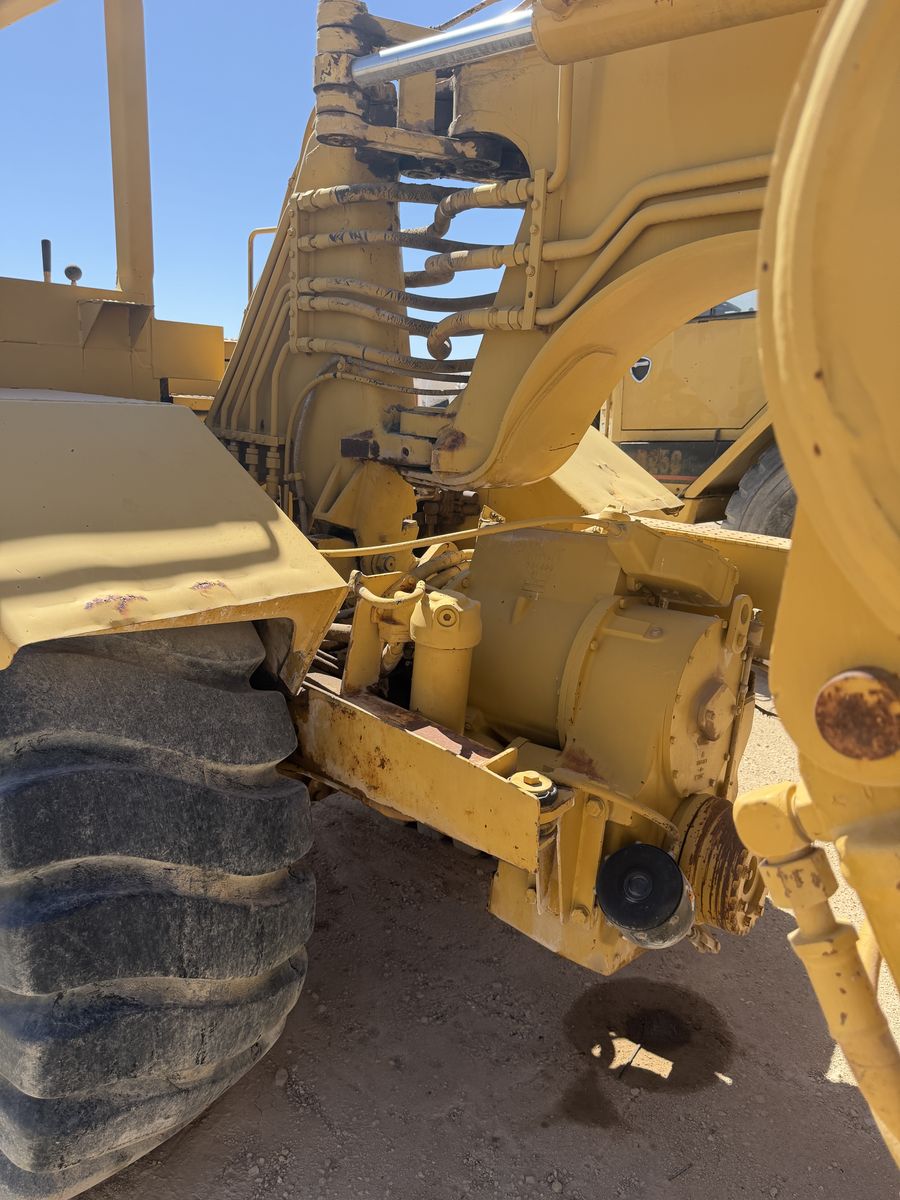

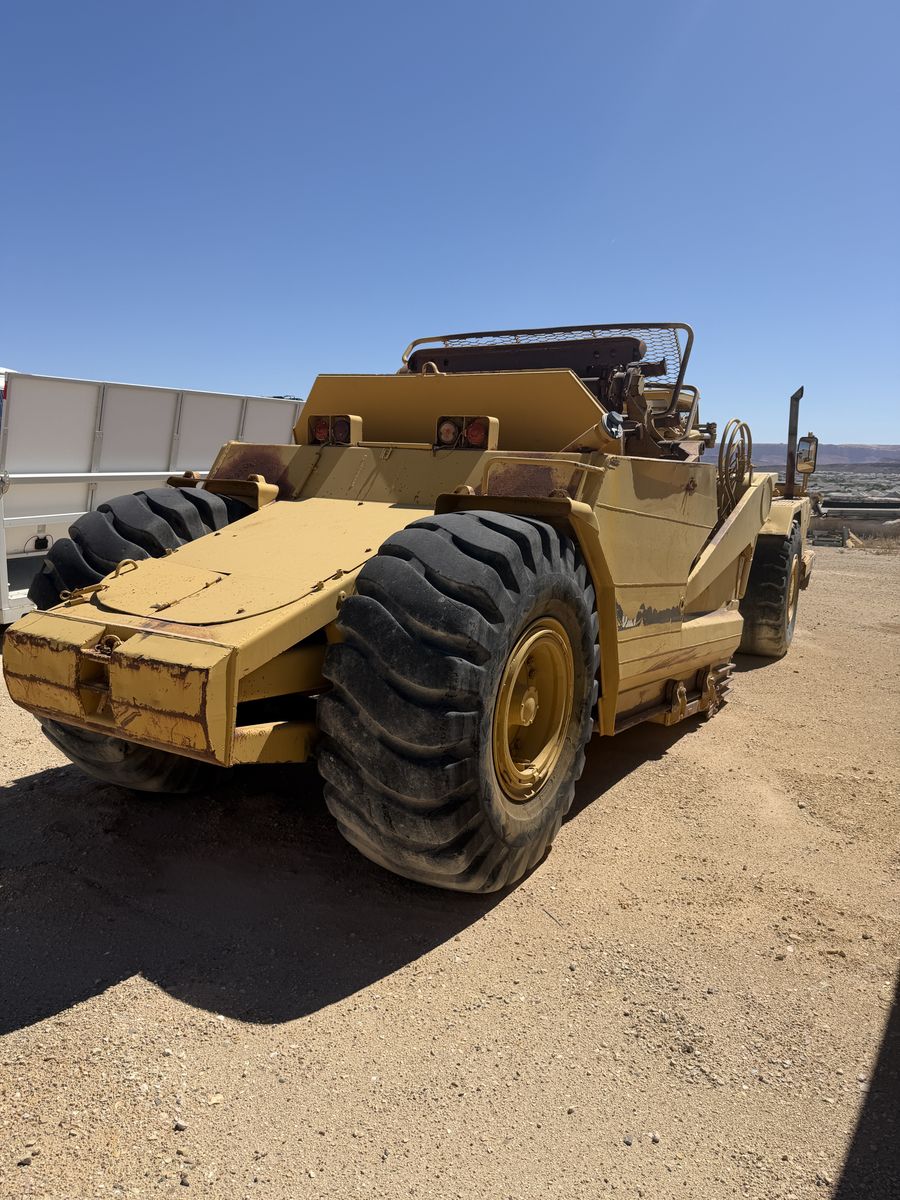

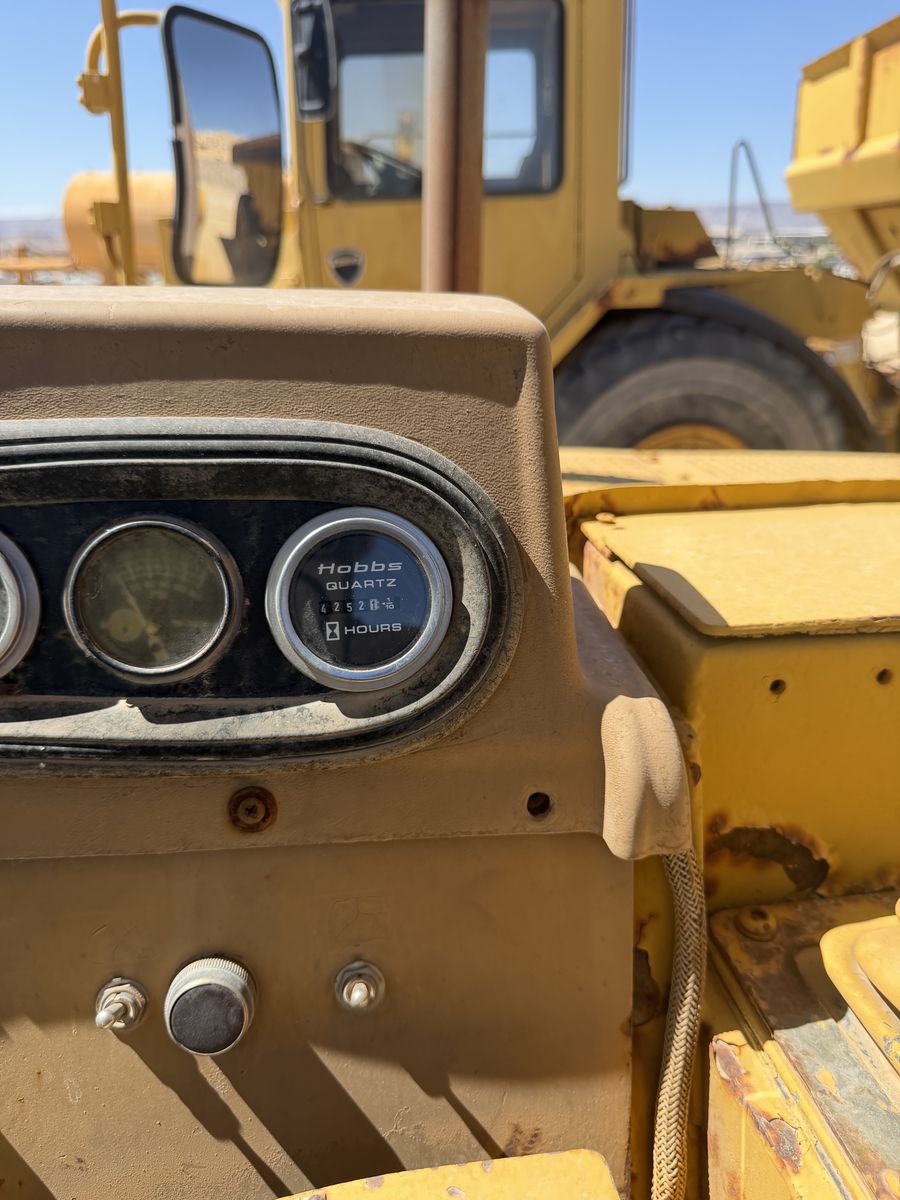

Take a look at this heavy-duty industrial scraper, perfect for your earthmoving needs! It's seen some use, with a bit of rust and a few leaks, but it's built tough and ready to get to work. Those big tires are ready for any terrain.Will consider all offers

Key Specifications (Early 613 / 613B era)

• Heaped Capacity (Bowl): 11 cu yd (8.4 m³) SAE

• Struck Capacity: ~8.9 cu yd (6.8 m³)

• Rated Payload: 26,000 lb (11,800 kg)

• Max Depth of Cut: 6.75 in (171 mm)

• Width of Cut: 8 ft (2,438 mm)

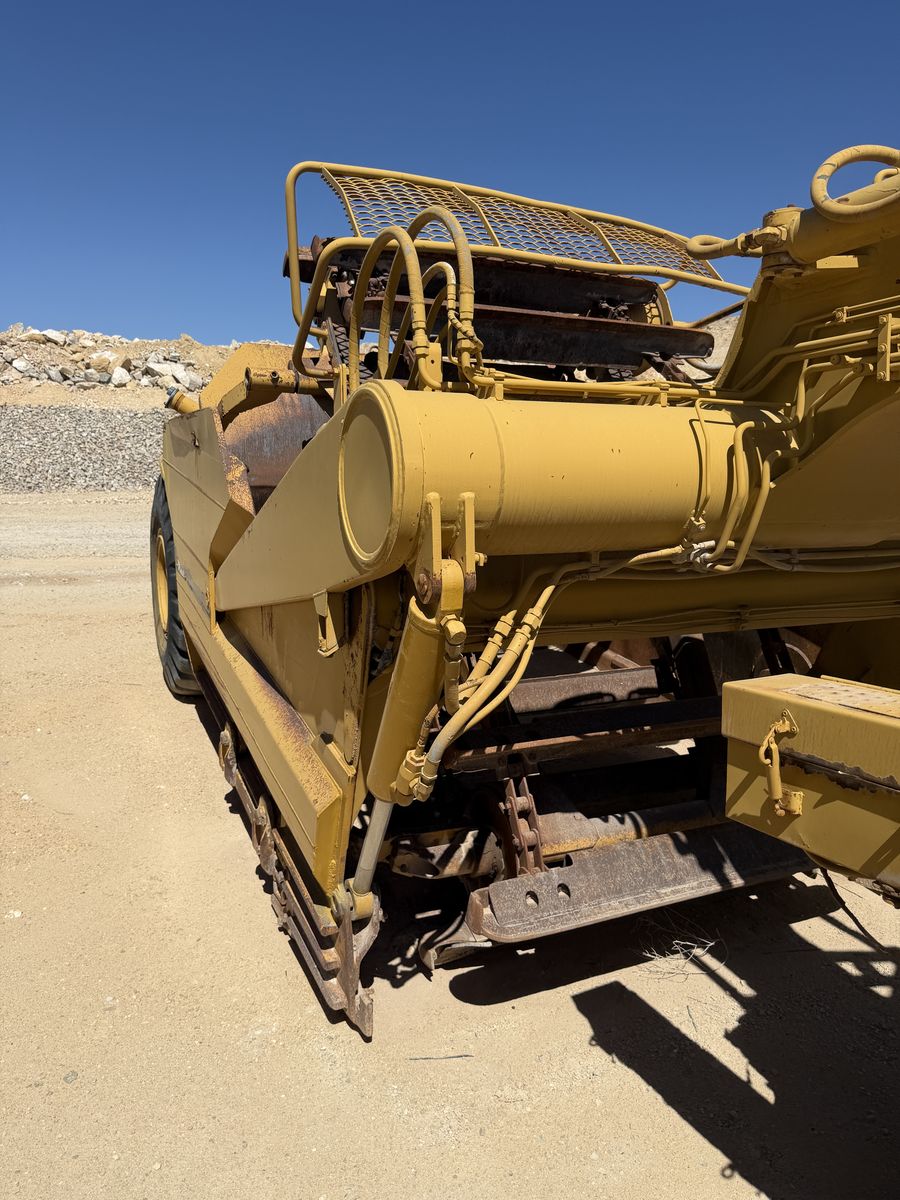

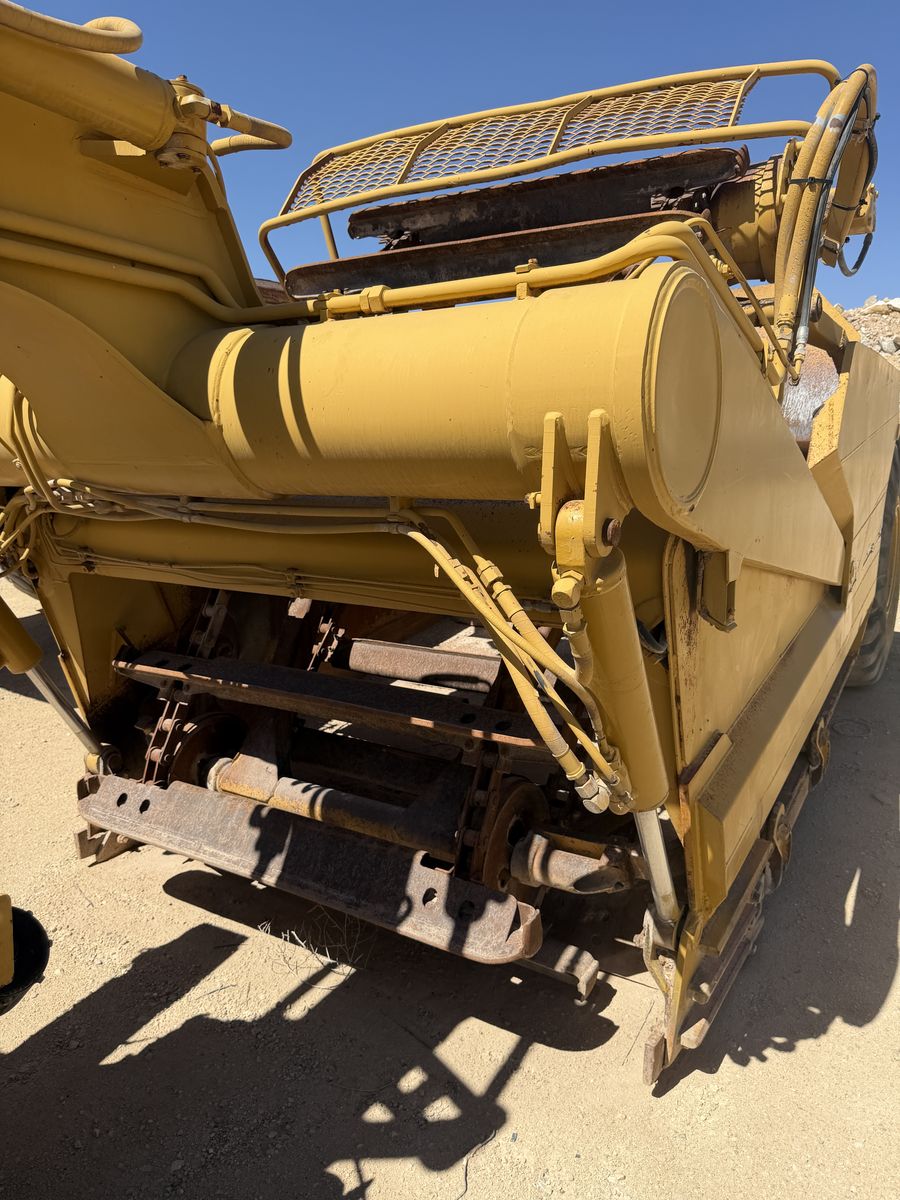

• Elevator: Hydraulic drive, ~16 flights (paddle-style), variable throat opening (1–16 in / 25–406 mm), speeds ~62–209 fpm depending on model

• Engine: Cat 3160 or 3208 V8 diesel

• Flywheel Power: 150 hp (112 kW) @ 2,200 rpm (early models) • Displacement: \~636 cu in (10.4 L) • 4-cycle, direct injection, 8 cylinders • Transmission: Caterpillar powershift (typically 4 forward / 2 reverse early; later 6 forward)

• Top Speed: ~24–27 mph (38–43 km/h) forward (loaded varies)

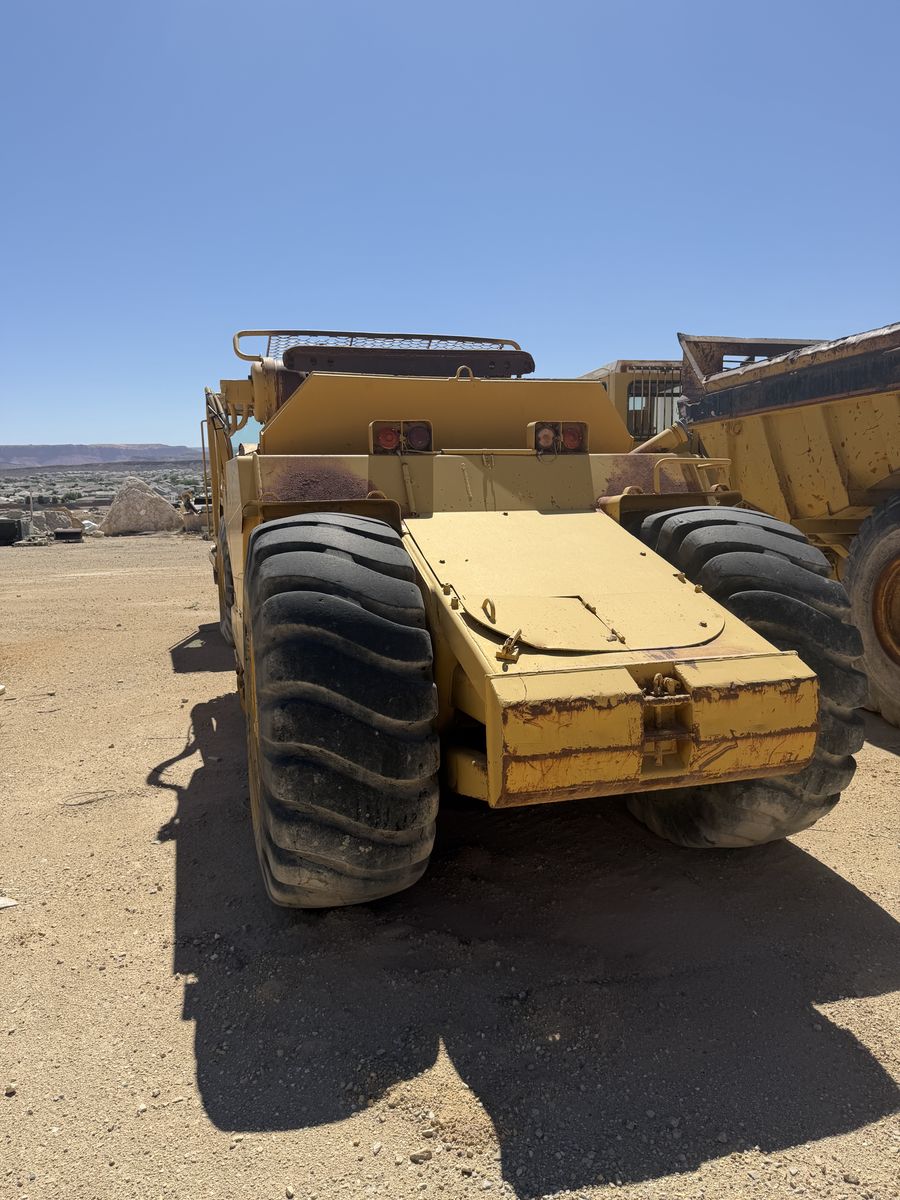

• Tires (Standard): Tractor 18.00-25 12PR; Scraper 18.00-25 16PR (23.5-25 optional)

• Brakes: Caliper disc, air-actuated

• Steering: Hydraulic, variable flow modulated

• Turning Radius (Outside): ~30 ft 3 in (9.2 m)

• Dimensions:

• Overall Length: \~31 ft 9 in (9.7 m) • Width: 8 ft (2.44 m) • Height: \~9 ft 10 in–10 ft (2.85–3.1 m) • Wheelbase: \~21 ft (6.35–6.4 m) • Weights (approximate):

• Operating Empty: \~31,500–32,300 lb (14.3–14.7 t) • Loaded: \~54,700–58,300 lb (24.8–26.5 t) • Fuel Capacity: ~65–66 gal (246–250 L)

• Hydraulics: Closed system, filtered; bowl lift, ejector, elevator, steering

Ejection: Retractable floor + dozer-type ejector for positive ejection of sticky materials.
