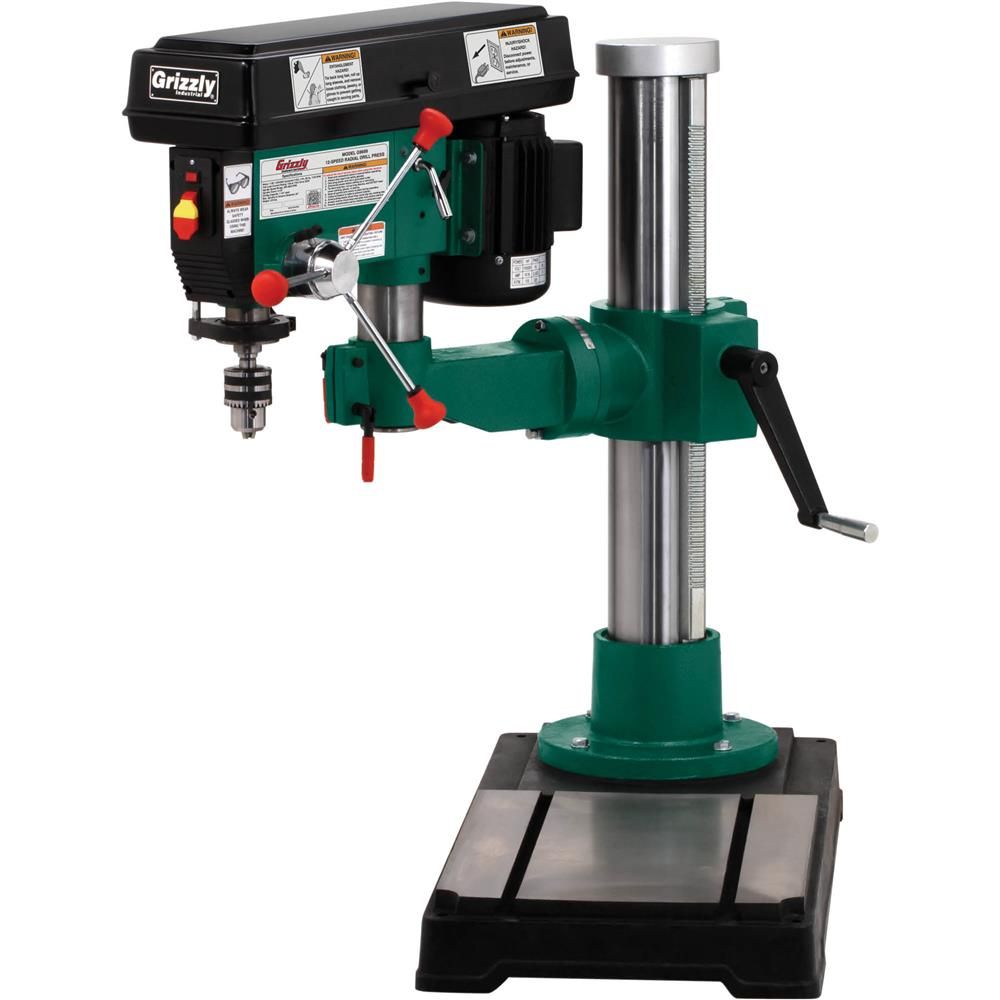

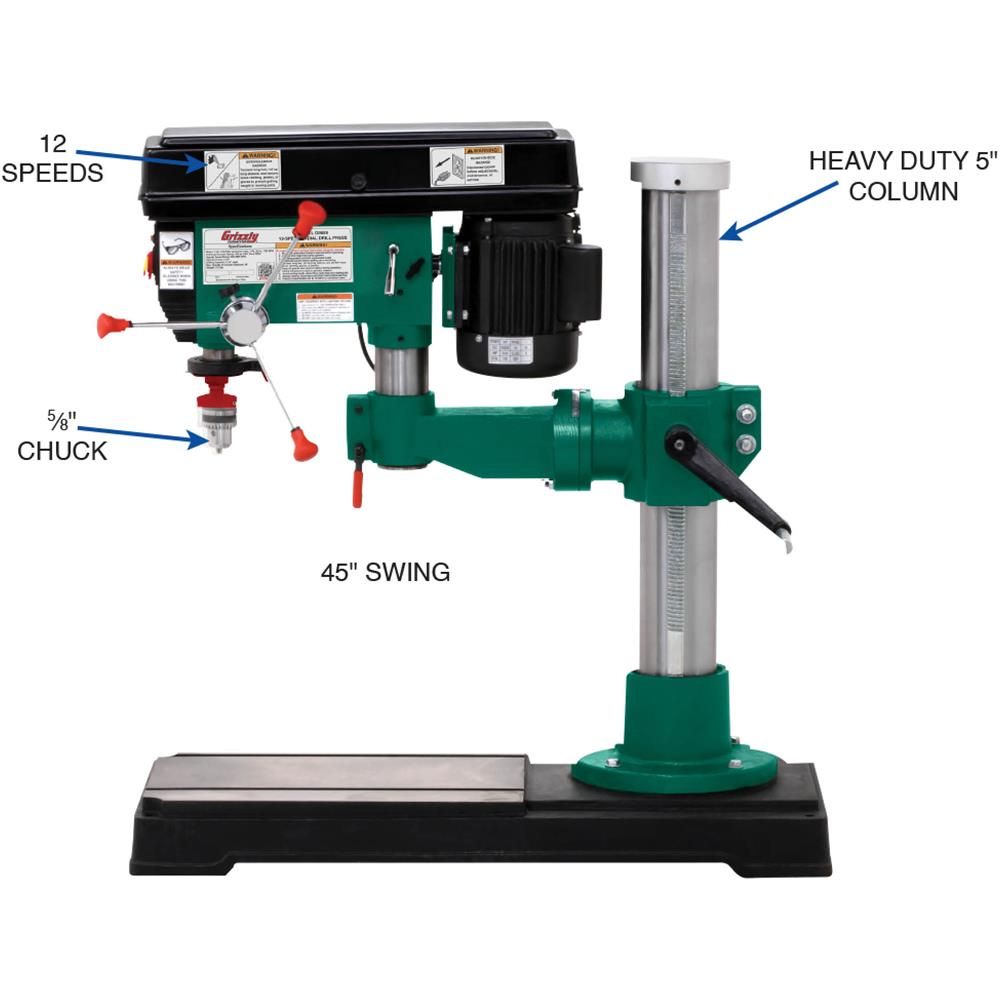

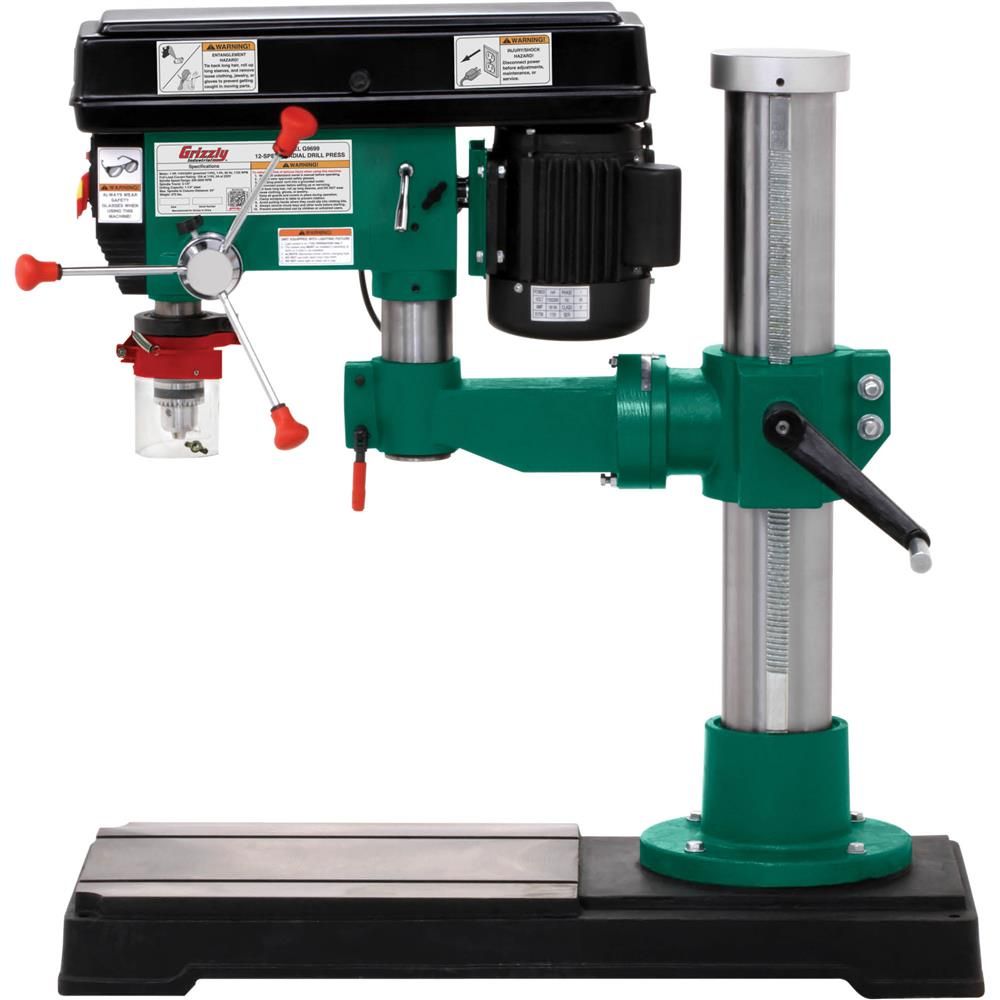

The swing on the G9969 45" Radial Drill Press is a huge 45" (you can drill in the middle of a 45" diameter piece).

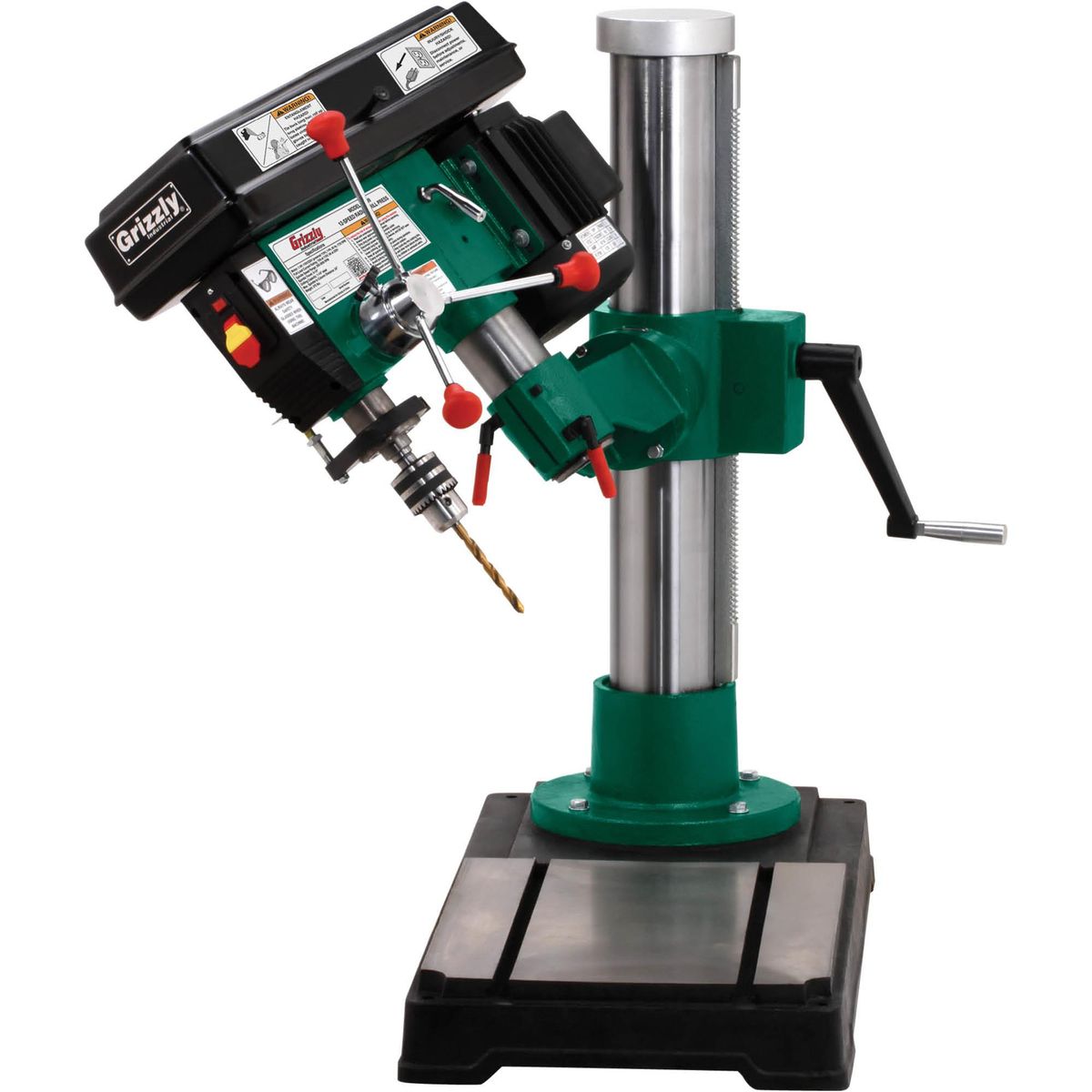

For added adjustability, the headstock can be rotated 360° around the column, can swivel 360° in place, and can tilt 45° to the left or the right.

The G9969 boasts a 1 HP motor that smoothly powers the 12 spindle speeds ranging from 140 to 3050 RPM. The low RPM speed is vital to drilling metal.

The spindle can be brought close to the column with the uniquely designed swivel post.

The drill press features rack-and-pinion elevation controls—adjustable 20-1/2" vertically.

Prewired for 110V, 45" Radial Drill Press can plug into a standard 110V wall receptacle or can be converted to operate on a 220V power supply.

Ready for industrial use, the t-slots in table allow you to use a variety of clamping options.

The G9969 has a depth stop that allows you to drill repeated non-through holes to the same depth every time.

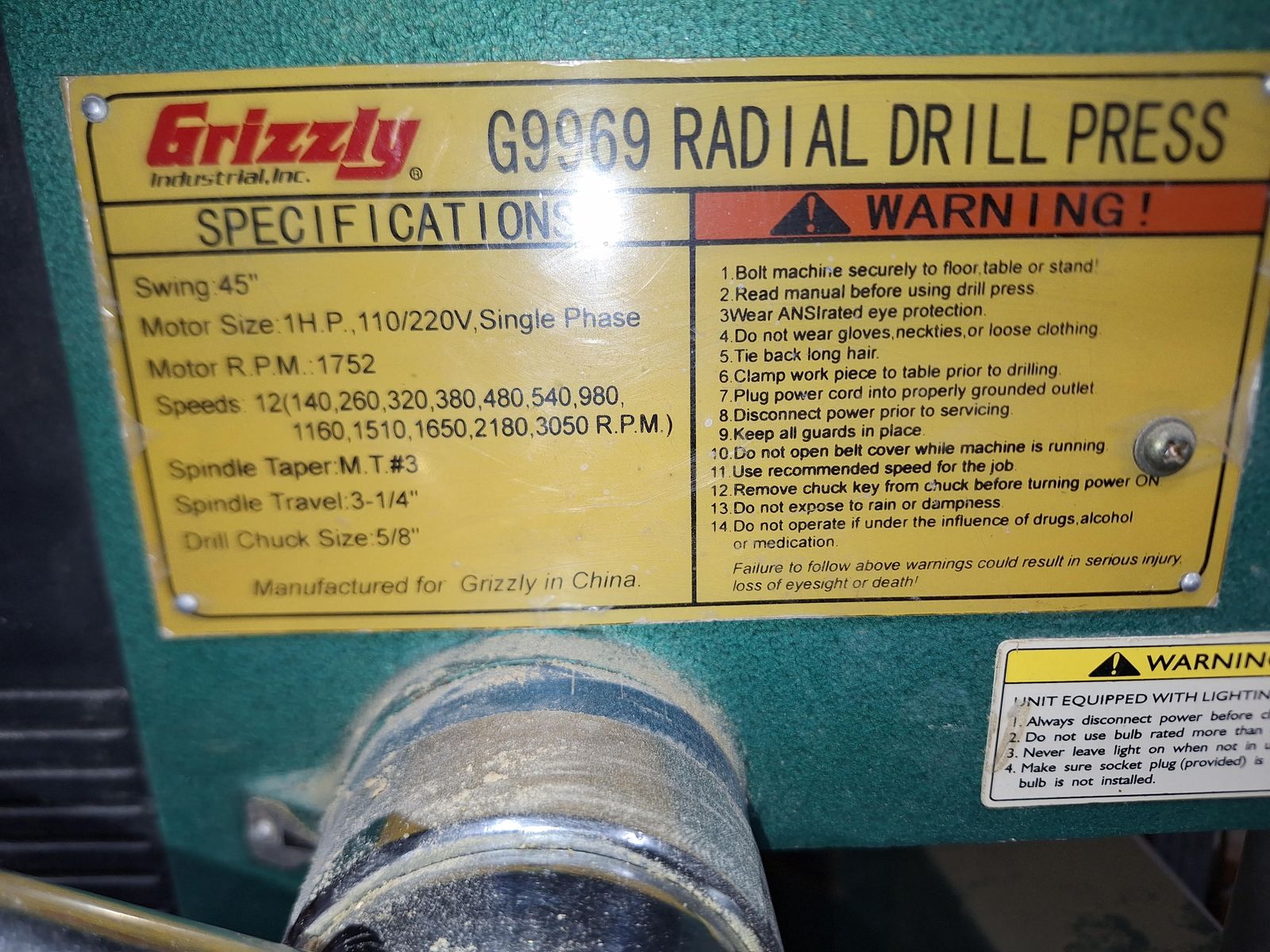

• Motor: 1 HP, 110V/220V (prewired for 110V), single-phase, 10A/5A

• Swing: 45"

• Drill chuck: 1/8"–5/8"

• Drilling capacity: 1-1/4" Steel

• Spindle taper: MT #3

• Spindle travel: 3-1/4"

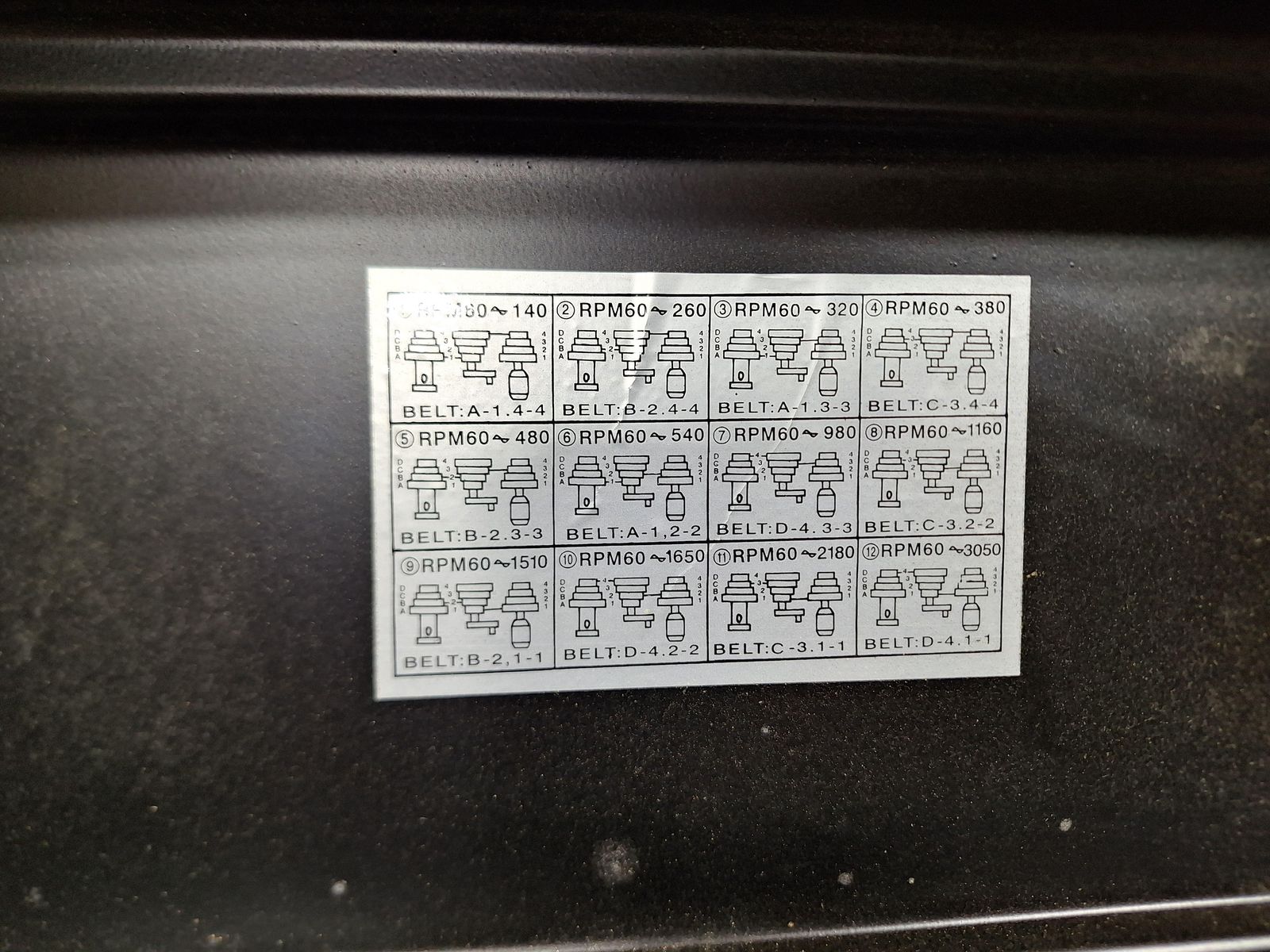

• Number of speeds: 12, 140–3050 RPM

• Quill diameter: 2.950"

• Main column diameter: 5"

• Maximum distance spindle to base: 36"

• Table swing: 360°

• Head tilt: 45° L/R

• Table T-slots: 2 x 5/8" wide

• Footprint: 18-1/2" W x 39-1/2" L

• Overall dimensions: 29" W x 39-1/2" D x 51" H

• Approximate shipping weight: 525 lbs.

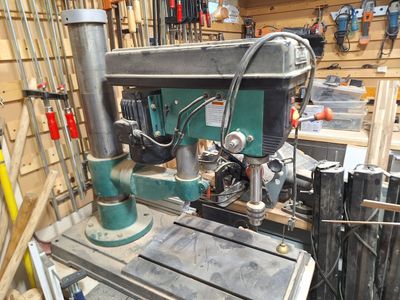

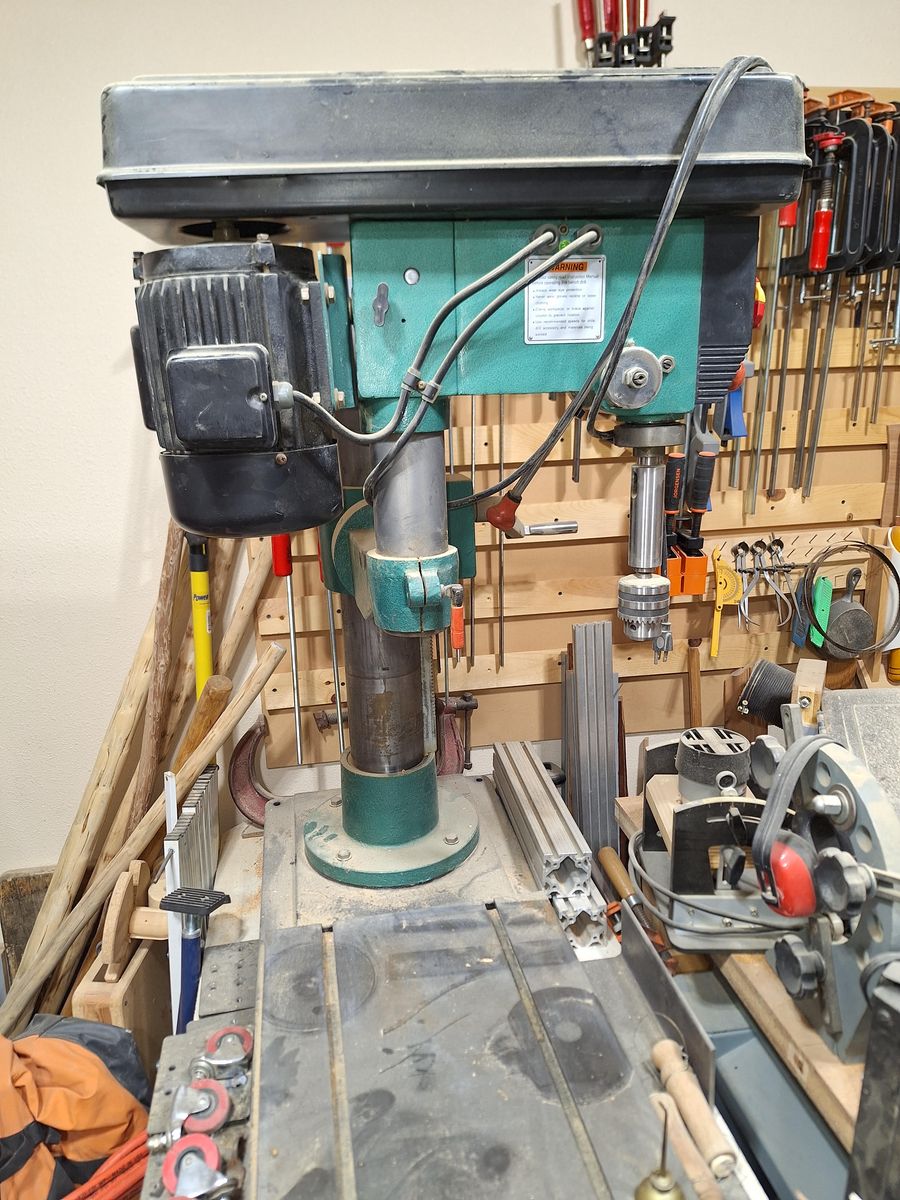

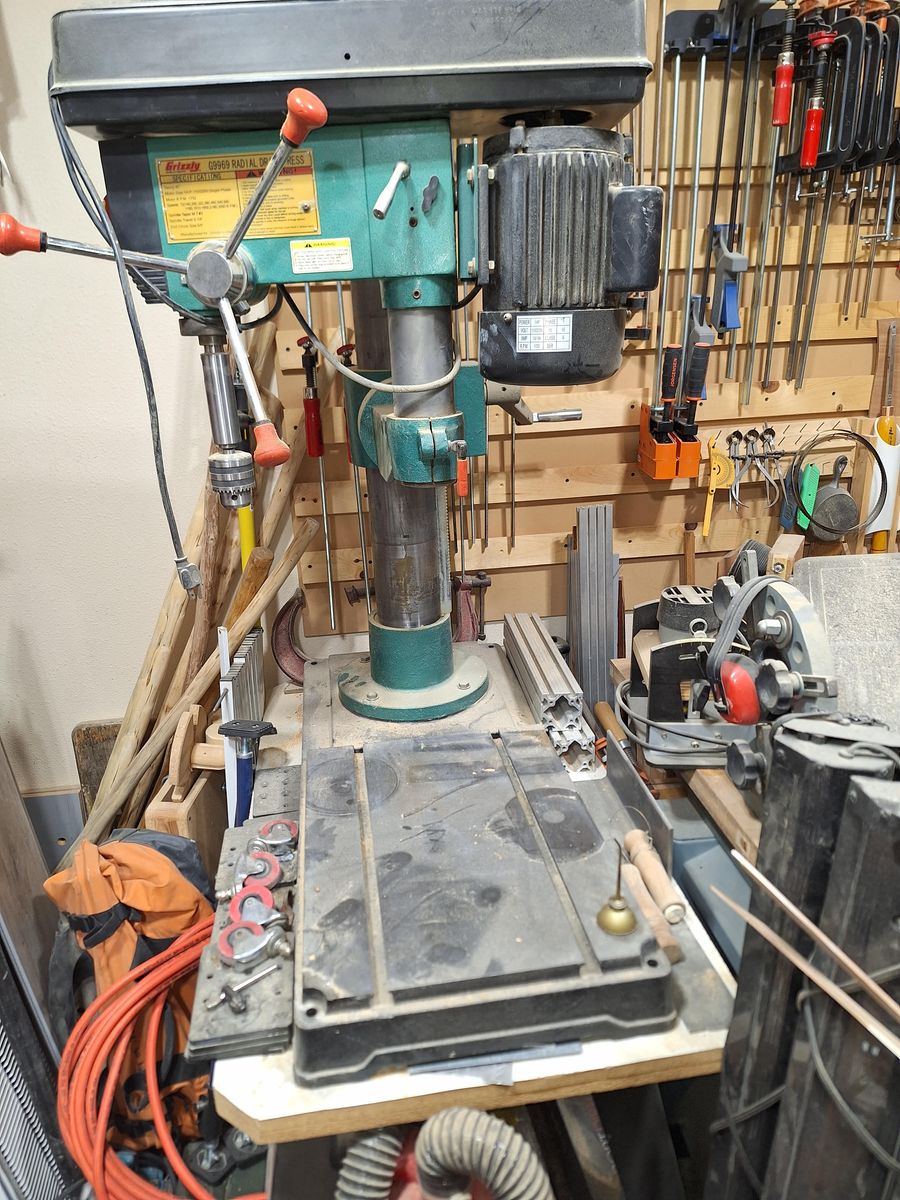

It sits on its own table. The table has a metal frame with a double layered countertop. It is currently listed on Grizzly tools for $1095 plus $299 shipping. I have added an extension spindle to allow the use of shorter drill bits. It currently needs a new motor part# P9969058 MOTOR 1HP 110V/220V 1PH which can be purchased at Grizzly for $319.35 with free delivery. The wood working I do now is very limited due to lung issues. For your troubles to order and install the new motor, I will discount this drill press greatly and save you the freight cost.
