For sale here is a Branson 2000Xdt industrial ultrasonic plastic-welding system, including the welding press/head assembly, digital controller and power supply, column and base assembly, installed base tooling plate, interconnecting cables, and other components shown in the photographs. This is not merely a loose ultrasonic generator or power supply. The auction is for the complete system shown in the listing photographs. Please note that an application-specific acoustic horn is not included.

The machine was acquired from a former employer, where it had been installed on a manufacturing line. It is exceptionally clean for used industrial equipment and appears to have received comparatively little use.

Testing performed

The machine has undergone substantially more than a simple power-on test. The following functions have been checked:

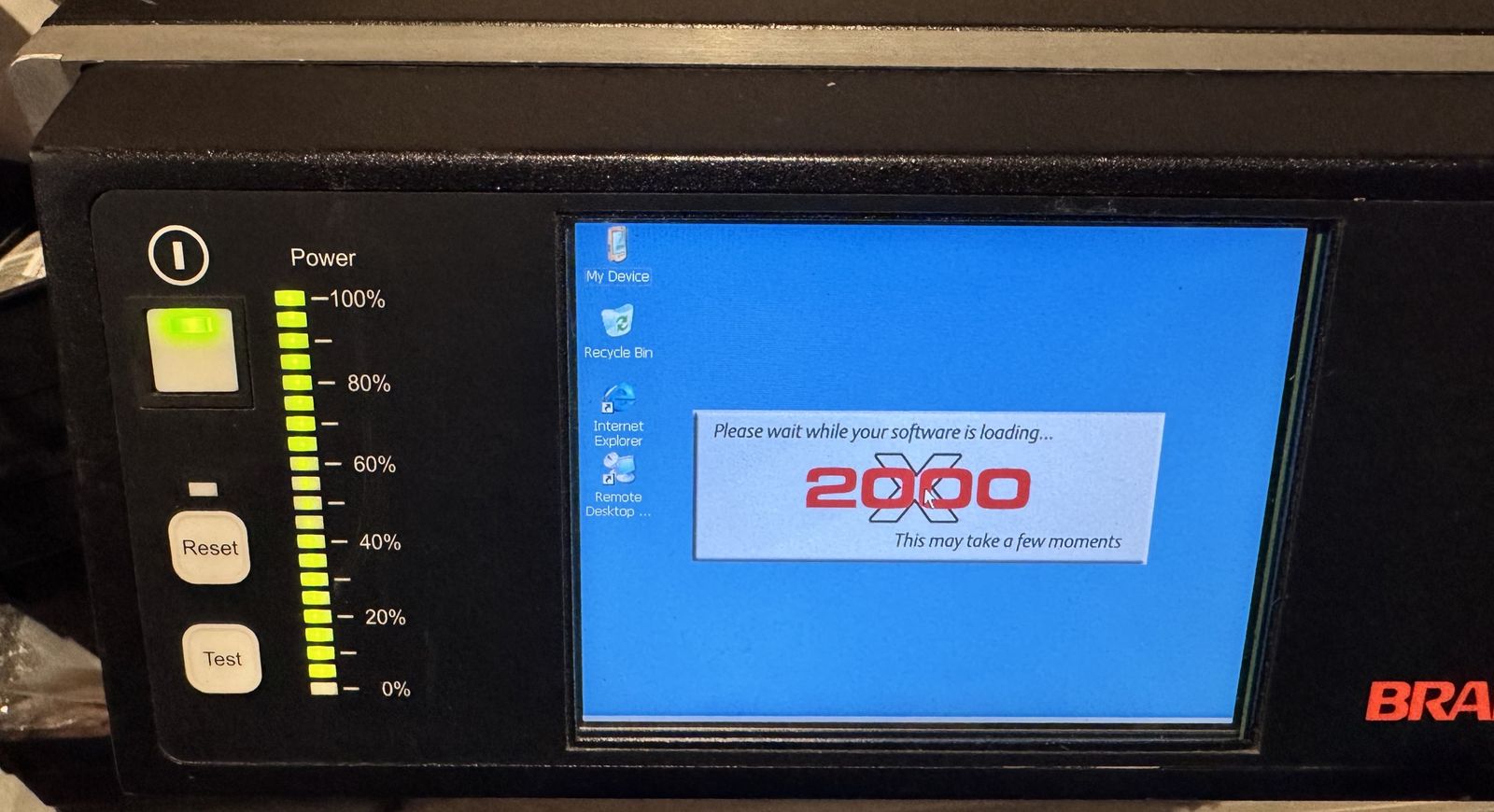

• Controller and ultrasonic power supply boot completely
• System reaches its normal operating state without startup faults
• Communications checks between the controller, power supply, and welding head complete successfully
• Z-column calibration completes successfully
• Z-axis movement appears smooth and normal

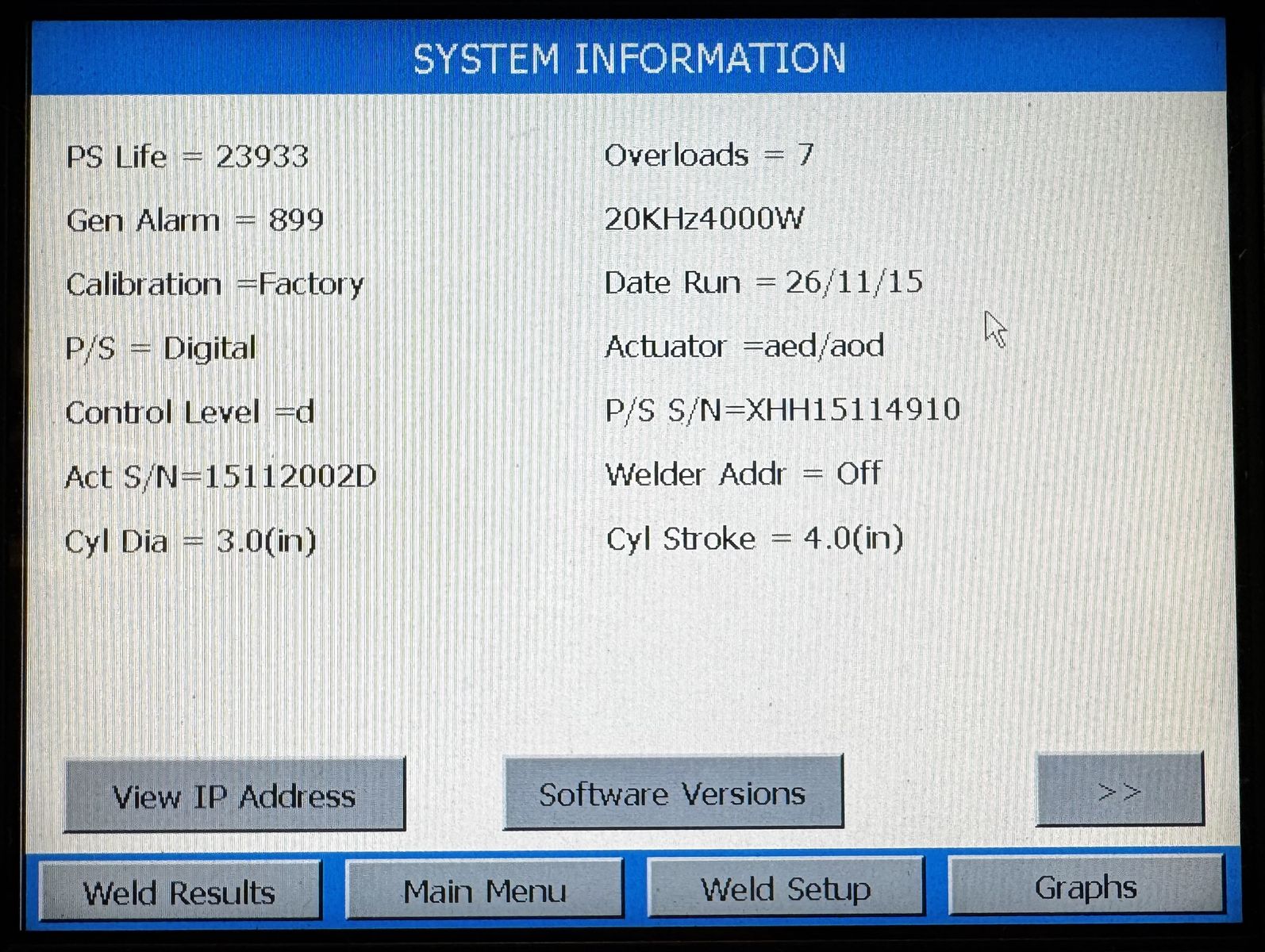

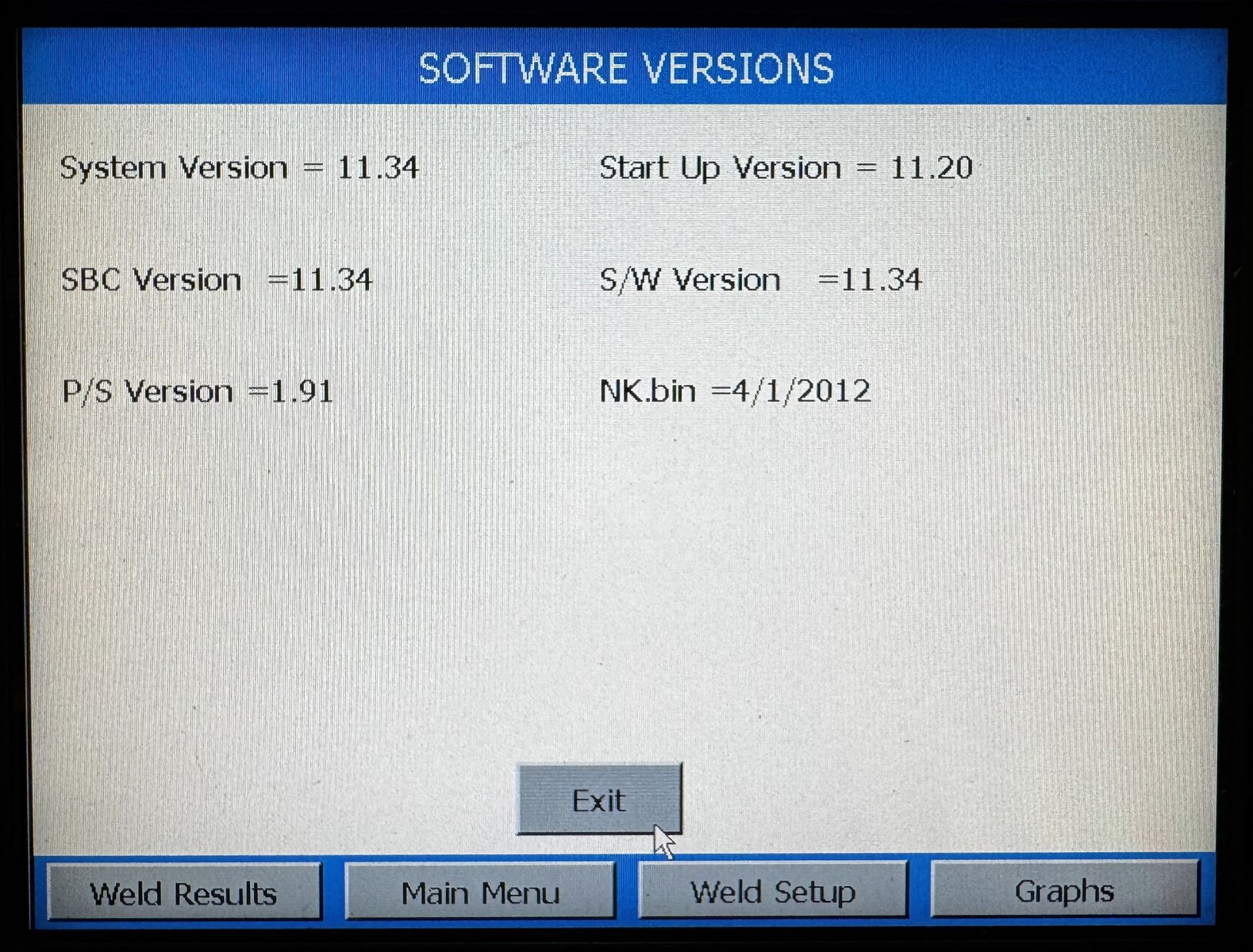

• Controller currently displays 23,933 completed cycles

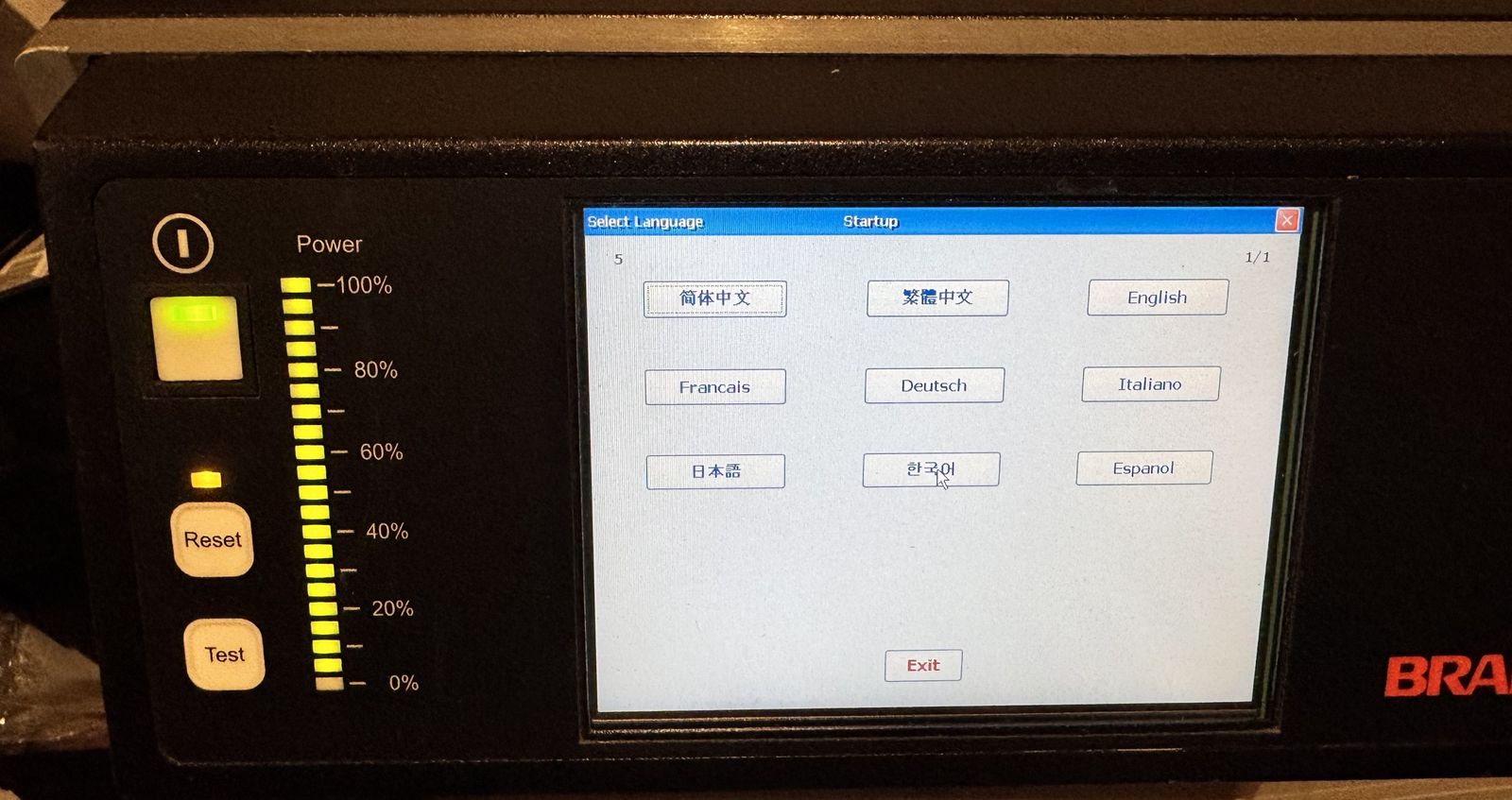

• Display, controls, and system menus appear to function normally

The indicated cycle count is very low for industrial production equipment of this type and is consistent with the machine’s unusually clean physical condition. The count is being reported exactly as displayed by the controller; its complete historical accuracy cannot be independently certified.

Ultrasonic test status

The machine does not include an acoustic horn, so I have not energized the ultrasonic output or attempted an actual weld. Ultrasonic operation requires a properly assembled and tuned 20 kHz acoustic stack, including a compatible horn appropriate to the intended application. No attempt has been made to operate the sonics with an incomplete acoustic stack. Accordingly, the machine is represented as: Controller, communications, motion, calibration, and startup functions tested successfully; ultrasonic output and production welding function not tested. Based on the machine’s manufacturing-line history, excellent condition, low indicated cycle count, successful calibration, normal motion, successful communications checks, and fault-free startup, I have every reason to believe it is fully functional. Nevertheless, no guarantee is made concerning ultrasonic output, weld quality, process capability, or fitness for a particular application.

System identification

• Manufacturer: Branson
• Model: 2000Xdt
• Configuration designation: 20:4.0
• Operating frequency: 20 kHz
• Maximum ultrasonic output: 4,000 W
• System EDP/model number: 101-132-1603
• Serial number: XH151114910
• Manufacture date: November 2015
• BUC number: 9411295
• Displayed cycle count: 23,933 cycles

Power-supply configuration

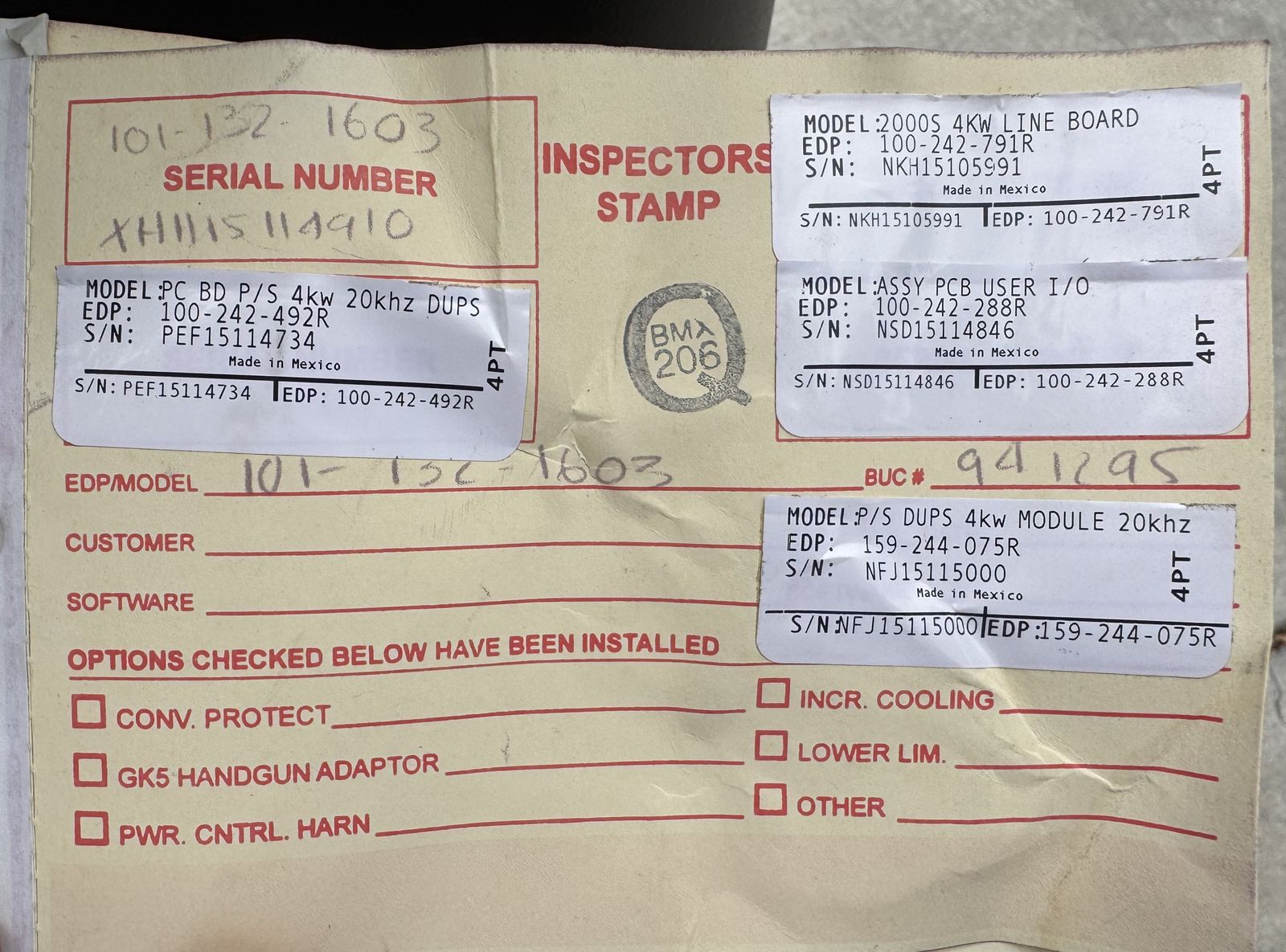

The factory system-equipment tag identifies the following installed components:

4 kW, 20 kHz DUPS power-supply board

• EDP: 100-242-492R
• Serial number: PEF15114734

4 kW, 20 kHz digital power module

• EDP: 159-244-075R
• Serial number: NFJ15115000

2000S 4 kW line board

• EDP: 100-242-791R
• Serial number: NKH15105991

User I/O board

• EDP: 100-242-288R
• Serial number: NSD15114846

Electrical requirements

The rear power-supply nameplate specifies:

• Input voltage: 200–240 VAC
• Input current: 25 A
• Line frequency: 50/60 Hz
• Phase: Single phase
• Maximum output power: 4,000 W

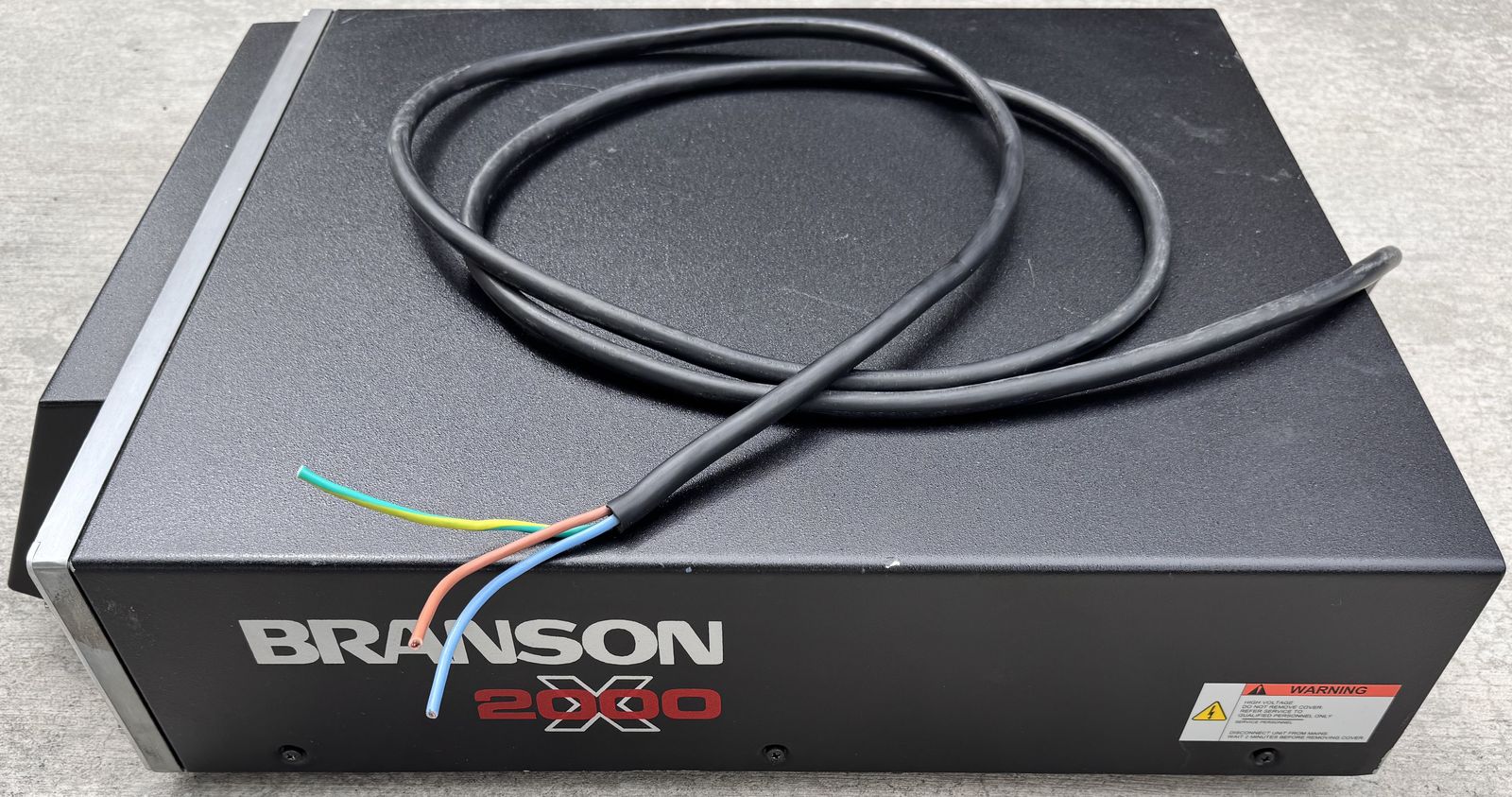

The power-supply mains cable is included, but the facility end is unterminated. The machine will require an appropriately rated plug or approved hardwired connection to be installed by a qualified electrician according to the buyer’s electrical service and applicable codes. This is industrial equipment and is not intended for connection to a conventional 120 V receptacle. The buyer is responsible for providing a properly grounded 200–240 VAC single-phase branch circuit, appropriate overcurrent protection, and a suitable disconnecting means.

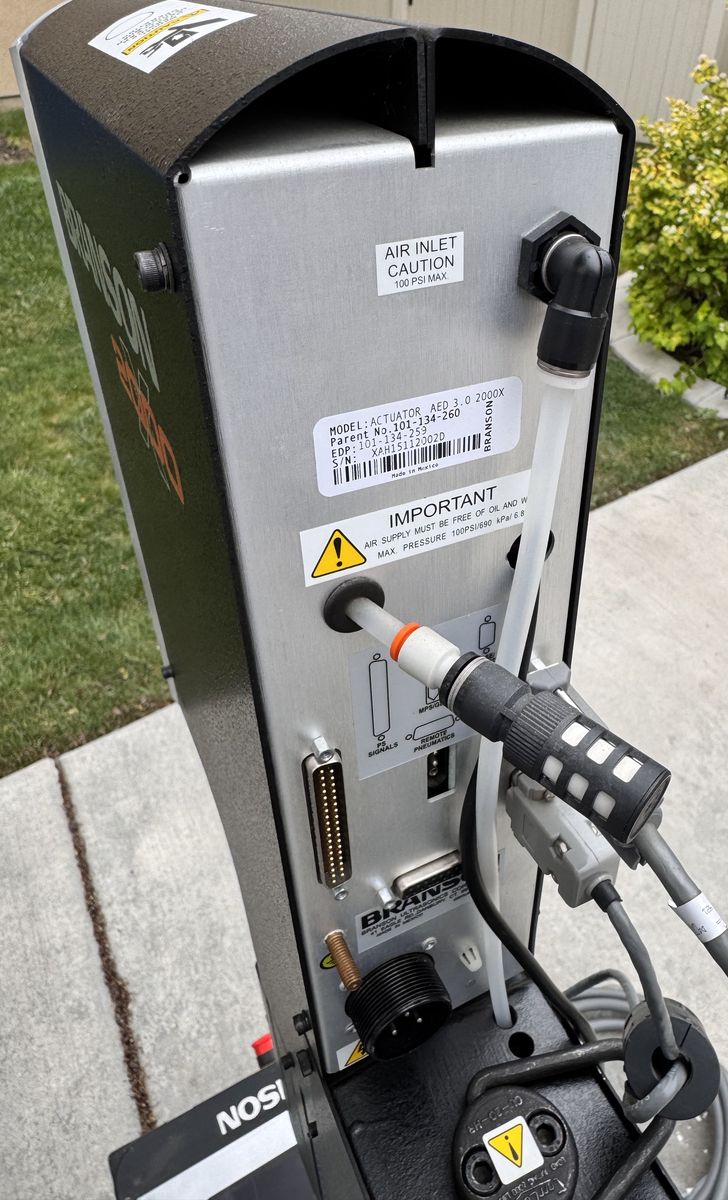

Rear-panel connections

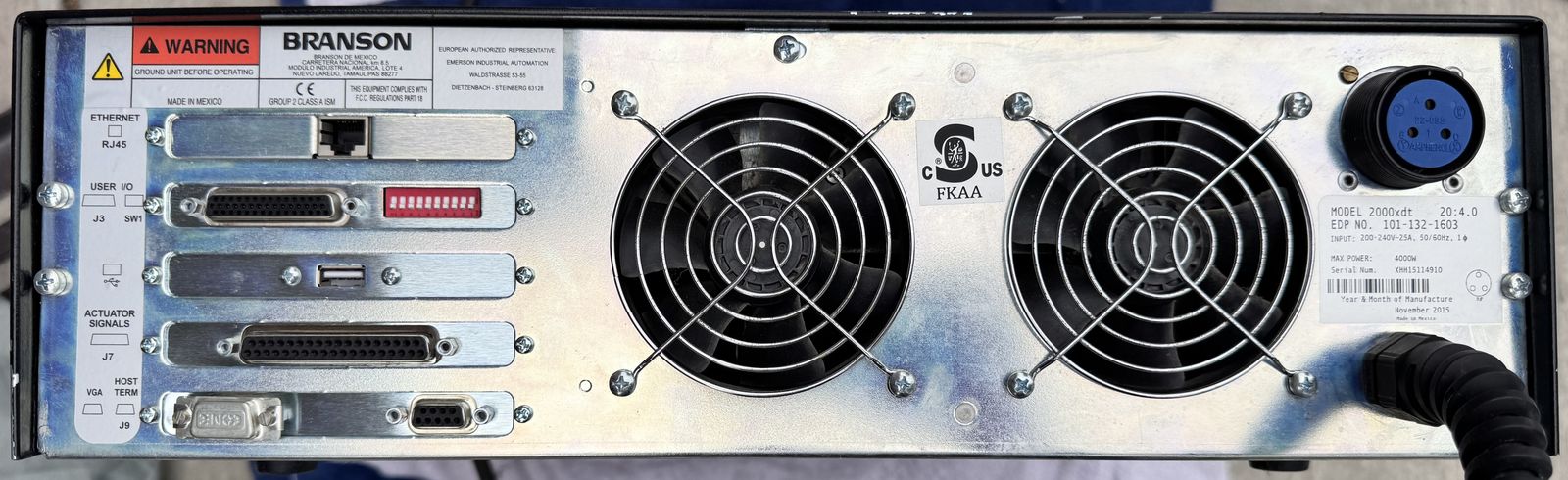

Visible rear-panel interfaces include:

• Ultrasonic output connector
• Ethernet RJ45 connection
• User I/O connector
• Actuator-signals connector
• USB port
• VGA connection
• Host-terminal serial connection
• Dual forced-air cooling fans

Included equipment

The sale includes the equipment shown in the listing photographs, including:

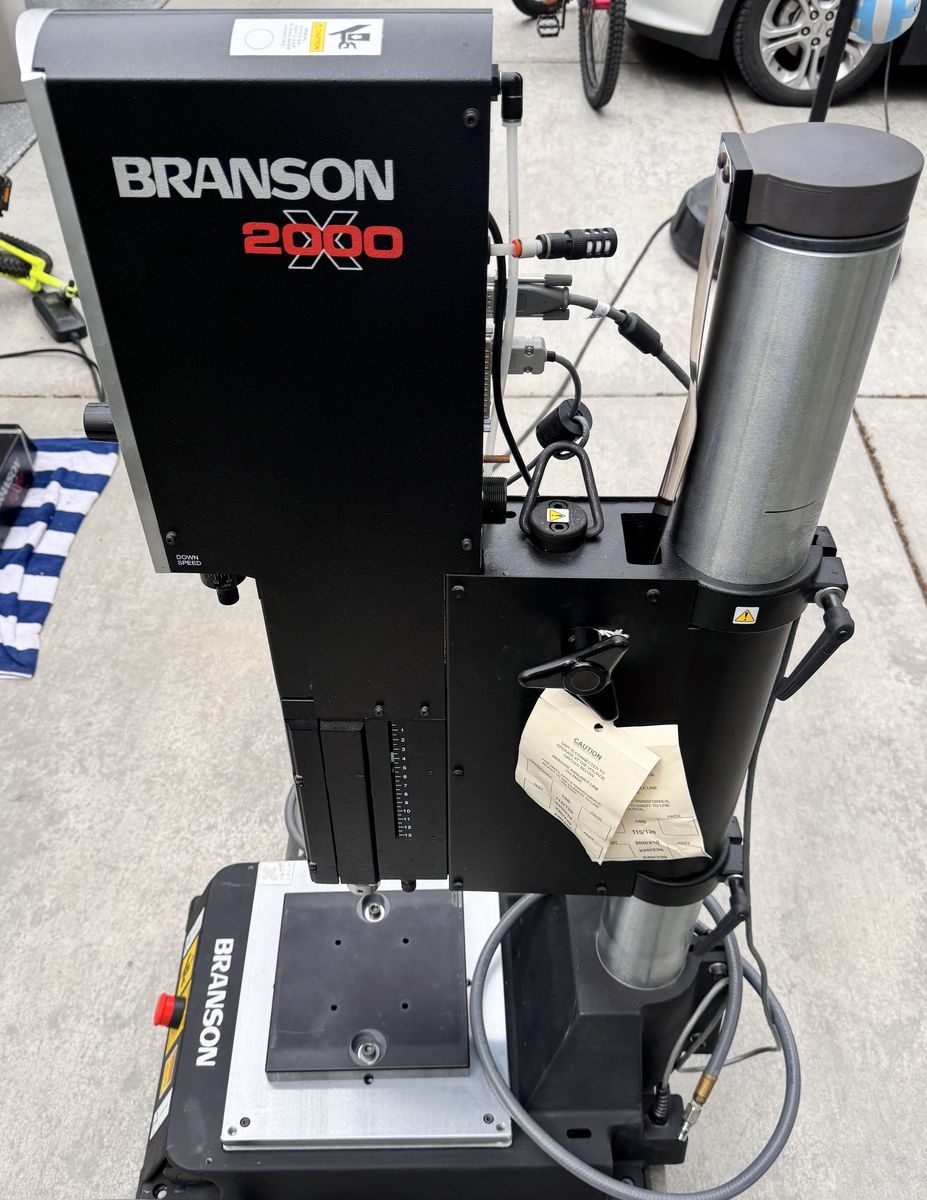

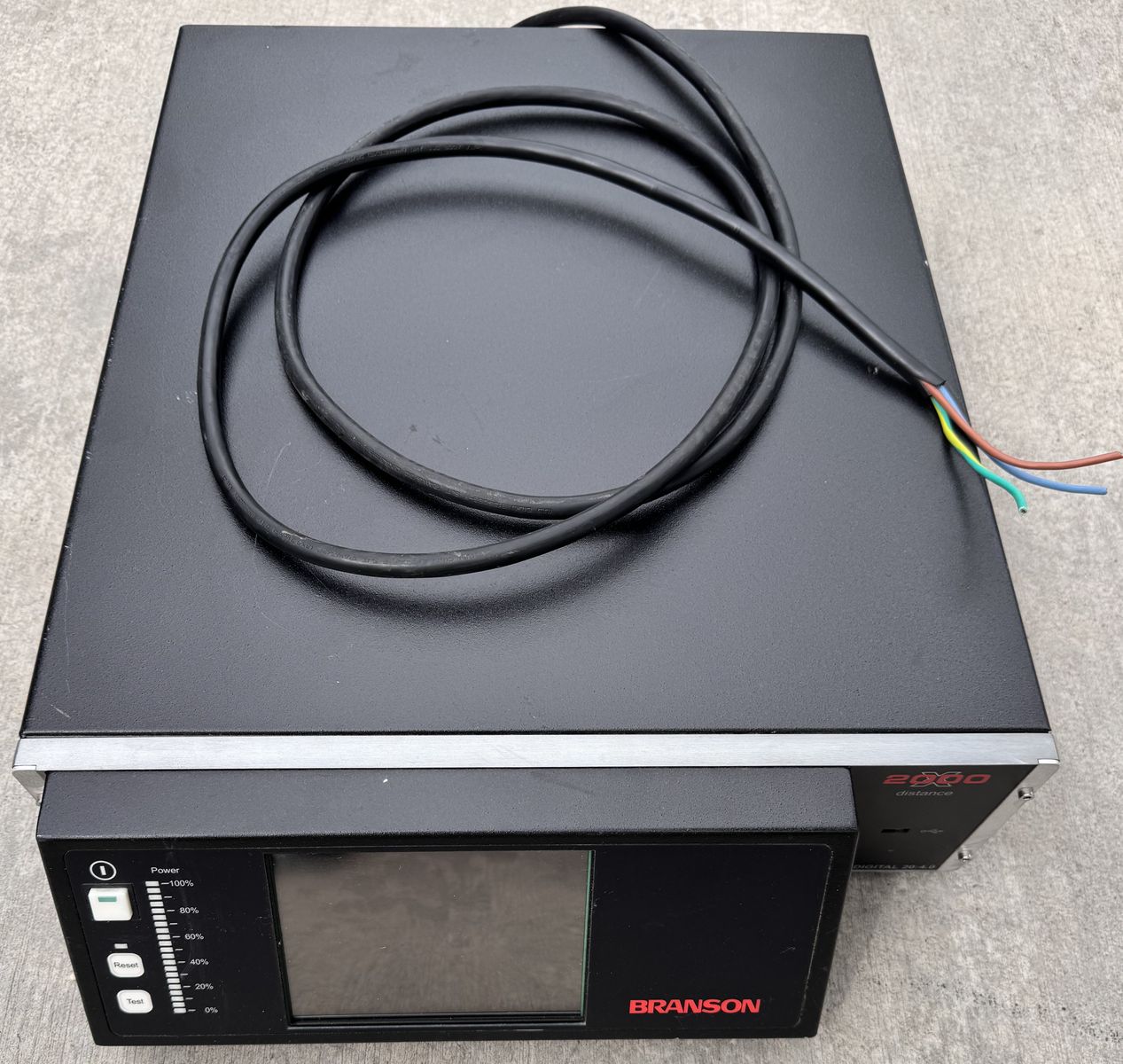

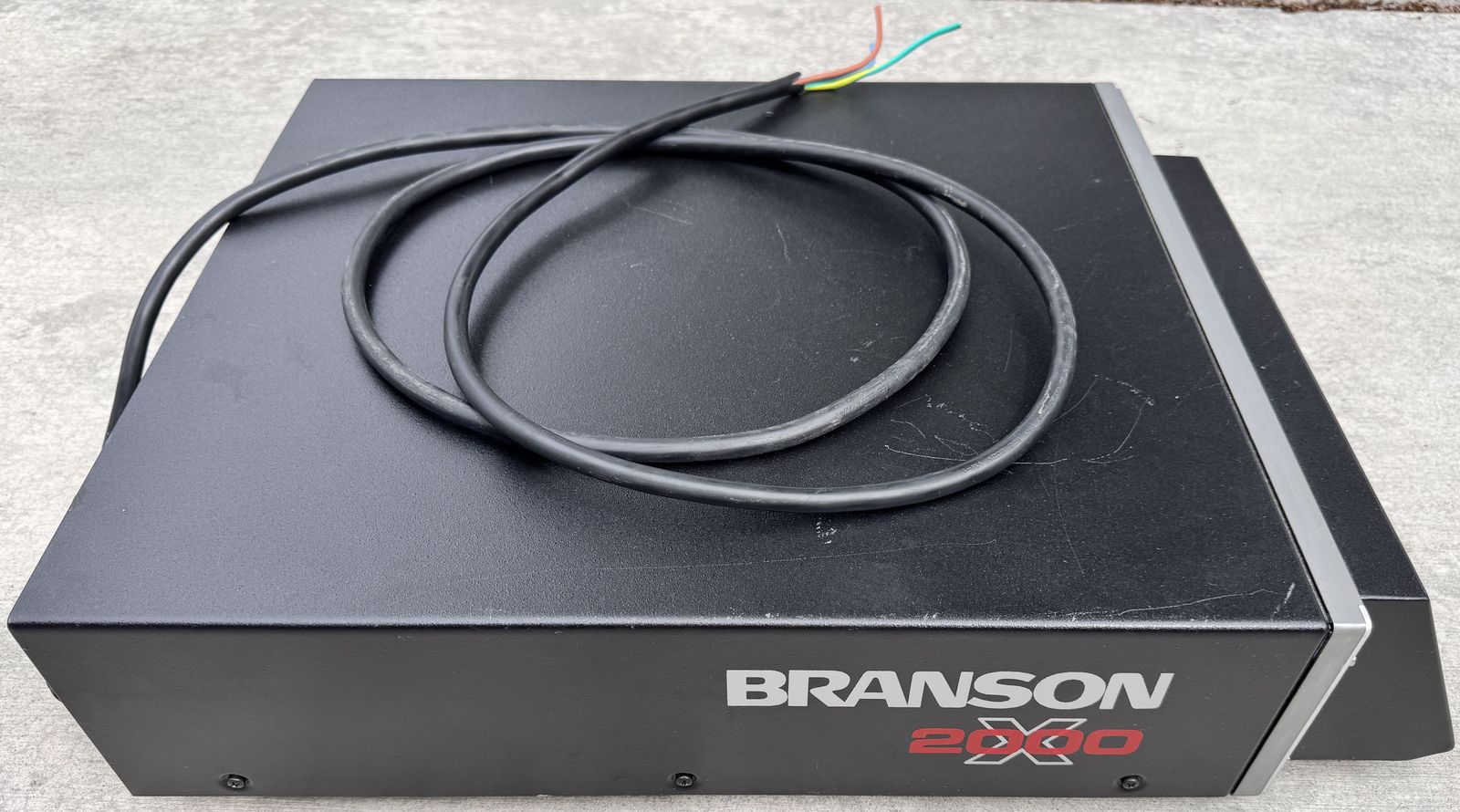

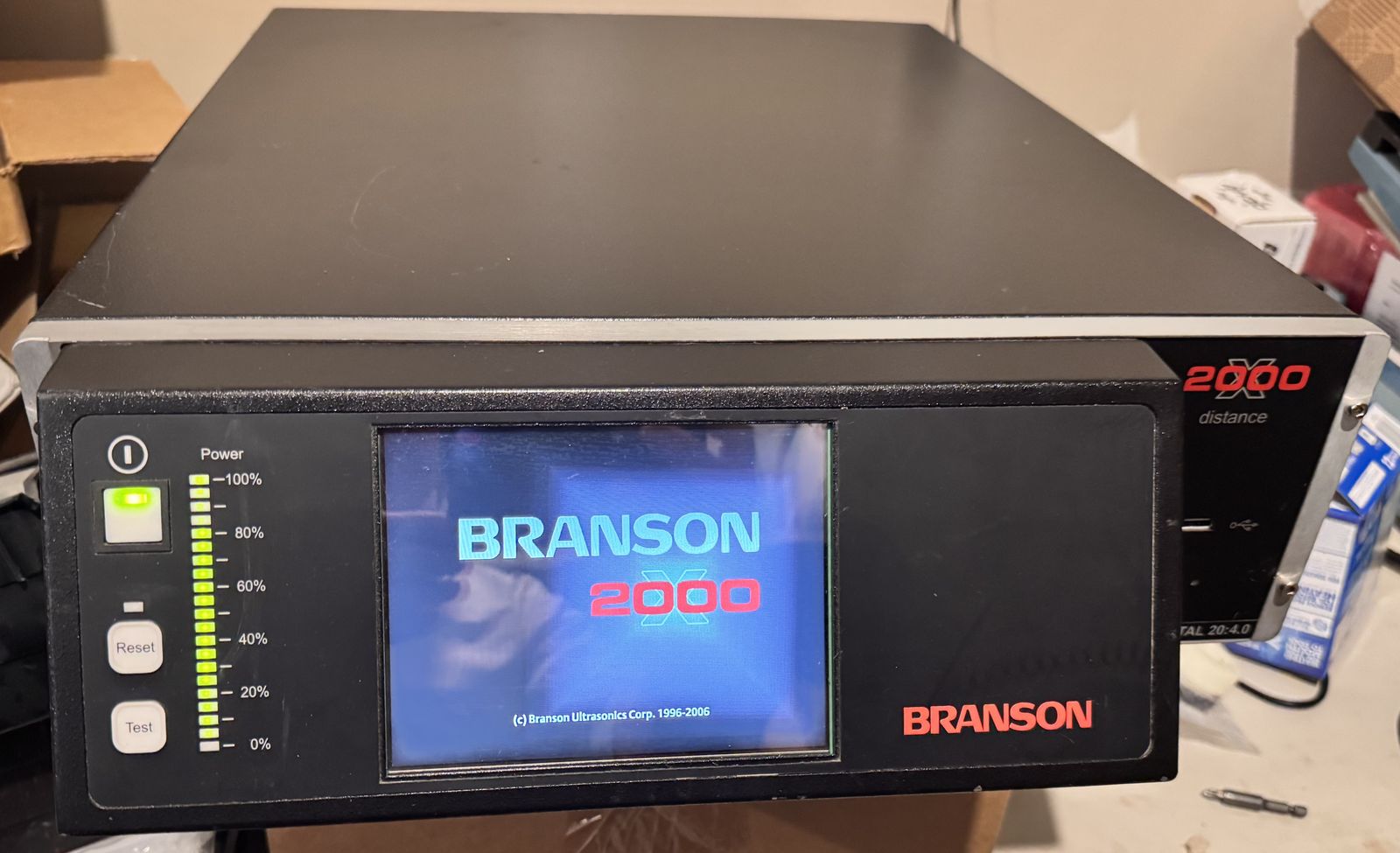

• Branson 2000Xdt controller and 4 kW power supply

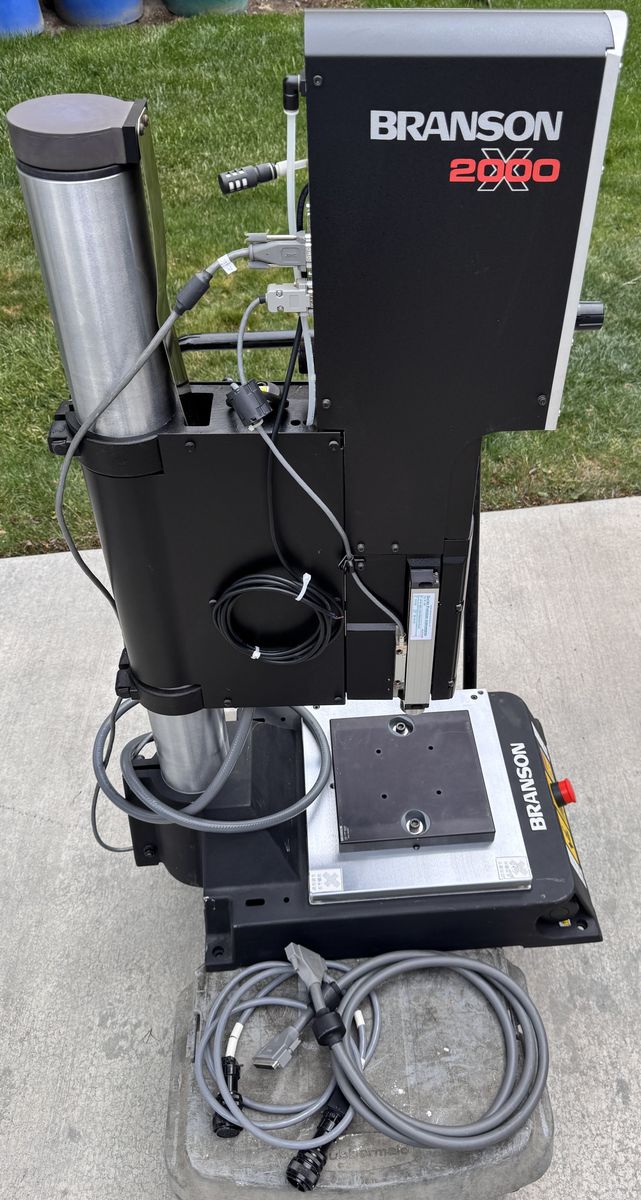

• Welding press/head and actuator assembly

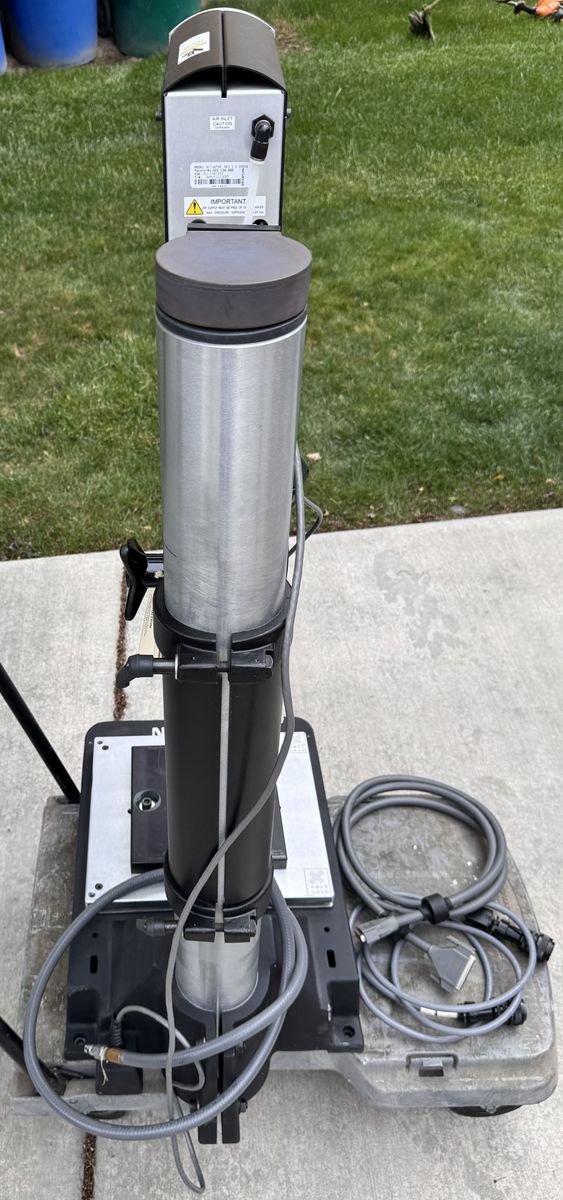

• Column and base assembly
• Installed Branson base tooling/fixture plate
• Power-supply mains cable

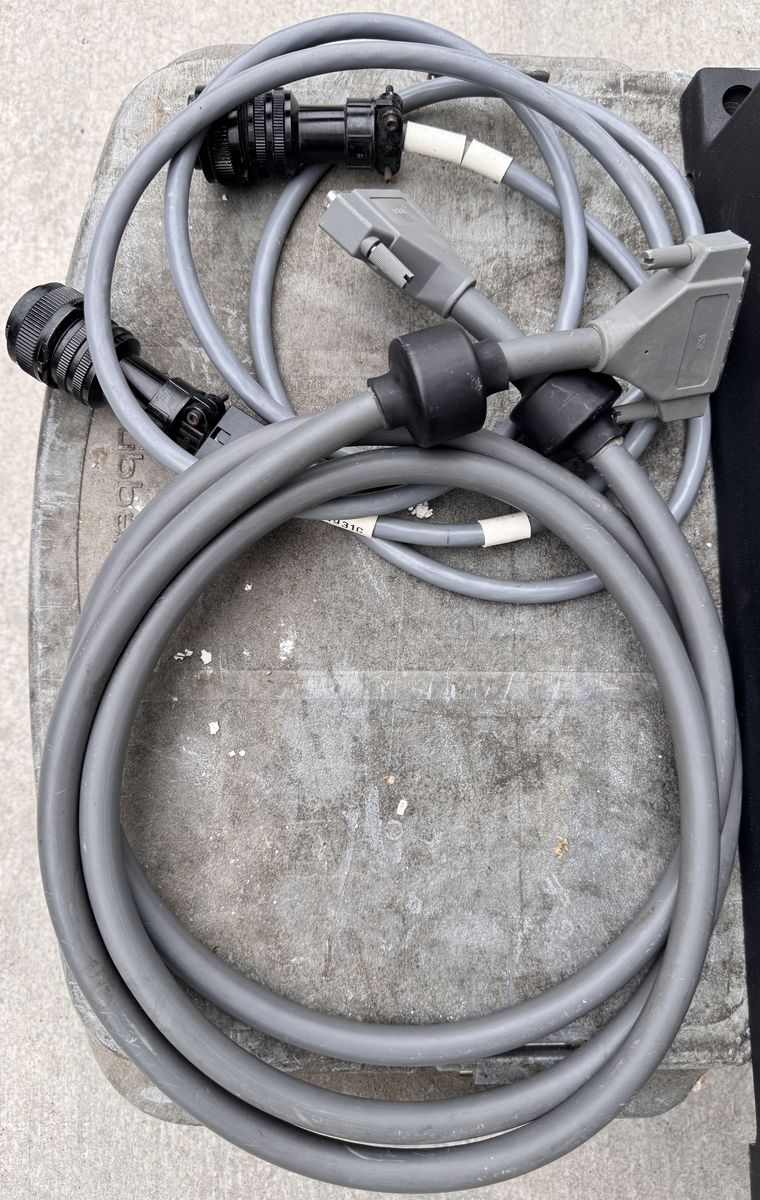

• System interconnecting cables
• Other attached components and accessories shown

All necessary cables associated with the machine are included. As noted above, the mains cable is unterminated and requires an appropriate plug or facility connection to be installed by a qualified electrician. An application-specific ultrasonic horn is not included.

Installed base tooling plate

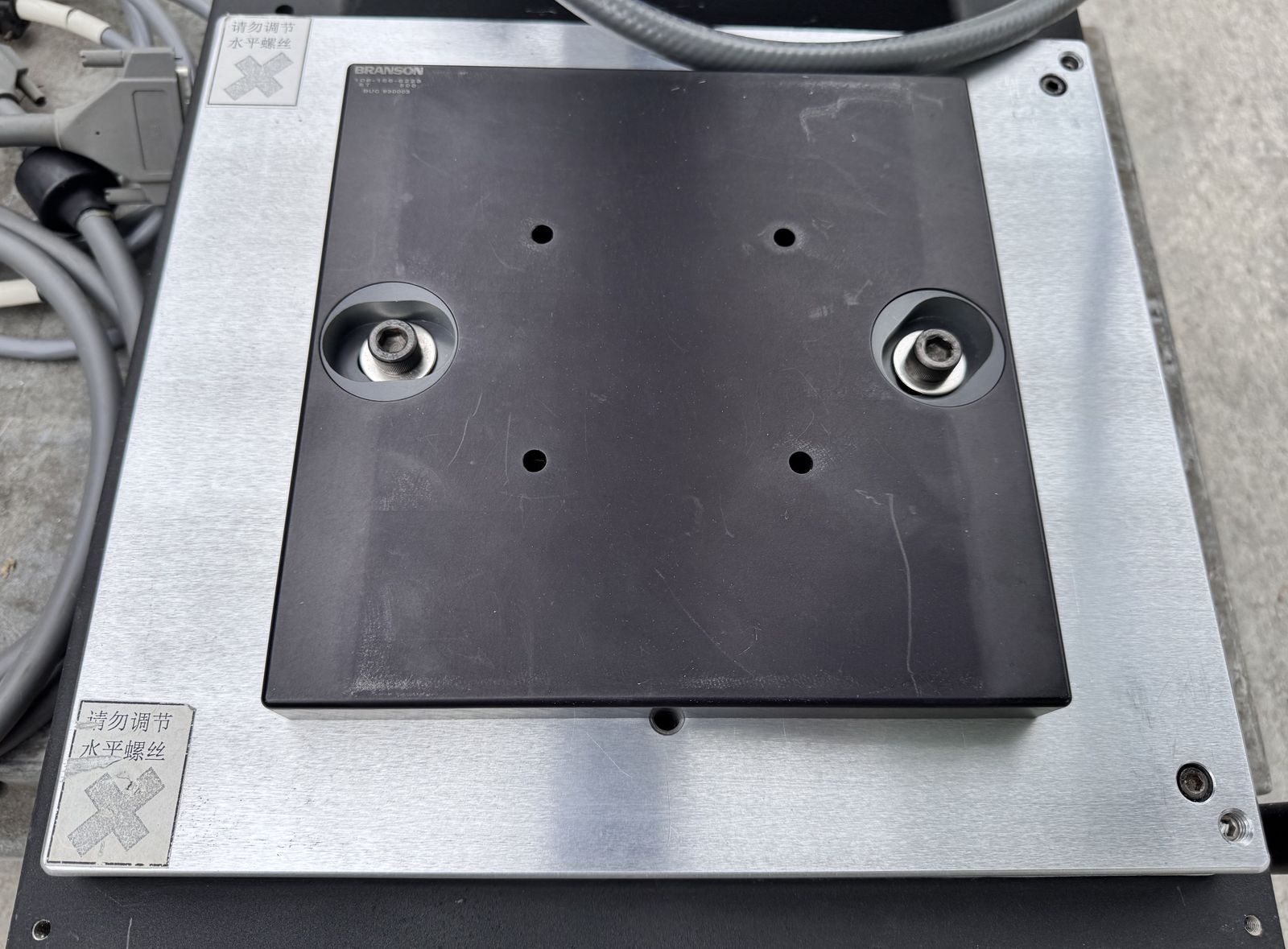

The machine has a Branson-marked plate installed on its base. Its visible markings appear to be:

• Branson number: 199-156-6223
• ST 500
• BUC 930003

This appears to be a Branson factory-supplied tooling, fixture, support, or mounting plate intended to support application-specific lower tooling beneath the acoustic horn. I have not been able to establish its exact original production application.

The plate is included with the machine, but the buyer should not assume that it constitutes complete production tooling for a new application. A new lower fixture and acoustic horn will ordinarily need to be selected or manufactured for the buyer’s specific part geometry and welding process.

Typical uses

With suitable tooling and a properly tuned 20 kHz acoustic stack, Branson 2000X-series equipment may be used for ultrasonic plastics-processing operations such as:

• Plastic welding
• Staking
• Inserting
• Swaging or forming
• Spot welding
• Degating
• Cut-and-seal operations
• Automated plastics assembly

Actual capability depends on the material, joint design, converter, booster, horn, fixture, programmed weld parameters, and production requirements. Branson’s documentation describes the 2000X system as equipment for joining plastic parts using ultrasonic energy.

Condition

• Exceptionally clean overall condition
• Acquired from a manufacturing-line environment
• Only 23,933 cycles currently indicated
• Controller and power supply boot completely
• No startup faults reported
• Controller-to-head communications check passes
• Z-column calibration completes successfully
• Z-axis motion appears smooth and normal
• Ultrasonic output not tested because no horn is installed
• Minor cosmetic evidence of normal industrial use may be present
• Manuals are available online but are not included in printed form. No software CDs included.
• Sold as pictured - what you see in the pics is exactly what you'll receive (wheeled cart not included)

Important installation information

This is high-power industrial ultrasonic welding equipment. Proper installation and commissioning require:

• An appropriate 200–240 VAC single-phase electrical supply
• Qualified electrical installation
• Proper machine grounding
• Compatible 20 kHz acoustic components
• A correctly installed and tuned horn
• Suitable lower tooling and fixturing
• Correct machine setup and weld programming
• Appropriate guarding and operator-safety measures
• Verification of safety interlocks before production use

Branson’s manuals specify procedures for installing and tightening a complete acoustic stack and warn against operating or servicing the equipment contrary to the prescribed safety procedures.

Sale terms and shipping

This is large, heavy industrial machinery. Local pickup or freight shipment is recommended.

The buyer is responsible for confirming:

• Machine dimensions and weight
• Access and loading requirements
• Rigging arrangements
• Freight classification
• Delivery access
• Electrical compatibility
• Suitability for the intended application

Only the equipment, cables, tooling plate, and accessories shown in the listing photographs are included. No acoustic horn, application-specific upper tooling, or guaranteed production process is included unless expressly shown and stated elsewhere in the listing. The machine is sold as used industrial equipment, with its condition and test status described above. Prospective buyers are encouraged to review all photographs, videos, nameplates, and test information carefully before purchasing.
