Horizontal Spindle(s) 3 spindles

Rotational Spindle Speed 7500 rpm maximum

Drill Shank Diameter 10 mm (0.39")

Total Length of Drill Bit 70 mm (2.75")

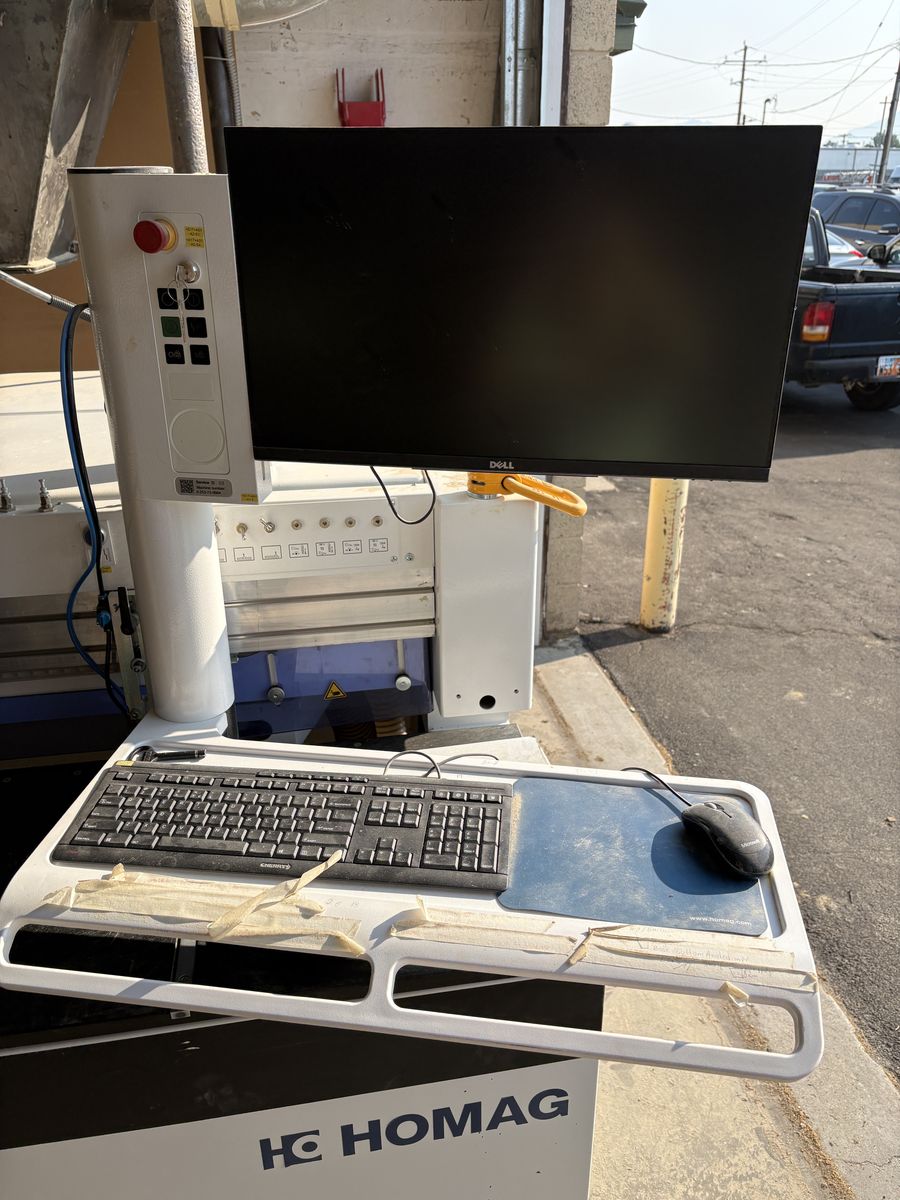

CNC Control PC-based with Wood-Wop programming

Manually Adjustable Clamping Cylinders 4

Dowel Specifications:

Driver 1

Diameter 8 mm (0.31")

Projection fixed according to dowel length

Length 30 mm (1.25") or 35 mm (1.38")

Wooden Dowel Length Tolerance +/- 1 mm

Wooden Dowel Diameter Tolerance +/- 0.2 mm

Workpiece Specifications:

Supported Length (minimum) 20 mm (0.79")

Supported Length (maximum) 1250 mm (49.2")

Width (minimum) 50 mm (1.97")

Width (maximum) 800 mm (31.5")

Thickness (minimum) 10 mm (0.39")

Thickness (maximum) 60 mm (2.36")

Length for Active Center Stop (maximum) 620 mm (24.4")

Electrical:

Operating Voltage 208/480 Volts, 3Ø, 60 Hz

Dust Extraction:

Connection Size(s) 80 mm (3.15") diameter

Air Volume (324 cfm)

Compressed Air:

Connection Size(s) 1/2" Radius

Pressure Required 102 psi / 7 bar
