Complete new old stock electric vehicle conversion package built around an HPEVS/Hi Performance AC-35 three-phase motor and matched Curtis 650-amp controller.

All components were purchased new for an EV conversion project but were never installed, operated, or placed into service. They have been stored indoors for several years. Batteries are not included.

MAIN DRIVE SYSTEM:

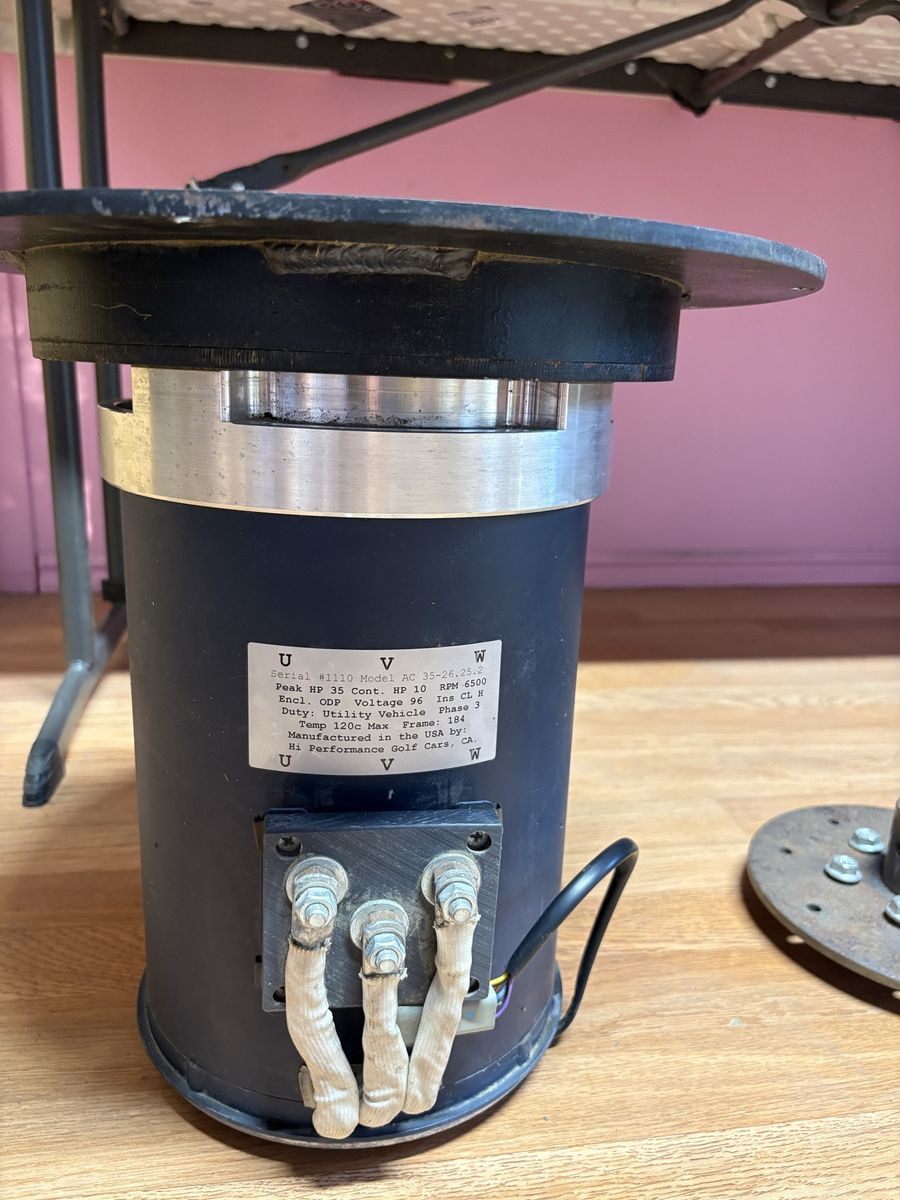

• HPEVS / Hi Performance Golf Cars AC induction motor • Model: AC 35-26.25.2 • 96-volt, three-phase motor • 35 peak horsepower / 10 continuous horsepower • Maximum speed: 6,500 RPM • Motor serial number: 1110 • Manufactured in the USA

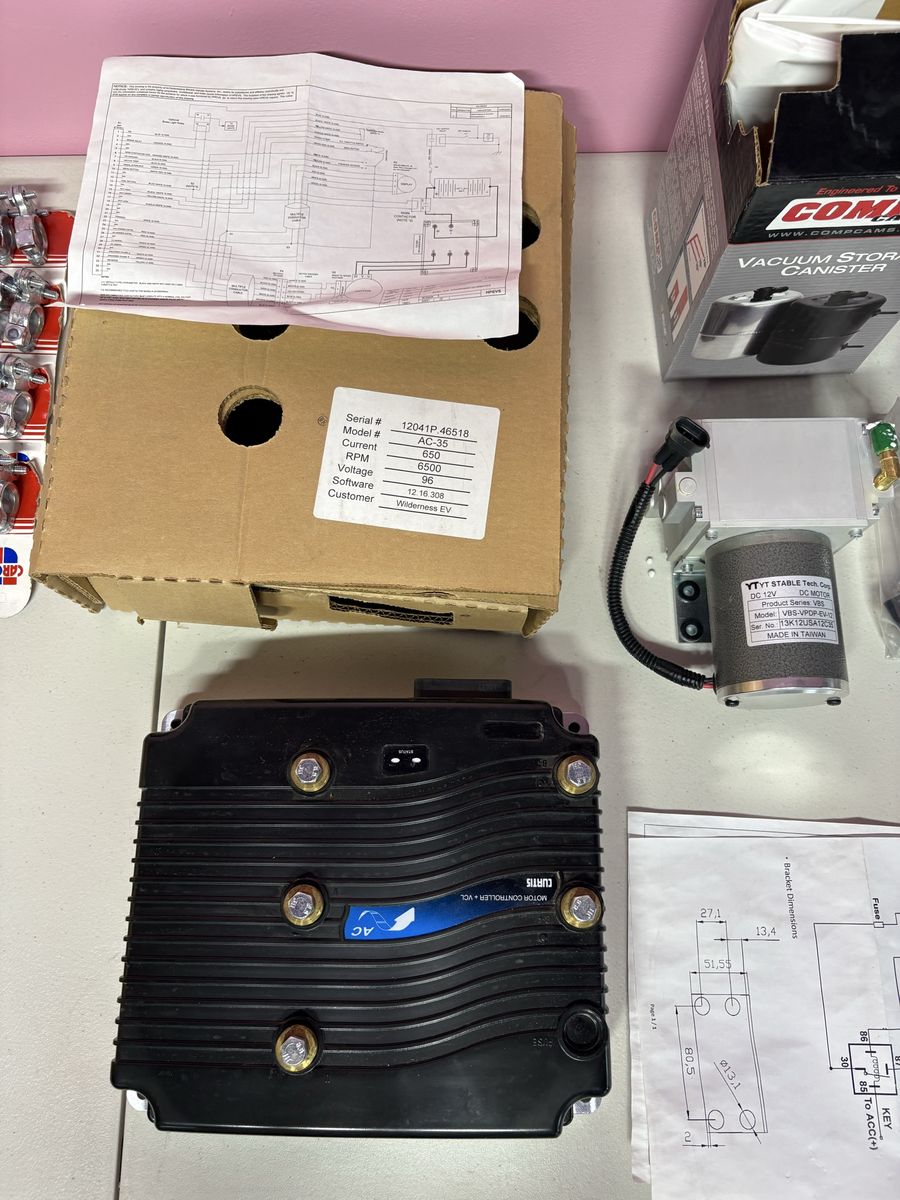

• Curtis AC motor controller • Model: 1238R-7601 • Part number: 365937601 • Operating range: 72–96 volts • Maximum current: 650 amps • Serial number: 12041P.46518 • Programmed for the AC-35 system by Wilderness EV • Software version: 12.16.308 • Original factory seal appears intact

CHARGING SYSTEM:

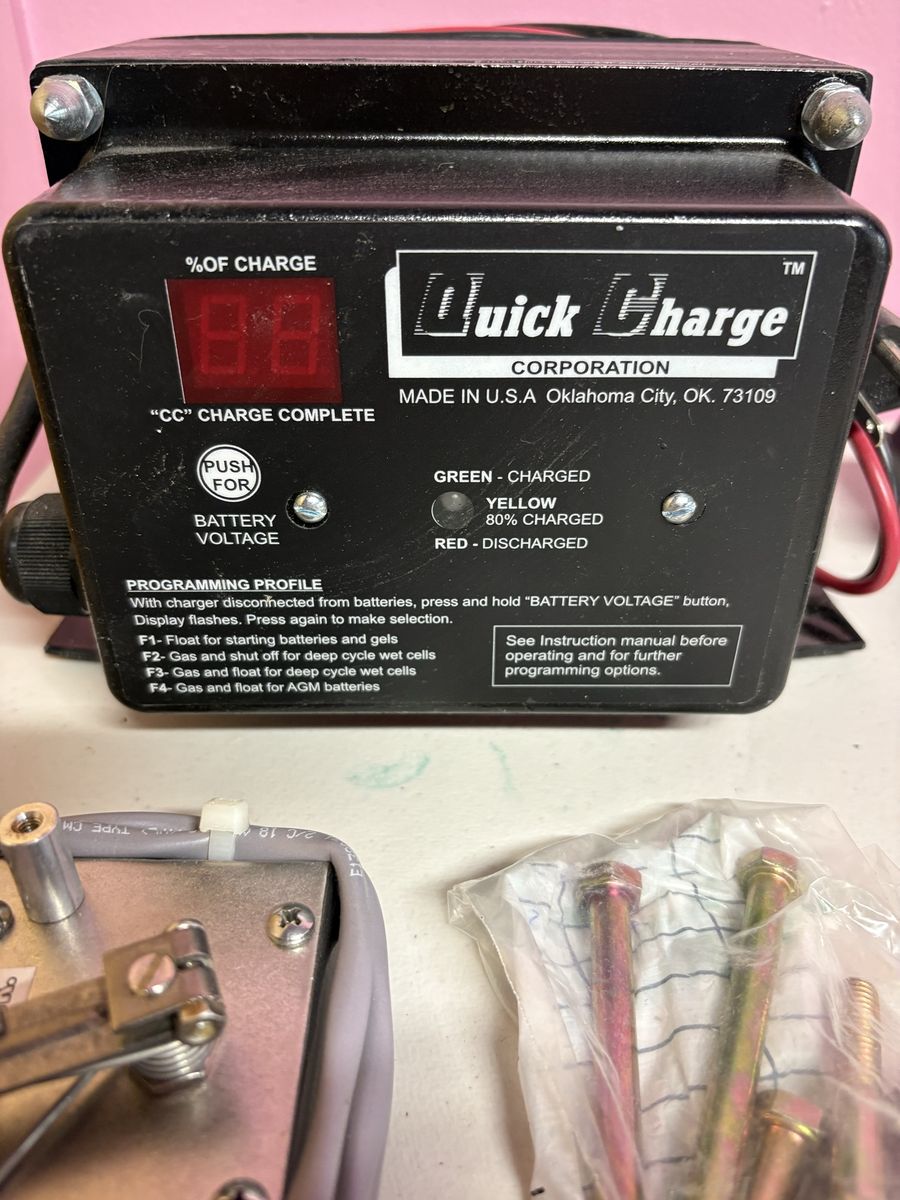

• Quick Charge Corporation onboard battery charger • Model: SC012010 • 117V AC input, 60Hz, 12 amps • 120V DC output, 10 amps • Manufactured in the USA • Charging profiles for conventional wet-cell, AGM, and gel lead-acid batteries • Date code: April 2012

CONTROLS, WIRING AND DISPLAYS:

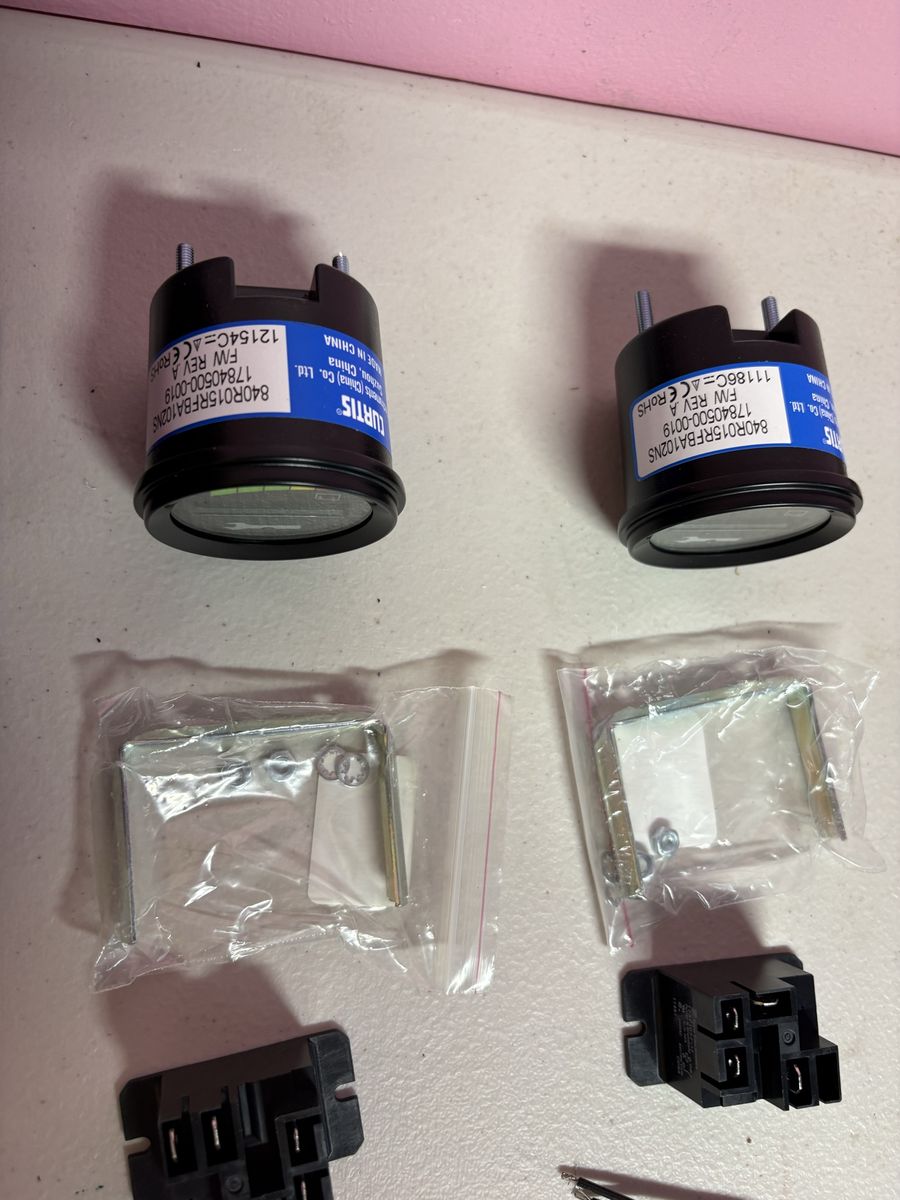

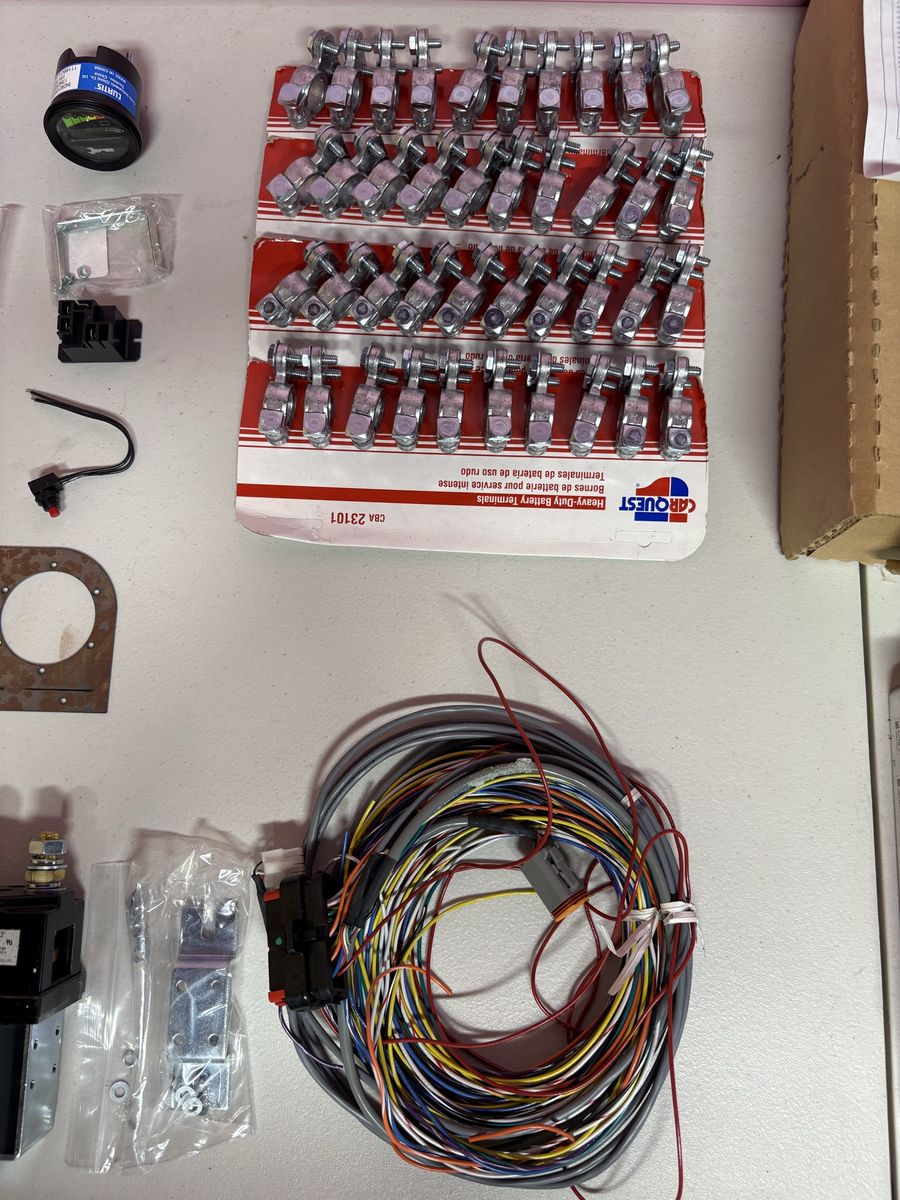

• Complete labeled controller wiring harness with connectors • Two Curtis digital gauges/displays with mounting brackets • Curtis PB-5 throttle potbox/accelerator control • HPEVS electrical conversion schematic • Relays, switches, connectors and related control components

HIGH-CURRENT COMPONENTS:

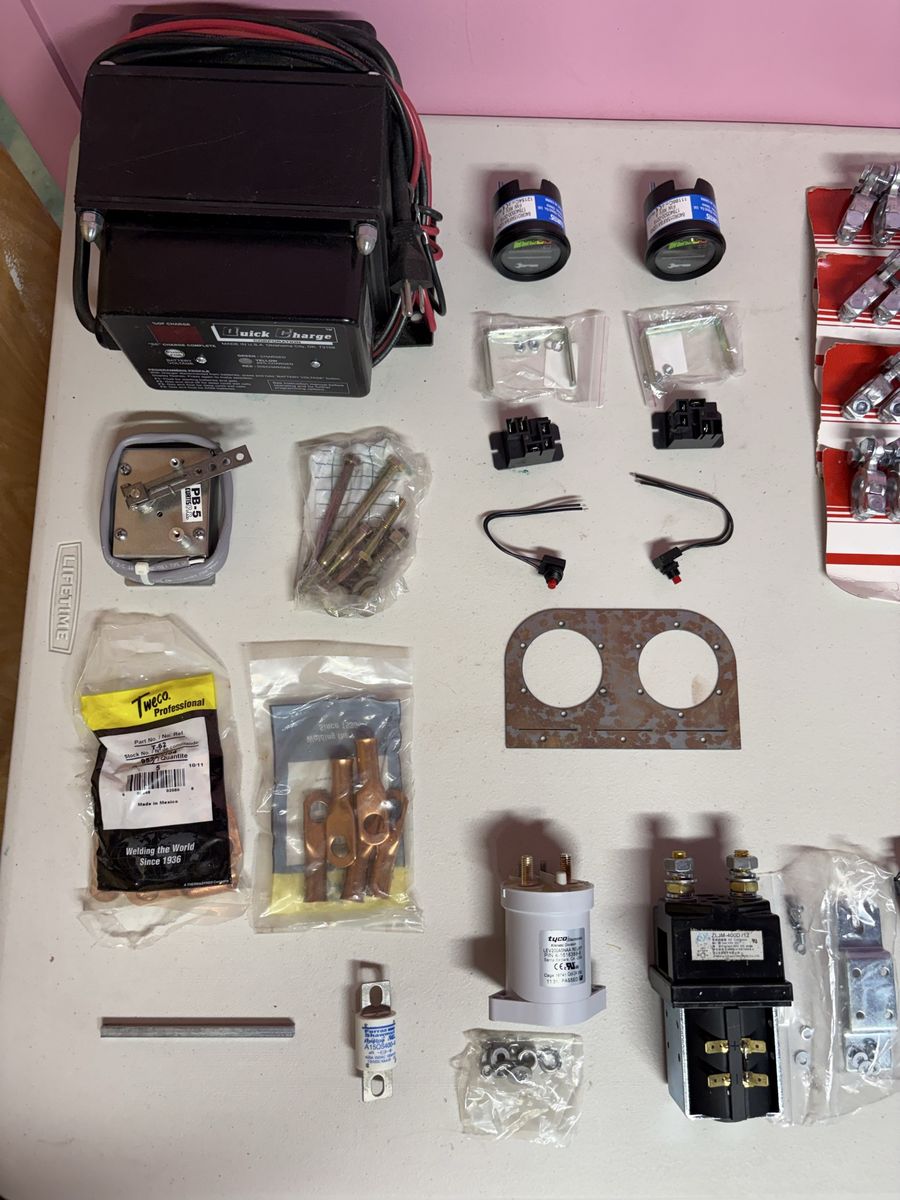

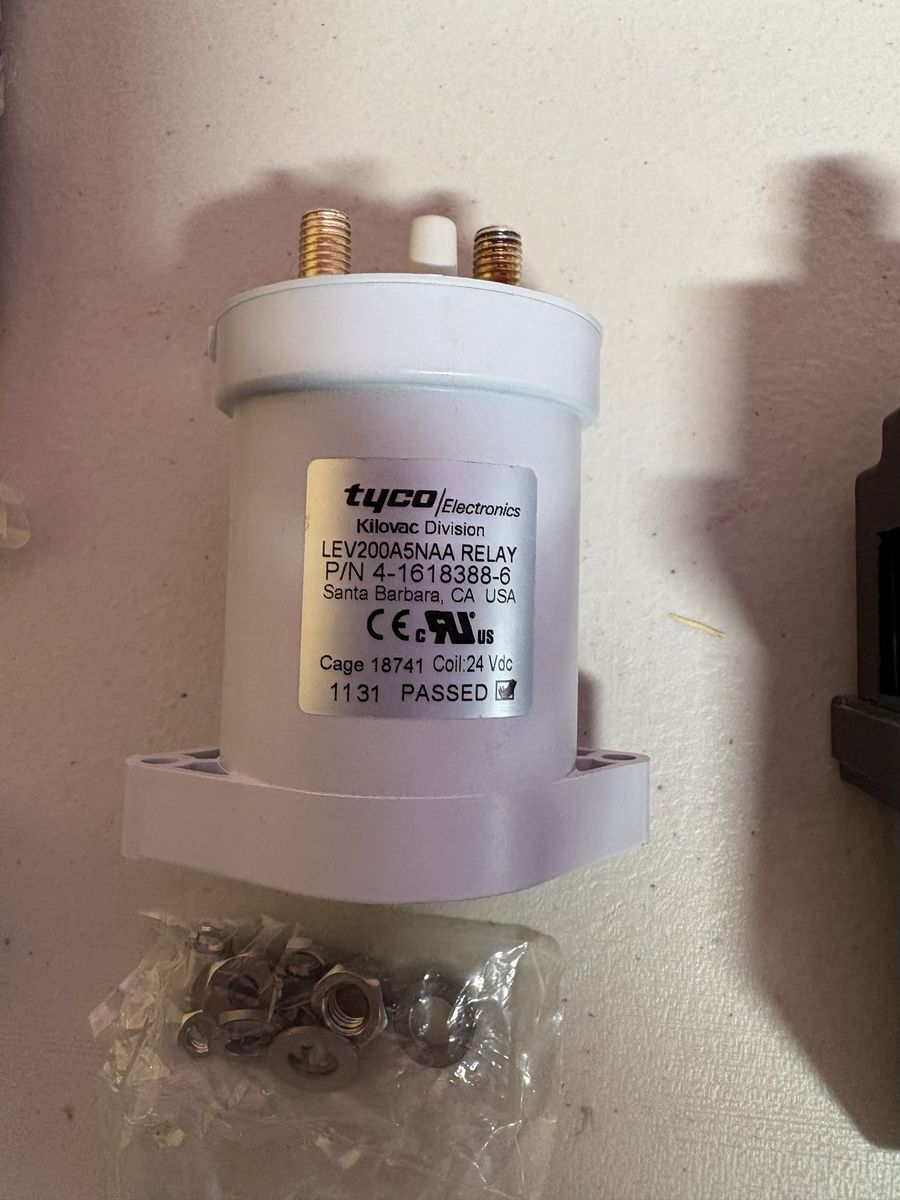

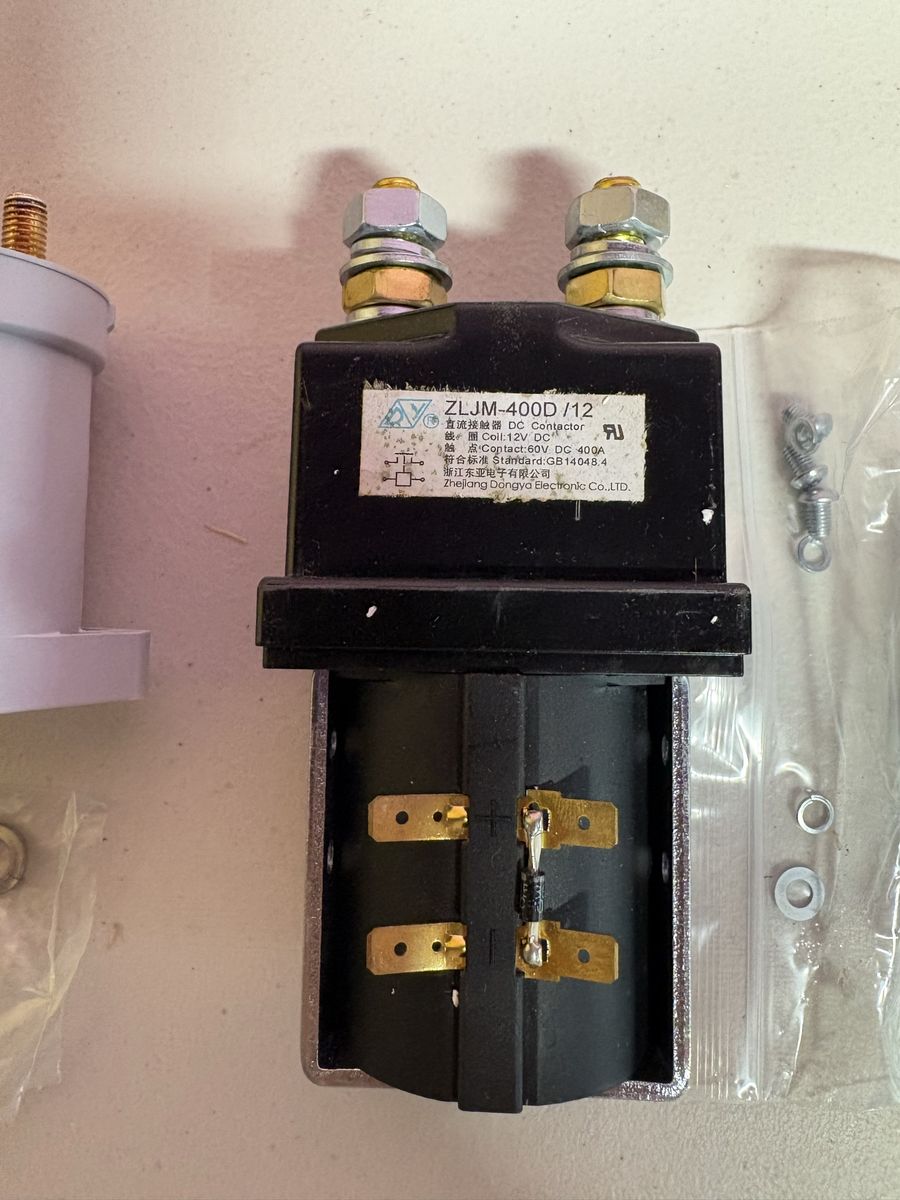

• Tyco Electronics/Kilovac LEV200A5NAA high-voltage contactor with 24V DC coil • ZLJM-400D/12 DC contactor, 12V coil, 400A rating • High-current fuse • Heavy-gauge power cable • Multiple battery cable terminals and clamps • Copper cable lugs and terminal ends • Additional wiring, brackets, fasteners and mounting hardware

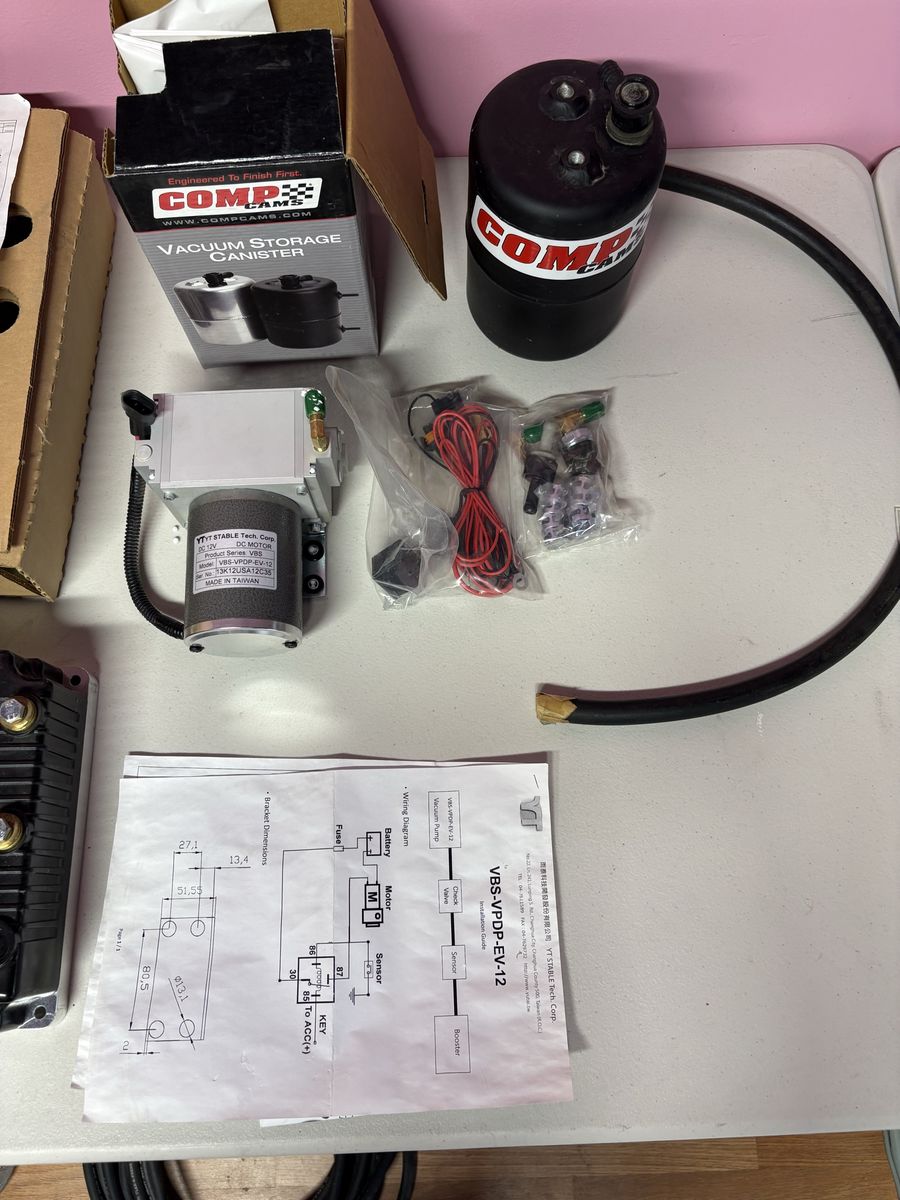

VACUUM BRAKE ASSIST SYSTEM:

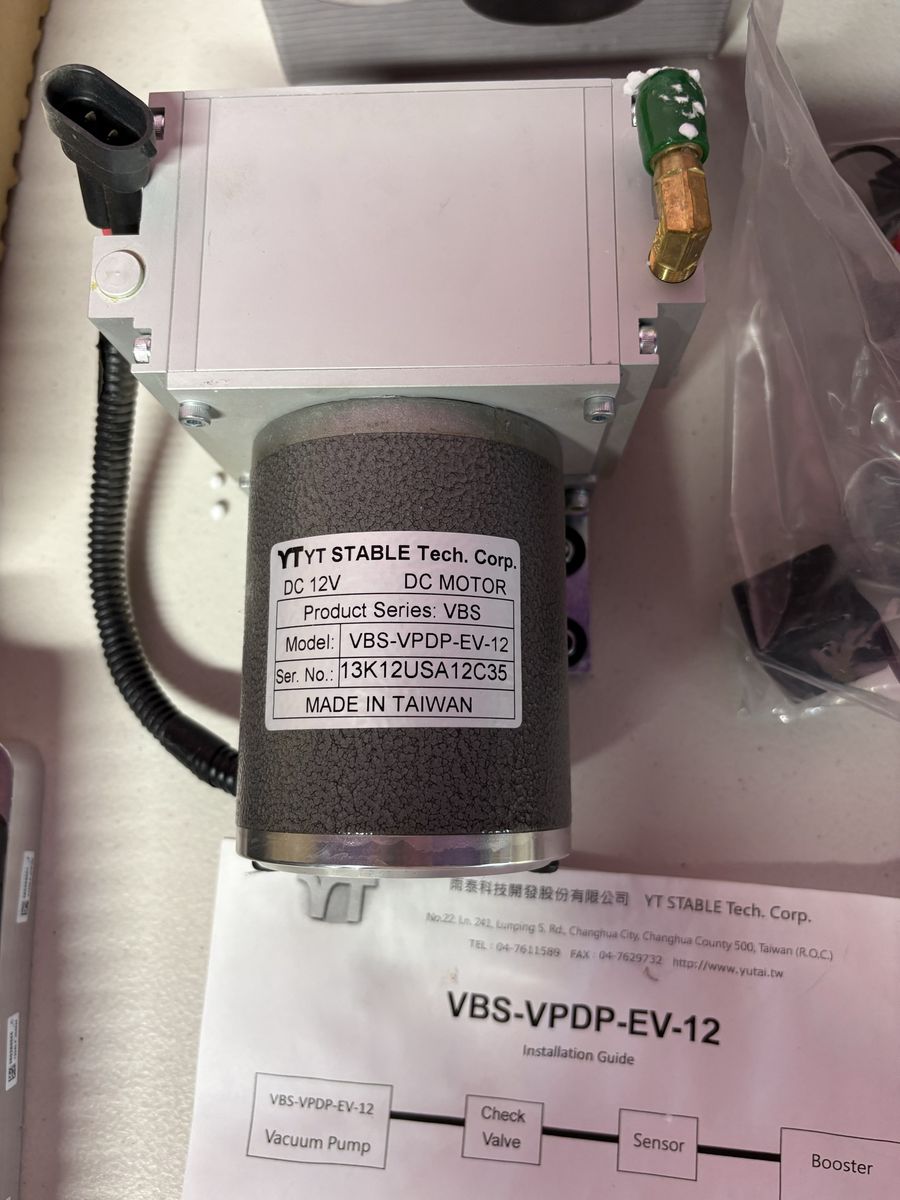

• YT Stable Tech VBS-VPDP-EV-12 electric vacuum pump • 12V DC motor • COMP Cams vacuum storage canister • Vacuum hose • Check valve, sensor, wiring and related installation parts • Original installation guide

MECHANICAL COMPONENTS:

• Motor mounting plate/bracket assembly shown in the photos • Custom coupling/hub and round adapter plate shown • Additional mounting brackets, bolts, washers and hardware

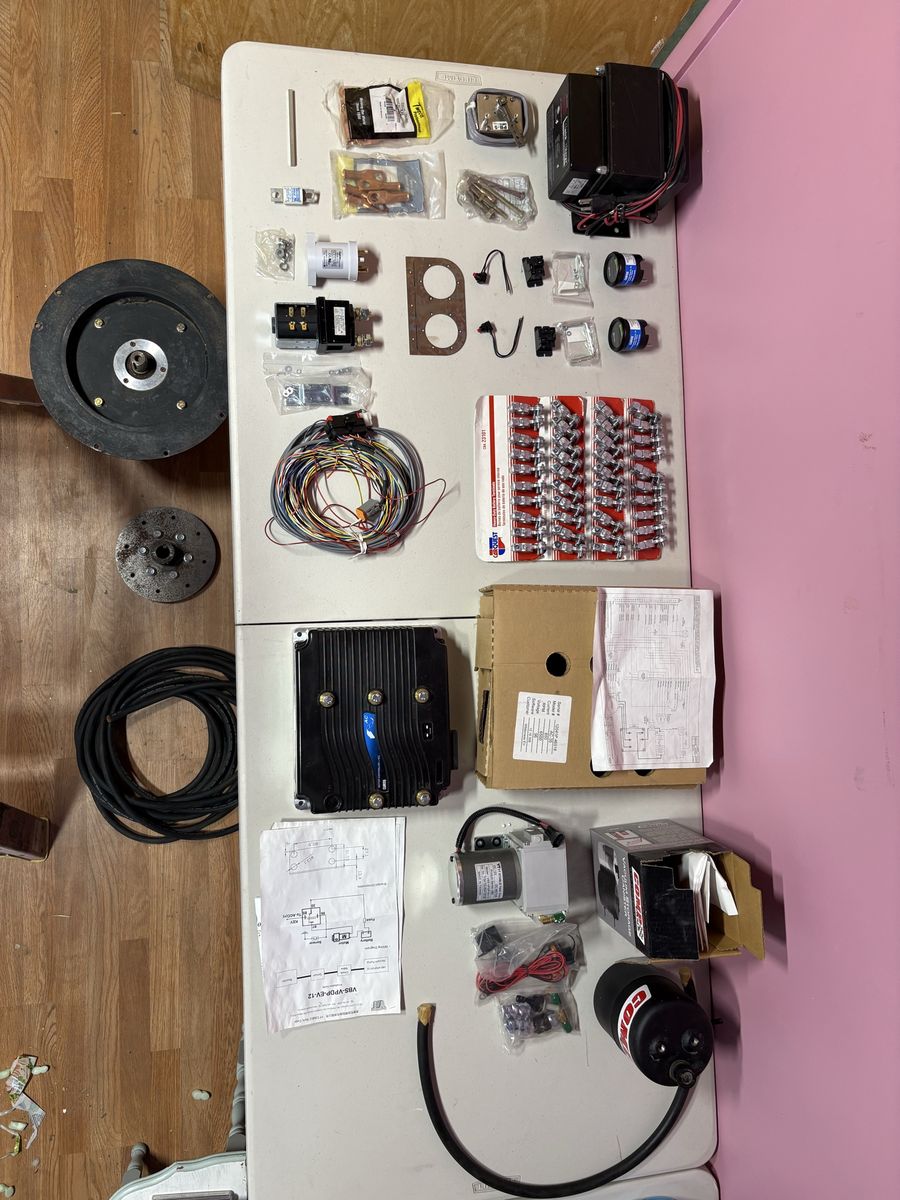

Everything shown in the photographs is included. No batteries, vehicle, transmission, tools or other components not shown are included.

CONDITION:

New old stock. The parts were purchased new for a conversion project but were never installed or used. Because the package has been in indoor storage for several years, some pieces have dust, minor storage marks, and light surface oxidation on certain unfinished metal parts. The system has not been powered or tested because there is no battery pack available.

Sold as-is with no current manufacturer warranty. Buyer is responsible for confirming compatibility with their vehicle, battery chemistry, battery voltage, transmission and intended application. The charger is configured for lead-acid, AGM or gel batteries and is not being represented as a lithium charger.

This is specialized high-voltage EV equipment. Installation, programming and testing should be completed by someone experienced with electric vehicle conversion systems. The motor and controller are a matched, programmed combination and are being offered together with the rest of the conversion components.

Pickup in Orem, Utah.
