"More Trailer For Your Money"

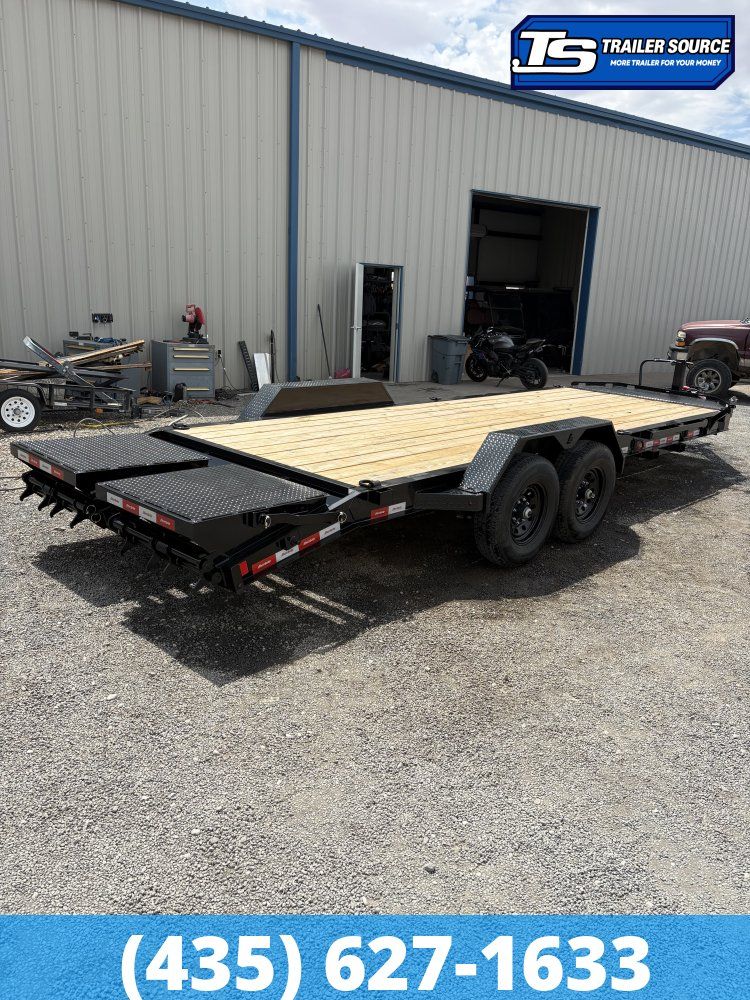

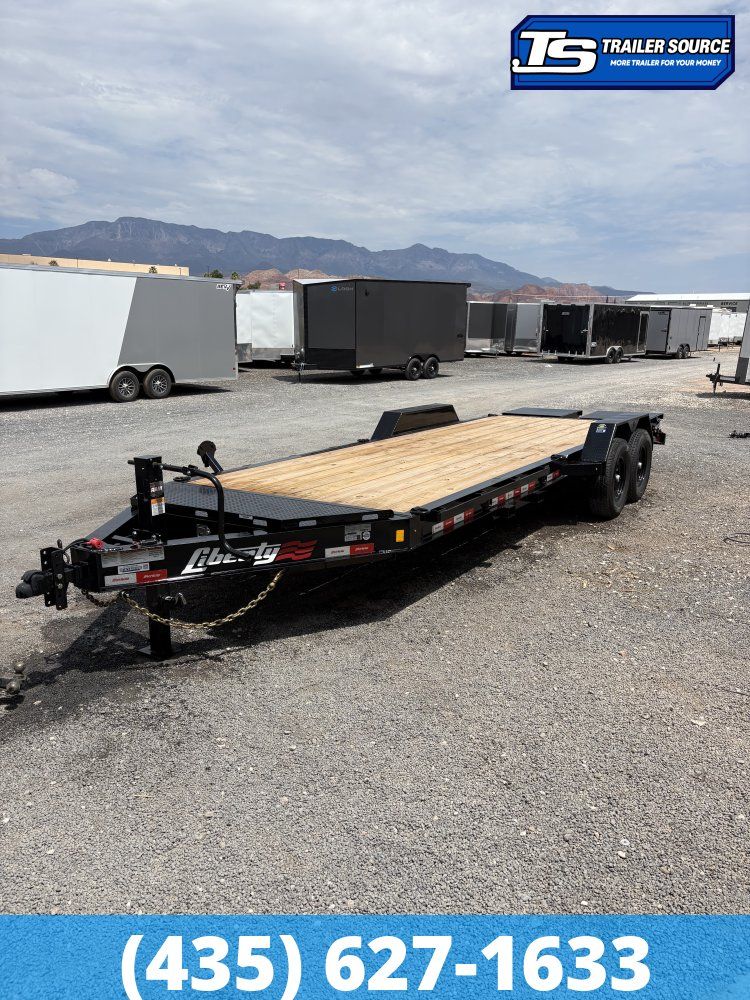

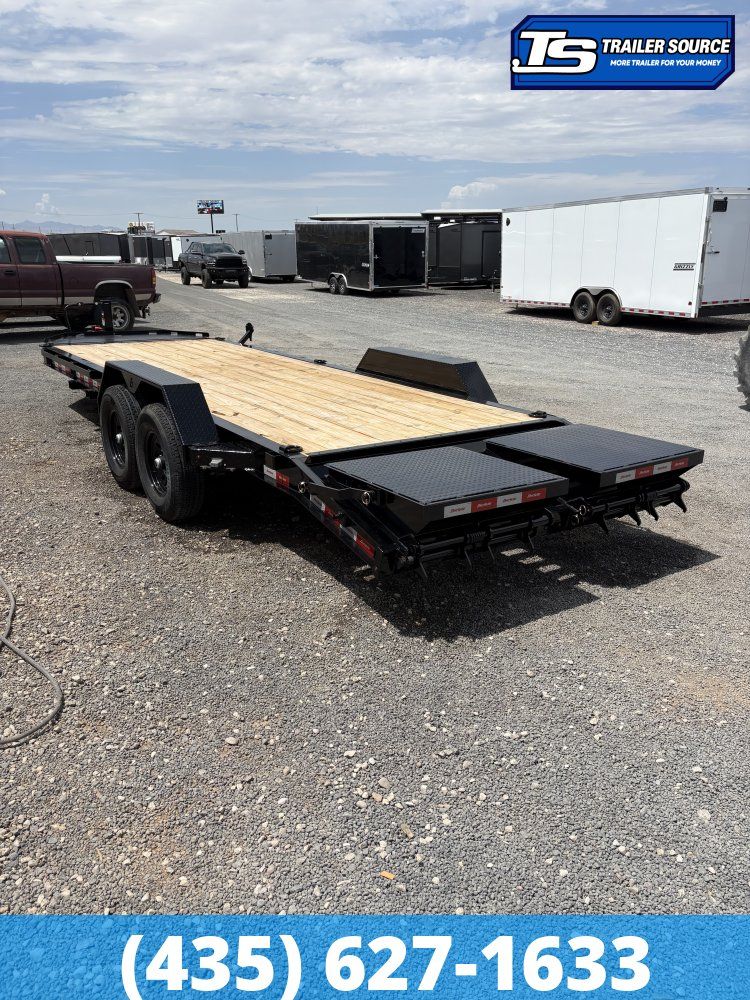

7 x 20 Liberty LE I-Beam 15.4K Equipment Trailer – Ready To Work!

The Liberty LE I-Beam Equipment Trailer is the "big brother" to the channel frame series. By upgrading the main chassis to a wide-flange I-beam, Liberty has created a trailer designed for the high-stress environment of hauling heavy tracked machinery.

It is the preferred choice for operators who need maximum frame rigidity to prevent the "bowing" or "springing" that occurs when loading 10,000 lb+ skid steers and excavators.

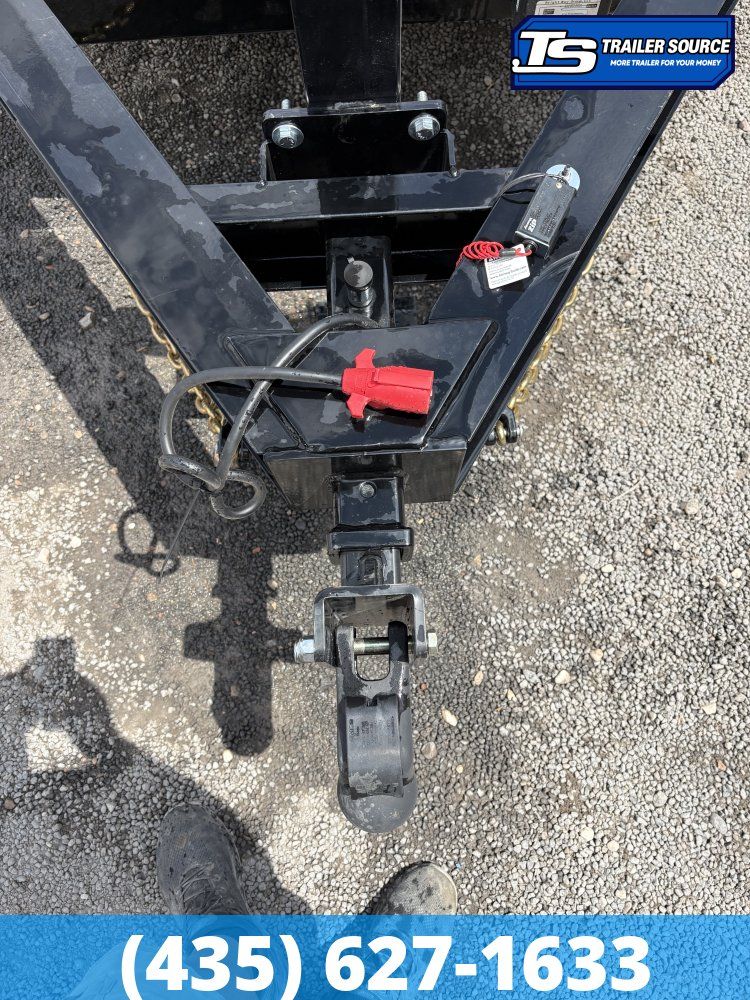

FEATURES OF THE LIBERTY LE I-BEAM****8" Wide-Flange I-Beam Main Frame The foundational upgrade for this model is the 8" I-beam chassis and matching I-beam tongue.

• The Benefit: I-beams offer significantly more vertical strength than channel or tube. This prevents the trailer frame from flexing or permanently "crowning" when hauling heavy concentrated loads, ensuring the trailer tracks perfectly straight behind your truck for its entire lifespan.

12" On-Center Crossmember Spacing Liberty tightens the subframe construction on the I-beam models to 12" on-center using 3" structural channel.

• The Benefit: Most trailers use 16" or 24" spacing. By placing crossmembers every 12 inches, the floor is reinforced to handle the high "point loads" of steel-tracked excavators or small rollers without the wood decking sagging or breaking between the steel.

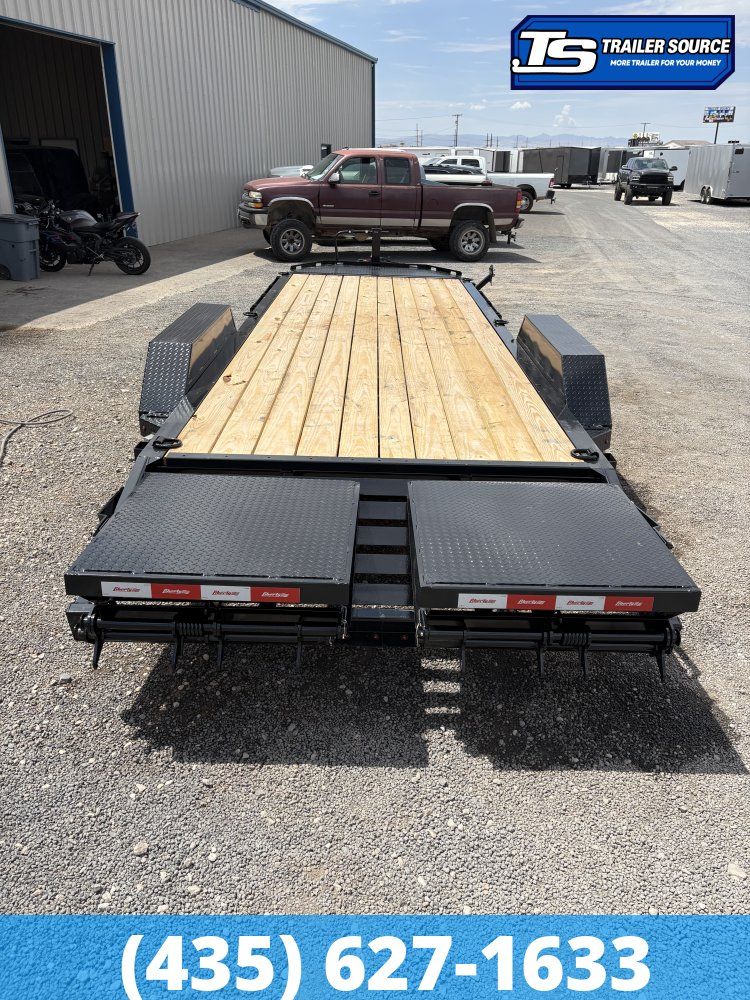

3' Cleated Self-Cleaning Dovetail The I-beam model features an extended 3' dovetail with aggressive traction cleats.

• The Benefit: The longer dovetail creates an even shallower loading angle than the channel version. The open-cleat design allows mud, snow, and gravel to fall through the trailer rather than building up on the deck, providing a safer, non-slip surface for loading.

14,000 lb GVWR (Dual 7k Dexter® Axles) Standard equipment includes two 7,000 lb Dexter EZ-Lube axles with electric brakes on all wheels.

• The Benefit: Dexter is the most trusted name in the industry for parts and reliability. This 14k rating provides a massive 11,000 lb+ usable payload, making it the perfect legal match for the most popular mid-to-large size skid steers on the market.

Sherwin-Williams Powdura® Powder Coat Like all premium Liberty trailers, the I-beam frame is sandblasted and acid-washed before receiving a Sherwin-Williams finish.

• The Benefit: I-beam trailers often have many "nooks and crannies" where rust can hide. The powder coating process ensures total coverage and a hard-shell finish that resists the heavy rock chips and site debris common in excavation work.

Rub Rail & Stake Pockets with Pipe Spools The side rail system includes a full-length rub rail, stake pockets, and pipe spools between the pockets.

• The Benefit: This is a "driver-friendly" tie-down system. The pipe spools provide a smooth radius for winch straps to prevent fraying, while the rub rail protects your straps and chains from side impacts, giving you endless securement options for any load.

THE I-BEAM IRONCLAD****WHY THE LIBERTY LE I-BEAM IS THE ULTIMATE EQUIPMENT HAULER

When you're moving 5 tons of machinery every day, a standard frame isn't enough. The Liberty LE I-Beam is over-engineered to be the last equipment trailer you’ll ever need to buy.

THE FRAME: 8" Wide-Flange I-Beam

• We built it like a bridge. Our 8" I-beam frame provides the ultimate in vertical strength, eliminating the frame-flex and bowing that kills lesser trailers.

THE FLOOR: 12" On-Center Support

• Built for tracks. With crossmembers spaced every 12 inches, our floor is a "tank" designed to handle the concentrated weight of excavators and skid steers without sagging.

THE LOADING: 3' Cleated Dovetail & Spring-Assist Ramps

• Safety and ease of use combined. Our extended cleated dovetail offers maximum traction, while the spring-assisted "Mega" ramps make loading a breeze—even at the end of a long work day.

THE REPUTATION: Dexter Axles & Powder Coat

• No compromises. With industry-leading Dexter axles and a premium Sherwin-Williams powder coat, this trailer is designed to look better and work harder for years to come.

IDEAL USERS FOR THIS TRAILERThe Liberty LE I-Beam is the premier choice for heavy excavation contractors, paving crews, and equipment rental yards. It is specifically designed for those hauling heavy tracked skid steers, mid-sized excavators, and industrial rollers who require a rigid, high-capacity frame.
